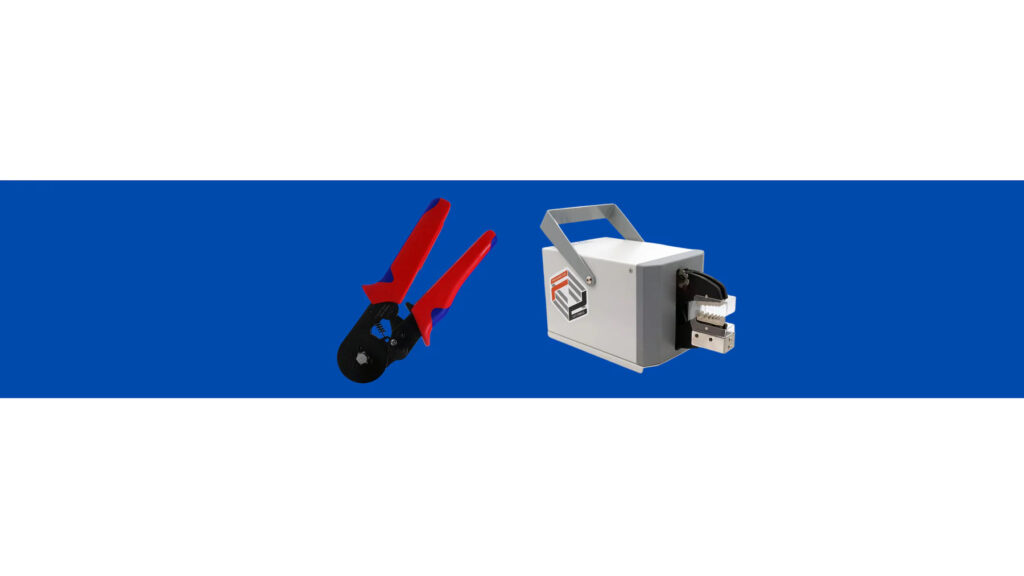

Manual crimping uses handheld tools operated by technicians, while automated crimping employs computer-controlled machines for high-volume production. The choice between these methods depends on your production volume, precision requirements, budget, and quality standards. Understanding the differences helps you select the most cost-effective approach for your specific wire termination needs.
What is Crimping?
Crimping is the process of joining two pieces of metal or other materials by deforming one or both to create a secure mechanical connection. In electrical applications, crimping attaches connectors, terminals, or splices to wire ends through controlled compression that creates both electrical continuity and mechanical strength.
Manual crimping involves handheld tools operated by skilled technicians, while automated crimping uses computer-controlled machinery to perform consistent, repeatable connections at high speeds.
Key Differences Between Manual and Automated Crimping
| Feature | Manual Crimping | Automated Crimping |
|---|---|---|
| Setup Time | 2-5 minutes | 30-60 minutes |
| Production Speed | 20-100 pieces/hour | 500-3,000+ pieces/hour |
| Initial Cost | $50-$2,500 | $15,000-$500,000+ |
| Precision Level | ±0.002-0.005″ | ±0.001-0.002″ |
| Operator Skill | Moderate to high | Low to moderate |
| Quality Consistency | Variable (operator dependent) | Excellent (machine controlled) |
| Flexibility | High (quick changeovers) | Moderate (programming required) |
| Quality Control | Visual inspection | Integrated sensors/monitoring |
Manual Crimping: Complete Overview
How Manual Crimping Works
Manual crimping relies on handheld tools that apply controlled pressure to deform connectors onto wire conductors. The process involves:
- Wire preparation: Stripping insulation to precise lengths
- Connector placement: Positioning terminal or connector properly
- Tool selection: Choosing appropriate die set for connector type
- Crimping action: Applying consistent pressure through tool handles
- Quality inspection: Visual and pull-test verification
Manual Crimping Applications
Best suited for:
- Prototype development and testing
- Small batch production (under 500 pieces)
- Field repairs and maintenance
- Custom or specialized connectors
- Mixed connector types in single run
- Research and development work
Industry examples:
- Aerospace harness repairs
- Custom audio/video installations
- Laboratory equipment assembly
- Automotive prototype wiring
- Marine electrical systems
Manual Crimping Advantages
Cost Effectiveness for Low Volumes
- Low initial equipment investment ($50-$2,500)
- No programming or setup software required
- Minimal floor space requirements
- Quick return on investment for small batches
Maximum Flexibility
- Instant changeover between connector types
- No programming time between jobs
- Easy handling of mixed assemblies
- Portable tools for field work
Operator Control
- Direct tactile feedback during crimping
- Immediate visual quality assessment
- Ability to adjust technique for difficult connections
- Real-time problem solving
Manual Crimping Disadvantages
Consistency Challenges
- Quality depends on operator skill and fatigue
- Variation in crimp force application
- Potential for human error
- Training requirements for new operators
Production Limitations
- Low throughput rates (20-100 pieces/hour)
- Operator fatigue affects quality over time
- Limited to single connections per cycle
- Higher labor costs for large volumes
⚠️ Safety Warning: Manual crimping requires proper training on tool operation and safety procedures. Always wear safety glasses and follow lockout/tagout procedures when working with electrical systems.
Automated Crimping: Complete Overview
How Automated Crimping Works
Automated crimping systems use computer-controlled machinery to perform precise, repeatable connections. The process includes:
- Wire feeding: Automatic wire measurement and cutting
- Strip length control: Precise insulation removal
- Connector insertion: Automated terminal placement
- Crimp execution: Pneumatic or servo-driven compression
- Quality monitoring: Force/distance monitoring with data logging
- Part ejection: Automatic finished part removal
Automated Crimping Applications
Optimal for:
- High-volume production (1,000+ pieces per day)
- Consistent quality requirements
- Complex multi-conductor assemblies
- Tight tolerance applications
- Statistical process control needs
- 24/7 production environments
Industry examples:
- Automotive harness manufacturing
- Telecommunications cable assembly
- Medical device production
- Consumer electronics manufacturing
- Industrial control panel assembly
Automated Crimping Advantages
Superior Consistency
- Programmable force and position control
- Eliminates operator variability
- Integrated quality monitoring
- Statistical process control capabilities
High Productivity
- Production rates of 500-3,000+ pieces/hour
- Multi-station processing capability
- Minimal operator intervention required
- 24/7 operation potential
Advanced Quality Control
- Real-time force/distance monitoring
- Automatic reject systems
- Data logging and traceability
- SPC integration capabilities
Automated Crimping Disadvantages
High Initial Investment
- Equipment costs from $15,000-$500,000+
- Programming and setup software
- Specialized tooling requirements
- Installation and training costs
Flexibility Limitations
- Setup time required for job changes
- Programming knowledge needed
- Limited adaptability to design changes
- Dedicated floor space requirements
Complexity Considerations
- Maintenance requires technical expertise
- Troubleshooting can be time-intensive
- Spare parts inventory requirements
- Dependence on technical support
Applications and Use Cases
When to Choose Manual Crimping
Low-Volume Production Scenarios
You should choose manual crimping when producing fewer than 500 pieces per day, working with prototype assemblies, or handling repair and maintenance tasks.
High-Mix Applications
Manual methods excel when working with multiple connector types within single assemblies, custom configurations, or frequently changing specifications.
Field Service Requirements
Portable manual tools are essential for on-site repairs, emergency maintenance, and applications where mobility is critical.
When to Choose Automated Crimping
High-Volume Manufacturing
Automated systems become cost-effective when producing 1,000+ pieces daily, requiring consistent quality levels, or operating multiple shifts.
Quality-Critical Applications
Choose automation for medical devices, aerospace applications, or any assembly requiring documented quality control and statistical process monitoring.
Labor Cost Optimization
Automated crimping reduces long-term labor costs in high-volume environments while improving worker safety and ergonomics.
Purpose and Benefits Analysis
Manual Crimping Benefits
Financial Advantages
- Lower capital equipment requirements
- Reduced training costs for basic operations
- Flexibility to handle diverse product mix
- Quick ROI for small-batch production
Operational Benefits
- Immediate setup and changeover capability
- Direct operator control and feedback
- Minimal maintenance requirements
- Portable solutions for field applications
Automated Crimping Benefits
Quality Improvements
- Consistent crimp force application
- Reduced scrap and rework rates
- Documented quality control processes
- Improved product reliability
Production Advantages
- Significantly higher throughput rates
- Reduced labor dependency
- 24/7 operational capability
- Integration with manufacturing systems
How to Choose the Right Crimping Method
Step-by-Step Selection Process
- Calculate Annual Volume Requirements
- Count total pieces produced yearly
- Factor in projected growth
- Consider seasonal variations
- Assess Quality Requirements
- Determine precision tolerances needed
- Evaluate documentation requirements
- Consider industry compliance standards
- Evaluate Financial Constraints
- Calculate initial investment budget
- Determine acceptable ROI timeframe
- Factor in ongoing operational costs
- Consider Operational Factors
- Available floor space
- Operator skill levels
- Maintenance capabilities
Decision-Making Framework
| Annual Volume | Recommended Method | Key Considerations |
|---|---|---|
| Under 1,000 pieces | Manual | Cost-effective, flexible setup |
| 1,000-10,000 pieces | Manual or Semi-Auto | Depends on quality requirements |
| 10,000-50,000 pieces | Automated | ROI justifies investment |
| Over 50,000 pieces | Fully Automated | Maximum efficiency required |
Expert Selection Criteria
Choose Manual Crimping When:
- Annual production under 10,000 pieces
- High product mix with frequent changes
- Limited capital budget available
- Field service applications required
- Operator expertise readily available
Choose Automated Crimping When:
- Annual production exceeds 25,000 pieces
- Consistent quality critical to application
- Labor costs significant factor
- Documentation and traceability required
- Multiple shift operations planned
💡 Expert Tip: Consider semi-automated solutions for mid-range volumes (5,000-25,000 pieces annually). These systems offer improved consistency over manual methods while maintaining setup flexibility at moderate cost increases.
Safety Considerations and Compliance
Manual Crimping Safety Requirements
Personal Protective Equipment (PPE)
- Safety glasses (ANSI Z87.1 compliant)
- Cut-resistant gloves when handling sharp wires
- Anti-static wrist straps for sensitive components
Tool Maintenance Standards
- Regular calibration per manufacturer specifications
- Inspection of dies for wear and damage
- Proper tool storage to prevent damage
Automated Crimping Safety Standards
Machine Safety Compliance
- OSHA machine guarding requirements
- Emergency stop systems (NFPA 79)
- Lockout/tagout procedures (29 CFR 1910.147)
- Light curtains and safety interlocks
Quality Assurance Standards
- IPC/WHMA-A-620 wire and cable assemblies
- ISO 9001 quality management systems
- Statistical process control implementation
- Traceability documentation requirements
⚠️ Safety Warning: Always follow manufacturer specifications for crimp force settings and die selection. Improper crimping can result in connection failure, electrical hazards, or fire risks.
Troubleshooting Common Issues
Manual Crimping Problems and Solutions
Inconsistent Crimp Quality
- Problem: Variable connection resistance
- Solution: Implement operator training and calibrated pull-testing
- Prevention: Regular tool calibration and technique audits
Tool Wear Issues
- Problem: Dies becoming worn or damaged
- Solution: Establish preventive maintenance schedule
- Prevention: Proper tool storage and usage training
Automated Crimping Problems and Solutions
Machine Setup Difficulties
- Problem: Incorrect force/position settings
- Solution: Consult manufacturer specifications and recalibrate
- Prevention: Maintain detailed setup documentation
Quality Control Failures
- Problem: High rejection rates
- Solution: Analyze force/distance curves and adjust parameters
- Prevention: Regular preventive maintenance and calibration
Quick Reference Guide
Manual Crimping Checklist
- ☐ Select appropriate die for connector type
- ☐ Verify wire strip length (typically 0.125″-0.250″)
- ☐ Position connector squarely in tool
- ☐ Apply steady, complete compression
- ☐ Perform pull test (typically 10-50 lbs force)
- ☐ Visual inspection for proper crimp formation
Automated Crimping Setup Checklist
- ☐ Load correct program for connector type
- ☐ Verify tool/die installation
- ☐ Set force and position parameters
- ☐ Run sample pieces for quality verification
- ☐ Configure quality monitoring limits
- ☐ Document setup parameters for repeatability
Professional Recommendations
For small-scale operations (under 5,000 pieces annually), manual crimping provides the most cost-effective solution with adequate quality control through proper training and procedures.
For medium-scale production (5,000-25,000 pieces), consider semi-automated systems that combine manual flexibility with improved consistency.
For high-volume manufacturing (over 25,000 pieces), fully automated systems deliver superior ROI through consistent quality, reduced labor costs, and integrated process control.
Certification Requirements: Operators performing critical crimping applications should receive IPC-A-620 training and certification to ensure compliance with industry quality standards.
Frequently Asked Questions
What makes manual crimping different from automated crimping in terms of quality?
Manual crimping quality depends on operator skill and consistency, while automated crimping provides repeatable force application and integrated quality monitoring. Automated systems typically achieve tighter tolerances (±0.001-0.002″) compared to manual methods (±0.002-0.005″).
How much does it cost to switch from manual to automated crimping?
Initial investment for automated crimping ranges from $15,000 for basic semi-automatic systems to $500,000+ for fully automated production lines. ROI typically occurs within 12-24 months for high-volume applications exceeding 25,000 pieces annually.
What training is required for manual vs automated crimping operators?
Manual crimping requires 8-16 hours of basic training plus ongoing skill development. Automated systems need 16-40 hours of initial training covering programming, setup, and troubleshooting, but require less ongoing skill maintenance.
Can automated crimping handle the same connector types as manual methods?
Most standard connectors can be automated, but custom or specialized connectors may require manual methods. Automated systems excel with high-volume standard connectors but may lack flexibility for unique applications.
What maintenance is required for each crimping method?
Manual tools require basic cleaning, calibration, and die inspection every 3-6 months. Automated systems need daily cleaning, weekly calibration checks, and monthly preventive maintenance including pneumatic system service and software updates.
How do you ensure quality control with manual crimping?
Implement operator training, regular tool calibration, statistical sampling with pull tests, visual inspection standards, and documentation procedures. Consider IPC-A-620 certification for critical applications.
When should you upgrade from manual to automated crimping?
Upgrade when annual production exceeds 10,000 pieces, quality consistency becomes critical, labor costs become significant, or documentation requirements mandate automated monitoring and traceability.
Bottom Line: Choose manual crimping for low-volume, high-mix applications under 10,000 pieces annually where flexibility and low initial cost are priorities. Select automated crimping for high-volume production over 25,000 pieces where consistent quality, reduced labor costs, and integrated process control justify the higher investment. Consider your specific volume, quality, and budget requirements to make the optimal decision for your application.
