Conductor size
Give the wire cross-section in mm² or AWG and describe the conductor construction. Use the selected terminal’s wire-range table rather than insulation colour alone.
Vinyl-Insulated Terminals Manufacturer
Source vinyl-insulated terminals from TONFUL Electric for OEM assembly and wholesale supply. Explore ring, fork, pin, blade, hook, spade, bullet and butt-connector families, then confirm the exact wire range and connection dimensions for your selected model.

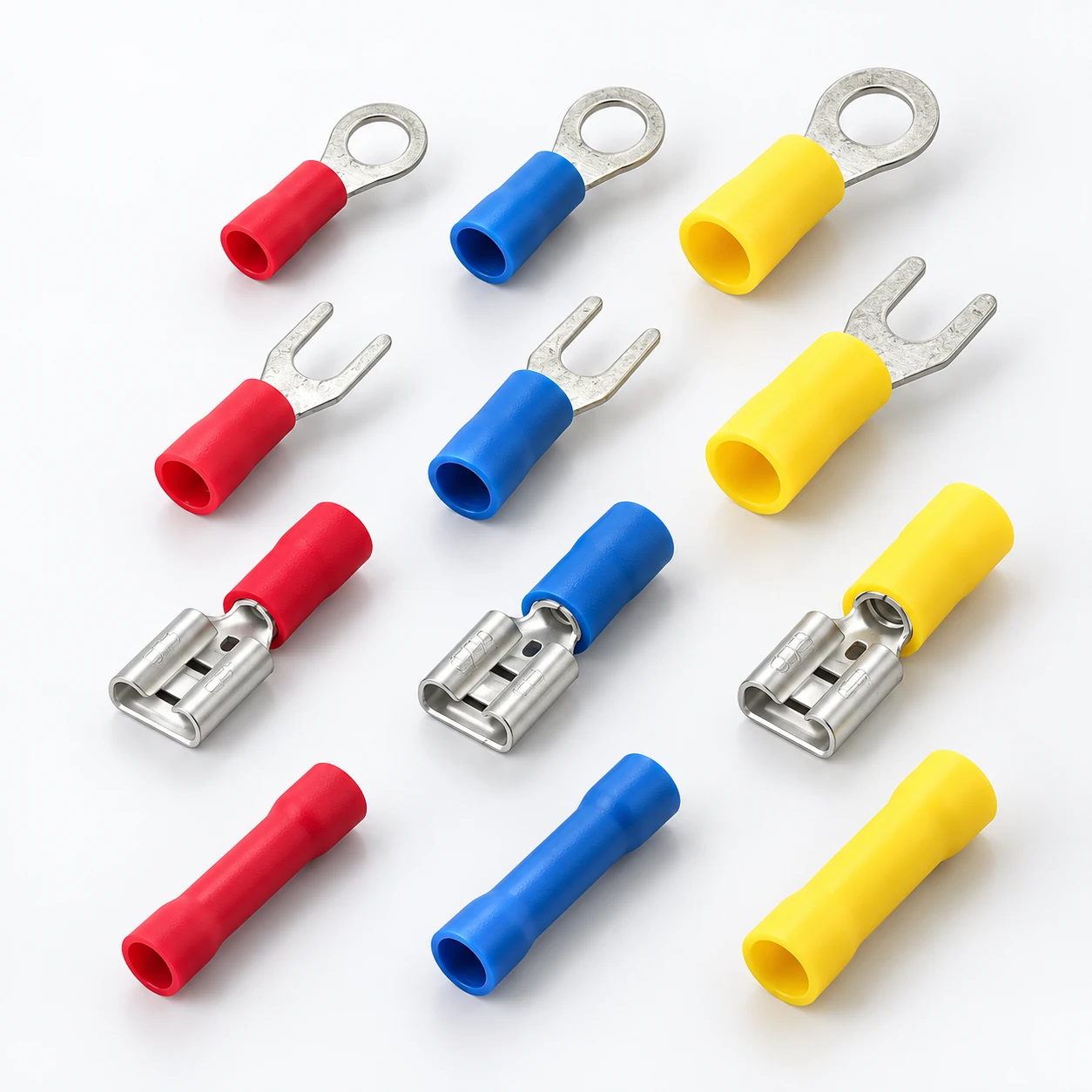

Vinyl-Insulated Terminal Product Series
All 13 product families from our existing two-page catalogue, together in one list.

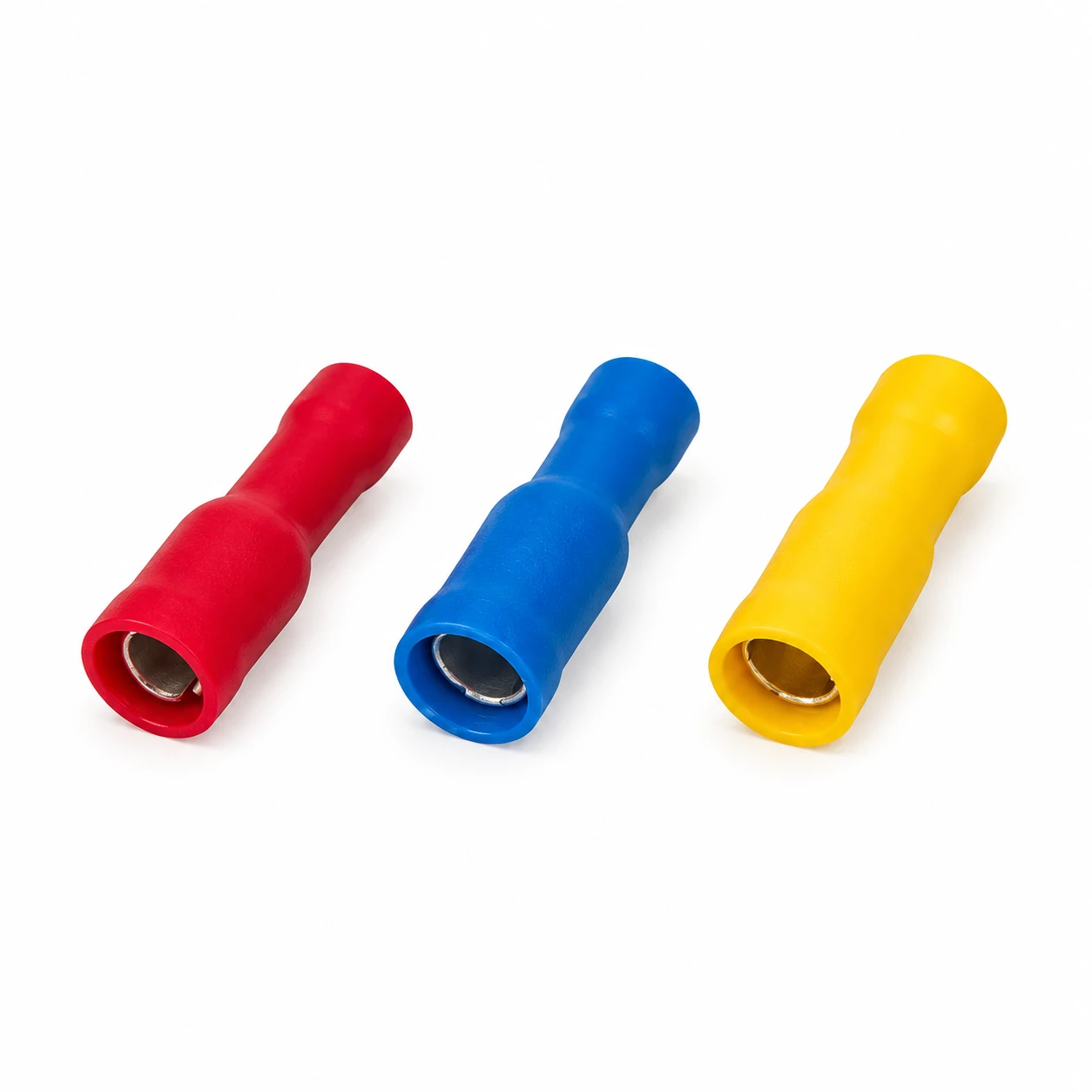

Bullet Female Insulated Terminal
FRD Series

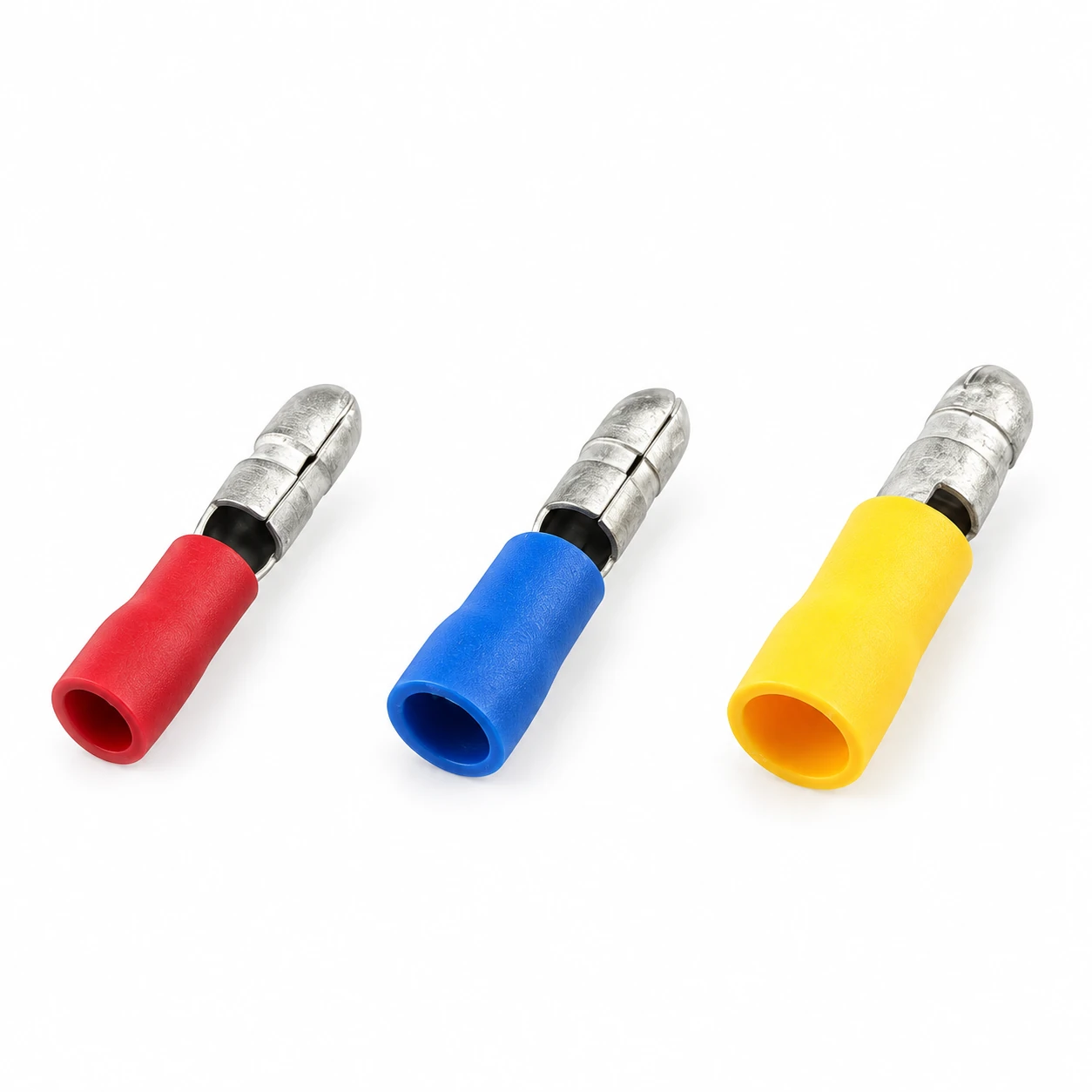

Bullet Male Insulated Terminal
MPD Series

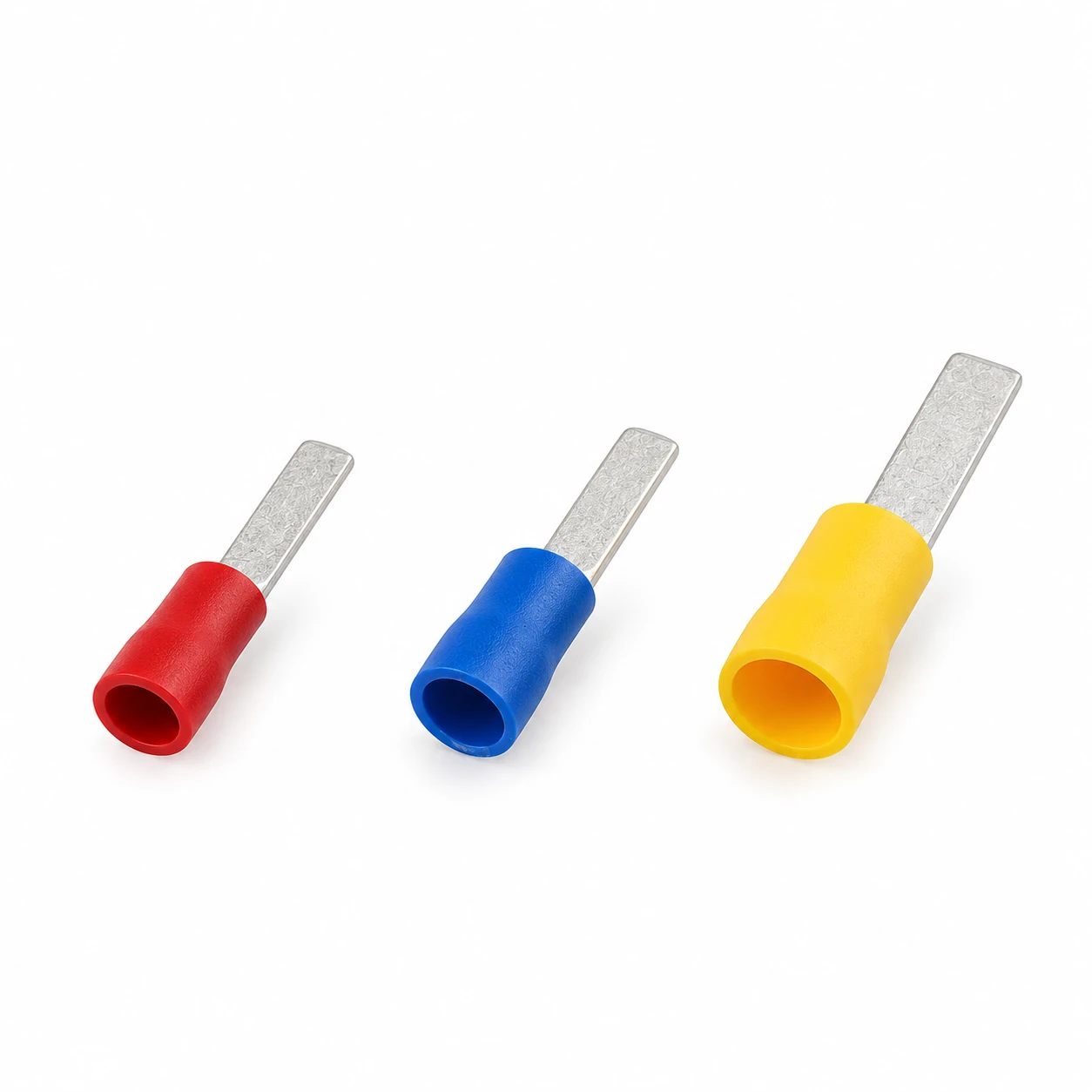

Chip Insulated Terminal
DBV Series

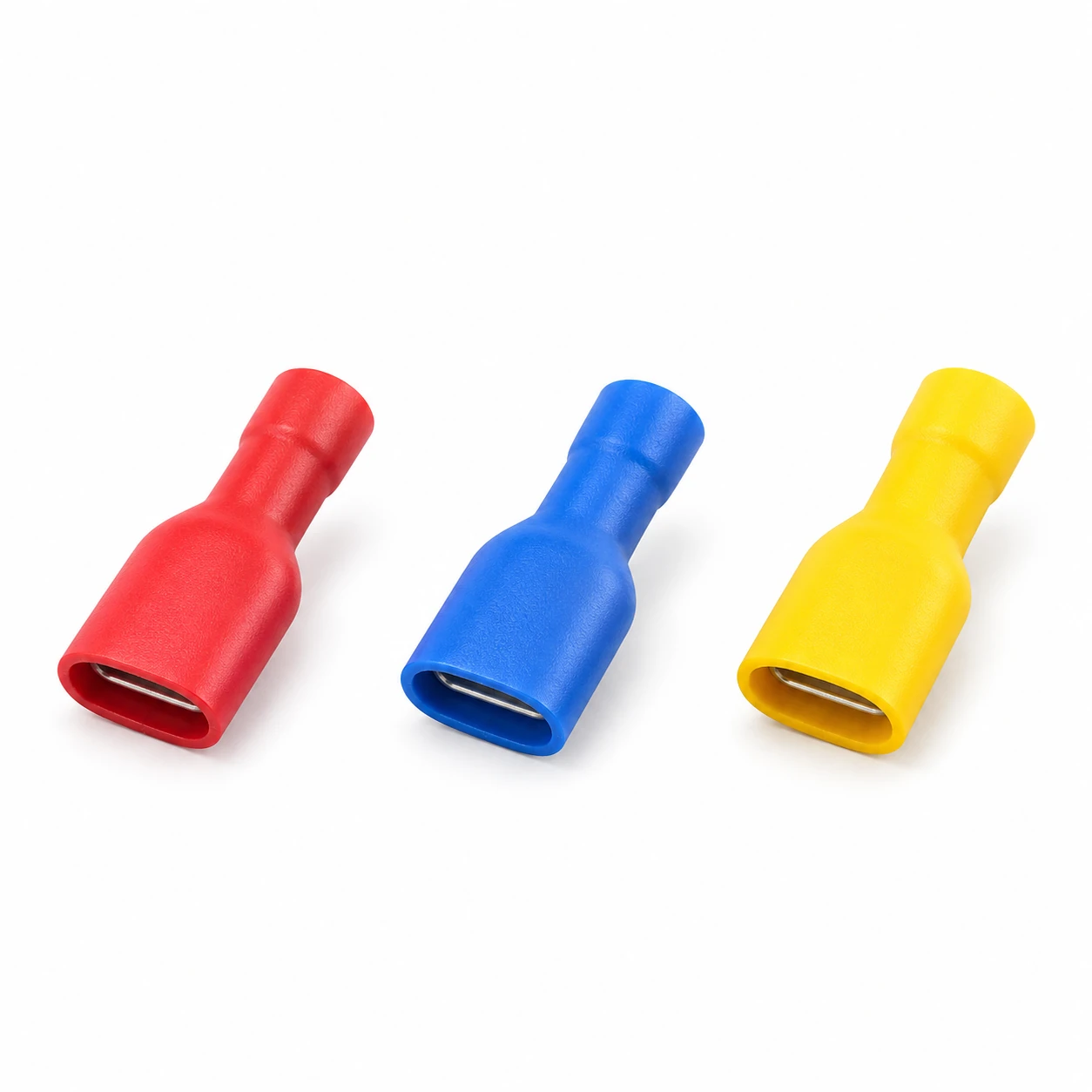

Female Fully-Insulated Terminal
FDFD Series

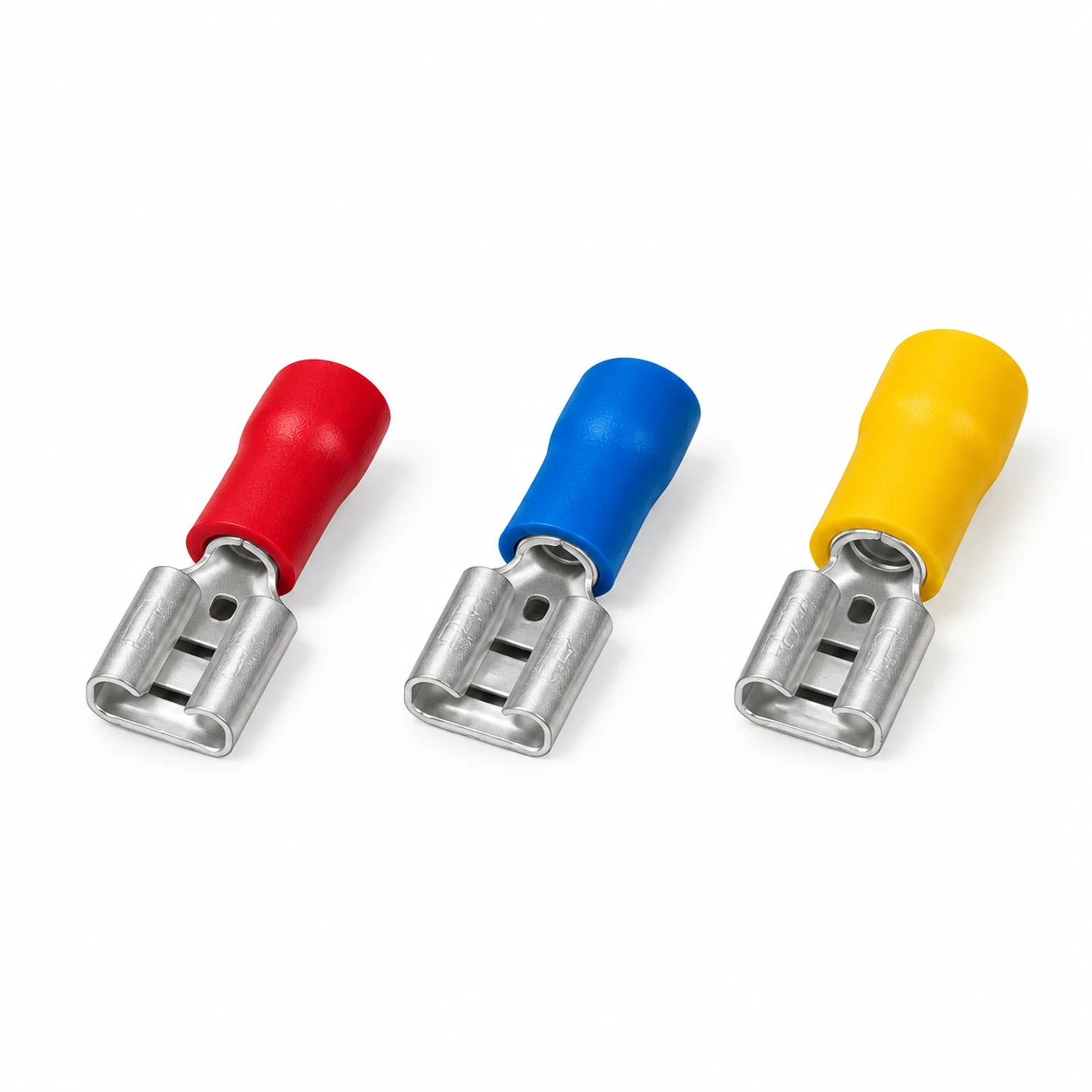

Female Insulated Terminal
FDD Series

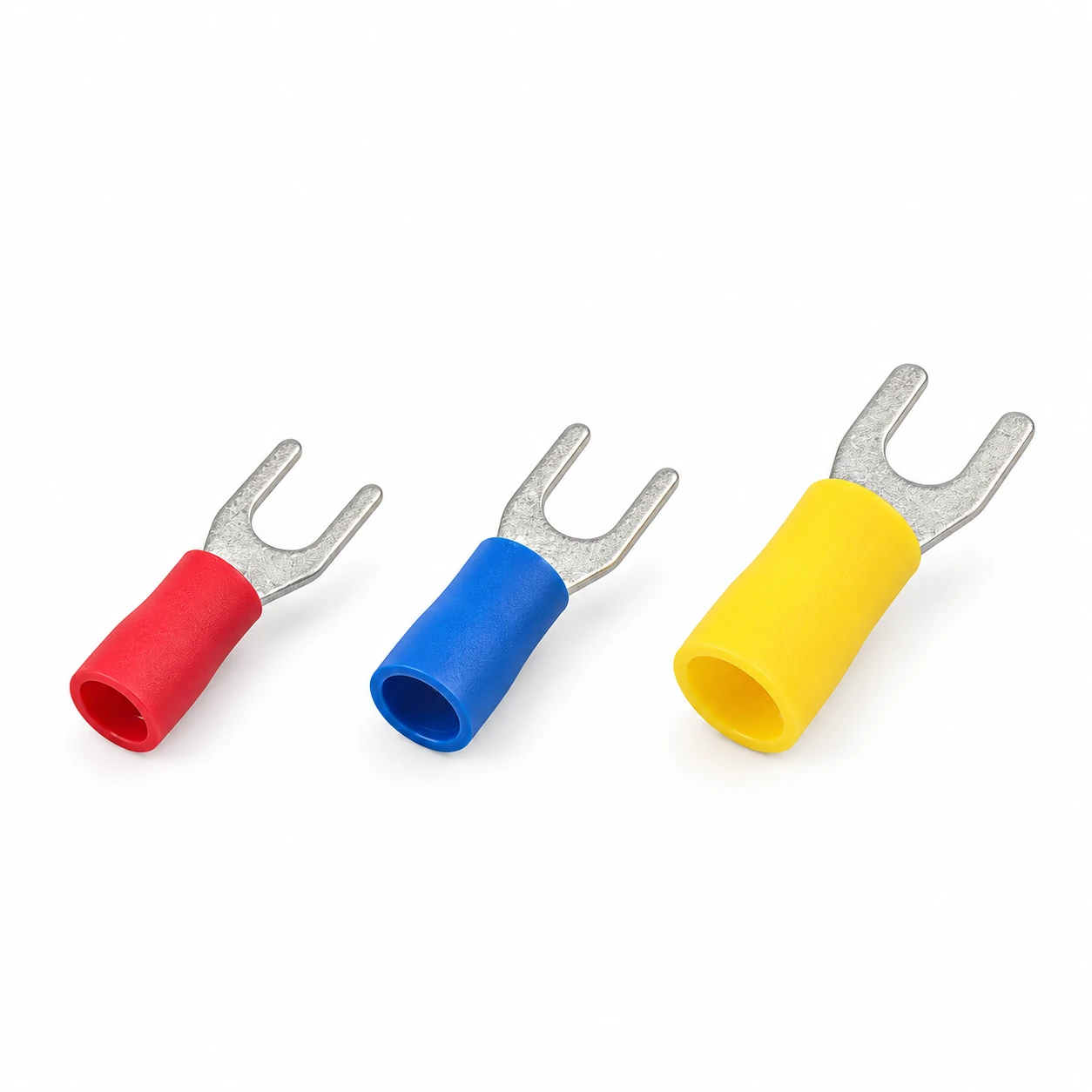

Fork Insulated Terminal
SV Series

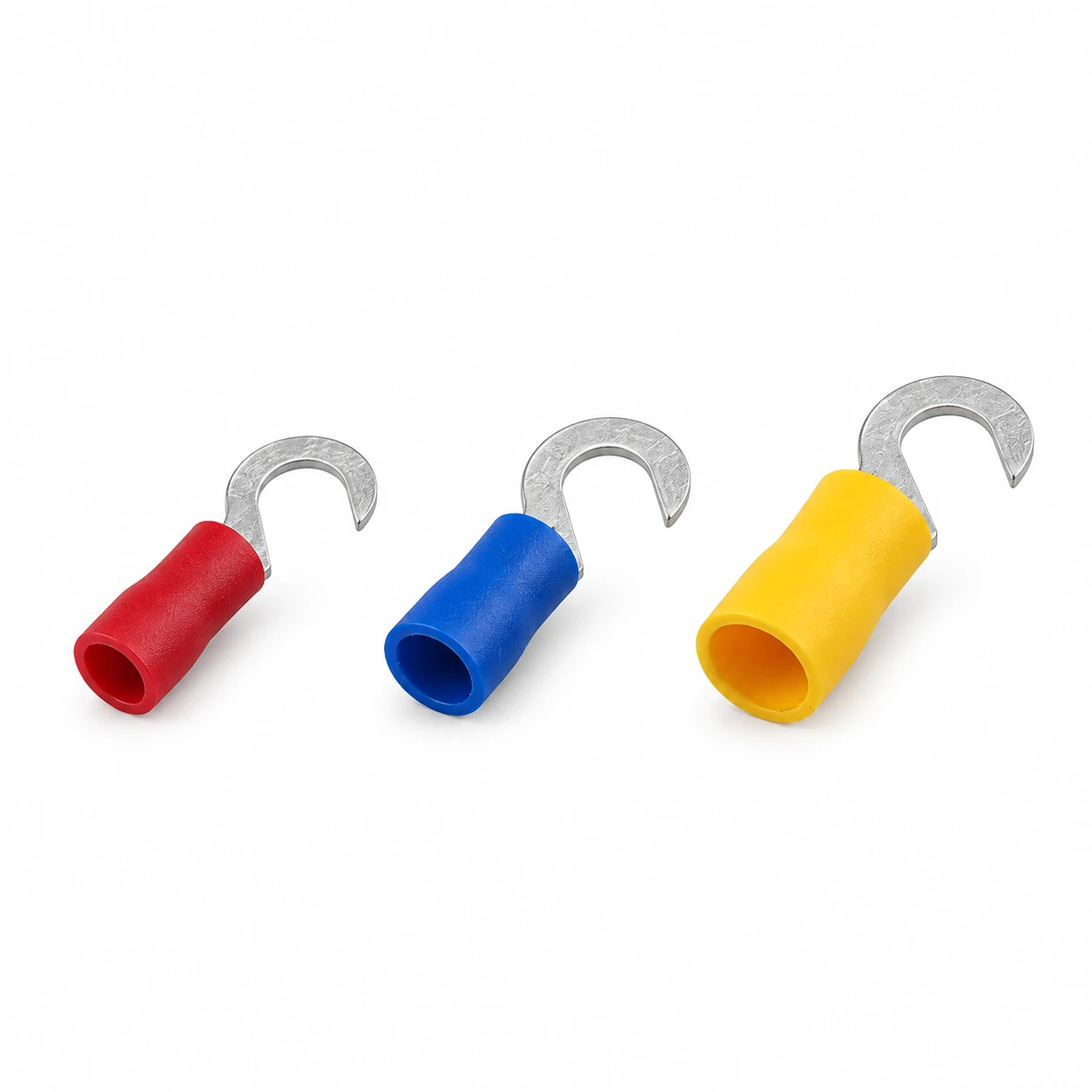

Hook Insulated Terminal
HV Series

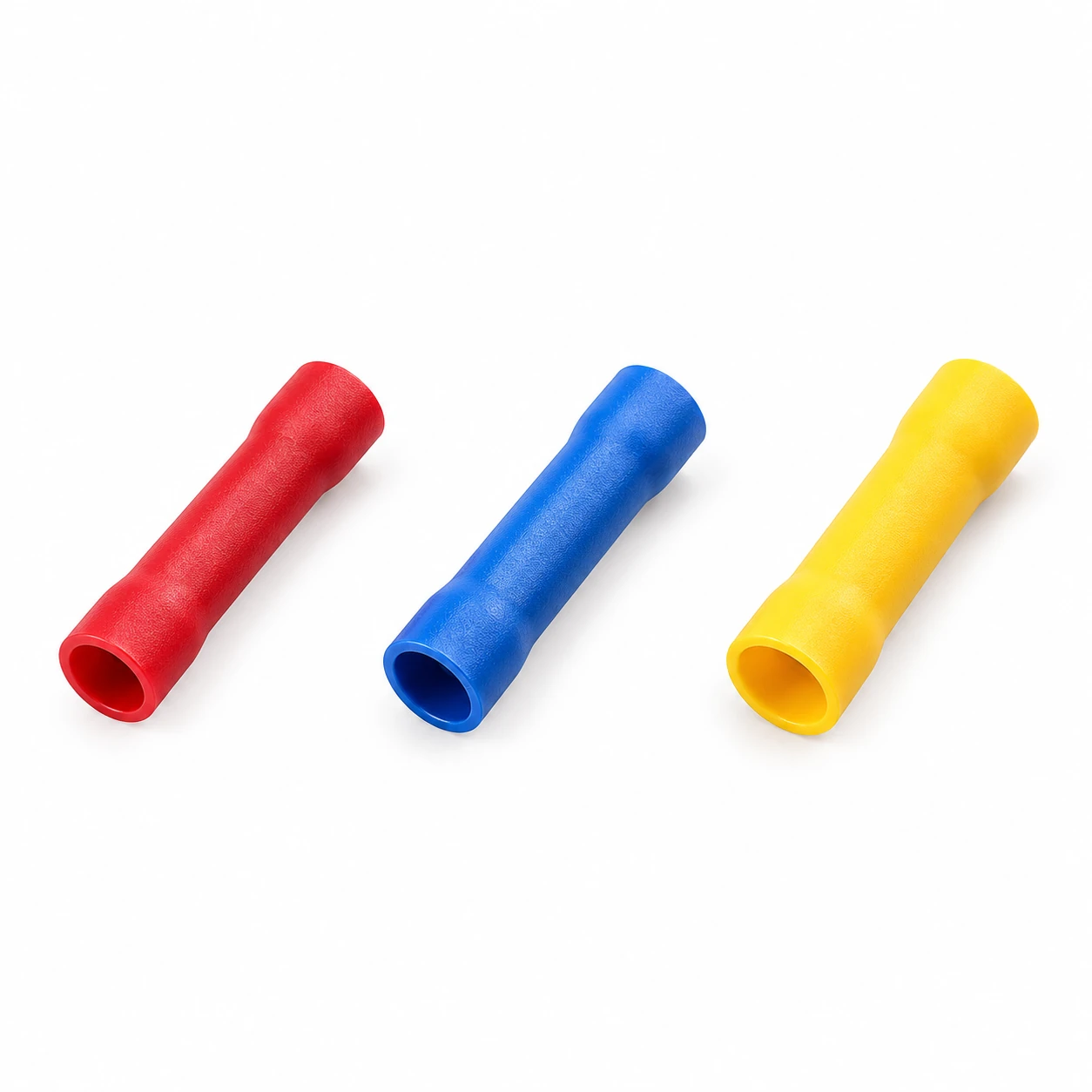

Insulated Butt Connector
BV Series
Locking Fork Insulated Terminal
LSV Series

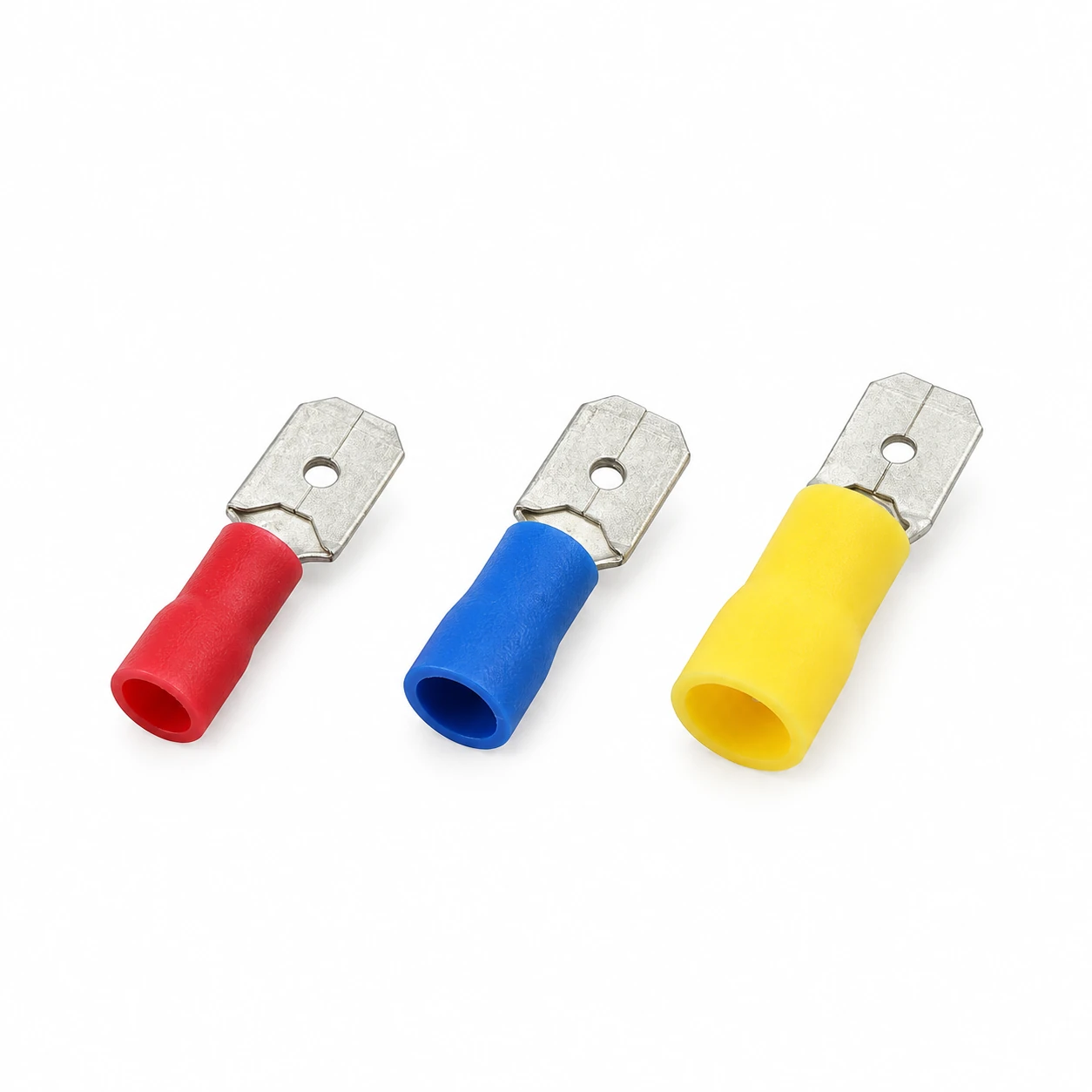

Male Insulated Terminal
MDD Series

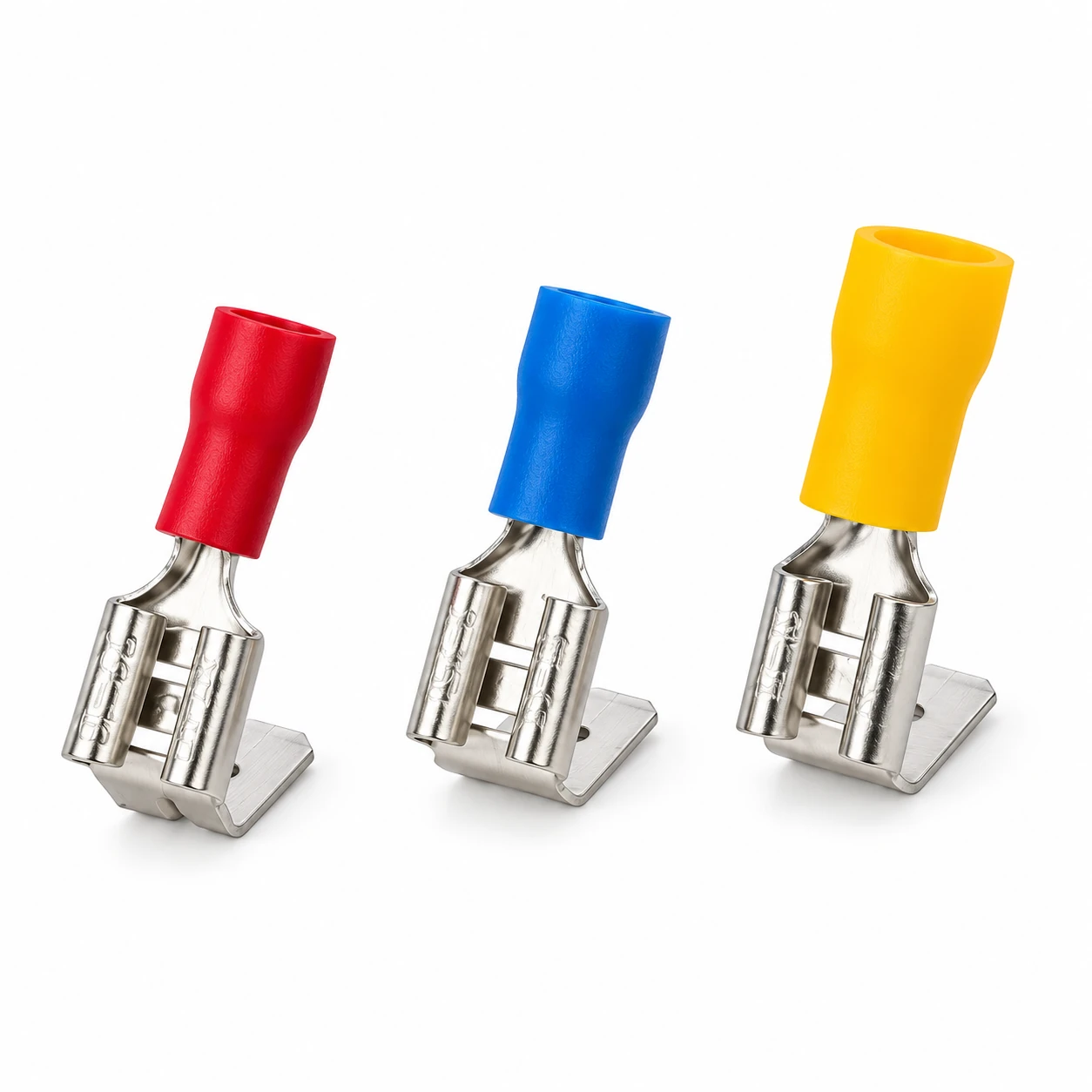

Piggy Back Insulated Terminal
PBDD Series

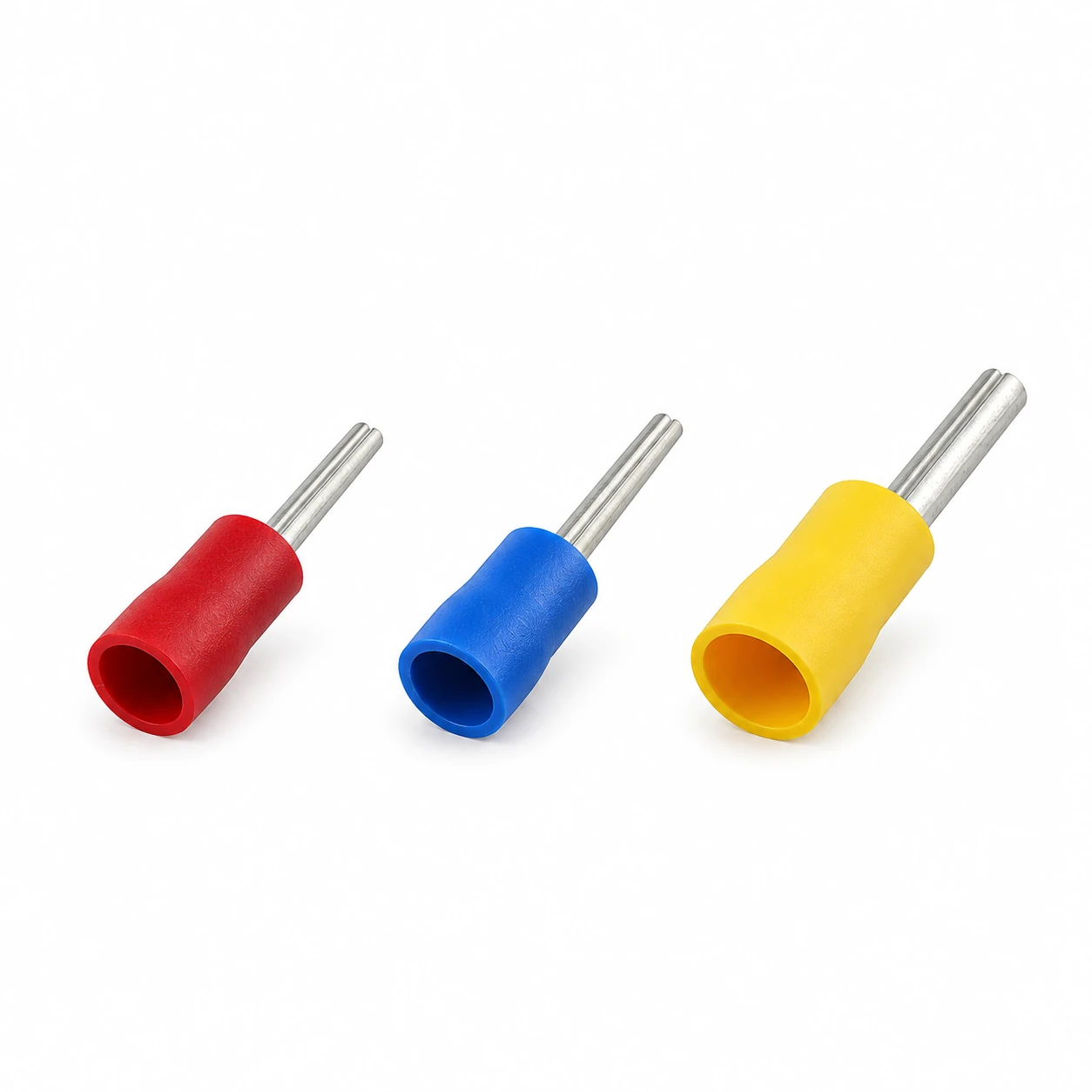

Pin Insulated Terminal
PTV Series

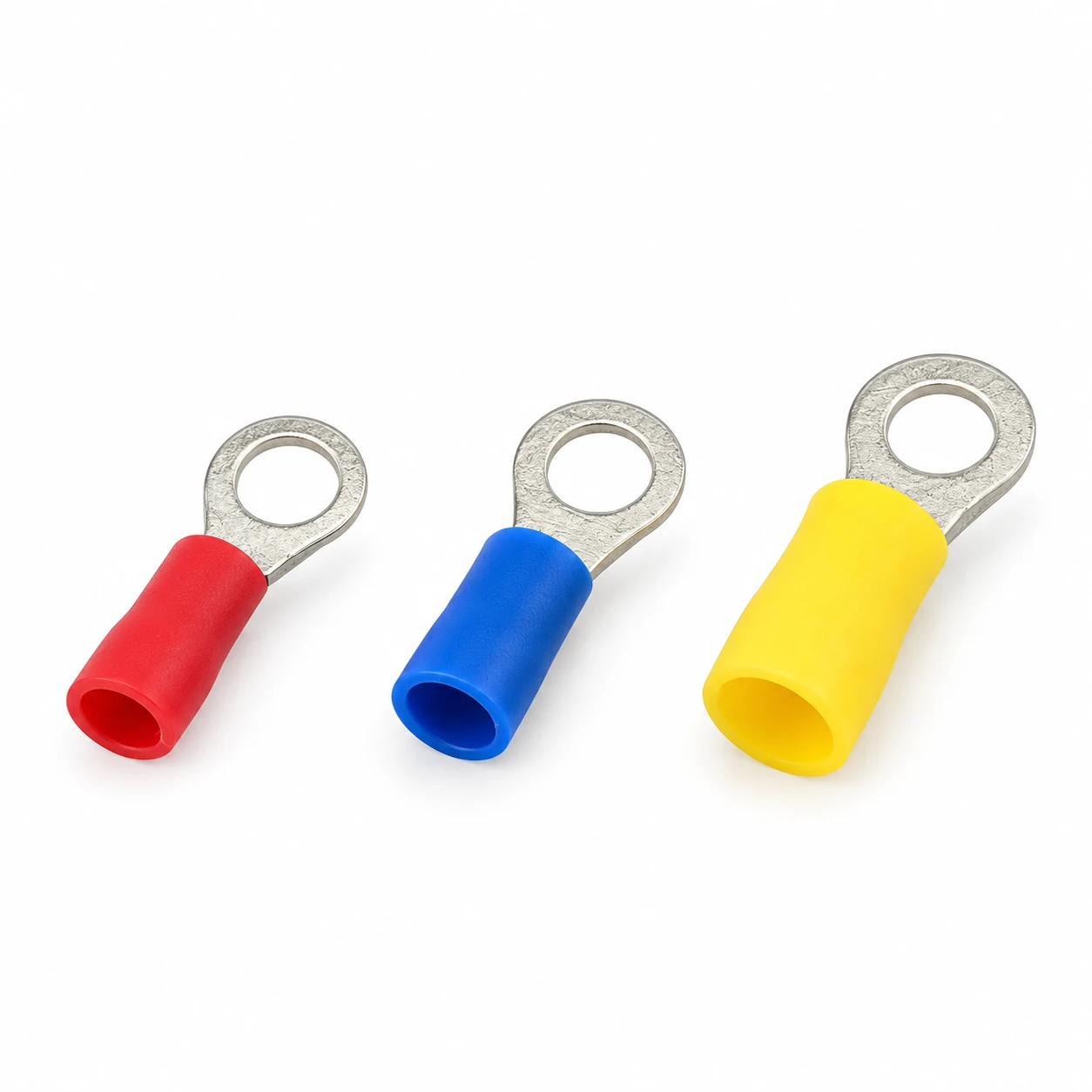

Ring Insulated Terminal
RV Series
Product images are illustrative recreations based on the original catalogue. Confirm dimensions and construction on the linked product page; the LSV image follows the existing shared fork-terminal photograph.
Choose the Right Terminal Connection
| Connection | Product families | Series | Selection focus |
|---|---|---|---|
| Stud connections | Ring, fork and locking fork terminals | RV · SV · LSV | Confirm the stud diameter, contact width and space around the screw connection. |
| Equipment contacts | Pin, chip and hook terminals | PTV · DBV · HV | Match the contact shape, insertion depth and dimensions to the equipment drawing. |
| Detachable connections | Male, female and fully insulated female terminals | MDD · FDD · FDFD | Specify both mating halves, tab dimensions and the required insulation coverage. |
| Wire-to-wire joints | Bullet connectors and butt connectors | MPD · FRD · BV | Match bullet mating dimensions or confirm the conductor combination for each splice. |
| Branch connections | Piggy back terminals | PBDD | Check the female receptacle and additional male tab against both mating components. |
Match the Terminal to Your Wire and Equipment
Start with the connection drawing, then review conductor size, contact dimensions and crimp requirements as a complete assembly.
Connection dimensions
Provide the stud size, mating tab width and thickness, pin dimensions or bullet contact diameter, as relevant to the series.
Crimp construction
Confirm the terminal barrel, approved crimp tool and die, stripping length and installation instructions for the selected model.
Service conditions
Tell us the operating temperature, electrical requirements and installation environment. Request model-specific information; vinyl insulation does not establish a waterproof connection.
Tell Us Which Terminals You Need
Send a model list, wire sizes, mating dimensions and quantities. TONFUL can review product selection, sample requests and packaging with your enquiry.
Prepare a terminal enquiryPrepare Your Terminal Order, Model by Model
A clear specification helps keep the product, assembly and packaging requirements aligned.
Explore manufacturingA complete model schedule
List the series and exact part number, conductor size, connection dimensions and quantity for every item. Mixed-model enquiries should identify each line separately.
Drawings and sample requirements
Send the mating component reference, equipment drawing or sample photographs. Include sample quantities and any assembly or inspection requirements.
Required product documents
Identify the drawings, material information or test documentation your project needs. Confirm the applicable product and document scope before approval.
OEM & PACKING
Your Model List.
Your Packaging Plan.
Coordinate identification and packing around the selected terminal families and quantities.
Product identification
Specify part numbers, bag labels, language, barcode artwork and any required batch identification.
Bags, inner boxes and cartons
Tell us your preferred quantity per bag, inner-box arrangement and outer-carton requirements. Packaging availability is reviewed for the selected order.
Order and delivery details
Include quantities by model, destination and requested delivery arrangements. Confirm samples, packaging, lead time and commercial terms in the quotation.
Packaging image is an illustrative concept, not a photograph of an actual shipment.
Vinyl-Insulated Terminal Buying Questions
Can I select vinyl-insulated terminals by colour alone?
No. Colour can help identify a product family, but the exact conductor range and connection dimensions must come from the selected model’s product table or approved drawing.
Are the different terminal series interchangeable?
Not automatically. A ring, fork, pin, blade, bullet or spade contact is designed for a particular connection. Check its geometry, mating dimensions, wire range and installation requirements before substitution.
What is the difference between female and fully insulated female terminals?
The listed FDD family has an exposed female contact with an insulated wire barrel. The FDFD family adds insulation around the female contact. Confirm the coverage and mating dimensions for the exact model.
Are vinyl-insulated terminals waterproof?
Do not assume a sealing rating from the insulation material. For moisture-exposed wiring, ask for a product and installation method with verified environmental requirements.
What should I send for a quotation?
Send the exact terminal part numbers, wire sizes, mating dimensions, quantities, sample requirements, packaging preferences and delivery destination. A drawing or sample reference helps us review the request.
Can TONFUL review OEM labels and packaging?
Yes. Share the artwork, identification needs and quantities per pack. The available options, minimum quantities and delivery terms are confirmed in your quotation.
