Conductor size
Specify the wire cross-section in mm² or AWG and conductor construction. Confirm the exact model’s wire range; insulation colour alone is not a specification.
Nylon-Insulated Terminals Manufacturer
Source nylon-insulated butt connectors, fully insulated male and female disconnects, and flag terminals from TONFUL Electric. Browse the existing range, then confirm conductor size, mating dimensions and crimp requirements for your selected model.

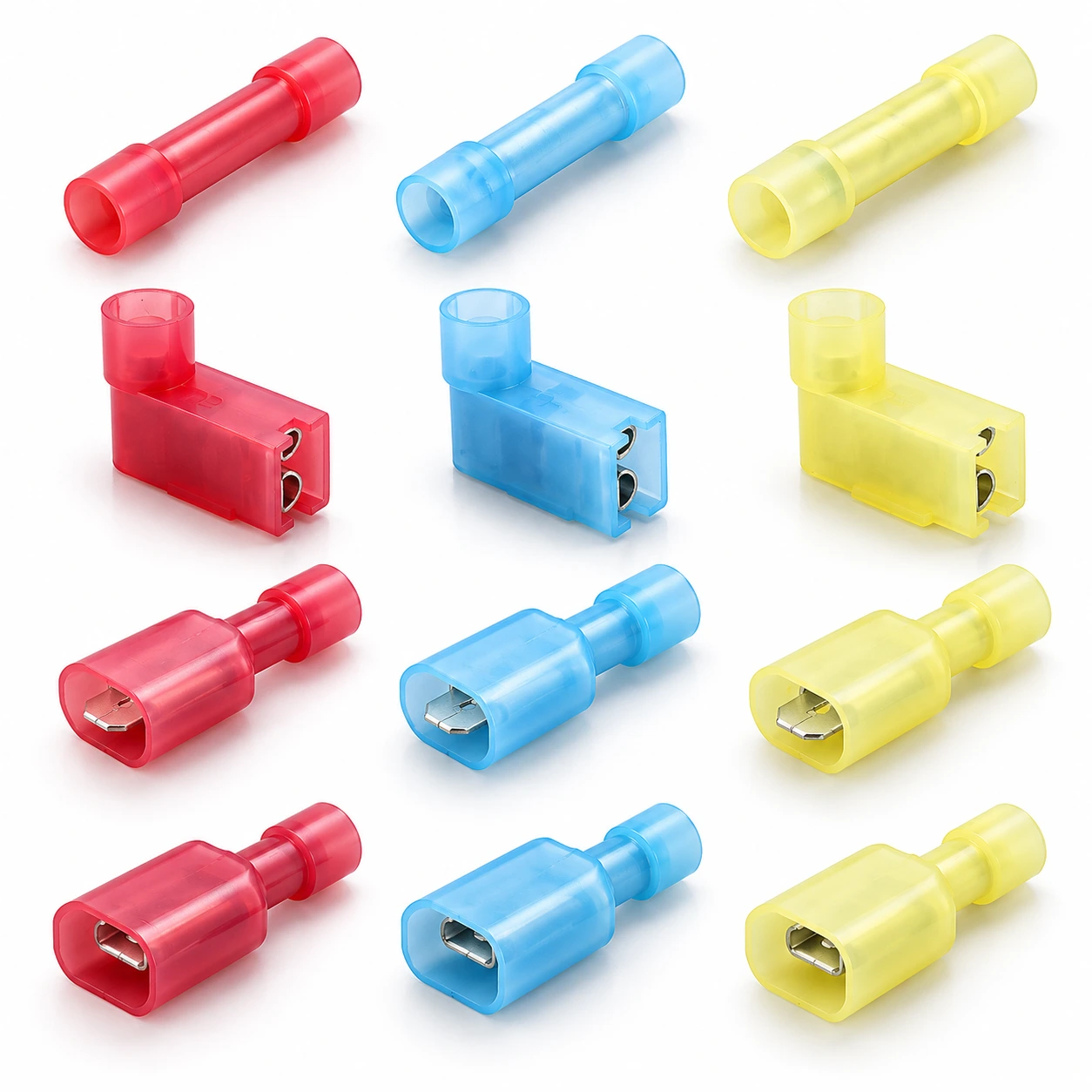

Nylon-Insulated Terminal Product Series
Explore four product listings from our nylon-insulated terminal catalogue.

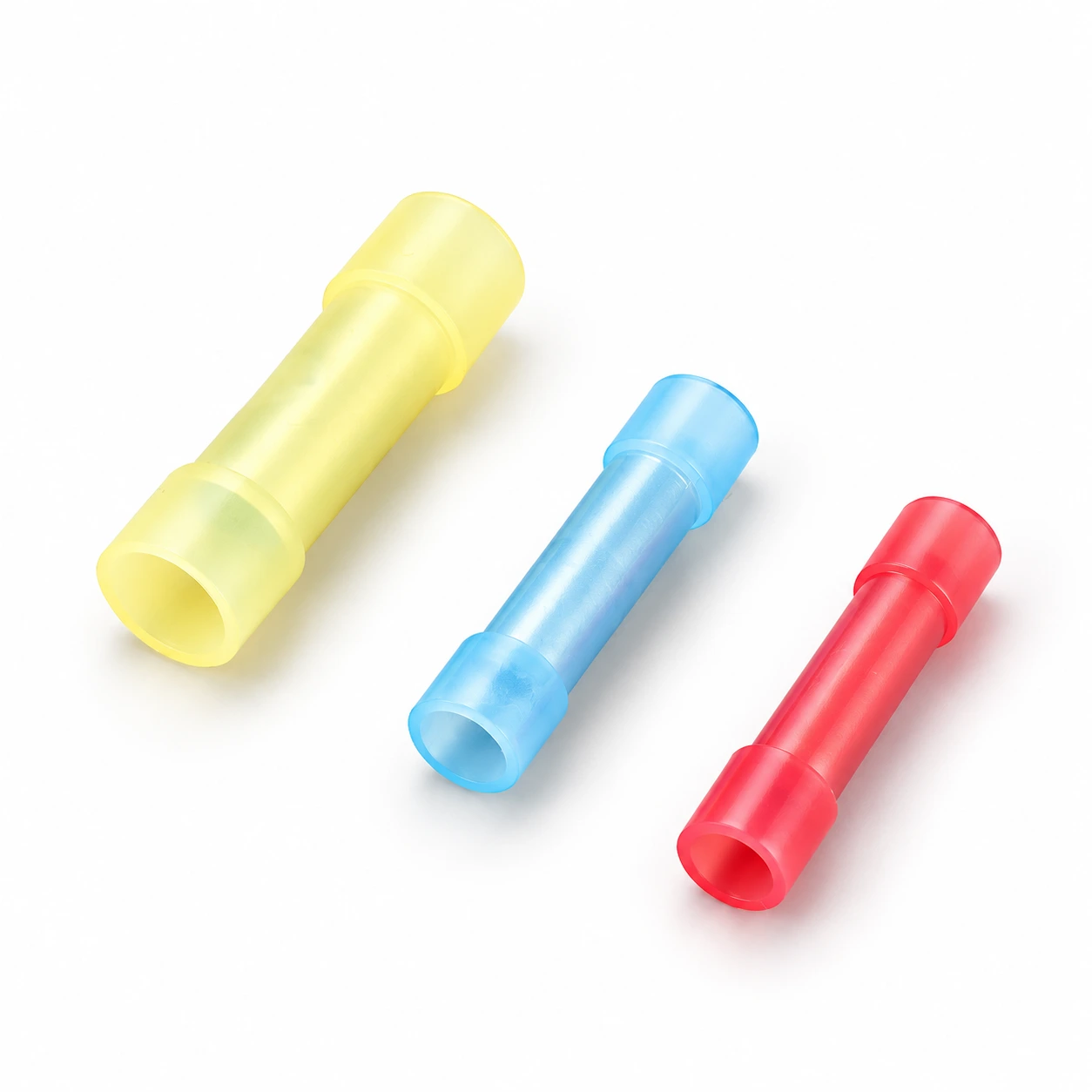

Nylon Butt Connector-Splice Wire Connector
Butt Splice

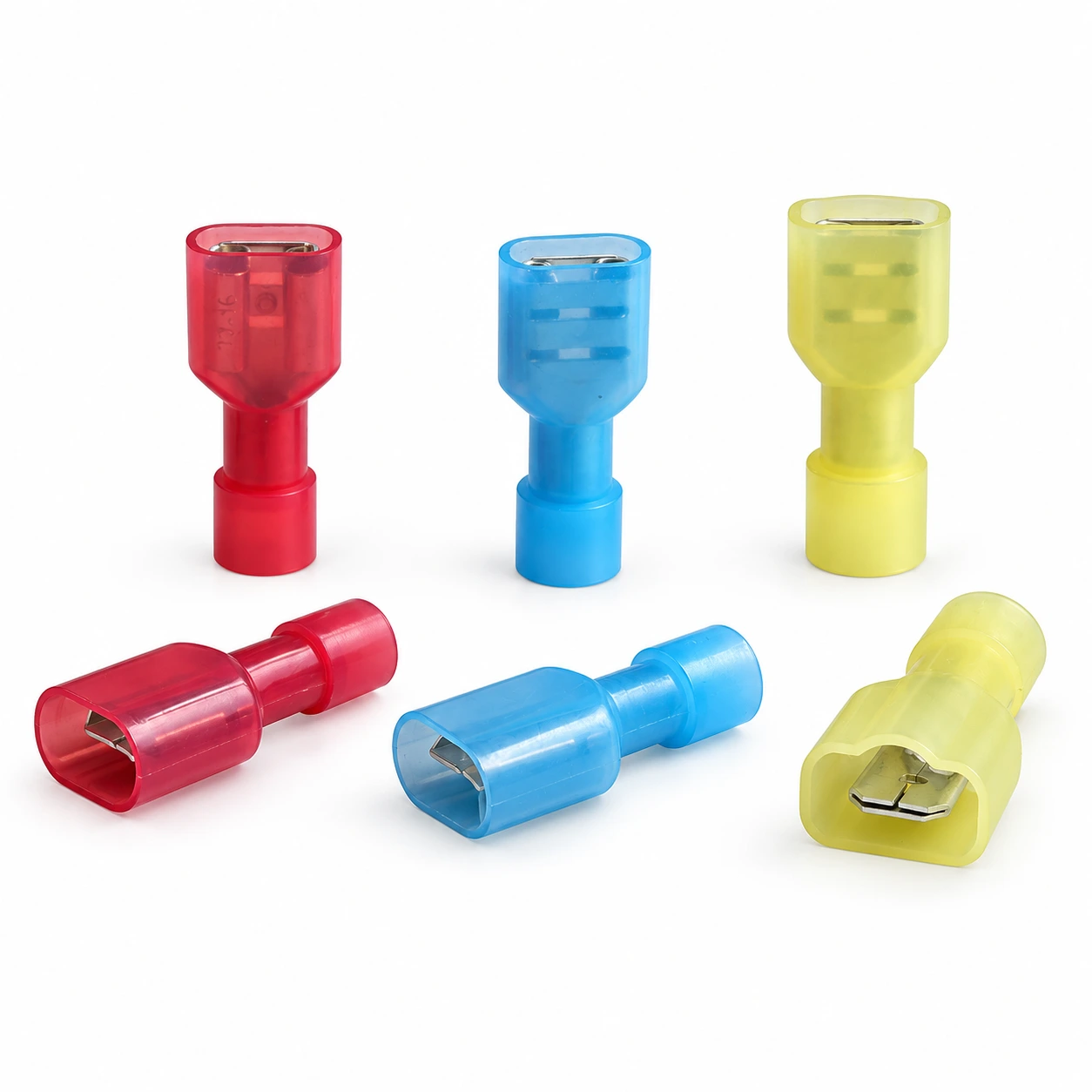

Nylon Fully-Insulated Female Terminal
Female Disconnect

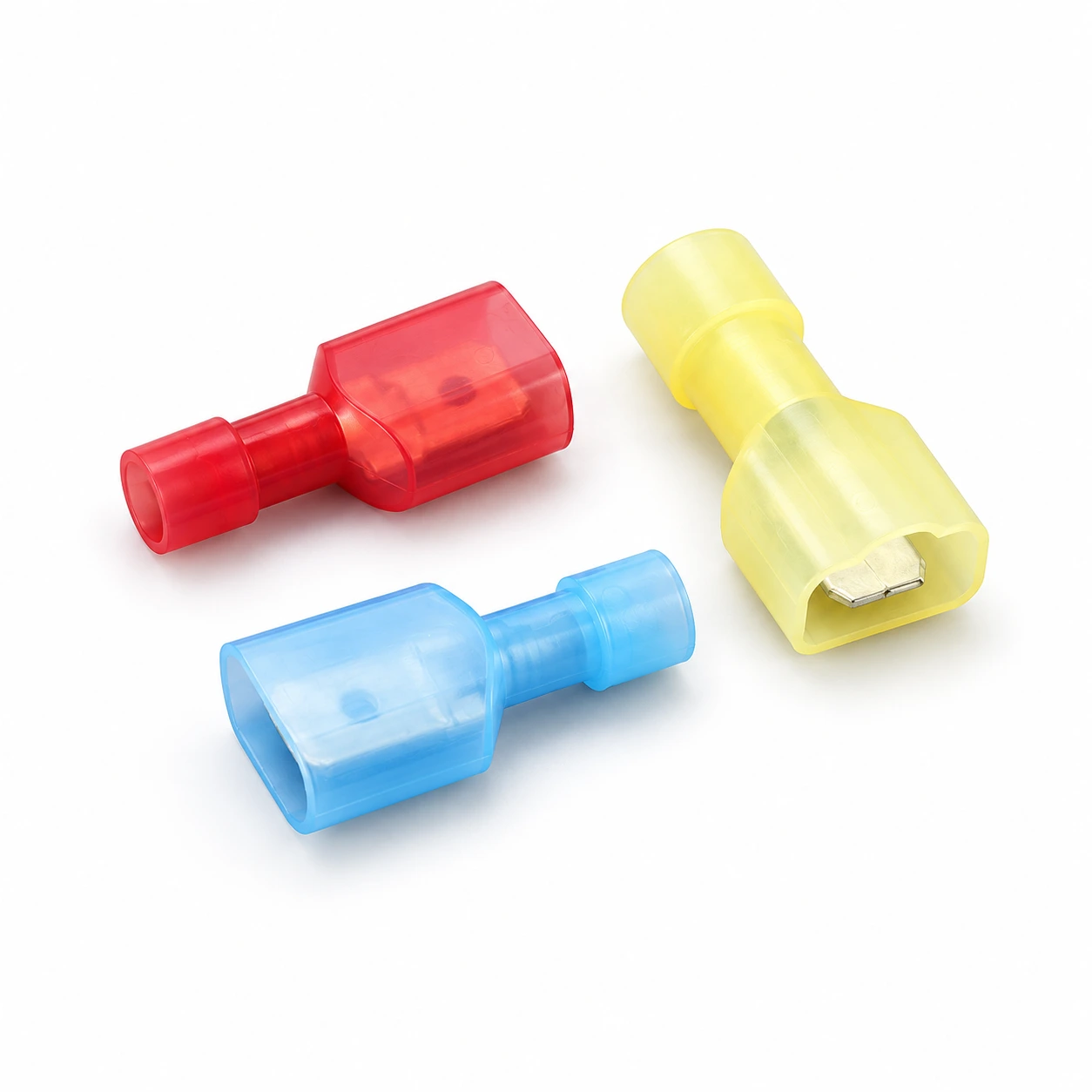

Nylon Fully-Insulated Male Terminal
Male Disconnect

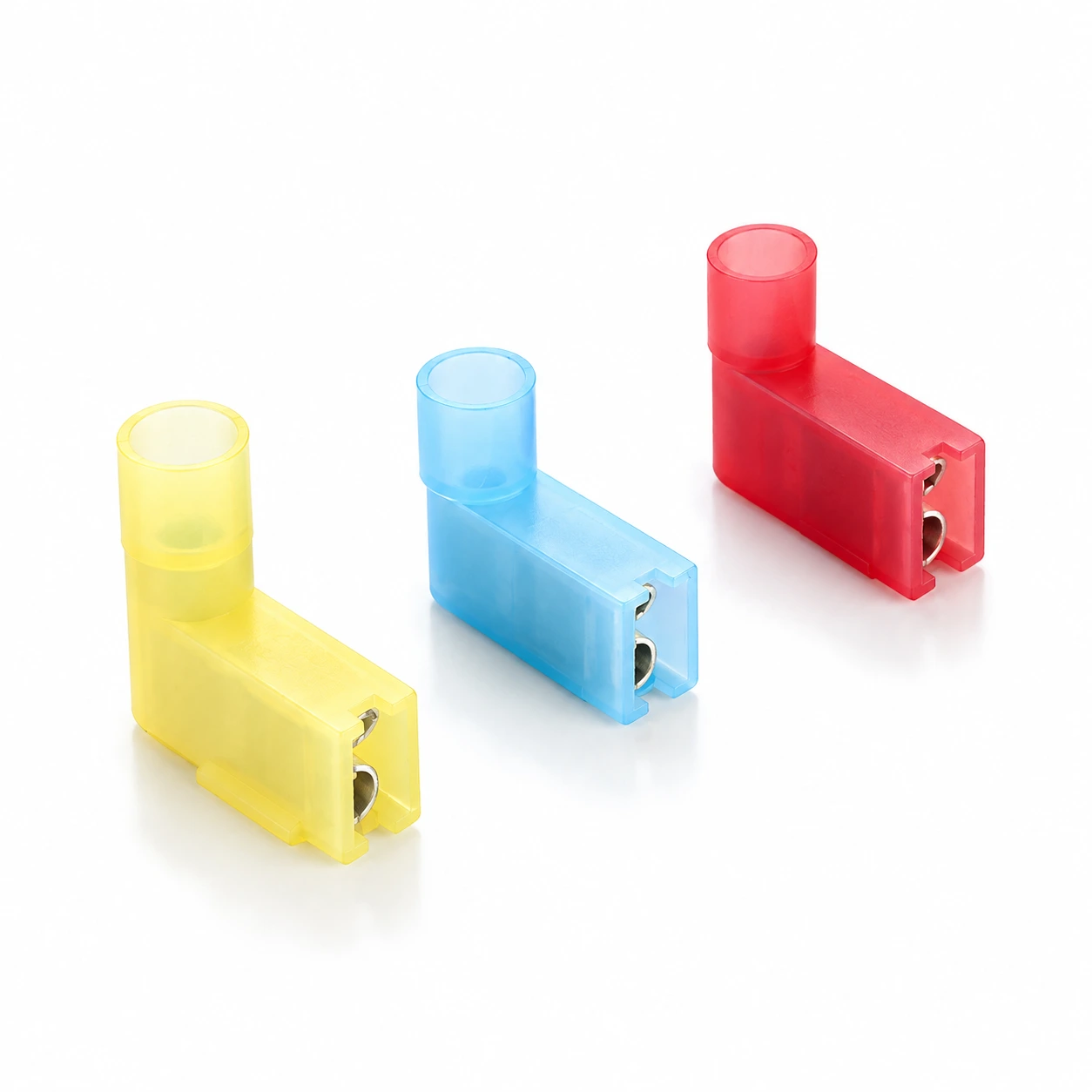

Nylon Insulated Flag Terminal-Flag Disconnect
Flag Disconnect
Product images are illustrative recreations of the original catalogue photos. Separate listings that originally share a photo retain the same image. Confirm exact construction and dimensions on the linked product page.
Choose the Right Nylon Terminal Connection
| Connection | Product families | Selection focus |
|---|---|---|
| Wire-to-wire joints | Nylon butt connectors and butt splice wire connectors | Confirm conductor range, barrel construction and crimp instructions for each end. |
| Straight detachable contacts | Fully insulated female and male disconnects | Match both mating halves, tab dimensions and insulation coverage. |
| Right-angle connections | Nylon insulated flag terminals | Review the mating tab and right-angle wire-routing clearance. |
Match the Wire and the Connection
Review the conductor, mating component and assembly method together before approving a sample or order.
Mating dimensions
For disconnects, confirm tab width and thickness, the mating contact and the available installation space. For splices, review conductor size and finished joint length.
Crimp requirements
Match the terminal barrel to the approved tool and die. Agree stripping length, crimp instructions and inspection criteria for the selected part.
Operating environment
Share temperature, electrical and exposure requirements. Nylon insulation does not by itself establish sealing, waterproof performance or system compatibility.
Send Your Nylon Terminal Requirements
Share your model list, wire sizes, connection dimensions and quantities. TONFUL can review product selection, samples and packaging with your enquiry.
Prepare a terminal enquiryPrepare a Model-by-Model Order
Agree the product, assembly and document requirements before placing your order.
Explore manufacturingModel schedule
List the exact part number, conductor size, mating dimensions and quantity for every item. Keep male, female, flag and splice requirements clearly identified.
Drawings and samples
Provide the mating component reference, equipment drawing or sample photographs. Include sample quantities and any assembly inspection requirements.
Product documentation
Identify the drawings, material information or test documents your project requires. Confirm the applicable model and document scope before approval.
OEM & PACKING
Your Specification.
Your Packaging Plan.
Coordinate product identification and pack quantities around the selected terminal models.
Labels and identification
Provide part numbers, label language, barcode artwork and any batch-identification requirements.
Bags, boxes and cartons
Specify quantity per bag, inner-box arrangement and outer-carton preferences. Available packaging options are reviewed for the selected order.
Order and delivery details
Share quantities by model, destination and requested delivery arrangements. Confirm samples, packaging, lead time and commercial terms in your quotation.
Packaging image is an illustrative concept, not a photograph of an actual shipment.
Nylon-Insulated Terminal Buying Questions
Can I choose a nylon-insulated terminal by colour alone?
No. Use the selected model’s wire-range table, contact dimensions and installation requirements. Colour is an identification aid, not a complete selection rule.
Are the male and female disconnects interchangeable?
They are different mating components. Confirm the contact dimensions and approved combination rather than assuming all listed disconnects fit each other.
When should I review a flag terminal?
A flag terminal has a right-angle connection layout. Check the mating tab and available routing clearance against the assembly drawing before selection.
Are nylon-insulated terminals waterproof?
Do not assume a sealing rating from the insulation material. Request model-specific environmental information and installation requirements for exposed wiring.
Why do some product cards use the same picture?
The existing catalogue includes separate product listings that share an original photograph. All seven links are retained; confirm the exact part number and specifications on the linked product page.
What should I include in a quotation request?
Send terminal references, wire sizes, mating dimensions, quantities, drawings or sample references, inspection needs, packaging preferences and delivery destination.
