Waterproof Quick Branch Connector
Waterproof Quick Branch Connector
Connect parallel landscape-lighting branches with TONFUL JW1080 and JW1081 quick branch connectors. Match main and branch wire sizes and insulation diameters, then confirm the approved voltage, installation method and environmental requirements.
- Branch connection to the main lighting wire
- JW1080 and JW1081 main-wire options
- Shared 14–20 AWG branch-wire reference
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Overview
Connect parallel landscape-lighting branches with TONFUL JW1080 and JW1081 quick branch connectors. Match main and branch wire sizes and insulation diameters, then confirm the approved voltage, installation method and environmental requirements.
Features
- Branch connection to the main lighting wire
- JW1080 and JW1081 main-wire options
- Shared 14–20 AWG branch-wire reference
- Wire-jacket diameter limits are part of selection
Technical Specifications
| Parameter | Specification |
|---|---|
| Original maximum voltage reference | 600 V; confirm approved operating conditions |
| Original maximum load power reference | 500 W; confirm applicable circuit conditions |
| Original direct-burial limit | Below 40 V, with bolts positioned underneath; verify approved installation instructions |
| JW1080 main wire | 12–18 AWG; one-lead insulation diameter no more than 5 mm |
| JW1081 main wire | 8–18 AWG; one-lead insulation diameter no more than 7 mm |
| Branch wire, both models | 14–20 AWG; one-lead insulation diameter no more than 4.2 mm |
Confirm the model, installation conditions and required documentation before approving an order.
Dimension
No mechanical drawing was supplied. The table below preserves original wire-jacket fit limits; request a model-specific drawing for overall dimensions.
| Model | Main wire AWG | Main one-lead diameter limit | Branch wire AWG | Branch one-lead diameter limit |
|---|---|---|---|---|
| JW1080 | 12–18 | 0.2 in / 5 mm | 14–20 | 0.165 in / 4.2 mm |
| JW1081 | 8–18 | 0.28 in / 7 mm | 14–20 | 0.165 in / 4.2 mm |
No dimensioned mechanical drawing or IP rating was supplied on the original page. Request the JW1080 or JW1081 drawing and environmental documentation before approval. The original artwork’s PATENT 2023 claim is not reproduced without a supporting patent reference.
Selection Guide
Check wire sizes and the actual jacket diameter of each lead, including SPT-2 cable construction. With power isolated, follow the approved connector installation and sealing instructions. The below-40-V direct-burial reference is distinct from the original maximum voltage reference and must not be extrapolated to mains-voltage burial.
Applications

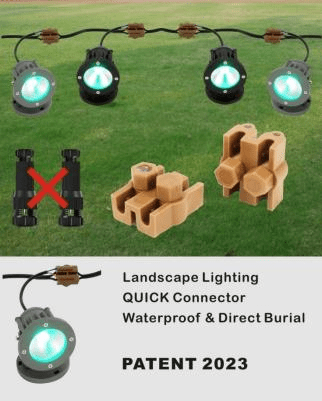

The original product is intended for parallel outdoor lighting connections. Use the illustration as an application reference only; confirm environmental approval, cable compatibility and installation conditions for the exact model.
Ordering Information
Send the complete JW1080 / JW1081 model reference, conductor sizes and count, application, quantity and required documents. Include sample, inspection and packaging preferences.
Contact TONFUL Electric to confirm product selection and quotation details.
Product images are high-definition illustrative recreations of the original photos. Verify construction against the approved drawing or sample.
