Square non-insulated terminals are essential electrical connectors that provide secure, permanent connections between wires and components in professional electrical installations. These bare metal terminals offer superior conductivity and compact design for applications where space is limited and maximum electrical performance is required.
What Are Square Non-Insulated Terminals?

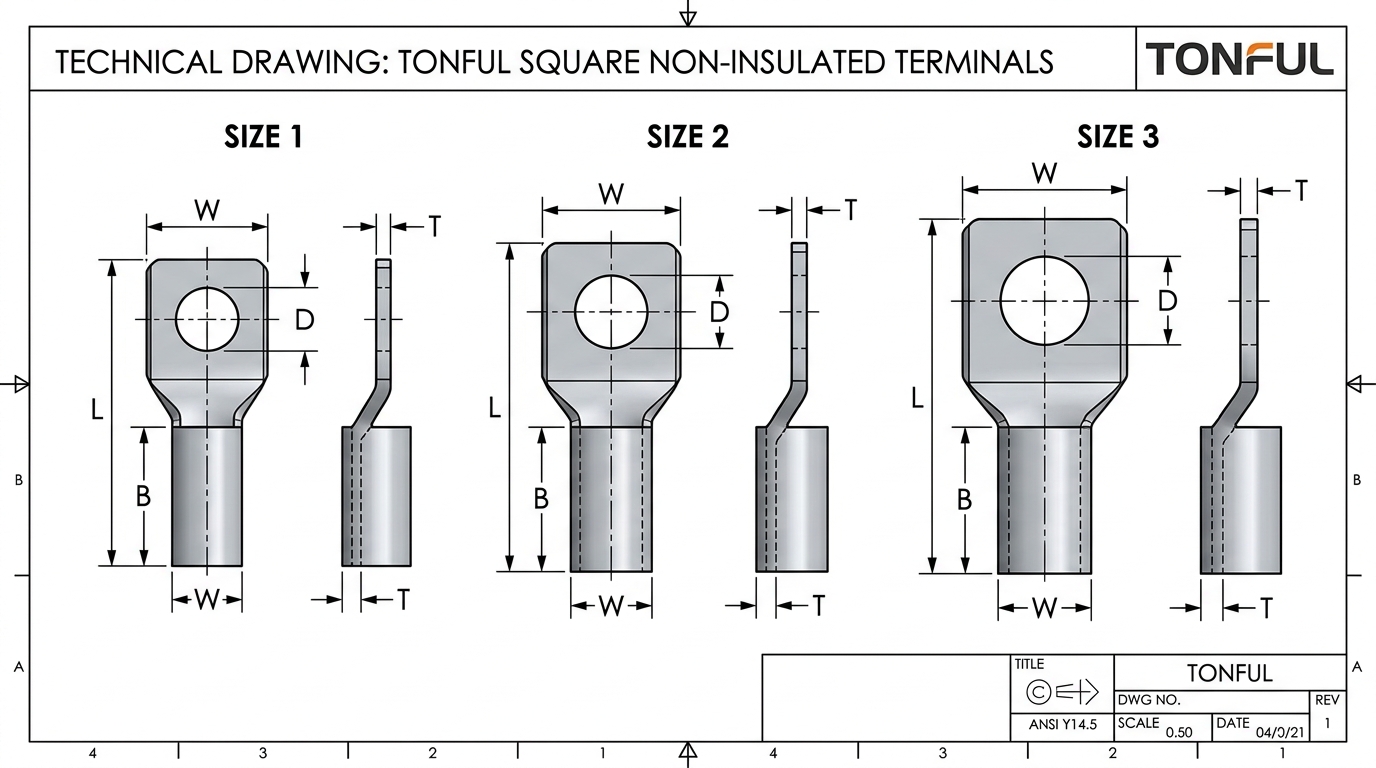

Square non-insulated terminals are electrical connection devices made from conductive metals (typically copper or brass) that feature a square-shaped barrel for wire insertion and connection tabs for attachment to electrical components. Unlike insulated terminals, they have no protective plastic sleeve, exposing the metal connection point for direct contact applications.
Key Characteristics of Square Non-Insulated Terminals
Physical Features:
- Square-shaped barrel design for secure wire grip
- Bare metal construction without insulation
- Flat or flanged connection tabs
- Available in multiple wire gauge sizes
- Compact profile for tight spaces
Material Specifications:
- Primary materials: Copper, brass, or tin-plated copper
- Conductive rating: 100% bare metal contact
- Temperature range: -40°F to 200°F (-40°C to 93°C)
- Corrosion resistance varies by material and plating
Square vs. Round Terminal Comparison Table
| Feature | Square Non-Insulated | Round Non-Insulated | Insulated Terminals |
|---|---|---|---|
| Connection Strength | Excellent grip | Good grip | Good grip |
| Space Requirements | Minimal | Standard | Larger footprint |
| Conductivity | Maximum | Maximum | Reduced |
| Installation Speed | Fast | Fast | Moderate |
| Safety Protection | None | None | High |
| Professional Use | Control panels | General wiring | Consumer applications |
| Code Compliance | Industrial/commercial | General purpose | Residential |
| Cost per Unit | Low-moderate | Low | Moderate-high |
Primary Applications for Square Non-Insulated Terminals
Industrial Control Systems
Square non-insulated terminals excel in industrial control panels where space is premium and electrical performance is critical. You use these terminals for:
Motor Control Centers:
- Variable frequency drive connections
- Contactor and relay terminals
- Control transformer secondary connections
- Emergency stop circuit wiring
Process Control Panels:
- PLC input/output modules
- Sensor signal connections
- Instrumentation wiring
- Communication bus connections
Commercial Electrical Applications
Building Management Systems:
- HVAC control wiring
- Lighting control panels
- Security system connections
- Energy monitoring equipment
Electrical Distribution:
- Panelboard neutral bars
- Ground bus connections
- Circuit breaker terminals
- Transfer switch connections
Automotive and Transportation
Square terminals provide reliable connections in vehicle electrical systems:
Heavy Equipment:
- Construction machinery wiring
- Agricultural equipment harnesses
- Marine electrical systems
- Railway signal equipment
Installation and Selection Guide
Step-by-Step Installation Process
1. Wire Preparation
- Strip wire insulation to match terminal barrel length
- Use proper wire strippers for clean cuts
- Inspect for nicked or damaged conductors
- Apply anti-oxidant compound for aluminum wires
2. Terminal Selection
- Match terminal size to wire gauge exactly
- Verify connection tab fits component terminals
- Check material compatibility with application
- Confirm temperature and current ratings
3. Crimping Process
- Use manufacturer-specified crimping tool
- Position wire fully into terminal barrel
- Apply crimp in center of barrel
- Pull-test connection before installation
4. Installation Safety
- De-energize all circuits before work
- Use lockout/tagout procedures
- Verify proper torque specifications
- Apply terminal protection if required
Wire Gauge Compatibility Chart
| Terminal Size | Wire Gauge Range | Max Current | Common Applications |
|---|---|---|---|
| Small | 22-18 AWG | 15A | Control circuits, signals |
| Medium | 16-14 AWG | 25A | Motor controls, lighting |
| Large | 12-10 AWG | 40A | Power feeds, mains |
| Extra Large | 8-6 AWG | 60A | Service feeds, heavy loads |
Safety Requirements and Code Compliance
⚠️ SAFETY WARNING: Square non-insulated terminals expose live metal parts and require proper protection to prevent accidental contact, short circuits, and electrical shock hazards.
National Electrical Code (NEC) Compliance
Article 110.14 – Electrical Connections:
- Terminals must be identified for use with specific conductor types
- Connection tightness must meet manufacturer specifications
- Temperature ratings must match circuit requirements
- Proper installation tools and methods required
Protection Requirements:
- Install in enclosed panels or junction boxes
- Maintain proper spacing from grounded surfaces
- Use terminal barriers or shields in accessible locations
- Follow OSHA electrical safety standards
Installation Standards
UL 486 Series Requirements:
- Terminals must carry appropriate UL listing
- Wire range markings must be clearly visible
- Torque specifications must be documented
- Environmental ratings must match application
Expert Selection Criteria
When to Choose Square Non-Insulated Terminals
✅ Best Applications:
- High-current industrial connections
- Space-constrained control panels
- Professional installation environments
- Maximum conductivity requirements
- Cost-sensitive commercial projects
❌ Avoid When:
- Accessible to untrained personnel
- Outdoor or corrosive environments
- Vibration or movement expected
- Mixed wire types in same terminal
- Code requires insulated connections
Professional Installation Tips
💡 Expert Tip #1: Always use the correct crimping tool – universal crimpers can create unreliable connections that fail under load.
💡 Expert Tip #2: Apply a light coating of anti-seize compound on terminals exposed to temperature cycling to prevent galling.
💡 Expert Tip #3: Mark terminal strips clearly during installation – square terminals can look identical making troubleshooting difficult.
Quality Assessment Checklist
Visual Inspection Points:
- ✓ Clean, uniform metal surface
- ✓ Proper wire insertion depth
- ✓ No damaged or cracked terminals
- ✓ Adequate spacing from adjacent terminals
- ✓ Proper torque applied to all connections
Electrical Testing:
- ✓ Continuity test all connections
- ✓ Insulation resistance testing
- ✓ Thermal imaging under load
- ✓ Pull-test sample connections
Troubleshooting Common Issues
Connection Problems and Solutions
Loose Connections:
- Symptoms: Heating, voltage drop, intermittent operation
- Causes: Improper crimp, undersized terminal, thermal cycling
- Solutions: Re-crimp with proper tool, upgrade terminal size, use lock washers
Corrosion Issues:
- Symptoms: High resistance, green/white deposits, connection failure
- Causes: Moisture exposure, dissimilar metals, inadequate protection
- Solutions: Apply protective coatings, improve enclosure sealing, use compatible metals
Mechanical Damage:
- Symptoms: Cracked terminals, loose connections, visible wear
- Causes: Over-torquing, vibration, thermal stress
- Solutions: Replace damaged terminals, add vibration damping, review torque specs
Professional Maintenance Guidelines
Regular Inspection Schedule
Quarterly Inspections:
- Visual check for corrosion or damage
- Thermal scan under normal load
- Tightness verification on critical circuits
- Documentation of any changes
Annual Maintenance:
- Complete connection torque verification
- Insulation resistance testing
- Replacement of any questionable terminals
- Update installation records
When to Call a Professional
Contact a qualified electrician when you encounter:
- Repeated connection failures
- Signs of overheating or burning
- Code compliance questions
- Integration with existing systems
- Complex multi-circuit installations
Frequently Asked Questions
What makes square terminals different from round terminals?
Square terminals provide superior grip on wires due to their four-sided barrel design, which prevents wire rotation and creates more contact surface area for enhanced electrical connection.
Can you use square non-insulated terminals in residential applications?
While technically possible, most residential codes prefer insulated terminals for safety. Non-insulated terminals are primarily designed for professional installations in enclosed panels.
How do you determine the correct terminal size for your wire?
Match the terminal wire gauge range exactly to your conductor size. Never force oversized wire into undersized terminals, and avoid using terminals significantly larger than necessary.
What tools are required for proper installation?
You need manufacturer-specified crimping tools, wire strippers, torque wrenches for screw terminals, and appropriate safety equipment including voltage testers and lockout devices.
Are square non-insulated terminals suitable for outdoor use?
Only when properly protected in weatherproof enclosures. The bare metal construction requires protection from moisture, corrosion, and environmental contaminants.
How often should terminal connections be inspected?
Industrial applications require quarterly visual inspections and annual electrical testing. Critical systems may need monthly checks depending on environmental conditions and load requirements.
What causes terminal connections to fail over time?
Common failure modes include thermal cycling causing expansion/contraction, corrosion from environmental exposure, vibration loosening connections, and improper initial installation.
Can you mix different wire types in the same terminal?
Avoid mixing aluminum and copper wires in the same terminal due to galvanic corrosion. Use appropriate anti-oxidant compounds and follow manufacturer guidelines for mixed-metal applications.
Quick Reference Terminal Selection Guide
Decision Matrix for Terminal Choice
| Application Type | Recommended Terminal | Key Considerations |
|---|---|---|
| Motor Control | Square non-insulated | Space efficiency, high current capacity |
| Instrumentation | Square non-insulated | Signal integrity, compact design |
| Power Distribution | Square or fork terminals | Current rating, connection method |
| Control Circuits | Square non-insulated | Wire management, accessibility |
| Safety Circuits | Insulated terminals | Code requirements, protection level |
Material Selection Guidelines
Copper Terminals: Best overall conductivity and workability
Brass Terminals: Good corrosion resistance, moderate cost
Tin-Plated Copper: Excellent corrosion resistance, premium applications
Conclusion: Maximizing Electrical Connection Reliability
Square non-insulated terminals represent the professional standard for industrial and commercial electrical connections where performance, space efficiency, and cost-effectiveness are priorities. Their square barrel design provides superior wire grip and connection reliability compared to round terminals, while their bare metal construction maximizes electrical conductivity.
Success with square non-insulated terminals depends on proper selection, professional installation techniques, and appropriate safety protections. Always prioritize code compliance, use manufacturer-specified tools, and maintain regular inspection schedules to ensure long-term connection reliability.
For complex installations or when code compliance questions arise, consult with a qualified electrical contractor who can ensure your terminal applications meet all safety and performance requirements while optimizing system reliability and maintenance access.
