Cold-pressed terminals are plated with tin or silver to prevent corrosion, ensure reliable electrical conductivity, and extend service life in electrical connections. Tin plating provides cost-effective protection for general applications, while silver plating delivers superior conductivity and corrosion resistance for high-performance and high-current applications.
The choice between tin and silver plating directly impacts contact resistance, corrosion protection, and long-term reliability of your electrical connections. Understanding these differences helps you select the right terminal for your specific application requirements.
What Are Cold-Pressed Terminals and Why Do They Need Plating?
Cold-pressed terminals are electrical connectors manufactured by mechanically deforming metal (typically copper or brass) at room temperature to create precise connection points. This cold-forming process maintains the metal’s structural integrity while creating the desired shape for wire connections.
Why Plating Is Essential:
- Corrosion Prevention: Base metals like copper oxidize when exposed to air and moisture
- Contact Resistance Reduction: Plating materials provide stable, low-resistance electrical paths
- Surface Protection: Prevents galvanic corrosion between dissimilar metals
- Extended Service Life: Protects terminals from environmental degradation
Expert Tip: Unplated copper terminals can develop a resistance increase of 50-200% within months of installation in humid environments, making plating essential for reliable long-term performance.
Key Differences Between Tin and Silver Plated Terminals
| Performance Factor | Tin Plating | Silver Plating | Advantage |
|---|---|---|---|
| Contact Resistance | 2-5 milliohms | 0.5-2 milliohms | Silver |
| Corrosion Resistance | Good (standard environments) | Excellent (harsh environments) | Silver |
| Cost | Low ($0.05-0.15 per terminal) | High ($0.25-0.75 per terminal) | Tin |
| Current Capacity | Up to 100A (typical) | Up to 200A+ (high-current) | Silver |
| Temperature Range | -40°C to +105°C | -55°C to +150°C | Silver |
| Oxidation Rate | Moderate (forms protective oxide) | Minimal (noble metal) | Silver |
| Solderability | Excellent | Good | Tin |
| Wire Pull Strength | Standard | Enhanced grip | Silver |

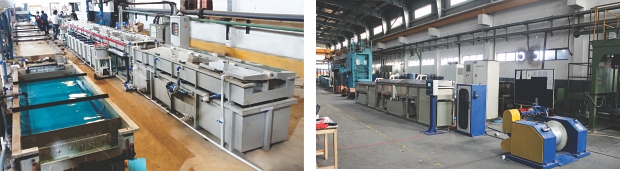

How Tin Plating Impacts Terminal Performance
Tin plating creates a protective barrier that balances cost-effectiveness with reliable electrical performance for most standard applications.
Electrical Characteristics of Tin Plating
Contact Resistance Performance:
- Initial contact resistance: 2-5 milliohms
- Resistance stability: ±15% over 10,000 mating cycles
- Current density: Up to 50A per square inch contact area
Corrosion Protection Mechanism:
Tin forms a thin oxide layer (SnO₂) that actually protects the underlying metal while maintaining electrical conductivity. This self-passivating characteristic makes tin ideal for:
- Indoor electrical panels
- Automotive applications (non-critical circuits)
- Consumer electronics
- Building wire connections
Applications Where Tin Plating Excels
Residential and Commercial Wiring:
- Panel board connections
- Junction box terminals
- Light fixture connections
- HVAC control circuits
Automotive Industry:
- Body electrical systems
- Interior lighting circuits
- Non-critical sensor connections
- Audio system connections
Safety Warning: Tin-plated terminals should not be used in high-vibration environments without proper strain relief, as tin’s relatively soft surface can develop fretting corrosion under constant micro-movement.
How Silver Plating Impacts Terminal Performance
Silver plating provides premium electrical performance with superior conductivity and corrosion resistance for demanding applications.
Electrical Characteristics of Silver Plating
Superior Conductivity Performance:
- Contact resistance: 0.5-2 milliohms (60% lower than tin)
- Current density: Up to 100A per square inch contact area
- Resistance stability: ±5% over 50,000 mating cycles
Advanced Corrosion Protection:
Silver’s noble metal properties resist oxidation and provide:
- Stable contact resistance over time
- Resistance to sulfur contamination (with proper alloys)
- Extended service life in harsh environments
Applications Where Silver Plating Is Essential
High-Current Applications:
- Main electrical distribution panels
- Motor control centers
- Welding equipment connections
- Industrial power systems
Mission-Critical Systems:
- Aircraft electrical systems
- Medical equipment
- Telecommunications infrastructure
- Emergency power systems
Harsh Environment Applications:
- Marine electrical systems
- Industrial automation
- Outdoor telecommunications
- Chemical processing facilities
Expert Tip: Silver-plated terminals cost 3-5 times more than tin-plated alternatives but can reduce total system resistance by 40-60% in high-current applications, often justifying the increased investment.
Technical Specifications and Standards Compliance
Industry Standards for Terminal Plating
UL 486A-486B Standards:
- Minimum plating thickness: 8 micrometers (tin), 2.5 micrometers (silver)
- Salt spray resistance: 96 hours minimum
- Temperature cycling: -40°C to +105°C (200 cycles)
IEC 60947-7-1 International Standards:
- Contact resistance measurement procedures
- Environmental testing requirements
- Mechanical endurance specifications
ASTM Standards:
- ASTM B545: Electroplated coatings of tin
- ASTM B700: Electroplated coatings of silver
Performance Testing Requirements
| Test Parameter | Tin Plating Requirement | Silver Plating Requirement |
|---|---|---|
| Salt Spray Resistance | 96 hours (5% NaCl) | 240 hours (5% NaCl) |
| Thermal Cycling | 200 cycles (-40°C to +105°C) | 500 cycles (-55°C to +150°C) |
| Contact Resistance Change | <50% increase after testing | <25% increase after testing |
| Plating Adhesion | >25 N/mm² | >30 N/mm² |
How to Choose the Right Plating for Your Application
Step-by-Step Selection Process
Step 1: Assess Current Requirements
- Calculate maximum current load
- Determine continuous vs. intermittent operation
- Consider current density at contact points
Step 2: Evaluate Environmental Conditions
- Indoor vs. outdoor installation
- Temperature range requirements
- Humidity and contamination levels
- Vibration and mechanical stress
Step 3: Consider Economic Factors
- Initial cost vs. lifecycle value
- Replacement difficulty and cost
- System criticality and downtime costs
Step 4: Review Code Compliance
- Local electrical code requirements
- Industry-specific standards
- Safety certification needs
Decision-Making Matrix
Choose Tin Plating When:
- Current loads under 50A
- Indoor, controlled environments
- Cost is primary consideration
- Standard residential/commercial applications
- Easy maintenance access available
Choose Silver Plating When:
- Current loads exceed 50A
- Harsh environmental conditions
- Mission-critical applications
- Long-term reliability essential
- Difficult maintenance access
Professional Recommendation: For applications where the cost difference between tin and silver plating represents less than 5% of total system cost, always specify silver plating for the enhanced long-term reliability.
Installation Best Practices and Safety Considerations
Proper Installation Techniques
For Tin-Plated Terminals:
- Clean Connection Points: Remove oxidation with fine abrasive cloth
- Apply Proper Torque: Follow manufacturer specifications (typically 15-25 ft-lbs)
- Use Appropriate Wire Prep: Strip wire to exact length, avoiding nicks
- Apply Antioxidant Compound: Use aluminum-compatible compounds for mixed-metal connections
For Silver-Plated Terminals:
- Avoid Over-Torquing: Silver’s softer surface can deform (typically 10-20 ft-lbs)
- Use Compatible Compounds: Avoid compounds containing sulfur or chlorides
- Protect from Contamination: Cover connections in high-sulfur environments
- Verify Contact Pressure: Ensure consistent pressure across contact surface
Safety Requirements and Code Compliance
NEC Article 110.14 Compliance:
- Terminals must be identified for material and size of conductors
- Temperature ratings must match circuit requirements
- Torque specifications must be permanently marked
OSHA 1910.303 Safety Standards:
- Proper personal protective equipment during installation
- Lockout/tagout procedures for energized work
- Arc flash protection for high-current installations
Safety Warning: Always verify power is off and use appropriate lockout/tagout procedures before working on electrical terminals. High-current silver-plated terminals can create dangerous arc flash conditions if improperly handled.
Troubleshooting Common Plating Issues
Tin Plating Problems and Solutions
Issue: Increasing Contact Resistance Over Time
- Cause: Tin oxide formation or fretting corrosion
- Solution: Apply antioxidant compound and ensure proper torque
- Prevention: Use silver plating for high-vibration applications
Issue: Discoloration or Corrosion
- Cause: Moisture infiltration or galvanic corrosion
- Solution: Improve sealing and use compatible metals
- Prevention: Specify appropriate environmental rating
Silver Plating Problems and Solutions
Issue: Tarnishing or Dark Discoloration
- Cause: Sulfur contamination forming silver sulfide
- Solution: Clean with appropriate silver cleaner and protect from contamination
- Prevention: Use sulfur-resistant silver alloys in contaminated environments
Issue: Contact Deformation
- Cause: Over-torquing during installation
- Solution: Replace terminal and follow proper torque specifications
- Prevention: Use torque wrenches calibrated to manufacturer specifications
Expert Tips for Maximum Performance
Maintenance Recommendations:
- Inspect tin-plated terminals annually in harsh environments
- Check silver-plated terminals every 2-3 years in normal conditions
- Monitor contact resistance with micro-ohmmeter for critical applications
- Document torque values and inspection dates for code compliance
Performance Optimization:
- Use contact enhancement compounds appropriate for plating material
- Ensure proper wire termination techniques to maximize contact area
- Consider upgrade to silver plating when replacement intervals exceed 5 years
- Implement thermal monitoring for high-current applications
Frequently Asked Questions About Terminal Plating
What makes silver plating more expensive than tin plating?
Silver’s higher material cost (typically 100-200x more than tin) and more complex electroplating process increase manufacturing costs. However, silver’s superior conductivity and corrosion resistance often justify the investment in high-performance applications.
Can you mix tin and silver plated terminals in the same system?
Yes, but avoid direct contact between tin and silver plated surfaces as galvanic corrosion can occur. Use appropriate barrier compounds or separate the dissimilar metals with compatible intermediate materials.
How long do tin vs. silver plated terminals last?
Tin-plated terminals typically last 10-15 years in normal indoor environments, while silver-plated terminals can provide 20-30 years of service in similar conditions. Harsh environments significantly reduce these lifespans.
Do plated terminals require special tools for installation?
Standard electrical tools work for both plating types, but silver-plated terminals benefit from calibrated torque wrenches to prevent over-tightening and surface damage.
What environmental factors most affect plating performance?
Humidity, temperature cycling, airborne contaminants (especially sulfur compounds for silver), and vibration are the primary factors affecting plating longevity and performance.
Is it worth upgrading existing tin-plated terminals to silver?
Upgrade when replacement costs plus downtime expenses exceed the price difference, or when increased current loads or environmental conditions exceed tin plating capabilities.
How can you tell if plated terminals are failing?
Signs include increasing contact resistance, visible corrosion or discoloration, loose connections despite proper torque, or heating at connection points under normal loads.
Do different manufacturers’ plating quality vary significantly?
Yes, plating thickness, adhesion quality, and alloy composition vary between manufacturers. Always specify terminals meeting UL 486A/B standards and verify compliance documentation.
Conclusion: Making the Right Choice for Your Application
The choice between tin and silver plated cold-pressed terminals fundamentally depends on balancing performance requirements with cost considerations. Tin plating provides reliable, cost-effective protection for standard electrical applications, while silver plating delivers superior performance for high-current, mission-critical, or harsh environment installations.
For most residential and light commercial applications, tin-plated terminals offer adequate performance at reasonable cost. However, when system reliability, high current capacity, or extended service life are priorities, silver plating’s superior conductivity and corrosion resistance justify the additional investment.
Key Selection Criteria:
- Current loads above 50A favor silver plating
- Harsh environments require silver’s superior corrosion resistance
- Cost-sensitive standard applications work well with tin plating
- Mission-critical systems benefit from silver’s enhanced reliability
When in doubt, consult with a qualified electrical engineer to ensure your terminal selection meets both performance requirements and applicable electrical codes for your specific application.
Professional Recommendation: Document your terminal specifications and installation procedures to ensure consistent performance and simplified future maintenance. Proper selection and installation of plated terminals significantly impacts overall electrical system reliability and safety.
