Spade connectors are among the most versatile and widely used electrical connectors in automotive, marine, and industrial applications. Understanding how to secure them properly ensures safe, reliable electrical connections that meet code requirements and prevent costly failures.
What Are Spade Connectors and Why Proper Security Matters

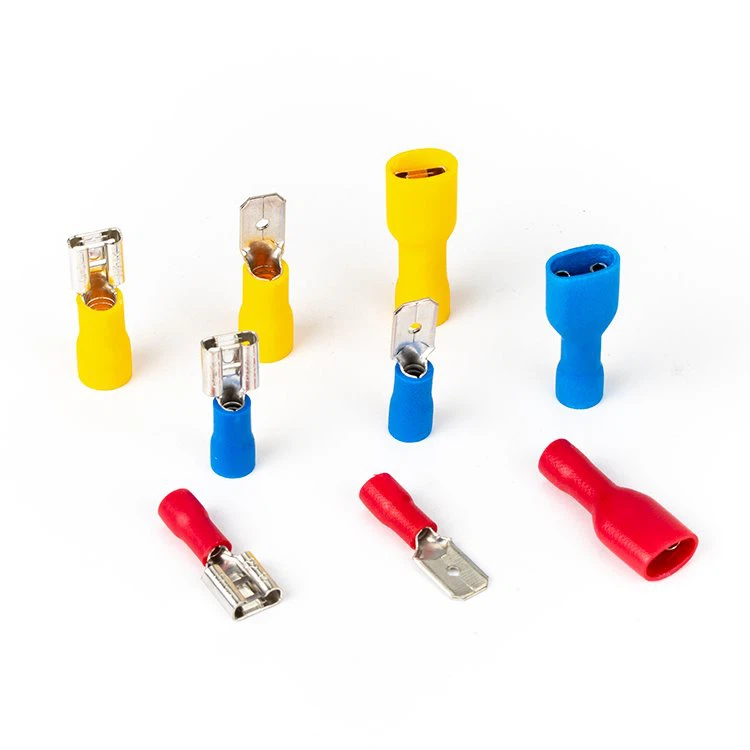

Spade connectors are electrical terminals with a flat, fork-like end that slides onto a blade terminal or screw post. They’re also called fork terminals, blade connectors, or disconnect terminals. The “spade” refers to the flat, paddle-shaped metal tongue that makes the electrical connection.
Key characteristics of spade connectors:
- Fork-shaped terminal end for easy connection/disconnection
- Insulated barrel that crimps onto wire strands
- Available in various wire gauge sizes (22-10 AWG most common)
- Color-coded insulation for quick gauge identification
- Designed for removable connections unlike permanent butt splices
Essential Components of a Secure Spade Connection
| Component | Purpose | Critical Factor |
|---|---|---|
| Crimped Barrel | Secures wire mechanically and electrically | Must compress all wire strands without cutting |
| Insulation Crimp | Provides strain relief and safety | Should grip wire jacket firmly |
| Fork Tabs | Create spring tension on terminal | Must maintain proper gap for secure fit |
| Wire Preparation | Ensures maximum contact area | Correct strip length prevents shorts or poor connection |
⚠️ Safety Warning: Never twist spade connectors onto terminals or force connections. Improper installation can cause arcing, overheating, and electrical fires.
Step-by-Step Guide: How to Secure Spade Connectors Properly
Step 1: Select the Correct Connector Size
- Match connector gauge to wire size (use wire gauge chart)
- Verify terminal blade width compatibility
- Choose insulated vs. non-insulated based on application safety needs
Step 2: Strip Wire to Proper Length
- Strip 1/4″ to 3/8″ of insulation from wire end
- Use quality wire strippers to avoid nicking conductor strands
- Verify no stray strands extend beyond connector barrel
Step 3: Insert Wire into Connector
- Push stripped wire fully into connector barrel
- Ensure wire bottoms out in barrel before crimping
- Check that insulation meets barrel entrance (no exposed wire)
Step 4: Crimp the Connection
- Use proper crimping tool for connector type
- Position tool jaws over barrel crimp area
- Apply firm, steady pressure until tool releases
- Never use pliers – they don’t provide even compression
Step 5: Verify Connection Security
- Gently pull wire to test mechanical connection
- Check that all wire strands are captured in crimp
- Inspect for proper insulation support at barrel entrance
Step 6: Install on Terminal
- Slide spade fully onto terminal blade until it bottoms out
- Verify connector tabs grip terminal sides securely
- Test connection by gently pulling – no movement should occur
Professional Crimping Techniques for Maximum Security
Proper crimping tool selection:
- Ratcheting crimpers: Ensure complete crimp cycle, prevent under-crimping
- Die-based tools: Provide precise compression for specific connector types
- Hydraulic crimpers: Professional-grade tools for high-volume applications
Quality crimp indicators:
- Barrel compresses evenly without cracking insulation
- Wire cannot be pulled from connector with reasonable force
- No visible wire strands outside crimped area
- Insulation crimp provides strain relief without cutting jacket
❗ Expert Tip: A properly crimped connection should be stronger than the wire itself. If wire breaks before connection fails during pull testing, your crimp is correct.
Common Spade Connector Types and Applications
| Connector Type | Wire Gauge | Typical Applications | Security Considerations |
|---|---|---|---|
| Vinyl Insulated | 22-10 AWG | Automotive, marine, general purpose | Good moisture resistance, temperature rated to 105°C |
| Heat Shrink | 22-10 AWG | Marine, outdoor applications | Superior moisture seal, requires heat gun activation |
| Non-Insulated | 22-10 AWG | Panel connections, visible installations | Requires proper spacing to prevent shorts |
| Flag Terminals | 16-10 AWG | High-vibration applications | Extended tab provides extra grip surface |
Terminal Compatibility and Sizing Guide
Standard spade connector sizes:
- #6 (0.187″): Most common automotive applications
- #8 (0.205″): Heavy-duty automotive, marine
- #10 (0.250″): Industrial equipment, high-current applications
- 1/4″ (0.250″): Standard screw terminal compatibility
Blade terminal measurement: Measure the width of the terminal blade, not the screw post diameter, to select proper spade connector size.
Safety Requirements and Code Compliance
NEC (National Electrical Code) requirements for spade connections:
- Connections must be mechanically secure before electrical connection
- Crimped connections required in most applications (no solder-only joints)
- Proper wire fill in connector barrel (no understuffing or overstuffing)
- Appropriate connector material for environmental conditions
⚠️ Safety Requirements:
- Use UL-listed connectors for code compliance
- Never exceed connector current rating
- Protect connections from moisture in outdoor/marine applications
- Use proper wire gauge for circuit amperage requirements
Troubleshooting Common Spade Connector Problems
Connection comes loose repeatedly:
- Cause: Under-crimped connector or worn terminal blade
- Solution: Re-crimp with proper tool or replace terminal
Connector overheats during operation:
- Cause: High resistance from poor connection or undersized wire
- Solution: Check wire gauge capacity, re-crimp connection
Corrosion at connection point:
- Cause: Moisture infiltration or dissimilar metals
- Solution: Use heat-shrink connectors, apply dielectric grease
Wire pulls out of connector:
- Cause: Insufficient crimp pressure or wrong connector size
- Solution: Use ratcheting crimper, verify proper wire/connector match
Expert Selection Criteria for Professional Results
When choosing spade connectors, prioritize:
- Current capacity – Must exceed circuit requirements with safety margin
- Environmental rating – Temperature and moisture resistance for application
- Wire gauge compatibility – Exact match prevents poor connections
- Terminal blade size – Measure carefully for proper fit
- Insulation quality – UL-rated materials for safety compliance
Professional recommendations:
- Invest in quality ratcheting crimping tools
- Stock multiple connector sizes for different applications
- Use heat-shrink types for moisture-prone installations
- Apply dielectric grease on high-corrosion applications
When to Call a Professional
Consult an electrician for:
- High-voltage applications (over 50 volts)
- Permanent building electrical installations
- Code-required inspections and permits
- Complex multi-circuit panel connections
DIY-appropriate applications:
- Automotive electrical repairs
- Low-voltage DC circuits
- Appliance and equipment connections
- Marine electrical maintenance
Quick Reference: Spade Connector Security Checklist
✅ Before Installation:
- ☐ Connector matches wire gauge exactly
- ☐ Terminal blade size verified
- ☐ Quality crimping tool available
- ☐ Wire stripped to proper length
✅ During Installation:
- ☐ Wire fully inserted in barrel
- ☐ Complete crimp cycle applied
- ☐ Pull test confirms mechanical security
- ☐ Connection slides smoothly onto terminal
✅ After Installation:
- ☐ No exposed wire at connection
- ☐ Connector grips terminal securely
- ☐ Proper clearance from adjacent connections
- ☐ Environmental protection applied if needed
Frequently Asked Questions
How tight should a spade connector fit on a terminal?
A spade connector should slide onto the terminal with slight resistance and grip firmly without wobbling. If it’s too loose, replace the connector. If too tight, verify you have the correct size.
Can you reuse a crimped spade connector?
No, crimped connections are designed for one-time use. The metal deforms during crimping and cannot maintain proper connection if removed and reinstalled.
What’s the difference between insulated and non-insulated spade connectors?
Insulated connectors have colored plastic sleeves that prevent accidental contact and provide strain relief. Non-insulated versions are bare metal and used where spacing allows safe installation.
How do you prevent corrosion in spade connections?
Use connectors rated for your environment, apply dielectric grease to prevent moisture infiltration, and consider heat-shrink connectors for outdoor applications.
What wire gauge corresponds to each spade connector color?
Red (22-18 AWG), Blue (16-14 AWG), Yellow (12-10 AWG). However, always verify compatibility with wire gauge charts as colors can vary by manufacturer.
Can spade connectors handle automotive vibration?
Yes, when properly crimped and installed. The spring tension in quality spade connectors maintains secure contact despite vibration. Consider flag-type terminals for extreme vibration applications.
Ready to make professional-quality spade connections? Proper connector security starts with the right tools and technique. Invest in quality ratcheting crimpers and UL-listed connectors for safe, reliable electrical connections that meet code requirements and stand the test of time.
