How to Use Solder Sleeve Heat Shrink Butt Wire Connectors: Complete Waterproof Installation Guide
TL;DR: Solder sleeve heat shrink connectors create waterproof electrical connections in one step. Strip wires, insert into connector, apply 550°F heat while rotating for 8-12 seconds. Common mistakes include using too high heat initially and inadequate wire preparation.
Solder sleeve heat shrink butt wire connectors have revolutionized electrical connections for automotive, marine, and DIY applications. These waterproof terminals combine soldering and heat shrinking into one efficient process, but proper technique is crucial for success.

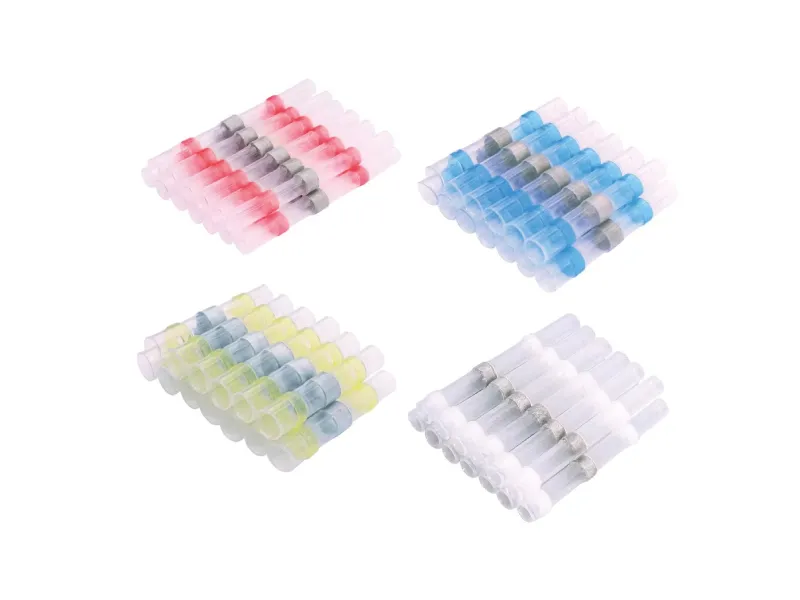

What Are Solder Sleeve Heat Shrink Connectors?
Solder sleeve heat shrink connectors are dual-wall electrical terminals that contain three key components:
- Polyolefin heat shrink tubing (outer layer)
- Low-temperature solder ring (middle section)
- Hot-melt adhesive lining (inner waterproof seal)
When heated, the tubing shrinks, the solder melts to fuse wires together, and the adhesive creates an IP67 waterproof seal. This eliminates the need for separate soldering irons, flux, and heat shrink tubing.
Essential Tools and Materials
Required Tools
- Heat gun (preferred) – 350W minimum with variable temperature
- Wire strippers – for precise insulation removal
- Digital multimeter – for connection testing
Alternative Heat Sources
- Butane torch (use carefully)
- Hair dryer (1500W minimum)
- Heat gun with reflector nozzle
Avoid These Heat Sources
- Soldering irons (too concentrated)
- Open flames without control
- Excessive heat above 1000°F
Step-by-Step Installation Instructions
Step 1: Wire Preparation
Critical: Clean, properly stripped wires ensure successful connections.
- Strip wire insulation 1/3 inch (8mm) from each wire end
- Ensure copper is bright and clean – no corrosion or oxidation
- Twist stranded wires tightly to prevent fraying
- Check wire gauge matches connector color coding
Step 2: Connector Selection and Setup
Color-coded sizing:
- Red: 22-18 AWG
- Blue: 16-14 AWG
- Yellow: 12-10 AWG
- Select appropriate connector size
- Insert both stripped wire ends into connector
- Ensure wires overlap in the center solder section
- Position connector at wire junction midpoint
Step 3: Heat Application Technique
Optimal Settings:
- Temperature: 550°F (288°C)
- Duration: 8-12 seconds
- Distance: 2-3 inches from heat source
Proper Heating Sequence:
- Start with outer sections where adhesive is located
- Apply heat while rotating connector continuously
- Watch for shrinkage – tubing should begin contracting
- Observe solder melting – you’ll see the metal ring flow
- Continue until fully sealed – no gaps or loose areas
Step 4: Cooling and Testing
- Allow 30 seconds cooling time – don’t disturb connection
- Perform gentle tug test – wires should not separate
- Check for complete shrinkage – no loose or puffy areas
- Test continuity with multimeter if possible
Common Mistakes and Troubleshooting
Problem: Solder Won’t Melt
Causes:
- Heat gun temperature too low
- Heating too quickly without allowing heat penetration
- Defective connectors with insufficient solder
Solutions:
- Increase temperature to 550-600°F
- Heat more gradually, allowing time for internal warming
- Try rotating connector more frequently during heating
Problem: Tubing Melts Before Solder
Causes:
- Heat gun too close to connector
- Temperature set too high initially
- Concentrating heat in one spot
Solutions:
- Maintain 2-3 inch distance from heat source
- Start at lower temperature, gradually increase
- Keep heat gun moving continuously
Problem: Incomplete Seal
Causes:
- Insufficient heating time
- Wire insulation interference
- Inadequate wire overlap inside connector
Solutions:
- Extend heating time to 12-15 seconds
- Ensure proper wire stripping length
- Verify wires meet in center solder section
Problem: Weak Connection
Causes:
- Corroded or dirty wire surfaces
- Insufficient solder melting
- Wire movement during cooling
Solutions:
- Clean wire ends with fine sandpaper if needed
- Ensure complete solder flow around wires
- Hold connection steady during 30-second cooling period
Applications and Best Practices
Automotive Wiring
Perfect for:
- Trailer wiring repairs
- Under-hood connections (away from exhaust)
- Dashboard and interior electrical work
- LED light installations
Temperature considerations: Keep away from exhaust manifolds and turbochargers where temperatures exceed 200°F service limit.
Marine Applications
Ideal for:
- Boat electrical systems
- Dock lighting connections
- Bilge pump wiring
- Navigation equipment
Corrosion protection: The IP67 rating provides excellent saltwater resistance when properly installed.
Home DIY Projects
Common uses:
- Landscape lighting
- Outdoor security cameras
- Garage door openers
- Pool and spa equipment
Safety Considerations
Heat Safety
- Always wear safety glasses when using heat guns
- Keep heat gun moving to prevent burns
- Allow adequate cooling time before handling
- Work in well-ventilated areas
Electrical Safety
- Turn off power before making connections
- Test connections with multimeter when possible
- Use appropriate wire gauge for current load
- Follow local electrical codes for permanent installations
Quality Verification Checklist
After installation, verify these quality indicators:
Visual Inspection:
- ✅ Heat shrink tubing completely contracted
- ✅ No charring or burnt areas on tubing
- ✅ Adhesive visible around wire entry points
- ✅ Smooth, professional appearance
Physical Testing:
- ✅ Gentle tug test – no wire movement
- ✅ No gaps between tubing and wire insulation
- ✅ Firm, solid connection feel
Electrical Testing:
- ✅ Continuity confirmed with multimeter
- ✅ Low resistance reading (typically under 0.1 ohms)
Comparing Solder Sleeves vs Traditional Methods
Advantages Over Crimp Connectors
- Superior conductivity – soldered connection provides better electrical flow
- Waterproof sealing – integrated adhesive prevents moisture ingress
- Stronger mechanical bond – solder creates permanent fusion
- Corrosion resistance – sealed environment prevents oxidation
Advantages Over Traditional Soldering
- Faster installation – no flux, solder wire, or separate heat shrink needed
- Consistent results – predetermined solder amount ensures reliability
- Better for field work – no multiple tools or steady work surface required
- Reduced skill requirement – easier for beginners to achieve professional results
Maintenance and Longevity
Properly installed solder sleeve connections can last 10+ years in harsh environments. However, periodic inspection is recommended:
Annual Checks:
- Visual inspection for heat shrink integrity
- Gentle movement test to verify mechanical strength
- Electrical continuity testing for critical connections
Signs of Replacement Needed:
- Cracked or split heat shrink tubing
- Corrosion visible at wire entry points
- Increased resistance measurements
- Physical looseness in connection
Conclusion
Solder sleeve heat shrink butt wire connectors offer an excellent solution for creating waterproof, professional-grade electrical connections. Success depends on proper wire preparation, correct heat application technique, and patience during the cooling process.
The key to mastering these connectors is consistent temperature control at 550°F, continuous rotation during heating, and allowing adequate time for both solder melting and adhesive activation. When installed correctly, these waterproof solder wire connectors provide superior performance compared to traditional crimp connections or manual soldering methods.
For automotive, marine, and DIY applications where moisture protection and connection reliability are critical, solder sleeve heat shrink connectors represent the current best practice for professional-quality results.
