In the world of electrical engineering and manufacturing, every component choice is critical. A single point of failure can lead to costly field service, product recalls, and damage to a company’s reputation. When it comes to insulating and protecting wire connections, two solutions dominate the conversation: heat shrink tubing and common ELECTRICAL tape. While one offers a quick fix, the other provides long-term, professional-grade reliability. Making the right choice is not just a matter of preference; it’s a strategic decision that impacts product quality, safety, and long-term cost.
This comprehensive guide is designed for B2B professionals—engineers, purchasing managers, and technicians—who require definitive, data-backed insights. We will move beyond anecdotal evidence to conduct a thorough comparison, helping you determine which insulation method aligns with your standards for quality, durability, and total cost of ownership.
What is Electrical Tape? The Go-To for Quick Fixes
Electrical tape is a type of pressure-sensitive tape used to insulate electrical wires and other materials that conduct electricity. It is typically made from vinyl or PVC (polyvinyl chloride) due to these materials’ excellent flexibility and insulating properties. Its adhesive backing allows it to be stretched and wrapped tightly around a connection, providing a basic layer of protection against accidental contact and some degree of moisture resistance.
The primary advantages of ELECTRICAL tape are its low cost and ease of use. It requires no special tools—it can be applied by hand, making it a ubiquitous item in toolboxes for temporary repairs, quick prototyping, or color-coding wires in non-critical applications. However, its reliance on an adhesive backing is also its greatest weakness. Over time, adhesives can degrade due to heat, UV exposure, and chemical contaminants, causing the tape to unwrap and leave a sticky residue. This makes ELECTRICAL tape a fundamentally temporary solution, unsuitable for applications demanding long-term reliability.
What is Heat Shrink Tubing? The Professional’s Standard for Durability
Heat shrink tubing is an engineered polymer tube that, when heated, shrinks to conform to the size and shape of the underlying material. Its functionality is based on the science of cross-linked polymers. During manufacturing, the tubing is extruded, expanded to a larger diameter, and then “frozen” in this state through polymer cross-linking. When heat is applied (typically with a heat gun), the thermal memory of the material is activated, causing it to shrink back to its original, smaller size.
The most common material is polyolefin, which offers a balanced profile of durability, chemical resistance, and excellent dielectric strength. Heat shrink comes in various types, including:
- Single-Wall: Provides robust insulation and strain relief.
- Dual-Wall (Adhesive-Lined): Features an inner layer of thermoplastic adhesive that melts during shrinking. This adhesive flows into any gaps and bonds to the wire and connector, creating a permanent, waterproof, and airtight environmental seal.
Unlike ELECTRICAL tape, heat shrink tubing forms a solid, semi-rigid protective layer that does not rely on a degradable adhesive for its integrity. This makes it the preferred professional standard for permanent installations where failure is not an option.

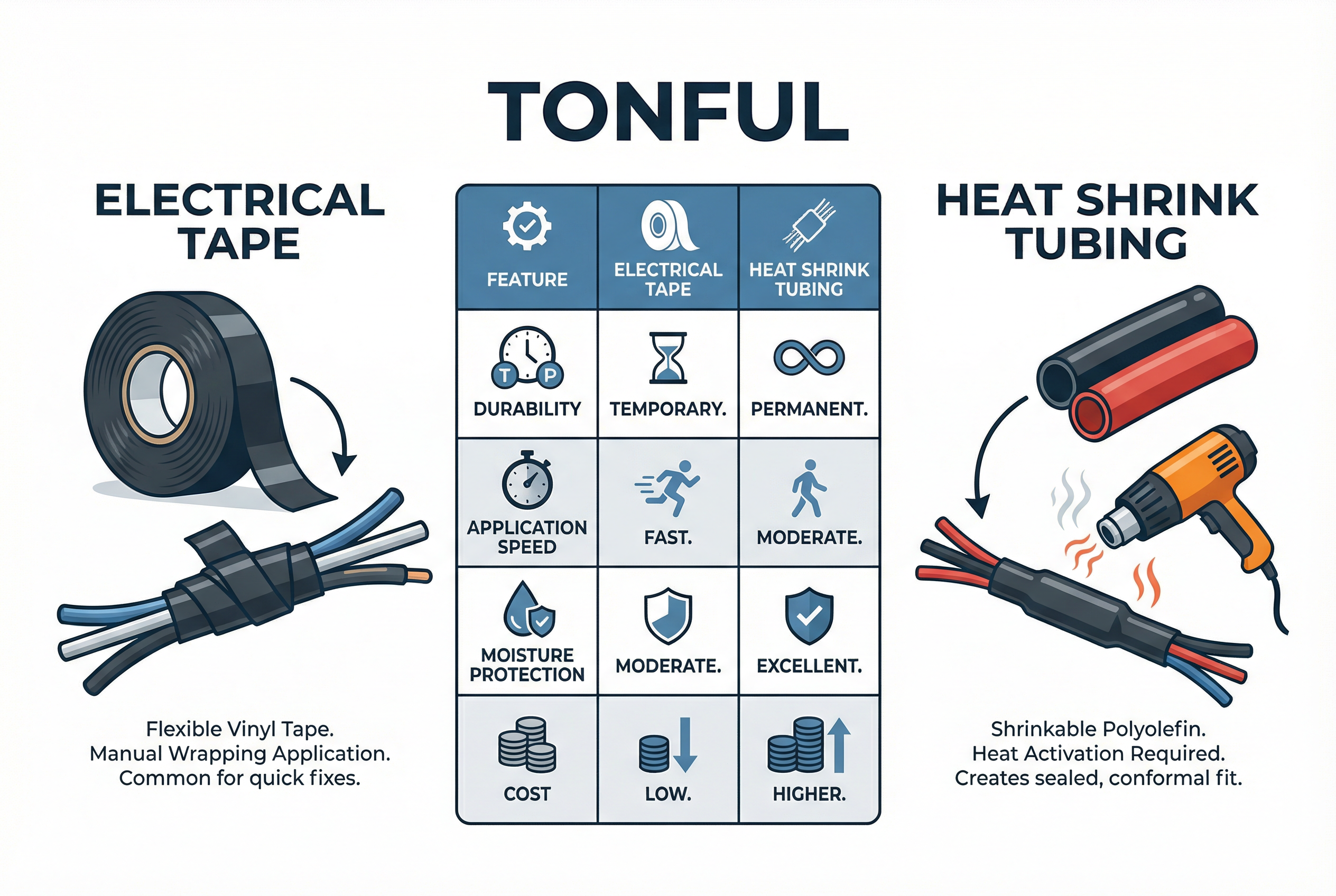

Head-to-Head Comparison: Electrical Tape vs. Heat Shrink
When evaluating these two methods for a professional application, a direct comparison across key performance metrics reveals a clear winner for long-term reliability.
Durability and Longevity
This is where the difference is most stark. Heat shrink tubing is engineered for permanence, with a typical service life exceeding 10 years. Its cross-linked polymer structure provides superior resistance to abrasion, vibration, and mechanical stress.
In contrast, ELECTRICAL tape has a much shorter lifespan, often degrading in under two years, especially when exposed to fluctuating temperatures or UV light. The PVC material can become brittle, and the adhesive will inevitably fail, causing the tape to lose its bond and unravel. For any product intended for a long service life, ELECTRICAL tape introduces a predictable point of failure.
Moisture and Environmental Protection
For applications exposed to the elements—such as automotive, marine, or outdoor industrial equipment—an effective seal is non-negotiable. Adhesive-lined (dual-wall) heat shrink tubing excels here. When heated, the inner adhesive layer melts and creates a complete, waterproof seal that protects the connection from moisture, salt, dust, and other contaminants.
Electrical tape, even when wrapped carefully, cannot provide a true environmental seal. Small gaps and channels will always exist, allowing moisture to wick in over time through capillary action. This can lead to corrosion, short circuits, and eventual failure of the connection.
Temperature Resistance
Electrical components generate heat, and the operating environment can impose extreme temperatures. Heat shrink tubing is manufactured to perform reliably across a wide temperature range, with standard polyolefin rated for -55°C to 135°C (-67°F to 275°F). This ensures stability in demanding automotive engine bays, industrial control panels, and outdoor settings.
Standard PVC ELECTRICAL tape has a much narrower operating range, typically from -10°C to 80°C (14°F to 176°F). Outside this range, the adhesive can fail—becoming brittle in the cold or gooey in the heat—compromising the insulation.
Application and Installation
Applying ELECTRICAL tape is a manual process. Its effectiveness is highly dependent on the skill and care of the technician. This introduces variability that is undesirable in a scalable manufacturing or assembly process.
Heat shrink tubing, while requiring a heat source, offers a repeatable and consistent application process. A controlled-temperature heat gun ensures the tubing is shrunk correctly every time, resulting in a uniform, professional finish. This consistency is vital for quality control in a B2B production environment. Furthermore, the semi-rigid nature of shrunk tubing provides excellent strain relief, protecting the delicate wire strands from breaking under vibration or bending stress—a feature ELECTRICAL tape cannot offer.
Life-Cycle Cost Analysis
For a purchasing manager, the upfront cost of components is always a consideration. A roll of ELECTRICAL tape is significantly cheaper than a supply of heat shrink tubes. However, this comparison is misleading. A professional B2B buyer must consider the Total Cost of Ownership (TCO).
The low initial cost of ELECTRICAL tape is offset by the high future costs associated with its potential failure:
- Warranty Claims: Failures in the field lead to costly warranty repairs or product replacements.
- Maintenance & Labor: Unreliable connections require diagnosis and service, incurring high labor costs.
- Brand Reputation: Product failures damage customer trust and brand reputation.
Heat shrink tubing’s higher upfront cost is an investment in reliability. By preventing failures, it dramatically lowers TCO and protects the brand, making it the more economically sound choice for any quality-focused business.

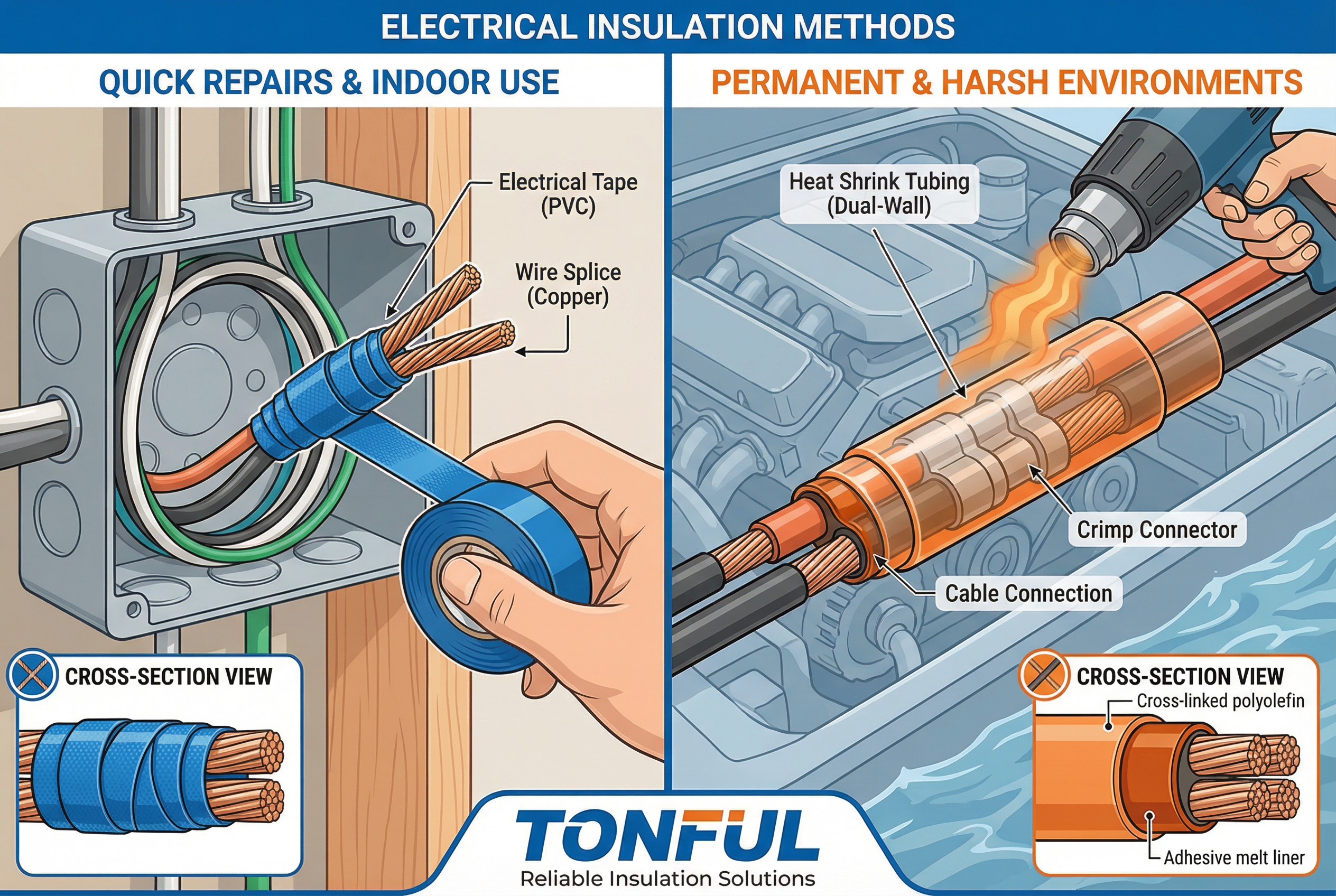

When to Use Each Method: Application Scenarios for Professionals
The choice between these methods depends entirely on the requirements for reliability, longevity, and environmental exposure.
Choose ELECTRICAL Tape For:
- Temporary Connections: Quick, non-permanent wiring during prototyping or testing.
- Bundling & Organization: Grouping loose cables together inside a secure, protected enclosure where no strain or abrasion is expected.
- Color-Coding: Using different colored tapes to identify wires in a harness during initial assembly, with the understanding that it is not a permanent solution.
Choose Heat Shrink Tubing For:
- Permanent Wire Connections & Splices: Any solder joint or crimp connection that must last the lifetime of the product.
- Automotive & Marine Applications: Essential for protecting connections from moisture, salt, oil, and vibration.
- Outdoor & Harsh Environments: Creating weatherproof seals for outdoor lighting, industrial sensors, and telecommunications equipment.
- Strain Relief: Supporting wires at the point of connection to a terminal or connector to prevent breakage.
- Meeting Industry Standards: When products must comply with UL, SAE, or other standards that mandate robust and reliable insulation.
Hybrid Solutions
In ultra-high-reliability applications, some technicians employ a hybrid method: after soldering a splice, they first wrap it with a high-quality rubber splicing tape (a form of ELECTRICAL tape) to add bulk and padding, then cover the entire bundle with a piece of adhesive-lined heat shrink tubing to create a permanent, impenetrable seal.
Professional Recommendations for B2B Buyers: A TONFUL Perspective
As a manufacturer and partner in the low-voltage electrical equipment space, TONFUL’s perspective is shaped by a deep understanding of what causes product failure. Our clients’ success depends on the reliability of every component, no matter how small. From this expert vantage point, the choice is clear.
For any application where performance, safety, and brand reputation are on the line, we unequivocally recommend heat shrink tubing. The decision to use ELECTRICAL tape over heat shrink tubing in a finished product is not a cost-saving measure; it is the integration of a known failure point. The minimal upfront savings are insignificant compared to the potential costs of a single field failure.
We guide our B2B partners to think beyond the component price and consider the long-term value and risk. Choosing heat shrink tubing is an investment in product integrity and customer satisfaction. It reflects a commitment to quality that is the hallmark of a professional-grade product.
Frequently Asked Questions (FAQ)
1. Can you use ELECTRICAL tape instead of heat shrink tubing?
For temporary, non-critical repairs, yes. For any permanent installation, especially where it may be exposed to moisture, heat, or vibration, you should not. Heat shrink provides vastly superior durability, strain relief, and environmental protection.
2. Is heat shrink tubing truly waterproof?
Only dual-wall (adhesive-lined) heat shrink tubing is waterproof. When heated, its inner adhesive layer melts and forms a complete seal around the wire or component, blocking out all moisture. Single-wall tubing is water-resistant but not waterproof.
3. What does the shrink ratio (e.g., 2:1, 3:1) mean?
The shrink ratio indicates how much the tubing will shrink relative to its expanded size. A 2:1 ratio means a 1/2 inch tube will shrink to 1/4 inch. A 3:1 ratio provides more versatility, allowing a single tube size to cover a wider range of wire diameters, which is useful for covering irregular shapes like connectors.
4. Does ELECTRICAL tape leave a sticky residue upon removal?
Yes, almost always. The adhesive on ELECTRICAL tape breaks down over time, especially with heat exposure. When the tape is removed, it leaves behind a gummy, difficult-to-clean residue.
5. What is the best way to apply heat shrink tubing for a reliable seal?
Use a professional heat gun with adjustable temperature settings. Start heating the tubing in the middle and gradually work your way to the ends. This prevents air from getting trapped and ensures a uniform shrink. For adhesive-lined tubing, you will see the sealant flow from the ends, confirming a proper seal has been made.
6. Which is better for automotive and marine applications?
Adhesive-lined heat shrink tubing is the only acceptable choice for these environments. It provides the necessary protection against moisture, salt, oil, and vibration that ELECTRICAL tape cannot.
