When selecting electrical terminals for your project, choosing the right insulation type can mean the difference between a reliable, long-lasting connection and costly repairs down the road. Two of the most common insulation options—PVC (vinyl) insulated terminals and heat shrink terminals—each serve distinct purposes and excel in different environments.
Bottom Line Up Front: Heat shrink terminals provide superior environmental protection and moisture resistance, making them ideal for outdoor, marine, and automotive applications, while PVC insulated terminals offer cost-effective basic protection perfect for controlled indoor environments.
Understanding Terminal Insulation: Why It Matters
Terminal insulation isn’t just about preventing electrical shorts—it’s your first line of defense against environmental hazards, corrosion, and mechanical stress. Each type of terminal is built to handle a specific function and the same goes for the insulation that they carry, which means selecting the wrong type can leave your electrical system vulnerable to failure.
The insulation material you choose directly impacts:
- Environmental protection from moisture, chemicals, and debris
- Connection longevity and resistance to corrosion
- Installation requirements and long-term maintenance needs
- Total project costs including potential replacement expenses

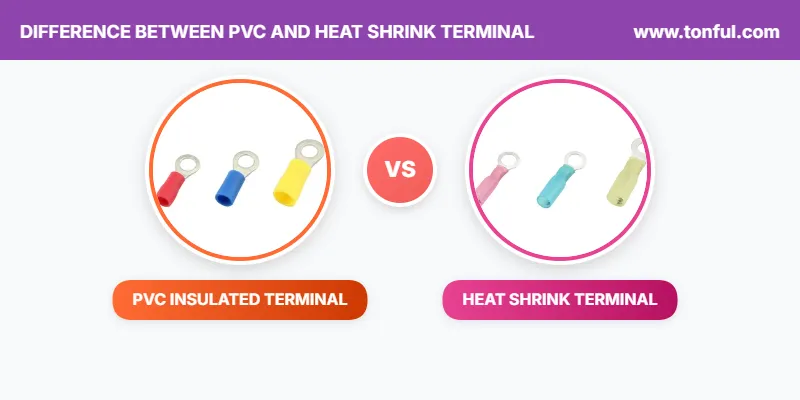

PVC (Vinyl) Insulated Terminals: The Budget-Friendly Standard
What Are PVC Insulated Terminals?
Vinyl connectors have a sheath made by Polyvinyl Chloride plastic, most commonly known as PVC. These terminals feature a plastic insulation sleeve that provides basic electrical isolation and protection against short circuits.
PVC insulated terminals operate effectively within a temperature range of -40°C to 105°C (-40°F to 220°F), making them suitable for most standard electrical applications. The PVC insulation sleeve on each ring terminal prevents vibration damage by not allowing the wire to flex at the point of crimp.
Key Advantages of PVC Terminal Insulation
Cost-Effectiveness
These connectors are the least expensive choice, providing a quality reflective of the price. For projects where budget constraints are significant and environmental exposure is minimal, PVC terminals offer excellent value.
Easy Installation and Inspection
PVC terminals require only standard crimping tools and techniques. The semi-transparent nature of some PVC insulation allows for visual inspection of the crimp quality, making them popular for applications requiring easy serviceability.
Wide Availability
When cost is a concern, PVC cable jackets are less expensive than other options and more readily available. This accessibility makes PVC terminals ideal for large-scale installations and emergency repairs.
Environmental Benefits
Unlike other insulations, PVC is 100% recyclable, making it an environmentally conscious choice when properly disposed of.
Limitations of PVC Insulated Terminals
Limited Environmental Protection
While the insulation on these terminals is able to protect against short circuits, there is little other benefit to choosing this connector when making a repair. PVC provides minimal protection against moisture, chemicals, or extreme temperatures.
Aging and Degradation
The insulation becomes brittle and cracks as it ages, a process accelerated by sun exposure. This degradation significantly reduces the terminal’s lifespan in outdoor applications.
Single Crimp Limitation
The strength of this connection is dependent on the strength of a single crimp, unlike more robust alternatives that offer double-crimping capabilities.
Best Applications for PVC Terminals
These are a great choice for use on internal wiring in a home or office where, often times, the electrical connections are between walls and not subject to vibration, flex, or any other type of hazard.
Ideal scenarios include:
- Interior residential and commercial wiring
- Control panel connections in dry environments
- Audio and entertainment system wiring
- Automotive interior electronics
- Temporary installations and prototyping
- High-volume installations where cost is paramount
Heat Shrink Terminals: Advanced Environmental Protection
How Heat Shrink Terminal Technology Works
Heat shrink terminals are electrical connectors designed to create solid, secure, and insulated weatherproof connections between wires. They commonly consist of a connector surrounded by a heat-shrinkable tubing that has an internal adhesive lining.
The magic happens during installation: When heated, the tubing shrinks, and the adhesive melts, forming a tight seal that protects against moisture, corrosion, and mechanical stress. This creates a hermetic seal that’s virtually waterproof.
Superior Protection Features
Moisture and Corrosion Resistance
With other types of insulation such as nylon or vinyl, the connection does not get a watertight seal to protect the connection point. Heat shrink terminals eliminate this weakness by creating a complete environmental barrier.
Enhanced Durability
Epoxy-lined heat shrink terminals provide an additional layer of insulation that protects the electrical connection from the intrusion of external elements like dirt, dust, debris, seawater, and other contaminants.
Temperature Performance
Heat shrink terminals typically handle extended temperature ranges from -55°C to 125°C, outperforming PVC alternatives in extreme conditions.
Color-Coded Sizing
22AWG – 18AWG and commonly pink or red, 16AWG – 14AWG are commonly blue, 12AWG – 10AWG are commonly yellow, and 8AWG are commonly pink or red, making field identification simple and reducing installation errors.
Heat Shrink Terminal Disadvantages
Higher Initial Investment
Heat shrink terminals typically cost 2-3 times more than equivalent PVC options, which can impact project budgets significantly on large installations.
Installation Complexity
The operator will generally need a wire cutter/stripper, proper crimping tool, and heat gun or heat tool. This additional equipment requirement and installation time can be challenging in field conditions.
Permanent Installation
Once activated, heat shrink terminals cannot be easily removed or repositioned, making field modifications more complex than with PVC alternatives.
Optimal Applications for Heat Shrink Terminals
They are the ideal solution for marine applications where moisture intrusion and corrosion resistance are required for secure electrical connections.
Critical applications include:
- Marine and boat electrical systems
- Automotive engine bay connections
- Outdoor lighting and signage
- Industrial equipment in harsh environments
- Underground electrical installations
- Food processing and washdown areas
- Any application where moisture exposure is likely
Head-to-Head Comparison: Making the Right Choice
Environmental Protection Showdown
| Protection Factor | PVC Insulated | Heat Shrink |
|---|---|---|
| Moisture Resistance | Basic splash protection | Waterproof hermetic seal |
| Corrosion Prevention | Limited | Excellent with epoxy |
| UV Resistance | Poor – becomes brittle | Good to excellent |
| Chemical Resistance | Moderate | Superior |
| Vibration Protection | Basic | Enhanced strain relief |
Cost Analysis: Beyond Initial Price
PVC Terminals – Total Cost Considerations:
- Initial cost: $0.05-$0.15 per terminal
- Installation time: 1-2 minutes per connection
- Expected lifespan: 5-10 years in controlled environments
- Replacement frequency: Higher in harsh conditions
Heat Shrink Terminals – Investment Analysis:
- Initial cost: $0.15-$0.40 per terminal
- Installation time: 3-5 minutes per connection
- Expected lifespan: 15-25 years even in harsh environments
- Replacement frequency: Minimal with proper installation
Performance in Different Environments
Indoor Controlled Environments:
Both options perform well, but PVC offers better value for most applications.
Outdoor/Exposed Locations:
Heat shrink terminals significantly outperform PVC in longevity and reliability.
Marine/High-Moisture Areas:
Heat shrink is essential; PVC terminals will likely fail prematurely.
Automotive Applications:
Engine bay requires heat shrink; interior wiring can use PVC.
Industry-Specific Application Guide
Automotive Electrical Systems
Engine Bay Connections:
Heat shrink terminals are mandatory due to extreme temperatures, moisture, road salt, and chemical exposure. The superior sealing prevents corrosion that could lead to starting problems or electrical failures.
Interior Wiring:
PVC terminals work well for dashboard electronics, radio installations, and interior lighting where environmental protection isn’t critical.
Undercarriage Applications:
Heat shrink provides essential protection against water, salt, and debris that can cause expensive electrical problems.
Marine and Boat Wiring
Heat shrink terminals are used where wire connections are subject to outdoor or environmental exposure such as moisture and temperature differences. The marine environment demands the highest level of protection due to constant moisture, salt exposure, and vibration.
Critical marine applications:
- Navigation equipment connections
- Bilge pump wiring
- Engine electrical systems
- Deck lighting and accessories
- Through-hull sensor connections
Residential and Commercial Buildings
Interior Panel Work:
PVC terminals provide adequate protection for breaker panel connections, outlet wiring, and switch installations in dry locations.
Outdoor Circuits:
Exterior lighting, HVAC units, and pool equipment require heat shrink terminals for reliable long-term performance.
Basement and Crawl Spaces:
Use heat shrink terminals in areas prone to moisture, condensation, or flooding.
Industrial Equipment
Clean Manufacturing:
PVC terminals work well in controlled environments like electronics assembly or clean room applications.
Harsh Industrial Conditions:
Chemical processing, food production, and outdoor industrial equipment require heat shrink protection against contamination and environmental hazards.
Installation Best Practices and Pro Tips
PVC Terminal Installation
- Proper Wire Preparation: Strip wire to manufacturer specifications (typically 1/4 inch)
- Complete Insertion: Ensure wire reaches the end of the terminal barrel
- Correct Tool Positioning: Align crimping tool with barrel indicators
- Single Firm Crimp: Apply steady pressure for complete compression
- Quality Verification: Perform gentle pull test to verify mechanical connection
Heat Shrink Terminal Installation
- Standard Crimp First: Complete the mechanical and electrical connection using proper crimping technique
- Heat Application: Position heat gun 2-3 inches from terminal, moving continuously
- Monitor Shrinkage: Watch for uniform shrinking and epoxy flow at wire entry
- Cooling Period: Allow complete cooling before handling or testing
- Visual Inspection: Verify complete seal formation around wire entry point
Common Installation Mistakes to Avoid
Critical errors that compromise performance:
- Under-crimping: Creates high resistance and mechanical weakness
- Over-heating: Can damage wire insulation or create stress points
- Incorrect wire strip length: Compromises both electrical and mechanical performance
- Wrong terminal size selection: Leads to poor connections and potential failures
- Skipping pull testing: May leave weak connections undetected until failure occurs
Making Your Decision: Selection Guidelines
Choose PVC Insulated Terminals When:
- Budget is the primary constraint and environmental exposure is minimal
- Easy serviceability is required for future modifications or troubleshooting
- Installation is in controlled indoor environments with stable temperature and humidity
- High-volume installations where cost per unit significantly impacts total project expense
- Temporary or prototype applications where permanent installation isn’t required
Choose Heat Shrink Terminals When:
- Environmental protection is critical for system reliability
- Moisture exposure is likely or certain in the application environment
- Long-term reliability is essential and replacement costs are high
- Maintenance access is limited after installation
- Applications involve vibration, movement, or mechanical stress
- Chemical or contaminant exposure is expected
Decision Matrix for Quick Selection
| Application Type | Recommended Choice | Key Reasoning |
|---|---|---|
| Home Interior Wiring | PVC | Cost-effective, adequate protection |
| Outdoor Lighting | Heat Shrink | Weather exposure requires sealing |
| Marine Applications | Heat Shrink | Moisture and salt demand protection |
| Automotive Engine Bay | Heat Shrink | Heat and contamination resistance |
| Industrial Controls | Depends on environment | Assess contamination and moisture risk |
| Audio/Video Systems | PVC | Clean environment, cost considerations |
Frequently Asked Questions
Q: Can I mix PVC and heat shrink terminals in the same project?
A: Yes, this is often the most cost-effective approach. Use heat shrink terminals for exposed or critical connections and PVC terminals for protected areas.
Q: How do I know if my heat shrink terminal is properly installed?
A: Look for uniform shrinkage, epoxy flow at the wire entry point, and a smooth, sealed appearance. The terminal should feel solid and show no gaps.
Q: Are there temperature limitations I should consider?
A: PVC terminals handle -40°C to 105°C, while heat shrink terminals typically handle -55°C to 125°C. Consider your application’s temperature extremes.
Q: What happens if I use the wrong insulation type?
A: Using inadequate insulation can lead to corrosion, connection failure, electrical shorts, or safety hazards. Always match the insulation to your environment.
Q: Can heat shrink terminals be removed for modifications?
A: Heat shrink terminals are designed for permanent installation. Removal typically requires cutting and replacement, unlike PVC terminals which can sometimes be carefully removed.
Conclusion: Choosing the Right Terminal for Success
The choice between PVC insulated and heat shrink terminals isn’t just about upfront costs—it’s about selecting the right tool for your specific environment and requirements.
For indoor, controlled environments where cost management is crucial, PVC insulated terminals provide reliable performance at an economical price point. They’re perfect for residential wiring, commercial interiors, and applications where easy serviceability is important.
For outdoor, marine, automotive, or industrial applications where environmental protection is paramount, heat shrink terminals justify their higher initial investment through superior durability and dramatically reduced maintenance requirements.
Remember that the total cost of ownership includes not just the initial terminal price, but also installation labor, potential replacement costs, and the consequences of connection failure. In critical applications where reliability is essential, investing in heat shrink terminals often provides significant long-term value.
Key takeaway: Match your terminal choice to your environment. When in doubt about environmental conditions, choose heat shrink terminals for peace of mind and long-term reliability. For projects where budget is tight and conditions are controlled, PVC terminals offer an economical solution without compromising safety.
The investment in proper terminal selection today can save substantial troubleshooting, replacement, and repair costs tomorrow. Consider your specific application carefully, and don’t hesitate to consult with electrical professionals for critical installations.
