Knowing how to crimp a terminal starts before the handles close. The wire, terminal barrel and tooling must form an approved combination. A neat-looking indentation cannot compensate for an unsuitable conductor, wrong cavity or incorrect strip length. Likewise, a completed tool stroke does not prove that the operator loaded the correct parts.
Use the following workflow for ordinary crimp-terminal assembly under an approved application instruction. It covers identification, wire preparation, positioning, crimping and inspection without inventing a universal crimp force or acceptance dimension. Specialized contacts, battery lugs, ferrules and safety-critical equipment can need different tools and procedures; confirm the governing instruction before applying a general workflow.
Jump to: System match | Preparation | Positioning | Crimping | Inspection | Troubleshooting
How to Crimp a Terminal: Start With the System Match

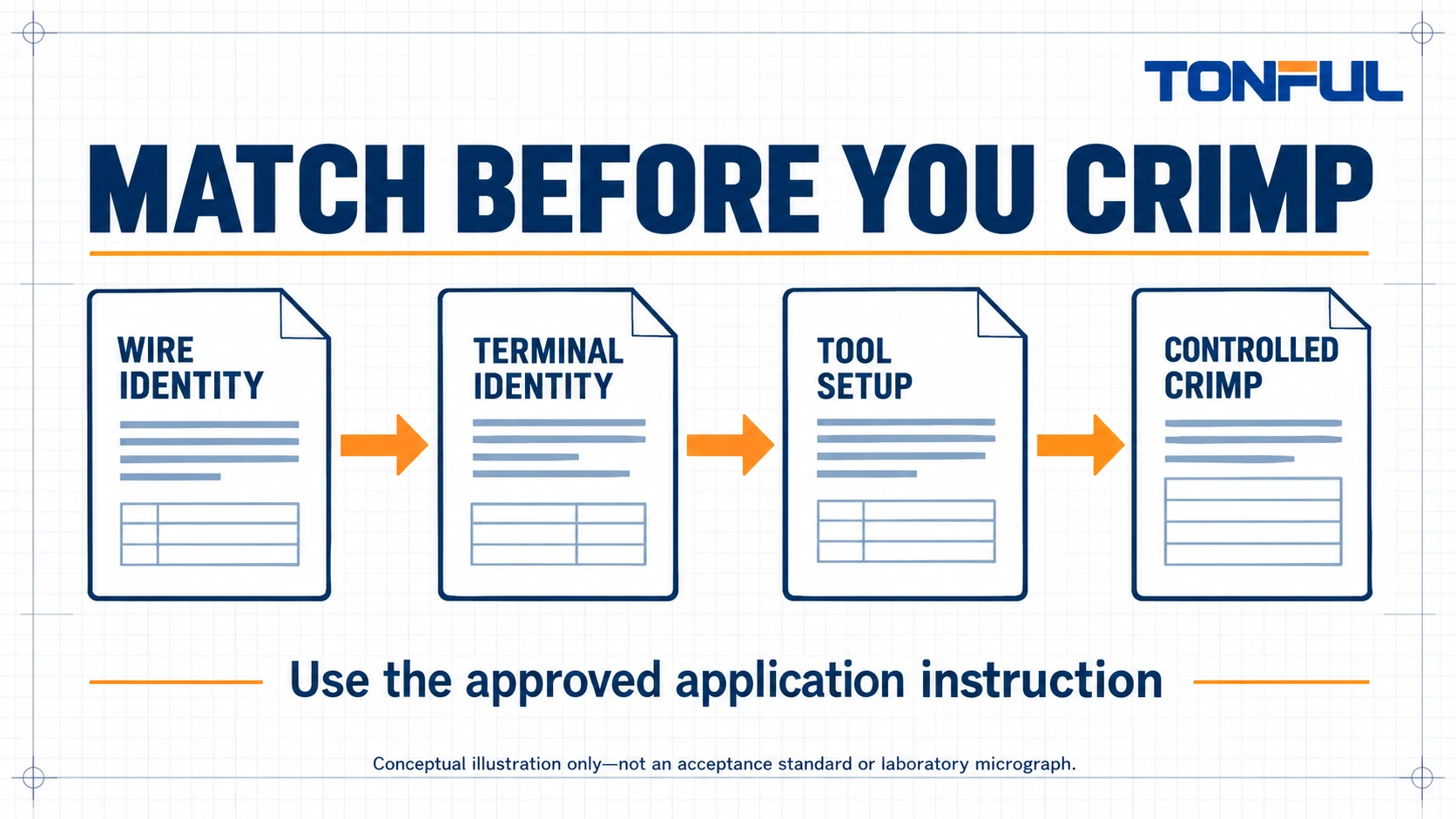

Identify the three controlled items
Record the wire part number, terminal part number and tool setup. For the wire, include conductor material, nominal size, strand construction and insulation outside diameter. For the terminal, include drawing revision, barrel construction and permitted wire range. For the tool, include model, die or cavity, locator where required and the applicable instruction revision.
Check the terminal-to-tool relationship directly. A tool marked with the same nominal wire range is not automatically approved for the terminal. Open-barrel contacts, pre-insulated terminals, bare closed barrels and ferrules can require different forming profiles and support arrangements. Do not select a cavity by sleeve color alone or assume that every terminal called insulated uses the same die.
TE’s commercial crimp-tooling guide connects wire preparation and terminal geometry with matched tooling. It illustrates the documentation to obtain, not permission to transfer TE dimensions, tools or approvals to an unrelated TONFUL terminal.
TONFUL’s crimping-tool information can support the initial discussion, but request the actual compatibility instruction for your combination. Resolve conflicting supplier and customer instructions before setup. If compatibility cannot be established, hold the job rather than producing trial parts with whichever tool happens to close around the barrel.
Define what a successful setup must show
The work instruction should identify strip length, terminal orientation, insertion position, required operations and acceptance sources. Where measurements or tests are required, the approved plan must define their methods and limits. This guide does not assign a universal pull force, crimp height or tool force because those values depend on the actual system.
| Setup item | Check before cutting wire | Stop condition |
|---|---|---|
| Wire identity | Part, size, material and strand construction match | Unidentified or substituted wire |
| Terminal identity | Correct part and revision | Similar-looking substitute |
| Tooling | Correct die/cavity and required locator | Generic size match only |
| Process document | Strip, position and operation sequence defined | Missing or conflicting instructions |
| Acceptance source | Inspection and required tests identified | Unsourced numerical limits |
Prepare the Wire and Work Area
Establish a safe working condition
Do not crimp or repair a terminal on an energized circuit. Isolate the equipment under the applicable procedure, control stored energy and have qualified personnel verify the deenergized condition. In applicable US workplaces, OSHA 1910.333 addresses deenergization, isolation and verification. Ordinary terminal insulation and ordinary tool handles are not authorization for live work.
Restraint systems, traction circuits and other safety-critical equipment require their equipment-specific approved service process. Do not splice, substitute terminals or probe those circuits based on a general crimping article. For new bench assemblies, keep loose components organized, protect sharp tooling and follow the tool maker’s handling and pinch-point precautions.
Cut and strip to the part instruction
Use a suitable cutter to produce a clean wire end. Set the stripper for the actual conductor construction and the required strip length. Strip length should expose enough conductor for the intended barrel region without leaving unnecessary bare wire or trapping insulation in the conductor crimp. Obtain the value from the applicable instruction rather than estimating from the outside of a sleeve.
Inspect the stripped end before insertion. Look for nicked or missing strands, cut-back conductor and damaged jacket. If preparation is defective, cut back to sound wire and prepare again when the permitted repair length allows. Do not conceal damaged strands inside the barrel or compensate for insufficient conductor by pulling the jacket backward.
Preserve the intended strand arrangement
Keep the conductor bundle together without adding an unapproved preparation operation. Do not solder-tin, fold back, remove strands or add extra wire to fill a barrel unless the governing documentation specifically requires and permits that arrangement. If the bundle repeatedly splays during insertion, investigate strip quality, wire compatibility and entry geometry rather than forcing it into place.
Position the Terminal and Conductor
Orient the terminal as instructed
Place the terminal in the specified cavity with the required orientation. A locator or wire stop, where specified, controls position; it is not optional simply because the terminal can be held by hand. Keep the tongue, mating contact or other functional region out of the forming area unless the tool instruction explicitly shows otherwise.
For nylon-insulated terminals, confirm that the die supports the specified construction without cutting or displacing the sleeve. For non-insulated terminals, use the relevant bare-barrel instruction rather than assuming that removing a sleeve makes an insulated-terminal setup suitable.
Insert the conductor to the specified position
Guide all strands into the intended conductor region and verify insertion using the features identified by the instruction. Do not assume every barrel has an inspection window or central stop. If the position is hidden, use the approved setup method and verification sequence rather than inventing a visual criterion that the part cannot show.
Keep insulation out of the conductor crimp while locating any insulation support where specified. A support feature restrains or supports the jacket according to the product design; it is not a substitute for the conductor termination. Where separate conductor and insulation operations are required, maintain their identities and sequence in the work instruction.
Treat ferrules as a separate process
TONFUL’s cord-end terminals prepare stranded conductors for compatible receiving terminals. Their sleeve length, finished profile and receiving-terminal fit need their own selection review. Do not apply a ring-terminal indentation pattern to a ferrule or assume a ferrule tool is suitable for an ordinary insulated ring terminal.
Complete the Specified Crimp Operation
Follow the tool completion method
Operate the tool through the specified cycle while maintaining the required wire and terminal position. For a ratcheting tool, follow its instruction for completion and release. For powered equipment, use the approved setup, guarding and operating procedure. Do not defeat a release mechanism or alter the tool to increase apparent compression.
Do not add another squeeze, move the terminal to a different cavity or strike the barrel to improve its appearance. Multiple forming locations are appropriate only when the part instruction specifies them. The number and position of compressions come from the terminal system, not from a general rule that more crimping creates a stronger joint.
Remove the part without loading the connection
Release and remove the assembly as instructed without pulling the conductor sideways or distorting the tongue or mating interface. Inspect for damage introduced during removal as well as during forming. Keep the new crimp away from routing loads until the required checks and downstream support steps are complete.
If the terminal is stuck or the tool cycle is abnormal, stop and follow the tool’s recovery procedure. Identify affected parts and preserve the setup information for review. Do not force a damaged terminal back into production merely because a continuity meter still indicates a connection.
Inspect and Record Before Release
Use visual checks for the questions they can answer
Check component identity, conductor position where visible, strand containment, sleeve condition, barrel placement and damage to the functional end. Compare the assembly with the approved inspection instruction. A symmetrical appearance alone does not demonstrate adequate internal compression, and visible tool marks are not automatically defects unless the applicable criteria identify them as such.
If later-applied protection will conceal the crimp, complete the relevant inspection first. Then verify the final protection position and installed envelope separately. A finished sleeve photograph cannot prove the concealed conductor position. Maintain distinct checkpoints for the termination and for its protection so one does not silently replace the other.
| Release record | What to capture | Why it is useful |
|---|---|---|
| Assembly identity | Job, wire and terminal lot references | Connects the result to material |
| Setup | Tool, die/cavity and instruction revision | Makes the process reproducible |
| Preparation | Strip method and first-piece review reference | Confirms the approved setup was used |
| Visual inspection | Actual result and defect disposition | Separates acceptance from appearance |
| Required verification | Test or measurement record reference | Links results to the governing method |
| Authorization | Reviewer, date and released configuration | Prevents unresolved substitutions |
Apply required measurements and tests correctly
Where the approved plan calls for crimp-height measurement, destructive pull testing, electrical verification or section analysis, use its specified sample selection, method and acceptance source. Define equipment suitability and invalid-test handling before evaluating results. Do not improvise a qualification method by pulling every finished wire with unmeasured hand force.
A continuity check answers whether an electrical path exists under that check’s conditions. It does not independently establish loaded thermal performance, environmental durability or mechanical retention. Keep those claims tied to their own evidence. Production inspection and qualification serve different purposes; neither should be described as proving more than its method supports.
Contain Problems and Source the Correct System
Use symptoms to direct the next check
If the wire pulls out, quarantine the affected production and confirm wire identity, insertion, terminal range and tooling setup before changing settings. If insulation is split, review sleeve compatibility, cavity and positioning. If the tongue or contact is distorted, examine terminal location and removal handling. These are diagnostic starting points, not proof of a root cause from appearance alone.
Replace a rejected termination using the approved rework process. Do not repair an unacceptable crimp by adding solder, squeezing with pliers or hiding it under tubing. Record containment, the confirmed cause and any instruction or setup change needed to prevent recurrence. Restart only after the required verification is complete.
Request the terminal and tooling information together
Send TONFUL the wire specification, connection-point drawing, desired terminal construction and intended production method. Ask the wire-terminal sourcing team for suitable candidates with the matching application and tooling information. Confirm any required ratings or approvals for the actual part rather than relying on a family-level marketing claim. The useful outcome is a released wire-terminal-tool system with an inspection plan, not simply a crimp that looks finished.
