Premium Winged Wire Connectors Manufacturer | ACE Style Twist-On Nuts
TONFUL Electric is a premier manufacturer of high-torque winged wire connectors, engineered as the ultimate drop-in alternative to premium brands like King Innovation ACE. Designed for residential, commercial, and industrial electrical splicing, our winged wire nuts provide an incredibly secure, vibration-resistant connection for copper-to-copper wiring.
Featuring an ergonomic swept-back wing design for effortless twisting and a highly active square-wire spring that bites deeply into conductors, TONFUL ensures a flawless electrical joint every time. As a direct factory, we deliver UL-listed safety, robust flame-retardant housings, and flexible OEM bulk packaging solutions for global distributors.
Certified By
Technical Specifications: Premium Winged Wire Connectors
| Specification Property | Performance Standards / Parameters |
|---|---|
| Connector Type (端子类型) | Swept-Wing Twist-On Wire Connector (ACE Style) |
| Wire Range (适用线规) | AWG 22 to AWG 6 (Depending on color code) |
| Housing Material (外壳材质) | Tough, Thermoplastic Shell (UL94 V-2 Flame Retardant) |
| Spring Material (弹簧材质) | Zinc-Plated Carbon Steel (Square-Wire design for maximum bite) |
| Maximum Voltage (额定电压) | 600V Max (Building wiring) / 1000V Max (Signs and fixtures) |
| Operating Temperature (工作温度) | 105°C (221°F) Maximum |
| Conductor Type (适用导线) | Solid and/or Stranded Copper to Copper connections |
| Quality Compliance (认证标准) | UL Listed, CSA Certified, RoHS, CE Compliant |
Why Choose TONFUL Winged Wire Connectors
Ergonomic Swept-Wing Design
Say goodbye to hand fatigue. Our swept-back wing design provides extra leverage and maximum torque, making it incredibly easy for electricians to twist the connector tightly onto multiple thick wires, drastically improving installation speed and comfort.
Aggressive Square-Wire Spring
Inside the durable plastic shell lies a zinc-plated, expanding square-wire spring. Unlike cheap round springs, the square edges aggressively bite into both solid and stranded copper wires, instantly creating a secure, vibration-resistant electrical bond that won't loosen over time.
Deep Skirt Wire Protection
Safety is paramount. The TONFUL winged connector features an extra-deep, wide-throated skirt that guides the wires smoothly into the spring and fully covers the exposed bare copper. This effectively prevents flashovers, arcing, and dangerous electrical shorts.
Rugged Flame-Retardant Housing
We refuse to use recycled, brittle plastics. Our wire nut housings are molded from premium thermoplastic materials with a UL94 V-2 flammability rating, ensuring they can easily withstand harsh job site environments and high operating temperatures up to 105°C (221°F).
Strict Compliance & Certified Safety
A wire splice is the most critical point of any electrical circuit. TONFUL twist-on connectors are strictly tested for pull-out strength and dielectric voltage withstand. They are fully UL Listed, CSA Certified, and RoHS compliant, giving your project absolute regulatory security.
Factory-Direct OEM & Custom Packaging
By operating our own massive injection molding and automated assembly lines, we completely eliminate the middleman. We offer unmatched flexibility for bulk distributors, including OEM-branded packaging, clear plastic jars, retail blister packs, and highly competitive wholesale pricing.
Professional Selection Guide
Step 1: Determine the Total Wire Gauge (AWG)
Wire nuts are sized by the total cross-sectional area of the wires being joined. Calculate the combination of your wires (e.g., two 12 AWG wires plus one 14 AWG wire) and check the manufacturer's specification chart to find a connector that comfortably accommodates that exact bundle.
Step 2: Choose the Color Code

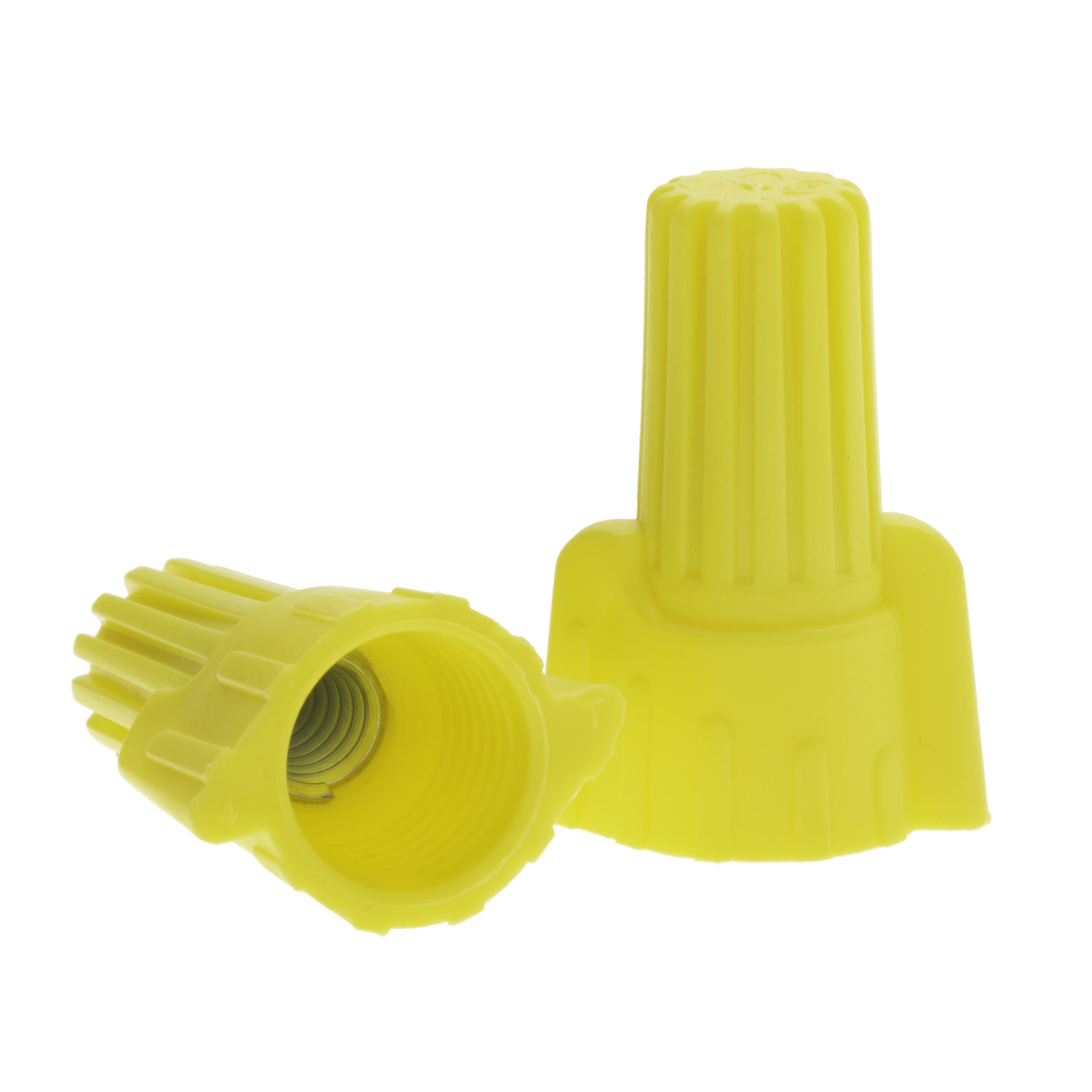

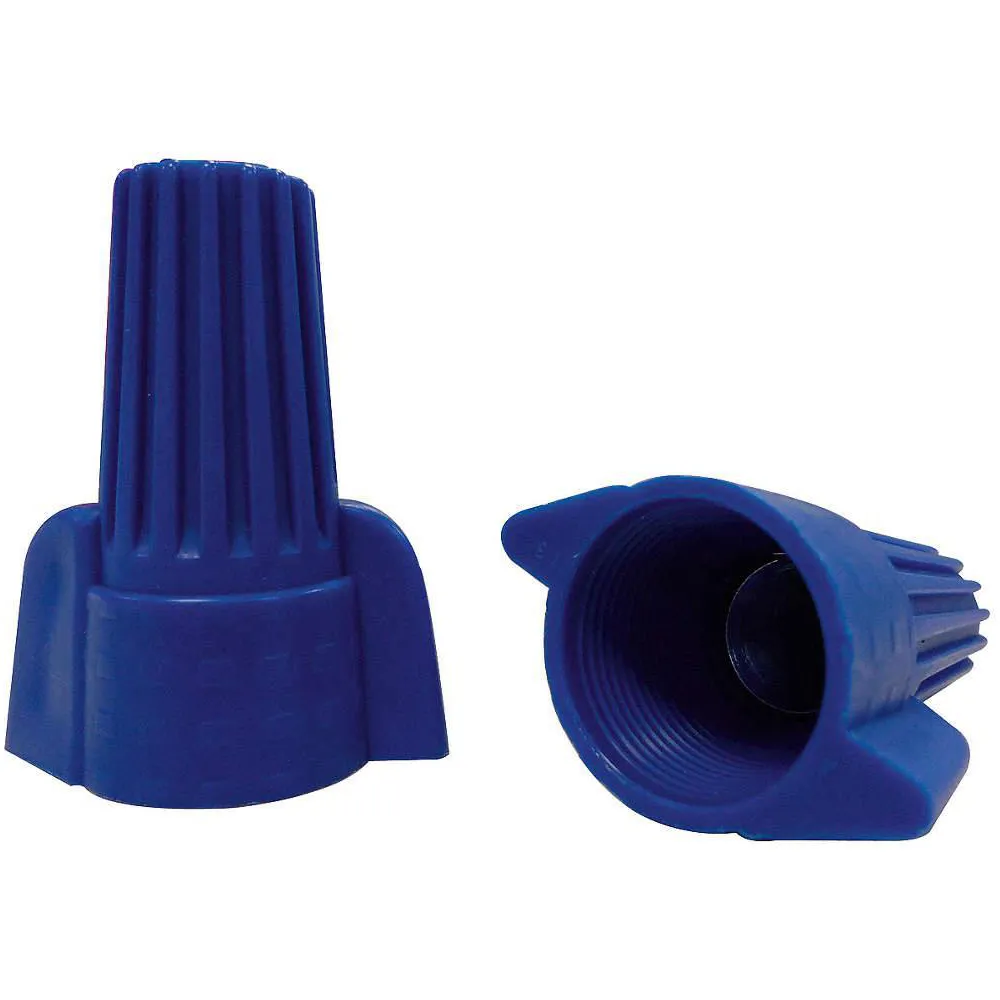

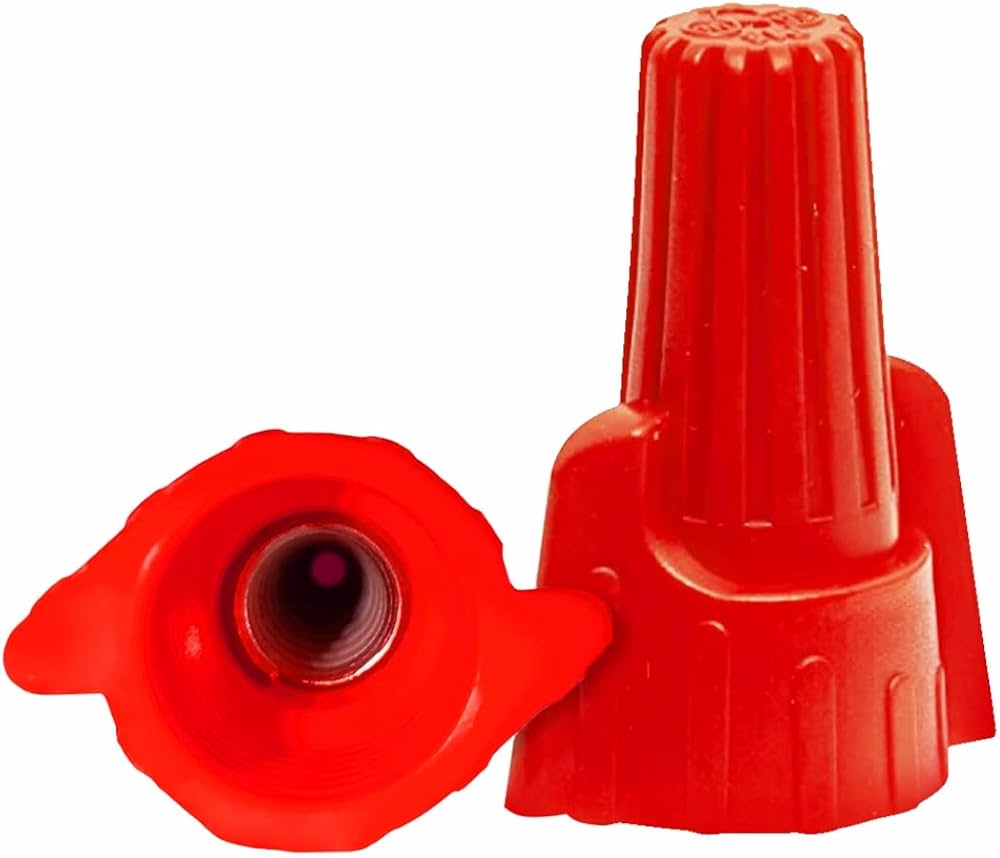

The industry relies on a standard color-coding system. Generally, Yellow is for standard indoor receptacles and lighting (AWG 18-10), Red is for heavier loads like AC units (AWG 18-8), and Blue is for large industrial gauge combinations (AWG 14-6).
Step 3: Select the Connector Style
Decide between standard ribbed wire nuts and winged connectors. For joining multiple wires or working with thick gauges (10 AWG or 8 AWG), always select swept-wing connectors (ACE style) to give your fingers the leverage needed for a gas-tight twist.
Step 4: Assess the Environment
For standard dry indoor applications, our thermoplastic winged connectors are perfect. However, if you are burying wires underground or working in irrigation systems, you must switch to our silicone-filled waterproof wire nuts to prevent rapid corrosion.
Step 5: Verify the Voltage Rating
Confirm the voltage of your circuit. Standard residential and commercial building wiring requires connectors rated for 600V. For specific applications like high-intensity lighting fixtures or signage, ensure the connector is rated for 1000V maximum.
Step 6: Check Global Certifications
Never compromise on electrical safety. For professional installations or importing into North American/European markets, always demand products that carry clear UL (Underwriters Laboratories) or CSA certification marks on the packaging.
Get Your Free Sample!
We provide samples for free, you just need to tell us what you need
MORE THAN JUST AN ELECTRICAL CONNECTOR MANUFACTURER
Service Consultation
Whether your Twist-On Wire Connector requirements are straightforward or complex, our team provides expert advice and technical consultation. For more intricate projects, we offer in-depth engineering support to ensure optimal product selection and application, guaranteeing safety and efficiency in your electrical systems.
Product Recommendations
Unsure which Twist-On Wire Connector suits your system? Our specialists provide free, customized recommendations based on your specific operational and environmental requirements, ensuring you get the perfect fit for your electrical protection needs.
Installation Support
Need help with installation? Our technical team is available to answer your questions or provide hands-on support. For larger projects, we can even dispatch an engineer to your site for on-the-ground assistance, ensuring your terminals are installed correctly and function seamlessly within your electrical network.
Logistics Support
If you lack a reliable freight forwarder, we can arrange transportation from our factory to your project site at no extra cost. Our logistics team ensures timely and secure delivery to keep your project on schedule, minimizing downtime and delays.
Frequently Asked Questions
We have compiled some common questions from our clients. If your question isn’t included here, our customer service is always available to help. We’d love to talk with you.
Q1: Do I need to pre-twist the wires before screwing on a TONFUL winged connector?
Pre-twisting is generally not required for our connectors. The aggressive square-wire spring is designed to gather, twist, and grip the wires simultaneously as you turn the shell. However, for combinations of solid and stranded wires, leading the stranded wire slightly ahead of the solid wire before twisting is highly recommended.
Q2: Can I use these connectors to join copper and aluminum wires?
No. These standard winged wire connectors are strictly designed for Copper-to-Copper (Cu/Cu) connections. Using them for Aluminum-to-Copper connections can cause galvanic corrosion, overheating, and fire hazards. Specialized AL/CU connectors with antioxidant paste must be used for those situations.
Q3: Are these winged wire nuts waterproof?
No, the standard thermoplastic winged connectors are for dry locations only. If you need a watertight splice for landscaping, irrigation, or direct burial, you must use our specialized Waterproof Wire Nuts, which are pre-filled with 100% dielectric silicone sealant.
Q4: What makes the "swept-wing" design better than standard ribbed wire nuts?
The swept-wing design acts like a built-in wrench. It provides significantly more leverage, reducing the physical strain on your fingers and wrists. This allows you to apply much greater torque, resulting in a tighter, safer connection—especially when working with stiff, thick wires or wearing work gloves.
Q5: Do you offer OEM packaging like clear jars or custom-branded bags?
Yes! As a direct manufacturer, we offer extensive OEM packaging options. We can supply the connectors in bulk cartons for assembly lines, clear plastic screw-top jars for hardware retail shelves, or custom-printed polybags with your brand logo and barcode.
