FPC / FFC Connector Manufacturer for OEM & Wholesale
Source FPC and FFC connectors from TONFUL Electric for compact displays, appliance controls and electronic assemblies. Compare eight catalog configurations, then share your pitch, circuit count, cable thickness, contact orientation, PCB footprint and order quantity.
FPC / FFC Connector Product Range
Compare the eight configurations below by pitch, circuit count, actuator style and mounting orientation. Confirm the exact drawing and compatible cable before selecting a connector.

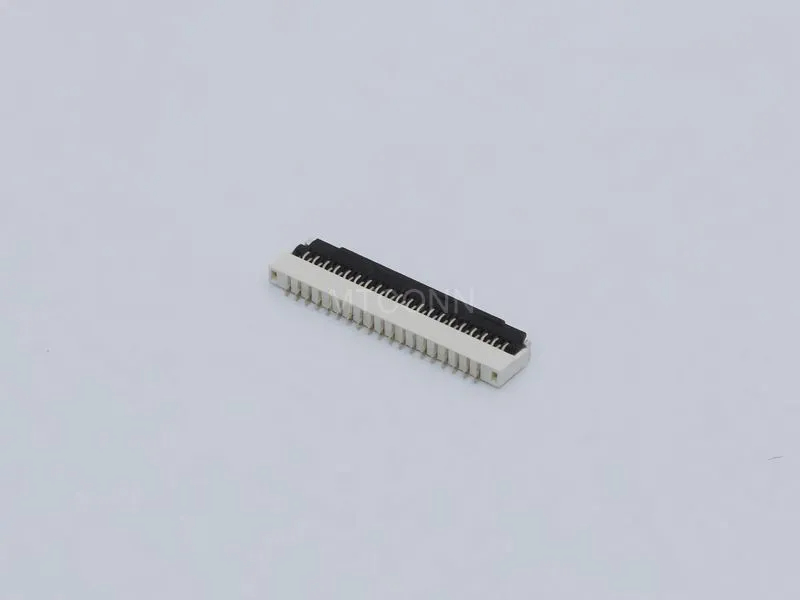

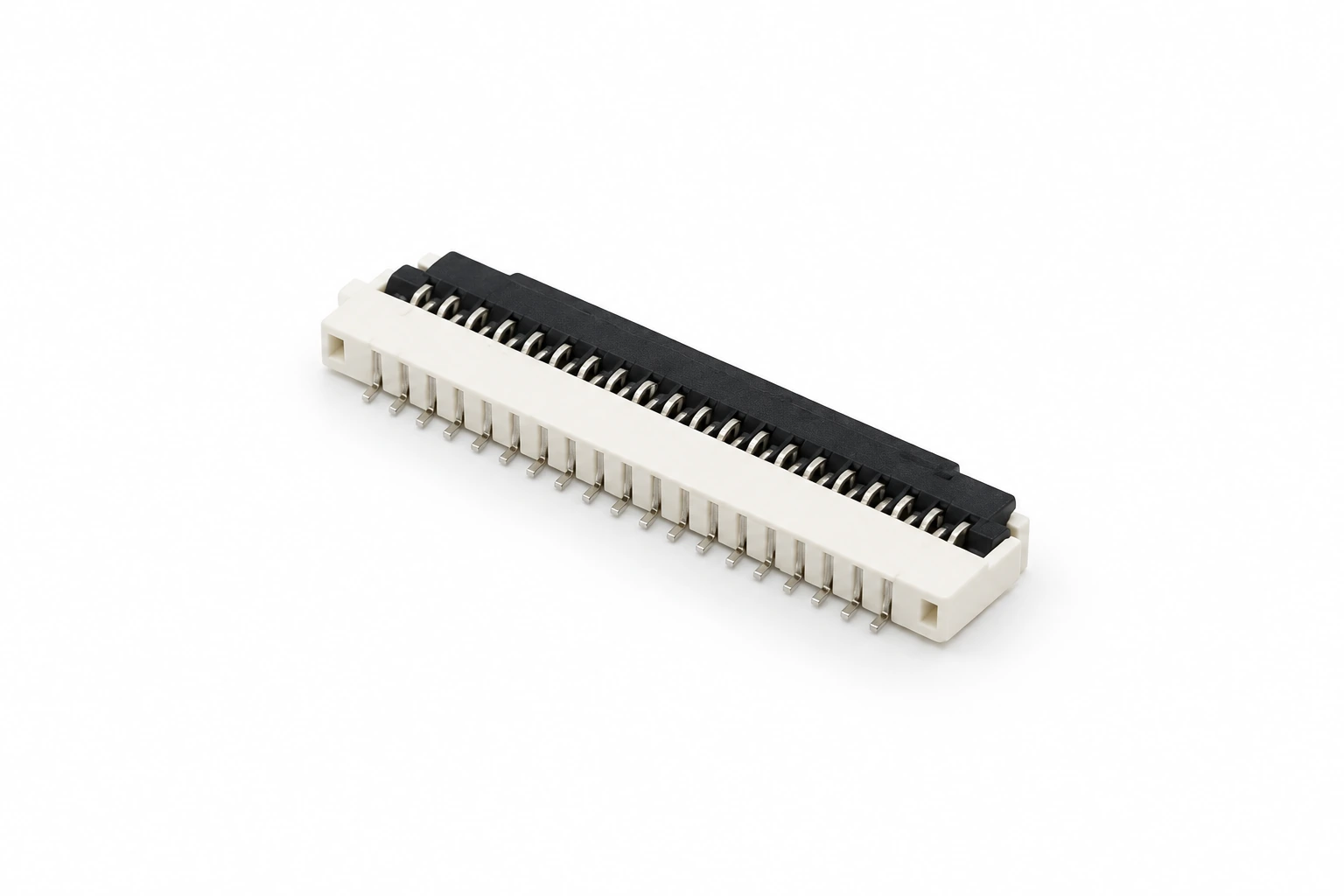

PH0.3mm Front Insertion Front Lock FPC Connector
Fine-pitch front-insertion, front-lock configuration from the catalog. Confirm circuit count, cable thickness, contact orientation and mounting drawing.

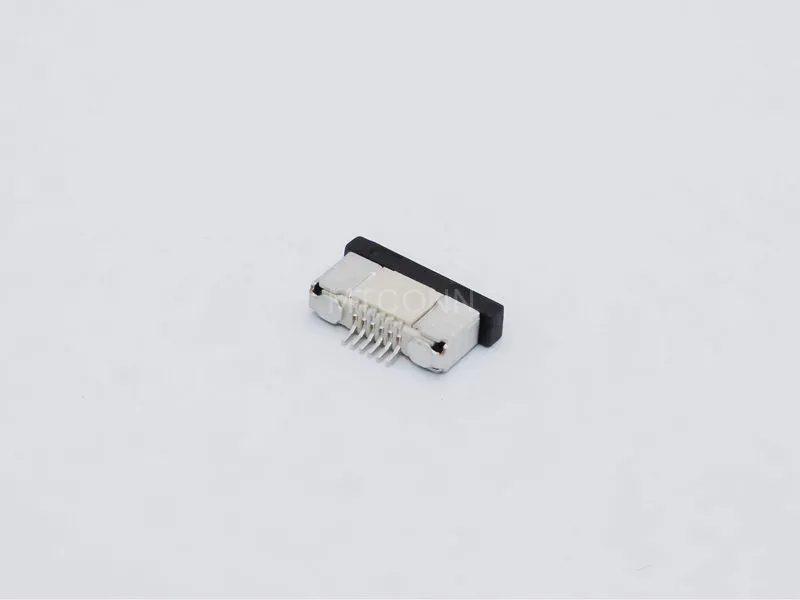

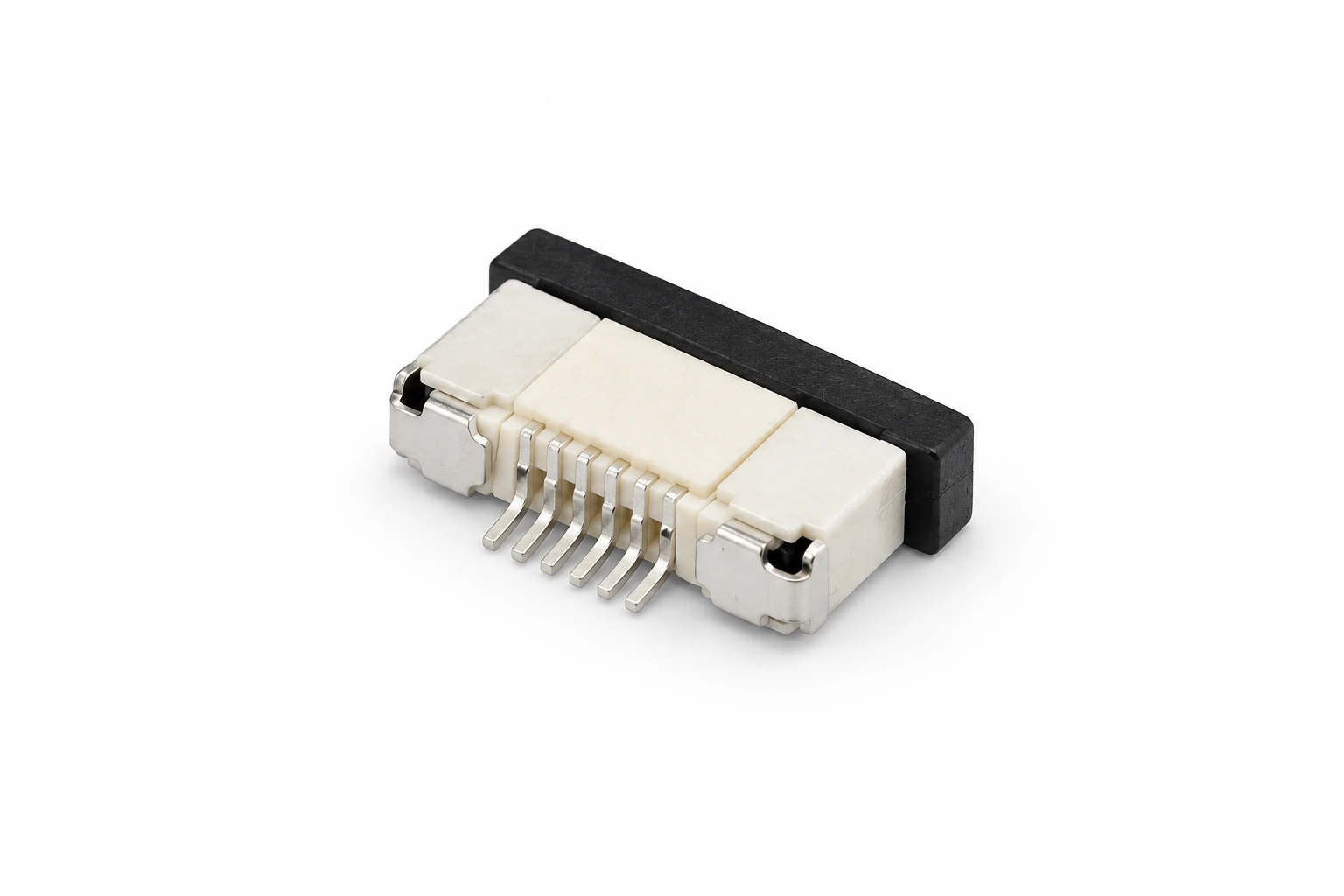

6Pin ZIF FPC Connector
Six-position ZIF configuration for a specified flat-cable interface. Verify pitch, cable thickness, mounting footprint and actuator operation.

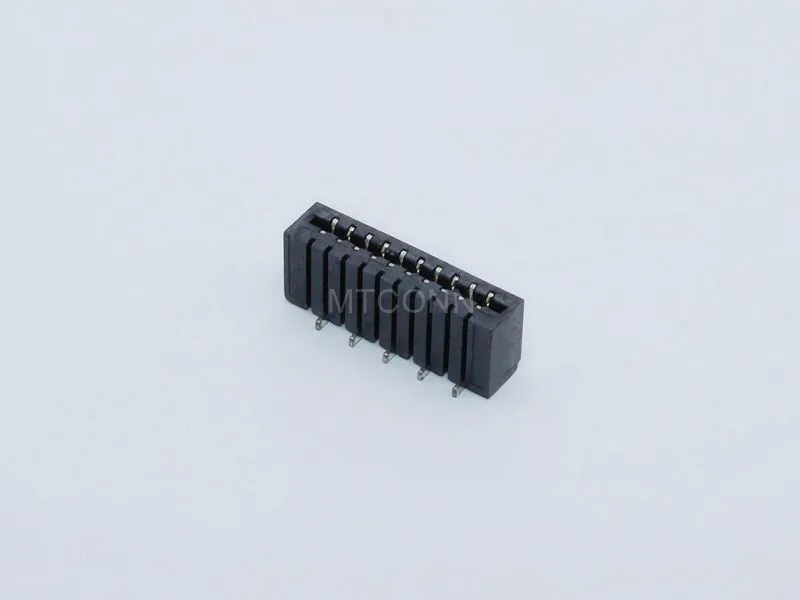

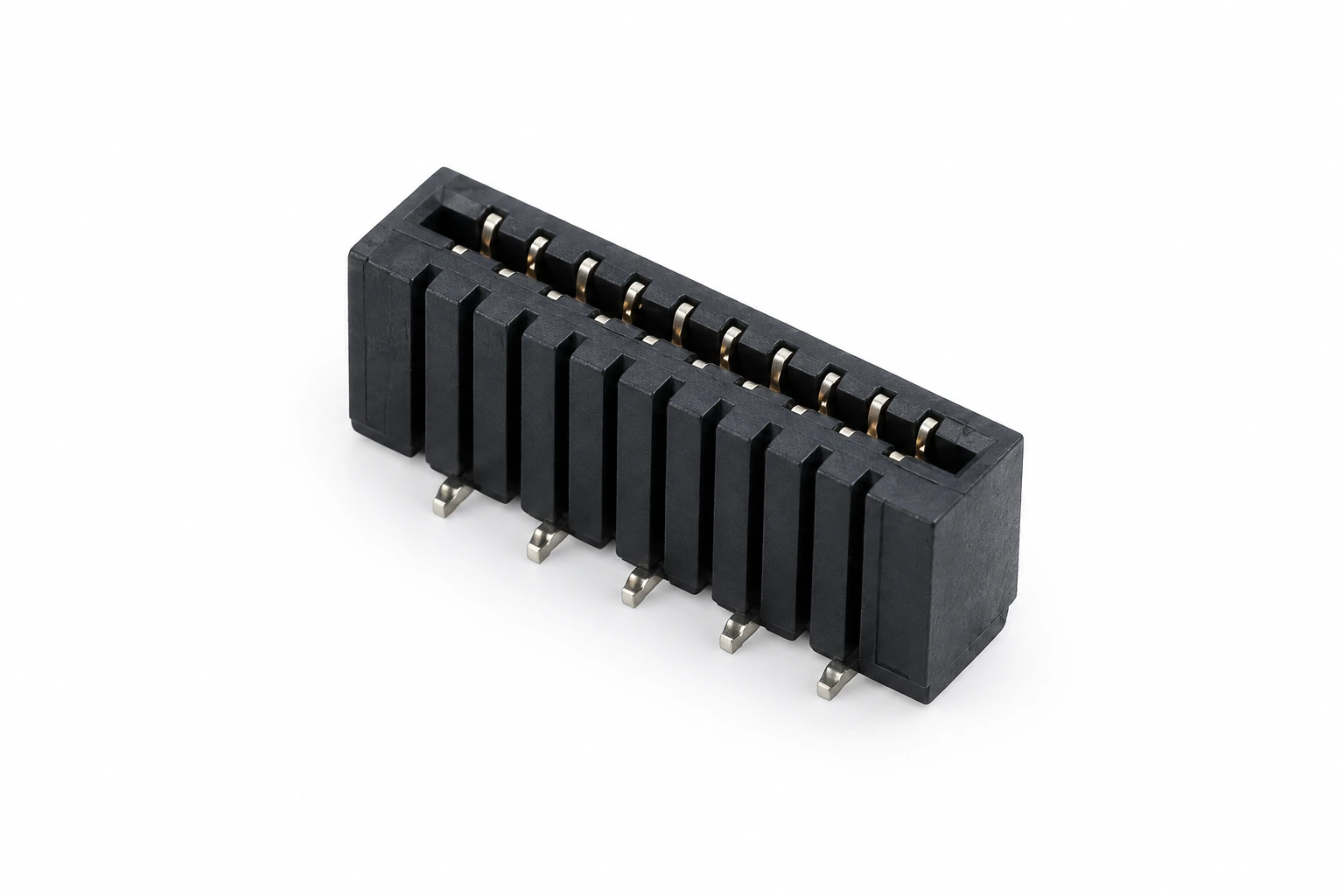

Double Side Contact PH1.0mm FPC Connector
1.0 mm pitch configuration described with double-side contact. Confirm the approved cable interface, pin count and installation dimensions.

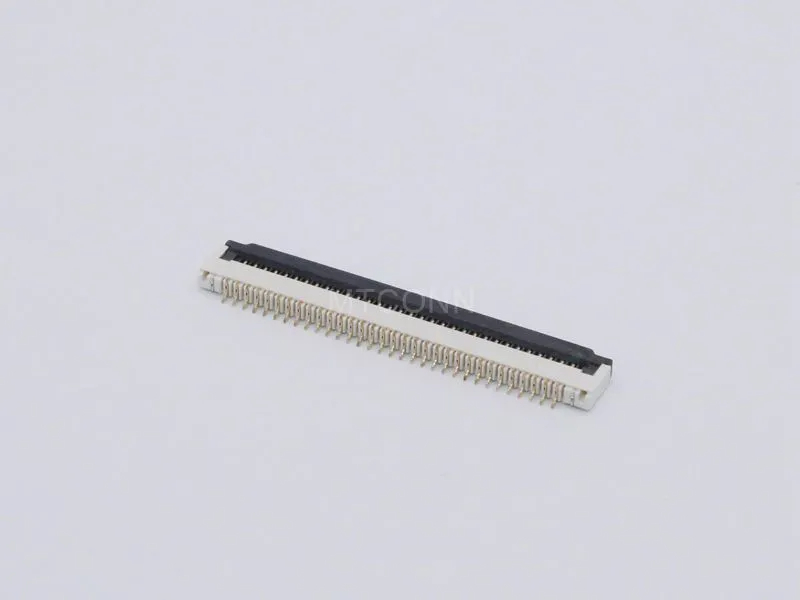

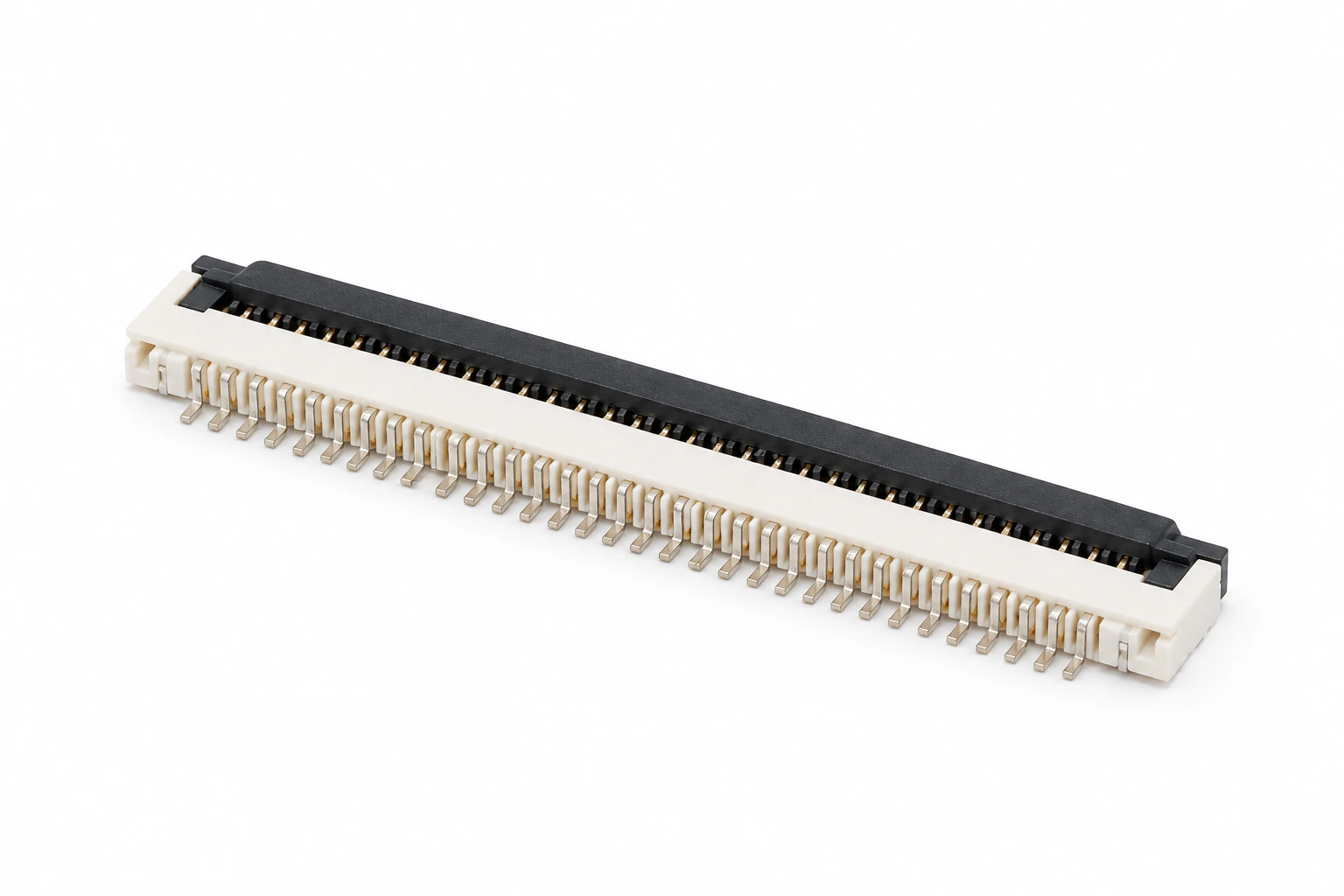

PH1.0mm H2.0mm 90°SMT FPC Connector
1.0 mm pitch, 2.0 mm height, right-angle SMT configuration. Review the pad layout, cable insertion direction and actuator clearance.

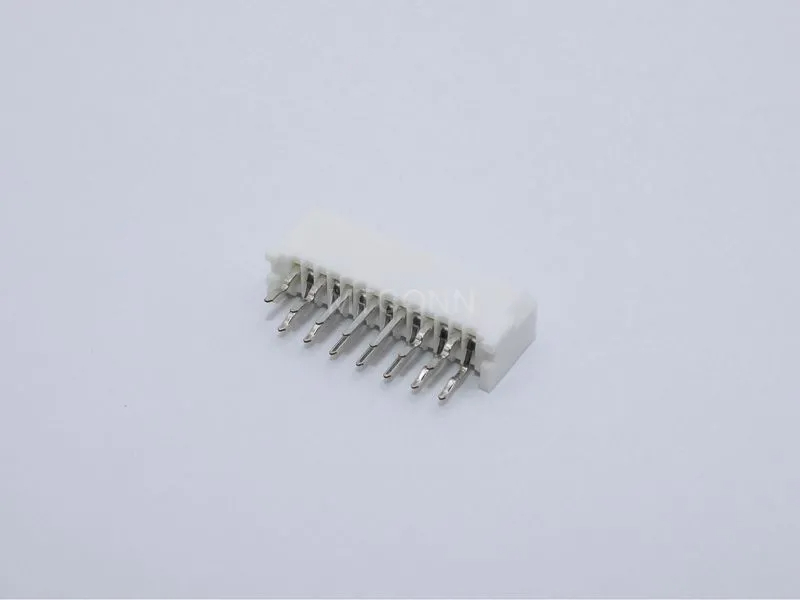

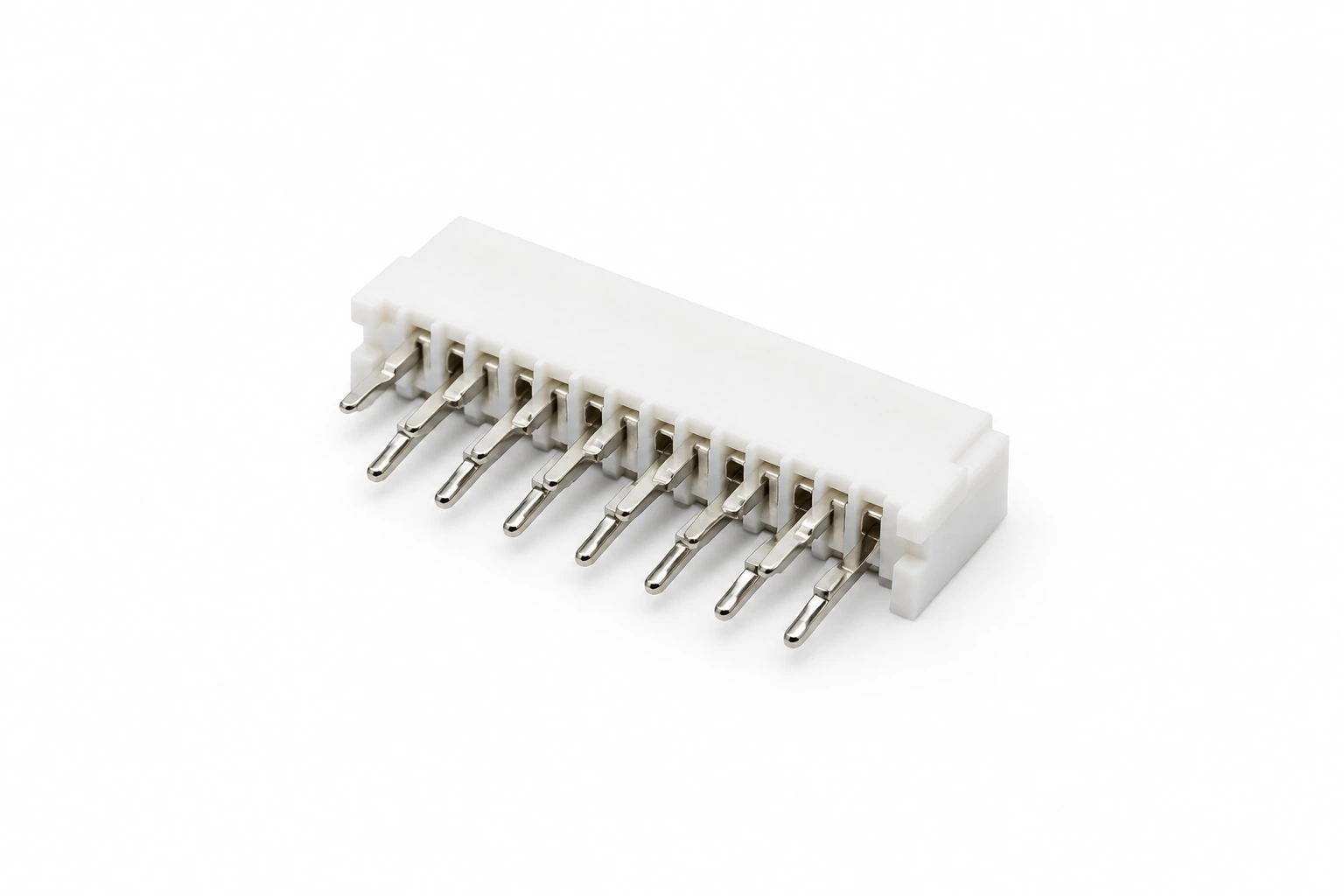

PH1.25mm DIP 15Pin FPC Connector
1.25 mm pitch, 15-position DIP configuration. Confirm through-hole layout, cable compatibility and installation height.

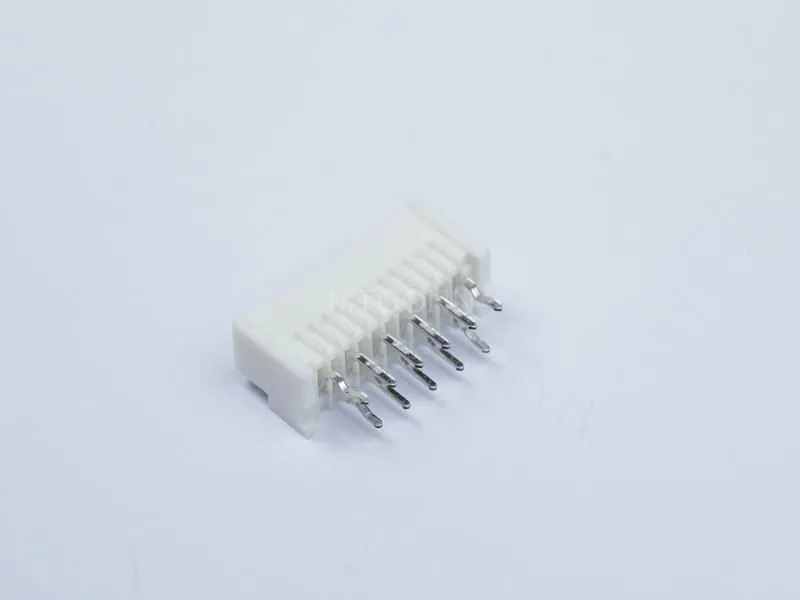

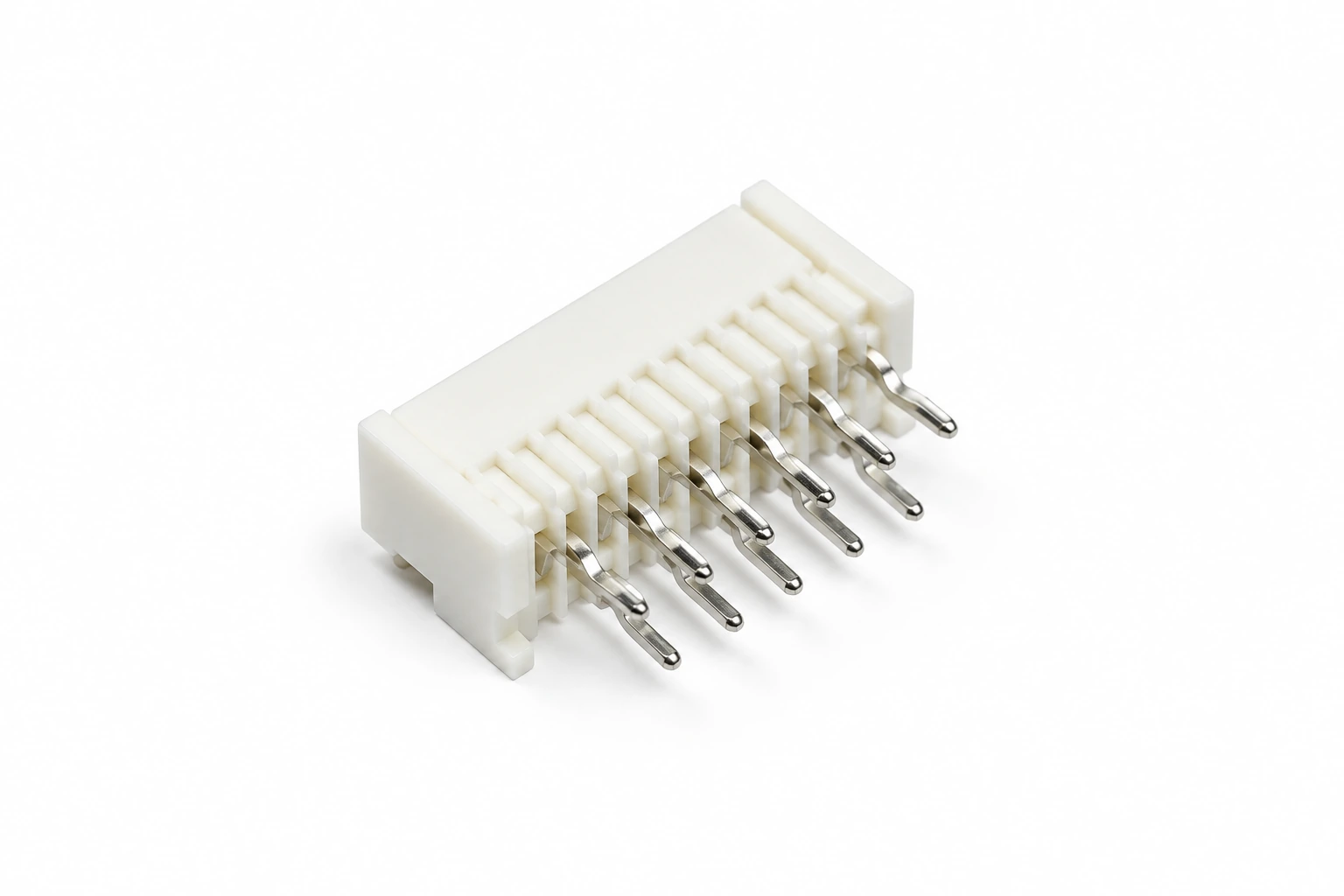

FPC Connector 1.25mm Pitch 11Pin 7.5mm Height Pull Vertical T/H Double Row
1.25 mm pitch, 11-position, 7.5 mm height vertical through-hole double-row configuration. Check the approved mounting and mating drawing.

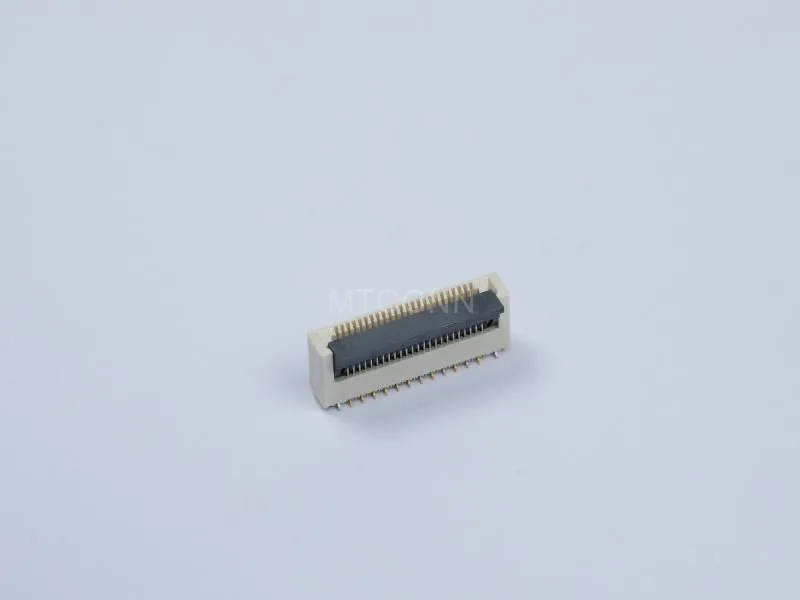

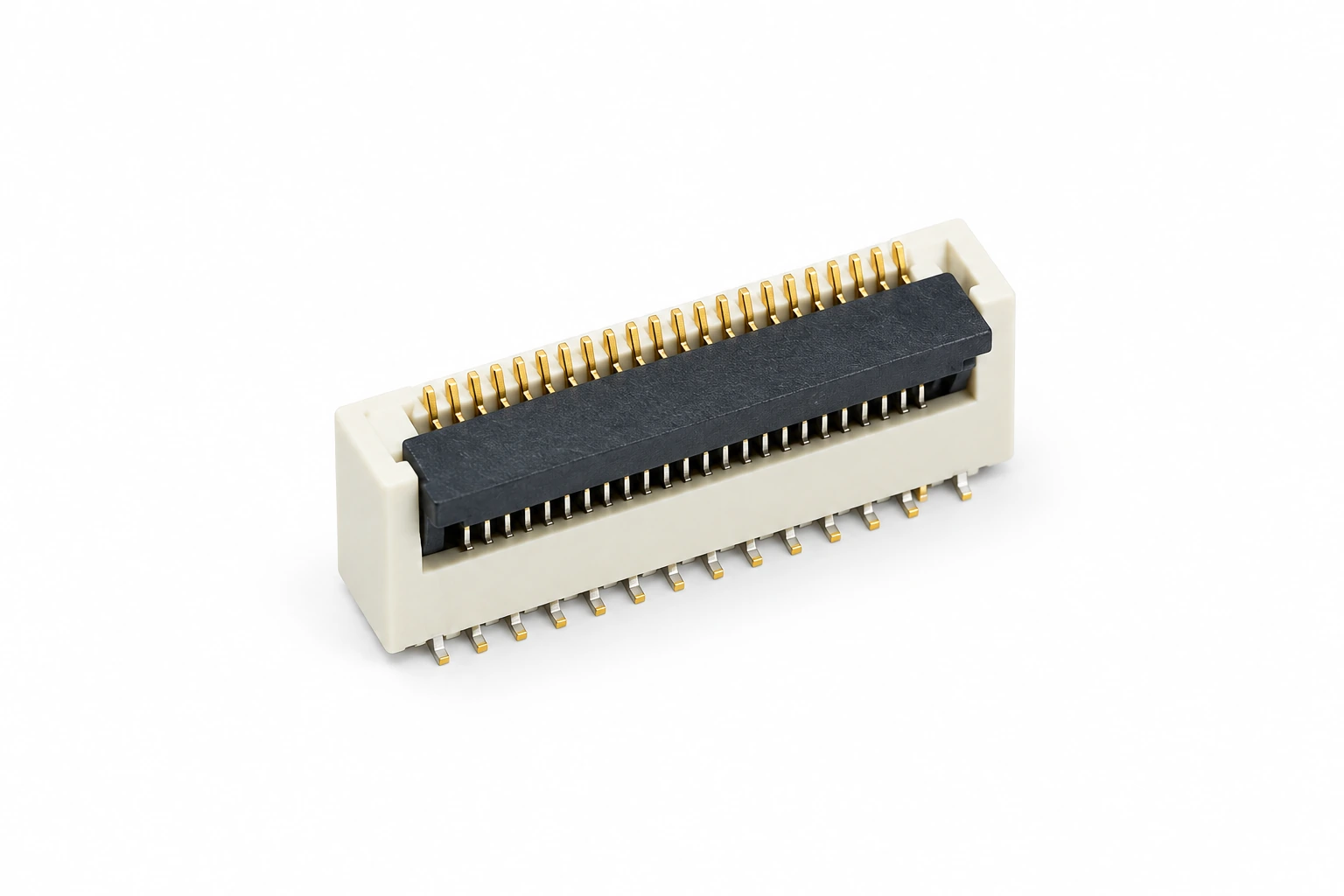

FPC Connector 0.5mm Pitch 24Pin 5.2mm Height Right Angle SMT Positive Position
0.5 mm pitch, 24-position, 5.2 mm height right-angle SMT configuration. Confirm contact position, PCB pad layout and cable requirements.

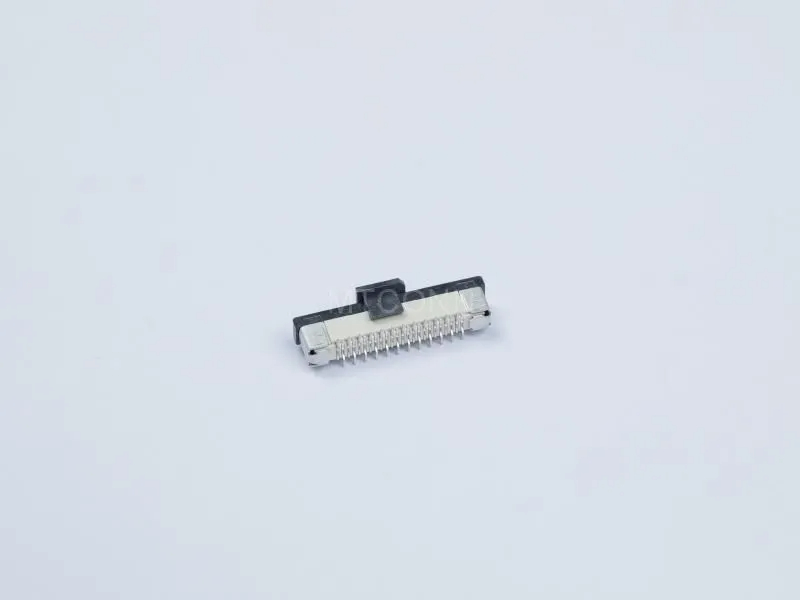

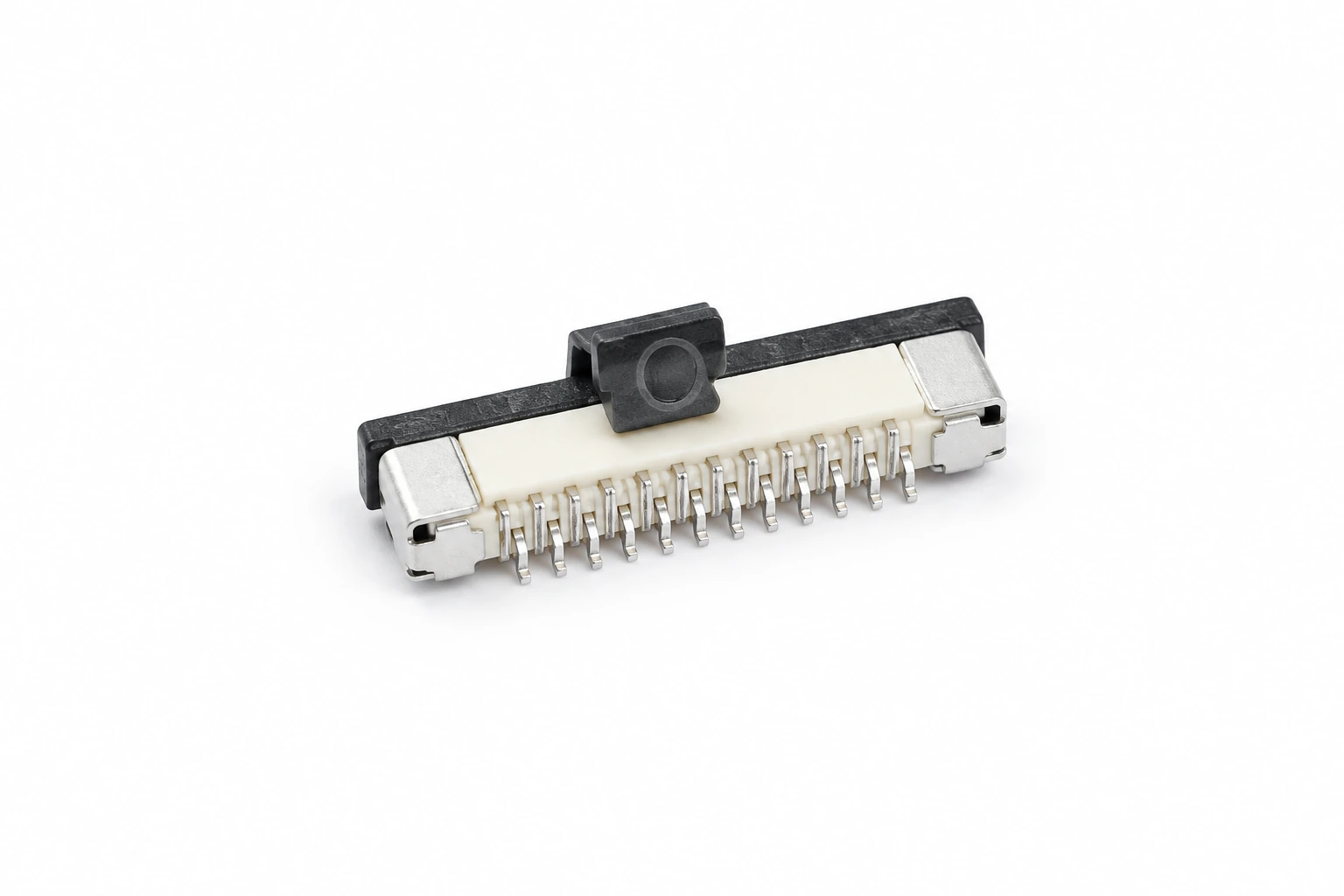

FPC Connector 0.5mm Pitch 24Pin 4.5mm Height Pull Vertical SMT
0.5 mm pitch, 24-position, 4.5 mm height vertical SMT pull-actuator configuration. Verify cable access, footprint and handling instructions.
Catalog descriptions identify the configuration shown. Confirm dimensions, electrical ratings, cable thickness and PCB footprint against the selected model drawing; a matching pitch alone does not establish compatibility.
FPC / FFC Connector Applications
Explore three application scenes for compact cable-to-board connections. Select the connector against the electrical, mechanical and assembly requirements of the finished product.

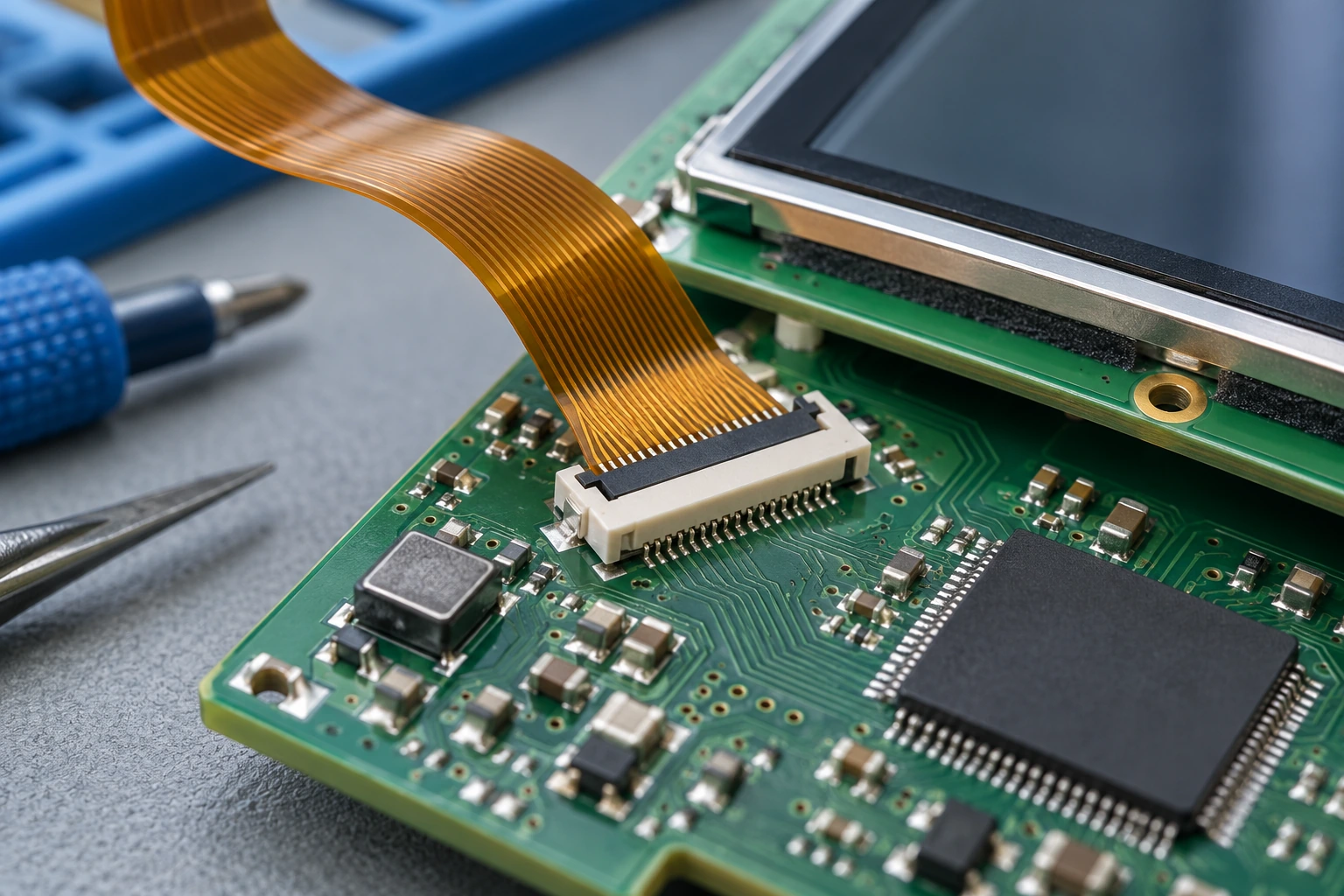

Displays & Compact Electronics
FPC and FFC connections can support compact display modules and internal signal routing. Confirm cable contact orientation, connector profile, circuit count and the clearance needed to operate the actuator.

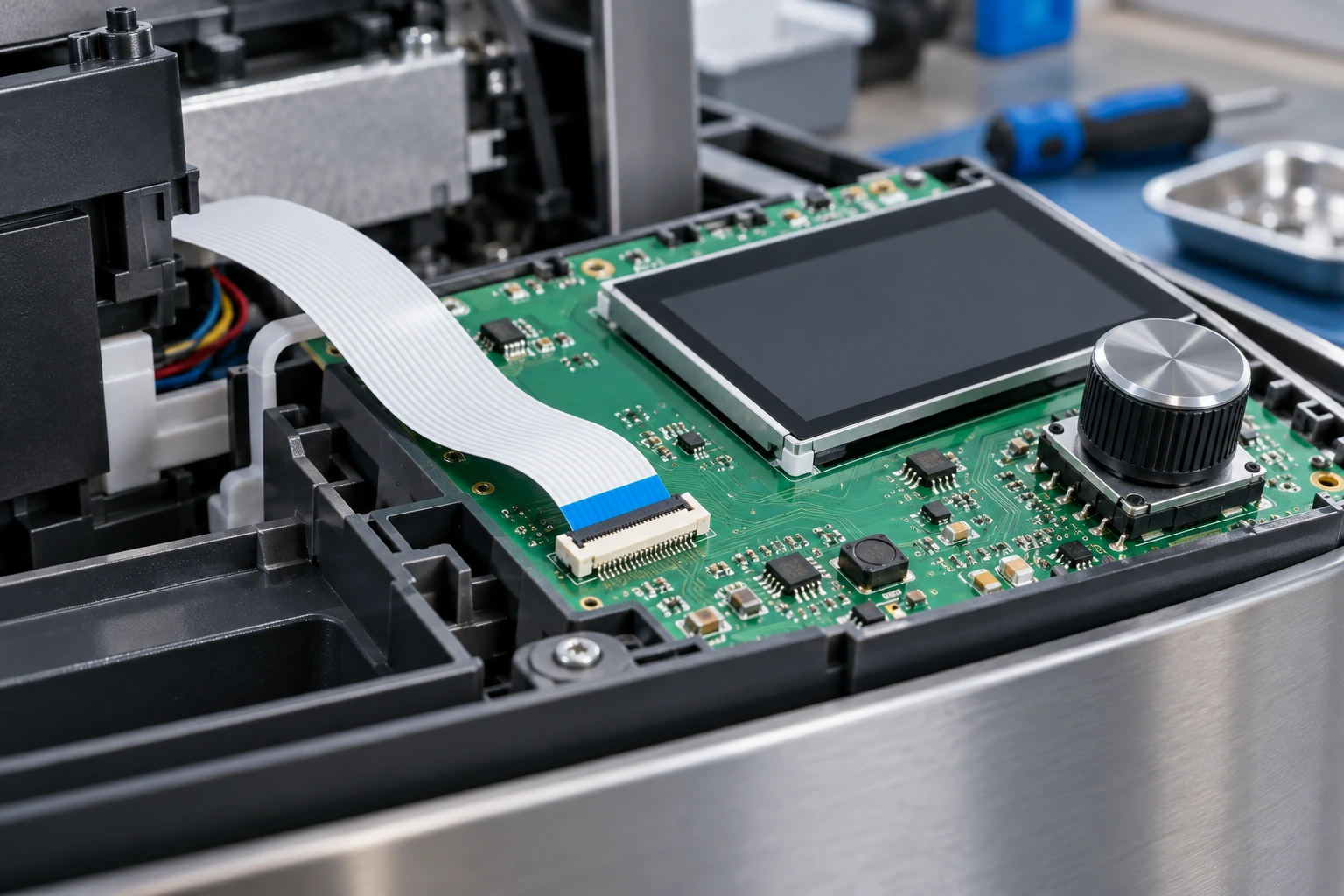

Appliance Controls & Smart Devices
Connect display panels, user interfaces and control boards in compact equipment. Review cable routing, insertion access, mating-cycle requirements and the environment around the finished assembly.

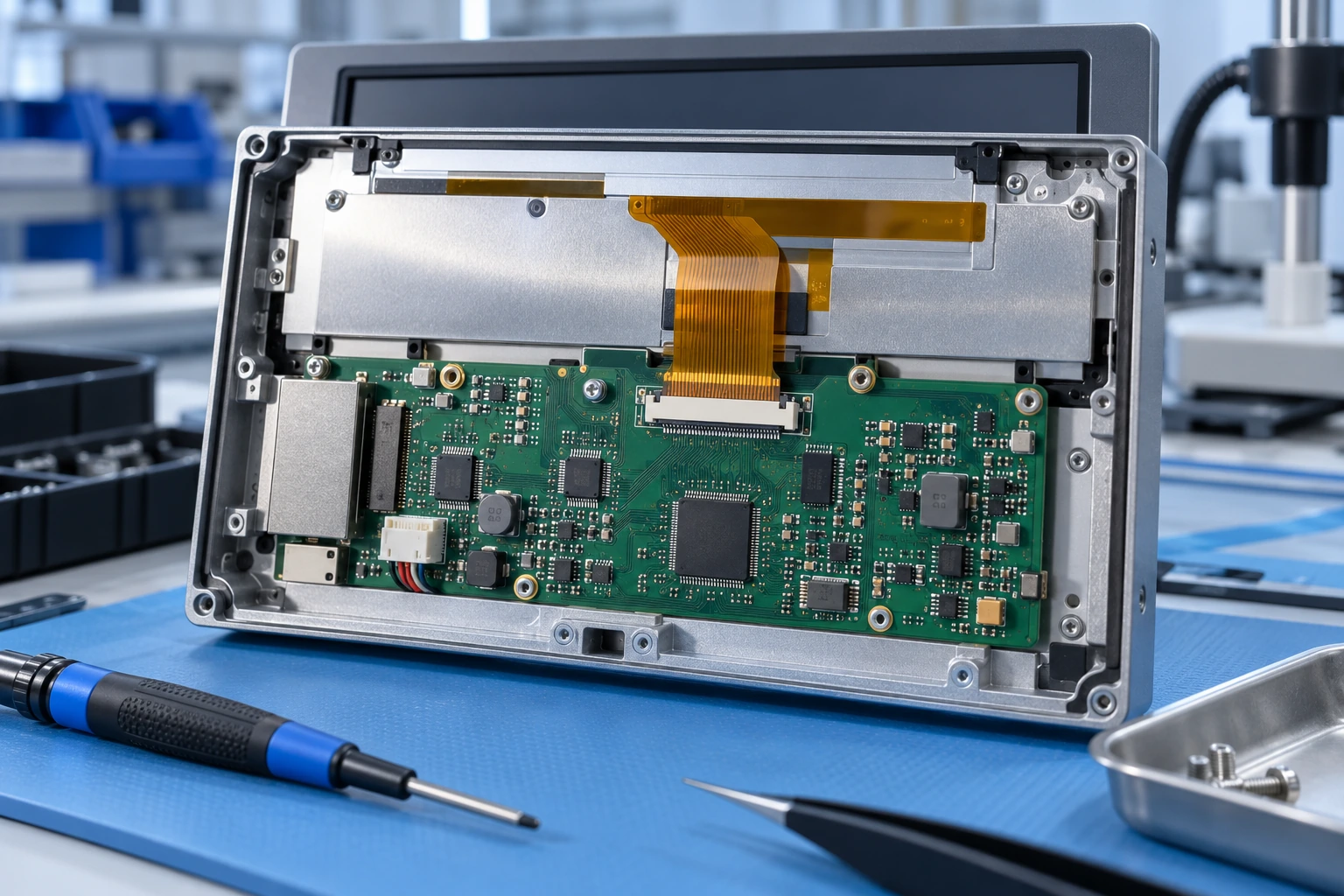

Industrial Interfaces & Equipment
Use the application as a starting point for panel displays and electronic control assemblies. Evaluate vibration, retention, temperature and signal requirements for the exact connector and cable combination.
FPC / FFC Connector Specifications: What to Confirm
Use this checklist to define the connector interface, board footprint and mating requirements. Review performance against the selected model datasheet.
| Specification | Information to Confirm |
|---|---|
| Pitch & circuit count | The displayed range includes 0.3 mm, 0.5 mm, 1.0 mm and 1.25 mm configurations. Specify the exact number of circuits and approved footprint. |
| Cable dimensions | Confirm FPC or FFC construction, cable thickness, exposed contact length, stiffener dimensions and insertion depth. |
| Contact orientation | Check top, bottom or dual-contact construction against the actual connector drawing and cable routing. |
| Actuator & access | Define ZIF or other insertion style, flip or pull actuator operation, and the space required for assembly and servicing. |
| Mounting & profile | Specify horizontal or vertical orientation, SMT or through-hole mounting, overall height, hold-downs and pad geometry. |
| Materials & plating | Request the housing material, contact material and plating specification for the selected model. |
| Electrical & environmental limits | Verify rated current, voltage, operating temperature and any relevant qualification documents for the exact configuration. |
| Assembly & packaging | Confirm soldering process limits, handling instructions, carrier orientation, reel or tray format and packaging quantity. |
Review the approved drawing, mating assembly and sample before ordering. Request the technical documents required for your selected connector.
Make Quality Part of the Purchase Specification
Drawing & Footprint Review
Match connector dimensions, solder pads and hold-down positions to the PCB drawing before sample evaluation.
Cable Compatibility
Check pitch, circuit count, cable thickness and contact exposure together with the mating interface.
Contact & Plating Details
Specify contact orientation, material and plating according to the selected model and application.
Actuator & Retention Review
Evaluate insertion, locking operation and cable retention on the actual connector-and-cable assembly.
Assembly Process Check
Confirm soldering limits, pick-and-place requirements and inspection criteria with the approved product documentation.
Traceability & Packaging
Agree on part references, lot labels, packing format and handling requirements before bulk supply.
Select FPC / FFC Connectors in Six Practical Steps
1. Define Pitch & Circuits
Share the cable pitch, conductor count and original connector reference or drawing.
2. Confirm Cable Thickness
Provide FPC or FFC construction, contact exposure and stiffener dimensions.
3. Check Contact Orientation
Confirm the contact side and cable routing using the connector cross-section or approved sample.
4. Choose Actuator Style
Specify the locking mechanism and the access needed to open, insert and close it.
5. Match Mounting & Height
Review SMT or through-hole mounting, orientation, profile and PCB footprint.
6. Validate Samples & Supply
Evaluate samples, then confirm ratings, documentation, quantity, packaging and lead time.
Get Your Free Sample!
We provide samples for free, you just need to tell us what you need
FPC / FFC Connector Workshop & Packaging

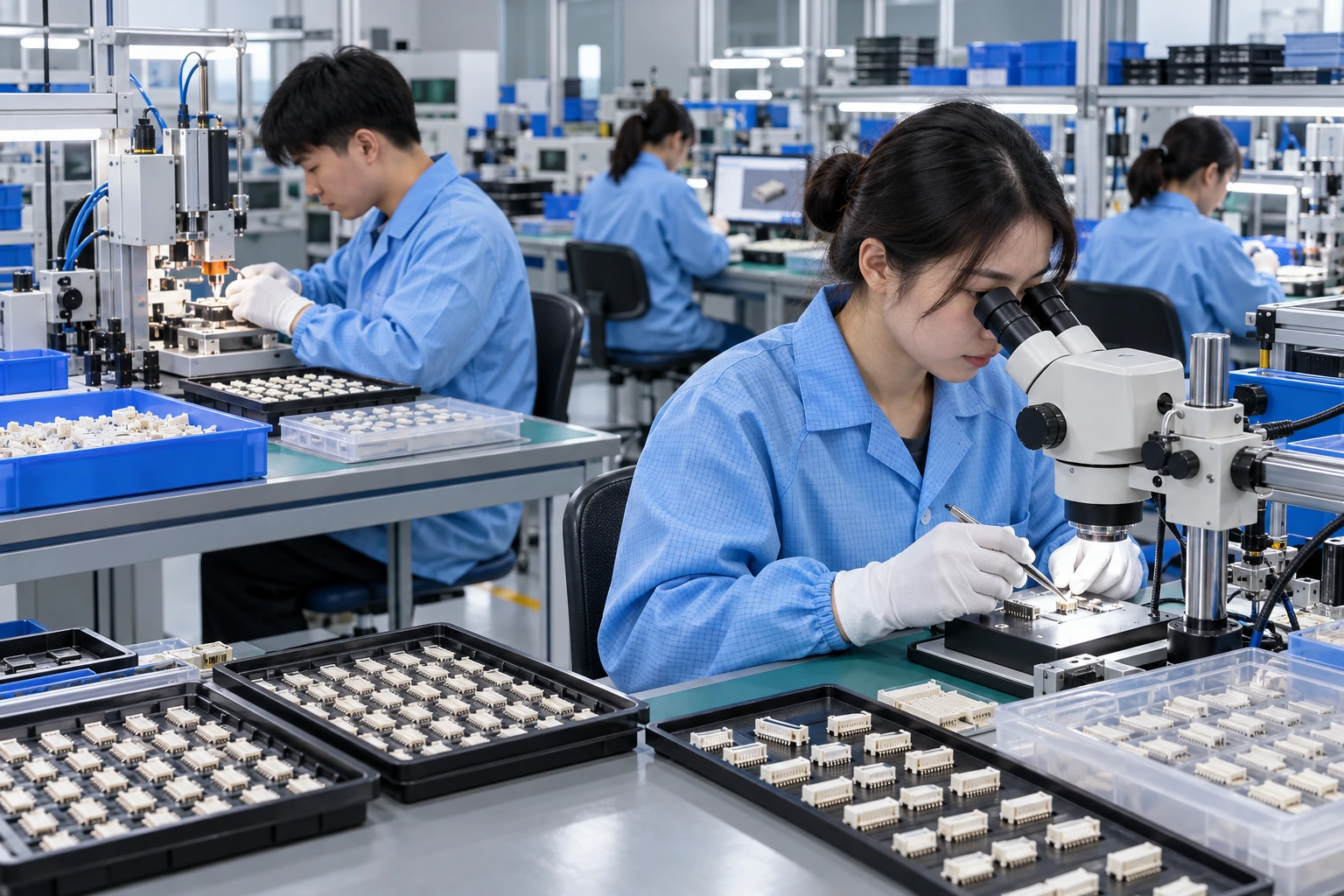

Connector Assembly & Inspection
Discuss the assembly and inspection plan for your selected FPC / FFC connector. Agree on dimensional checks, contact condition, actuator operation and sample evaluation before bulk supply.

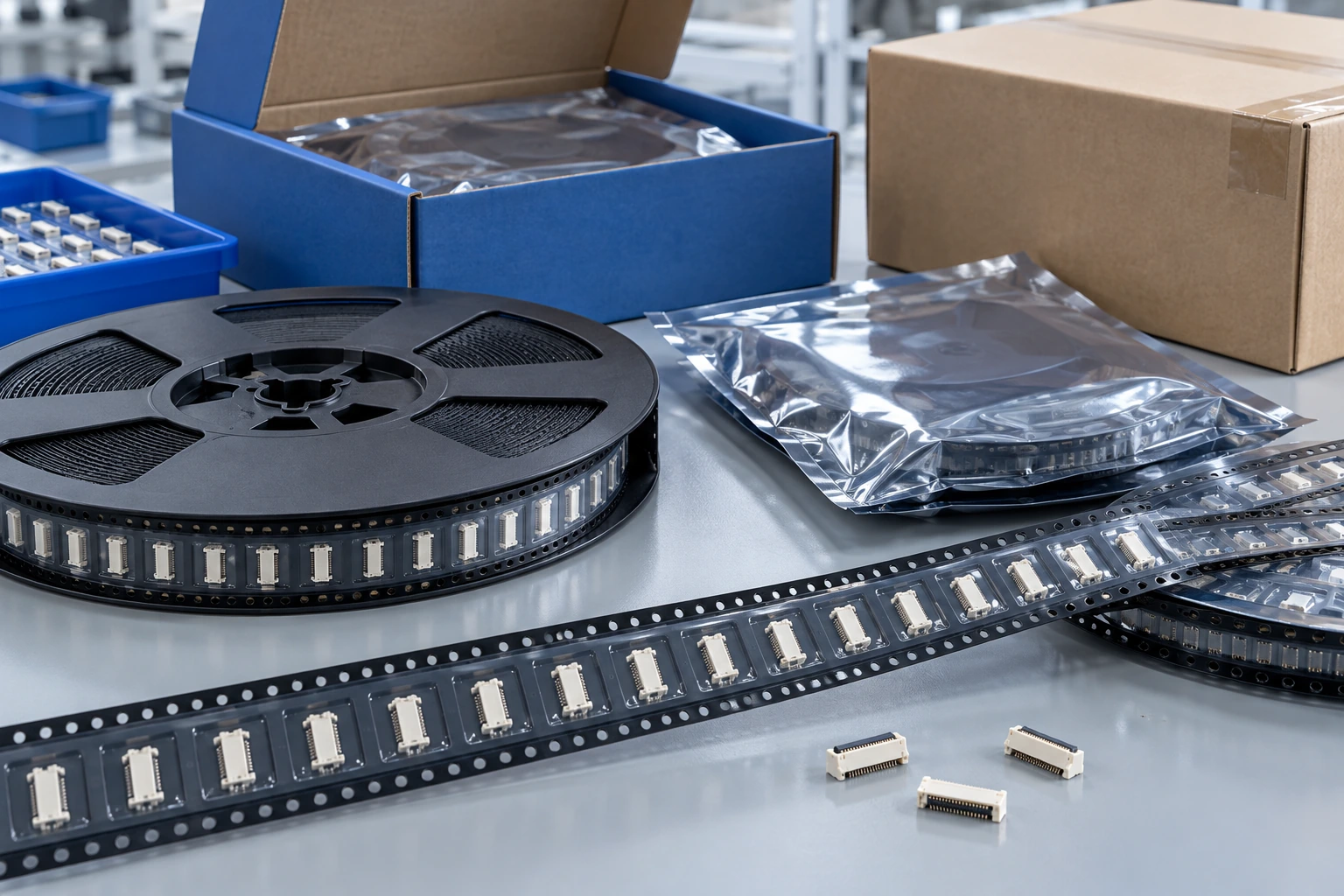

Protective Packaging & Order Identification
Confirm the appropriate tape-and-reel, tray or other protective packing format for the selected model. Specify carrier orientation, quantity per pack, part labels and shipment requirements.
Illustrative workshop and packaging scenes.
More Than Just a FPC / FFC Connector Manufacturer
Service Consultation
Share your application, drawings, cable construction and purchasing requirements so our team can review the connector enquiry.
Product Recommendations
Compare the catalog configuration with your pitch, circuits, profile and mating cable. Request a drawing and sample to validate the selection.
Assembly & Installation Support
Request the available actuator operation, insertion and handling instructions for the exact model. Review your PCB and cable assembly process before production.
Packaging & Logistics Support
Coordinate packing format, lot labels, carton requirements and shipment arrangements with the quotation and order specification.
FPC / FFC Connectors: Frequently Asked Questions
What is the difference between FPC and FFC?
FPC is a flexible printed circuit; FFC is a flexible flat cable with parallel conductors. Connector compatibility depends on the approved cable construction, pitch, thickness, contact exposure and orientation. Confirm these details for the selected model.
How do I choose top or bottom contact?
Use the connector drawing and the contact side of your cable to establish the mating orientation. Confirm the relationship to the PCB and cable routing before sample evaluation; similar housing appearance does not establish contact compatibility.
Does the same pitch mean two connectors are interchangeable?
No. Compare circuit count, cable thickness, insertion depth, actuator style, mounting pads, hold-downs and overall dimensions as well as pitch. Validate the replacement with a drawing and sample.
Are all configurations suitable for SMT reflow?
Assembly suitability depends on the selected model and mounting type. Request the housing specification, soldering profile and packaging details; through-hole variants require their own assembly process review.
Can you supply tape-and-reel packaging?
Ask for the available packing format for your selected model. Confirm reel quantity, carrier orientation and automated handling requirements in the quotation.
What should I include in an OEM or wholesale enquiry?
Send the original reference or drawing, pitch, circuit count, cable thickness, contact orientation, mounting footprint, application, quantity and packaging requirements. Confirm MOQ, sample availability, lead time and commercial terms with TONFUL.
Request FPC / FFC Connector Information
Ready to review your FPC / FFC connector requirements? Send the connector drawing, cable details, PCB footprint and order quantity to TONFUL Electric.
Explore PCB connectors, wafer connectors and custom cable assemblies for related connection requirements.
Email ivan@tonful.com or open the enquiry window below.
