Pin Header Connectors Manufacturer for OEM & Wholesale
Source straight, right-angle and surface-mount pin header connectors from TONFUL Electric. Explore the existing range and match the header configuration to your PCB footprint, mating connector and assembly process.
Send your pitch, row and contact count, dimensional drawing and order quantity. TONFUL can review product selection, samples and OEM packaging requirements with your enquiry.
Pin Header Connector Product Range
Review eight configurations from our existing pin header range. Confirm the contact arrangement and mounting dimensions against the approved drawing for your selected model.

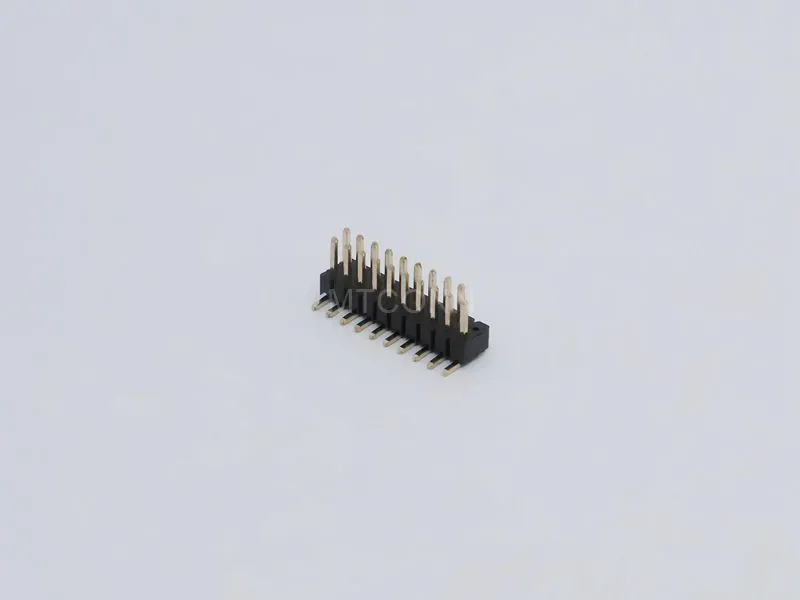

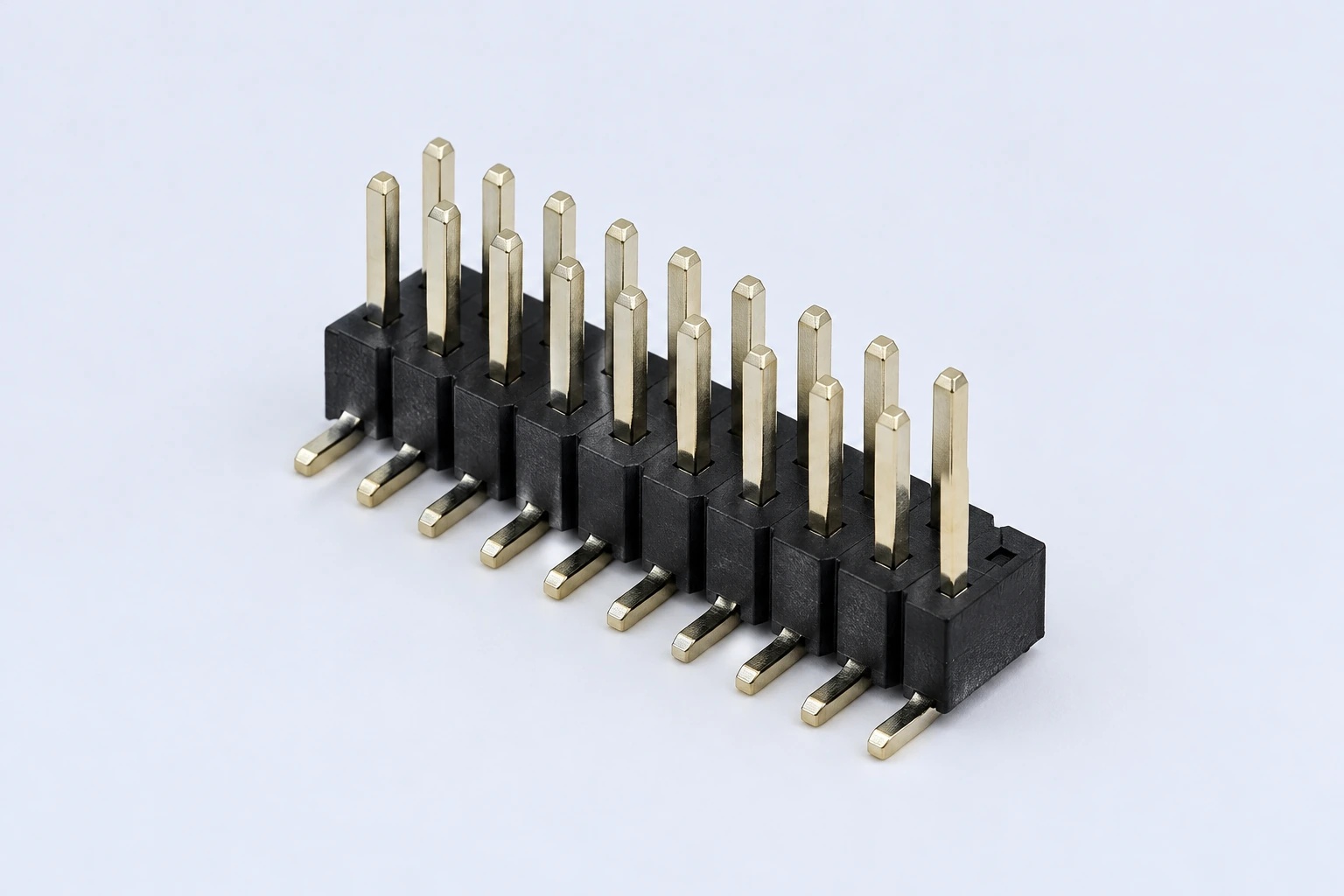

10Pin PH1.27mm DIP Dual-row Pin Header
1.27 mm pitch dual-row configuration from the existing catalog. Check the approved contact layout, PCB footprint and mating socket drawing.

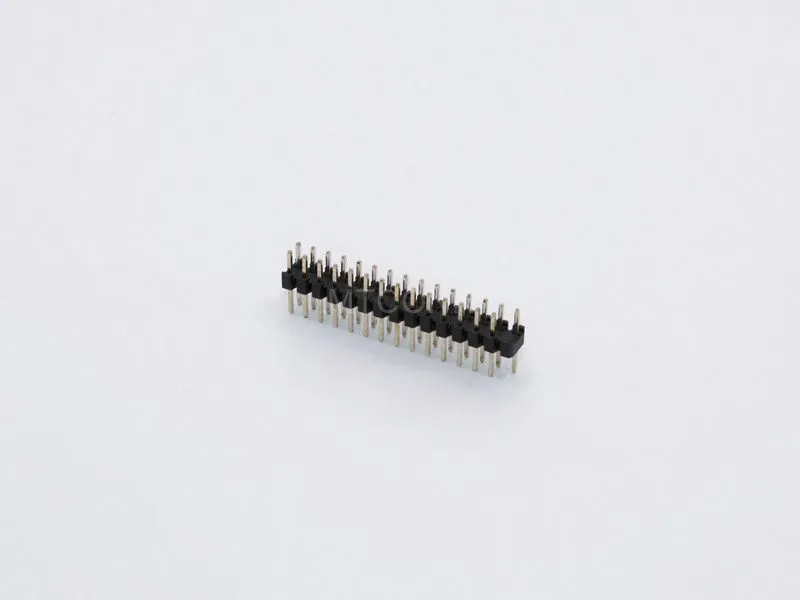

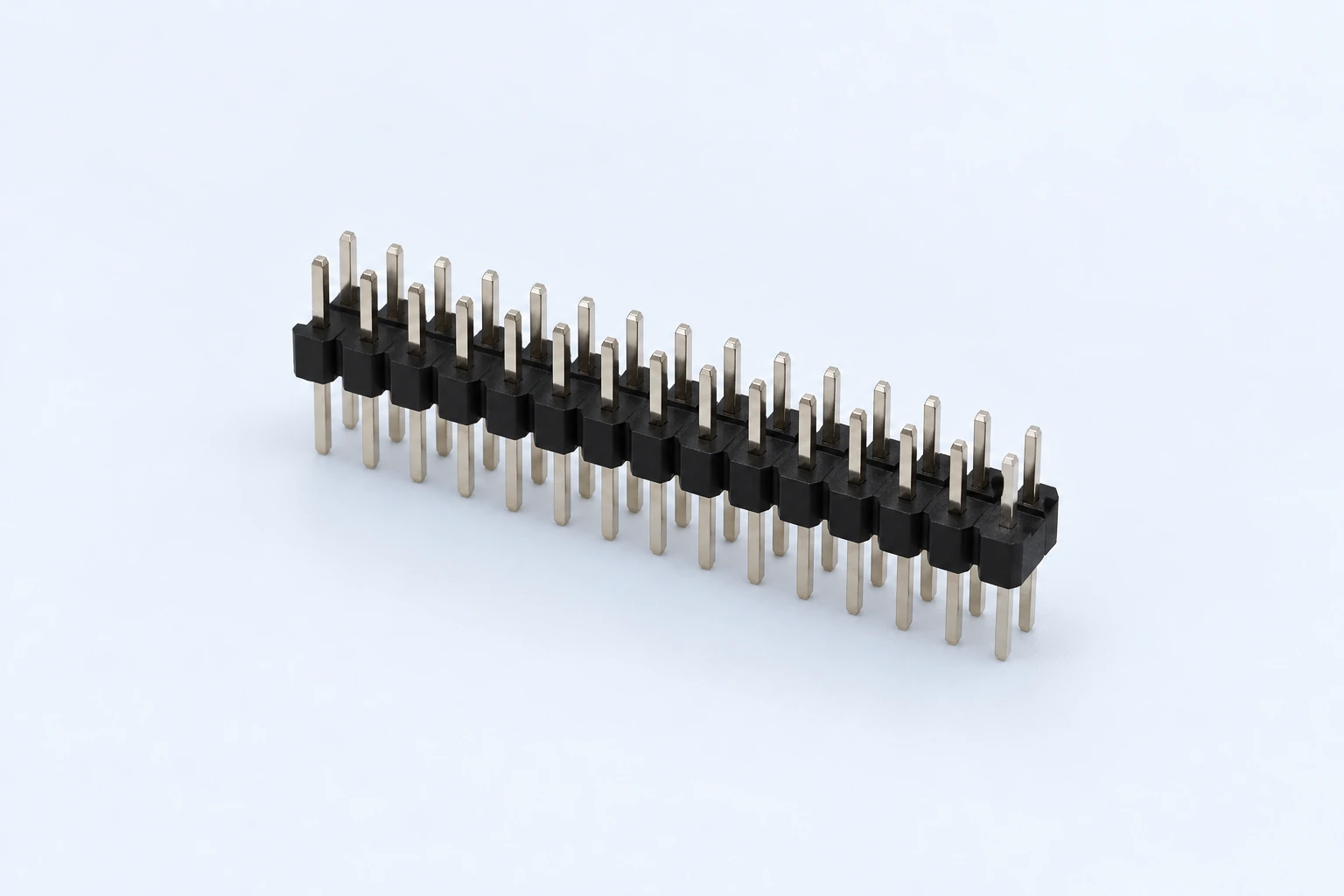

PH2.0mm 30Pin Dual-row DIP Pin Header
2.0 mm pitch, 30-contact dual-row through-hole configuration. Confirm mounting dimensions, mating depth and pin numbering.

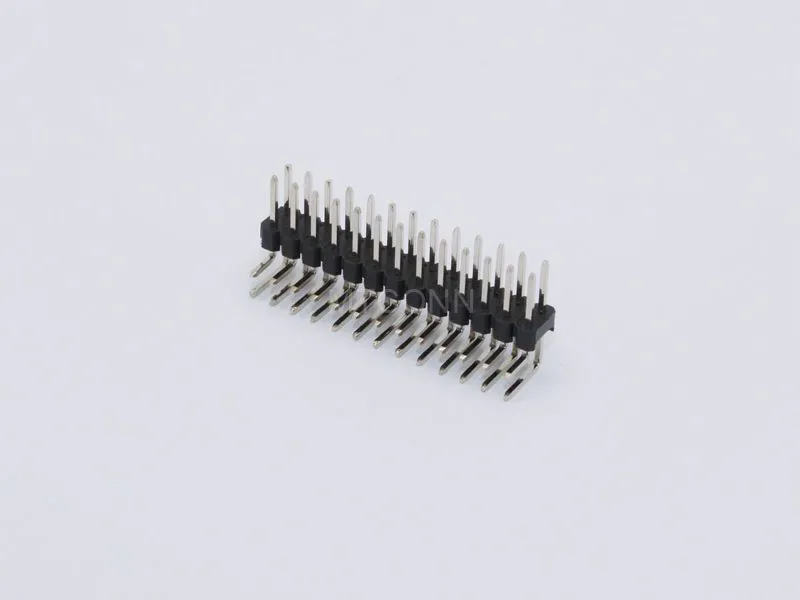

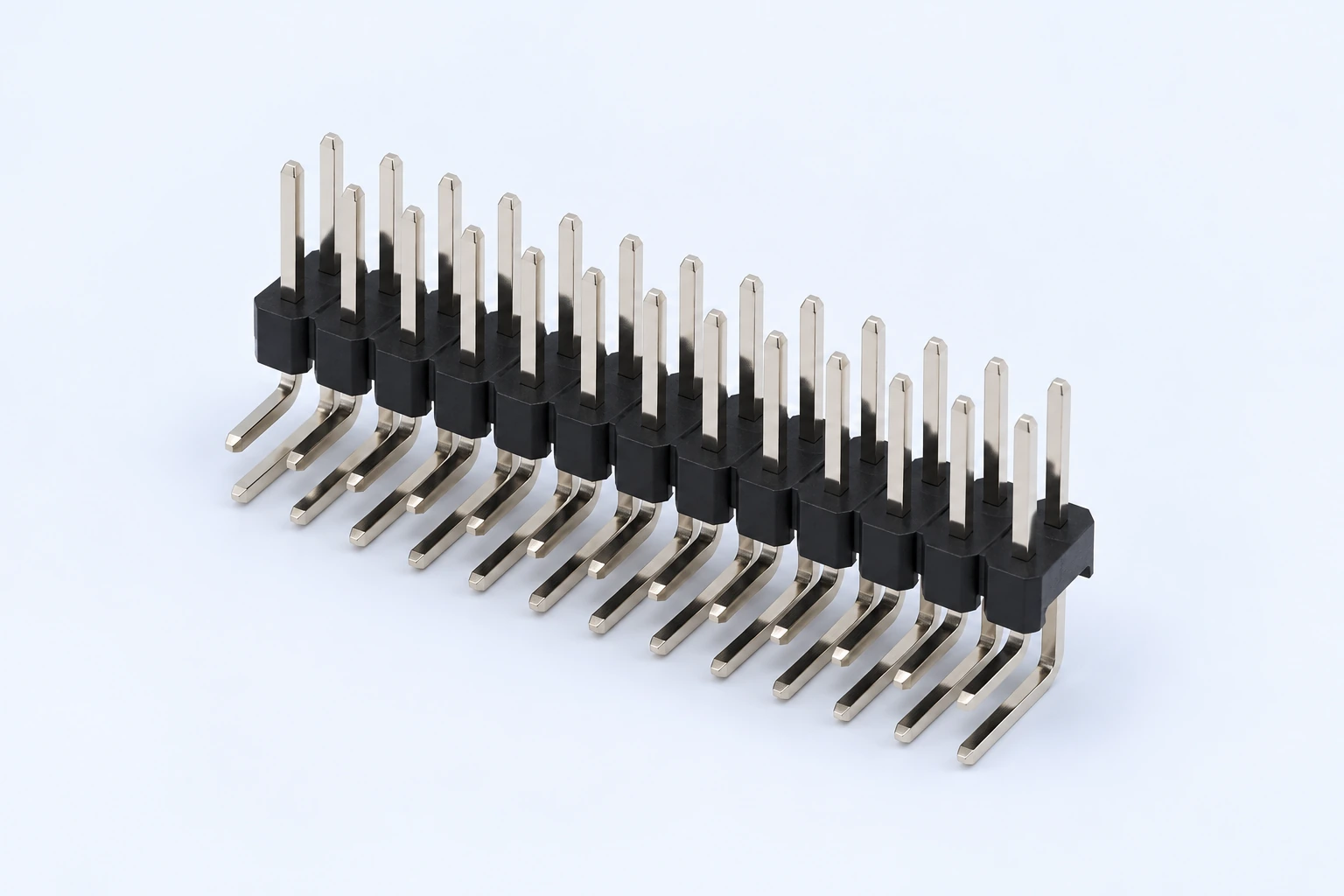

90°DIP Dual-row Pin Header
Right-angle dual-row configuration from the existing range. Confirm pitch, contact count, solder-tail geometry and assembly clearance.

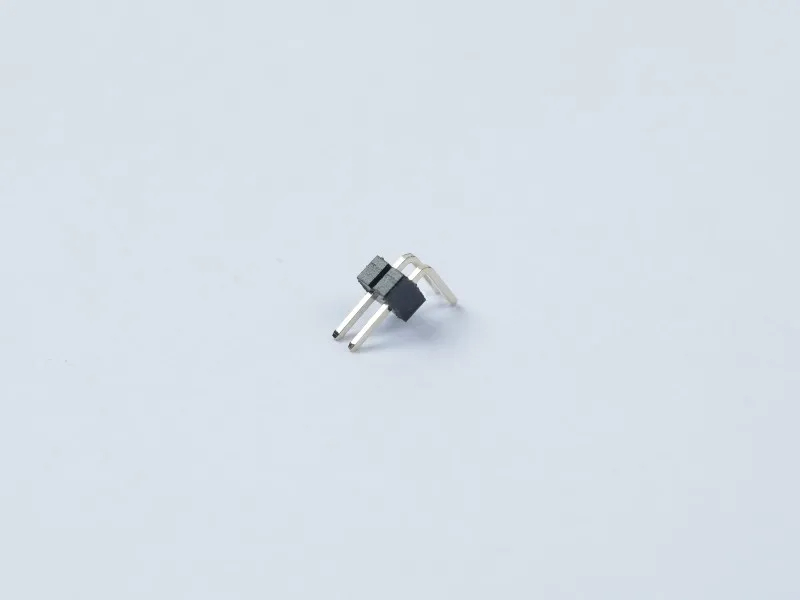

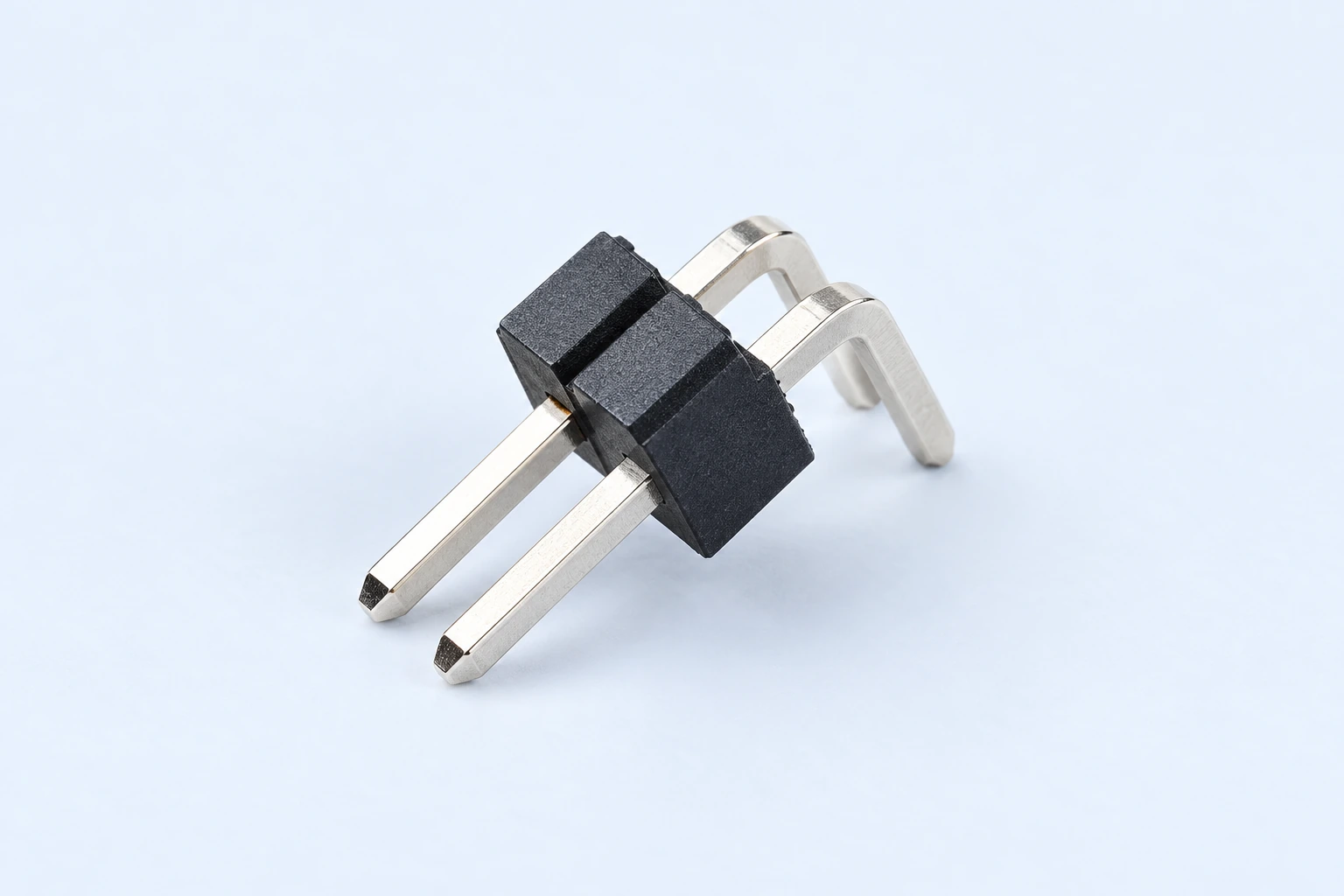

Pin Header PH1.27mm 2Pin TH 90 Degree DIP
1.27 mm pitch two-contact right-angle configuration. Check the contact dimensions and mounting drawing for the selected reference.

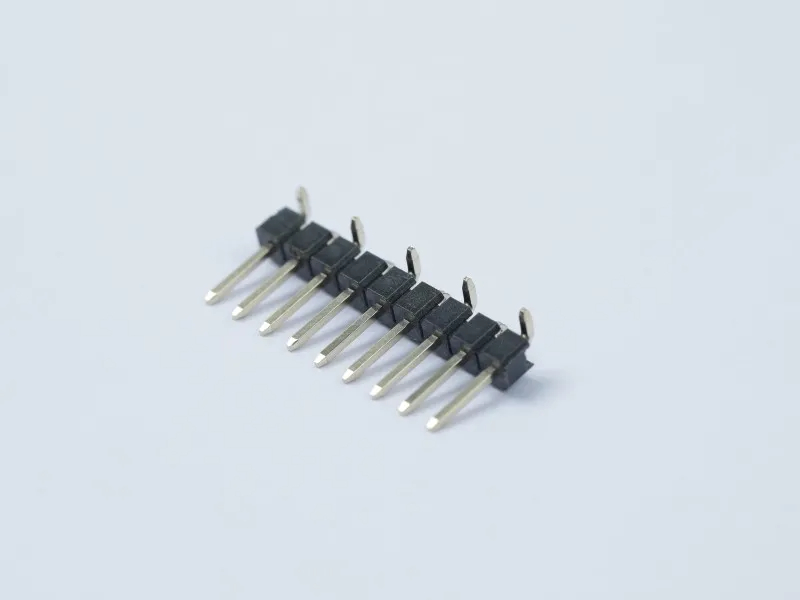

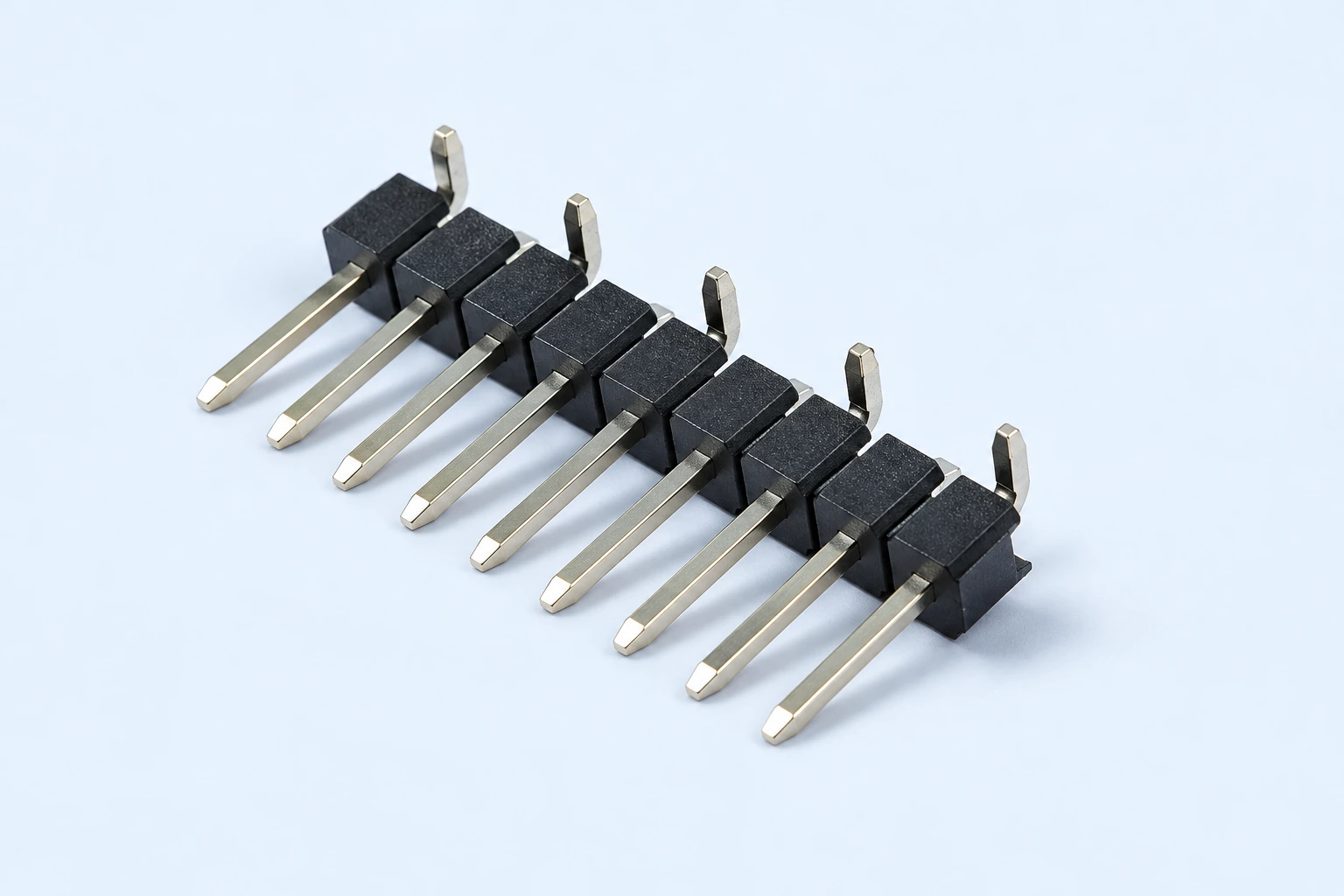

Pin Header PH2.54mm 9Pin Vertical 180 Degree SMT
2.54 mm pitch nine-contact SMT configuration from the catalog. Verify pad layout, terminal orientation and housing process requirements.

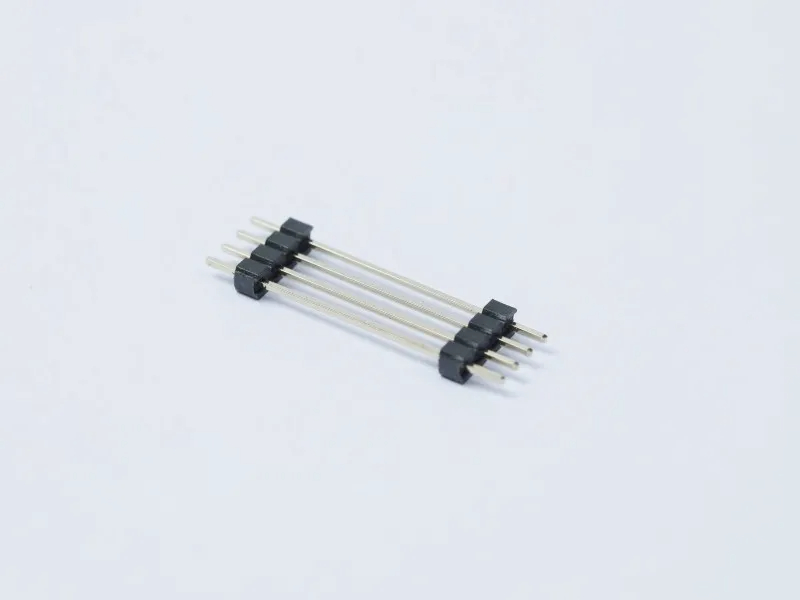

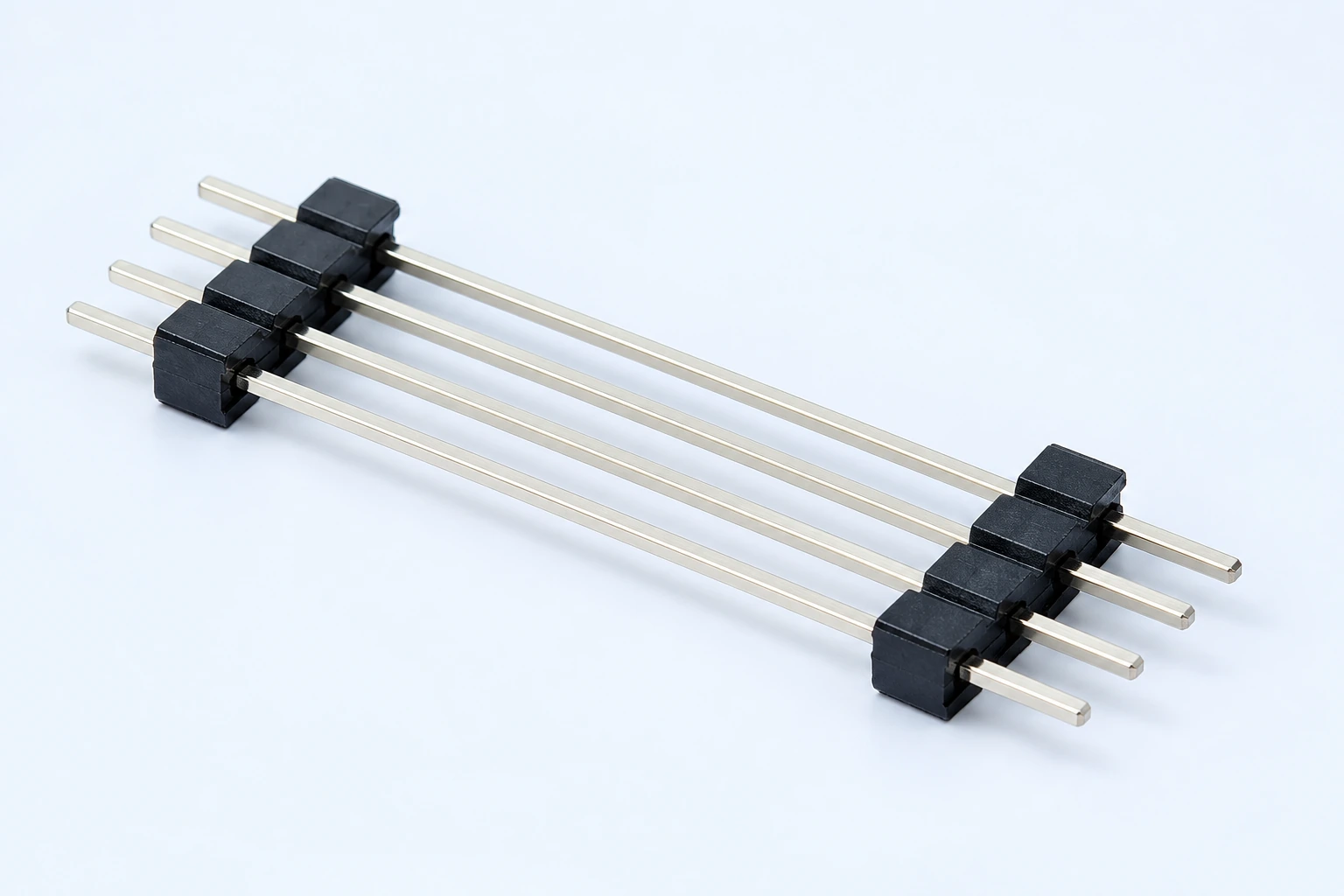

Pin Header PH2.0mm 4Pin Through Hole 90 Degree DIP
2.0 mm pitch four-contact configuration from the existing catalog. Confirm the drawing and mounting arrangement before selection.

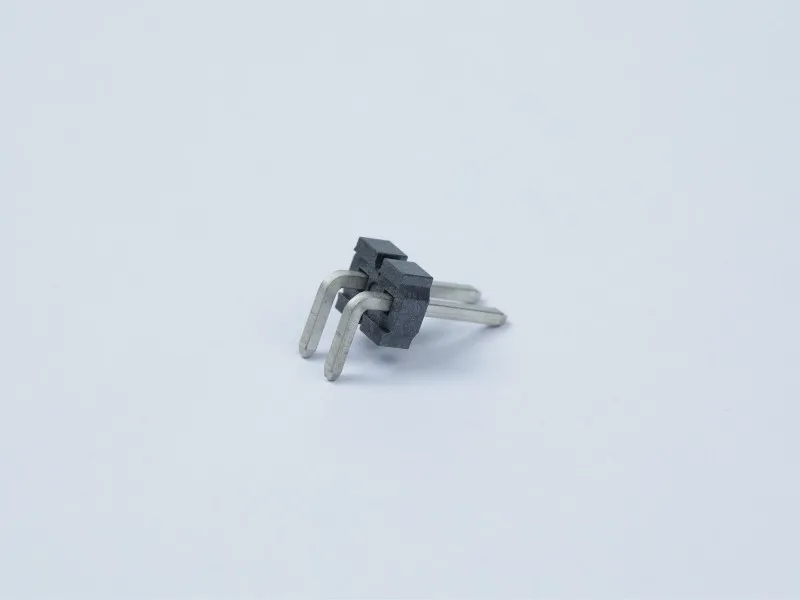

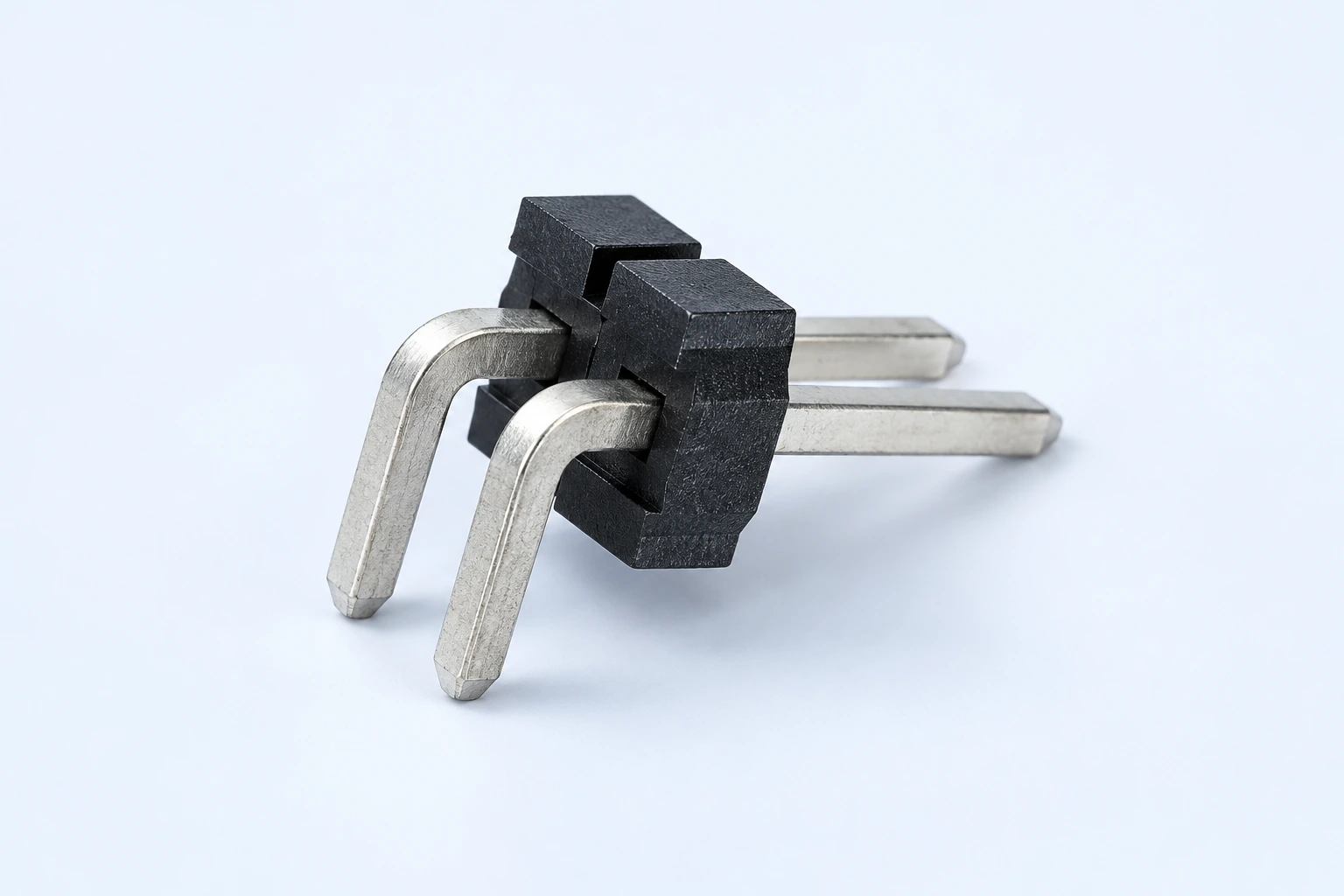

Pin Header PH3.96mm 2Pin Right Angled Through Hole 90 Degree DIP
3.96 mm pitch two-contact right-angle through-hole configuration. Verify PCB hole spacing, contact dimensions and board clearance.

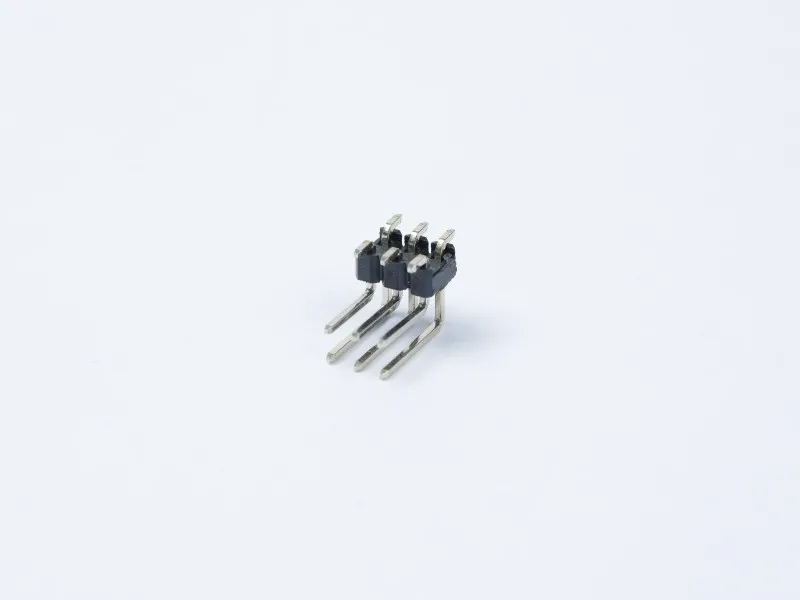

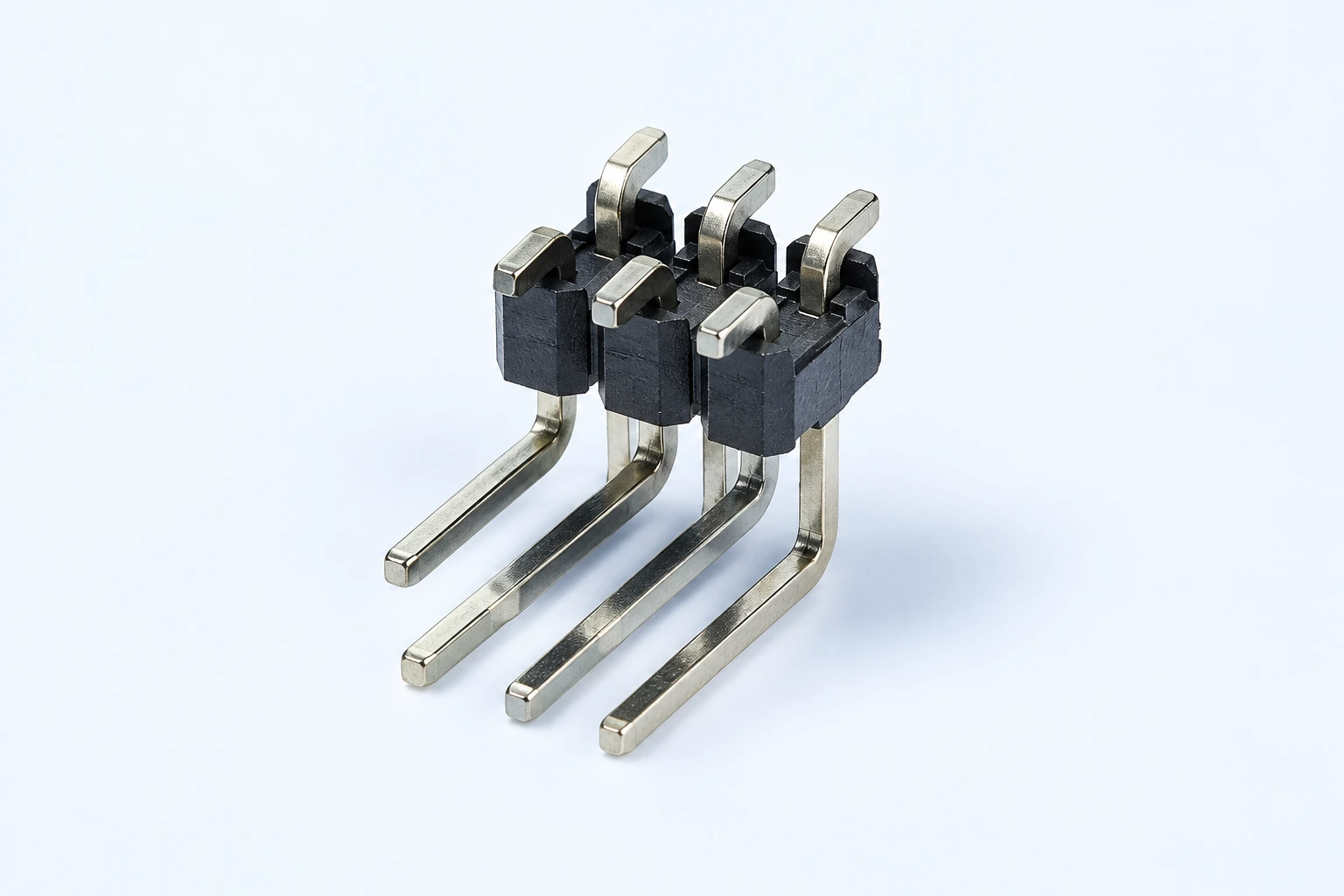

Pin Header PH2.54mm Dual Row 2*3Pin Gold Plated Right Angled 90 Degree SMT
2.54 mm pitch dual-row 2 × 3 right-angle SMT configuration. Review pad geometry, mating direction and required contact finish.
Custom Pin Header Connectors
Share your dimensional drawing, pitch, row and contact count, pin lengths, insulator height and packaging requirements. TONFUL can review available customization options, sample arrangements, MOQ, tooling and lead time for your selected design.
Product images are illustrative recreations of the original catalog photos. Use the approved drawing or sample to confirm pin count, pitch, orientation and dimensions.
Pin Header Connector Applications
Explore potential PCB connection applications. Suitability depends on the selected header, mating interface and finished assembly; an illustration does not establish compatibility or qualification.

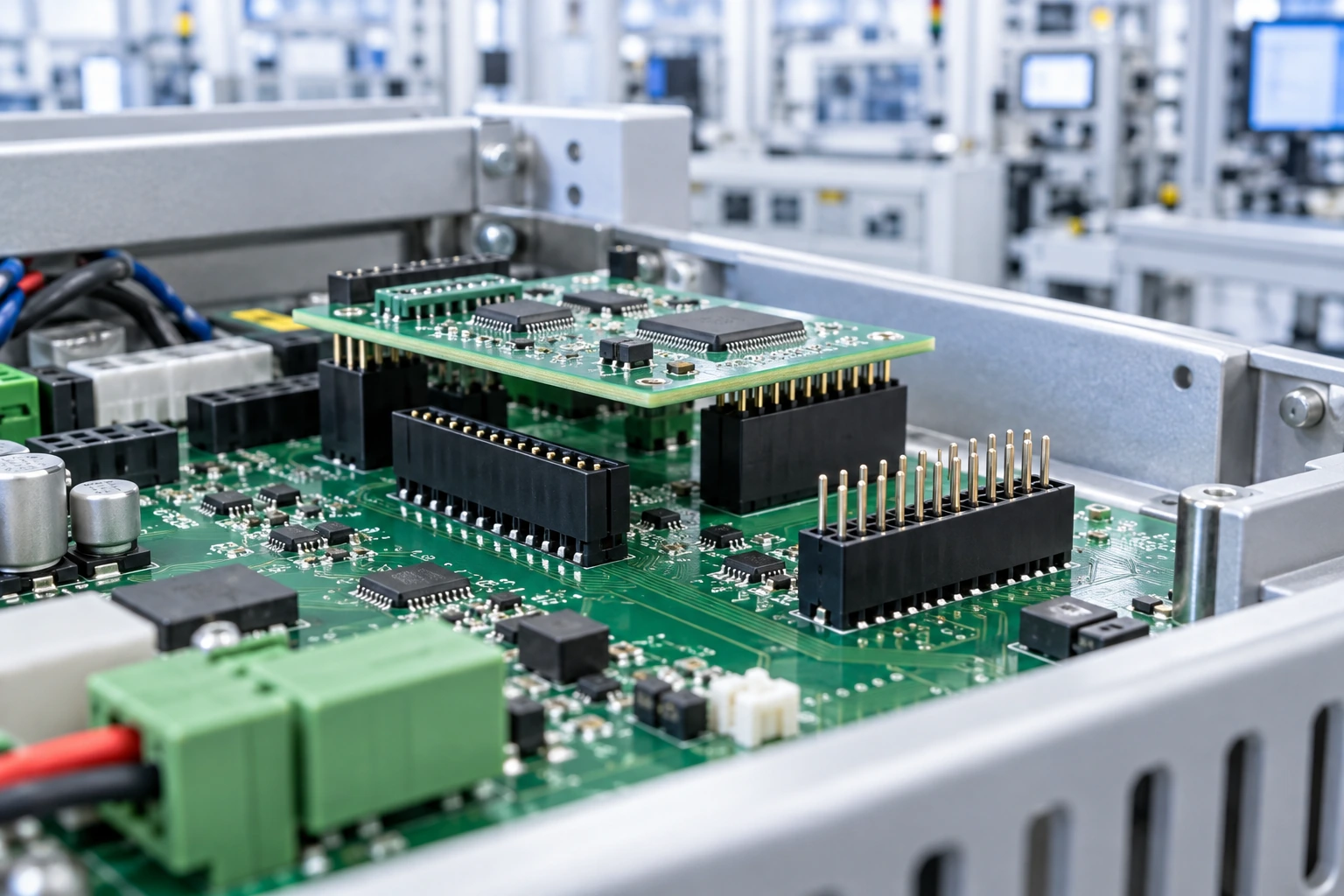

Industrial Controls & Instrumentation
Connect control boards, I/O modules and instrument interfaces using a suitable header and mating receptacle. Review pin numbering, board clearance, electrical ratings and the operating environment for the selected assembly.

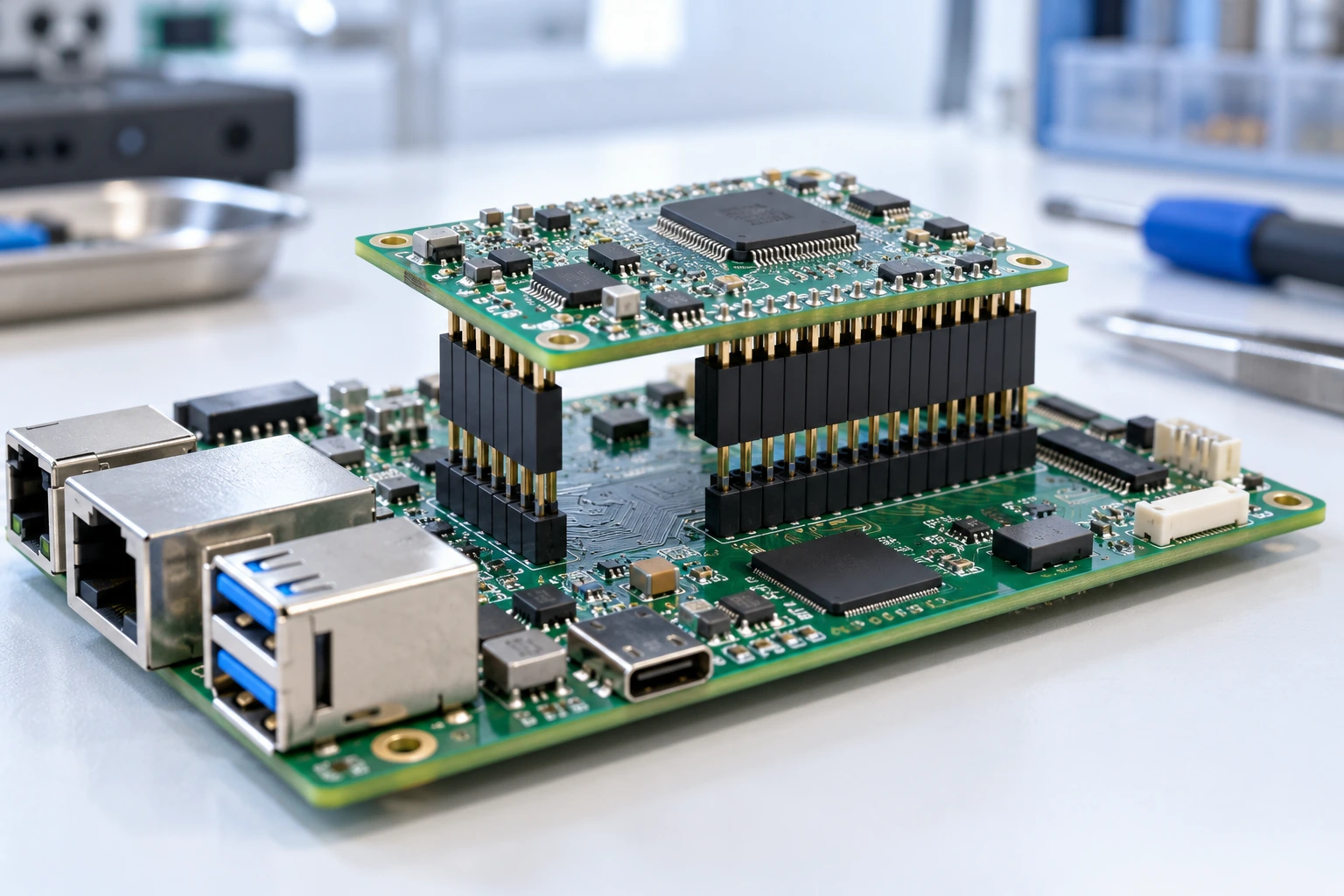

Embedded Boards & Consumer Electronics
Explore compact board-to-board and wire-to-board interfaces for embedded devices and electronic assemblies. Match pitch, contact count, mating height and assembly method to your PCB design.

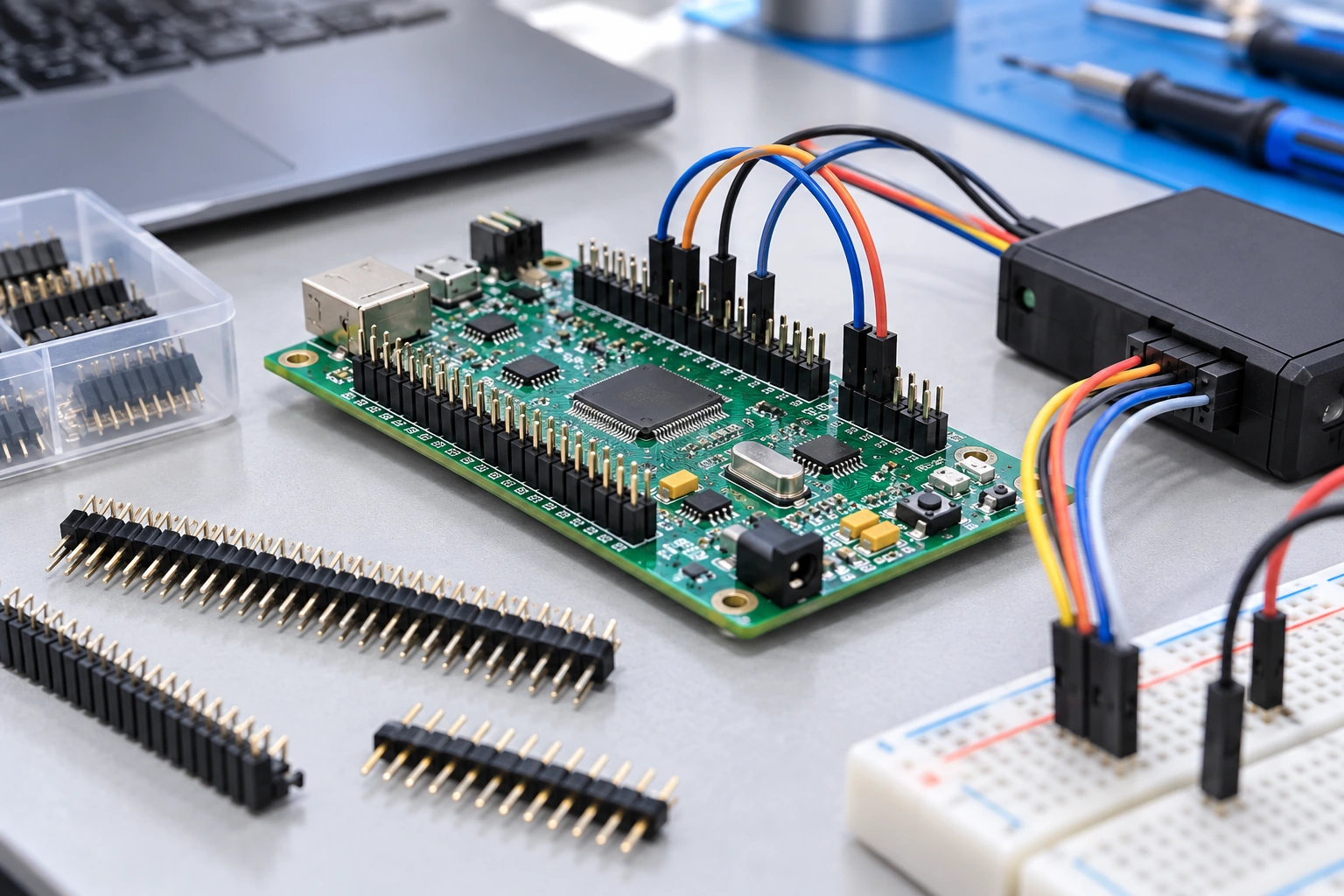

Prototyping & Test Interfaces
Consider pin headers for development boards, removable modules and test connections. Confirm the pin-out, socket engagement and expected handling before approving the interface for production.
Pin Header Connector Specifications: What to Confirm
Use this checklist to define the connector interface, board footprint and mating requirements. Review performance against the selected model datasheet.
| Specification | Information to Confirm |
|---|---|
| Pitch & contact layout | Specify the center-to-center pitch, number of rows, total contacts and any missing-pin positions. Match both the PCB footprint and mating connector. |
| Mounting orientation | Choose straight, right-angle or SMT mounting. Confirm solder-tail geometry, cable or board exit direction and installation clearance. |
| Pin & housing dimensions | Provide mating length, tail length, contact cross-section and insulator height on the approved drawing. |
| Contact material & finish | Request the selected model's base material, plating finish and thickness. Review these against the application and mating requirements. |
| Electrical & environmental ratings | Confirm current, voltage, contact resistance and operating temperature from the model-specific documentation. |
| Assembly process | Define through-hole soldering or SMT reflow requirements. Review housing material, solder profile and coplanarity where relevant. |
| Packaging & traceability | Agree bag, tray or tape-and-reel arrangements where available. Confirm quantities, identification and transport protection in the quotation. |
Review the approved drawing, mating assembly and sample before ordering. Request the technical documents required for your selected connector.
Make Quality Part of the Purchase Specification
Drawing-Based Selection
Match pitch, contacts and housing dimensions to the approved PCB and mating-interface drawings.
Mating Compatibility
Review the corresponding receptacle, pin numbering and engagement before approving the connection.
Material & Finish Review
Specify contact material, plating and insulator requirements for the selected product.
Inspection Criteria
Agree dimensional checks, appearance criteria and any required electrical inspection for the order.
Assembly Requirements
Review the soldering process, component orientation and handling requirements with your assembly team.
OEM Supply Options
Discuss contact configuration, quantities and packaging preferences so the available supply options can be confirmed.
Select Pin Header Connectors in Six Practical Steps
1. Define the Pitch
Measure the required contact spacing and match the PCB footprint and mating connector drawing.
2. Specify the Circuits
Confirm row count, total contacts, pin numbering and any omitted-pin positions.
3. Choose the Orientation
Select straight, right-angle or SMT mounting and verify the surrounding assembly clearance.
4. Set the Dimensions
Define contact cross-section, mating length, solder-tail length and insulator height.
5. Review the Process
Confirm contact finish, housing material and the approved soldering and inspection requirements.
6. Approve the Sample
Check the drawing, mating fit, PCB assembly and packing specification before placing a production order.
Request Pin Header Samples
Send your selected header reference, drawing and required quantity. Confirm sample availability, charges, shipping and evaluation requirements before arranging a sample.
Pin Header Connector Workshop & Packaging

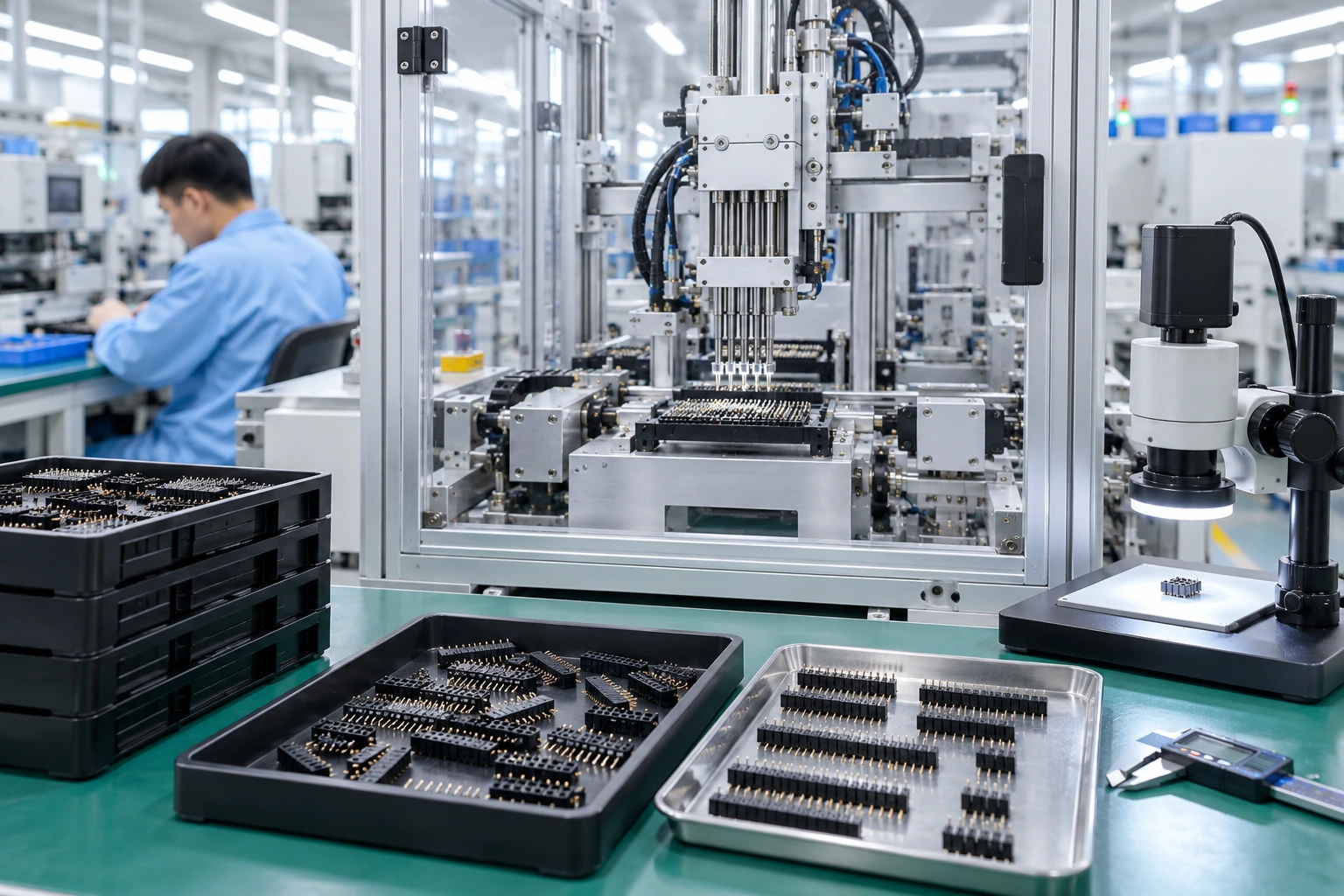

Connector Assembly & Inspection
Discuss pin insertion, housing configuration and inspection requirements for the selected header. Confirm the manufacturing route, acceptance criteria and available documentation before approving a sample or production order.

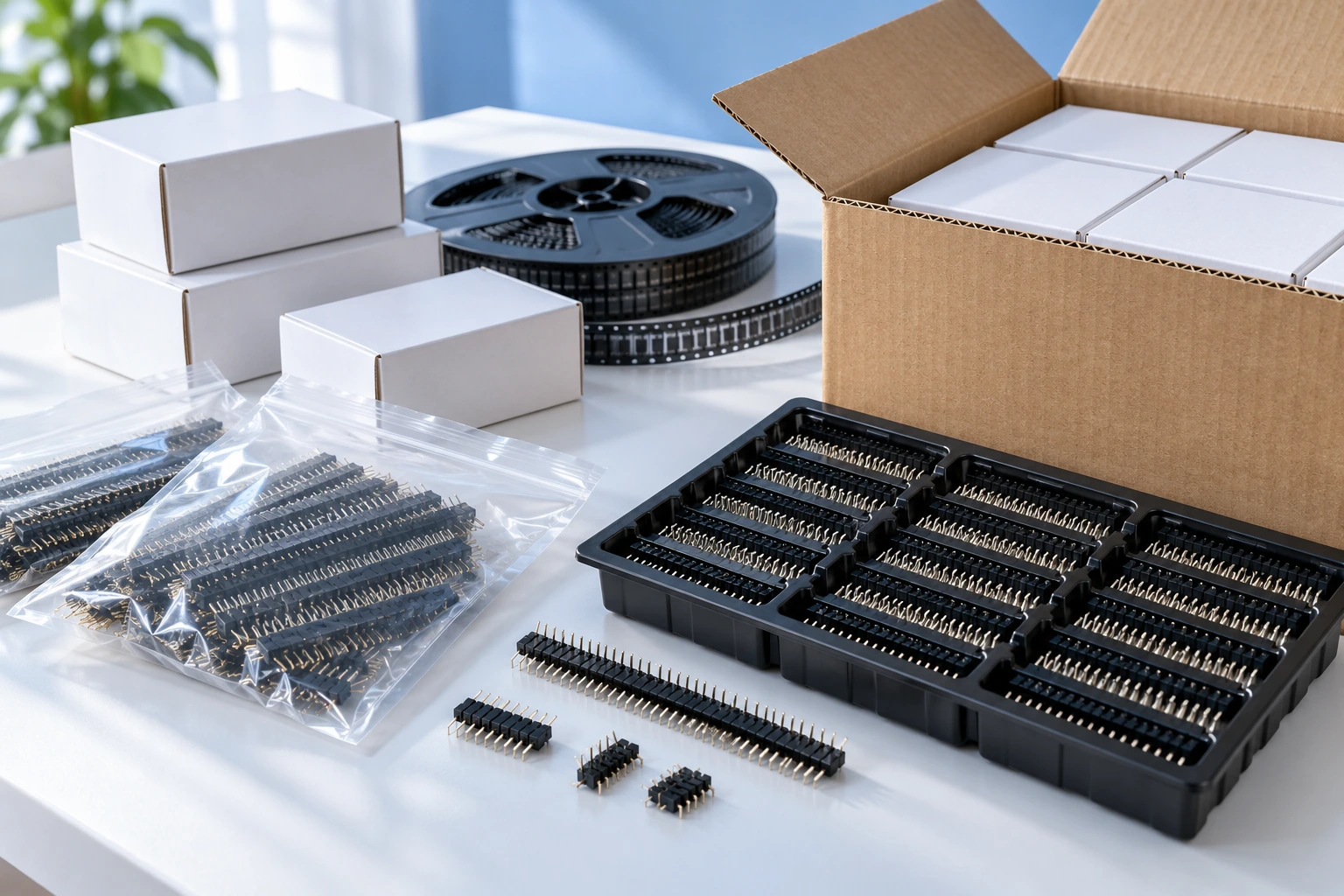

Bags, Trays & Export Cartons
Review protective bags, trays, inner boxes and outer cartons. Ask about tape-and-reel packaging for suitable SMT references, then agree pack quantities, labels and handling requirements in your quotation.
Workshop, packaging and application images are illustrative recreations, not photographs of verified TONFUL facilities or evidence of product qualification.
More Than Just a Pin Header Connector Manufacturer
Service Consultation
Share your drawing, PCB interface and purchasing requirements. TONFUL can review the information needed for product selection and quotation.

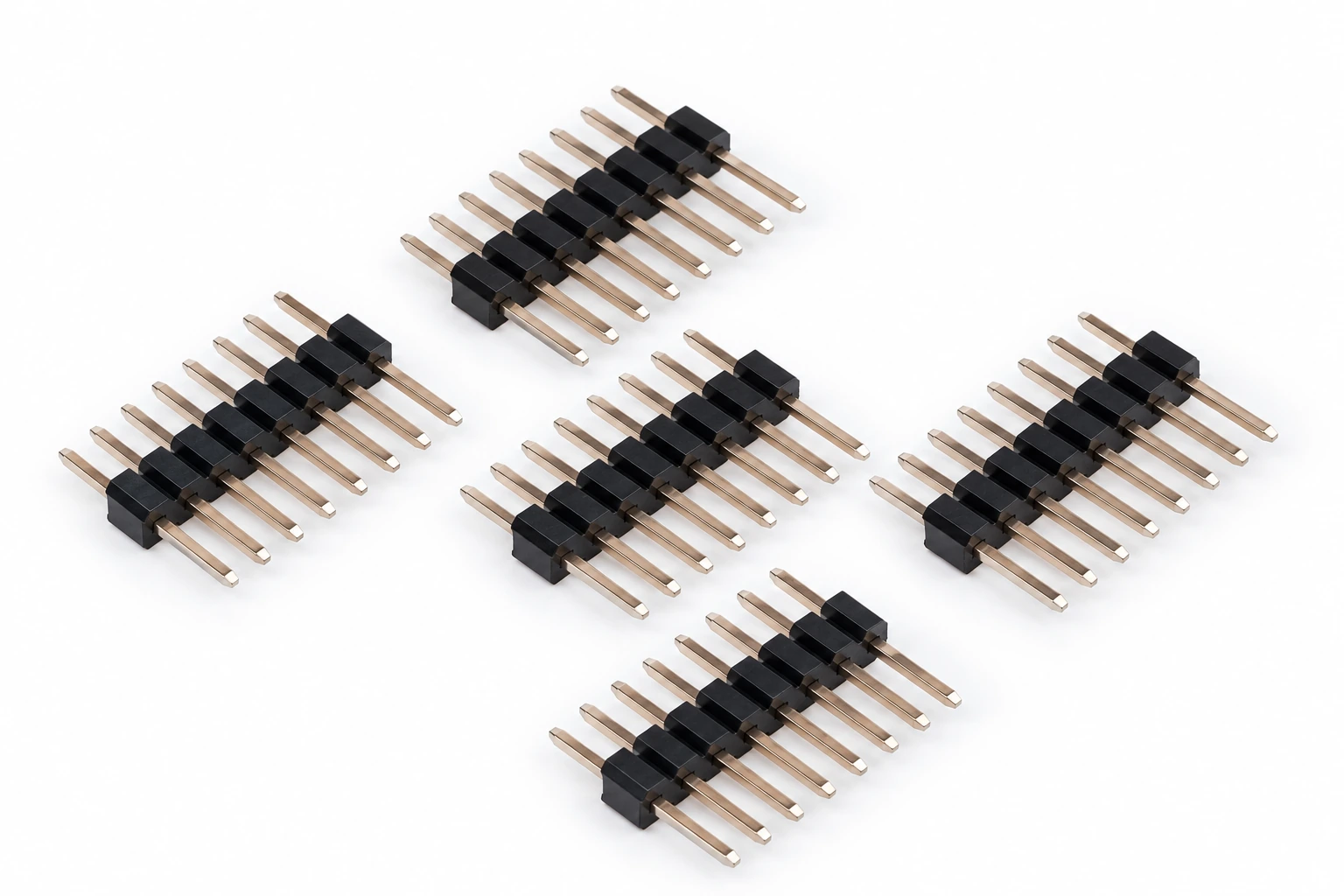

Product Recommendations
Compare the existing header configurations with your required pitch, contact layout and mating interface. Confirm the chosen model using its drawing and an approved sample.

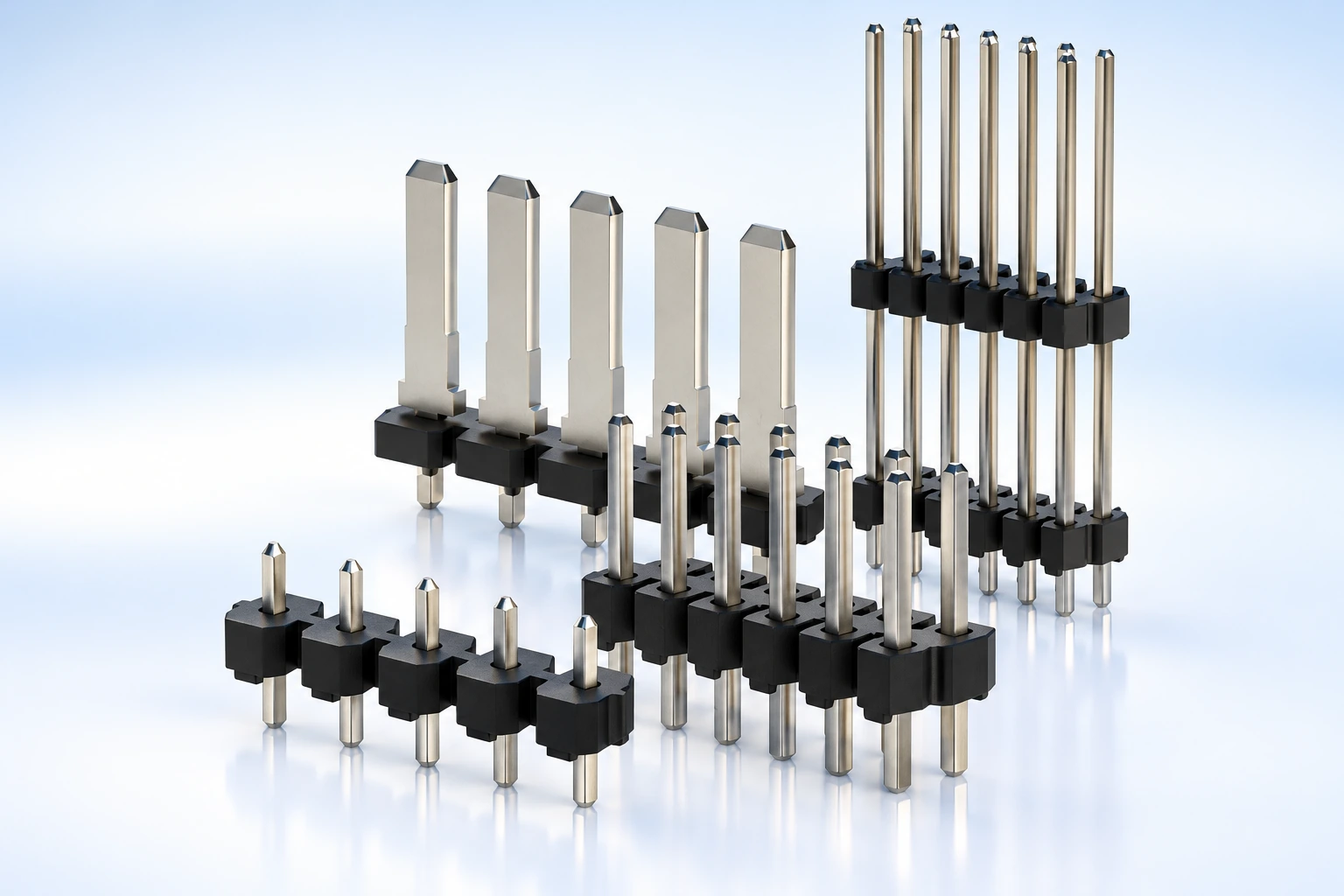

Assembly Support
Request the model-specific dimensional information and handling requirements. Your assembly team should verify the PCB footprint, soldering procedure and inspection criteria.
Logistics Support
Discuss order quantity, packing, delivery destination and shipment arrangements. Lead time, freight charges and delivery terms are confirmed in your quotation.
Pin Header Connectors: Frequently Asked Questions
What information is needed to select a pin header?
Provide the pitch, row and contact count, mounting orientation, contact dimensions and mating-connector reference. Include the PCB drawing and any application-specific requirements.
Can TONFUL review custom pin lengths or contact layouts?
Send the dimensional drawing, required quantity and sample reference. Available customization, tooling, MOQ and lead time are confirmed for the selected design.
How do I match a header to a female connector?
Match pitch, row layout, contact cross-section, pin numbering and mating depth. Check the supplier drawings and validate the assembled interface rather than relying only on a product photo.
Are all pin headers suitable for SMT reflow?
No. Mounting style alone does not establish suitability. Confirm the housing material, terminal finish and approved soldering profile for the exact model.
What packaging options can be reviewed?
Discuss protective bags, trays, inner boxes and export cartons. Tape-and-reel suitability and pickup features for SMT headers are confirmed for the selected reference.
How can I request a sample or quotation?
Send your drawing or product reference, specifications, quantity and packaging needs. Confirm sample availability, charges, shipping, MOQ and delivery terms with TONFUL.
Request Pin Header Connector Information
Send your header drawing or product reference, pitch, rows and contact count, pin dimensions, mounting orientation and order quantity. Include the mating connector, assembly process and packaging requirements so TONFUL can review your enquiry.
