Common Waterproof Wire Nut Problems: Complete Troubleshooting Guide

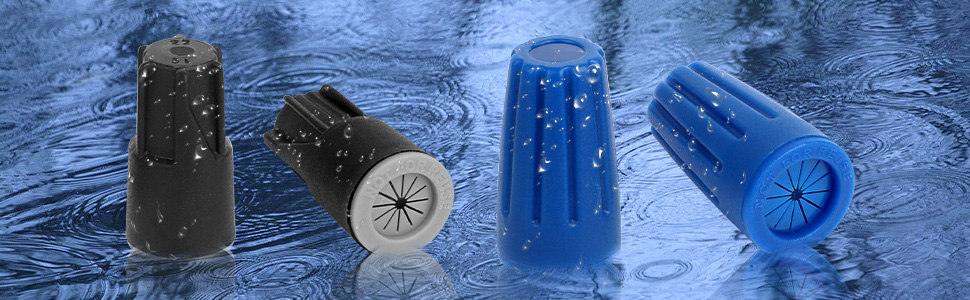

Waterproof wire nuts are essential components in outdoor electrical installations, protecting connections from moisture, corrosion, and environmental damage. However, even properly rated connectors can fail when installation errors, environmental factors, or material degradation compromise their integrity. This comprehensive troubleshooting guide identifies the most common waterproof wire nut problems and provides professional solutions to ensure reliable, code-compliant electrical connections.

Understanding Waterproof Wire Nut Failure Modes

Before troubleshooting specific problems, it’s crucial to understand how waterproof wire nuts differ from standard connectors. Unlike conventional wire nuts, waterproof wire nuts incorporate silicone-filled chambers, gel-filled cavities, or rubber gaskets that create moisture barriers around wire splices. When these sealing mechanisms fail or are improperly installed, water infiltration leads to corrosion, voltage drop, intermittent connections, and potential safety hazards.

Problem 1: Loose Connections and Intermittent Failures

Symptoms

• Flickering lights in outdoor fixtures
• Intermittent power loss to connected devices
• Voltage drop readings at connection points
• Warm or hot wire nut housing during operation

Root Causes

Loose connections represent the most common waterproof wire nut failure mode, typically resulting from improper installation rather than product defects. The primary causes include insufficient wire twisting before connector application, using oversized connectors for the wire gauge, and failure to insert wires fully into the connector body until they contact the internal spring mechanism.

Wire preparation significantly impacts connection integrity. When installers skip the pre-twisting step or fail to align wire ends evenly, the internal spring cannot grip all conductors uniformly, creating high-resistance contact points that generate heat and accelerate connection degradation. Additionally, selecting connector sizes based on visual estimation rather than manufacturer specifications leads to inadequate mechanical grip, allowing wires to pull free under thermal cycling or vibration.

Troubleshooting Steps

1. Power Down and Verify: De-energize the circuit at the breaker and confirm zero voltage with a non-contact voltage tester before opening any connection
2. Visual Inspection: Remove the wire nut and examine wire ends for discoloration, heat damage, or oxidation indicating poor contact
3. Wire Preparation: Strip fresh insulation to expose 5/8″ to 3/4″ of bare copper, ensuring all conductors are the same length
4. Pre-Twist Wires: Using lineman’s pliers, twist conductors together clockwise for 3-4 complete turns to create a unified bundle
5. Size Verification: Consult the wire nut sizing chart to confirm proper connector capacity for your wire gauge and conductor count
6. Proper Installation: Thread the wire nut clockwise onto the twisted conductors with firm pressure until resistance is felt and no bare copper remains visible
7. Pull Test: Gently tug each individual wire to verify mechanical security—properly crimped connections should not pull free with moderate force

Prevention Strategies

Prevention Method	Implementation	Expected Outcome
Wire Pre-Twisting	Twist conductors 3-4 turns clockwise before connector application	95% reduction in loose connection failures
Proper Sizing	Use manufacturer’s gauge/capacity charts, not visual estimation	Eliminates oversized connector issues
Insertion Verification	Ensure wires bottom out against internal spring mechanism	Prevents partial engagement failures
Pull Testing	Apply 10-15 lb force to each conductor after installation	Identifies weak connections before energizing
Torque Consistency	Tighten until firm resistance, avoid over-tightening	Prevents spring damage and ensures proper grip

Problem 2: Moisture Infiltration and Corrosion

Symptoms

• Green or white corrosion visible on copper conductors
• Increased resistance at connection points
• Tripped GFCI breakers in outdoor circuits
• Failed continuity tests across connections
• Visible water droplets inside connector housing

Root Causes

Moisture infiltration defeats the primary purpose of waterproof wire nuts and represents a critical failure mode requiring immediate correction. Despite IP67 or IP68 ratings, several installation errors compromise water resistance. The most common cause is incomplete sealing at the wire entry point—when installers fail to push wires fully through the rubber gasket or silicone seal, capillary action allows water to wick along wire strands directly into the connection chamber.

Environmental factors also contribute to seal degradation over time. UV exposure breaks down rubber gaskets in above-ground installations, temperature cycling causes silicone to harden and crack, and physical damage from landscaping equipment or animal activity can puncture connector housings. Additionally, using standard wire nuts with electrical tape in wet locations—a code violation under NEC Article 110.11—provides no reliable moisture protection and inevitably leads to corrosion failures.

Troubleshooting Steps

1. Identify Entry Points: Examine the wire entry seal for gaps, cracks, or incomplete wire insertion through the gasket
2. Check Housing Integrity: Inspect the connector body for cracks, punctures, or UV damage indicated by brittleness or discoloration
3. Assess Corrosion Extent: Remove the connector and evaluate conductor damage—light surface oxidation can be cleaned, but deep pitting requires wire replacement
4. Wire Cleaning: For salvageable conductors, use a wire brush or fine sandpaper to remove corrosion, then wipe with electrical contact cleaner
5. Seal Verification: Ensure replacement connectors have intact, pliable seals—discard any units with hardened or damaged gaskets
6. Proper Sealing Technique: Push wires completely through the entry seal until they bottom out in the connector chamber, then verify the seal grips each wire individually
7. Secondary Protection: For burial applications or permanent submersion, apply dielectric grease to conductors before connection and consider using IP68-rated connectors instead of IP67 units

Corrosion Prevention Comparison

Protection Method	IP Rating	Suitable Applications	Lifespan Expectancy
Standard wire nut + tape	None	Indoor dry locations only	Not rated for wet locations
Silicone-filled wire nut	IP65-IP67	Above-ground outdoor, splash zones	5-10 years with UV exposure
Gel-filled connector	IP67	Buried installations, temporary submersion	10-15 years underground
Grease-filled connector	IP68	Permanent submersion, marine environments	15-20 years in wet conditions
Heat-shrink solder seal	IP68	Critical connections, vibration-prone areas	20+ years when properly installed

For comprehensive guidance on selecting appropriate protection levels, refer to our detailed comparison of waterproof wire connector standards.

Problem 3: Incorrect IP Rating for Application Environment

Symptoms

• Premature connector failure in harsh environments
• Water accumulation inside junction boxes
• Repeated connection failures despite proper installation
• Code compliance issues during electrical inspections

Root Causes

Specifying inadequate IP ratings for the actual installation environment causes predictable failures that proper product selection would prevent. Many installers assume all “waterproof” connectors provide equivalent protection, but significant performance differences exist between IP65 (splash-resistant), IP67 (temporary submersion to 1 meter for 30 minutes), and IP68 (continuous submersion beyond 1 meter with manufacturer-specified depth and duration limits).

The confusion intensifies because IP ratings apply only to mated, properly installed connectors under test conditions. An IP67 connector installed in a location subject to continuous submersion—such as a low-lying valve box that collects standing water—will fail because it exceeds the rating’s 30-minute temporary immersion specification. Similarly, using IP67 connectors in direct burial applications without conduit protection exposes them to soil moisture pressure and potential groundwater saturation beyond their design parameters.

Troubleshooting Steps

1. Environment Assessment: Document actual conditions including exposure to rain, splash, temporary flooding, or permanent submersion
2. Depth and Duration Analysis: For below-grade installations, measure maximum potential water depth and duration of submersion
3. Rating Verification: Check connector markings for IP rating—if absent or illegible, replace with properly marked units
4. Application Matching: Cross-reference environmental conditions against IP rating specifications:
   • IP65: Protected against water jets, suitable for covered outdoor locations with splash exposure
   • IP67: Withstands temporary immersion to 1 meter for 30 minutes, appropriate for above-ground outdoor and occasional flooding scenarios
   • IP68: Survives continuous submersion beyond 1 meter (manufacturer specifies exact parameters), required for permanent wet locations and direct burial
5. Code Compliance Check: Verify installation meets NEC Article 110.11 (suitability for environment) and Article 314 (wet location junction box requirements)
6. Upgrade if Necessary: Replace underrated connectors with appropriate IP68 units for permanent wet locations or consider alternative connection methods like heat-shrink solder seals

IP Rating Selection Guide

Installation Location	Minimum IP Rating	Recommended Product Type	Additional Requirements
Covered porch/eave	IP65	Silicone-sealed wire nut	UV-resistant housing
Exposed outdoor lighting	IP67	Gel-filled or grease-filled connector	UV-resistant, temperature rated -40°C to +90°C
Ground-level landscape lighting	IP67	Gel-filled connector in weatherproof box	Elevated junction box to prevent submersion
Irrigation valve boxes	IP68	Grease-filled or heat-shrink solder seal	Assume periodic submersion, use continuous-rated products
Pond/fountain wiring	IP68	Marine-grade grease-filled connector	Must specify depth rating exceeding installation depth
Direct burial (no conduit)	IP68	Gel-filled connector + dielectric grease	Burial-rated cable, depth per NEC 300.5

Problem 4: Silicone Contamination and Handling Issues

Symptoms

• Slippery residue on hands and tools after installation
• Difficulty achieving proper grip during connector tightening
• Silicone transfer to subsequent connections
• Reduced friction preventing secure wire nut seating

Root Causes

Silicone-filled and gel-filled waterproof wire nuts contain viscous sealing compounds that inevitably transfer to installer’s hands during normal use. While this creates temporary inconvenience, the real problem occurs when silicone-contaminated hands touch subsequent wire ends or connector threads. Silicone acts as a lubricant that reduces friction between the internal spring mechanism and copper conductors, potentially allowing wires to slip free under load. Additionally, silicone contamination on connector threads prevents proper seating, leaving gaps that compromise both mechanical strength and water resistance.

The issue intensifies in production environments where installers work continuously with multiple connections. Without proper hand cleaning between installations, silicone accumulation progressively worsens, and installers may compensate by over-tightening connectors, which can damage internal springs and crack housing materials.

Troubleshooting Steps

1. Hand Cleaning Protocol: Keep disposable gloves, hand wipes, or shop towels at the work site for immediate cleaning after handling silicone-filled connectors
2. Sequential Installation: Complete all wire preparation and pre-twisting before opening silicone-filled connector packages to minimize contamination exposure
3. Tool Cleaning: Wipe pliers and strippers with solvent-based cleaner if silicone transfer occurs—contaminated tools spread the problem
4. Grip Enhancement: If silicone contamination has occurred, use a clean shop towel to grip the connector body during installation for improved torque application
5. Inspection After Handling: Examine wire ends and connector threads for silicone residue before assembly—clean with isopropyl alcohol if contamination is visible
6. Alternative Products: For high-volume installations, consider switching to grease-filled connectors or external-seal designs that minimize handling contact with sealing compounds

Handling Best Practices

Issue	Solution	Benefit
Silicone on hands	Disposable nitrile gloves	Prevents contamination transfer, maintains grip
Contaminated wire ends	Isopropyl alcohol wipe before connection	Ensures proper conductor-to-spring contact
Slippery connector body	Clean shop towel for grip	Allows proper tightening torque
Tool contamination	Solvent-based tool cleaner	Prevents spreading silicone to subsequent connections
Production efficiency loss	Batch preparation (strip/twist all wires before opening connectors)	Minimizes handling time with open connectors

Problem 5: Temperature-Related Failures

Symptoms

• Connector housing cracks in cold weather
• Silicone seal hardening and loss of flexibility
• Increased connection resistance in extreme heat
• Thermal expansion causing wire pullout
• Brittle connector failure during winter installations

Root Causes

Temperature extremes challenge waterproof wire nut materials and connection integrity in ways that room-temperature installations never reveal. Cold weather causes several failure modes: rubber gaskets lose flexibility and no longer conform to wire insulation profiles, silicone compounds harden and crack, and plastic housings become brittle and fracture during installation or from thermal stress cycling. Conversely, extreme heat softens sealing compounds, allowing them to flow out of the connector body, and causes differential thermal expansion between copper conductors and aluminum or plastic housing materials, potentially loosening connections.

Geographic location significantly impacts temperature-related failure risk. Installations in northern climates experience winter temperatures well below the -20°C to -40°C lower limits of standard waterproof connectors, while desert and tropical installations may exceed the +90°C upper limits when connectors are exposed to direct sunlight. The problem intensifies in applications with high thermal cycling—such as outdoor lighting that heats during operation and cools when off—which accelerates material fatigue and seal degradation.

Troubleshooting Steps

1. Temperature Rating Verification: Check connector specifications for operating temperature range—standard products typically rate -40°C to +90°C, but verify actual markings
2. Climate-Appropriate Selection: For extreme cold climates, specify connectors with cold-weather silicone formulations and impact-resistant housings; for extreme heat, select high-temperature grease-filled units with reinforced housings
3. Installation Timing: In cold weather, store connectors at room temperature until immediately before use—cold silicone becomes viscous and difficult to work with
4. Thermal Expansion Accommodation: Leave slight slack in wiring to accommodate thermal expansion and contraction without stressing connections
5. UV Protection: For above-ground installations in hot climates, use junction boxes or conduit bodies to shield connectors from direct sunlight, reducing peak temperatures by 15-20°C
6. Seasonal Inspection: Schedule connection inspections after extreme weather events (heat waves, cold snaps) to identify stress-related damage before failures occur
7. Material Upgrade: Consider switching from standard silicone-filled connectors to heat-shrink solder seals for critical connections in extreme temperature environments—these provide superior temperature stability and mechanical strength

Temperature Performance Comparison

Connector Type	Temperature Range	Cold Weather Performance	Hot Weather Performance	Best Applications
Standard silicone-filled	-20°C to +80°C	Seal stiffening below -10°C	Softening above +70°C	Moderate climates, protected locations
Cold-weather silicone	-40°C to +90°C	Maintains flexibility to -35°C	Standard heat performance	Northern climates, winter installations
High-temp grease-filled	-30°C to +105°C	Good cold performance	Excellent heat stability	Desert climates, engine compartments
Heat-shrink solder seal	-55°C to +125°C	Excellent cold performance	Superior heat resistance	Extreme climates, critical connections
Marine-grade sealed	-40°C to +85°C	Good cold performance	UV-resistant, heat-stable	Coastal installations, full sun exposure

For detailed guidance on selecting temperature-appropriate connectors, consult our comprehensive waterproof wire nut installation guide.

Problem 6: Reuse and Maintenance Issues

Symptoms

• Degraded sealing performance after connector removal and reinstallation
• Visible damage to internal spring mechanism
• Compressed or torn rubber gaskets
• Reduced grip strength on reinstalled connections

Root Causes

Waterproof wire nuts are designed as single-use components, yet field conditions often tempt installers to reuse connectors during troubleshooting, circuit modifications, or temporary installations. This practice compromises both mechanical and environmental protection. When a connector is removed, the internal spring mechanism deforms to match the specific wire bundle configuration, and the silicone or gel sealing compound distributes throughout the chamber. Reinstalling the same connector on a different wire configuration—or even the same wires after re-stripping—prevents the spring from achieving optimal contact pressure, creating high-resistance joints that generate heat and accelerate failure.

The sealing mechanism suffers even more severe degradation. Rubber gaskets compress and conform to the first set of wires, creating permanent deformation that prevents proper sealing around different wire sizes or positions. Silicone-filled connectors lose sealing compound during removal as material adheres to wire insulation and is pulled out of the chamber. Gel-filled units experience similar losses, and the remaining gel may contain debris or moisture contamination from the previous installation.

Troubleshooting Steps

1. Replacement Policy: Establish a strict no-reuse policy for waterproof connectors—the minimal cost of new connectors is insignificant compared to failure-related service calls and safety risks
2. Damage Assessment: If a connector must be temporarily removed for troubleshooting, carefully inspect for spring deformation, seal damage, or contamination before considering reinstallation
3. Seal Integrity Check: Examine rubber gaskets for compression marks, tears, or permanent deformation—any visible damage disqualifies reuse
4. Cleaning Limitations: Understand that cleaning cannot restore original sealing performance—silicone and gel compounds cannot be replenished, and spring tension cannot be reset
5. Temporary Connections: For troubleshooting scenarios requiring temporary connections, use standard wire nuts or lever-style connectors, then install new waterproof units for permanent restoration
6. Inventory Management: Maintain adequate connector inventory in common sizes to eliminate reuse temptation driven by parts shortages
7. Documentation: When replacing failed connectors, document the failure mode to identify systemic installation issues requiring corrective action

Reuse Risk Assessment

Connector Condition After Removal	Reuse Risk Level	Recommended Action	Potential Consequences of Reuse
Seal intact, no visible damage	Moderate	Replace with new connector	Reduced water resistance, possible moisture infiltration
Compressed gasket, spring visible	High	Must replace	High probability of loose connection and water ingress
Silicone/gel loss, contamination	Severe	Must replace	Connection failure likely, safety hazard
Cracked housing, damaged threads	Critical	Must replace immediately	Immediate failure risk, code violation
Multiple previous removals	Severe	Must replace	Cumulative damage ensures failure

Preventive Maintenance and Inspection Schedule

Proactive inspection prevents catastrophic failures and extends system reliability. Establish a maintenance schedule based on installation environment and criticality:

Annual Inspection Protocol

1. Visual Examination: Inspect all accessible waterproof connections for housing cracks, UV damage, or physical impact damage
2. Thermal Imaging: Use an infrared camera to identify hot spots indicating high-resistance connections before they fail
3. Pull Testing: Gently tug individual wires to verify mechanical security—any movement indicates connection degradation
4. Seal Assessment: Check wire entry points for gaps, hardening, or separation from housing
5. Junction Box Inspection: Verify boxes remain weatherproof with intact gaskets and no water accumulation
6. Documentation: Photograph and log connector conditions to track degradation trends over time

Replacement Triggers

Condition	Action Required	Urgency
Visible corrosion on conductors	Replace connector and affected wire	Immediate
Cracked or damaged housing	Replace connector	Immediate
Hardened or brittle seals	Replace connector	Within 30 days
Warm connection during operation	Investigate and replace if resistance detected	Within 7 days
Water inside junction box	Identify source, replace all affected connectors	Immediate
Connector age >10 years in harsh environment	Preventive replacement	Next maintenance cycle

For comprehensive installation guidance that prevents common problems, refer to our detailed waterproof wire nut precautions for residential projects.

Professional Installation Best Practices

Implementing systematic installation procedures eliminates most waterproof wire nut problems before they occur:

Pre-Installation Checklist

• [ ] Verify circuit is de-energized and locked out
• [ ] Confirm connector IP rating matches environment requirements
• [ ] Check connector temperature rating for climate conditions
• [ ] Inspect connector packaging for damage or contamination
• [ ] Verify wire gauge matches connector capacity specifications
• [ ] Ensure adequate wire length for proper stripping and connection
• [ ] Confirm junction box is rated for wet locations if required

Installation Procedure

1. Strip wire insulation to manufacturer-specified length (typically 5/8″ to 3/4″)
2. Align all conductor ends evenly—staggered wires prevent proper connection
3. Pre-twist conductors clockwise 3-4 complete turns using lineman’s pliers
4. Insert twisted bundle into connector, pushing firmly until wires bottom out
5. Rotate connector clockwise with firm pressure until tight resistance is felt
6. Verify no bare copper is visible beyond connector housing
7. Perform pull test on each individual conductor
8. Confirm wire entry seals grip each conductor individually
9. Position connector in junction box to prevent stress on wires
10. Secure junction box cover and verify weatherproof seal integrity

Quality Verification

• Continuity test across connection confirms electrical integrity
• Thermal imaging after energizing identifies any high-resistance joints
• Visual inspection confirms no exposed copper and intact seals
• Documentation includes connector type, installation date, and installer identification

When to Call a Professional

While many waterproof wire nut problems can be resolved with proper troubleshooting, certain situations require professional electrical contractor involvement:

• Repeated failures in the same location indicate systemic design or environmental issues
• Connections involving high-voltage circuits (>120V) or high-current loads (>20A)
• Installations requiring code compliance documentation for permits or inspections
• Situations where moisture source cannot be identified or controlled
• Complex troubleshooting requiring specialized test equipment
• Any scenario where safety is uncertain or electrical shock risk exists

Professional electricians possess specialized tools including megohm meters for insulation resistance testing, thermal imaging cameras for connection analysis, and IP rating test equipment for verifying environmental protection. They also maintain current knowledge of NEC requirements and local code amendments that impact waterproof connection installations.

Sourcing Quality Waterproof Wire Nuts

Connector quality significantly impacts long-term reliability. When sourcing waterproof wire nuts for professional installations, prioritize suppliers offering:

• Certification Documentation: UL listing, CSA certification, or equivalent third-party testing verification
• Clear IP Ratings: Permanently marked on each connector, not just packaging
• Temperature Specifications: Clearly stated operating range appropriate for your climate
• Technical Support: Engineering assistance for application-specific selection
• Consistent Quality: Batch-to-batch consistency backed by quality control documentation
• Adequate Inventory: Reliable availability in required sizes and configurations

TONFUL Electric manufactures a comprehensive range of waterproof wire connectors designed for demanding professional applications. Our products feature:

• IP67 and IP68 ratings with third-party certification
• Temperature range from -40°C to +105°C for extreme climate performance
• High-quality silicone and grease-filled sealing compounds
• UV-resistant housings for long-term outdoor exposure
• Comprehensive sizing range from 14 AWG to 6 AWG capacity
• Technical documentation including installation guides and specification sheets

For B2B procurement inquiries, bulk pricing, and technical application support, contact our engineering team to discuss your specific project requirements.

Conclusion

Waterproof wire nut problems stem primarily from installation errors, environmental mismatches, and improper product selection rather than inherent product defects. By understanding common failure modes—loose connections, moisture infiltration, incorrect IP ratings, handling issues, temperature extremes, and reuse attempts—installers can implement preventive measures that ensure reliable, long-lasting electrical connections.

Success requires matching connector specifications to actual environmental conditions, following manufacturer installation procedures precisely, and establishing proactive maintenance schedules. When problems do occur, systematic troubleshooting identifies root causes and guides effective corrective action. For critical applications or complex installations, professional electrical contractors provide expertise, specialized equipment, and code compliance assurance that protects both system reliability and safety.

Investing in quality waterproof connectors from reputable manufacturers like TONFUL Electric, combined with proper installation techniques and regular maintenance, delivers decades of trouble-free performance in even the most demanding outdoor electrical applications.

---

Frequently Asked Questions

Q: Can I use standard wire nuts with electrical tape instead of waterproof connectors for outdoor installations?
A: No, standard wire nuts with tape do not provide adequate moisture protection for outdoor applications and violate NEC Article 110.11 requirements for wet locations. Electrical tape degrades under UV exposure and temperature cycling, allowing water infiltration that causes corrosion and connection failure. Always use properly rated waterproof connectors designed for wet locations to ensure safety and code compliance.

Q: How can I tell if a waterproof wire nut has failed without removing it?
A: Several indicators suggest connector failure without removal: flickering or intermittent operation of connected devices, warm or hot connector housing during operation (detected by touch or thermal imaging), tripped GFCI breakers, visible corrosion at wire entry points, or cracks and damage to the connector housing. Thermal imaging cameras provide the most reliable non-invasive detection method by identifying high-resistance connections before complete failure occurs.

Q: What’s the difference between IP67 and IP68 ratings, and which do I need?
A: IP67 connectors withstand temporary immersion to 1 meter depth for 30 minutes, suitable for above-ground outdoor installations with occasional flooding exposure. IP68 connectors survive continuous submersion beyond 1 meter (manufacturer specifies exact depth and duration), required for permanent wet locations like irrigation valve boxes, direct burial applications, or installations in areas with standing water. Choose IP67 for typical outdoor lighting and IP68 for any application involving potential continuous submersion.

Q: Can waterproof wire nuts be reused if I need to modify a circuit?
A: No, waterproof wire nuts are single-use components that should never be reused. Removal damages the internal spring mechanism, compresses rubber gaskets permanently, and depletes silicone or gel sealing compounds. Reused connectors provide inadequate mechanical grip and compromised water resistance, creating high-resistance connections that generate heat and allow moisture infiltration. The minimal cost of new connectors is insignificant compared to the failure risks and service call expenses associated with reuse.

Q: Why do my waterproof wire nuts keep failing in the same location?
A: Repeated failures in the same location indicate systemic issues beyond the connector itself. Common causes include: inadequate IP rating for the actual environmental conditions (using IP67 where IP68 is required), junction boxes that collect water due to improper positioning or damaged seals, insufficient wire slack causing mechanical stress on connections, undersized connectors for the wire gauge, or extreme temperature conditions exceeding connector specifications. Investigate and correct the underlying environmental or installation issue rather than simply replacing failed connectors.

Q: What temperature range do waterproof wire nuts handle?
A: Standard waterproof wire nuts typically operate from -20°C to +80°C, while high-performance units extend this range to -40°C to +105°C. Cold weather causes seal hardening and housing brittleness, while extreme heat softens sealing compounds and causes thermal expansion issues. For installations in extreme climates, specify connectors with appropriate temperature ratings and consider heat-shrink solder seals for critical connections, which offer superior temperature stability from -55°C to +125°C.

Q: How often should I inspect waterproof wire nut connections?
A: Inspection frequency depends on installation environment and criticality. Annual inspections suffice for protected outdoor locations with moderate climate conditions. Increase frequency to semi-annual or quarterly for harsh environments (coastal salt exposure, extreme temperatures, high-vibration areas) or critical systems where failure causes significant consequences. Inspection should include visual examination for housing damage, thermal imaging to detect high-resistance connections, pull testing for mechanical security, and junction box checks for water accumulation.

Q: Are silicone-filled or gel-filled waterproof wire nuts better?
A: Both types provide effective moisture protection when properly installed, but each has advantages for specific applications. Silicone-filled connectors offer good performance for above-ground installations and are typically more economical. Gel-filled connectors provide superior performance for buried installations and direct burial applications due to better long-term moisture barrier properties and resistance to soil pressure. For permanent submersion or marine environments, grease-filled connectors or heat-shrink solder seals offer the highest reliability. Select based on your specific environmental conditions and performance requirements.
