In the rapidly evolving world of automotive electronics, ensuring the safety and reliability of electrical circuits is paramount. Whether you are an automotive engineer, a fleet manager, or a parts distributor, understanding the components that protect these systems is critical. Among these components, the mini blade fuse stands out as a standard for modern vehicle circuit protection.
As a leading B2B manufacturer of low-voltage electrical products and accessories, Tonful Electric is dedicated to providing high-quality solutions for automotive electrical systems. This comprehensive guide will explore everything you need to know about the mini blade fuse—from its technical specifications and manufacturing process to installation guides and industry standards—helping you understand why this small component plays such a massive role in vehicle safety.
Introduction to Automotive Circuit Protection
Modern vehicles are no longer just mechanical machines; they are sophisticated mobile computer networks. With the increase in electronic components—from infotainment systems and advanced driver-assistance systems (ADAS) to heated seats and electric power steering—the demand for reliable circuit protection has skyrocketed. This is where the mini blade fuse enters the picture.
A mini blade fuse is a type of electrical fuse used to protect the wiring and electrical equipment for vehicles. It acts as a sacrificial device; when the current flowing through the circuit exceeds the rated amperage, the internal element of the fuse melts, breaking the circuit and preventing damage to expensive components or, worse, an electrical fire. Due to its compact size and high performance, the mini blade fuse has become the industry standard for protecting circuits in space-constrained automotive fuse boxes.
What Is a Mini Blade Fuse?
A mini blade fuse, often referred to technically as an ATM fuse (Automotive Mini) or APM fuse, is a fast-acting, blade-type fuse widely used in automotive and low-voltage DC electrical systems.
History and Evolution
Developed in the early 1990s, the mini blade fuse was introduced to address the growing need for smaller components in automobiles. As vehicles became more complex, the number of electrical circuits increased, but the space available for fuse boxes decreased. The traditional Standard Blade Fuse (ATO/ATC), developed in 1976, was too large for high-density fuse panels. The mini blade fuse offered a solution by providing the same level of protection in a significantly smaller package.
Technical Definition
Technically, a mini blade fuse consists of two metal terminals (blades) connected by a fusible link, all housed within a transparent, non-conductive plastic casing. The transparent housing allows for easy visual inspection to determine if the fuse has blown. The fuse is designed to mount directly into a printed circuit board (PCB) or a fuse block specifically designed to accept its 10.9mm width.
It is distinct from other fuse types in the blade family:
- Standard (ATO/ATC): Larger (19.1mm wide).
- Low-Profile Mini (APS): Same width as the mini but with shorter blades and a flatter body to save even more vertical space.
- Micro2/Micro3: Even smaller, newer designs.
The mini blade fuse strikes a perfect balance between size and handling capability, making it the most common fuse type found in vehicles manufactured globally today.
Key Specifications and Models
Understanding the specifications of a mini blade fuse is essential for selecting the right component for your application. These fuses are defined by their physical dimensions, voltage rating, and, most importantly, their current rating (amperage).

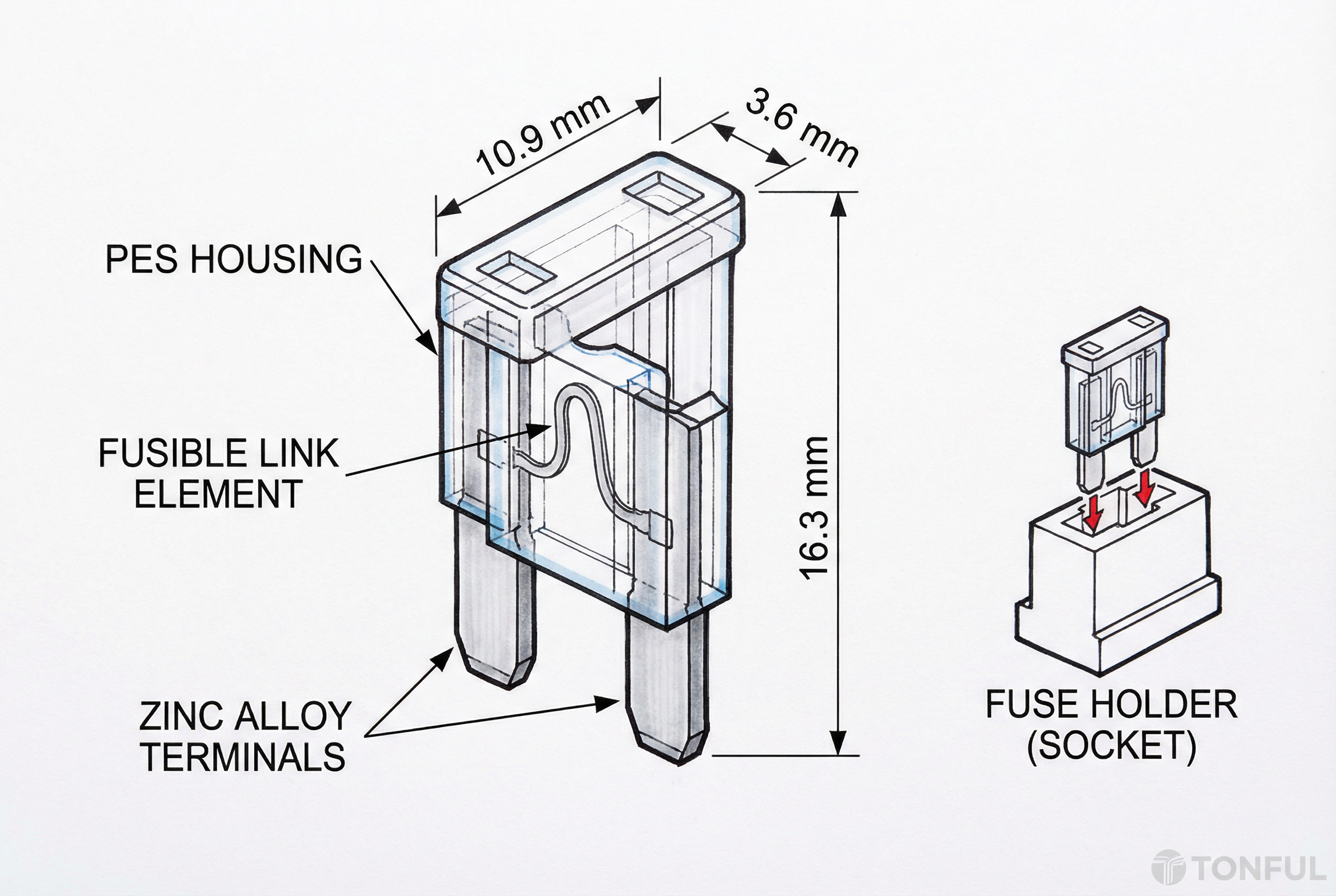

Physical Dimensions
The standardized dimensions ensure compatibility across different manufacturers and fuse blocks. A standard mini blade fuse measures:
- Width: 10.9 mm (0.429 inches)
- Height: 16.3 mm (0.642 inches)
- Thickness: 3.8 mm (0.150 inches)
Current Ratings and Color Coding
One of the most critical features of the mini blade fuse is its universal color-coding system. This system, established by DIN and SAE standards, allows users to identify the amperage rating of a fuse instantly without needing to read the small print on the top.
The table below details the standard models produced by Tonful Electric, corresponding to global industry standards:
| Current Rating (Amps) | Housing Color | Typical Application Examples |
|---|---|---|
| 2A | Grey | Electronics, ECU Keep-alive memory |
| 3A | Violet | Interior LED lighting, Sensors |
| 4A | Pink | Specialized modules |
| 5A | Tan | Radio, Turn Signals, Parking Lights |
| 7.5A | Brown | Airbag System, Immobilizer |
| 10A | Red | Headlights, Horn, Central Locking |
| 15A | Blue | Cigarette Lighter, Brake Lights, Wipers |
| 20A | Yellow | Fuel Pump, Sunroof, Heated Seats |
| 25A | Clear / Natural | Power Windows, HVAC Blower |
| 30A | Green | Cooling Fans, Amplifier, Starter Solenoid |
Voltage Rating
Most standard mini blade fuses are rated for 32V DC. This makes them suitable for use in 12V and 24V automotive systems. Some specialized versions may be rated up to 58V for 42V electrical systems, but the 32V standard covers the vast majority of cars, trucks, and marine applications.
Materials and Construction
At Tonful Electric, we emphasize quality materials to ensure that every mini blade fuse meets rigorous performance standards. A fuse might look simple, but its material composition is critical for accurate operation and longevity.
1. Housing Material
The insulating body of the fuse is typically made from Polyethersulfone (PES) or high-quality Polycarbonate (PC).
- Transparency: The material must be transparent to allow users to see the internal element.
- Thermal Stability: It must withstand the high temperatures found in engine bays (often rated up to 125°C or higher) without deforming or melting.
- Electrical Insulation: It provides a safe barrier between adjacent fuses in a crowded fuse box.
2. Terminal and Element Material
The conductive parts of the fuse are made from a single piece of metal, usually a Zinc Alloy.
- Zinc Alloy: Chosen for its predictable melting point and corrosion resistance. It allows for precise manufacturing of the fusible link to ensure it blows at the exact specified current.
- Plating: The terminals are often plated with Tin or Silver. Tin plating protects the zinc from corrosion and ensures a low-resistance connection with the fuse holder terminals. Low resistance is crucial to prevent unnecessary heat generation at the contact points.
Manufacturing Process
The production of a high-quality mini blade fuse involves precision engineering. Based on industry best practices and patent insights, the manufacturing process at professional facilities like Tonful Electric generally follows these steps:
1. Stamping and Blanking
The process begins with a continuous ribbon of zinc alloy metal. A high-precision stamping machine “blanks” or cuts the metal into the shape of the fuse element. This includes the two blade terminals and the thinner “fusible link” connecting them. The geometry of this link is controlled to micron-level tolerances because it dictates the amperage rating.
2. Housing Injection Molding
Simultaneously, the color-coded plastic housings are injection molded using temperature-resistant thermoplastics (PES/PC). The color dye is mixed precisely to match international standards.
3. Assembly and Welding
The stamped metal element is inserted into the plastic housing. In modern manufacturing, the housing usually consists of two parts or a single part that encapsulates the metal. The assembly is often secured using ultrasonic welding, which bonds the plastic components together instantly without introducing external heat that could damage the fuse element. This ensures a sealed, robust unit.
4. Skiving (Trimming)
Once the metal strip is encased in plastic, the excess metal connecting the individual fuses on the production strip is trimmed away (skived), isolating the two terminals of each fuse so current must flow through the fusible link.
5. Quality Control and Testing
Finished fuses undergo rigorous testing. This includes:
- Visual Inspection: Checking for proper color, marking clarity, and housing integrity.
- Resistance Testing: Ensuring the electrical resistance falls within the specified range for that amperage.
- Blow Testing: Random samples are subjected to overcurrent conditions to verify they “blow” within the required time (Time-Current Characteristic verification).
Applications and Uses
The mini blade fuse is ubiquitous in the transportation industry. Its reliability makes it the go-to choice for protecting a wide array of circuits.
Automotive Sector
This is the primary application. You will find mini blade fuses in:
- Passenger Cars: Protecting everything from the ECU and fuel injectors to the radio and cigarette lighter.
- Trucks and Buses: Used in heavy-duty 24V systems (using 32V rated fuses) for lighting, HVAC, and control modules.
- Electric Vehicles (EVs): protecting low-voltage (12V) subsystems within the EV architecture.
Marine Applications
Boats and yachts utilize mini blade fuses for their DC electrical systems. The corrosion-resistant tin-plated terminals are particularly beneficial in these humid environments. They protect navigation lights, bilge pumps, and marine radios.
Recreational Vehicles (RVs)
RVs have complex DC systems for living quarters. Mini blade fuses protect the water pump, lighting circuits, refrigerator control boards, and slide-out motors.
Motorcycles and ATVs
Due to the limited space on motorcycles and All-Terrain Vehicles (ATVs), the compact footprint of the mini blade fuse is ideal for protecting the ignition, lighting, and instrument cluster circuits.
Installation and Usage Instructions
Proper installation is crucial for the mini blade fuse to function correctly. While replacing a fuse is a simple maintenance task, it must be done with care.
Step-by-Step Installation Guide

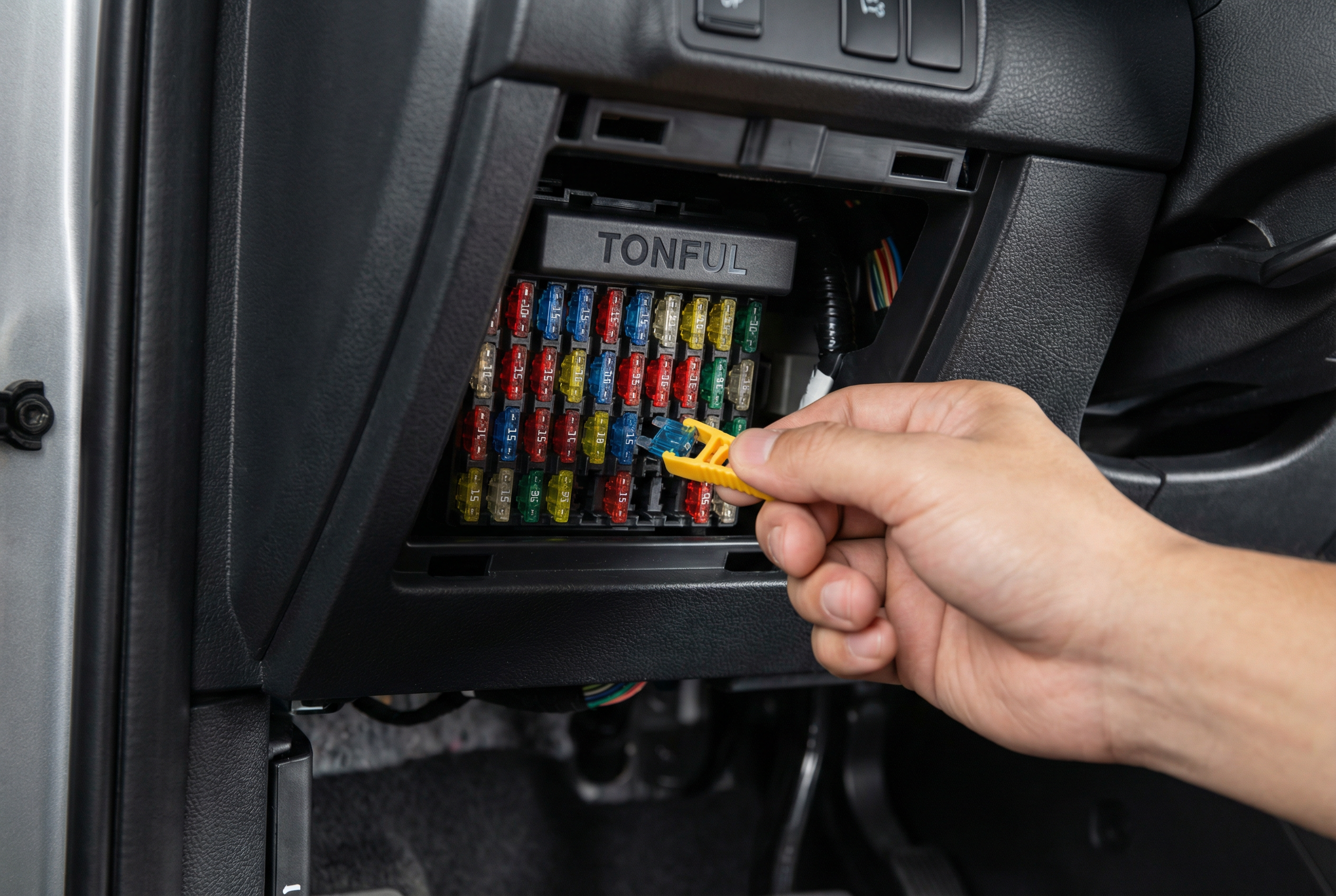

- Locate the Fuse Box: Consult your vehicle’s owner’s manual. Common locations are under the dashboard (driver’s side) or in the engine bay.
- Identify the Blown Fuse:
- Look for the fuse corresponding to the non-functioning component (e.g., “Headlamp”).
- Visually inspect the fuse: A good fuse has a continuous metal wire (link) inside the plastic. A blown fuse will have a broken link, often with a gap or dark burn marks inside the clear plastic window.
- Remove the Old Fuse: Use a fuse puller tool (often clipped inside the fuse box cover) or a pair of needle-nose pliers. Pull the fuse straight out to avoid bending the terminals.
- Select the Correct Replacement:
- CRITICAL: Always replace a fuse with one of the exact same amperage rating.
- If you replace a 10A (Red) fuse with a 20A (Yellow) fuse, you risk melting the wires and causing a fire because the fuse will not blow when it should.
- If you use a lower rating, it will likely blow immediately.
- Insert the New Fuse: Push the new Tonful mini blade fuse into the slot. It should fit snugly. If it feels loose, the terminals in the fuse block may be damaged.
- Test the Circuit: Turn the ignition on and test the component (e.g., turn on the headlights) to ensure the repair was successful.
Safety Precautions
- Turn Off Power: Always turn off the vehicle ignition before replacing fuses.
- Diagnosis: If a fuse blows immediately after replacement, do not keep replacing it. This indicates a “short circuit” or a serious fault in the wiring or component that requires professional diagnosis.
- Do Not Bypass: Never use aluminum foil, wire, or a coin to bypass a fuse. This removes all safety protection and is a major fire hazard.
Technical Specifications Table
For engineers and procurement managers, detailed technical data is necessary for selecting the right components. Below is a comprehensive specification table for standard mini blade fuses.
| Feature | Specification |
|---|---|
| Product Type | Mini Blade Fuse (ATM / APM) |
| Voltage Rating | 32V DC (Standard) |
| Interrupting Rating | 1000A @ 32V DC |
| Operating Temperature | -40°C to +125°C |
| Housing Material | Thermoplastic (UL 94 Flammability rating) |
| Terminal Material | Zinc Alloy, Tin Plated |
| Applicable Standards | SAE J1284, ISO 8820-3, UL 248-14 |
| Typical Voltage Drop | varies by amp rating (e.g., ~110mV for 10A) |
| Cold Resistance | varies by amp rating (e.g., ~7.70 mΩ for 10A) |
Time-Current Characteristics
A mini blade fuse is designed to open (blow) within specific timeframes based on the percentage of overcurrent. This ensures it doesn’t blow during normal minor surges (like turning on lights) but acts quickly during a short circuit.
- 110% of Rating: Minimum 100 hours (Must not blow / Hold current)
- 135% of Rating: 0.75 sec (min) to 600 sec (max)
- 200% of Rating: 0.15 sec (min) to 5 sec (max)
- 350% of Rating: 0.08 sec (min) to 0.5 sec (max)
Note: These values are typical for SAE J1284 compliant fuses.
Advantages of Mini Blade Fuses
Why has the mini blade fuse become the dominant choice for OEMs and aftermarket suppliers?
- Space Efficiency: The primary advantage is size. They occupy significantly less area on a PCB or fuse block compared to standard fuses, allowing manufacturers to pack more circuits into a single fuse box.
- Reliability: The simple, robust construction with fewer connection points (thanks to the single-piece metal element in high-quality versions) minimizes failure points.
- Ease of Identification: The universal color coding and transparent bodies make maintenance straightforward for technicians and vehicle owners alike.
- High-Temperature Tolerance: Designed for the harsh environment of an engine compartment, they resist thermal shock and vibration.
- Global Availability: Being an industry standard means replacements are available anywhere in the world, facilitating easy maintenance for global vehicle platforms.
Standards and Certifications
To ensure safety, mini blade fuses must adhere to strict international standards. Tonful Electric manufacturing processes are aligned with these standards to ensure our products perform reliably in your vehicles.
- SAE J1284: This is the standard set by the Society of Automotive Engineers specifically for blade-type fuses. It dictates the dimensions, performance tests, and color coding that all reputable manufacturers must follow.
- ISO 8820-3: The International Organization for Standardization’s equivalent, covering fuse-links with tabs (blade fuses) for road vehicles. Compliance with ISO 8820-3 is essential for the European market.
- UL Listed: While primarily an automotive component, many mini blade fuses also carry UL (Underwriters Laboratories) recognition for use in non-automotive low-voltage applications, certifying their safety and performance characteristics.
- RoHS & REACH: Environmentally responsible manufacturing is key. Tonful’s fuses are compliant with RoHS (Restriction of Hazardous Substances), ensuring they are lead-free and free from other restricted hazardous materials.
FAQ Section
Q: Can I replace a mini blade fuse with a standard blade fuse?
A: No, they are not physically compatible. Mini blade fuses are narrower (10.9mm) than standard blade fuses (19.1mm) and will not fit in the holder.
Q: What is the difference between an ATM fuse and a Mini fuse?
A: There is no difference. “ATM” is a trade name (originally by Bussmann/Littelfuse) that refers to the mini blade fuse style. They are the same product.
Q: How do I know if a mini blade fuse is blown?
A: Look through the transparent plastic housing. If the U-shaped metal wire inside is broken or melted, the fuse is blown. Using a multimeter to check for continuity is also a reliable method.
Q: Can I use a 30A fuse in a slot meant for a 10A fuse?
A: Absolutely not. Never use a fuse with a higher amperage rating than specified. Doing so allows dangerous levels of current to flow through wires not designed for it, which can melt the wiring harness and cause a fire.
Q: Are Tonful mini blade fuses compatible with all car brands?
A: Yes, our mini blade fuses are manufactured to SAE and ISO standards, making them compatible with any vehicle that uses the ATM/Mini blade fuse form factor, including Ford, GM, Toyota, Honda, BMW, and many others.
Q: What voltage are these fuses rated for?
A: The standard rating is 32V DC, which covers all 12V and 24V vehicle electrical systems.
Conclusion
The mini blade fuse is a small but mighty hero in the automotive world. Its compact design, reliability, and standardized performance make it indispensable for modern vehicle electrical systems. Whether you are manufacturing vehicles, outfitting a marine fleet, or stocking an auto parts store, choosing high-quality fuses is a matter of safety and performance.
Tonful Electric takes pride in being a professional B2B manufacturer of low-voltage electrical products. We supply premium mini blade fuses that meet global standards (SAE J1284, ISO 8820-3), ensuring your circuits are protected by the best.
For inquiries about bulk orders, custom specifications, or our full range of automotive electrical accessories, visit Tonful.com or contact our sales team today. Secure your systems with Tonful quality.
