Dual Wall vs Single Wall Heat Shrink Tubing: Complete Comparison Guide

dual-wall-vs-single-wall-heat-shrink-tube

Quick Answer: Single wall heat shrink tubing provides basic electrical insulation and wire bundling, while dual wall heat shrink tubing offers superior protection with an adhesive inner layer that creates waterproof, corrosion-resistant connections. Dual wall tubing costs more but delivers professional-grade environmental sealing essential for outdoor, marine, and automotive applications.

Understanding the difference between these two heat shrink options is critical for choosing the right protection level for your electrical connections, whether you’re working on home wiring projects, automotive repairs, or industrial installations.

What is Heat Shrink Tubing?

heat shrink tubing
heat shrink tubing

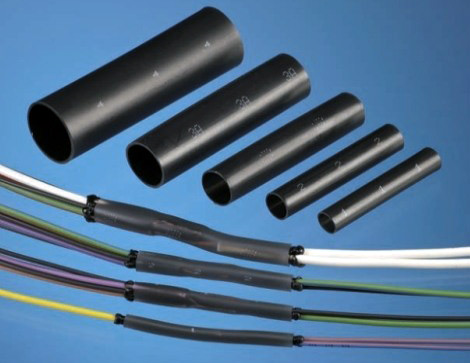

Heat shrink tubing is a thermoplastic material that contracts when heated, creating a tight protective sleeve around wires, connections, and components. When exposed to heat from a heat gun or other source, the tubing shrinks to approximately half its original diameter, conforming tightly to the underlying material.

Single wall heat shrink tubing consists of a single layer of thermoplastic material, typically polyolefin, that provides basic electrical insulation and mechanical protection.

Dual wall heat shrink tubing features an outer thermoplastic layer plus an inner adhesive lining that melts and flows during heating, creating an environmental seal that blocks moisture, chemicals, and contaminants.

Key Differences Between Single Wall and Dual Wall Heat Shrink

Feature Single Wall Heat Shrink Dual Wall Heat Shrink
Construction Single thermoplastic layer Outer thermoplastic + inner adhesive
Moisture Protection Basic (not waterproof) Excellent (waterproof seal)
Environmental Sealing Minimal Superior corrosion/chemical resistance
Cost Lower cost Higher cost (typically 2-3x more)
Shrink Ratio 2:1 or 3:1 3:1 or 4:1
Installation Time Fast (quick heating) Longer (requires thorough heating)
Typical Applications Indoor wiring, wire management Outdoor, marine, automotive, underground
Temperature Rating -55°C to +135°C -55°C to +150°C
Flexibility After Shrinking Moderate High (remains flexible)

Applications and Use Cases

application of heat shrink tubing
application of heat shrink tubing

When to Use Single Wall Heat Shrink Tubing

Single wall tubing excels in applications where basic protection and organization are sufficient:

Indoor Electrical Work:

  • Home wiring projects and repairs
  • Cable management in electronics
  • Computer and appliance wire organization
  • Low-voltage installations
  • Temporary connections and prototyping

Commercial Applications:

  • Office building electrical systems
  • Telecommunications equipment
  • Indoor industrial control panels
  • Educational and laboratory settings

When to Use Dual Wall Heat Shrink Tubing

Dual wall tubing is essential for applications requiring environmental protection:

Automotive Applications:

  • Engine bay wire harnesses
  • Trailer wiring connections
  • Battery terminal protection
  • Fuel injection system repairs

Marine and Outdoor Use:

  • Boat electrical systems
  • Dock and marina installations
  • Underground cable splices
  • Solar panel connections

Industrial Environments:

  • Chemical processing facilities
  • Food processing equipment
  • HVAC system connections
  • Corrosive atmosphere protection

Detailed Comparison Analysis

Protection Capabilities

Moisture Resistance:
Single wall tubing provides minimal moisture protection. While it creates a physical barrier, gaps and openings allow water infiltration over time. Dual wall tubing creates a hermetic seal when properly installed, with the adhesive inner layer flowing into gaps and irregularities to block moisture completely.

Chemical Resistance:
The adhesive lining in dual wall tubing offers superior resistance to oils, fuels, acids, and other chemicals. Single wall tubing may degrade when exposed to automotive fluids, marine environments, or industrial chemicals.

Mechanical Protection:
Both types provide excellent abrasion resistance and strain relief. Dual wall tubing maintains superior flexibility after installation due to its construction, reducing cracking and splitting under mechanical stress.

Installation Requirements

Heating Process:
Single wall tubing shrinks quickly with moderate heat application. Dual wall tubing requires more thorough heating to activate the adhesive layer properly. You must heat until you see adhesive oozing slightly from the ends to ensure complete sealing.

Temperature Control:
Dual wall tubing demands more precise temperature control during installation. Too little heat fails to activate the adhesive, while excessive heat can damage the outer jacket or cause adhesive overflow.

Selection Criteria and Expert Recommendations

Choose Single Wall Heat Shrink When:

  • Working on dry, indoor applications
  • Budget constraints are primary concern
  • Quick installation is required
  • Basic wire organization and identification needed
  • Temporary connections or prototyping

Choose Dual Wall Heat Shrink When:

  • Connections will be exposed to moisture
  • Chemical resistance is required
  • Long-term reliability is critical
  • Working in corrosive environments
  • Professional-grade installation standards apply

Expert Tip: For critical applications, always choose dual wall tubing rated for your specific environment. The additional cost is minimal compared to failure replacement costs and downtime.

Technical Specifications and Standards

Industry Standards Compliance

Both single and dual wall heat shrink tubing must meet specific industry standards:

Common Certifications:

  • UL 224 (Recognized Component)
  • CSA C22.2 (Canadian Standards)
  • AMS-DTL-23053 (Military Standard)
  • SAE-AMS-DTL-23053 (Aerospace Standard)

Marine Standards:
Dual wall tubing for marine applications should meet ABYC (American Boat and Yacht Council) E-11 standards for electrical systems.

Material Properties Comparison

Property Single Wall Dual Wall
Dielectric Strength 500V/mil minimum 500V/mil minimum
Tensile Strength 1,500 psi 2,000+ psi
Operating Temperature -55°C to +135°C -55°C to +150°C
Flame Rating VW-1 VW-1
Adhesive Bond Strength N/A 20+ psi

Step-by-Step Installation Guide

Installing Single Wall Heat Shrink

  1. Measure and Cut: Cut tubing 25% longer than the area to be covered
  2. Position: Slide tubing over connection before making splice
  3. Center: Position tubing to cover connection completely with equal overlap
  4. Heat Application: Apply uniform heat using heat gun at 200-250°F
  5. Cool: Allow to cool completely before handling

Installing Dual Wall Heat Shrink

  1. Preparation: Clean connection area of oil, dirt, and moisture
  2. Sizing: Cut tubing 50% longer than coverage area for better seal
  3. Pre-positioning: Install tubing before making connection
  4. Initial Heating: Begin heating at center, working toward ends
  5. Adhesive Activation: Continue heating until adhesive appears at tube ends
  6. Final Check: Ensure complete adhesive seal with no gaps
  7. Cooling Period: Allow extended cooling time for adhesive to set

Common Problems and Professional Solutions

Installation Issues

Problem: Adhesive not sealing properly in dual wall tubing
Solution: Increase heating time and temperature. Look for slight adhesive overflow at tube ends as confirmation of proper activation.

Problem: Tubing splitting during shrinking
Solution: Use larger diameter tubing or reduce heat application speed. Move heat gun continuously to avoid hot spots.

Problem: Poor shrink performance
Solution: Verify tubing material compatibility with your heat source temperature range.

Safety Warnings and Code Compliance

⚠️ Safety Warning: Always disconnect power before installing heat shrink tubing on electrical connections. Use appropriate personal protective equipment including safety glasses and heat-resistant gloves.

Code Compliance: When working on electrical systems, ensure installations meet local electrical codes. Some jurisdictions require specific tubing ratings for different applications.

Professional Recommendation: For critical safety applications, marine environments, or commercial installations, always use UL-listed dual wall heat shrink tubing and follow manufacturer installation specifications exactly.

Cost Analysis and Value Considerations

Price Comparison by Application

Small Projects (Home Use):

  • Single wall: $0.10-0.25 per linear inch
  • Dual wall: $0.25-0.75 per linear inch

Professional Applications:

  • Single wall: $0.05-0.15 per linear inch (bulk)
  • Dual wall: $0.15-0.50 per linear inch (bulk)

Total Cost of Ownership:
While dual wall tubing costs 2-3 times more initially, it prevents costly failures in harsh environments. For outdoor or marine applications, the superior protection justifies the additional expense through reduced maintenance and replacement needs.

Expert Selection Guide

Quick Decision Matrix

Choose Single Wall If:

  • Indoor, dry environment only
  • Non-critical connections
  • Budget is primary concern
  • Easy access for future maintenance

Choose Dual Wall If:

  • Any moisture exposure possible
  • Outdoor or underground installation
  • Automotive or marine application
  • Professional or commercial grade required
  • Chemical exposure likely

Pro Tip: When uncertain, choose dual wall tubing. The additional protection provides insurance against environmental factors that may not be immediately apparent but could cause failures over time.

Frequently Asked Questions

What makes dual wall heat shrink better for outdoor use?

The inner adhesive layer creates a waterproof seal that prevents moisture infiltration, while the dual construction provides superior UV resistance and mechanical protection compared to single wall alternatives.

Can you use single wall heat shrink for automotive applications?

Single wall tubing is not recommended for automotive use due to exposure to heat, chemicals, vibration, and moisture. Dual wall tubing is the professional standard for automotive electrical repairs.

How do you know if dual wall tubing is properly installed?

Properly installed dual wall tubing shows slight adhesive overflow at both ends, creating visible evidence of complete environmental sealing.

What is the shelf life difference between single and dual wall tubing?

Both types typically last 5-7 years when stored properly, but dual wall tubing may have slightly shorter shelf life due to the adhesive component.

Does dual wall tubing require special tools for installation?

No special tools required, but dual wall tubing needs more thorough heating to activate the adhesive layer properly. A quality heat gun with temperature control is recommended.

Professional Recommendations and Next Steps

For professional installations, marine applications, and any environment where moisture or chemicals are present, dual wall heat shrink tubing is the clear choice despite higher initial costs. The superior environmental protection and long-term reliability make it essential for critical connections.

For basic indoor wiring, wire organization, and non-critical applications, single wall tubing provides adequate protection at lower cost while maintaining ease of installation.

Expert Recommendation: When in doubt about environmental factors or future service conditions, choose dual wall heat shrink tubing. The additional investment in superior protection pays dividends in system reliability and reduced maintenance requirements.

For complex electrical projects or applications involving safety-critical systems, consult with a licensed electrician to ensure proper material selection and code compliance.
