In the world of electrical work, few tools are as ubiquitous as electrical tape. It’s the go-to solution for insulating wires, repairing minor cable damage, and bundling components. But for a product so fundamental, its failure can lead to significant problems, from compromised insulation to potential short circuits. One of the most common and frustrating modes of failure is “flagging”—the tendency for electrical tape to unwind and lift away from the surface it was applied to.
At TONFUL Electric, we understand that reliability isn’t just a feature; it’s a necessity for electrical components. This article, written from an engineer’s perspective, delves into the science of electrical tape adhesion. We will explore the root causes of flagging and provide actionable, professional-grade strategies to ensure your tape connections remain secure, safe, and durable.
Understanding Adhesion Failure and Flagging
Flagging is the visible symptom of an underlying adhesion failure. Pressure-sensitive adhesive (PSA) tapes, like electrical tape, rely on a delicate balance of forces to maintain their bond. When this balance is disrupted, the tape’s “memory”—its tendency to return to its original, unstretched form—overcomes the adhesive’s grip, causing the end to lift or “flag.”
This failure can manifest in two primary ways:
- Adhesive Failure: The adhesive layer separates cleanly from the substrate (the wire or surface). This often happens when the surface is contaminated or has low surface energy, preventing the adhesive from “wetting out” or flowing into the microscopic peaks and valleys of the surface to form a strong bond.
- Cohesive Failure: The adhesive itself splits, leaving residue on both the tape backing and the substrate. This typically indicates that the internal strength of the adhesive was weaker than its bond to the surface, often exacerbated by high temperatures or chemical exposure.

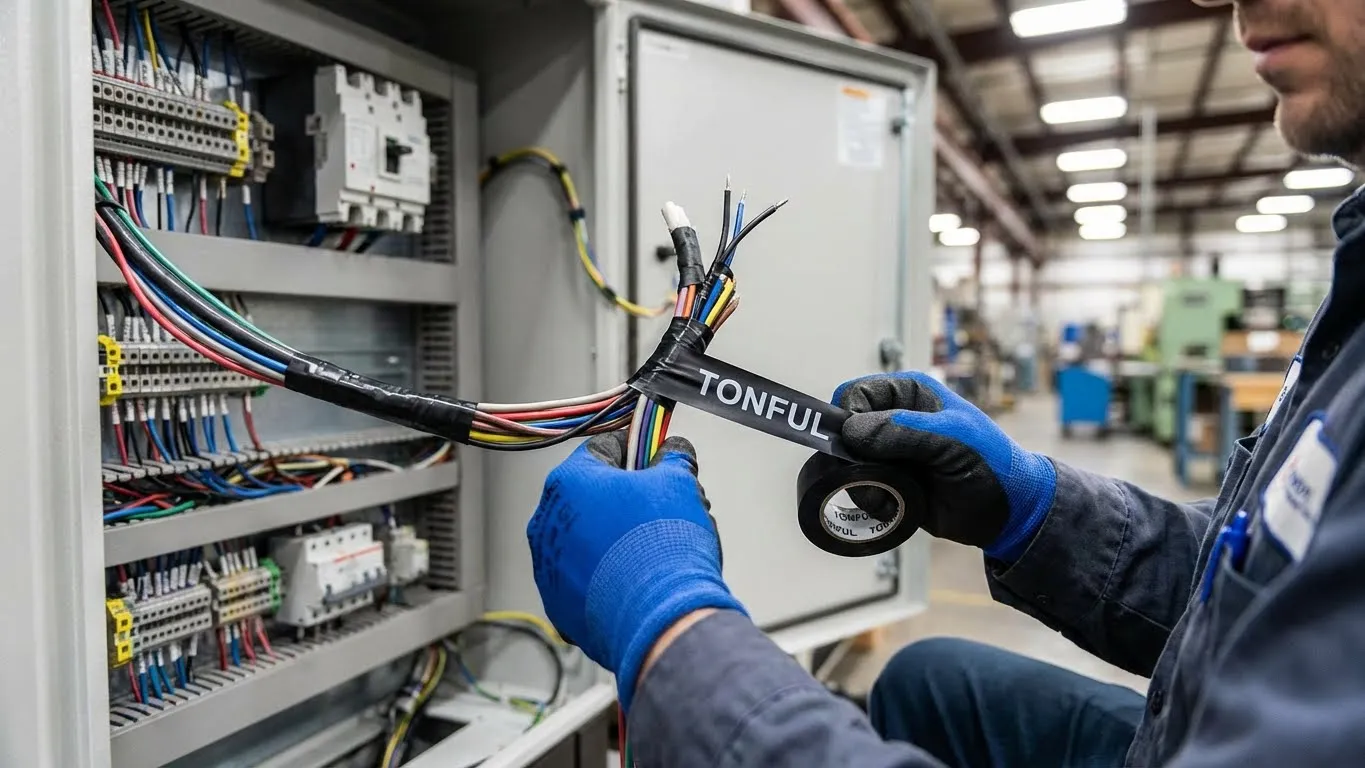

A Professional Application in an Industrial Setting
Root Causes of Electrical Tape Flagging
Preventing flagging begins with understanding its causes. While it’s easy to blame the tape, failure is often a result of material choice, application error, or environmental factors.
1. Material Quality and Composition
Not all electrical tapes are created equal. The backing and adhesive formulation are critical to performance.
- Backing: Most electrical tapes use a Polyvinyl Chloride (PVC) backing for its flexibility, insulation properties, and resistance.
- Adhesive: A rubber-resin adhesive is most common, designed for aggressive tack and a strong bond.
- Plasticizers: Chemicals added to PVC to make it flexible can migrate over time. Premium tapes, like those from TONFUL, use high-grade, long-chain (polymeric) plasticizers that are more stable and less prone to degrading the adhesive. Cheaper tapes often use short-chain (monomeric) plasticizers that can make the adhesive oily and weak over time.
2. Improper Application Technique
The most common cause of flagging is user error. The elastic nature of PVC tape is key to its function, but it must be managed correctly.
- Overstretching: Stretching the tape beyond 75% of its breaking point creates excessive recovery force. The tape will constantly try to shrink back to its original length, putting immense stress on the adhesive bond and inevitably causing it to lift.
- Applying the Final Wrap Under Tension: This is the single biggest cause of flagging. If the last few inches of tape are stretched, the recovery force has a free end to pull on, guaranteeing it will peel away.
3. Poor Surface Preparation
The adage “clean, dry, and uniform” is paramount for any adhesive application.
- Contaminants: Dust, dirt, oil from hands, grease, and other residues create a barrier between the adhesive and the substrate, preventing a proper bond.
- Moisture: Water or condensation on the surface will prevent adhesion and can become trapped, potentially leading to corrosion.
4. Environmental and Operating Conditions
Electrical systems operate in diverse and often harsh environments that can challenge even the best tape.
- Temperature Extremes: High temperatures (>80°C for standard tapes) can soften the adhesive, causing it to ooze or lose cohesive strength. Extreme cold (< -10°C) can make the backing and adhesive brittle, reducing its ability to conform and stick.
- UV Exposure: Sunlight degrades the PVC backing and adhesive, making it brittle and weak. Black tapes offer the best UV resistance due to the inclusion of carbon black.
- Chemical Exposure: Solvents, fuels, and corrosive chemicals can break down the rubber-based adhesive, leading to total bond failure.

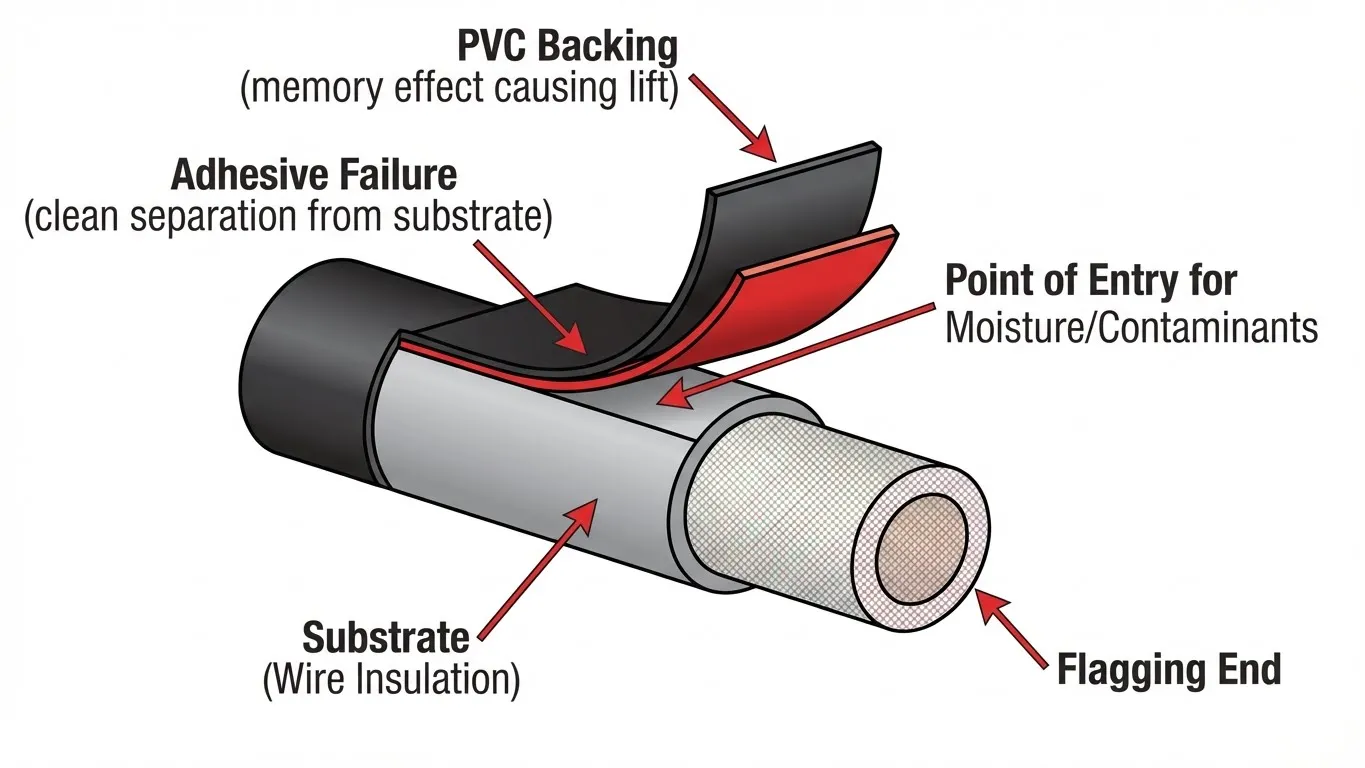

Visualizing Adhesion Failure
Prevention Strategies and Best Practices
Achieving a long-lasting, reliable wrap is a matter of combining the right product with the right technique.
Choose the Right Tape for the Application
Selecting the appropriate tape grade is the first step. A general-purpose tape may suffice for a temperature-controlled indoor junction box, but it will fail in an outdoor, cold-weather application.
| Tape Type | Temp. Range (Typical) | Voltage Rating | Key Characteristics & Best Use |
|---|---|---|---|
| General Purpose Vinyl | 0°C to 80°C | Up to 600V | Economical choice for basic, non-critical indoor applications. |
| TONFUL Premium Grade | -18°C to 105°C | Up to 600V | All-weather, highly conformable, superior adhesion. For critical industrial and outdoor use. |
| Rubber Splicing Tape | -40°C to 90°C | Up to 69kV | Self-fusing (amalgamating), no adhesive. Excellent for moisture sealing and high-voltage insulation. |
| Varnished Cambric | Up to 105°C | Up to 600V | Woven cotton fabric with oil-based varnish. Tough, puncture-resistant. For motor leads and transformer connections. |
Master the Application Technique
Proper application ensures the tape’s properties work for you, not against you.
- Clean the Surface: Wipe the wire or cable jacket with a clean, dry cloth. Use an alcohol-based cleaner to remove any oil or grease. Ensure the surface is completely dry.
- Apply with Tension: Start the wrap and apply firm, consistent tension, stretching the tape to about 50-75% of its maximum. This ensures it conforms tightly to the surface.
- Use the Half-Lap Method: Overlap each successive wrap by half the tape’s width. This creates a double layer of insulation and ensures no gaps are left. The rule of thumb is to build the wrap to be at least one and a half times the thickness of the original wire insulation.
- Finish with No Tension: For the final wrap, apply the tape with zero stretch. Press the end down firmly. This eliminates the recovery force at the most vulnerable point, effectively preventing flagging.

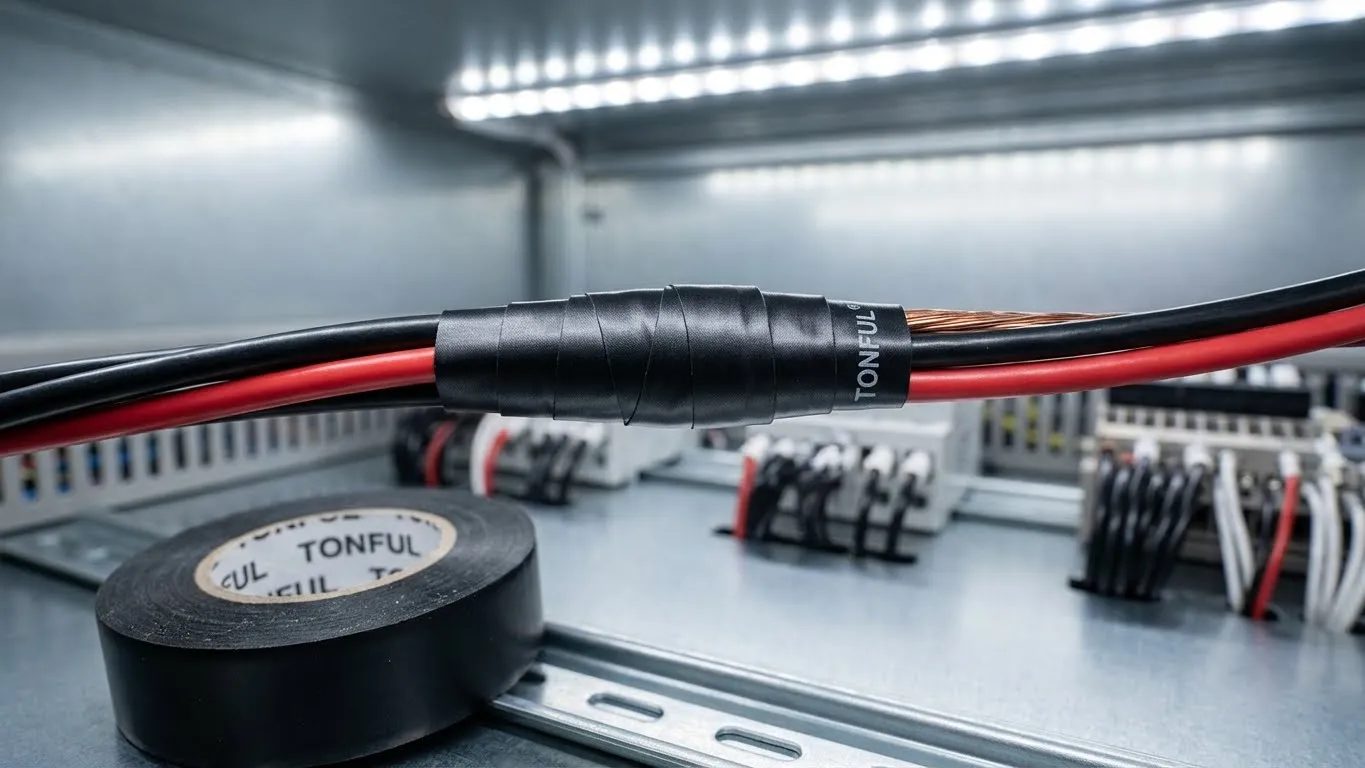

A Perfectly Executed Wrap

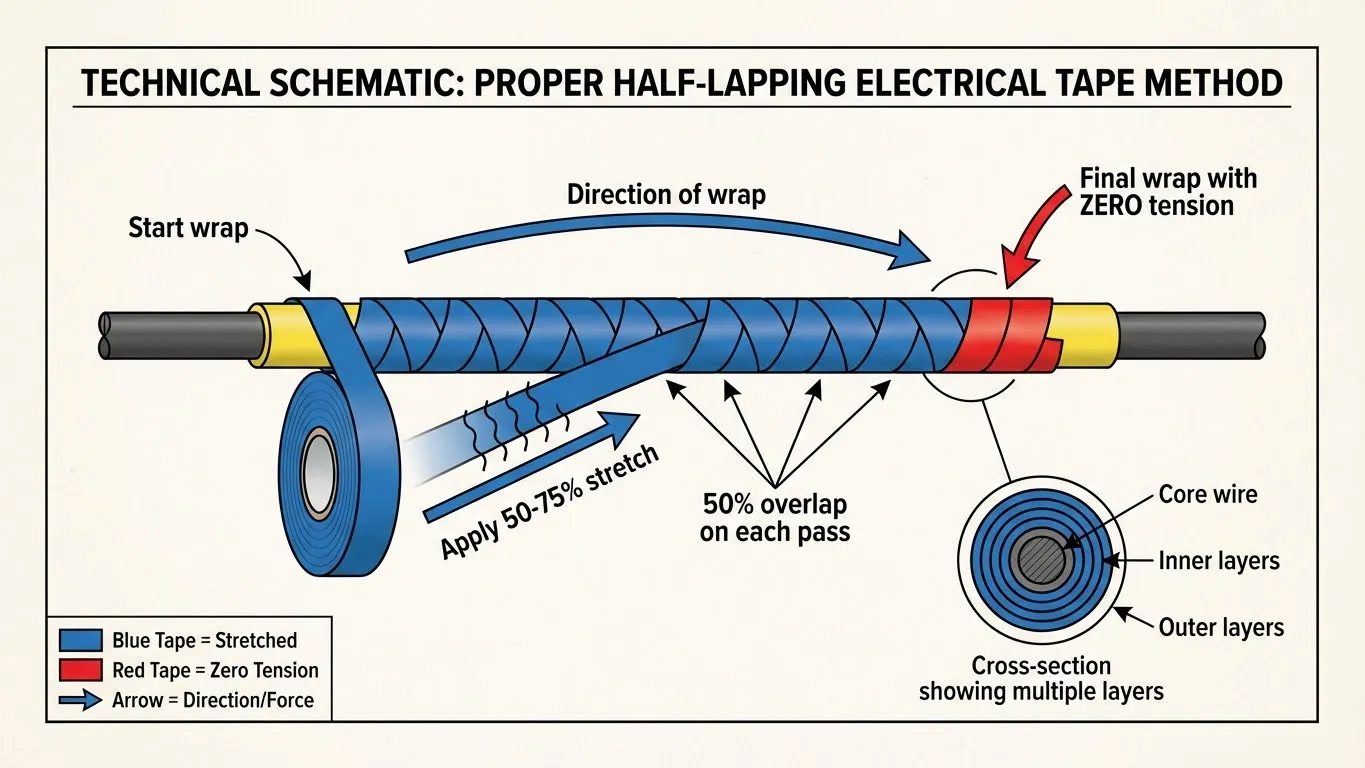

The Half-Lapping Technique Explained
Match Tape Performance to the Environment
Understanding temperature ratings is crucial for reliability. Using a tape outside its specified range is a primary cause of failure.

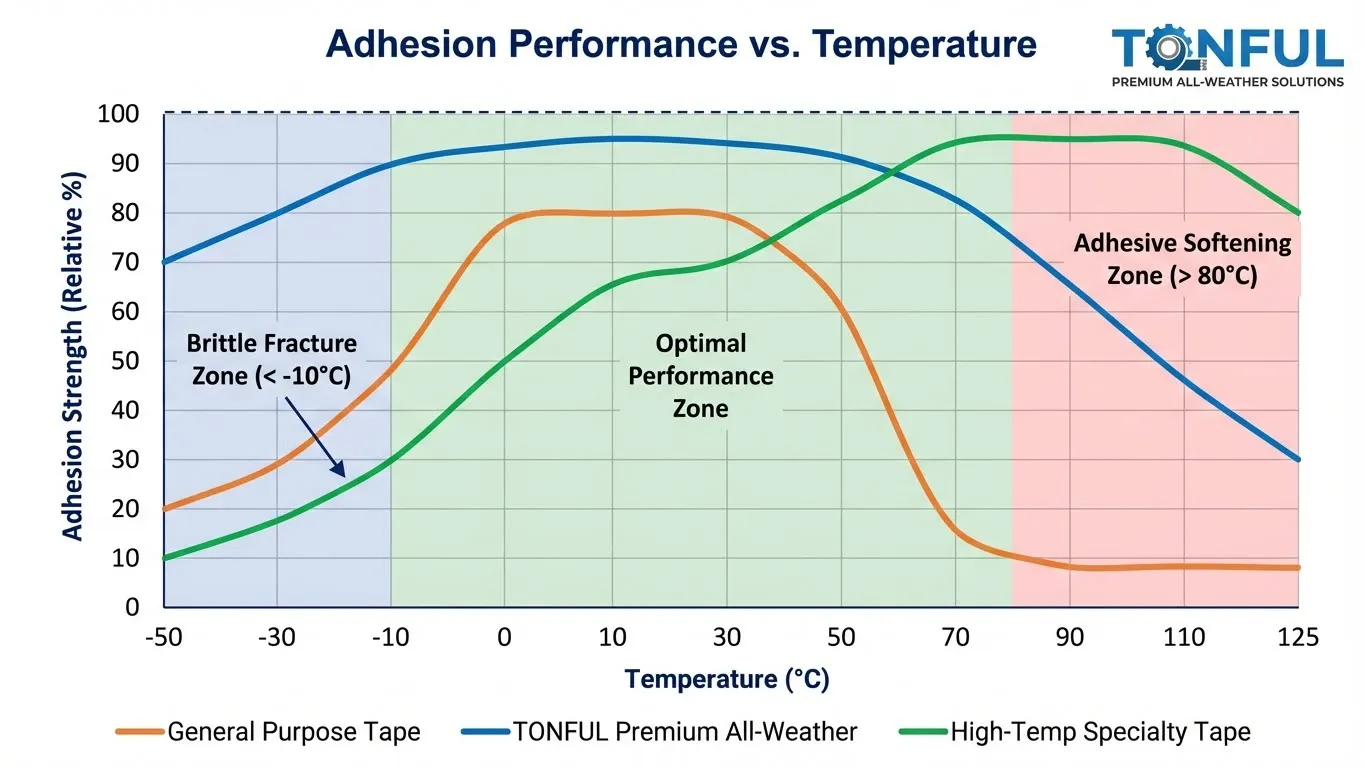

Temperature Performance of TONFUL Tapes
Quick Prevention Checklist
| Step | Action | Why It’s Important |
|---|---|---|
| 1. Select | Choose a high-quality, professional-grade tape like TONFUL, rated for the specific voltage and environment. | Prevents material-based failure from low-quality plasticizers and adhesives. |
| 2. Clean | Wipe surfaces with a clean cloth or alcohol-based solvent to remove dust, oil, and moisture. | Ensures the adhesive makes direct, maximum contact with the substrate. |
| 3. Stretch | Apply with firm, consistent tension to achieve a tight, conformable wrap. | Eliminates voids and ensures a secure mechanical and dielectric barrier. |
| 4. Overlap | Wrap in a half-lapped pattern to build at least two layers of tape. | Creates a durable, pinhole-free insulation layer that is mechanically strong. |
| 5. Finish | Apply the last 2-3 inches of tape with absolutely no tension. | This is the most critical step to prevent flagging by eliminating recovery force at the end of the wrap. |
Frequently Asked Questions (FAQ)
Why won’t my electrical tape stick in the cold?
Standard PVC electrical tape adhesives become hard and lose their “tack” or stickiness at low temperatures (typically below 0°C or 32°F). The PVC backing also becomes stiff and less conformable. For cold environments, you must use a specially formulated all-weather or cold-weather tape, like TONFUL’s Premium Grade, which is rated to perform in temperatures as low as -18°C (0°F).
Is it possible to stretch electrical tape too much?
Absolutely. While stretching is necessary for a conformal wrap, overstretching creates excessive recovery force. This internal stress will eventually overpower the adhesive, causing the tape to pull away from the surface and flag. Aim for a stretch of about 50-75% of the tape’s ability before it breaks.
What does “UL Listed” mean for electrical tape?
UL (Underwriters Laboratories) is a global safety certification company. A “UL Listed” mark means the tape has been independently tested and meets rigorous safety and performance standards (like UL 510) for flame retardancy, adhesion, dielectric strength, and durability. Always use UL Listed tape for electrical applications to ensure compliance and safety.
Can I just use duct tape for an electrical repair?
No, never. Duct tape is not a substitute for electrical tape. Its cloth backing is not a suitable insulator, its adhesive is not dielectric, and it is not rated for voltage. It often has a lower temperature rating and lacks flame-retardant properties. Using duct tape on electrical wiring creates a serious fire and shock hazard.
How many layers of electrical tape do I need?
The general rule is to apply enough half-lapped layers to make the total thickness of the tape wrap at least 1.5 times the thickness of the cable’s original insulation. This ensures the repaired section has equal or greater dielectric strength than the undamaged wire.
