Whether you’re splicing wires in your basement, bundling cables in an automotive project, or tackling a professional electrical installation, electrical tape is one of those essential tools you reach for without thinking twice. But walk into any hardware store and you’ll face dozens of options—black vinyl rolls, colorful multi-packs, thick rubber tapes, specialty high-voltage products. Which one do you actually need?
The wrong tape can fail in harsh temperatures, lose adhesion over time, or worse—create a safety hazard. Electricians know vinyl tape works beautifully for dry indoor splices, but underwater connections demand rubber or mastic. Temperature rating matters when you’re working under the hood of a car. And that UL certification? Not just bureaucratic paperwork—it’s your assurance the tape meets real electrical safety standards.
This guide breaks down everything you need to know about electrical tape: the main types and what makes them different, common applications from wire identification to medium-voltage splicing, the technical specifications that matter, and practical tips for using tape correctly. By the end, you’ll know exactly which electrical tape to buy for your specific project.
What Is Electrical Tape?
Electrical tape is a pressure-sensitive adhesive tape specifically designed to insulate electrical wires and other materials that conduct electricity. Unlike general-purpose tapes, electrical tape is manufactured to resist electrical current, protect against short circuits, and maintain its insulating properties across a range of temperatures and environmental conditions.
The “pressure-sensitive” aspect means the adhesive bonds when you press the tape down—no heat or solvent needed. This makes it incredibly practical for field work, from simple home repairs to complex industrial installations. Most electrical tapes are rated for specific voltage and temperature ranges, and many carry UL (Underwriters Laboratories) or CSA (Canadian Standards Association) certifications to verify they meet electrical safety codes.
Types of Electrical Tape
Not all electrical tape is created equal. The backing material, adhesive formulation, and construction determine where and how you should use each type. Here are the four main categories you’ll encounter.
Vinyl (PVC) Electrical Tape
Vinyl electrical tape is the workhorse of the electrical tape world. If you picture electrical tape in your mind, you’re probably thinking of vinyl—that familiar black roll with the slightly stretchy feel. Professional-grade vinyl tapes are engineered for both elasticity and strong adhesion, so they install reliably whether you’re working in freezing cold or summer heat.
Vinyl tape serves as primary insulation for low-voltage splices (up to 600V or 1,000V depending on the product) in dry conditions. It’s also the go-to choice for bundling wire looms, repairing cable jackets, and color-coding circuits. Because vinyl resists UV light, flame, and cold better than rubber, electricians typically use it as the outer protective layer in multi-layer tape builds. You’ll find vinyl tape in 10+ colors for identification and phasing work, though black remains the most common.
The key specs to look for: thickness (usually around 7 to 8 mil), elongation capacity (how much it stretches), and adhesive strength. Higher-quality vinyl tapes use polymeric PVC backings that resist cracking and stay flexible longer than cheaper monomeric versions.
Rubber Splicing Tape
Rubber splicing tape—often made from ethylene propylene rubber (EPR)—is the heavy-duty option for primary insulation on medium- and high-voltage applications. Products like 3M Scotch 23 and 130C are roughly 30 mil thick and designed to be stretched during installation. When you stretch rubber splicing tape properly (around 50-75%), it fuses to itself without the adhesive layer, creating a solid, void-free insulation that can handle voltages up to 69 kV in certain applications.
Unlike vinyl, rubber splicing tape is always used in a layered system. You start with the rubber as primary insulation, then add semi-conducting tape to extend cable shields and control electrical stress, and finally wrap everything with vinyl tape for UV and mechanical protection. Rubber tape excels in situations where you need serious dielectric strength and moisture resistance—think utility-scale electrical work, underground splices, and industrial motor connections.
One caveat: rubber tape degrades when exposed to sunlight and cold, which is why it must always be covered with a vinyl outer layer.
Mastic Tape
Mastic tape combines a thick, highly conformable rubber backing with a temperature-stable mastic adhesive. If you’ve ever needed to seal a connection against moisture or build up the diameter of a cable to fit a jacket seal, mastic tape is your answer. It’s self-fusing like rubber splicing tape but brings superior sealing characteristics thanks to that sticky, putty-like mastic layer.
Common uses include moisture seals on service drops and grounds, insulating irregular shapes like bus bars, and creating water-tight barriers on outdoor connections. Mastic tape is typically rated for primary insulation up to 1,000V and can handle operating temperatures up to 130°C with UL recognition. After applying mastic, you’ll overwrap with vinyl for UV and mechanical protection.
Because mastic is thicker and more conformable than vinyl, it’s excellent at filling gaps and smoothing out connector shapes before you add the final vinyl layer.
Varnished Cambric Tape
Varnished cambric tape is a specialty product made from woven cotton cloth impregnated with an electrical varnish. It’s less common in everyday electrical work but still specified for certain high-temperature and industrial applications, particularly on motors, transformers, and coil wrapping. Cambric tape offers excellent mechanical strength and can handle continuous high temperatures that would degrade vinyl or rubber.
You’re unlikely to need varnished cambric for general home or automotive projects, but it’s worth knowing it exists if you’re working in industrial settings or maintaining older electrical equipment that was originally insulated with this material.
Common Uses and Applications
Electrical tape’s versatility makes it indispensable across residential, automotive, and industrial settings. Here are the most common applications.

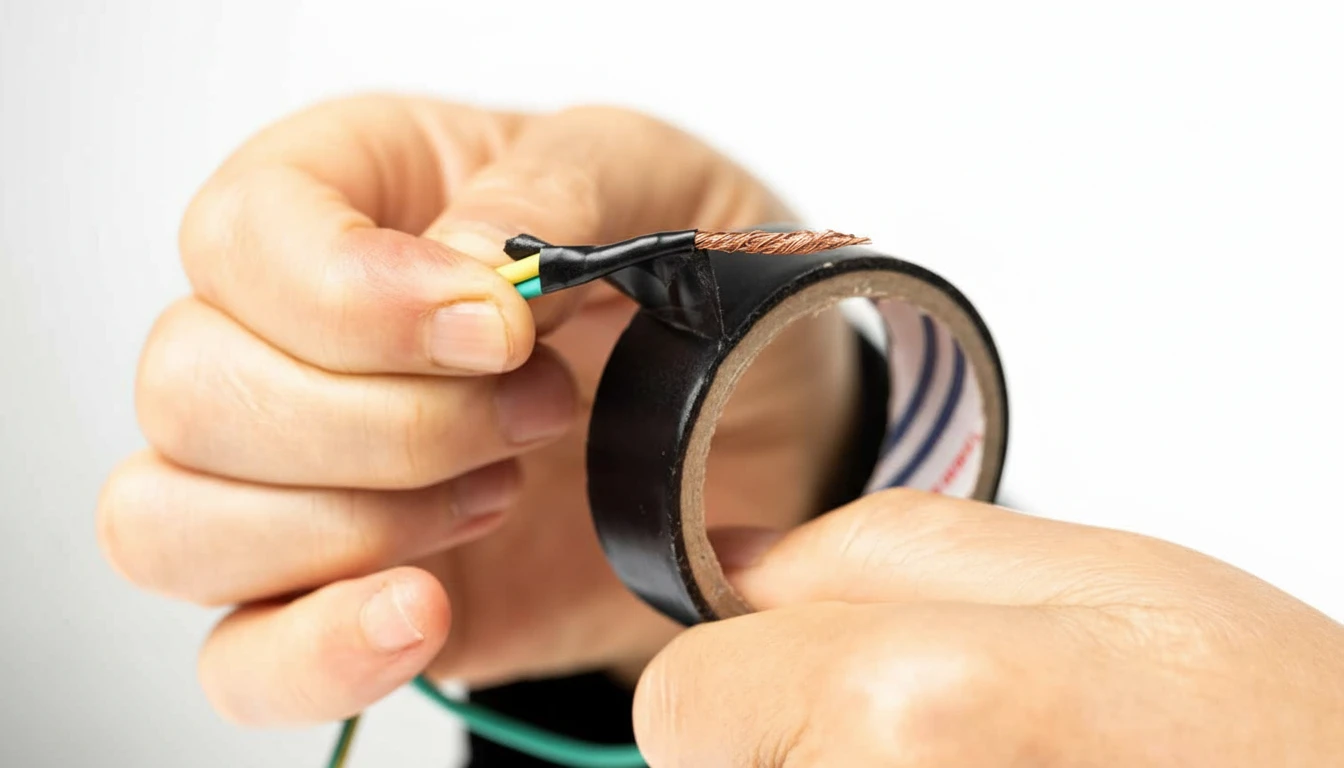

Wire splicing and insulation. When you join two conductors with a wire connector or crimp splice, electrical tape provides an extra layer of insulation over the connection. For low-voltage work in dry locations, vinyl tape is usually sufficient as primary insulation. Wet or submerged splices call for rubber or mastic tape before the vinyl overwrap.
Color-coding and identification. Electricians use colored vinyl tape to mark circuit phases, identify neutral and ground conductors, or label specific circuits during installation and troubleshooting. Standard color conventions exist (though local codes vary): green or green-with-yellow stripe for ground, white or gray for neutral, and black, red, or blue for hot conductors in different phases.

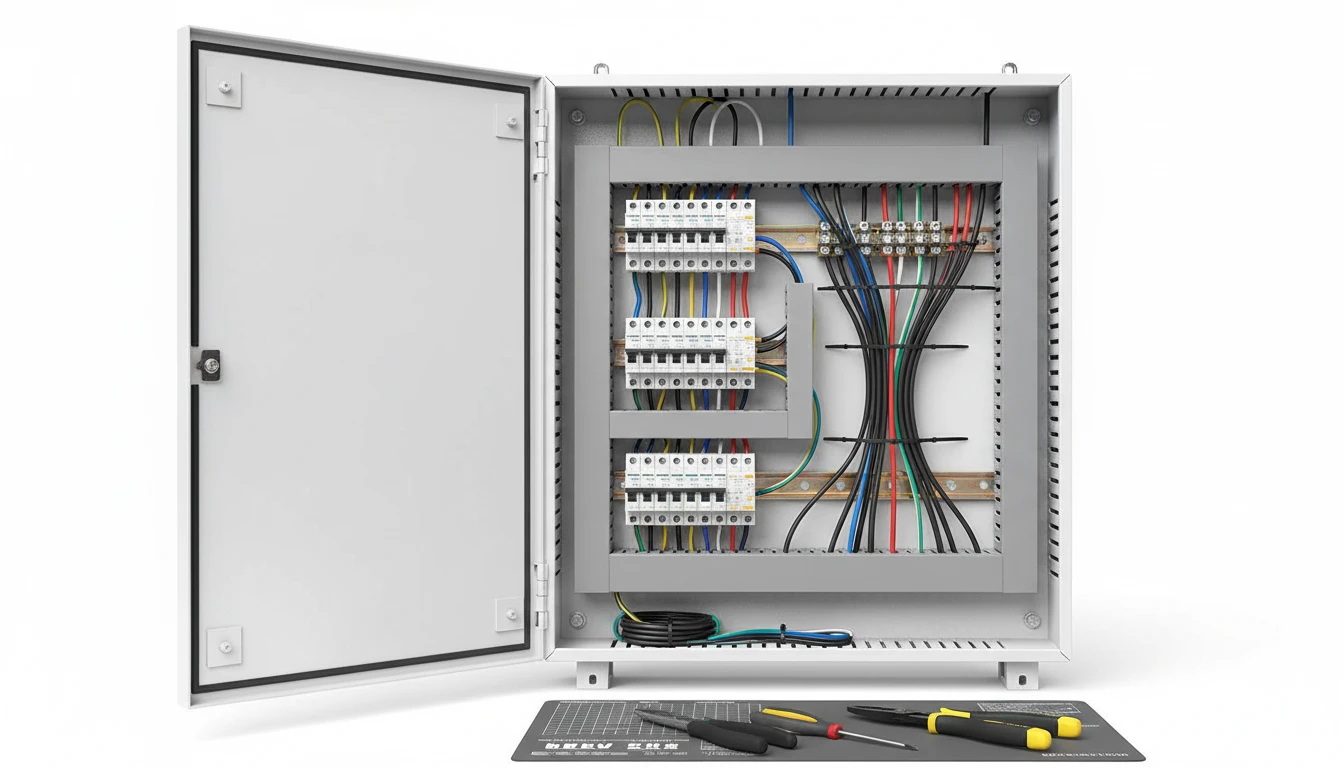

Cable bundling and management. Vinyl tape keeps wire bundles neat in automotive harnesses, home theater setups, and industrial control panels. It’s not as reusable as zip ties, but it conforms better to irregular shapes and won’t cut into cable insulation.
Jacket repair and mechanical protection. Nicked or abraded cable jackets can be repaired with vinyl tape to restore mechanical protection and prevent further damage. This is common in job-site conditions where cables get dragged across rough surfaces.
Medium- and high-voltage splicing. Utility and industrial electricians use rubber splicing tape systems for primary insulation on medium-voltage cables, combined with semi-conducting tape for stress control and vinyl for the outer jacket. These multi-layer builds are engineered to meet specific dielectric and environmental requirements.
Motor leads and bus bar insulation. Mastic and rubber tapes insulate irregular shapes like motor terminal connections and bus bars, especially in applications subject to vibration. Many pros use an adhesive-out underlayer (vinyl or glass cloth) so the insulation can be removed cleanly during maintenance.
Moisture sealing. Mastic tape creates reliable moisture barriers on outdoor service drops, underground conduit entries, and anywhere water intrusion is a concern. The conformable mastic fills gaps that vinyl alone can’t seal.
What to Consider When Buying Electrical Tape
Walking into a hardware store and grabbing the cheapest black roll might work for simple jobs, but knowing what separates good electrical tape from mediocre tape will save you headaches—and potentially dangerous failures.
Material and Grade (Monomeric vs. Polymeric)
Vinyl electrical tapes come in two grades: monomeric and polymeric. Monomeric PVC is the budget option. It works fine for light-duty applications, but it can crack, lose adhesion, and shrink over time—especially if exposed to temperature swings or UV light. Polymeric PVC costs more but delivers superior performance: better elongation, stronger adhesion, and longer service life. If you’re doing any work that needs to last or will face harsh conditions, spend the extra dollar or two per roll for polymeric tape.
UL and CSA Certifications
Look for tapes with UL (Underwriters Laboratories) Listing or Recognition, especially if you’re working on installations that need to meet electrical codes like the NEC (National Electrical Code) or Canadian Electrical Code. UL evaluates tapes for dielectric breakdown, adhesion, tensile strength, resistance to temperature and humidity, and flammability. The UL mark isn’t just a sticker—it tells you the tape has been tested and meets defined safety standards.
Similarly, CSA (Canadian Standards Association) approval is important for projects in Canada. Many professional-grade tapes carry both certifications.
Temperature and Voltage Ratings
Every electrical tape has maximum voltage and temperature ratings. For general residential wiring (120V to 240V), most vinyl tapes rated for 600V are more than adequate. Automotive under-hood applications can see temperatures above 80°C (around 176°F), so check that your tape is rated for at least 90°C continuous operation—some specialty automotive tapes go higher.
If you’re working with medium-voltage systems or high-temperature environments, rubber splicing tapes and mastic tapes are rated up to 69 kV and 130°C respectively in certain products. Don’t assume all tape is universal; read the spec sheet.
Adhesive Strength and Elongation
Adhesive strength determines how well the tape sticks to itself and to cable insulation. Professional-grade vinyl tapes are formulated to maintain strong adhesion across a wide temperature range, from cold weather installation to elevated operating temperatures. Weak adhesive leads to flagging (lifting edges) and eventual failure.
Elongation is the tape’s ability to stretch without breaking. Rubber splicing tape usually elongates around 50-75% during installation to achieve proper fusion. Vinyl tape should have enough stretch to conform tightly to irregular shapes but not so much that it thins out excessively. High-quality tapes balance these properties.
Thickness
Tape thickness is measured in mils (thousandths of an inch). Standard vinyl electrical tape runs about 7 to 8 mil. Thicker tapes (like rubber splicing at roughly 30 mil or mastic at similar thickness) provide more insulation per layer but take more wraps to build up. For general-purpose use, 7-8 mil vinyl is the sweet spot—thick enough to insulate well, thin enough to wrap neatly.

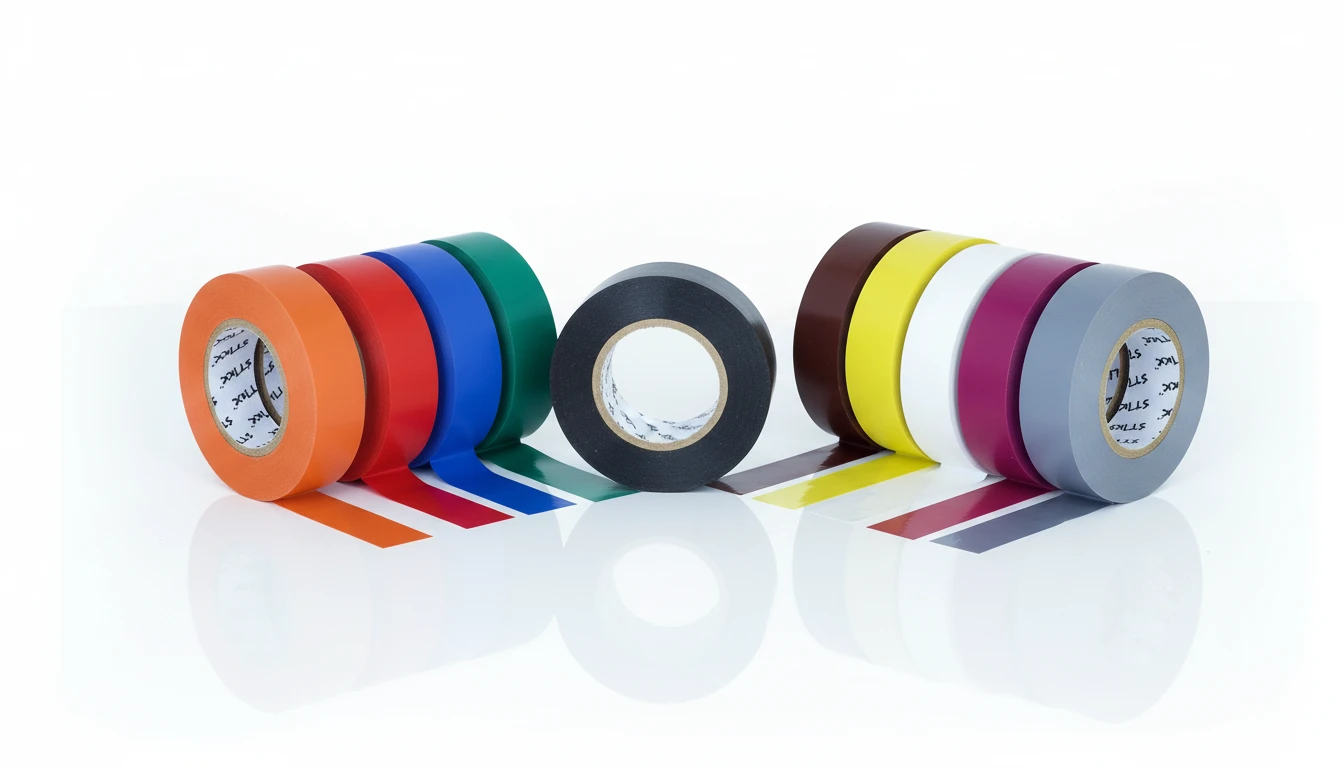

Color Options
Black vinyl tape is the default, but multi-color packs (10+ colors) are invaluable for identification work. If you’re wiring a control panel, troubleshooting a car harness, or marking circuits in a breaker box, colored tape saves time and reduces errors. Make sure the colored tapes have the same electrical and mechanical specs as the black tape—not all color packs are created equal.
How to Use Electrical Tape Properly
Good technique matters. Sloppy tape application can leave air voids that compromise insulation, create stress points, or lead to premature failure. Here’s how professionals do it.
Start clean and dry. Wipe down the wire or connection to remove dirt, oil, and moisture. Tape won’t stick properly to contaminated surfaces.
Overlap by half. Wrap the tape so each turn covers about 50% of the previous wrap. This double-layer approach eliminates gaps and ensures consistent insulation thickness.
Stretch slightly—but not the final wrap. Apply moderate tension as you wrap to help the tape conform to the wire shape. For vinyl tape, avoid over-stretching, which thins it out and reduces insulating capacity. Rubber splicing tape requires deliberate stretching (around 50-75%) to self-fuse. The final wrap of vinyl should go on with zero tension—this prevents the edge from lifting (flagging) later.
Extend beyond the splice. Don’t stop the tape exactly at the edge of a connector or bare conductor. Extend the wrap at least an inch or two onto the insulated portion of the wire on both sides. This ensures complete coverage and stops moisture from getting in.
Finish with a smooth press. Use your palm to press down the final wrap and feather the edge. A clean, flat finish prevents snags and mechanical damage.
Build layers for high-voltage or harsh environments. For medium-voltage splices, follow the engineered tape system: rubber splicing tape for primary insulation, semi-conducting tape for stress control, and vinyl tape as the outer jacket. For submerged or outdoor connections, start with mastic or rubber for sealing before adding vinyl.
Common Mistakes to Avoid
Using vinyl tape for wet or submerged splices. Vinyl alone doesn’t create a reliable moisture seal. Underwater or buried connections need mastic or rubber tape first, then vinyl for mechanical protection.
Leaving rubber tape exposed. Rubber splicing tape degrades quickly when exposed to sunlight and cold. Always cover it completely with a vinyl outer wrap.
Over-stretching or under-stretching rubber tape. Stretching rubber tape too much can reduce its insulating thickness and cause overheating at connectors. Too little stretch prevents proper self-fusion, leaving air voids. Aim for 50-75% elongation.
Stretching the final vinyl wrap. The last turn of vinyl tape should go on with zero tension. Stretched tape wants to shrink back, which causes the edge to lift and the wrap to fail.
Skipping the overlap. Single-layer coverage with no overlap leaves gaps where insulation is compromised. Always half-lap your wraps.
Ignoring temperature and voltage ratings. Not all tape is rated for high heat or medium voltage. Using the wrong tape in an automotive engine bay or on a 480V circuit can lead to dangerous failures.
Substituting tape for proper connectors. Electrical tape is not a replacement for wire nuts, crimp connectors, or terminal blocks. It’s supplemental insulation, not a mechanical or primary electrical connection.
Frequently Asked Questions
Can I use electrical tape instead of wire nuts?
No. Electrical tape is not designed to create a mechanical connection between wires. Use wire nuts, crimp connectors, or terminal blocks to join conductors, then wrap the connection with tape for additional insulation if needed.
What’s the difference between cheap and expensive electrical tape?
Cheap tape typically uses monomeric PVC and basic adhesives, which can crack, lose adhesion, and degrade quickly in temperature extremes or UV exposure. Professional-grade tape uses polymeric PVC and engineered adhesives for longer life, better performance, and code compliance. For critical or long-term installations, the extra cost is worth it.
How long does electrical tape last?
In ideal indoor conditions, high-quality vinyl tape can last many years. Outdoor exposure, temperature cycling, and UV light accelerate degradation. Rubber tape must be protected with a vinyl outer layer to avoid rapid breakdown. Regularly inspect tape on critical connections and replace it if you see cracking, lifting, or loss of adhesion.
Is electrical tape waterproof?
Vinyl electrical tape is water-resistant but not truly waterproof. It can handle dampness and occasional moisture, but submerged or continuously wet environments require mastic or rubber tape for reliable sealing, followed by a vinyl overwrap.
What temperature range can electrical tape handle?
Most vinyl electrical tapes are rated for -18°C to 105°C (0°F to 221°F) or similar ranges. Specialty automotive and high-temperature tapes can handle higher continuous temperatures. Rubber splicing and mastic tapes often go up to 130°C. Always check the manufacturer’s spec sheet for your specific application.
Can electrical tape be used on high-voltage applications?
Yes, but only with the correct tape and technique. Medium- and high-voltage splicing requires rubber splicing tape systems rated for the voltage, combined with semi-conducting tape for stress control and vinyl for the outer jacket. Standard vinyl tape is only suitable for low-voltage applications (typically up to 600V or 1,000V depending on the product).
Why do electricians use different colored electrical tape?
Colored tape helps identify circuit phases, neutral and ground conductors, and specific circuits during installation and troubleshooting. Standard conventions include green for ground, white or gray for neutral, and black, red, or blue for hot conductors, though local codes and practices vary.
Conclusion
Electrical tape might seem like a simple product, but choosing the right type and using it correctly makes all the difference between a reliable repair and a potential failure. Vinyl tape handles most everyday electrical work—splices, bundling, identification—as long as you pick a quality polymeric product with UL certification. When you’re dealing with moisture, high temperatures, or medium-voltage systems, step up to rubber splicing tape, mastic, or specialized products designed for those conditions.
Pay attention to the specs: temperature and voltage ratings, adhesive quality, and thickness all matter. Wrap with proper technique—half-overlapped layers, moderate stretch, clean finishes—and always cover rubber tape with vinyl for UV and cold protection. Avoid the common traps of using tape as a connector replacement or skipping the moisture seal on outdoor work.
With this guide in hand, you’re equipped to walk into any hardware store, pick the best electrical tape for your project, and apply it like a pro.
