In the world of electrical work, the integrity of a connection is paramount. A compromised splice or an improperly insulated wire is not merely a point of failure; it is a significant safety hazard. For professionals, choosing the correct insulation method is a decision that directly impacts the reliability, durability, and safety of an entire electrical system. Two of the most common solutions for this critical task are electrical tape and heat shrink tubing. While both serve to insulate and protect, their properties and ideal use cases differ significantly.
Making the right choice requires more than just habit or convenience. It demands a technical understanding of the materials, their performance under various conditions, and the standards they must meet. As a leading B2B manufacturer of low-voltage electrical products, Tonful Electric is committed to empowering professionals with the knowledge to make these critical decisions correctly every time. This guide offers a definitive comparison between electrical tape and heat shrink tubing, examining their materials, performance characteristics, and ideal applications to help you select the optimal method for any professional challenge.
A Comprehensive Look at Electrical Tape
Electrical tape is one of the most ubiquitous accessories in any electrician’s toolkit, and for good reason. Its versatility and ease of use are unmatched for a wide range of daily tasks. However, not all tapes are created equal, and understanding the nuances between different types is the first step toward professional and reliable application.
What is Electrical Tape?
At its core, electrical tape is a type of pressure-sensitive tape designed to insulate electrical wires and other materials that conduct electricity. Its primary function is to prevent electrical current from passing to other wires or components, thereby preventing short circuits and electrical shocks. A quality electrical tape must possess high dielectric strength—the ability to withstand high voltage without breaking down. Beyond insulation, it is also commonly used for bundling wires, color-coding for phase identification, and providing a degree of mechanical protection and abrasion resistance.
Types of Electrical Tape and Their Materials
The term “electrical tape” most often brings to mind the familiar roll of black vinyl tape. However, the category encompasses a broad range of materials, each engineered for specific performance requirements.
- Vinyl (PVC) Tape: This is the all-purpose standard. Modern professional-grade vinyl tapes are typically made from polymeric PVC, which offers superior elasticity, adhesion, and temperature resistance compared to the less stable monomeric PVC found in cheaper alternatives. Polymeric tapes resist flagging and degradation when exposed to a wider range of temperatures and chemicals. Vinyl tape is ideal for general-purpose insulation, repairs, and color-coding.
- Rubber Splicing Tape: For primary insulation on low-to-high-voltage splices, rubber tape is the superior choice. Composed of a highly conformable ethylene propylene rubber, it is stretched during application and fuses to itself, creating a solid, moisture-proof, and void-free layer of insulation. It has excellent dielectric strength and is rated for higher temperatures and voltages than standard PVC tape, often used on splices up to 69kV.
- Mastic Tape: Mastic tape features a rubber-based mastic adhesive on a flexible backing. Its primary advantage is its exceptional adhesion and ability to create a robust environmental seal. The mastic compound flows into irregularities to block out moisture, making it perfect for sealing low-voltage connections, cable jackets, and conduits in outdoor or underground applications.
- Varnished Cambric Tape: This tape consists of a fine-weave cotton fabric with a coating of insulating varnish. It offers good dielectric strength and excellent resistance to puncture and abrasion. While less common today, it is still specified for applications requiring high mechanical strength, such as insulating motor leads and service drop connections.
In many jurisdictions, vinyl tapes are color-coded to identify the phase and voltage level of the wiring. The standards vary by region, but some common examples include:
- United States (per NEC): Phase A (Black), Phase B (Red), Phase C (Blue) for 120/208/240V; Phase A (Brown), Phase B (Orange), Phase C (Yellow) for 277/480V. Neutral is White or Grey, and Ground is Green.
- United Kingdom: Phase 1 (Brown), Phase 2 (Black), Phase 3 (Grey). Neutral is Blue.
- International (IEC): Phase 1 (Brown), Phase 2 (Black), Phase 3 (Grey). Neutral is Blue, and Protective Earth is Green-and-Yellow striped.
The Critical Role of Industry Standards: UL and CSA
For a product so integral to safety, professional-grade electrical tape must be certified by independent testing bodies. The two most recognized marks in North America are UL (Underwriters Laboratories) and CSA (Canadian Standards Association). These certifications are not merely a stamp of approval; they are a guarantee that the tape has been rigorously tested and meets stringent performance criteria for electrical insulation and safety.
According to UL Solutions, the governing standard for insulating tapes is ANSI/CAN/UL 510, Standard for Insulating Tape, which is harmonized with CSA-C22.2 No. 197. When you see the UL Listed mark on a roll of tape, it signifies that it has passed a battery of tests, including:
- Dielectric Strength: The tape is subjected to high voltage to ensure it does not fail under its rated load (e.g., 600V for general-use tape).
- Adhesion: The tape’s ability to stick to its own backing and to steel is measured to ensure a secure, long-lasting wrap.
- Temperature Rating: Tapes are tested to perform reliably within a specified temperature range (e.g., -18°C to 105°C) without becoming brittle or losing adhesion.
- Flame Retardancy: The tape must self-extinguish within a set time after being exposed to a flame.
- Weatherability: For tapes rated for outdoor use, this test evaluates their resistance to UV exposure and moisture.
Using non-certified tape in a professional setting is a significant risk. It may lack the required dielectric strength, degrade quickly when exposed to heat or cold, or unravel (“flag”), exposing live conductors. For this reason, specifying and using only UL Listed or CSA Certified tapes is a fundamental tenet of safe, professional electrical work.
Understanding Heat Shrink Tubing
While electrical tape offers unmatched flexibility for a wide range of tasks, heat shrink tubing provides a more permanent, robust, and environmentally sealed solution. For applications where long-term reliability and protection from the elements are paramount, heat shrink is often the superior choice.
What is Heat Shrink Tubing?
Heat shrink tubing is a pre-formed, expandable thermoplastic sleeve designed to be slipped over a wire or cable splice. When heated with a heat gun or other controlled source, the tubing shrinks in diameter to conform tightly to the shape of the underlying component. This process creates a rigid, seamless, and highly durable layer of insulation that offers excellent protection against abrasion, chemicals, and moisture.
How It Works and Common Materials
The “memory” effect of heat shrink tubing is created during manufacturing. The tubing is extruded into its desired shape, cross-linked through radiation to create a molecular memory, and then heated and expanded to a larger supplied diameter. When the end-user applies heat, the material’s molecular memory is activated, causing it to return to its original, smaller extruded size.
The most common material used for heat shrink tubing is polyolefin, a versatile and durable polymer that provides a good balance of chemical resistance, dielectric strength, and temperature performance. Other materials are available for specialized applications, such as:
- Fluoropolymers (like PTFE): For high-temperature and extreme chemical environments.
- Elastomers: For applications requiring high flexibility even at low temperatures.
A key specification for heat shrink tubing is its shrink ratio, which describes the relationship between its expanded (supplied) diameter and its shrunken (recovered) diameter. Common ratios include 2:1, 3:1, and 4:1. A 3:1 ratio, for example, means a tube supplied with a 9mm diameter will shrink to 3mm. Choosing a ratio that ensures a tight fit over the component and any connectors is crucial for a successful application.
Types of Heat Shrink Tubing
Heat shrink tubing is available in two main configurations: single-wall and dual-wall.
- Single-Wall (or Thin-Wall) Tubing: This type consists of a single layer of polyolefin and is used for general-purpose insulation, strain relief, and wire identification. It provides excellent dielectric protection and abrasion resistance in dry environments.

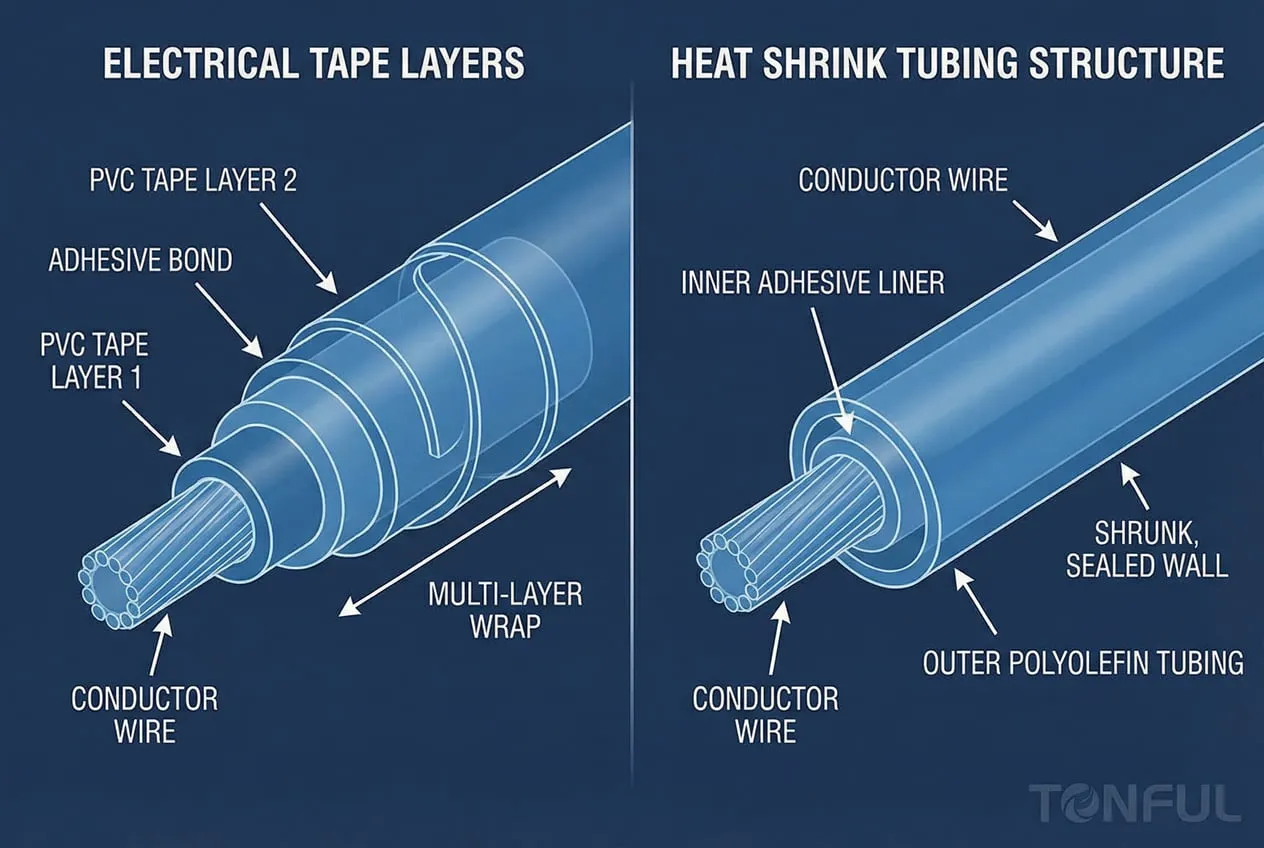

- Dual-Wall (or Adhesive-Lined) Tubing: This advanced tubing features an outer polyolefin layer for insulation and an inner layer of thermoplastic adhesive. When heated, the outer wall shrinks while the inner adhesive melts and flows, filling any voids in the connection. As it cools, the adhesive forms a semi-rigid, waterproof seal that is impervious to moisture, fuels, and chemicals. This makes dual-wall tubing the ideal choice for automotive, marine, and outdoor applications where environmental protection is critical.

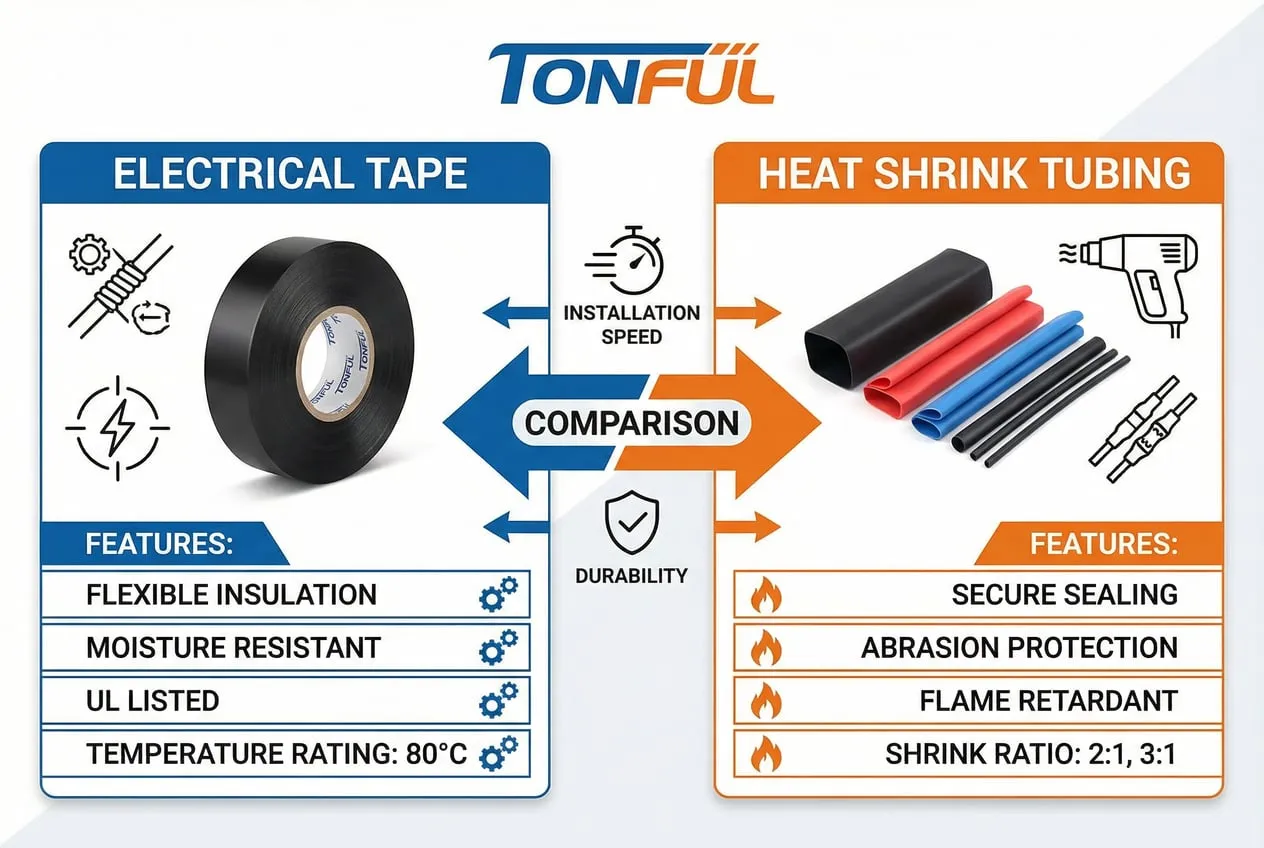

Head-to-Head Comparison: Key Differences
Choosing between electrical tape and heat shrink tubing depends entirely on the specific demands of the application. Both are effective insulators, but they excel in different areas. The following table provides a direct comparison of their key performance characteristics.
Comparison Table
| Feature | Electrical Tape | Heat Shrink Tubing |
|---|---|---|
| Durability & Abrasion | Moderate. Can be cut or abraded. Can unravel (“flag”) over time if not applied properly. | Excellent. Forms a rigid, solid wall that is highly resistant to cuts and abrasion. |
| Moisture Protection | Moderate. Rubber and mastic tapes offer good water resistance, but vinyl is less effective. | Excellent, especially with dual-wall (adhesive-lined) tubing, which creates a truly waterproof seal. |
| Temperature Resistance | Good. Professional vinyl tapes are typically rated up to 105°C (221°F). | Excellent. Standard polyolefin is rated up to 125°C or 135°C (257°F/275°F), with special materials for higher temperatures. |
| Strain Relief | Minimal. Provides some support but is not designed for significant mechanical stress. | Excellent. The rigid, shrunken form provides robust support to solder joints and crimp connectors, preventing failure from vibration or flexing. |
| Application Method | Manual wrapping. Requires no special tools. Fast and easy for temporary or quick jobs. | Requires a heat source (heat gun recommended). Takes slightly more time and preparation. |
| Professional Appearance | Good. A neatly wrapped tape job can look clean, but it is difficult to achieve perfect consistency. | Excellent. Provides a clean, uniform, and factory-finished appearance that is highly consistent. |
| Cost | Low per application. A roll of tape can be used for many connections. | Higher initial cost per piece, but provides superior long-term value in demanding applications. |
Analysis of the Differences
The comparison makes the trade-offs clear. Electrical tape is the champion of versatility and convenience. It requires no tools, can be applied and removed quickly, and is indispensable for tasks like bundling, phasing, and making temporary repairs. However, its reliance on adhesive and its layered application make it more vulnerable to environmental factors and mechanical wear over time.
Heat shrink tubing, conversely, is the specialist for permanent, high-reliability connections. It trades the convenience of tape for unparalleled durability, environmental sealing, and strain relief. The upfront investment in time and tools (a proper heat gun) pays off with a connection that is mechanically stronger, more resistant to the elements, and boasts a clean, professional finish that is impossible to replicate with tape.
The Application Guide: When to Use Each Method
With a clear understanding of their respective strengths, we can now outline the ideal scenarios for each insulation method.
When to Use Electrical Tape
Electrical tape remains the go-to choice in situations where versatility, speed, and serviceability are the primary concerns.
- Temporary Connections and Repairs: For quick fixes or temporary wiring setups in a controlled environment, electrical tape is perfect. It can be easily removed or reapplied as needed.
- Wire Bundling and Organization: Tape is an efficient way to group runs of wires together inside a panel, conduit, or wiring loom to keep them organized.
- Color-Coding and Phasing: Vinyl electrical tape in various colors is the industry standard for identifying wire functions, phases, and voltage levels.
- Applications Where Heat is Impractical: In environments with sensitive components or where flammable materials are present, using a heat gun is not always possible, making tape the only safe choice.
- Finishing a Splice: A final wrap of professional-grade vinyl tape over a rubber-taped splice provides a durable, UV-resistant jacket and adds an extra layer of mechanical protection.
When to Use Heat Shrink Tubing
Heat shrink tubing should be your first choice for any permanent connection where reliability and protection from the operating environment are non-negotiable.
- Permanent Splices and Terminations: For any wire splice that is not intended to be serviced, heat shrink provides a “fit-and-forget” solution that will not degrade or unravel.
- High-Vibration Environments: The superior strain relief of heat shrink is critical in automotive, marine, and industrial machinery applications where constant vibration can cause wire fatigue and failure at the connection point.
- Moisture and Chemical Exposure: Dual-wall, adhesive-lined heat shrink is essential for any connection exposed to water, oil, fuel, or other corrosive chemicals. It creates a complete environmental seal.
- Professional, High-Quality Finish: In control panels, custom wiring harnesses, and high-end electronic installations, heat shrink tubing provides a clean, professional appearance that signals quality workmanship.
Specific Use Cases
- Automotive & Marine: Heat shrink tubing is the clear winner here. Connections in vehicles and boats are constantly exposed to vibration, moisture, and engine fluids. The durability and sealing capability of adhesive-lined tubing are essential for long-term reliability.
- Industrial & Control Panels: While tape is used for phasing, heat shrink is preferred for terminating wires onto terminal blocks and for sealing multi-conductor cable breakouts. Its high abrasion resistance and clean look are highly valued in these dense, complex environments.
- General Low-Voltage Systems: For simple connections inside a junction box in a climate-controlled building, a properly wrapped, high-quality vinyl tape is often sufficient. However, for connections in damp locations (like a basement) or areas with potential for physical damage, upgrading to heat shrink is a wise investment.
Best Practices for Professional Results
Achieving the maximum performance from either product requires correct application technique. Sloppy work can compromise even the highest-quality materials.

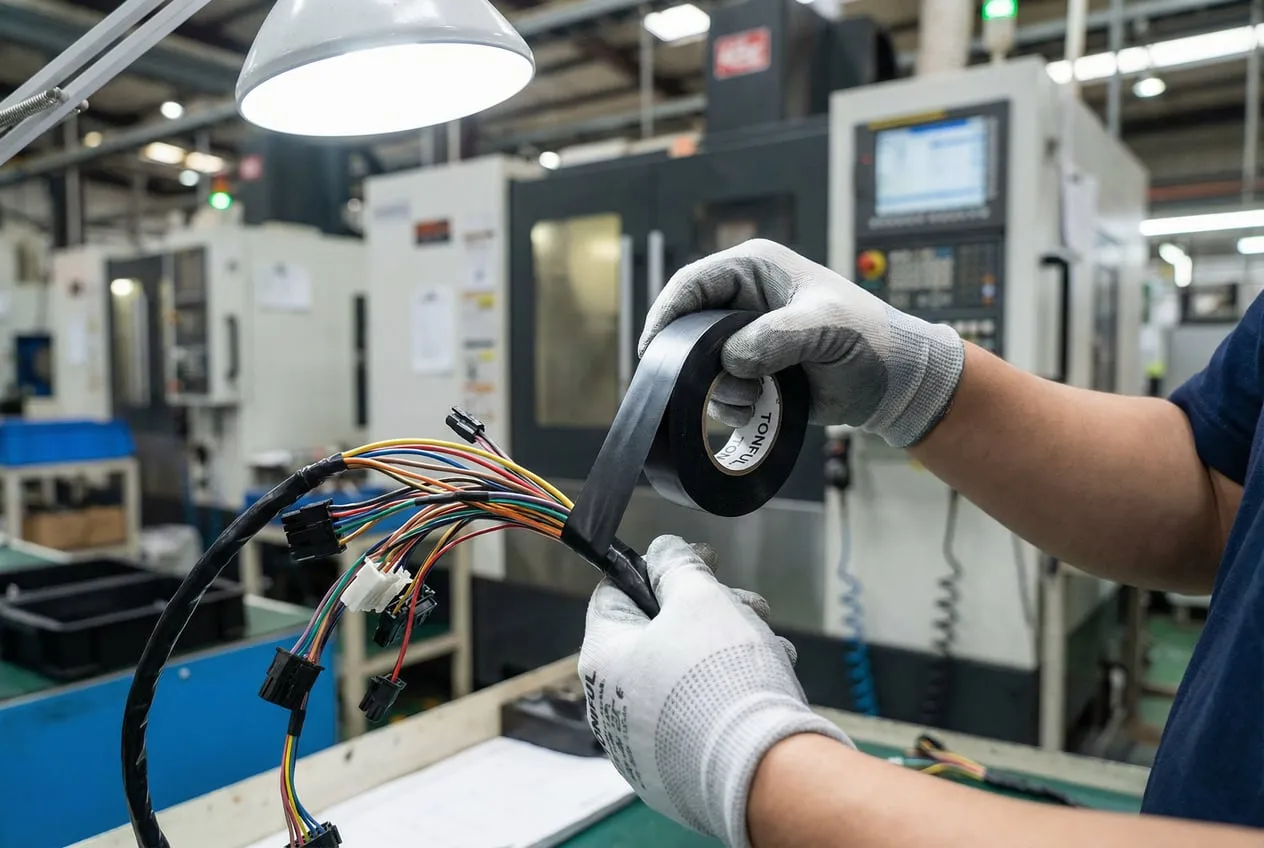

Electrical Tape Application Technique
The reliability of a taped connection depends entirely on the wrapping technique. For a primary insulation splice:
- Prepare the Surface: Ensure the connection and surrounding wire insulation are clean and dry.
- Apply Rubber Tape: When insulating a splice, first apply a layer of rubber splicing tape. Stretch the tape to about two-thirds of its original width as you wrap it in overlapping layers. This “active” stretching ensures the tape fuses to itself, creating a void-free, moisture-proof seal. Continue wrapping until the thickness is at least 1.5 times that of the original cable insulation.
- Apply Vinyl Tape Jacket: Cover the rubber tape with at least two layers of professional-grade PVC vinyl tape. Apply this layer with tension and use a 50% overlap on each pass. The final wrap should be applied with no tension to prevent the end from unraveling or “flagging” over time. This outer jacket protects the rubber tape from abrasion and UV exposure.
Heat Shrink Application Technique
- Select the Right Size: Choose a tubing diameter that is large enough to easily slide over the connector or splice, but whose final “recovered” diameter is smaller than the smallest part of the wire you need to seal. A 3:1 shrink ratio is often ideal for covering connectors.
- Cut to Length: Cut the tubing long enough to completely cover the exposed connection and overlap onto the wire’s insulation by at least 1/4 inch (6mm) on both sides.
- Position the Tubing: Slip the cut piece over the wire and center it over the connection before applying heat.
- Apply Heat Evenly: Using a professional heat gun is highly recommended for consistent results. Start heating in the middle of the tubing and gradually work your way out toward the ends. Rotate the wire as you heat to ensure the tubing shrinks evenly on all sides. For dual-wall tubing, continue heating until you see a small bead of clear adhesive emerge from both ends, indicating a complete seal has been formed. Avoid overheating, which can damage the tubing or wire insulation.
Frequently Asked Questions (FAQ)
1. Can you use electrical tape instead of heat shrink tubing?
While you can for basic insulation in a dry, stable environment, it is not a direct substitute. Electrical tape does not provide the same level of abrasion resistance, strain relief, or moisture protection as heat shrink tubing. For critical applications, especially those exposed to moisture or vibration, heat shrink is the far superior choice.
2. Is heat shrink tubing truly waterproof?
Only dual-wall (adhesive-lined) heat shrink tubing is considered truly waterproof. When heated, the inner adhesive layer melts and flows to create a complete seal against the wire, blocking out all moisture. Single-wall tubing is only water-resistant and will not provide a permanent seal.
3. What makes a professional-grade electrical tape worth the cost?
Professional-grade tapes from manufacturers like Tonful use superior materials (like polymeric PVC), more aggressive and stable adhesives, and are certified by bodies like UL to meet stringent safety and performance standards. They resist flagging, perform across a wider temperature range, and provide more reliable dielectric strength, making them a crucial investment for safety and reliability.
4. Do I really need a heat gun for heat shrink tubing?
While you can shrink tubing with a lighter or a torch, it is strongly discouraged in a professional setting. These methods apply uncontrolled, uneven heat that can easily scorch the tubing, damage the wire insulation, and result in an incomplete shrink and seal. A quality heat gun provides the controlled, even temperature needed for a reliable and professional result.
The Right Choice for a Reliable Connection
In the debate between electrical tape and heat shrink tubing, there is no single winner. The optimal choice is dictated by the specific requirements of the application. Electrical tape is the versatile, indispensable tool for quick repairs, bundling, and color-coding. Heat shrink tubing is the specialist, delivering unparalleled durability, environmental sealing, and a professional finish for permanent, critical connections.
The most important decision a professional can make is to refuse to compromise on quality. Whether the job calls for the flexibility of a UL Listed vinyl tape or the robust protection of an adhesive-lined heat shrink tube, using high-quality, certified materials is essential for ensuring a safe, reliable, and durable electrical system. At Tonful Electric, we are dedicated to supplying the B2B community with a comprehensive range of low-voltage components that meet the highest standards of performance and safety, empowering you to complete every job with confidence.
