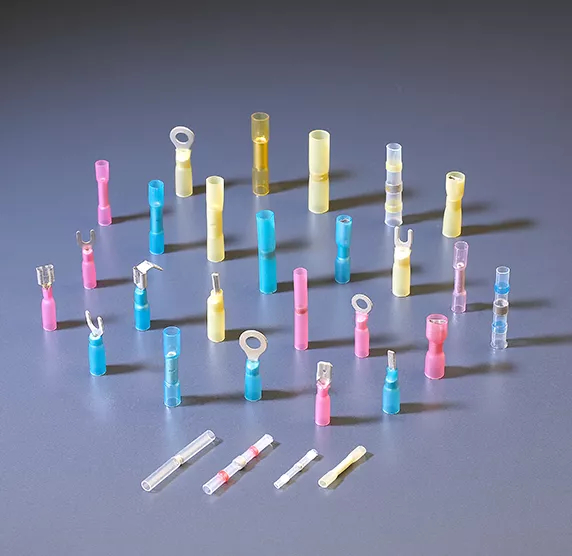

Heat Shrink Terminal Manufacturer

Understanding Heat Shrink Terminal Manufacturing Excellence

Heat shrink terminals are essential electrical connectors that combine reliable crimping technology with heat-activated insulation, providing superior protection against moisture, corrosion, and environmental damage in electrical connections. For those looking to ensure reliable electrical connections in automotive, marine, industrial, or residential applications, there’s no better solution than professionally manufactured heat shrink terminals. They are durable, easy to install, and provide critical protection that prevents connection failures and extends system lifespan.

When it comes to heat shrink terminal manufacturing, precision and quality are paramount. Whether you need heat shrink terminals for harsh marine environments, automotive wiring harnesses, or industrial control panels, choosing the right heat shrink terminal manufacturer is crucial. You want to ensure they have experience in the industry and understand exactly what you need to achieve the most reliable connections possible for your electrical systems. This means researching different companies and evaluating their manufacturing capabilities before making any decisions about who will be supplying these critical connection components.

---

Why You Should Work with Professional Heat Shrink Terminal Manufacturers

If you’re wondering how to ensure connection reliability, prevent corrosion damage, and implement effective cable management with heat shrink terminals, then you need to work with heat shrink terminal manufacturers that you can trust! Trying to navigate through all the different heat shrink terminal manufacturers in the market can be a time-consuming and complex process, especially if you’re not sure how to distinguish quality products from substandard ones.

Regarding sourcing electrical connection components for your projects, one of the most important decisions you have to make is which manufacturer to partner with. Working with professional heat shrink terminal manufacturers like Tonful Electric can provide you with numerous benefits and advantages that will help you implement successful electrical systems and build lasting confidence in your installations.

---

High-Performance Heat Shrink Terminals vs. Standard Crimp Connectors

High-performance heat shrink terminals prioritize connection reliability and environmental protection. Crafted from superior materials with advanced manufacturing techniques, they offer exceptional durability and consistent performance. These terminals feature dual-wall construction with adhesive-lined heat shrink tubing that creates a watertight seal, combined with precisely engineered copper barrels for optimal crimping. Manufacturers of high-performance heat shrink terminals pay close attention to details such as material purity, wall thickness uniformity, adhesive distribution, and insulation integrity. They’re not just connection components; they’re often the difference between a reliable system and costly failures.

On the other hand, standard crimp connectors are primarily designed to meet minimum connection requirements. They’re often produced with cost as the primary consideration rather than long-term reliability. While they can still provide basic connectivity, high-performance heat shrink terminals offer additional features like superior moisture resistance, better strain relief, enhanced corrosion protection, and more reliable sealing characteristics. Professional heat shrink terminals serve as the foundation of connection integrity, providing reliable protection against environmental hazards, while standard options may not offer the same level of security and performance under challenging conditions.

---

High-Quality Heat Shrink Terminals for Marine and Automotive Applications

In the demanding realm of electrical connections, the essence of system reliability isn’t just encapsulated in the specifications but also in the craftsmanship behind each component. Heat shrink terminals, often seen as the guardians of electrical continuity, hold a special place in this narrative. Their production, especially when entrusted to expert heat shrink terminal manufacturers, can elevate an electrical system’s reliability immensely. Delving deeper, let’s uncover the reasons why partnering with proficient heat shrink terminal manufacturers is pivotal for marine and automotive applications.

Superior Environmental Protection

In harsh marine and automotive environments, what differentiates one electrical system from another is often the reliability of their connection protection. Heat shrink terminal manufacturers, known for their expertise, give systems an edge, ensuring every connection is properly sealed against moisture, salt spray, and vibration. By emphasizing superior materials and precise manufacturing in their production processes, manufacturers can distinguish their products. This commitment to perfection not only safeguards current operations but also prevents costly failures and downtime, propelling system reliability to greater heights.

Enhanced Connection Integrity

In an era dominated by strict safety regulations, a connection’s reliability can be shaped or compromised by component quality. Heat shrink terminals produced by skilled manufacturers lead to flawless connections with superior pull-out resistance, whereas a suboptimal product might invite intermittent failures or complete disconnections. By aligning with top heat shrink terminal manufacturers, installers ensure that every connection receives adequate environmental protection, positively influencing overall system safety. Such collaborations reflect a commitment to safeguarding both equipment and operational continuity.

Reduced Maintenance and Repairs

Heat shrink terminals crafted by adept manufacturers are known for their consistency in sealing performance and durability. This precision reduces issues like corrosion-induced failures, moisture ingress, or vibration-related disconnections. Fewer quality issues translate to less maintenance, saving facilities from operational challenges and potential safety risks. Partnering with reliable heat shrink terminal manufacturers thus streamlines operations and enhances system reliability.

Compliance and Certification

Today’s discerning electrical professionals seek components that meet international standards. Many heat shrink terminal manufacturers are championing compliance with UL, SAE, and other recognized certifications, ensuring products meet rigorous testing requirements including voltage withstand, temperature cycling, and environmental exposure. By choosing such manufacturers, installers convey a message of responsibility and regulatory adherence. This not only results in components that are certified for safety but also enhances project credibility in the eyes of inspectors and stakeholders who prioritize compliance.

---

Inside the Heat Shrink Terminal Manufacturing Process

The production of heat shrink terminals is a sophisticated and precise manufacturing operation that combines advanced material science, precision tooling, and rigorous quality control. At Tonful Electric, we’ve perfected this process to deliver heat shrink terminals of exceptional quality and reliability. Here’s an inside look at how we transform raw materials into connection protection devices:

Component Manufacturing: The Foundation of Quality

Copper Barrel Production

The copper barrel is the heart of the heat shrink terminal’s mechanical and electrical connection. Our manufacturing process involves:

• Precision stamping from high-purity electrolytic copper (99.9% minimum purity)
• Advanced forming techniques to create optimized barrel geometry for maximum crimp retention
• Careful surface preparation to ensure proper adhesion of plating materials
• Tin or silver plating application with controlled thickness (3-10μm) for corrosion resistance

Heat Shrink Tubing Selection

For environmental protection, the heat shrink tubing is manufactured with exacting precision:

• Dual-wall construction with outer polyolefin layer and inner adhesive layer
• Precise wall thickness control (outer wall: 0.5-0.8mm, inner adhesive: 0.15-0.25mm)
• Hot-melt adhesive formulation optimized for sealing and adhesion performance
• Extrusion process with stringent diameter and concentricity control
• Specialized cross-linking treatment for enhanced thermal and mechanical properties

Wire Range and Barrel Design

Our terminals are designed to accommodate specific wire gauges reliably:

• Barrel dimensions optimized for each wire gauge from 22 AWG to 10 AWG
• Serrated inner barrel design for enhanced grip and pull-out resistance
• Precision forming to ensure consistent crimping performance
• Wire insertion chamfers for easy assembly

Insulation Color Coding

Industry-standard color coding for easy identification:

• Red: 22-18 AWG (0.5-1.0mm²)
• Blue: 16-14 AWG (1.5-2.5mm²)
• Yellow: 12-10 AWG (4.0-6.0mm²)
• Color-fast pigments resistant to UV degradation and heat exposure

Assembly Process: Precision Integration

Our heat shrink terminal assembly combines advanced automation with quality oversight:

Component Integration

• Copper barrel insertion into pre-cut heat shrink tubing sections
• Precise positioning to ensure proper insulation coverage after shrinking
• Automated inspection to verify correct barrel placement
• Controlled environment to prevent contamination

Quality Control During Assembly

• Dimensional verification at multiple stages
• Visual inspection for defects or contamination
• Barrel seating verification
• Tubing integrity checks

Terminal Type Variations

We manufacture various terminal configurations:

• Ring terminals for bolt-down connections (stud sizes M3 to M10)
• Spade terminals for quick-connect applications
• Butt splice connectors for wire-to-wire joining
• Hook terminals for flexible connection options

Heat Shrink Application and Sealing

Critical to heat shrink terminal performance is proper shrinking for reliable environmental sealing:

Shrinking Process Control

• Controlled heat application using precision heating equipment
• Temperature monitoring (typically 90-120°C depending on material)
• Shrink ratio verification (typically 3:1 or 4:1 shrink ratio)
• Adhesive flow confirmation for complete moisture seal
• Cooling period for proper adhesive set

Seal Quality Verification

• Visual inspection for complete tubing shrinkage
• Adhesive squeeze-out verification at both ends
• No voids or gaps that could allow moisture ingress
• Uniform appearance without burning or degradation

---

Quality Control Measures and Testing

As a leading heat shrink terminal manufacturer, Tonful Electric implements rigorous testing procedures throughout production:

In-Process Quality Control

• Raw Material Verification: Copper purity testing, tubing material confirmation
• Dimensional Inspection: Barrel geometry, tubing thickness, overall length verification
• Plating Thickness Testing: X-ray fluorescence measurement of tin/silver coating
• Visual Inspection: Surface defects, color consistency, marking clarity

Performance Testing

Mechanical Performance

• Crimp Pull Test: Verification of tensile strength exceeding industry standards (minimum 90% of wire breaking strength)
• Vibration Resistance: Testing under automotive-grade vibration profiles
• Flexing Endurance: Repeated bending cycles to verify strain relief performance
• Impact Resistance: Drop and impact testing for mechanical durability

Electrical Performance

• Contact Resistance Measurement: Verification of low resistance connections (<0.5 milliohms)
• Voltage Withstand Testing: High potential testing at 1000-2000V depending on rating
• Current Carrying Capacity: Verification of rated ampacity without excessive heating
• Insulation Resistance: Testing of sealed insulation (>100MΩ minimum)

Environmental Testing

Moisture and Sealing Performance

• Water Immersion Testing: Submersion in water for extended periods to verify waterproof integrity
• Salt Spray Resistance: Exposure to 5% salt solution for 48-96 hours per ASTM B117
• Humidity Testing: Operation under 85°C/85% RH conditions for 1000 hours
• Pressure Testing: Verification of seal integrity under underwater pressure conditions

Temperature Performance

• Temperature Cycling: -40°C to +125°C cycling to verify performance across operating range
• High Temperature Aging: Extended exposure at elevated temperatures to simulate long-term performance
• Low Temperature Flexibility: Verification of insulation flexibility at -40°C
• Thermal Shock Resistance: Rapid temperature transitions to test material stability

Safety and Compliance Testing

• Flammability Testing: UL94 V-0 rating verification for heat shrink materials
• Toxicity Testing: RoHS and REACH compliance verification for restricted substances
• UV Resistance: Extended UV exposure testing for outdoor applications
• Dielectric Strength: Insulation breakdown voltage verification

---

Heat Shrink Terminal Manufacturers Ensure Reliability

If you consider a top electrical brand in the realm of connection components, what are some of the things that come to mind? An established reputation is probably up there, as are reliable products with consistent performance. Most importantly, the thing the top brands all have in common is the quality of their manufacturing process.

A great brand reputation doesn’t mean much if the connections fail due to moisture ingress or corrosion over time. So, if you’re not handling manufacturing yourself, you need to work with a truly high-quality heat shrink terminal manufacturer. Lacking quality is one of the most common causes for electrical system failures in harsh environments, so if you’re specifying heat shrink terminals for your project, you need to be picky about whom you trust with the manufacturing process.

---

Heat Shrink Terminal Manufacturers Are Efficient

Another reason why it’s vital to enlist the help of a manufacturer that you can trust is the efficiency that it will bring to your projects, in terms of both implementation and cost.

While it may eventually be cheaper to set up your own manufacturing operation years down the line, the initial investment and expertise needed to pull this off are usually far too much for most businesses to bear. By partnering with a trusted heat shrink terminal manufacturer, you can have your connection components produced at affordable prices while maintaining high quality.

This isn’t to mention the headache of sourcing materials like high-purity copper and specialized heat shrink tubing for the best possible prices, investing in precision tooling and crimping equipment, and then, of course, figuring out how to ensure consistent quality. As a project manager, contractor, or OEM, these aspects of business are a lot to take on, when really your focus should be on installation and system integration. By working with the right heat shrink terminal manufacturers, you free up time and funds for investments in your core business activities.

---

Heat Shrink Terminal Manufacturers Offer Options

One of the key things that you need to keep an eye out for when searching for the heat shrink terminal manufacturer that you’ll partner with is the degree of options that they provide in terms of specifications, wire ranges, terminal types, and material choices. A subpar manufacturer with a limited product range will leave you with few options to meet your specific requirements, which may work poorly with your particular application needs.

When it comes to selecting heat shrink terminals for various applications, you want options such as different terminal types (ring, spade, butt, hook), wire gauge ranges, stud sizes, and insulation materials. This gives you the freedom to choose the exact specifications needed for different connections and allows you to create different protection levels within your system, with a mixture of standard and marine-grade products.

Wire Gauge Compatibility

In the electrical connection industry, wire gauge compatibility is critical for proper crimping and electrical performance. Heat shrink terminals are designed for specific wire gauge ranges to ensure optimal crimping and current carrying capacity.

• 22-18 AWG (Red): Maximum current 19A, ideal for low-current signal and control wiring
• 16-14 AWG (Blue): Maximum current 27A, suitable for general lighting and power circuits
• 12-10 AWG (Yellow): Maximum current 46A, designed for higher current applications and power distribution

Terminal Types and Configurations

Along with the variety of wire gauge options, you need to look at the manufacturer’s range of terminal types. Many manufacturers have a standard offering of ring and spade terminals, with some companies unable to provide specialized configurations. A good manufacturer will always work to accommodate your specific needs, even if they aren’t aligned with their standard product range.

Ring Terminals: Provide secure bolt-down connections with stud sizes from M3 to M10, ideal for battery terminals, grounding connections, and panel mounting applications.

Spade Terminals: Quick-connect design for easy installation and removal, available in both male and female configurations.

Butt Splice Connectors: Wire-to-wire joining with complete environmental protection, available in straight and stepped configurations.

Hook Terminals: Flexible connection option for applications requiring occasional disconnection.

Minimum Order Quantity

Heat shrink terminal manufacturers have specific minimum order quantities based on their production capabilities. Here’s what you can expect from Tonful Electric:

• Standard Products: The minimum order quantity (MOQ) is 1,000 pieces for standard catalog items.
• Custom Specifications: The MOQ for customized wire gauges, stud sizes, or special materials is 5,000 pieces per configuration.
• OEM Production: For OEM customers, we offer flexible MOQ arrangements based on long-term partnership agreements and can accommodate lower quantities for sampling and testing.

Material and Plating Options

Heat shrink terminal manufacturers offer different material options to suit the needs of their customers. Some of the most popular specifications available for heat shrink terminals include:

Copper Barrel Grades: Standard electrolytic tough pitch copper (C11000) for general applications, or oxygen-free high-conductivity copper (C10100) for critical applications requiring maximum conductivity.

Plating Options: Tin plating for cost-effective corrosion resistance in most environments, or silver plating for maximum conductivity and superior corrosion resistance in marine applications.

Heat Shrink Materials: Standard polyolefin for general use (-55°C to +125°C), or specialized materials like cross-linked polyolefin for enhanced chemical resistance and higher temperature ratings.

Adhesive Types: Hot-melt adhesive for reliable waterproof sealing, or dual-adhesive systems for extreme environmental protection.

With so many options available, professional heat shrink terminal manufacturers can provide a wide range of connection solutions to their customers. It’s important to consider the specific requirements of your electrical system and environmental conditions when selecting heat shrink terminal specifications to ensure the best protection for your application.

---

Technical Specifications

The following specifications are essential for selecting the right heat shrink terminals:

• Wire Gauge Range (AWG or mm²)
• Terminal Type (Ring, Spade, Butt, Hook)
• Stud Size (for ring terminals)
• Barrel Material and Plating
• Heat Shrink Material Type
• Shrink Ratio (typically 3:1 or 4:1)
• Operating Temperature Range
• Voltage Rating
• Current Rating
• Certification (UL, SAE, Marine Grade)

---

Heat Shrink Terminal Manufacturers Provide Technical Support

When your business is trying to implement effective electrical connections, you might have all the perfect ideas for system design and wiring layout, but not really know much at all about the specifics of selecting and implementing connection components. If this is the case in your project, you should seek to work with a company that can help you with technical support based on your needs and requirements.

Application Engineering

This is a great advantage in working toward implementing a quality connection system, as product specifications and application guides will paint a clearer picture of what you’ll eventually be installing in your electrical systems. A healthy dialogue with your heat shrink terminal manufacturer will allow you to finalize a connection strategy that you’re truly satisfied with, ensuring that it’s done to the high standards needed to achieve reliable long-term performance.

Installation Guidance

Even beyond the technical side of selecting the best possible terminals prior to installation, a great manufacturer can also assist you in developing your crimping procedures. Sometimes you might have a better understanding of requirements or a basic connection philosophy that you’re interested in, but not entirely sure how you want it implemented in practice. Working with an experienced manufacturer can clarify what kind of tooling, crimping force, and heat application methods you should employ for your specific terminals.

---

Reliable Heat Shrink Terminal Manufacturers Use Quality Materials & Processes

High Standards of Materials

When you think of great electrical brand success stories, quality is always a defining factor, which cannot be achieved without a great team that uses the best materials available. Reliability and environmental resistance are essential facets of what makes an electrical component successful, and this is just as relevant in the realm of heat shrink terminals as it is in any other branch of electrical equipment. Heat shrink terminals can be made with various copper grades, plating materials, and heat shrink formulations, and you need to know that along with having the option to choose between these specifications, you’re getting the best quality of each.

Sustainable production is increasingly important in the electrical industry. Certifications like RoHS and REACH ensure that products meet environmental and safety standards:

RoHS (Restriction of Hazardous Substances) certification ensures that no restricted hazardous substances have been used in production, and it requires regular testing for compliance. It is recognized globally as a reliable indicator of sustainable and safe production methods in the electrical industry. It provides customers with peace of mind knowing that the products they purchase are not only free from harmful substances but also environmentally friendly. The certification covers various electrical products, including connection terminals, making it an essential benchmark for businesses and consumers alike.

REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) is a regulation that addresses the production and use of chemical substances and their potential impacts on human health and the environment. It requires companies to identify and manage the risks linked to substances they manufacture and market in the EU. Additionally, the REACH regulation promotes the development of alternative substances or technologies to reduce the use of hazardous chemicals.

High Standards of Manufacturing

When it comes to the production process, you want to know that the manufacturing facility is equipped with advanced technology and staffed by highly skilled professionals. Many manufacturers that businesses outsource to operate with outdated equipment and untrained personnel, and beyond being concerning for quality, these places often produce inconsistent, unreliable, and generally substandard products.

When you know the team working on your heat shrink terminals has state-of-the-art stamping equipment, precision crimping tools, and rigorous quality control processes, you can be more confident in the finished product that’s delivered to you.

---

Consider Chinese Electrical Manufacturers

It’s becoming widely recognized that Chinese electrical equipment is often of a very high standard, which is why the country has become a favorite of electrical contractors throughout the world. There are many reasons why electrical products from China are taking the industry by storm, including:

Access to Materials: China is one of the top producers of copper, specialized plastics, and other materials essential for electrical manufacturing, making them a great source of both raw materials and finished electrical products.

Skilled Workforce: China has a vast pool of highly skilled workers known for their precision and attention to detail. Many reputable manufacturing facilities invest in continuous training and quality management systems.

Advanced Technology: Chinese manufacturers have invested heavily in automation, precision tooling, and quality control equipment, ensuring consistent product quality at scale.

Cost Efficiency: Chinese companies can manufacture high-quality products at competitive prices due to economies of scale and manufacturing expertise. This means that electrical component costs are reduced significantly when sourced from Chinese manufacturers.

By sourcing your heat shrink terminals from a reputable Chinese manufacturer like Tonful Electric, you can get a very high standard of product, with some of the best materials available, for a fraction of what you might spend with manufacturers in other regions.

---

How to Find the Perfect Heat Shrink Terminal Manufacturer?

If you’re on the hunt for the ideal heat shrink terminal manufacturer to supply reliable connection components for your electrical systems, then why not consider working with Tonful Electric? We’re a Chinese business that emphasizes our flexibility, our quality of results, and the high standards of our manufacturing processes.

At Tonful Electric, we understand the importance of creating quality connection components. We are committed to providing our customers with the highest quality heat shrink terminals that are made with durable materials and feature consistent performance that won’t degrade over time. We use advanced manufacturing techniques to ensure that your terminals are accurately crimped and properly sealed, and that the environmental protection won’t fail when it’s needed most. We also take the time to inspect each product before it is shipped, so you can rest assured that you’re getting top-notch products every time.

Along with producing some of the finest heat shrink terminals in the world, we also produce cable ties, wire connectors, terminal blocks, cable glands, and much more, making us a great one-stop shop for all your electrical connection and cable management needs.
