Deutsch DT Series solid pin Connector Kit
Our Deutsch Solid Pin&Socket Contact Kit is made of copper and nickel plating, which increases solderability, corrosion resistance and long service life.
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Description
FAQ
Download
Description

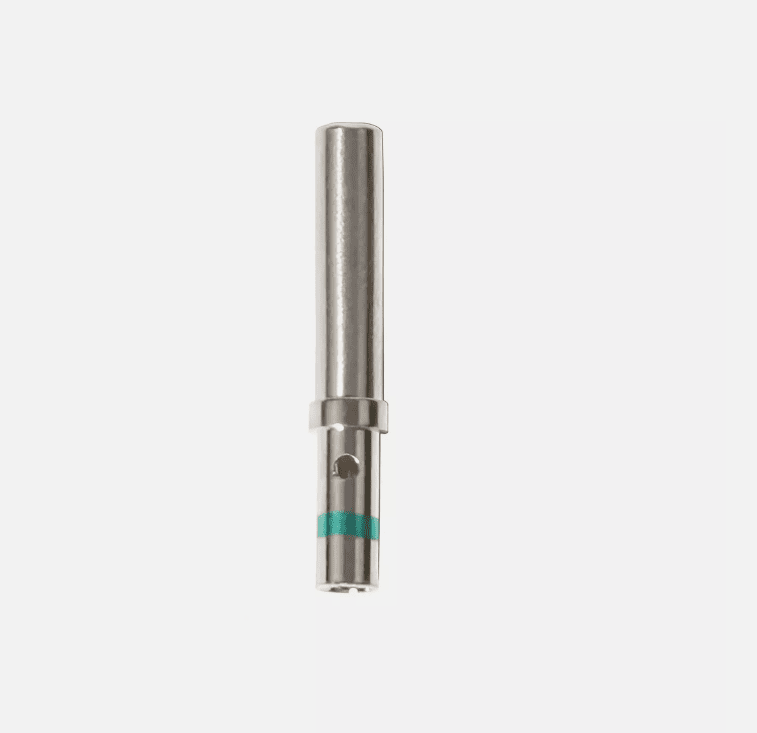

- Premium Quality: The deutsch solid pin and socket is made of copper and nickel plating, which increases solderability, corrosion resistance and long service life. Barrel contacts with green stripes have good stability and conductivity, high safety performance and stable use.

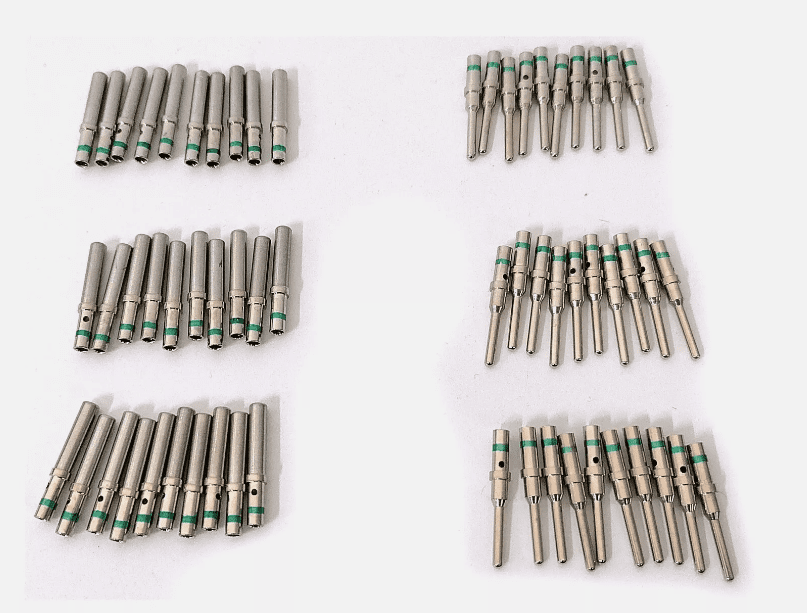

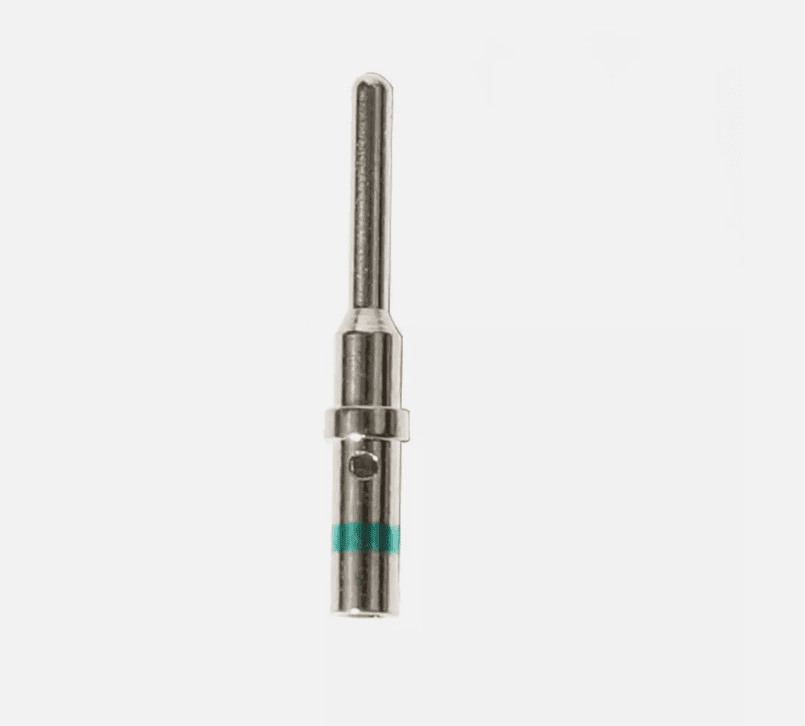

- 【DT Solid Contacts kit】Our Deutsch Solid Pin&Socket Contact Kit Include 30pairs deutsch pins 0460-215-16141/ socket contact 0462-209-16141.

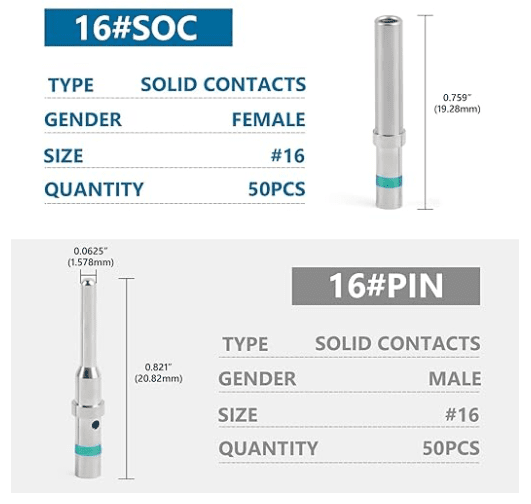

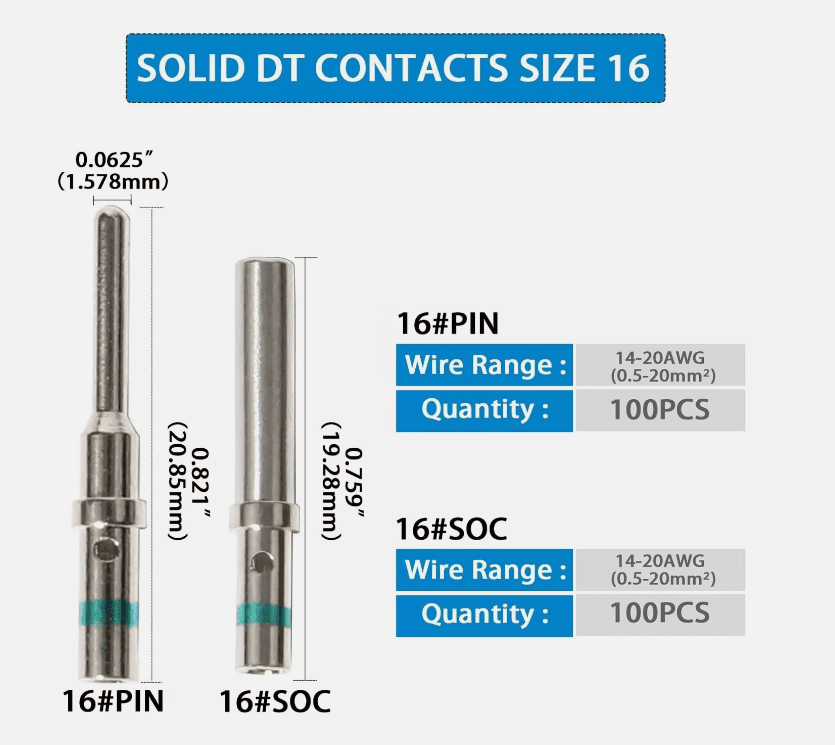

- 【Specifications】Our 16-gauge DT Contact kit have a crimp range of 14AWG-20AWG [0.5-2.0 mm²] and a special treatment on the tailpipe that ensures a break-free crimp every time.
- 【Wide Range Of Applications】 By far the most commonly used connector for electrical wiring in automobiles, RVs, automotive lighting, and motorcycles, the Deutsch DT Series connectors are built to withstand the rigors of the environment!
- 【Solid Contact】The DT connectors provide the user with the ability to use multiple 16-gauge contacts in a single housing with high stability and conductivity with a continuous capacity of 13 amps per contact.

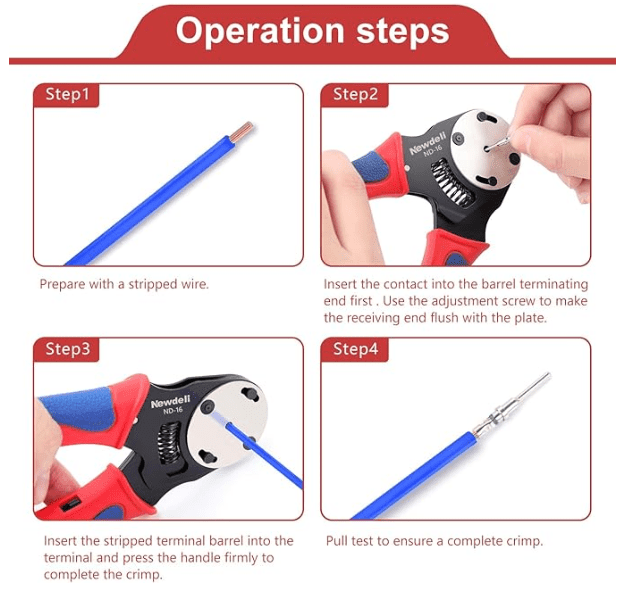

- 【Reliable And Secure Crimp】We recommend the 4-indent, 8-imprint crimp method to provide a reliable and secure crimp that will stand the test of time when done properly.
