FEATURES AND BENEFITS

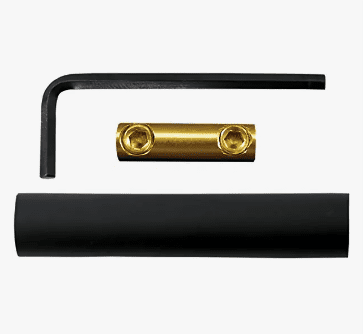

The ACE Connector is our brass screw-tight lug that creates a solid mechanical connection. This fast curing heat shrink makes it easy to get weather resistant wire connections. The ACE Connector is ideally suited for low voltage landscape lighting applications where performance and clean looks are important.

• Solid brass lug

• Fast curing heat shrink

• Weather resistant to withstand outdoor elements

• For use in low voltage landscape lighting and direct bury applications

• Set screw thread pitch allows tighter securing of wires

Installation Instructions: IMPORTANT: Turn off power before installing or removing connector. Product to be used in accordance with local and national codes. 1. Prior to stripping wire, slide heat shrink onto cable. 2. (Small) Strip wires 1/2” (12.7mm) 2. (Medium) Strip wires 5/8” (15.9mm). 2. (Large) Strip wires 5/8” (15.9mm). 3. Align any frayed strands or conductors. 4. Place stripped wire(s) into end(s) of lug. 5. Tighten set screw with Allen wrench. Do not over torque. 6. Position heat shrink on lug. Heat evenly with heat gun or hand held torch until sealed.

Specifications

• Max. Voltage: 30V
• Max Amperage: 25A

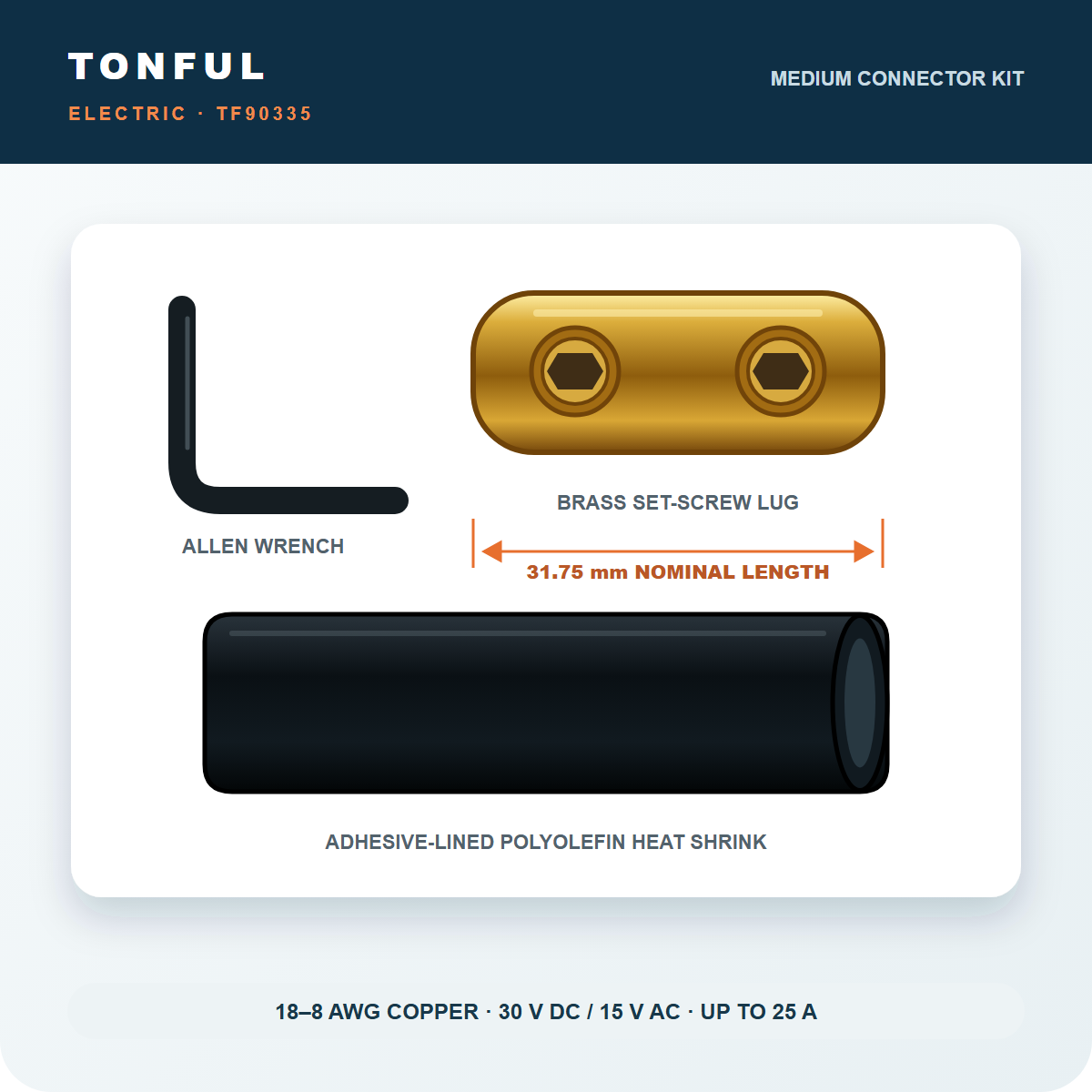

• Connector Size: 0.38″ x 1.25″
• Wire Type: Copper
• Wire Range: Min #18/Max #8 Solid and Stranded
• Lug: Brass
• Set Screw: Brass
• Heat Shrink: Polyolefin with adhesive liner
