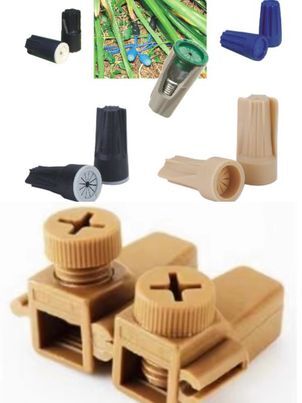

Model: JW1010
◆
Specifications
Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)
Connector Size: Φ12mm x 23.8mm
Wire Type: Copper/Copper
Wire Range: Min #22/Max #12 (AWG)
Temperature Rating: 105。C (221。F)
Silicone Sealant: -45。F to 400。F
JW1010 – Selected 600V Wire Combinations
| 2 #14（MAX） |
1 #14 w/1-3 #18 or 20 |
3 #16 w/1 #18, 20 or 22 |
| 2 #22（MIN） |
2 #14 w/1 #18 |
1 #18 w/1-4 #20 |
| 2-5 #18 |
1 #16 w/1 #18 |
4 #18 w/1 #20 |
| 1 #14 w/1 or 2 #16 |
2 #16 w/1-2 #18 or 20 |
4 #20 w/1 #22 |
Model: JW1011
◆
Specifications
Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)
Connector Size: Φ12mm x 30mm
Wire Type: Copper/Copper
Wire Range: Min #24/Max #12 (AWG)
Temperature Rating: 105。C (221。F)
Silicone Sealant: -45。F to 400。F
JW1011 – Selected 600V Wire Combinations
| 2 #12（MAX） |
1 #14 w/1-3 #18 or 20 |
3 #16 w/1 #18, 20 or 22 |
| 2 #24（MIN） |
2 #14 w/1 #18 |
1 #18 w/1-4 #20 |
| 2-5 #18 |
1 #16 w/1 #18 |
4 #18 w/1 #20 |
| 1 #14 w/1 or 2 #16 |
2 #16 w/1-2 #18 or 20 |
4 #20 w/1 #22 |
Model: JW1020
◆
Specifications
Max. Voltage: 600V (1,000V in fixtures and signs)
Connector Size: Φ14mm x 24mm
Wire Type: Copper/Copper
Wire Range: Min #22/Max #12
Temperature Rating: 105。C (221。F)
Silicone Sealant: -45。F to 400。F
JW1020 – Selected 600V Wire Combinations
| 2 #12 (MAX) |
1 -4 #14 |
2-5 #16 |
| 2 #22 (MIN) |
1 #12 w/1-4 #16 or 18 |
2 #12 w/1-2 #16 or 18 |
| 2 #12 w/1 #14 |
3 #14 w/1-2 #18 or 20 |
2 #16 w/1-3 #18, 20 or 22 |
| 3-6 #20 |
1 #14 w/1-4 #16, 18 or 20 |
2-5 #18 |
Model: JW1030
◆
Specifications
Max. Voltage: 600V (1,000V in fixtures and signs)
Connector Size: Φ17.2mm x 34.5mm
Wire Type: Copper/Copper
Wire Range: Min #22/Max #8
Temperature Rating: 105。C (221。F)
Silicone Sealant: -45。F to 400。F
JW1030 – Selected 600V Wire Combinations
| 1-3 #10 |
1 -4 #12 |
2-5 #14 |
| 2 #10 w/1 #12 |
1 #10 w/1-4 #14 or 16 |
2 #10 w/1-2 #14 or 16 |
| 3 #12 w/1 # 14 |
3 #12 w/1-2 #16 or 18 |
2 #14 w/1-3 #16, 18 or 20 |
| 3-6 #18 |
1 #12 w/1-4 #14, 16 or 18 |
2-5 #16 |
Model: JW1040
◆
Specifications
Max. Voltage: 600V (1,000V in fixtures and signs)
Connector Size: Φ20.6mm x 41.2mm
Wire Type: Copper/Copper
Wire Range: Min #22/Max #6
Temperature Rating: 105。C (221。F)
Silicone Sealant: -45。F to 400。F
JW1040 – Selected 600V Wire Combinations
| 1-2 #8 |
1-4#10 |
6 #12 |
| 1 #8w/1-3 #10 |
1 #8w/1-4 #12 or 14 |
2 #8 w/1-2 #12 or 14 |
| 3 #10 w/1 # 12 |
3 #10w/1-2 #14 or 16 |
2 #12 w/1-3 #14, 16 or 18 |
| 3-6 #16 |
1 #10 w/1-4 #12, 14or 16 |
2-10 #18 |
Model: JW1050
◆
Specifications
Max. Voltage: 600V (1,000V in fixtures and signs)
Connector Size: 38mm x 27.2mm x 24mm
Wire Type: ANY WIRES
Wire Range: Min #22/Max #8
Temperature Rating: 105。C (221。F)
Silicone Sealant: -45。F to 400。F
◆
Benefits of JW1050
- JW1050 is suitable to any typesof wiresor any combinations.
- The splice inside willnotdisconnect after fastening the bolt.
- The wire can bepulledsafely, and the connection won’t loosen even with continuous shaking or vibrating.
- Pre-twisting makeit saferthan connecting inside of a nut, which can be free of overheating due to faulty operation. 5. JW1050 can be directly buried and submersible for prolonged duration.
◆
JW1050 – Selected 600V Wire Combinations
| 1-2 #8 |
1-5#12 |
8 #14 |
| 1 #10w/1-3 #12 |
1 #10w/1-4 #14 or 16 |
2 #10 w/1-2 #14 or 16 |
| 3 #12 w/1 # 14 |
3 #12 w/1-2 #16 or 18 |
2 #14 w/1-3 #16, 18 or 20 |
| 3-6 #18 |
1 #12 w/1-4 #14, 16 or 18 |
2-10 #20 |
