Ring Terminals vs. Spade Terminals: A Comprehensive Selection Guide | Tonful Electric

In the complex world of electrical systems, the reliability of the entire product often hinges on its smallest components. A loose wire or a faulty connection can lead to intermittent performance, system failure, or even hazardous conditions. While engineers focus on major components like processors and power supplies, the humble wire terminal—the critical link between a wire and a connection point—is a component that demands careful consideration.

Among the most common types of wire terminals are ring terminals and spade terminals (also known as fork terminals). Though they serve a similar function, their designs are fundamentally different, leading to significant trade-offs in security, convenience, and application suitability. Choosing the correct terminal is not just a matter of preference; it’s a critical design decision that impacts installation time, maintenance efficiency, and long-term reliability.

This comprehensive guide will explore the nuances of ring and spade terminals, providing the in-depth knowledge required to make informed decisions. We will cover their construction, key differences, installation best practices, and ideal use cases, ensuring you can select the perfect terminal for any project.

What are Ring Terminals?

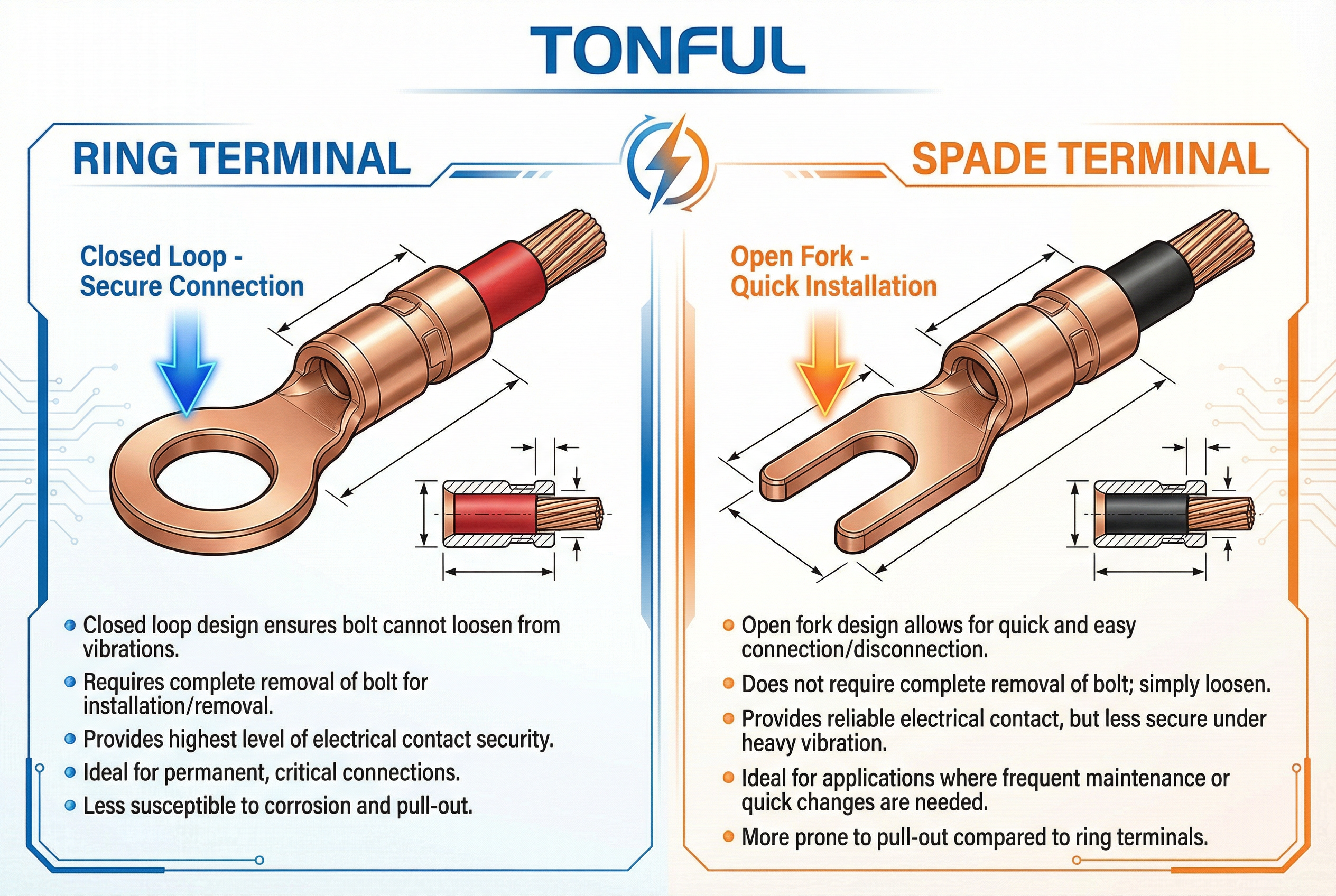

A ring terminal is an electrical connector distinguished by its round, closed-loop tongue. This design requires the complete removal of the fastening screw or stud for installation. The terminal is placed over the bolt, and the screw is then re-inserted and tightened down, creating a highly secure and captive connection.

Construction:
A standard ring terminal consists of two main parts:

• The Barrel: A cylindrical or funnel-shaped sleeve where the stripped wire is inserted. Barrels can be insulated (typically with vinyl, nylon, or heat-shrink tubing) or non-insulated. The barrel is then crimped to create a strong mechanical and electrical bond with the wire.
• The Tongue: The flat, circular ring at the end of the terminal that provides the contact surface. The inner diameter of the ring is specified to match the gauge or diameter of the screw or stud it will be attached to.

Types of Ring Terminals:
Ring terminals come in various forms to suit different needs:

• Non-Insulated Ring Terminals: These are the most basic type, offering a bare metal surface. They are suitable for applications where the connections are protected from shorting and environmental exposure.
• Insulated Ring Terminals: These feature a vinyl (PVC) or nylon sleeve over the barrel. The insulation provides electrical protection to prevent accidental short circuits and can also offer some strain relief for the wire. Nylon is generally preferred for its higher temperature rating and superior durability compared to vinyl.
• Heat-Shrink Ring Terminals: These are a premium option featuring an adhesive-lined heat-shrink sleeve over the barrel. When heated after crimping, the sleeve shrinks to form a tight, environmentally sealed barrier against moisture, chemicals, and dust. This makes them ideal for marine, automotive, and outdoor applications.
• High-Temperature Ring Terminals: Designed for harsh environments like engines or industrial ovens, these terminals are made from materials like nickel-plated steel that can withstand extreme temperatures.
• Open vs. Closed Barrel: Open-barrel terminals are stamped from a flat piece of metal and are common in automated manufacturing. Closed-barrel terminals have a seamless barrel, offering a superior crimp and more robust connection.

What are Spade Terminals?

A spade terminal, also known as a fork terminal or spade lug, is a solderless electrical connector with a distinct, two-pronged, U-shaped tongue. This “fork” design is its defining feature, allowing it to be installed or removed by simply loosening the connection screw, sliding the tongue underneath the screw head, and then retightening. This eliminates the need to fully remove the screw, significantly speeding up installation and maintenance.

Construction:
Similar to a ring terminal, a spade terminal has:

• The Barrel: The section where the wire is inserted and crimped. Like ring terminals, spade terminals are available in non-insulated, insulated (vinyl, nylon), and heat-shrink variations.
• The Tongue: The forked end that makes contact. The width of the opening in the fork is designed to fit a specific range of screw stud sizes.

Types of Spade Terminals:
Spade terminals have several variations that enhance their utility:

• Standard Fork Terminals: The most common type, with a simple U-shaped opening. They are ideal for quick connections to terminal blocks or barrier strips.
• Flanged Spade Terminals: These feature small, upturned tips on the ends of the fork. This design helps keep the terminal in place and prevents it from sliding out from under the screw head, even if the screw becomes slightly loose.
• Locking Spade Terminals: Similar to flanged spades, these have more aggressive spring-like features that press against the underside of the screw head, creating a positive lock that combines the security of a ring with the convenience of a spade.
• Spring Spades: These feature a coiled or spring-like tongue that maintains constant tension against the stud, improving connectivity and vibration resistance.
• Blade Terminals (Quick-Disconnects): While functionally different, blade-style quick-disconnect terminals are often grouped with spades. They consist of a male tab (blade) and a female receptacle, allowing for very fast connection and disconnection without any tools. They are common in automotive and appliance wiring.

Key Differences Between Ring and Spade Terminals

While both connect a wire to a stud, the core difference in their design—closed-loop versus open-fork—creates a cascade of trade-offs that every engineer and technician must understand.

Here is a detailed breakdown of the key differentiators:

1. Design & Connection Security

• Ring Terminals: The closed-loop design offers maximum security. Once fastened, the terminal is physically captured by the screw shaft. It cannot slip out unless the screw is completely removed. This makes it the superior choice for connections where reliability is paramount and failure is not an option.
• Spade Terminals: The open-fork design prioritizes convenience. However, this convenience comes at the cost of security. If the screw loosens due to vibration or thermal cycling, the spade terminal can potentially slide out and disconnect from the circuit. While flanged and locking variations mitigate this risk, they do not match the inherent security of a closed ring.

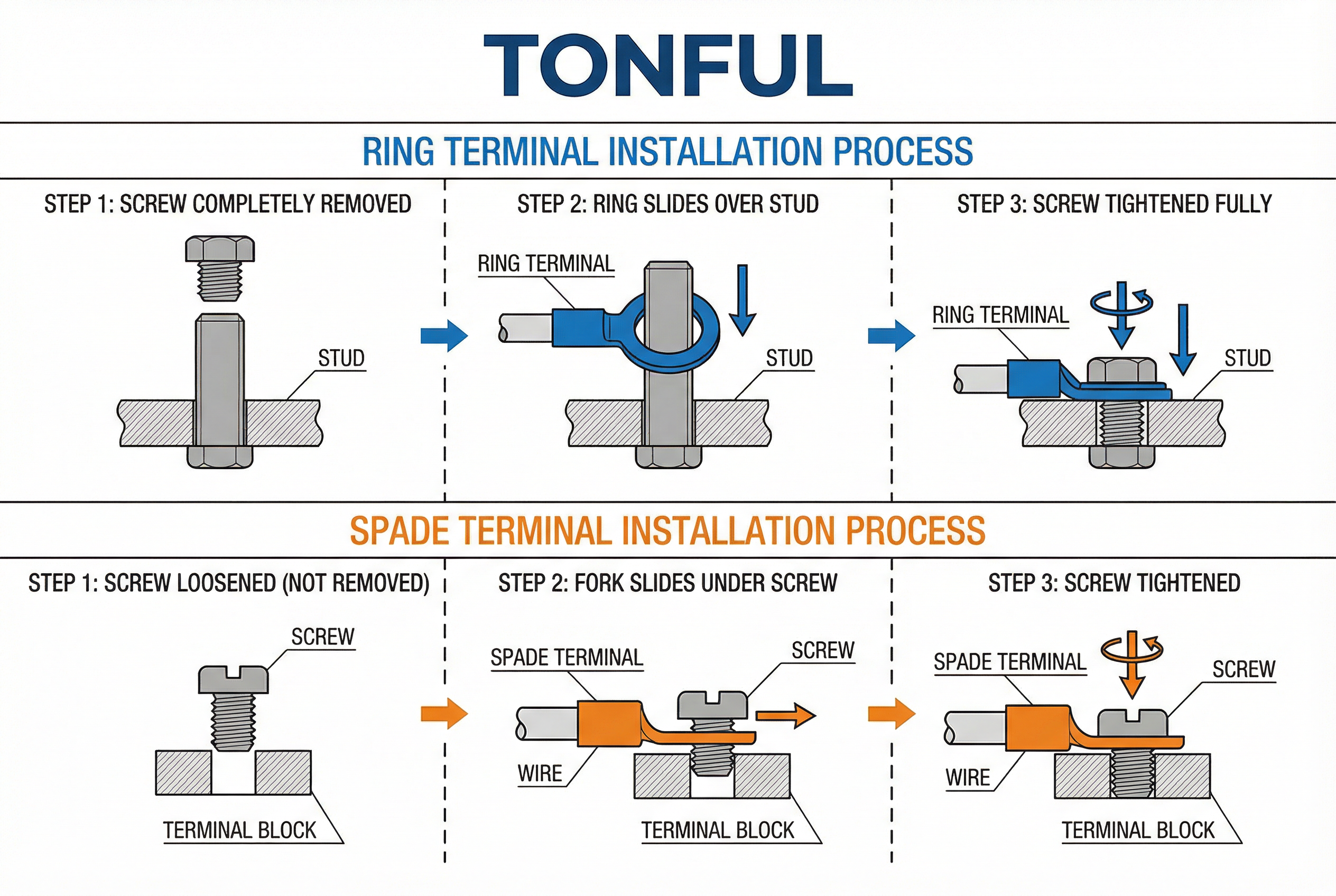

2. Installation & Removal Speed

• Ring Terminals: Installation is a more deliberate process. The technician must completely remove the screw, position the ring terminal over the stud, and then re-insert and fasten the screw. This takes more time, especially in high-density panels with many connections.
• Spade Terminals: This is where spades excel. Installation is exceptionally fast. The technician only needs to loosen the screw enough to slide the fork underneath the screw head before tightening it down. This can result in significant time savings in manufacturing and field service environments.

3. Vibration & Shock Resistance

• Ring Terminals: The captive design makes ring terminals highly resistant to vibration and shock. The closed circle ensures that even under heavy vibration, the terminal cannot dislodge itself from the stud as long as the screw remains in place. This is why they are mandated in high-vibration environments like automotive engines, aerospace, and heavy industrial machinery.
• Spade Terminals: Standard spade terminals are susceptible to loosening and failure under constant vibration. The same forces that can cause a screw to back out slightly are enough to allow a spade fork to slip free. For this reason, standard spades are generally not recommended for applications with significant mechanical stress.

4. Application Suitability

• Ring Terminals: Best for permanent or long-term installations where the connection will not be frequently altered. They are the go-to for critical connections such as power lines, grounding wires, and battery terminals.
• Spade Terminals: Best for applications that may require frequent maintenance, testing, or reconfiguration. Their ease of installation and removal makes them perfect for wiring control panels, prototyping circuits, or connecting to multi-point terminal blocks where removing one wire shouldn’t disturb the others.

Advantages and Disadvantages of Each Type

Ring Terminals

• Advantages:
  • Maximum Security: The connection cannot be accidentally broken if the screw loosens.
  • Excellent Vibration Resistance: The captive design ensures reliability in high-vibration environments.
  • High Reliability: Provides a stable, long-term electrical and mechanical connection.
  • Higher Pull-Out Force: The closed ring can withstand greater physical stress than a spade fork.
• Disadvantages:
  • Slower Installation: Requires complete removal of the screw, which is time-consuming.
  • Difficult to Use in Tight Spaces: If there isn’t enough clearance to remove a screw completely, a ring terminal cannot be used.
  • Less Convenient for Maintenance: Troubleshooting or reconfiguring circuits can be laborious.

Spade Terminals

• Advantages:
  • Fast and Easy Installation: Drastically reduces assembly and maintenance time.
  • Convenient for Maintenance and Testing: Wires can be easily swapped or removed without fully dismantling the connection point.
  • Ideal for Terminal Blocks: Allows for easy addition or removal of wires from a bus bar or barrier strip without disturbing adjacent connections.
• Disadvantages:
  • Lower Connection Security: Can slip out if the screw becomes loose.
  • Poor Vibration Resistance: Not suitable for applications with significant mechanical shock or vibration unless locking-type spades are used.
  • Potential for Intermittent Connections: If not properly tightened, the connection can become loose over time.

When to Use Ring Terminals vs Spade Terminals

Choosing between a ring and a spade terminal comes down to balancing the need for security against the need for convenience.

Use Ring Terminals when:

• Vibration is a factor: This includes any connection in vehicles (cars, trucks, boats), industrial machinery, generators, and aerospace applications.
• The connection is critical for safety or function: Use rings for main power feeds, battery connections, safety grounds, and any other circuit where a failure would have serious consequences.
• The installation is permanent: For “set it and forget it” connections that will not be serviced regularly.
• The environment is harsh: The robust nature of a ring connection, especially when paired with a heat-shrink sleeve, is ideal for outdoor or corrosive environments.

Use Spade Terminals when:

• Speed of assembly is a priority: In high-volume manufacturing, the time saved using spade terminals can significantly reduce labor costs.
• Frequent maintenance or testing is expected: They are perfect for control panels, audio equipment, and test fixtures where components or wires are often changed.
• Connecting to barrier strips or terminal blocks: Spades make it easy to manage multiple wires in a row, as you don’t need to remove all the screws to service a single connection in the middle of the strip.
• Space is limited: In tight enclosures where there is not enough clearance to fully remove a screw, a spade may be the only viable option.

Installation Best Practices

The performance of any terminal, whether ring or spade, is entirely dependent on the quality of its installation. A poorly executed crimp can lead to high resistance, heat generation, and eventual failure. A proper crimp creates a “cold weld”—a gas-tight bond between the wire and the terminal barrel that is mechanically and electrically sound.

Follow these steps for a perfect installation every time:

1. Select the Right Size: Ensure the terminal’s wire gauge range matches your wire, and the stud size matches your connection point. Insulation color-coding often indicates wire gauge: red for 22-16 AWG, blue for 16-14 AWG, and yellow for 12-10 AWG.
2. Strip the Wire Correctly: Use a quality wire stripping tool to remove just enough insulation for the wire to fully insert into the terminal barrel. The insulation should butt up against the end of the barrel. Exposing too much wire creates a shorting risk, while not exposing enough results in a weak crimp.
3. Use the Proper Crimping Tool: This is the most critical step. Never use standard pliers to crimp terminals. Pliers crush the barrel, creating a weak, high-resistance connection. Use a dedicated ratcheting crimper designed for insulated or non-insulated terminals. These tools have shaped dies that apply even, controlled pressure to form a perfect crimp.
4. Crimp in the Correct Location: The crimper’s die should be positioned over the middle of the barrel. For insulated terminals, the tool has specific nests for red, blue, and yellow sizes to apply the correct pressure.
5. Perform a Pull Test: After crimping, give the wire a firm tug. A properly crimped terminal will not pull off. If it does, cut it off and start again.
6. Heat the Sleeve (for Heat-Shrink Terminals): If using heat-shrink terminals, use a heat gun (not a lighter) to gently heat the sleeve until it shrinks and the adhesive flows, creating an environmental seal.

Material and Quality Considerations

Not all terminals are created equal. The materials used in their construction have a significant impact on their conductivity, corrosion resistance, and overall lifespan.

• Core Material: The best terminals use high-conductivity electrolytic copper as their base metal. Copper offers excellent current flow with minimal resistance. Cheaper alternatives like brass or other alloys have lower conductivity, which can lead to heat buildup in high-current applications.
• Plating: Most copper terminals are plated to prevent oxidation and corrosion.
  • Tin-plating is the industry standard. It provides excellent corrosion resistance and a good surface for soldering if needed.
  • Gold-plating is used in specialized applications like high-end audio or low-voltage signal connections. Gold is an exceptional conductor and is highly resistant to corrosion, ensuring a clean signal path, but it is much more expensive.
• Insulation Material:
  • Vinyl (PVC) is a common, low-cost insulator suitable for general-purpose applications. Its main drawback is a lower temperature rating and a tendency to become brittle over time.
  • Nylon is a superior insulator. It has a higher temperature rating than vinyl, is more durable, and better resists abrasion and chemicals.
  • Heat-Shrink Polyolefin provides the ultimate protection. The adhesive-lined tubing creates a waterproof, airtight seal that protects the connection from moisture, salt, and other corrosive elements, while also providing robust strain relief.

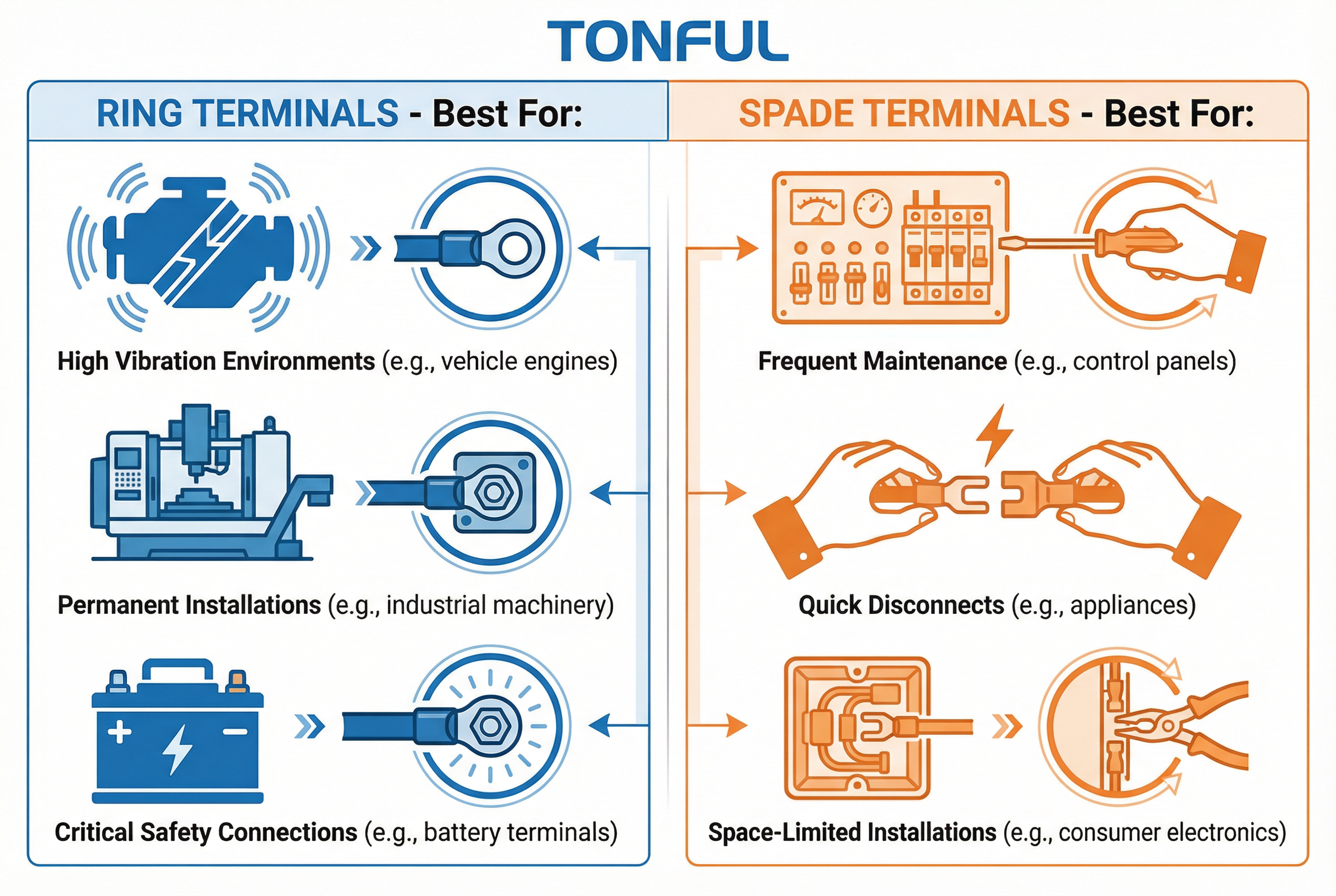

Industry Applications

The choice between ring and spade terminals is made every day across countless industries.

• Automotive: Ring terminals are standard for battery cables, alternator connections, and chassis grounds due to extreme vibration and temperature. Spade terminals are often found in speaker wiring, lighting accessories, and on some sensor connections for ease of service.
• Industrial Control: In factory automation and control cabinets, both are used extensively. Ring terminals secure critical power inputs to drives and power supplies. Spade terminals are ubiquitous on terminal blocks for wiring I/O, sensors, and control signals, where flexibility and speed are key.
• Marine: This environment is brutal on electrical systems due to constant vibration and corrosive salt spray. Heat-shrink ring terminals are the gold standard for virtually all critical connections on a boat to ensure reliability and prevent corrosion.
• Residential & Consumer Electronics: Spade terminals (including quick-disconnect types) are very common inside appliances like washing machines, dryers, and HVAC units, as they simplify manufacturing and repair. Ring terminals are used for primary grounding connections.

Choosing the Right Terminal for Your Project

To select the perfect terminal, answer these questions:

1. How much vibration will the connection experience? (High vibration = Ring)
2. Is this a mission-critical connection? (Yes = Ring)
3. How often will this connection need to be serviced or tested? (Frequently = Spade)
4. Is speed of assembly the top priority? (Yes = Spade)
5. Is the connection exposed to moisture or corrosive elements? (Yes = Heat-Shrink Ring)
6. Am I connecting to a dense terminal block? (Yes = Spade)

By systematically evaluating the demands of your application against the strengths of each terminal type, you can ensure a connection that is both reliable and efficient.

Frequently Asked Questions (FAQ)

1. What is the main difference between a ring and a spade terminal?
The main difference is their shape and installation method. A ring terminal has a closed loop and requires the screw to be fully removed for installation, offering high security. A spade terminal has an open fork and can be installed by just loosening the screw, offering speed and convenience.

2. Is one type of terminal definitively better than the other?
No, one is not universally better. The “better” terminal depends entirely on the application. Ring terminals are better for security and vibration resistance, while spade terminals are better for speed and ease of maintenance.

3. Can I use a spade terminal where a ring terminal is recommended?
It is generally not advised, especially in high-vibration or critical applications. Using a spade terminal where a ring is needed compromises the connection’s long-term security and reliability. While a locking spade can be an improvement, it still doesn’t match the captive security of a ring.

4. What are the most common uses for each terminal?
Ring terminals are most common for permanent, high-vibration, or critical connections like battery cables, vehicle grounds, and industrial machine power inputs. Spade terminals are common for connections to terminal blocks, in consumer appliances, and in applications requiring frequent access for testing or maintenance.

Conclusion: The Right Connection for the Job

The debate between ring and spade terminals isn’t about which is superior overall, but which is superior for a specific task. Ring terminals offer unmatched security and reliability, making them the undisputed choice for permanent, high-vibration, and mission-critical applications. Spade terminals provide unparalleled speed and convenience, making them the go-to for mass production and easily serviceable connections.

Choosing the right terminal is the first step toward a robust electrical system. The second, equally important step, is choosing a quality supplier. A terminal’s performance is only as good as the materials it’s made from and the precision with which it was manufactured.

At TONFUL Electric, we specialize in manufacturing a wide range of high-performance ring and spade terminals to meet the exacting standards of any industry. From tin-plated copper to fully sealed heat-shrink options, our products are engineered for reliability and performance. Contact us today to discuss your project needs and let our experts help you build connections that last.
