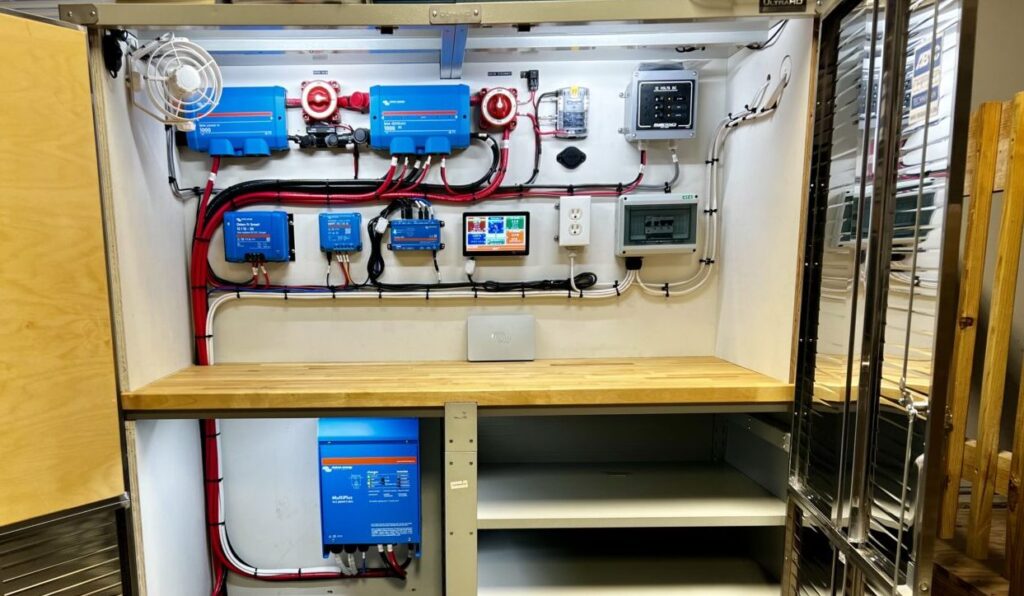

Marine electrical wiring is the specialized electrical system designed to safely distribute power throughout boats and marine vessels while withstanding harsh saltwater environments, constant vibration, and moisture exposure. Proper marine electrical wiring prevents electrical fires, corrosion damage, and ensures reliable power distribution for navigation, safety equipment, and onboard systems.
Understanding marine electrical wiring is critical for boat safety, as improper electrical systems cause over 15% of boat fires according to Coast Guard statistics. This guide provides everything you need to know about marine electrical standards, wire selection, installation techniques, and safety requirements.
What Makes Marine Electrical Wiring Different from Household Wiring?
Marine electrical wiring differs significantly from household electrical systems due to the unique challenges of the marine environment:
| Factor | Marine Wiring | Household Wiring | Why It Matters |
|---|---|---|---|
| Environment | Saltwater, humidity, vibration | Dry, stable conditions | Corrosion prevention critical |
| Wire Type | Tinned copper, marine-grade | Standard copper | Saltwater corrosion resistance |
| Insulation | Heavy-duty, moisture-resistant | Standard PVC | Water intrusion prevention |
| Standards | ABYC E-11, USCG CFR 33 | NEC electrical code | Marine safety requirements |
| Connections | Heat shrink, marine terminals | Wire nuts, standard terminals | Waterproof sealing required |
| Fusing | Individual circuit protection | Branch circuit protection | Overcurrent safety in wet conditions |
💡 Expert Tip: Never use automotive or household wire in marine applications. Only use wire specifically rated for marine environments with proper tinned copper conductors.
Types of Marine Electrical Wire
Primary Marine Wire Categories
1. Primary Wire (Low Voltage DC)
- Voltage Rating: Up to 60V DC
- Applications: Lights, electronics, pumps, fans
- Standards: ABYC Type 3, UL 1426
- Insulation: PVC or cross-linked polyethylene
2. Duplex Wire
- Configuration: Two conductors in single jacket
- Applications: Running lights, horn circuits
- Advantage: Reduced installation time and space
3. Triplex Wire
- Configuration: Three conductors in single jacket
- Applications: Navigation light circuits
- Benefit: Simplified wiring runs
Marine Wire Specifications Comparison
| Wire Type | Voltage Rating | Temperature Rating | Flexibility | Primary Use |
|---|---|---|---|---|
| Type 3 Primary | 60V DC | 105°C | High | General purpose |
| Duplex | 60V DC | 105°C | Medium | Paired circuits |
| Triplex | 60V DC | 105°C | Medium | Multi-conductor runs |
| Battery Cable | 12V-24V DC | 105°C | Low | High current |
American Boat and Yacht Council (ABYC) Standards
ABYC E-11 Standard Requirements
The ABYC E-11 standard governs marine electrical systems and includes these critical requirements:
Wire Construction Standards:
- Conductors must be annealed tinned copper
- Stranding minimum: 19 strands for 14 AWG and smaller
- Insulation must be rated for marine environment
- Color coding must follow ABYC standards
Installation Requirements:
- All wire must be supported every 18 inches
- No wire smaller than 16 AWG except for specific applications
- Connections below waterline require special protection
- Overcurrent protection required for all circuits
⚠️ Safety Warning: Non-compliance with ABYC standards can void insurance coverage and create serious safety hazards. Always follow ABYC E-11 guidelines for marine electrical installations.
ABYC Wire Color Standards
| Color | Application | Voltage | Notes |
|---|---|---|---|
| Red | Positive DC | 12V/24V | Battery positive |
| Yellow | Negative DC | 12V/24V | Battery negative |
| Orange | Accessory feed | 12V/24V | Ignition controlled |
| Purple | Ignition | 12V/24V | Switch controlled |
| Blue | Cabin lights | 12V/24V | Interior lighting |
| White | Navigation lights | 12V/24V | Required by regulations |
Marine Wire Gauge Selection Guide
Voltage Drop Calculation
Proper wire gauge selection prevents voltage drop, which can damage equipment and reduce performance:
Formula: Voltage Drop = (2 × Length × Current × Resistance) ÷ 1000
Wire Gauge Chart for 12V DC Systems
| Current (Amps) | 10 ft | 15 ft | 20 ft | 25 ft | 30 ft |
|---|---|---|---|---|---|
| 5A | 16 AWG | 14 AWG | 12 AWG | 12 AWG | 10 AWG |
| 10A | 14 AWG | 12 AWG | 10 AWG | 10 AWG | 8 AWG |
| 15A | 12 AWG | 10 AWG | 8 AWG | 8 AWG | 6 AWG |
| 20A | 10 AWG | 8 AWG | 6 AWG | 6 AWG | 4 AWG |
| 30A | 8 AWG | 6 AWG | 4 AWG | 2 AWG | 2 AWG |
💡 Expert Tip: Always calculate wire runs as round-trip distance (positive and negative). Allow 3% maximum voltage drop for critical systems like navigation equipment.
Step-by-Step Marine Wiring Installation Process
Phase 1: Planning and Preparation
1. System Design
- Create detailed wiring diagram
- Calculate all electrical loads
- Plan wire routing and support
- Select appropriate overcurrent protection
2. Code Compliance Check
- Verify ABYC E-11 requirements
- Check local marine electrical codes
- Ensure Coast Guard compliance
- Plan inspection access points
Phase 2: Installation Execution
3. Wire Route Preparation
- Install proper wire supports every 18 inches
- Use protective conduit in high-wear areas
- Ensure drainage and ventilation
- Plan access for maintenance
4. Wire Installation Process
- Pull wires with proper fish tape
- Maintain service loops at connections
- Avoid sharp bends and stress points
- Label all wires at both ends
5. Connection Techniques
- Use only marine-grade terminals
- Apply heat shrink tubing properly
- Ensure watertight connections
- Test all connections before energizing
Phase 3: Testing and Documentation
6. System Testing
- Verify polarity on all circuits
- Test voltage under load conditions
- Check ground fault protection
- Confirm overcurrent protection operation
7. Final Documentation
- Update vessel wiring diagram
- Record all circuit information
- Create maintenance schedule
- File inspection certificates
Marine Electrical Safety Requirements
Ground Fault Protection
ABYC Requirements:
- All 120V AC circuits require GFCI protection
- Shore power connections must include isolation transformer
- Bonding system required for all through-hulls
- Equipment grounding conductor mandatory
Overcurrent Protection Standards
| Circuit Type | Protection Required | Maximum Rating | Location |
|---|---|---|---|
| Branch Circuits | Fuse or circuit breaker | 150% of wire rating | Distribution panel |
| Feeder Circuits | Main breaker | Calculated load +25% | Main panel |
| Motor Circuits | Motor protection | 250% of motor rating | At motor |
| Battery Circuits | Class T fuse | Battery capacity/4 | Within 7 inches |
⚠️ Safety Warning: Never bypass or increase overcurrent protection ratings. Oversized protection can cause wire overheating and fire.
Common Marine Wiring Problems and Solutions
Corrosion Prevention
Problem: Green corrosion on connections and terminals
Causes: Saltwater exposure, improper materials, poor sealing
Solutions:
- Use only tinned copper wire and terminals
- Apply proper heat shrink sealing
- Install sacrificial anodes in electrical system
- Regular inspection and maintenance
Voltage Drop Issues
Problem: Equipment operating below rated voltage
Causes: Undersized wire, poor connections, long wire runs
Solutions:
- Recalculate wire gauge using proper formulas
- Upgrade to larger wire size
- Improve connection quality
- Install voltage monitoring system
💡 Expert Tip: Use a quality digital multimeter to measure voltage drop under load. More than 3% drop indicates wiring problems.
How to Choose Marine Electrical Wire
Selection Criteria Checklist
✓ Wire Specifications:
- Tinned copper conductors only
- Marine-grade insulation rating
- Proper temperature rating (105°C minimum)
- ABYC E-11 compliance certification
✓ Environmental Factors:
- Saltwater resistance rating
- UV exposure protection
- Vibration tolerance
- Moisture penetration resistance
✓ Installation Requirements:
- Appropriate gauge for current load
- Correct color coding for application
- Sufficient flexibility for installation
- Compatible with marine terminals
Recommended Marine Wire Manufacturers
| Manufacturer | Product Line | Key Features | Applications |
|---|---|---|---|
| Ancor | Marine Grade | Tinned copper, 105°C | General purpose |
| Pacer | SeaChoice | ABYC compliant | Budget-friendly |
| TEMCo | Marine Wire | Heavy duty insulation | High-current applications |
| WM | Boat Cable | Premium grade | Professional installations |
Marine Electrical Code Compliance
U.S. Coast Guard Requirements (33 CFR)
Mandatory Standards:
- All wiring must meet ABYC standards
- Overcurrent protection required
- Proper conductor sizing mandatory
- Installation accessibility required
Inspection Requirements:
- Commercial vessels require annual inspection
- Recreational boats subject to safety checks
- Insurance may require ABYC compliance
- Resale value affected by code compliance
International Standards
NMEA Compliance:
- Navigation electronics wiring standards
- Data communication protocols
- Equipment compatibility requirements
- Installation best practices
ISO Standards:
- ISO 13297: Marine electrical installations
- ISO 10133: DC electrical systems
- ISO 11606: Marine batteries
- ISO 13929: AC electrical systems
Maintenance and Troubleshooting Guide
Annual Inspection Checklist
Visual Inspection Points:
- [ ] Wire insulation condition
- [ ] Connection corrosion check
- [ ] Support and routing verification
- [ ] Panel and breaker operation
- [ ] Ground system continuity
- [ ] Battery terminal condition
Electrical Testing:
- [ ] Voltage drop measurements
- [ ] Insulation resistance testing
- [ ] Ground fault circuit testing
- [ ] Load current verification
- [ ] Battery charging system check
- [ ] Shore power connection testing
Professional Service Recommendations
When to Call a Marine Electrician:
- Complex system modifications
- Shore power installation
- Generator integration
- Navigation system wiring
- Insurance compliance issues
- Safety equipment installation
💡 Expert Tip: Keep detailed maintenance records for insurance purposes and resale value. Document all electrical work with photos and test results.
Frequently Asked Questions
Q: Can I use automotive wire for marine applications?
A: No, automotive wire lacks the corrosion resistance and marine environment rating required for boat electrical systems. Always use marine-grade wire with tinned copper conductors.
Q: What’s the minimum wire size allowed in marine applications?
A: ABYC standards require minimum 16 AWG wire for most applications, with exceptions for specific low-current circuits like instruments.
Q: How often should marine electrical systems be inspected?
A: Annual comprehensive inspection is recommended, with monthly visual checks of connections and panels for corrosion or damage.
Q: Is ABYC compliance mandatory for recreational boats?
A: While not legally required for recreational vessels, ABYC compliance is essential for safety and may be required by insurance companies.
Q: What causes most marine electrical fires?
A: Poor connections, undersized wiring, and lack of proper overcurrent protection account for the majority of marine electrical fires.
Q: Can I install marine electrical systems myself?
A: Simple installations may be DIY projects, but complex systems should be installed by certified marine electricians to ensure safety and code compliance.
Q: What’s the difference between marine and regular electrical panels?
A: Marine panels feature corrosion-resistant materials, proper drainage, ignition protection, and ABYC-compliant overcurrent protection designed for marine environments.
Q: How do I calculate the right wire size for my application?
A: Use the voltage drop formula considering current load, wire length, and acceptable voltage drop (typically 3% maximum for critical systems).
Quick Reference: Marine Wiring Essentials
Essential Tools:
- Marine-grade wire strippers
- Heat shrink tubing and heat gun
- Marine electrical tester
- Crimping tool for marine terminals
- Digital multimeter
Required Materials:
- Tinned copper marine wire
- Marine-grade terminals and connectors
- Heat shrink tubing
- Cable ties and wire supports
- Marine-grade fuses and breakers
Safety Equipment:
- GFCI outlets for 120V systems
- Proper grounding equipment
- Fire extinguisher rated for electrical fires
- Emergency shut-off switches
Marine electrical wiring requires specialized knowledge, proper materials, and strict adherence to safety standards. When in doubt, consult with a certified marine electrician to ensure your vessel’s electrical system is safe, compliant, and reliable. Proper marine electrical installation protects your investment and, more importantly, keeps you and your passengers safe on the water.
