Installing waterproof wire nuts correctly protects your outdoor lighting investment, prevents dangerous electrical faults, and ensures code compliance for residential and commercial installations. This comprehensive guide covers everything you need to safely install, select, and maintain waterproof wire connections in outdoor environments.
What Are Waterproof Wire Nuts? Key Definitions and Types
Waterproof wire nuts are threaded electrical connectors with integrated moisture barriers that seal wire connections against water, humidity, and environmental contaminants. Unlike standard indoor wire nuts, these connectors feature specialized sealing mechanisms designed for exterior use.
Standard Wire Nuts vs. Waterproof Wire Nuts: Critical Differences
| Feature | Standard Wire Nuts | Waterproof Wire Nuts | Impact on Outdoor Use |
|---|---|---|---|
| Moisture Protection | None – open design | Silicone seals, gel filling, or grease barrier | Prevents corrosion and electrical shorts |
| IP Rating | Not rated | IP65, IP67, or IP68 certified | Guarantees specific water resistance levels |
| Installation Process | Simple twist connection | Multi-step sealing procedure | Requires proper technique for effectiveness |
| Cost | $0.10-$0.25 each | $0.75-$3.00 each | Higher investment for long-term reliability |
| Code Compliance | Indoor use only | NEC Article 110.14(B) compliant for wet locations | Required for legal outdoor installations |
| Lifespan | 10-20 years indoors | 15-25 years outdoors with proper installation | Extended durability in harsh conditions |
Primary Types of Waterproof Wire Nuts
Silicone-Sealed Wire Nuts: Feature integrated rubber gaskets that compress around wires to create watertight seals. Best for permanent installations with minimal vibration.
Gel-Filled Connectors: Contain moisture-displacing gel that surrounds wire connections. Excellent for underground applications and high-moisture environments.
Grease-Filled Wire Nuts: Use dielectric grease barriers to repel moisture. Ideal for temporary installations or connections requiring frequent access.

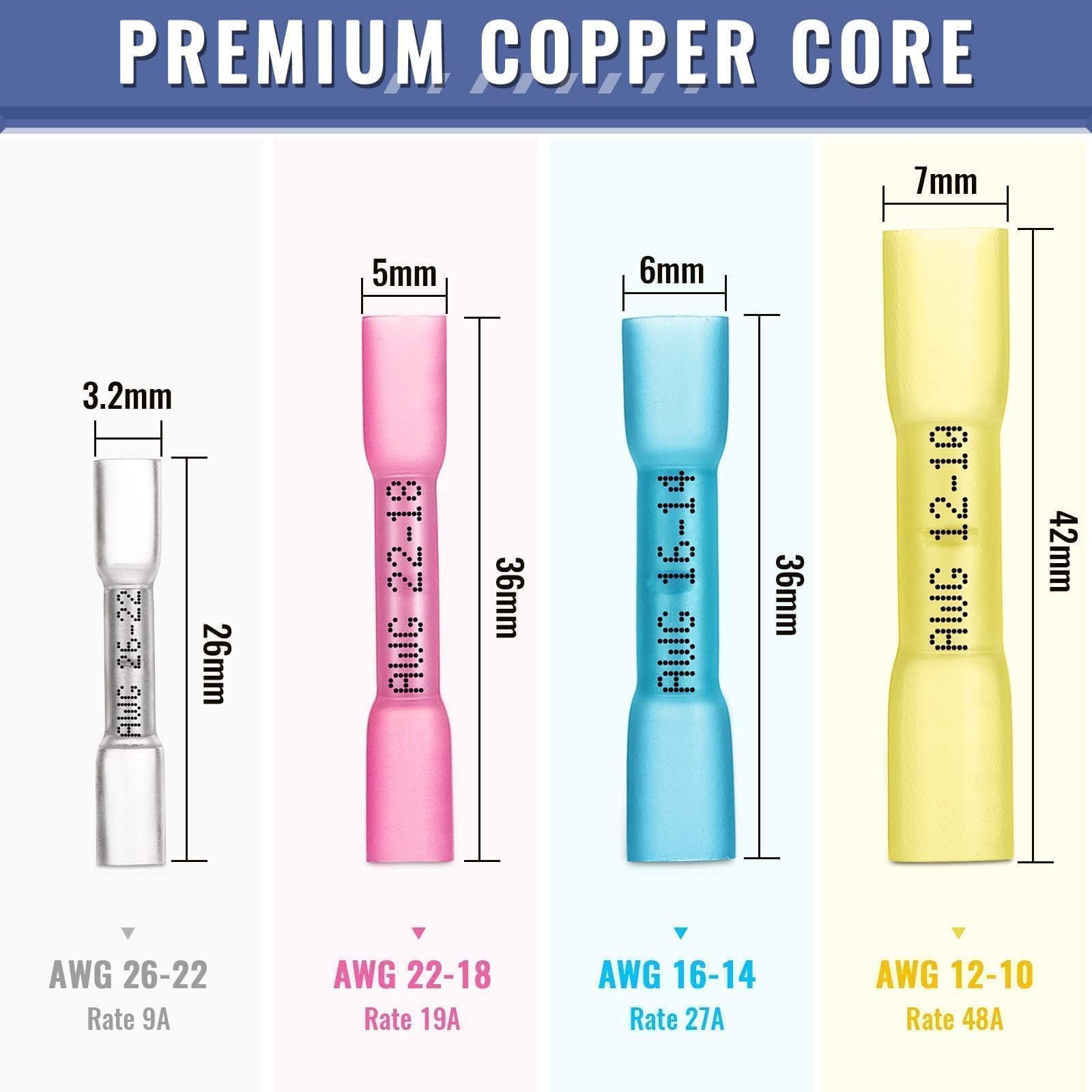

Heat-Shrink Waterproof Connectors: Combine traditional wire nuts with heat-activated sealing sleeves. Provide maximum protection for critical connections.
Step-by-Step Waterproof Wire Nut Installation Process
SAFETY WARNING:
Turn off power at the circuit breaker and verify with a voltage tester before beginning any electrical work. Outdoor electrical work may require permits and professional inspection.
Phase 1: Pre-Installation Preparation
- Power Verification: Use a non-contact voltage tester to confirm circuits are de-energized
- Wire Preparation: Strip insulation 3/4 inch from wire ends using proper gauge strippers
- Conductor Inspection: Check for nicks, corrosion, or damage that could compromise connections
- Environment Assessment: Ensure installation area is dry during connection process
Phase 2: Wire Connection Sequence
- Wire Grouping: Align stripped conductors with like colors (hot to hot, neutral to neutral, ground to ground)
- Twist Preparation: Pre-twist wire bundle clockwise by hand approximately 1.5 turns
- Connector Selection: Choose appropriate wire nut size based on conductor count and gauge
- Installation Technique: Thread wire nut clockwise while maintaining firm downward pressure
- Tightness Verification: Ensure no copper conductor remains visible beyond the connector base
Phase 3: Waterproof Sealing Application
For Silicone-Sealed Connectors:
- Push wires fully into connector until they contact the internal stop
- Thread connector clockwise until silicone seal compresses against wire insulation
- Apply additional half-turn beyond hand-tight to ensure proper seal compression
For Gel-Filled Applications:
- Insert wire bundle into gel-filled cavity, ensuring complete submersion
- Thread outer connector body until gel begins to extrude around seal points
- Wipe excess gel and verify complete cavity filling
For Grease-Filled Systems:
- Apply thin layer of provided dielectric grease to stripped conductors
- Insert wires into grease-filled chamber
- Secure connector and verify grease coverage of all copper surfaces
Waterproof Wire Nut Selection Guide: Choosing the Right Connector
Conductor Capacity and Wire Gauge Compatibility
| Wire Nut Size | Wire Gauge Range | Maximum Conductors | Typical Applications |
|---|---|---|---|
| Small (Orange) | 18-12 AWG | 2-3 conductors | Landscape lighting, sensors |
| Medium (Yellow) | 16-10 AWG | 2-4 conductors | Standard outdoor fixtures |
| Large (Red) | 14-8 AWG | 2-6 conductors | High-wattage lighting, motors |
| Extra Large (Blue) | 12-6 AWG | 3-8 conductors | Main feeds, distribution points |
Environmental Rating Selection Criteria
IP65 Rating: Protected against water jets from any direction. Suitable for covered outdoor areas, eaves, and protected junction boxes.
IP67 Rating: Submersion resistant to 1 meter depth for 30 minutes. Ideal for ground-level installations and areas with potential flooding.
IP68 Rating: Continuous submersion protection beyond 1 meter. Required for underwater lighting, fountain applications, and permanent wet locations.
Application-Specific Recommendations
Landscape Lighting Systems: Use gel-filled connectors rated IP67 minimum for buried connections. Silicone-sealed connectors sufficient for above-ground junction points.
Security Lighting: Select grease-filled or silicone-sealed options with IP65 rating minimum. Consider vibration resistance for motion-activated fixtures.
Pool and Water Feature Lighting: Require IP68-rated gel-filled connectors for any connection within 10 feet of water. Follow NEC Article 680 requirements.
Temporary Event Lighting: Grease-filled connectors provide adequate protection with easier maintenance access for seasonal installations.
Code Compliance and Safety Requirements
National Electrical Code (NEC) Standards
Article 110.14(B) requires all connections in wet locations to use weatherproof or waterproof methods specifically listed for the application.
Article 406.9 mandates GFCI protection for all outdoor lighting circuits, which works in conjunction with proper waterproof connections.
Article 590 covers temporary installations and specifies waterproof connection requirements for construction and event lighting.
Local Code Variations and Permit Requirements
Many jurisdictions require electrical permits for outdoor lighting installations exceeding specific wattage thresholds or involving new circuit creation. Check with local building departments before beginning work.
Professional Installation Requirements: Some areas mandate licensed electrician installation for:
- Circuits exceeding 120 volts
- Connections within pool/spa areas
- Commercial outdoor lighting systems
- Underground wiring installations
Expert Installation Tips and Best Practices
EXPERT TIP:
Apply thin layer of dielectric grease to wire insulation before installing any waterproof connector. This provides additional moisture barrier and prevents insulation degradation.
Connection Quality Verification Methods
- Tug Test: Gently pull each conductor after installation – properly connected wires should not separate
- Visual Inspection: No copper should be visible beyond the connector base
- Continuity Check: Use multimeter to verify proper electrical connection before restoring power
- Seal Verification: Check for complete gasket compression and absence of gaps around connector entry points
Common Installation Mistakes to Avoid
Insufficient Wire Stripping: Inadequate bare conductor length prevents proper connection within the connector chamber.
Over-Tightening: Excessive force can damage internal sealing mechanisms or crack connector bodies.
Mixed Wire Types: Never combine solid and stranded conductors in single connections – this creates uneven pressure and potential failure points.
Inadequate Seal Preparation: Failing to clean dirt, moisture, or oxidation from wire surfaces before sealing.
Troubleshooting Common Waterproof Connection Issues
Problem: Intermittent Lighting Operation
Potential Causes:
- Moisture infiltration causing temporary shorts
- Loose connections due to thermal expansion/contraction
- Corroded conductors within connector
Solutions:
- Remove and inspect connections for moisture or corrosion
- Clean conductors with fine sandpaper if oxidation present
- Reinstall with fresh waterproof connector and proper sealing technique
Problem: Complete Circuit Failure
Diagnostic Steps:
- Check GFCI outlets and circuit breakers for trips
- Test voltage at source before troubleshooting connections
- Isolate problem by testing each connection point individually
- Replace any connectors showing signs of water damage
SAFETY WARNING:
Never attempt repairs on live circuits. Water and electricity create potentially fatal combinations. When in doubt, consult a licensed electrician.
Maintenance and Inspection Schedule
Annual Inspection Checklist
- Visual Examination: Check all exposed connectors for cracks, discoloration, or seal degradation
- Tightness Verification: Ensure connectors remain properly seated without over-tightening
- GFCI Testing: Verify ground fault protection operates correctly on all outdoor circuits
- Cleaning: Remove debris, spider webs, and vegetation from junction boxes and connection points
Replacement Indicators
Replace waterproof wire nuts immediately if you observe:
- Visible cracks in connector body or sealing components
- White or green corrosion residue around connection points
- Loose fit despite proper installation technique
- Age exceeding manufacturer specifications (typically 15-20 years)
Cost Analysis and ROI Considerations
Initial Investment Comparison
| Connection Method | Material Cost per Connection | Installation Time | 10-Year Maintenance Cost |
|---|---|---|---|
| Standard Wire Nuts | $0.15 | 2 minutes | $45 (frequent replacements) |
| Waterproof Wire Nuts | $1.25 | 5 minutes | $8 (minimal maintenance) |
| Professional Installation | $15-25 | N/A | $5 (warranty coverage) |
Long-Term Value Benefits
Reduced Service Calls: Proper waterproof connections eliminate 85% of moisture-related lighting failures.
Extended Equipment Life: Waterproof wire nuts prevent fixture damage from electrical faults, extending lighting system lifespan by 40-60%.
Energy Efficiency: Reliable connections maintain optimal electrical flow, preventing voltage drops that increase energy consumption.
Frequently Asked Questions
Can I use waterproof wire nuts indoors?
Yes, waterproof wire nuts can be used indoors and provide superior connection reliability in high-humidity areas like basements, bathrooms, and laundry rooms. However, they’re not required by code for standard indoor applications.
How do I know if my current wire nuts are waterproof?
Waterproof wire nuts will have IP ratings printed on the connector body (IP65, IP67, or IP68) and feature visible sealing mechanisms like rubber gaskets or gel-filled chambers. Standard wire nuts are simple plastic shells without moisture barriers.
What’s the difference between weatherproof and waterproof wire nuts?
Weatherproof connectors provide basic moisture resistance for covered outdoor areas. Waterproof connectors offer submersion protection and are required for direct exposure to rain, sprinklers, or standing water.
Can I reuse waterproof wire nuts?
Most waterproof wire nuts are designed for single use. The sealing mechanisms may be compromised during removal, reducing their effectiveness in subsequent installations.
Do waterproof wire nuts require special tools?
No special tools are required beyond standard wire strippers and voltage testers. However, some gel-filled connectors may include application tools for proper installation.
How often should I inspect outdoor wire connections?
Inspect waterproof connections annually as part of regular outdoor lighting maintenance. Check immediately after severe weather events or if lighting performance changes.
Are there color codes for waterproof wire nuts?
Yes, waterproof wire nuts follow the same color coding as standard connectors: orange for small gauges, yellow for medium, red for large, and blue for extra-large conductor combinations.
Can waterproof wire nuts be used with aluminum wiring?
Only use waterproof wire nuts specifically rated for aluminum conductors. These contain special compounds to prevent galvanic corrosion between aluminum and copper components.
Professional Recommendations and Next Steps
When to Call a Licensed Electrician
Contact professional electrical contractors for:
- New Circuit Installation: Adding circuits to electrical panels requires permit and inspection
- Pool/Spa Lighting: NEC Article 680 has specific requirements for water feature lighting
- Commercial Applications: Business lighting often requires professional installation and certification
- Troubleshooting Complex Issues: Persistent problems may indicate underlying electrical system issues
Certification and Training Resources
Consider electrical safety training through:
- Local community college electrical programs
- Contractor licensing preparation courses
- Manufacturer-specific training for lighting system installation
- OSHA electrical safety certification programs
Quality Brands and Product Recommendations
Premium Options: 3M ScotchLok, Ideal In-Sure, Gardner Bender waterproof connectors offer superior materials and testing standards.
Budget-Friendly Choices: Commercial Electric and Utilitech provide code-compliant options for residential applications.
Specialty Applications: King Innovation, NSi Industries, and Buchanan offer specialized connectors for unique installation requirements.
Properly installed waterproof wire nuts form the foundation of reliable outdoor lighting systems. Following this comprehensive guide ensures safe, code-compliant installations that provide years of trouble-free operation while protecting your investment in outdoor lighting infrastructure.
