Understanding automotive fuses is crucial for every vehicle owner because they prevent costly electrical system damage and potential fire hazards. When you know how to identify, test, and replace fuses, you can quickly diagnose electrical problems and maintain your vehicle’s safety systems.
What Makes Automotive Fuses Different from Household Fuses?
Automotive fuses operate in much harsher conditions than household fuses. They must withstand constant vibration, temperature extremes from -40°F to 185°F, moisture exposure, and voltage fluctuations from the vehicle’s charging system. Unlike household fuses rated for steady 120V AC power, automotive fuses handle 12V or 24V DC power with frequent load changes.
Key Definitions: Understanding Fuse Terminology
Amperage Rating: The maximum current a fuse can carry before it fails, measured in amperes (amps). Common automotive ratings range from 5A to 100A.
Voltage Rating: The maximum voltage the fuse can safely interrupt. Most automotive fuses are rated for 32V DC, providing safety margin above the vehicle’s 12V system.
Interrupt Rating: The maximum fault current the fuse can safely clear without creating dangerous arcing or fire hazards.
Time-Current Characteristic: How quickly a fuse responds to overcurrent conditions. Automotive fuses are typically “fast-acting” to protect sensitive electronics.

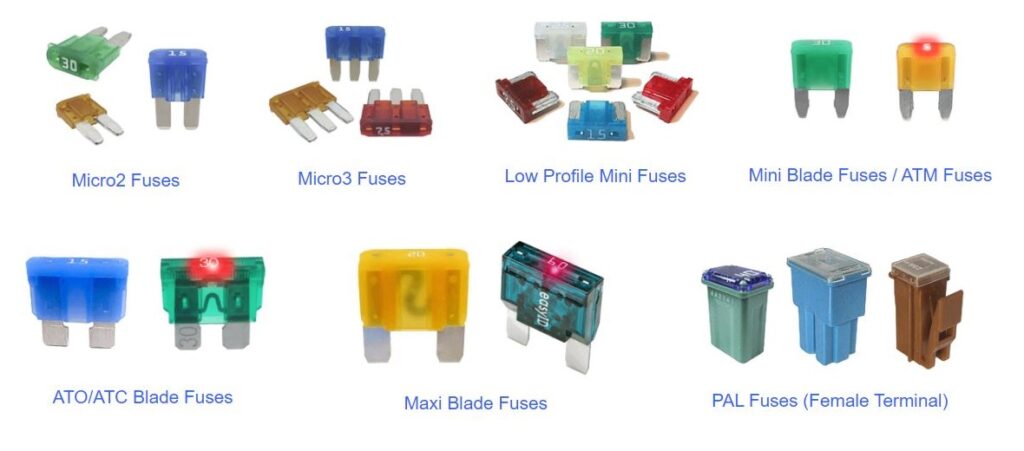

Types of Automotive Fuses: Complete Comparison
Here is a table that shows the main types of automotive fuses and their characteristics:
| Fuse Type | Size (mm) | Amperage Range | Common Applications | Identification Features |
|---|---|---|---|---|
| Mini (ATO/ATC) | 15.9 x 10.9 x 4.1 | 3A to 30A | Lights, accessories, ECUs | Color-coded, translucent body |
| Standard (ATO) | 19.1 x 13.5 x 5.1 | 3A to 40A | General circuits, older vehicles | Larger than mini, color-coded |
| Micro (ATM) | 15.0 x 10.9 x 3.6 | 5A to 30A | Space-constrained applications | Smallest blade fuse |
| Maxi (APX) | 29.2 x 8.5 x 34.3 | 30A to 100A | High-current: AC, alternator | Large size, high amperage |
| Mega (AMG) | 58.5 x 41.8 x 24.0 | 100A to 500A | Main power distribution | Bolt-down terminals |
| Glass Tube (AGC) | 6.3 x 32mm | 1A to 30A | European vehicles, specialty | Glass body with metal caps |
How Automotive Fuses Work: The Protection Process
Step 1: Normal Operation
Current flows through the fuse’s metal element, which is designed to carry the rated current indefinitely without heating excessively.
Step 2: Overload Detection
When current exceeds the fuse rating by 35-50%, the metal element begins heating beyond its melting point.
Step 3: Protective Action
The element melts or vaporizes, creating an open circuit that stops current flow and protects downstream components.
Step 4: Visual Indication
Most modern automotive fuses provide visual indication of failure through a burned element visible through the translucent body or an LED indicator.
Automotive Fuse Color Codes: Quick Reference Guide
Here is a table that shows standard automotive fuse color codes:
| Color | Amperage | Typical Uses |
|---|---|---|
| Brown | 7.5A | Interior lights, radio memory |
| Red | 10A | Parking lights, instrument cluster |
| Blue | 15A | Headlight low beam, horn |
| Yellow | 20A | Headlight high beam, fog lights |
| Clear/White | 25A | AC blower motor, heated seats |
| Green | 30A | Window motors, cooling fans |
⚠️ Safety Warning: Never replace a fuse with one of higher amperage rating. This eliminates overcurrent protection and can cause electrical fires or component damage.
Where to Find Automotive Fuses in Your Vehicle
Primary Fuse Box Locations:
- Under-hood fuse box: Near the battery or along the firewall, contains high-amperage fuses for engine systems
- Interior fuse panel: Usually left of the steering wheel or in the glove compartment, houses low-amperage accessory fuses
- Trunk/rear fuse box: In some vehicles, contains fuses for rear lighting and accessories
Expert Tip: Always consult your vehicle’s owner’s manual or the fuse box diagram for exact fuse locations and amperage ratings. Generic replacements may not provide proper protection.
How to Test and Replace Automotive Fuses
Testing Process:
- Turn off the ignition and remove the key
- Locate the suspected fuse using the vehicle’s fuse diagram
- Remove the fuse using fuse pullers or needle-nose pliers
- Visually inspect the metal element through the translucent body
- Use a multimeter to test continuity if visual inspection is unclear
Replacement Steps:
- Purchase the exact amperage and type replacement fuse
- Ensure the ignition is off and the affected circuit is not energized
- Remove the blown fuse completely
- Insert the new fuse firmly until it clicks into place
- Test the circuit operation before closing the fuse box
Professional Recommendation: If a fuse blows repeatedly, stop replacing it and consult a qualified automotive electrician. Repeated failures indicate an underlying electrical problem that requires professional diagnosis.
Automotive Fuse Applications and Circuit Protection
Engine Management Systems:
- ECU power supply: 15-20A mini fuses
- Fuel injection: 15-20A for injector drivers
- Ignition system: 20-30A for coil power
Lighting Systems:
- Headlights: 15A (low beam), 20A (high beam)
- Turn signals: 15A shared circuit
- Brake lights: 20A including CHMSL
Comfort and Convenience:
- Power windows: 30A per motor
- Air conditioning: 30-40A for blower motor
- Radio/infotainment: 15A for main power
Safety Systems:
- ABS: 40A for pump motor
- Airbag systems: 10A for control module
- Anti-theft: 10A for security systems
Common Fuse Problems and Troubleshooting
Symptoms of Blown Fuses:
- Complete loss of electrical function in specific circuits
- No dashboard warning lights for affected systems
- Normal operation of other electrical components
What Causes Fuses to Blow:
- Short circuits: Damaged wiring touching ground or power
- Component failure: Motors, relays, or modules drawing excessive current
- Overloaded circuits: Too many accessories on one circuit
- Moisture intrusion: Corrosion creating current paths
- Vibration damage: Loose connections creating arcing
When to Call a Professional:
- Fuses blow repeatedly after replacement
- Multiple fuses fail simultaneously
- Burning smell or visible wire damage
- Electrical systems behaving erratically
How to Choose the Right Automotive Fuse
Selection Criteria:
1. Amperage Rating (Most Critical)
- Must exactly match the original fuse rating
- Never use a higher-rated fuse “temporarily”
- Lower ratings will blow prematurely
2. Physical Size and Type
- Mini, standard, micro, or maxi configuration
- Must fit properly in the fuse holder
- Blade width and spacing must match
3. Voltage Rating
- 32V DC rating is standard for 12V systems
- 58V DC for 24V commercial vehicles
- Higher ratings are acceptable, lower are not
4. Quality and Certification
- Look for SAE J554 or ISO 8820 compliance
- Choose reputable brands like Littelfuse, Bussmann, or OEM suppliers
- Avoid unmarked or questionable quality fuses
Expert Selection Tips:
- Keep a spare fuse kit with common ratings (10A, 15A, 20A, 30A)
- Buy OEM-equivalent fuses for critical safety systems
- Consider LED-indicator fuses for easy failure detection
- Stock both mini and standard types for older vehicles
Advanced Fuse Technologies
Smart Fuses and Electronic Protection:
Modern vehicles increasingly use electronic circuit breakers and smart fuses that can:
- Reset automatically after temporary overloads
- Communicate failure status to the ECU
- Provide graduated protection responses
- Enable remote diagnostics
Positive Temperature Coefficient (PTC) Devices:
These resettable fuses use thermal properties to limit current:
- Automatically reset when fault is cleared
- Provide ongoing protection without replacement
- Used in heated seats, mirrors, and other thermal loads
Automotive Fuse Maintenance Best Practices
Regular Inspection Schedule:
- Visual check of all fuse boxes every 6 months
- Test fuses when electrical problems occur
- Replace any corroded or damaged fuse holders
- Clean fuse box connections annually
Preventive Measures:
- Keep fuse boxes dry and sealed
- Don’t force fuses into incorrect positions
- Replace fuse box covers to prevent moisture intrusion
- Use dielectric grease on connections in harsh environments
⚠️ Code Compliance Note: Automotive electrical systems must comply with Federal Motor Vehicle Safety Standards (FMVSS) and SAE standards. Always use properly rated and certified fuses to maintain compliance and safety.
Quick Reference: Emergency Fuse Troubleshooting
If Your Car Won’t Start:
- Check main power fuses (50A+) in under-hood box
- Test ECU power fuses (15-20A range)
- Verify fuel system fuses (15-20A)
If Lights Don’t Work:
- Check headlight fuses (15A/20A)
- Test parking light circuit (10A)
- Verify turn signal flasher fuse (15A)
If Accessories Fail:
- Locate interior fuse panel
- Check accessory power fuses (15-25A range)
- Test individual component fuses
Frequently Asked Questions About Automotive Fuses
Can I use a household fuse in my car?
No, never use household fuses in automotive applications. Household fuses are designed for AC voltage and different current characteristics. They won’t provide proper protection and may create safety hazards.
Why do my fuses keep blowing?
Repeatedly blown fuses indicate an underlying electrical problem such as a short circuit, failing component, or overloaded circuit. Stop replacing the fuse and have the system professionally diagnosed to prevent damage or fire.
How long do automotive fuses last?
Quality automotive fuses can last the lifetime of the vehicle under normal conditions. However, they should be replaced immediately when blown, and inspected if they show signs of corrosion or physical damage.
Can I bypass a blown fuse temporarily?
Never bypass a blown fuse with wire, metal objects, or higher-rated fuses. This eliminates overcurrent protection and creates serious fire and electrocution hazards. Always use the proper rated replacement fuse.
What’s the difference between fast-acting and slow-blow fuses?
Fast-acting fuses respond quickly to overcurrent conditions and are standard in automotive applications to protect sensitive electronics. Slow-blow fuses tolerate brief overcurrents and are used for motors with high starting currents.
Should I keep spare fuses in my car?
Yes, keeping a selection of common automotive fuses (10A, 15A, 20A, 30A mini and standard types) allows you to restore electrical function quickly. Store them in a dry location and replace periodically to ensure reliability.
