A swaging tool is a specialized forming device that reshapes metal by applying radial compression without removing material. Unlike cutting or machining operations, swaging tools permanently deform metal tubing, rods, or cables by squeezing them into smaller diameters, creating tapered ends, or forming precise connections through controlled plastic deformation.
Swaging tools are essential for creating secure, permanent connections in electrical work, plumbing, HVAC systems, cable assemblies, and automotive applications where traditional fastening methods cannot provide the required strength, conductivity, or seal integrity.
Understanding Swaging: Key Definitions
Swaging is a metalworking process that uses compressive force to permanently reshape metal components without heating or removing material. The process relies on plastic deformation – the permanent change in metal structure when force exceeds the material’s yield strength.
Key Technical Terms:
- Radial Compression: Force applied equally from all sides toward the center
- Cold Working: Metal forming at room temperature without heating
- Plastic Deformation: Permanent shape change that doesn’t spring back
- Die Set: Matched tooling components that create the final shape
- Reduction Ratio: The relationship between original and final diameters
Types of Swaging Tools: Complete Comparison
| Tool Type | Power Source | Application | Diameter Range | Typical Use Cases |
|---|---|---|---|---|

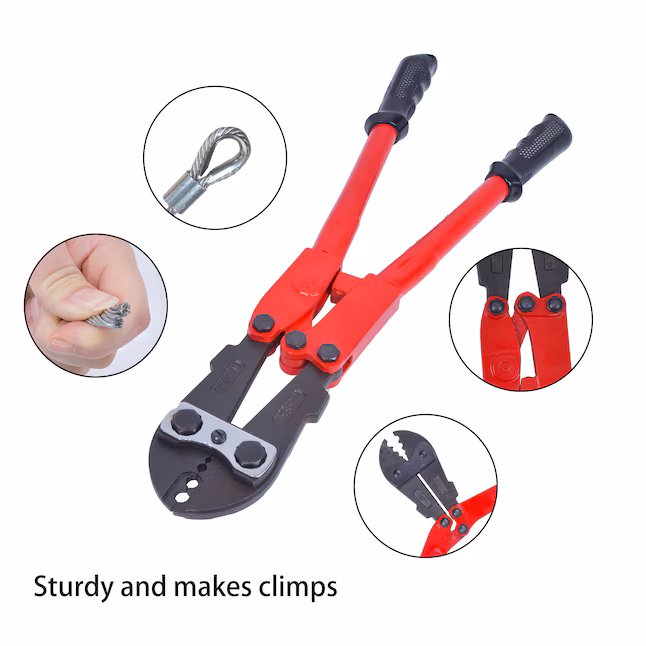

| Hand Swaging Tool | Manual | Light-duty cable work | 1/16″ – 1/4″ | Wire rope, small fittings |
| Hydraulic Swager | Hydraulic power | Heavy-duty industrial | 1/8″ – 2″ | Large cables, structural fittings |
| Pneumatic Swager | Compressed air | Production environments | 1/16″ – 1″ | High-volume assembly work |
| Rotary Swager | Electric motor | Precision forming | 1/32″ – 6″ | Automotive, aerospace parts |
| Impact Swager | Hammer/impact | Field installation | 1/8″ – 1/2″ | Electrical connections |
How Swaging Tools Work: Step-by-Step Process
Step 1: Component Preparation
- Clean all surfaces of dirt, oil, and oxidation
- Measure and mark the insertion depth
- Inspect components for defects or damage
Step 2: Assembly Setup
- Insert cable or tubing into the fitting or ferrule
- Ensure proper alignment and full insertion
- Position the assembly in the swaging tool die
Step 3: Compression Application
- Apply steady, consistent pressure through the tool mechanism
- Allow the dies to close completely around the assembly
- Maintain pressure for the manufacturer’s specified duration
Step 4: Quality Verification
- Inspect the swaged connection for uniform compression
- Check that the fitting maintains its designed shape
- Test the connection strength according to application requirements
Expert Tip: Always swage in a single, continuous operation. Stopping and restarting can create stress concentrations that weaken the final connection.
Primary Applications and Use Cases
Electrical Industry Applications
Swaging tools create permanent electrical connections that maintain conductivity while providing mechanical strength. Common applications include:
- Grounding connections for electrical panels and equipment
- Cable terminations on high-voltage power lines
- Splice connections in underground electrical systems
- Lightning protection system installations
Plumbing and HVAC Systems
In fluid handling systems, swaged connections provide leak-proof seals without requiring threaded fittings:
- Copper tubing connections in refrigeration systems
- Stainless steel fittings for corrosive environments
- Multi-layer pipe systems for radiant heating
- Medical gas line installations requiring ultra-clean connections
Cable and Rigging Applications
Wire rope and cable assemblies rely on swaged fittings for safety-critical connections:
- Aircraft control cables requiring certified strength ratings
- Marine rigging hardware for sailing vessels
- Crane and lifting equipment cables and slings
- Architectural cable systems for tensioned structures
Automotive and Aerospace Manufacturing
Precision swaging creates lightweight, high-strength connections in transportation applications:
- Brake line fittings for hydraulic systems
- Fuel system connections requiring leak-proof seals
- Control cable assemblies for throttle and steering systems
- Hydraulic fitting connections in aircraft systems
Swaging Tool Selection Guide
Consider Your Application Requirements
Material Compatibility
Different metals require specific swaging pressures and techniques:
- Aluminum: Requires lower pressure, prone to work hardening
- Copper: Excellent formability, commonly used in electrical work
- Stainless Steel: Higher pressure required, excellent corrosion resistance
- Carbon Steel: Standard applications, moderate pressure requirements
Connection Size and Capacity
Match your tool’s capacity to your typical workload:
- Light Duty (under 1/4″): Hand tools and small pneumatic swagers
- Medium Duty (1/4″ to 1″): Hydraulic or pneumatic swagers
- Heavy Duty (over 1″): Industrial hydraulic or rotary swagers
Frequency of Use
Consider how often you’ll use the tool:
- Occasional Use: Manual or battery-powered tools
- Regular Use: Pneumatic tools with reliable air supply
- Production Use: Hydraulic or electric tools with consistent power
Quality and Safety Considerations
Certification Requirements
Ensure your swaging tool meets industry standards:
- UL Listed for electrical applications
- ASME compliance for pressure vessel connections
- FAA approval for aircraft cable assemblies
- OSHA requirements for workplace safety
Safety Warning: Always wear safety glasses when operating swaging tools. Flying debris or tool failure can cause serious eye injuries.
Die Quality and Precision
High-quality dies ensure consistent, reliable connections:
- Hardened steel construction for long tool life
- Precision machining for uniform compression
- Matched sets to prevent connection irregularities
- Regular inspection for wear or damage
Common Problems and Troubleshooting
Under-Swaging Issues
Symptoms: Loose connections, pull-out failures, poor conductivity
Causes: Insufficient pressure, worn dies, improper component insertion
Solutions: Increase swaging pressure, replace worn tooling, verify assembly procedures
Over-Swaging Problems
Symptoms: Cracked fittings, reduced cable strength, component distortion
Causes: Excessive pressure, wrong die size, multiple swaging attempts
Solutions: Reduce pressure settings, verify die specifications, replace damaged components
Uneven Compression
Symptoms: Oval or irregular fitting shapes, stress concentrations
Causes: Misaligned dies, contaminated surfaces, worn tool components
Solutions: Realign tooling, clean all surfaces, service or replace worn parts
Expert Tip: Keep a swaging log that records pressure settings, die combinations, and component types for each successful application. This creates a reference for consistent results.
Safety Requirements and Best Practices
Personal Protective Equipment (PPE)
- Safety glasses with side shields (minimum ANSI Z87.1)
- Work gloves to protect hands from sharp edges
- Steel-toed boots in industrial environments
- Hearing protection when using pneumatic tools
Workspace Safety Requirements
- Adequate lighting for precise component alignment
- Clean work surface to prevent contamination
- Proper ventilation when working with lubricants or cleaners
- Tool restraints to prevent dropping or injury
Code Compliance Considerations
Always verify that swaged connections meet relevant building codes and standards:
- National Electrical Code (NEC) for electrical installations
- International Plumbing Code (IPC) for water and gas systems
- International Building Code (IBC) for structural applications
- Local amendments that may impose additional requirements
Quick Reference: Swaging Tool Selection Chart
| Application Type | Recommended Tool | Key Benefits | Typical Cost Range |
|---|---|---|---|
| Home Electrical | Manual crimper | Affordable, portable | $25 – $75 |
| Professional Electrical | Hydraulic swager | Consistent pressure | $200 – $800 |
| Plumbing/HVAC | Pneumatic swager | Fast, clean results | $300 – $1,200 |
| Industrial Cable | Rotary swager | Precision, high volume | $1,500 – $5,000 |
| Heavy Industrial | Hydraulic press swager | Maximum force capacity | $2,000 – $10,000+ |
Frequently Asked Questions
What’s the difference between swaging and crimping?
Swaging applies radial compression to reshape the entire circumference of a component, while crimping typically deforms material in specific locations using shaped dies. Swaging generally creates stronger, more uniform connections.
Can you swage stainless steel with the same tool used for copper?
While the same tool may work, stainless steel requires significantly higher pressure and may need specialized dies designed for harder materials. Always check manufacturer specifications for material compatibility.
How do you know if a swaged connection is properly made?
A proper swaged connection should have uniform compression around the entire circumference, maintain the fitting’s designed shape without cracks or distortion, and pass the manufacturer’s specified pull-test requirements.
What safety codes govern swaged electrical connections?
The National Electrical Code (NEC) Article 110.14 covers connection requirements, while specific applications may reference UL standards such as UL 486A for electrical connectors. Always verify local code requirements.
Can swaging tools be repaired, or do they need replacement?
Most quality swaging tools can be rebuilt with new dies, seals, and worn components. However, damaged tool bodies or hydraulic cylinders may require professional repair or replacement.
How often should swaging tool dies be replaced?
Die replacement depends on usage frequency and materials being swaged. Inspect dies regularly for wear, scoring, or dimensional changes. Heavy use may require replacement every 6-12 months.
What’s the maximum cable size that can be swaged with portable tools?
Hand-operated swaging tools typically handle cables up to 1/4″ diameter, while portable hydraulic swagers can handle up to 1/2″ or larger depending on the model and cable construction.
Are there temperature limitations for swaging operations?
Most swaging operations should be performed at room temperature. Extreme cold can make metals brittle, while high temperatures can affect material properties and tool performance.
Conclusion: Choosing the Right Swaging Tool
Selecting the proper swaging tool depends on balancing your application requirements, usage frequency, and quality standards with budget considerations. For professional applications requiring consistent, code-compliant connections, invest in quality hydraulic or pneumatic swaging tools with certified dies and proper pressure controls.
Remember that the initial tool cost is minimal compared to the potential consequences of connection failures in critical applications. When in doubt, consult with tool manufacturers, electrical engineers, or certified installers to ensure your swaging tool selection meets all safety and performance requirements.
Professional Recommendation: Start with a mid-range hydraulic swaging tool from a reputable manufacturer, ensure proper training on its use, and maintain detailed records of all swaged connections for quality assurance and code compliance documentation.
