A properly executed crimp connection creates a gas-tight, mechanically secure joint that can last decades without failure. Understanding the critical factors that determine crimp quality is essential for electrical safety, code compliance, and long-term reliability in any electrical installation.
What Is a Crimp Connection? Key Definitions and Concepts

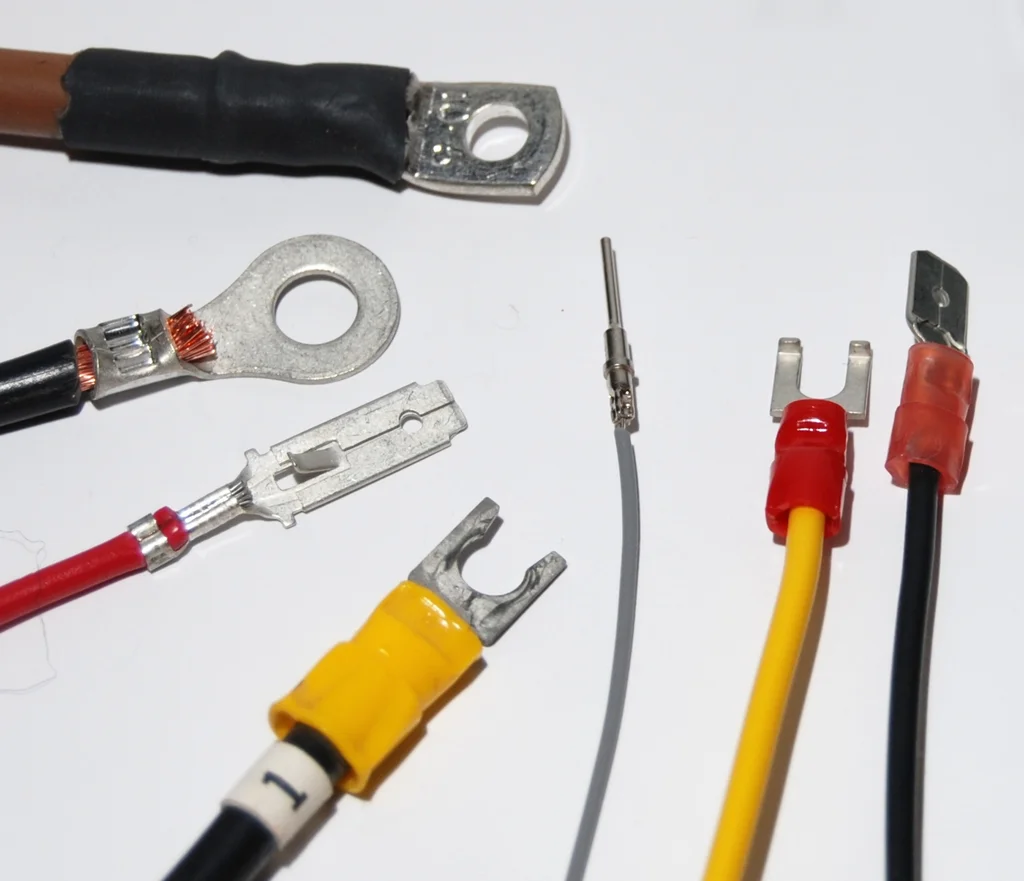

A crimp connection is a mechanical joining method where a metal terminal or connector is permanently deformed around a wire using specialized tools to create an electrical and mechanical bond. This cold-welding process compresses the terminal material around the conductor strands, creating a gas-tight seal that prevents corrosion and ensures reliable electrical continuity.
Key Terms You Need to Know:
- Crimp Terminal: The metal connector piece that attaches to the wire end
- Barrel: The cylindrical portion of the terminal that houses the stripped wire
- Inspection Window: Transparent or semi-transparent barrel section for visual verification
- Crimp Height: The final compressed dimension of the crimped barrel
- Wire Gauge: The standardized measurement of wire diameter (AWG system)
- Ratcheting Tool: Professional crimping tool that ensures complete compression cycles
Essential Elements of a Perfect Crimp Connection
Wire Preparation Requirements
Strip Length Specifications:
- Strip wire to match terminal barrel length exactly
- Typical strip lengths: 0.25″ to 0.375″ for most terminals
- Leave no exposed copper beyond the terminal
- Ensure no conductor strands are cut during stripping
⚠️ Safety Warning: Never use knife blades or scissors to strip wires, as this can nick individual strands and create weak points that lead to connection failure.
Proper Terminal Selection
Wire Gauge (AWG) | Terminal Size | Color Code | Maximum Ampacity |
---|---|---|---|
22-18 AWG | Small/Red | Red | 15 Amperes |
16-14 AWG | Medium/Blue | Blue | 20 Amperes |
12-10 AWG | Large/Yellow | Yellow | 30 Amperes |
8-6 AWG | Extra Large | No Standard | 40+ Amperes |
Critical Crimping Tool Requirements
Professional-Grade Tool Features:
- Ratcheting mechanism – Prevents incomplete crimps
- Calibrated dies – Ensures proper compression ratios
- Wire gauge markings – Matches tool cavities to wire sizes
- Adjustable pressure – Accommodates different terminal materials
💡 Expert Tip: Never use general-purpose pliers for crimping. They cannot provide the consistent pressure and die shape required for reliable connections.
Step-by-Step Crimp Connection Process
Phase 1: Preparation and Safety
- Turn off power to the circuit you’re working on
- Verify absence of voltage using a non-contact voltage tester
- Select appropriate PPE including safety glasses and insulated gloves
- Gather tools and materials – proper crimping tool, terminals, wire strippers
Phase 2: Wire Preparation
- Measure and mark the required strip length on the wire
- Strip the insulation using calibrated wire strippers
- Inspect the stripped end for nicked or broken strands
- Twist stranded conductors lightly by hand to consolidate
Phase 3: Terminal Installation
- Select the correct terminal for your wire gauge and application
- Insert the stripped wire fully into the terminal barrel
- Verify proper insertion – conductor should reach the end of the barrel
- Position the terminal in the appropriate die cavity of your crimping tool
Phase 4: Crimping Execution
- Align the terminal squarely in the tool dies
- Apply steady pressure until the ratcheting mechanism releases
- Inspect the finished crimp for proper compression and alignment
- Perform pull test – gently tug the wire to verify mechanical security
Quality Verification and Inspection Methods
Visual Inspection Criteria
What to Look For:
- Uniform compression along the entire barrel length
- No visible copper extending beyond the terminal
- Proper die impression showing hexagonal or rectangular compression marks
- No damaged insulation at the strip boundary
Physical Testing Requirements
Pull Test Standards:
- Apply 35 pounds of force for 14 AWG connections
- Apply 25 pounds of force for 16 AWG connections
- Apply 15 pounds of force for 18 AWG connections
- Connection should not separate or show movement
💡 Expert Tip: A properly crimped connection should be stronger than the wire itself – the wire should break before the crimp fails under excessive force.
Common Crimp Connection Problems and Solutions
Problem | Cause | Solution |
---|---|---|
Loose or weak connection | Insufficient compression | Use proper ratcheting tool, verify complete cycle |
Visible copper strands | Incorrect strip length | Re-strip to exact terminal specification |
Cracked or split terminal | Over-compression | Check tool calibration, use correct die size |
Poor electrical continuity | Oxidized strands | Use fresh terminals, clean wire ends |
Mechanical failure | Wrong terminal size | Match terminal to wire gauge exactly |
Advanced Troubleshooting Guide
When Connections Fail:
- Check environmental factors – moisture, temperature, vibration
- Verify material compatibility – ensure terminal and wire materials are compatible
- Inspect for corrosion – look for green or white deposits
- Test electrical continuity using a multimeter
- Consider terminal upgrade to sealed or weather-resistant types
Professional Selection Criteria for Crimp Terminals
Material Considerations
Copper Terminals:
- Best electrical conductivity
- Excellent corrosion resistance when properly sealed
- Most cost-effective for general applications
- Required for most electrical code applications
Brass Terminals:
- Superior strength and durability
- Excellent for high-vibration environments
- Higher cost but longer service life
- Preferred for marine and industrial applications
Application-Specific Requirements
Indoor Applications:
- Standard copper terminals with vinyl insulation
- Normal compression ratios
- Standard pull-test requirements
Outdoor/Marine Applications:
- Sealed or heat-shrink terminals required
- Tinned copper for corrosion resistance
- Higher mechanical strength requirements
- UV-resistant insulation materials
⚠️ Code Compliance Note: Most electrical codes require crimp connections to meet UL 486 standards and be performed with listed tools and terminals.
When to Consult Electrical Professionals
Professional Help Required For:
- Connections in electrical panels or service equipment
- High-voltage applications (over 600 volts)
- Commercial or industrial installations
- Work requiring electrical permits
- Connections affecting safety systems
DIY Appropriate For:
- Low-voltage automotive applications
- Electronics hobby projects
- Appliance repair connections
- Basic household wiring repairs (with proper permits)
Advanced Crimp Connection Techniques
Environmental Protection Methods
Heat Shrink Application:
- Select heat shrink tubing 2-3 times the terminal diameter
- Slide tubing over wire before crimping
- Complete the crimp connection
- Position tubing over the connection
- Apply heat evenly until fully contracted
Sealing and Weatherproofing:
- Use dielectric grease for outdoor connections
- Apply liquid electrical tape for additional moisture protection
- Consider IP-rated enclosures for harsh environments
Quality Assurance Programs
Documentation Requirements:
- Record wire gauge and terminal specifications
- Document tool calibration dates
- Maintain pull-test results
- Photo-document critical connections
💡 Expert Tip: Professional installers often use torque-controlled crimping tools that provide consistent, repeatable results and automatic documentation of applied force.
Frequently Asked Questions About Crimp Connections
Q: How do I know if my crimping tool is properly calibrated?
A: Professional crimping tools should be calibrated annually by certified service centers. Look for calibration stickers with dates, and verify that compression height meets manufacturer specifications using go/no-go gauges.
Q: Can I re-crimp a connection that doesn’t look right?
A: Never attempt to re-crimp a terminal. Once compressed, the metal is work-hardened and may crack upon further deformation. Cut off the terminal and start fresh with a new one.
Q: What’s the difference between insulated and non-insulated terminals?
A: Insulated terminals have plastic sleeves that provide electrical insulation and strain relief. Non-insulated terminals offer better heat dissipation but require additional protection against accidental contact.
Q: How tight should a crimp connection be?
A: A proper crimp should compress the terminal to approximately 80% of its original height. The connection should pass specified pull tests without separation or movement.
Q: Can I use crimp connections in wet locations?
A: Yes, but only with properly rated sealed terminals and appropriate environmental protection. Standard crimp terminals are not suitable for direct moisture exposure.
Q: What causes crimp connections to fail over time?
A: The primary causes are corrosion from moisture infiltration, thermal cycling that causes expansion/contraction, vibration that loosens mechanical connections, and initial poor installation technique.
Q: Are crimp connections better than soldered connections?
A: For most applications, properly executed crimp connections are superior because they maintain flexibility, resist vibration better, and don’t require heat that can damage nearby components.
Q: How do I select the right wire gauge for my application?
A: Wire gauge selection depends on current load, voltage drop requirements, and environmental conditions. Consult NEC tables or manufacturer specifications for specific applications.
Essential Safety Reminders and Code Compliance
⚠️ Critical Safety Points:
- Always verify power is off before making connections
- Use only UL-listed terminals and tools
- Follow local electrical codes and permit requirements
- Inspect all connections before energizing circuits
- Never exceed terminal current ratings
Code Compliance Checklist:
- ✅ Terminals meet UL 486 standards
- ✅ Crimping tools are manufacturer-approved
- ✅ Connections accessible for inspection
- ✅ Proper strain relief provided
- ✅ Environmental protection appropriate for location
Professional Resources and Certification
Industry Standards:
- UL 486A/B – Wire Connectors
- IPC-A-620 – Cable and Wire Harness Assemblies
- NEC Article 110.14 – Electrical Connections
- IPC J-STD-001 – Soldered Electrical Connections
Training and Certification:
- IPC Certification Programs
- NECA Training Courses
- Local electrical apprenticeship programs
- Manufacturer-specific tool training
Conclusion: Mastering Crimp Connection Excellence
Creating reliable crimp connections requires attention to detail, proper tools, and adherence to established procedures. By following the guidelines outlined in this comprehensive guide, you can achieve professional-quality connections that provide decades of reliable service.
The key to success lies in understanding that each element – from wire preparation through final inspection – contributes to the overall connection quality. Never compromise on safety or proper technique, and always verify your work meets applicable codes and standards.
Ready to Get Started? Begin with high-quality, calibrated crimping tools and UL-listed terminals appropriate for your specific application. When in doubt, consult with electrical professionals to ensure your connections meet all safety and code requirements.
