Wire Terminal Manufacturer

Introduction to Wire Terminal Manufacturing and Its Importance

Wire terminals are essential components in electrical connections, providing secure and reliable interfaces between conductors and equipment across residential, commercial, and industrial applications. For those looking to ensure electrical safety and system reliability, there’s no better solution than professionally manufactured wire terminals. They are durable, easy to install, and provide critical connectivity that prevents electrical failures, reduces resistance, and maintains system integrity.

When it comes to wire terminal manufacturing, precision and quality are paramount. Whether you need terminals for large-scale industrial projects, automotive applications, or consumer electronics, choosing the right wire terminal manufacturer is crucial. You want to ensure they have experience in the industry and understand exactly what you need to achieve the best connectivity and performance possible for your electrical systems. This means researching different companies and evaluating their manufacturing capabilities before making any decisions about who will be supplying these critical connectivity components.

Why You Should Work with Professional Wire Terminal Manufacturers

If you’re wondering how to ensure electrical reliability, gain consistent performance, and implement effective connection solutions with wire terminals, then you need to work with wire terminal manufacturers that you can trust! Trying to navigate through all the different wire terminal manufacturers in the market can be a time-consuming and complex process, especially if you’re not sure how to distinguish quality products from substandard ones.

Regarding sourcing electrical connection components for your projects, one of the most important decisions you have to make is which manufacturer to partner with. Working with professional wire terminal manufacturers like TONFUL ELECTRIC can provide you with numerous benefits and advantages that will help you implement successful electrical systems and build lasting confidence in your installations.

High-Quality Wire Terminals vs. Standard Connection Components

High-quality wire terminals prioritize connection reliability and system safety. Crafted often from superior materials and with advanced manufacturing techniques, they offer exceptional conductivity and consistent performance. These terminals are designed for longevity, both in terms of mechanical durability and electrical integrity. Manufacturers of high-quality wire terminals pay close attention to details such as contact surface quality, crimping precision, plating uniformity, and temperature resistance. They’re not just connection devices; they’re often a mark of superior electrical system design. When you choose high-quality wire terminals, you’re investing in safety, reliability, and peace of mind.

On the other hand, standard connection components are primarily designed to meet minimum functional requirements. They’re often produced with cost as the primary consideration rather than performance excellence. While they can still provide basic connectivity, high-quality wire terminals might offer additional features like better corrosion resistance, higher current carrying capacity, and more precise dimensional tolerances. Professional wire terminals serve as the foundation of electrical connectivity, providing reliable connections against electrical faults, while standard options may not offer the same level of security and performance under challenging conditions.

High-Quality Wire Terminals for Industrial Applications

In the diverse realm of electrical connectivity, the essence of system reliability isn’t just encapsulated in the specifications but also in the craftsmanship behind each component. Wire terminals, often seen as the guardians of electrical connections, hold a special place in this narrative. Their production, especially when entrusted to expert wire terminal manufacturers, can elevate an electrical system’s reliability immensely. Delving deeper, let’s uncover the reasons why partnering with proficient wire terminal manufacturers is pivotal for industrial applications.

Operational Reliability

In the demanding industrial environment, what differentiates one electrical system from another is often the reliability of their connection components. Wire terminal manufacturers, known for their expertise, give industrial systems an edge, ensuring every connection is properly secured. By emphasizing superior craftsmanship in their production processes, manufacturers can distinguish their products. This commitment to perfection not only safeguards current operations but also prevents costly downtime caused by connection failures, propelling industrial efficiency to greater heights.

Enhancing System Safety

In an era dominated by strict safety regulations, an electrical system’s compliance can be shaped or compromised by component quality. Wire terminals produced by skilled manufacturers can lead to flawless connections, whereas a suboptimal product might invite hazards such as overheating, arcing, or connection failure. By aligning with top wire terminal manufacturers, industrial facilities ensure that every connection receives adequate protection, positively influencing overall safety. Such collaborations reflect a commitment to safeguarding both equipment and personnel, thereby bolstering the system’s integrity in both standard and fault conditions.

Reduced Maintenance and Replacements

Wire terminals crafted by adept manufacturers are known for their consistency in performance and durability. This precision reduces issues like connection loosening, contact degradation, or mechanical failures. Fewer quality issues translate to less maintenance, saving industrial facilities from operational challenges and potential safety risks. Partnering with reliable wire terminal manufacturers thus streamlines operations and enhances system reliability.

Compliance and Certification

Today’s discerning industrial operators seek components that meet international standards. Many wire terminal manufacturers are championing compliance with IEC, UL, CSA, and other recognized certifications, ensuring products meet rigorous testing requirements. By choosing such manufacturers, industrial facilities convey a message of responsibility and regulatory adherence. This not only results in components that are certified for safety but also enhances the facility’s reputation in the eyes of inspectors and stakeholders who prioritize compliance.

Reliable Wire Terminals for Commercial Buildings

Wire terminals, diligently and precisely crafted by leading manufacturers, emerge not just as connection devices but as representatives of electrical system integrity. They effortlessly combine functionality and reliability, serving both as conductor connectors and system protectors. Whether installed in shopping centers, office buildings, or educational institutions, these terminals elevate a building’s electrical reliability and create secure connection environments. Delving deeper, let’s examine why getting high-quality wire terminals is instrumental for effective commercial building installations.

Immediate Fault Prevention

Top-tier wire terminal manufacturers have mastered the art and science of impactful connectivity. Amidst the complex network of circuits, a wire terminal bearing a manufacturer’s mark of quality becomes a critical connection point. It acts as a reliable interface, maintaining secure connections that prevent loose contacts before they can cause widespread damage. This not only ensures that the building’s electrical system remains resilient but also accentuates its safety profile, paving the way for more secure operations.

Consistent Performance

Every wire terminal installed is a testament to the manufacturer’s commitment to quality. With designs conceived by astute wire terminal manufacturers, these components become more than just hardware; they narrate a story of reliability. As building managers transform into safety advocates, the ripple effect of this reliable connectivity expands far and wide. From the confines of the electrical panel to the furthest equipment, these terminals function as ongoing connectors, keeping the building’s electrical system safe and functional.

Simplifies Maintenance

Aligning with proficient wire terminal manufacturers for a coherent connection strategy serves a dual purpose. Not only does it enhance system reliability, but it also simplifies maintenance procedures. This operational efficiency presents a system that’s both harmonized in its connectivity and streamlined in its upkeep. It signals a collective approach to safety, making maintenance more straightforward and facilitating better management of the building’s electrical infrastructure.

Cost-effective Connectivity

Engaging with experienced wire terminal manufacturers yields economic and safety dividends. The relatively modest investment in quality wire terminals, especially for comprehensive building installations, often pales in comparison to the potential costs of electrical failures or equipment damage. Yet, the longevity and reliability of these terminals offer continuous protection. They encapsulate the essence of cost-effective connectivity, providing consistent returns on a one-time investment.

Professional Wire Terminal Manufacturers Ensure Reliability

If you consider a top electrical brand in the realm of connection components, what are some of the things that come to mind? An established reputation is probably up there, as are reliable products with consistent performance. Most importantly, the thing the top brands all have in common is the quality of their manufacturing process.

A great brand reputation doesn’t mean much if the products fail to provide reliable connections over time. So, if you’re not handling manufacturing yourself, you need to work with a truly high-quality wire terminal manufacturer. Lacking quality is one of the most common causes for electrical system failures, so if you’re going into having wire terminals installed in your project, you need to be picky about whom you trust with the manufacturing process.

Inside the Wire Terminal Manufacturing Process

The production of wire terminals is a sophisticated and precise manufacturing operation that combines advanced material science, precision engineering, and rigorous quality control. At TONFUL ELECTRIC, we’ve perfected this process to deliver wire terminals of exceptional quality and reliability. Here’s an inside look at how we transform raw materials into critical electrical connection components:

Material Selection and Processing

Conductive Materials The foundation of quality wire terminals begins with material selection. Our manufacturing process utilizes:

• Copper Alloys: High-conductivity copper (C11000) and brass alloys (C26000, C27000) for optimal electrical performance
• Tin Plating: Electroplated tin coating (3-10μm thickness) for corrosion resistance and improved solderability
• Silver Plating: Premium silver plating for high-current applications requiring minimal contact resistance
• Nickel Plating: Nickel barrier layers to prevent copper migration and enhance durability

Insulation Materials

• PVC (Polyvinyl Chloride): Standard insulation for general applications, rated for temperatures up to 105°C
• Nylon: High-temperature resistant insulation for demanding environments (up to 150°C)
• Heat Shrink Tubing: Additional protection for exposed connections in harsh environments

Precision Stamping and Forming

Wire terminal production relies on high-precision progressive die stamping:

Progressive Die Manufacturing

• Computer-controlled hydraulic presses with tonnage ranging from 25 to 400 tons
• Multi-station progressive dies with 8-20 stages for complex terminal geometries
• Precision tolerances of ±0.05mm for critical dimensions
• Automated feeding systems for consistent material flow

Quality Control Checkpoints

• Visual inspection at each stamping station
• Automated optical measurement systems verify dimensions
• Edge quality inspection to ensure burr-free surfaces
• Material thickness verification using laser micrometers

Plating Operations

Surface treatment is critical for terminal performance and longevity:

Electroplating Process

• Pre-treatment cleaning removes oils and oxidation
• Acid pickling prepares surfaces for optimal plating adhesion
• Electroplating baths maintain precise current density and temperature control
• Post-plating rinsing and passivation treatments
• Quality testing for plating thickness, adhesion, and uniformity

Plating Options

• Tin plating (bright or matte finish) for general applications
• Silver plating for high-current and low-resistance requirements
• Gold plating for critical electronics and harsh environments
• Nickel undercoating for enhanced corrosion protection

Insulation Application

For insulated wire terminals, precision insulation application ensures reliable performance:

Injection Molding Process

• Pre-heated metal terminals loaded into precision molds
• Injection of molten PVC or nylon insulation material
• Controlled cooling cycles ensure proper adhesion
• Automated extraction and quality inspection
• Color coding options for easy identification (red, blue, yellow, etc.)

Insert Molding Technology

• Metal terminals precisely positioned in injection molds
• Insulation material flows around conductor and barrel sections
• Creates seamless integration between metal and insulation
• Eliminates gaps that could allow moisture ingress

Assembly and Packaging

Quality Sorting and Inspection

• 100% visual inspection by trained operators
• Automated vision systems detect dimensional variations
• Contact resistance testing on sample batches
• Crimping force verification tests

Packaging Standards

• Bulk packaging in anti-static bags for manufacturing customers
• Reel packaging for automated assembly applications
• Retail packaging with product specifications and application guides
• Custom packaging options available for OEM customers

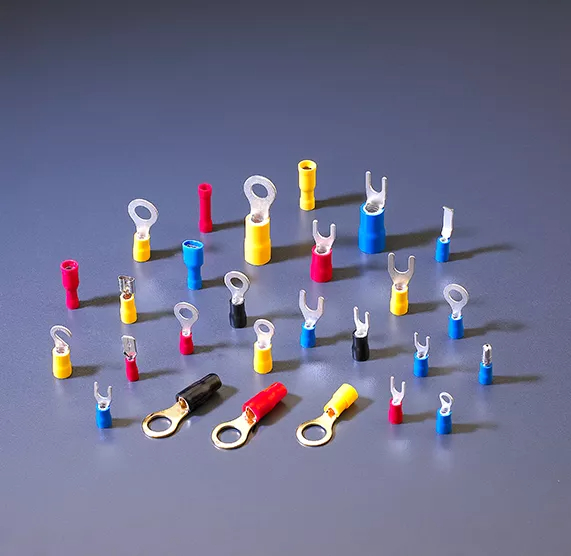

Different Wire Terminal Types Manufacturing

TONFUL ELECTRIC manufactures a comprehensive range of wire terminal types to meet diverse application requirements:

Ring Terminals (Circular Terminals)

Designed with a circular connection point for secure bolt-on connections. Manufacturing involves precise hole punching with diameters ranging from M3 to M12, ensuring perfect fit with standard fasteners. Available in insulated and non-insulated versions with conductor sizes from 0.5mm² to 240mm².

Spade Terminals (Fork Terminals)

Feature a forked connection point allowing quick connection without complete fastener removal. Progressive dies create precise fork geometry with optimized width and gap dimensions. Ideal for applications requiring frequent disconnection and reconnection.

Butt Connectors

Cylindrical terminals designed to join two wire ends together. Manufactured with precise barrel dimensions to accommodate specific wire gauges. Available in insulated versions with color-coded sleeves for easy wire size identification.

Blade Terminals (Quick Disconnect Terminals)

Flat, rectangular connectors designed for plug-in connections. Stamping process creates precise blade thickness (0.5mm, 0.8mm) and width dimensions (2.8mm, 4.8mm, 6.3mm standard sizes). Spring contacts on receptacle versions ensure reliable connection retention.

Pin Terminals

Cylindrical connectors designed for insertion into terminal blocks or connectors. Precision turning or stamping creates accurate pin diameters. Available with various pin lengths and insulation options.

Ferrules (Wire End Terminals)

Sleeve-type terminals that enclose stranded wire ends to create a solid connection point. Manufacturing involves precise tube forming and edge chamfering. Available with and without insulation sleeves in a wide range of conductor sizes.

Wire Terminal Manufacturers Are Efficient

Another reason why it’s vital to enlist the help of a manufacturer that you can trust is the efficiency that it will bring to your projects, in terms of both implementation and cost.

While it may eventually be cheaper to set up your own manufacturing operation years down the line, the initial investment and expertise needed to pull this off are usually far too much for most businesses to bear. By going to a trusted wire terminal manufacturer, you can have your connection components produced at affordable prices while maintaining high quality.

This isn’t to mention the headache of sourcing materials for the best possible prices, deciding which plating technology to use, and then, of course, figuring out how to do the job properly. As a project manager or contractor, these aspects of business are a lot to take on, when really your focus should be on implementation and system integration. By working with the right wire terminal manufacturers, you free up time and funds for investments in your core business activities.

Wire Terminal Manufacturers Offer Options

One of the key things that you need to keep an eye out for when searching for the wire terminal manufacturer that you’ll partner with is the degree of options that they provide in terms of specifications, types, and material variations. A subpar manufacturer with a limited product range will leave you with few options to meet your specific requirements, which may work poorly with your particular electrical system needs.

When it comes to selecting wire terminals for various applications, you want options such as different conductor sizes, terminal types, plating options, and insulation materials. This gives you the freedom to choose the exact specifications needed for different connections and allows you to create different performance levels within your system, with a mixture of standard and premium products.

Conductor Size Range

Wire terminals are manufactured to accommodate various wire gauges, typically measured in mm² (international) or AWG (American Wire Gauge). TONFUL ELECTRIC offers terminals for conductor sizes ranging from:

• Small conductors: 0.5mm² to 2.5mm² (22-14 AWG) for electronics and light-duty applications
• Medium conductors: 4mm² to 16mm² (12-6 AWG) for general electrical installations
• Large conductors: 25mm² to 70mm² (4-2/0 AWG) for industrial and high-current applications
• Heavy-duty conductors: 95mm² to 240mm² (3/0-500 kcmil) for power distribution systems

Terminal Type Selection

Along with the variety of conductor sizes, you need to look at the manufacturer’s range of terminal types. A good manufacturer will always work to accommodate your specific needs, offering:

• Ring Terminals: For permanent, vibration-resistant bolt connections with stud sizes from M3 to M12
• Spade Terminals: For quick-disconnect applications where frequent maintenance is required
• Butt Connectors: For in-line wire splicing and joining applications
• Blade Terminals: For plug-in connections with standard widths (2.8mm, 4.8mm, 6.3mm, 9.5mm)
• Pin Terminals: For terminal block and connector applications
• Ferrules: For stranded wire termination in screw-clamp terminal blocks

Plating and Surface Finish Options

Surface finish significantly impacts terminal performance, corrosion resistance, and longevity:

• Tin Plating: Standard finish for general applications, excellent solderability
• Silver Plating: Premium finish for low-resistance, high-current applications
• Nickel Plating: Enhanced corrosion resistance for harsh environments
• Gold Plating: Superior conductivity and corrosion resistance for critical electronics

Insulation Options

Insulated terminals provide additional safety and environmental protection:

• PVC Insulation: Standard vinyl insulation rated to 105°C, available in red, blue, yellow color coding
• Nylon Insulation: High-temperature resistant (up to 150°C) for demanding applications
• Heat Shrink: Additional protection with adhesive-lined heat shrink tubing
• Non-Insulated: Bare terminals for maximum flexibility in confined spaces

Minimum Order Quantity

Wire terminal manufacturers have specific minimum order quantities based on their production capabilities. Here’s what you can expect from TONFUL ELECTRIC:

• Standard Terminals: The minimum order quantity (MOQ) is 1,000 pieces for standard catalog items
• Customized Terminals: The MOQ for custom specifications or special plating is 5,000 pieces per order
• OEM Production: For OEM customers, we offer flexible MOQ arrangements based on long-term partnership agreements

Technical Specifications

The following specifications are essential for selecting the right wire terminals:

• Conductor Size Range (Wire Gauge)
• Stud/Connection Size (for ring and spade terminals)
• Blade Width (for blade terminals)
• Barrel Length (for butt connectors and ferrules)
• Insulation Material and Temperature Rating
• Plating Type and Thickness
• Current Rating
• Voltage Rating
• Crimping Tool Compatibility
• Applicable Standards (UL, CSA, CE, RoHS)

Wire Terminal Manufacturers Are Helpful Throughout the Process

When your business is trying to implement effective electrical connections, you might have all the perfect ideas for system design and wiring layout, but not really know much at all about the specifics of selecting and implementing connection terminals. If this is the case in your project, you should seek to work with a company that can help you with technical support based on your needs and requirements.

Technical Support

This is a great advantage in working toward implementing a quality connection system, as product specifications and technical documentation will paint a clearer picture of what you’ll eventually be installing in your electrical systems. A healthy back and forth with your wire terminal manufacturer will allow you to finalize on a version of your connection scheme that you’re truly satisfied with, ensuring that it’s done to the high standards that you need to achieve reliable connectivity.

Design Consultation

Even beyond the technical side of selecting the best possible terminals prior to installation, a great manufacturer can also assist you in developing your connection concepts. Sometimes you might have a better idea of requirements or a basic connection philosophy that you’re interested in, but not entirely sure how you want it to look in practice. Working with an experienced manufacturer can make it clearer what kind of connection terminals and schemes you’re interested in implementing for your project.

Crimping Tool Recommendations

Proper crimping is essential for reliable wire terminal connections. TONFUL ELECTRIC provides guidance on:

• Appropriate crimping tools for specific terminal types and wire sizes
• Proper crimping techniques to ensure optimal contact
• Quality inspection methods to verify crimp integrity
• Training resources for installation teams

Reliable Wire Terminal Manufacturers Use Quality Materials & Processes

High Standards of Materials

When you think of great electrical brand success stories, quality is always a defining factor, which cannot be achieved without a great team that uses the best materials available. Reliability and conductivity are essential facets of what makes an electrical component successful, and this is just as relevant in the realm of wire terminals as it is in any other branch of electrical equipment. Wire terminals can be made with various contact materials, plating options, and insulation materials, and you need to know that along with having the option to choose between these specifications, you’re getting the best quality of each.

Sustainable production is increasingly important in the electrical industry. Certifications like RoHS and REACH ensure that products meet environmental and safety standards:

RoHS (Restriction of Hazardous Substances) certification ensures that no restricted hazardous substances have been used in production, and it requires regular testing for compliance. It is recognized globally as a reliable indicator of sustainable and safe production methods in the electrical industry. It provides customers with peace of mind knowing that the products they purchase are not only free from harmful substances but also environmentally friendly. The certification covers various electrical products, including wire terminals, making it an essential benchmark for businesses and consumers alike.

REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) is a regulation that addresses the production and use of chemical substances and their potential impacts on human health and the environment. It requires companies to identify and manage the risks linked to substances they manufacture and market in the EU. Additionally, the REACH regulation promotes the development of alternative substances or technologies to reduce the use of hazardous chemicals.

High Standards of Manufacturing

When it comes to the production process, you want to know that the manufacturing facility is equipped with advanced technology and staffed by highly skilled professionals. Many manufacturers that businesses outsource to operate with outdated equipment and untrained personnel, and beyond being concerning for quality, these places often produce inconsistent, unreliable, and generally substandard products.

When you know the team working on your wire terminals has state-of-the-art equipment and rigorous quality control processes, you can be more confident in the finished product that’s delivered to you.

Consider Chinese Electrical Manufacturers

It’s becoming widely recognized that Chinese electrical equipment is often of a very high standard, which is why the country has become a favorite of electrical contractors throughout the world. There are many reasons why electrical products from China are taking the industry by storm, including:

Access to Materials: China is one of the top producers of copper, brass, and other materials essential for electrical manufacturing, making them a great source of both raw materials and finished electrical products.

Skilled Workforce: China has a vast pool of highly skilled workers that are known for their precision and attention to detail. Many reputable manufacturing facilities invest in continuous training and quality management systems.

Advanced Manufacturing Technology: Chinese manufacturers have invested heavily in state-of-the-art stamping, plating, and molding equipment, enabling production of high-precision components at scale.

Cost Efficiency: Chinese companies can manufacture high-quality products at competitive prices due to economies of scale and manufacturing expertise. This means that electrical component costs are reduced significantly when sourced from Chinese manufacturers.

Integrated Supply Chain: China’s comprehensive manufacturing ecosystem allows for vertical integration, from raw material processing to finished product assembly, ensuring quality control at every stage.

By sourcing your wire terminals from a reputable Chinese manufacturer like TONFUL ELECTRIC, you can get a very high standard of product, with some of the best materials available, for a fraction of what you might spend with manufacturers in other regions.

How to Find the Perfect Wire Terminal Manufacturer?

If you’re on the hunt for the ideal wire terminal manufacturer to supply reliable connection components for your electrical systems, then why not consider working with TONFUL ELECTRIC? We’re a Chinese business that emphasizes our flexibility, our quality of results, and the high standards of our manufacturing processes.

At TONFUL ELECTRIC, we understand the importance of creating quality connection components. We are committed to providing our customers with the highest quality wire terminals that are made with durable materials and feature consistent performance that won’t degrade over time. We use advanced plating techniques to ensure that your terminals provide optimal conductivity, and that the connections won’t corrode or fail when reliability matters most. We also take the time to inspect each product before it is shipped, so you can rest assured that you’re getting top-notch products every time.

Along with producing some of the finest wire terminals in the world, we also produce cable lugs, terminal blocks, cable ties, wire connectors, and much more, making us a great one-stop shop for all your electrical connection needs.
