Cord End Terminal Applications in Electrical Connections: Complete Professional Guide

Cord end terminals are specialized electrical connectors that attach to the ends of stranded wires to create secure, reliable electrical connections in panels, junction boxes, and terminal blocks. These essential components prevent wire strands from fraying, ensure proper electrical contact, and meet safety code requirements for professional electrical installations.

Understanding cord end terminals is crucial for electricians, electrical engineers, and anyone working with multi-strand wire connections, as improper termination can lead to loose connections, arcing, and potential fire hazards.

What Are Cord End Terminals? Key Definitions

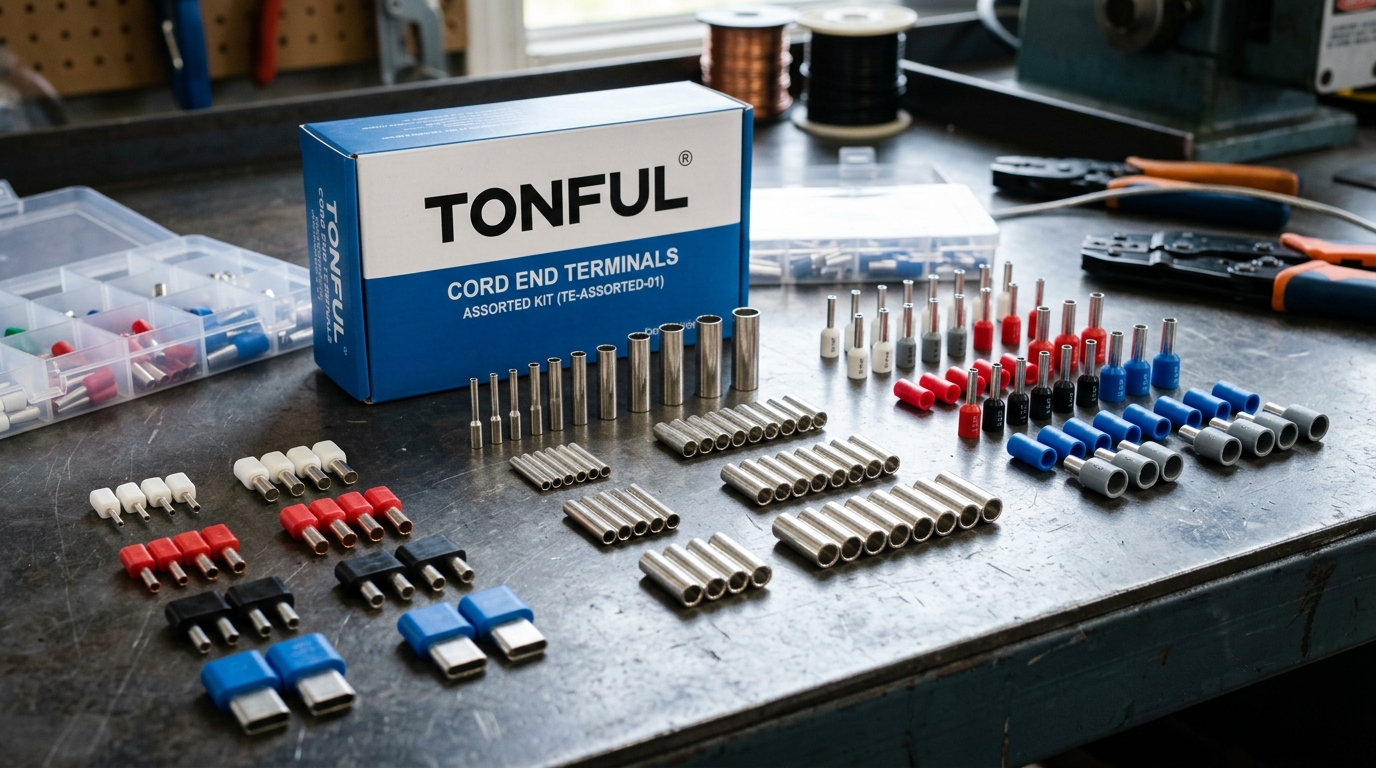

cord-end-terminal
cord-end-terminal

Cord End Terminal (Ferrule): A small metal sleeve, typically made of copper or tin-plated copper, that crimps onto the end of stranded wire to consolidate individual strands into a solid termination point.

Key Components:

  • Metal Sleeve: The conductive portion that accepts the wire
  • Insulating Collar: Plastic sleeve that provides strain relief and color coding
  • Crimp Zone: Designated area for compression tool application
  • Entry Funnel: Tapered opening for easy wire insertion

Wire Gauge Compatibility: Cord end terminals are sized according to AWG (American Wire Gauge) standards, ranging from 24 AWG to 4/0 AWG for common applications.

Types of Cord End Terminals: Complete Comparison

Terminal Type Best Applications Advantages Color Code
Uninsulated Ferrules Panel connections, terminal blocks Maximum conductivity, compact size Natural copper
Insulated Ferrules Color-coded circuits, strain relief needed Wire protection, easy identification Red, Blue, Gray, etc.
Twin Ferrules Parallel wire connections Space-saving dual connections Various colors
Long Barrel Ferrules High-vibration environments Extended crimp zone, superior hold Copper/Tin plated
Pre-Insulated End Sleeves Quick installations Built-in insulation, time-saving Color-coded

Essential Applications for Cord End Terminals



Primary Use Cases:

  1. Control Panel Wiring: Terminating stranded control wires in industrial panels
  2. Terminal Block Connections: Creating reliable connections in junction boxes
  3. PLC and Control System Wiring: Ensuring clean connections to programmable controllers
  4. Motor Control Centers: Professional terminations in electrical distribution equipment
  5. Instrumentation Wiring: Precise connections for sensors and measurement devices

Industry-Specific Applications:

  • Manufacturing: Process control and automation systems
  • Building Controls: HVAC, lighting, and security system connections
  • Renewable Energy: Solar inverter and wind turbine connections
  • Transportation: Railway and marine electrical systems
  • Telecommunications: Equipment grounding and power connections

Why Use Cord End Terminals? Critical Benefits

Safety Advantages:

  • Prevents individual wire strands from breaking and creating short circuits
  • Eliminates loose connections that can cause arcing and fires
  • Meets NEC (National Electrical Code) requirements for professional installations
  • Reduces connection resistance and heat generation

Performance Benefits:

  • Creates gas-tight connections that resist corrosion
  • Provides consistent electrical contact surface area
  • Enables proper torque application on terminal screws
  • Reduces maintenance requirements and connection failures

Installation Efficiency:

  • Speeds up wire termination process
  • Eliminates need to twist wire ends
  • Provides visual confirmation of proper connection
  • Standardizes termination quality across installations

Professional Selection Guide: How to Choose Cord End Terminals

Step 1: Determine Wire Specifications

Wire Gauge Measurement:

  • Use AWG chart to identify exact wire size
  • Consider both conductor area and insulation diameter
  • Account for stranding type (fine vs. coarse strand)

Current Rating Requirements:

  • Match terminal current rating to circuit ampacity
  • Consider temperature derating factors
  • Account for voltage drop in long runs

Step 2: Choose Terminal Style

Selection Criteria Uninsulated Insulated Twin Long Barrel
Space Constraints Excellent Good Fair Poor
Color Coding Needed Poor Excellent Good Fair
Vibration Resistance Good Good Good Excellent
Installation Speed Good Excellent Fair Good
Cost Effectiveness Excellent Good Fair Good

Step 3: Material Selection

Standard Materials:

  • Electrolytic Copper: Best conductivity, standard choice
  • Tin-Plated Copper: Corrosion resistance, mixed-metal compatibility
  • Nickel-Plated Copper: High-temperature applications
  • Stainless Steel: Extreme environment applications

Installation Process: Step-by-Step Professional Method

Required Tools:

  • Crimping Tool: Proper ratcheting crimper for ferrule size
  • Wire Strippers: Precision strippers for gauge being used
  • Inspection Tools: Magnifying glass, go/no-go gauges

Installation Steps:

  1. Strip Wire to Proper Length
    • Remove insulation length equal to ferrule barrel length
    • Avoid nicking or cutting conductor strands
    • Clean conductors of oxidation or contamination
  2. Select Correct Ferrule Size
    • Match ferrule interior diameter to stripped wire
    • Verify wire fits snugly without forcing
    • Check that ferrule length accommodates wire
  3. Insert Wire into Ferrule
    • Push wire fully into ferrule barrel
    • Ensure no strands protrude from ferrule end
    • Verify wire bottoms out in ferrule
  4. Apply Crimp with Proper Tool
    • Position crimping tool on ferrule crimp zone
    • Apply full crimp cycle until tool releases
    • Inspect crimp for proper compression marks
  5. Verify Installation Quality
    • Check for uniform crimp impression
    • Ensure no loose strands visible
    • Verify wire cannot be pulled from ferrule

Safety Requirements and Code Compliance

National Electrical Code (NEC) Requirements:

Article 110.14(A): Connection requirements for electrical terminals

  • Terminals must be identified for use with conductor material
  • Connection pressure must be applied to proper contact area
  • Multiple conductors under single terminal must be listed for such use

Article 310.15: Ampacity requirements

  • Terminal ratings must not exceed conductor ampacity
  • Temperature limitations must be observed
  • Derating factors must be applied for multiple conductors

Professional Safety Standards:

UL 486A/486B Compliance:

  • Terminals must bear UL listing mark
  • Proper wire range must be marked on terminal
  • Installation instructions must be followed exactly

⚠️ Critical Safety Warning: Always verify power is off before making connections. Use lockout/tagout procedures and test with appropriate meters before working on electrical systems.

Common Problems and Professional Solutions

Problem: Loose Connections After Installation

Symptoms:

  • Intermittent operation
  • Heat generation at terminals
  • Voltage drop across connections

Solutions:

  • Verify proper ferrule size selection
  • Check crimping tool calibration
  • Ensure full crimp compression applied
  • Replace damaged or worn crimping tools

Problem: Wire Pullout from Ferrule

Root Causes:

  • Insufficient crimp pressure
  • Wrong ferrule size selected
  • Worn or damaged crimping tool
  • Contaminated wire surface

Corrective Actions:

  • Re-crimp with calibrated tool
  • Select smaller ferrule if gaps exist
  • Clean conductor surface before installation
  • Replace ferrule if damaged during removal

Problem: Poor Electrical Contact

Indicators:

  • High resistance readings
  • Temperature rise at connections
  • Voltage drop measurements

Resolution Steps:

  • Inspect for proper wire insertion depth
  • Verify clean conductor surface
  • Check terminal block condition
  • Apply proper torque to terminal screws

Expert Tips for Professional Results

💡 Professional Tip: Use a ratcheting crimping tool that won’t release until proper compression is achieved. This ensures consistent, code-compliant connections every time.

💡 Quality Assurance: Perform pull tests on sample connections to verify crimp quality before completing large installations.

💡 Color Coding Strategy: Use insulated ferrules with consistent color coding (red for hot, blue for neutral, green for ground) to simplify troubleshooting and maintenance.

💡 Inventory Management: Stock ferrules in sizes that match your most common wire gauges. Keep 14, 16, 18, and 22 AWG sizes readily available for control work.

When to Call Professional Electricians

Require Professional Installation:

  • High-voltage applications (over 600V)
  • Critical life safety systems
  • Industrial process control systems
  • Installations requiring electrical permits

Professional Consultation Recommended:

  • Complex multi-conductor cable terminations
  • Mixed material connections (aluminum to copper)
  • Outdoor or harsh environment installations
  • Systems requiring special certifications (UL508A, etc.)

Quick Reference: Ferrule Selection Chart

Wire AWG Ferrule Size Color Code Max Current*
24 0.5mm² White 3A
22 0.75mm² White 5A
20 1.0mm² White 7A
18 1.5mm² Red 10A
16 2.5mm² Blue 15A
14 4.0mm² Gray 20A
12 6.0mm² Yellow 25A

*Current ratings at 30°C ambient, single conductor in free air

Frequently Asked Questions

Q: Can I use cord end terminals on solid wire?
A: Cord end terminals are designed specifically for stranded wire. Solid wire connections should use appropriate solid wire terminals or be formed into hooks for screw terminals.

Q: What happens if I use the wrong size ferrule?
A: Oversized ferrules create loose connections and potential safety hazards. Undersized ferrules prevent proper wire insertion and can damage conductor strands during crimping.

Q: Do ferrules meet NEC requirements for wire connections?
A: Yes, properly installed UL-listed ferrules meet NEC requirements for wire termination when used according to manufacturer specifications and terminal block ratings.

Q: How do I know if my crimp is properly done?
A: A proper crimp shows uniform compression marks around the ferrule circumference, holds the wire securely under moderate pull force, and maintains the wire’s full cross-sectional area.

Q: Can I reuse a ferrule if I need to remake a connection?
A: No, ferrules are single-use components. Once crimped, they must be cut off and replaced with new ferrules for reliable connections.

Q: What’s the difference between European and American ferrule standards?
A: European ferrules use metric sizing (mm²) while American standards use AWG. Always verify compatibility with your specific terminal blocks and wire types.

Q: Are pre-insulated ferrules as reliable as standard ferrules?
A: Yes, when properly manufactured and installed. Pre-insulated ferrules offer additional benefits of strain relief and color coding while maintaining electrical integrity.

Q: How often should crimping tools be calibrated?
A: Professional crimping tools should be calibrated annually or after 10,000 cycles, whichever comes first, to ensure consistent compression force and connection quality.


Professional Installation Recommendation: For critical electrical systems or installations requiring permits, consult with licensed electrical contractors who can ensure code compliance and system safety. Proper training on crimping techniques and tool use is essential for reliable electrical connections.
