Insulated Cord End Terminal
TONFUL Electric E insulated cord end terminals gather stranded conductors into a tin-plated tubular sleeve for compatible terminal connections. Compare 49 catalog models by wire section, sleeve length and barrel dimensions, then share your assembly and crimp-tool requirements.
- 49 original catalog models.
- Compare wire section, AWG and sleeve dimensions by model.
- Tin-plated metal sleeve; vinyl / nylon insulation options.

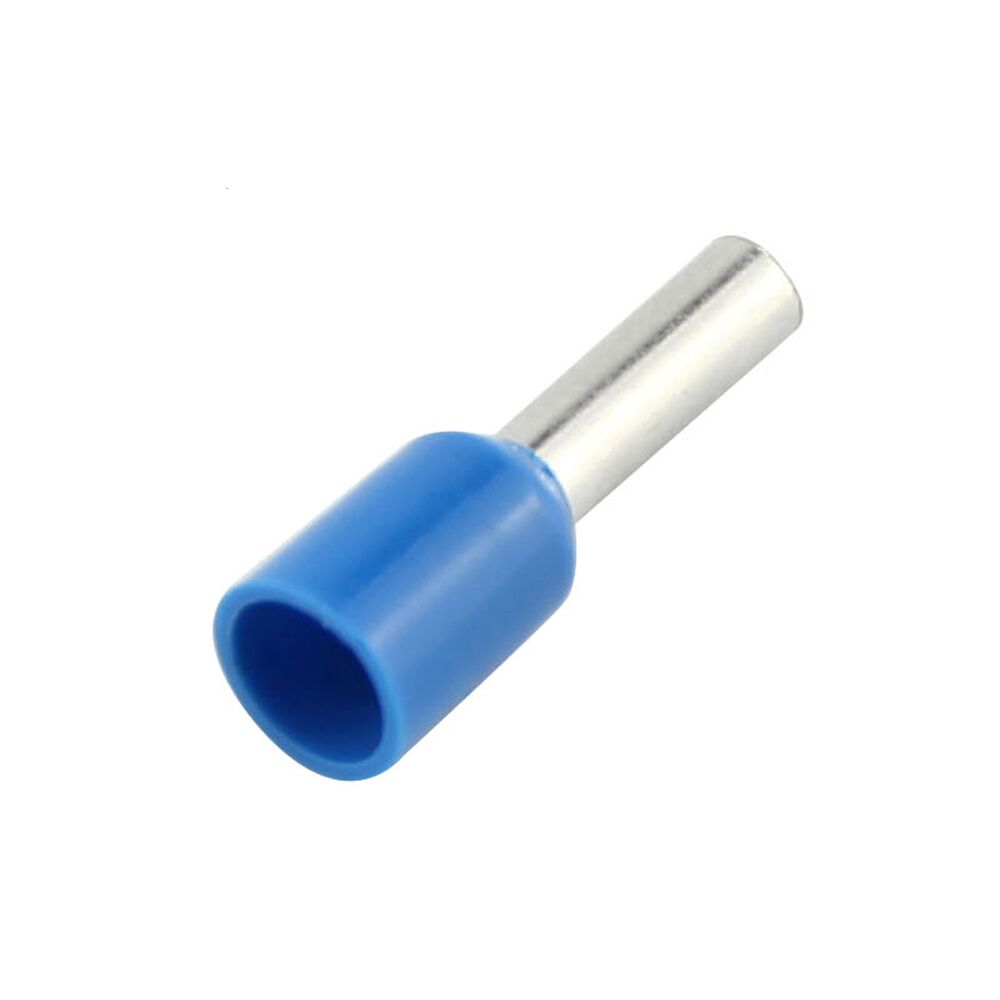

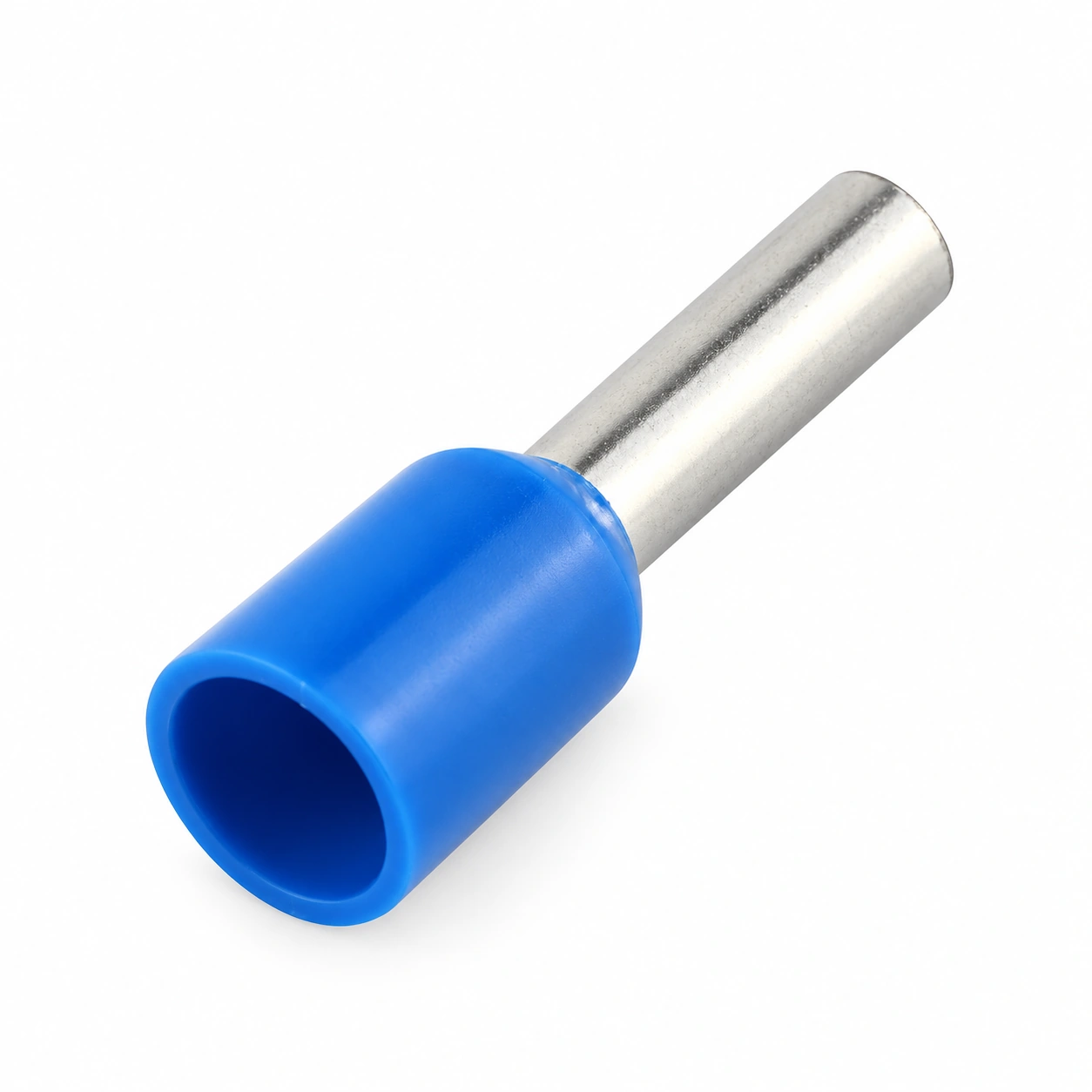

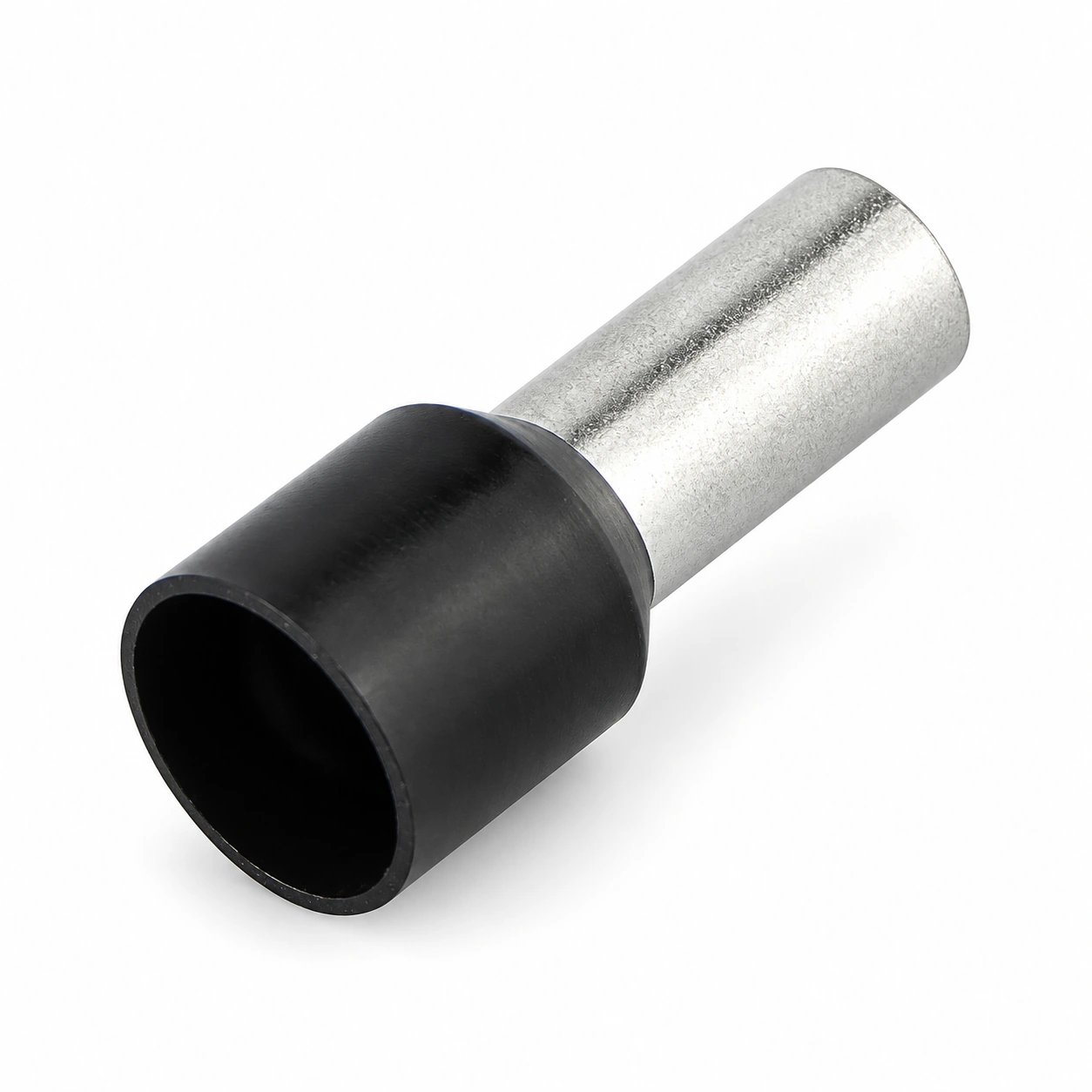

- A circular insulating collar guides one conductor into the metal sleeve.
Overview
TONFUL Electric E insulated cord end terminals gather stranded conductors into a tin-plated tubular sleeve for compatible terminal connections. Compare 49 catalog models by wire section, sleeve length and barrel dimensions, then share your assembly and crimp-tool requirements. A circular insulating collar guides one conductor into the metal sleeve. Select the ferrule against the conductor and the terminal connection.
Features
- Tubular metal sleeve: gathers conductor strands for insertion into a compatible terminal.
- Insulating collar: A circular insulating collar guides one conductor into the metal sleeve.
- Tin plating: listed for the copper / brass terminal material.
- Model-specific dimensions: compare sleeve length, bore and collar size before ordering.

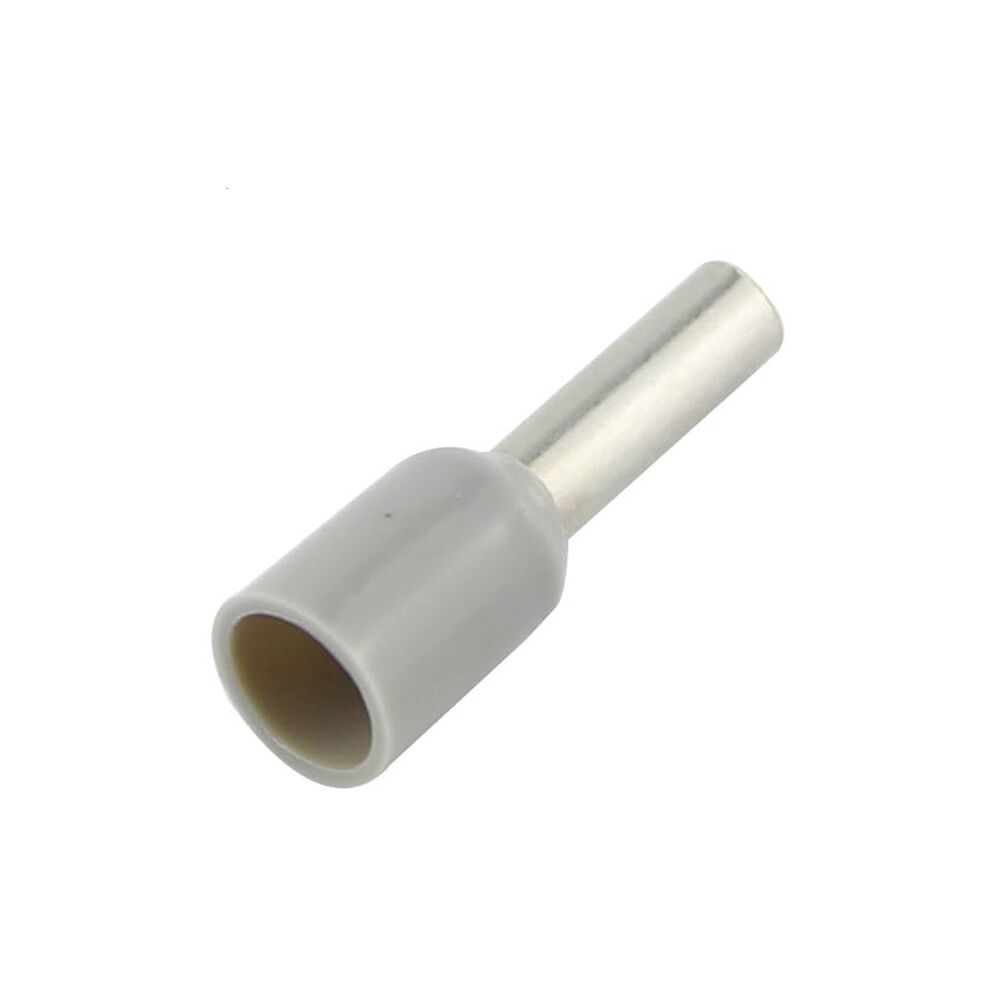

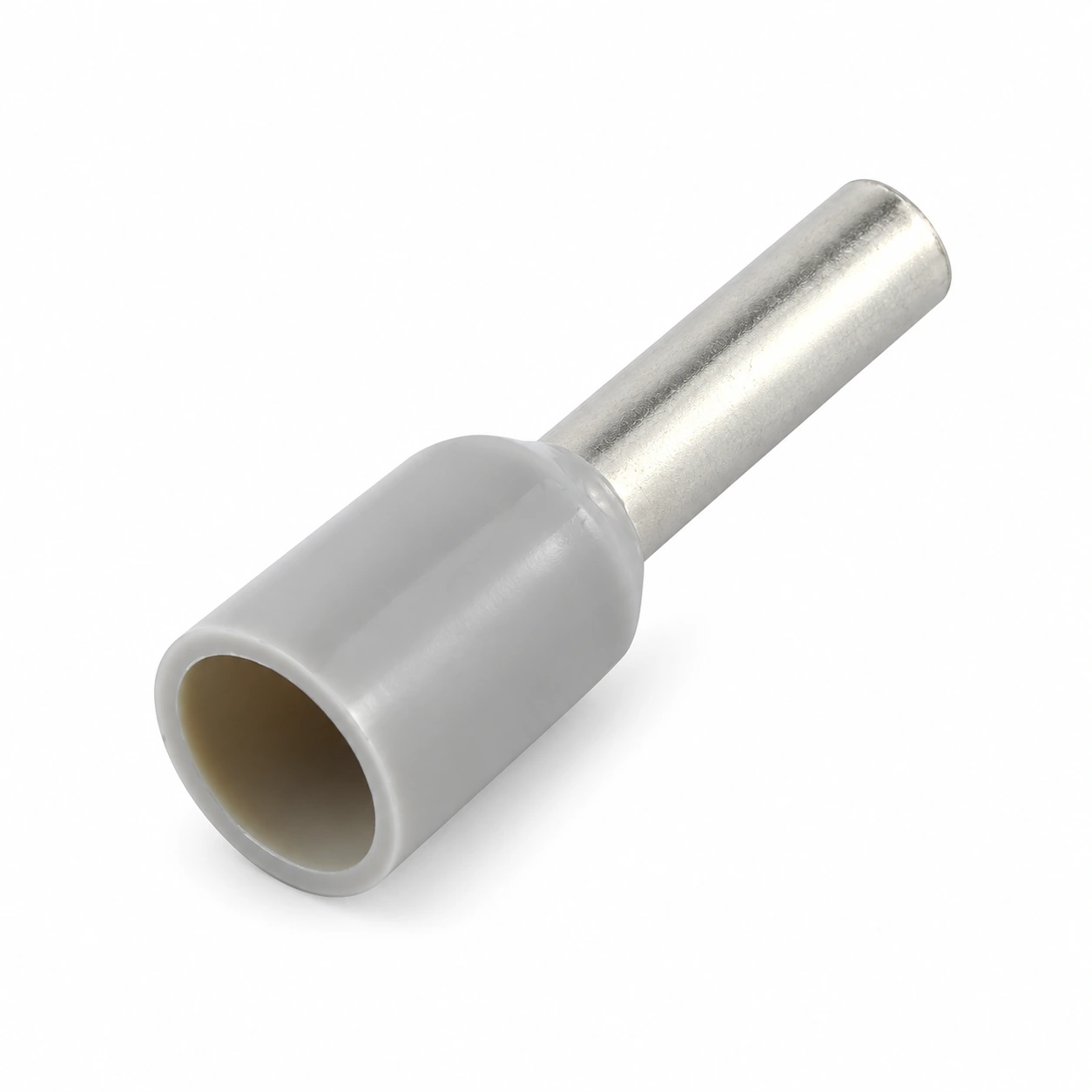

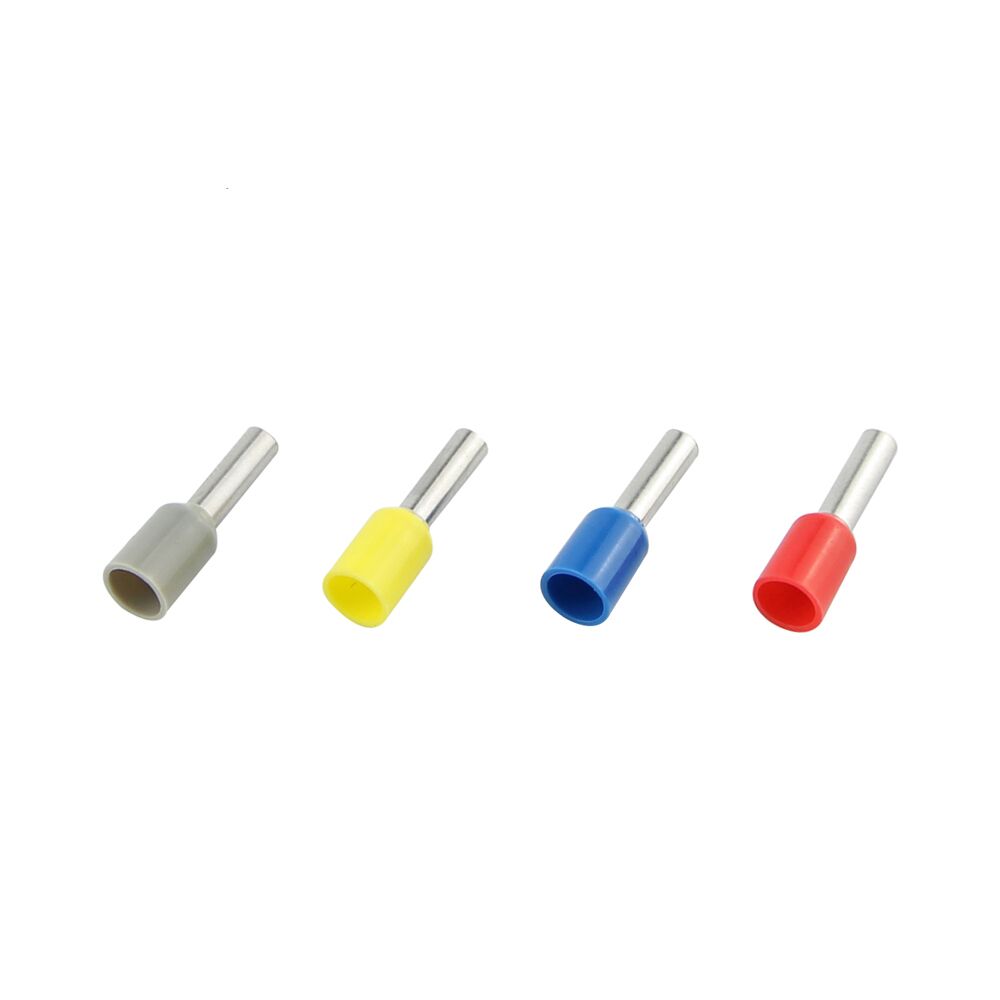

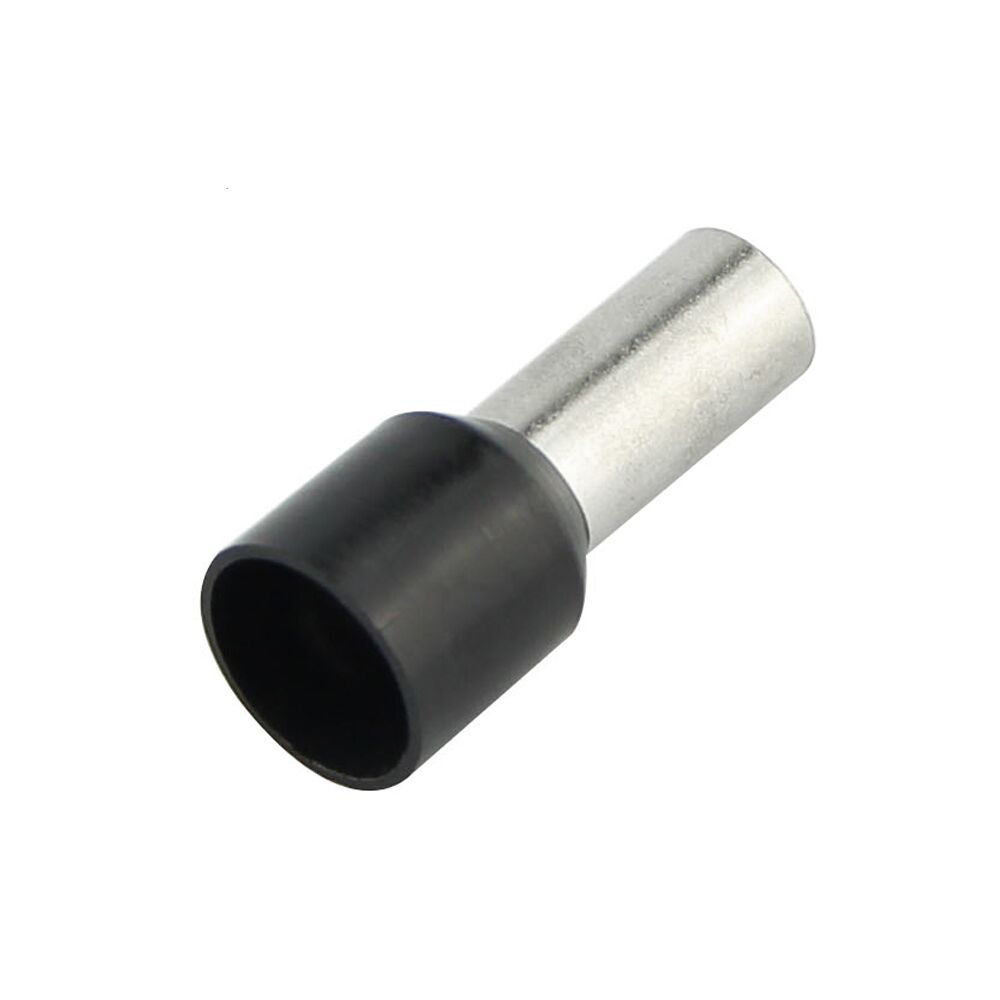

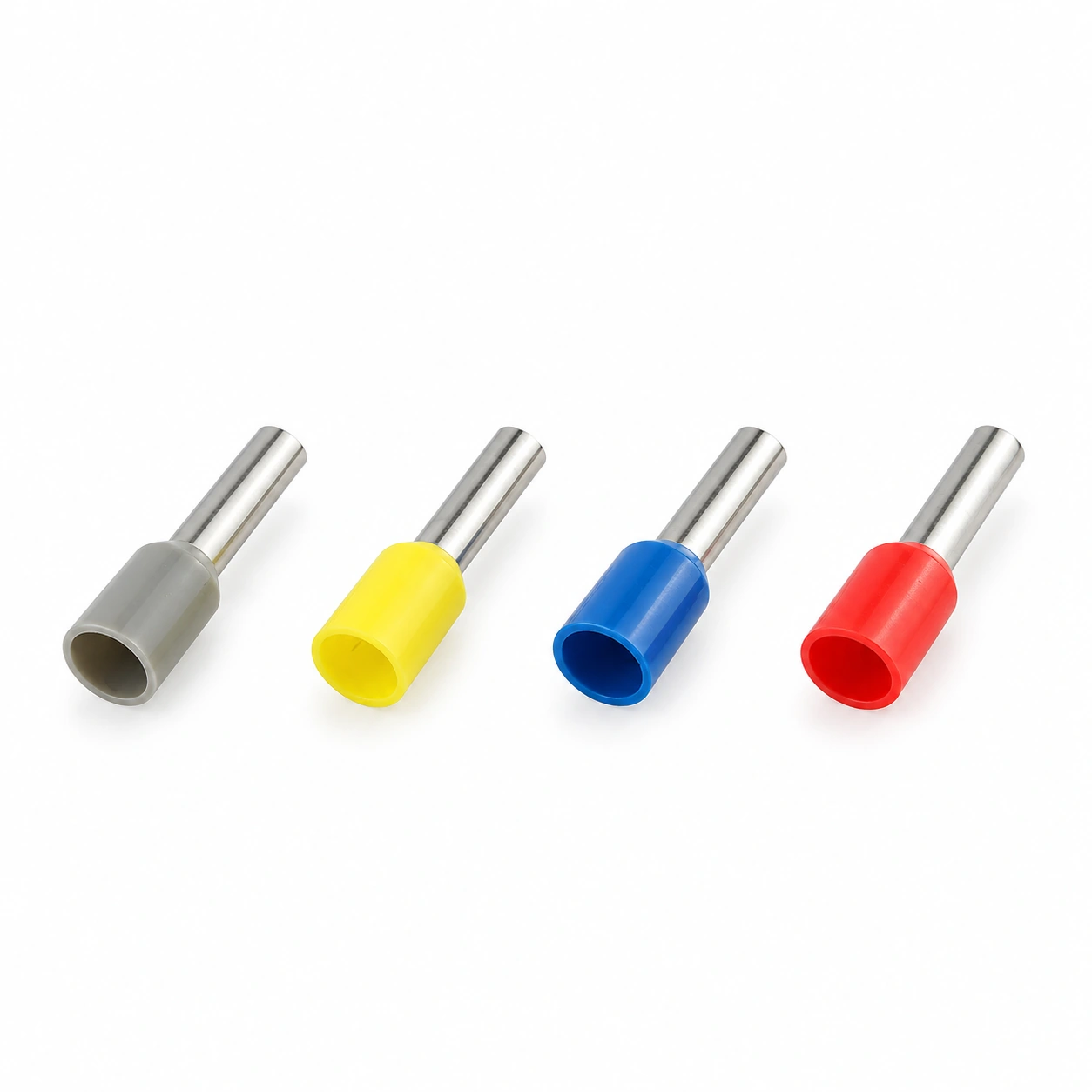

- Color references: choose the required catalog color convention and confirm it in the quotation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | E |
| Terminal type | Single-wire insulated ferrule |
| Terminal material | Copper / brass, as listed in the original catalog |
| Plating | Tin |
| Insulation options | Vinyl / nylon, according to supplied variant |
| Catalog models | 49 |
| Wire sections (catalog) | 0.3; 0.5; 0.8; 1.0; 1.5; 2.5; 4.0; 6.0; 10.0; 16.0; 25.0; 35.0; 50.0; 70.0; 95.0; 120.0; 150.0 mm² |
| Color references | German / French / DIN catalog columns |
Confirm terminal material, insulation type and color convention for the exact supplied model. Catalog color columns are selection references.
Dimension

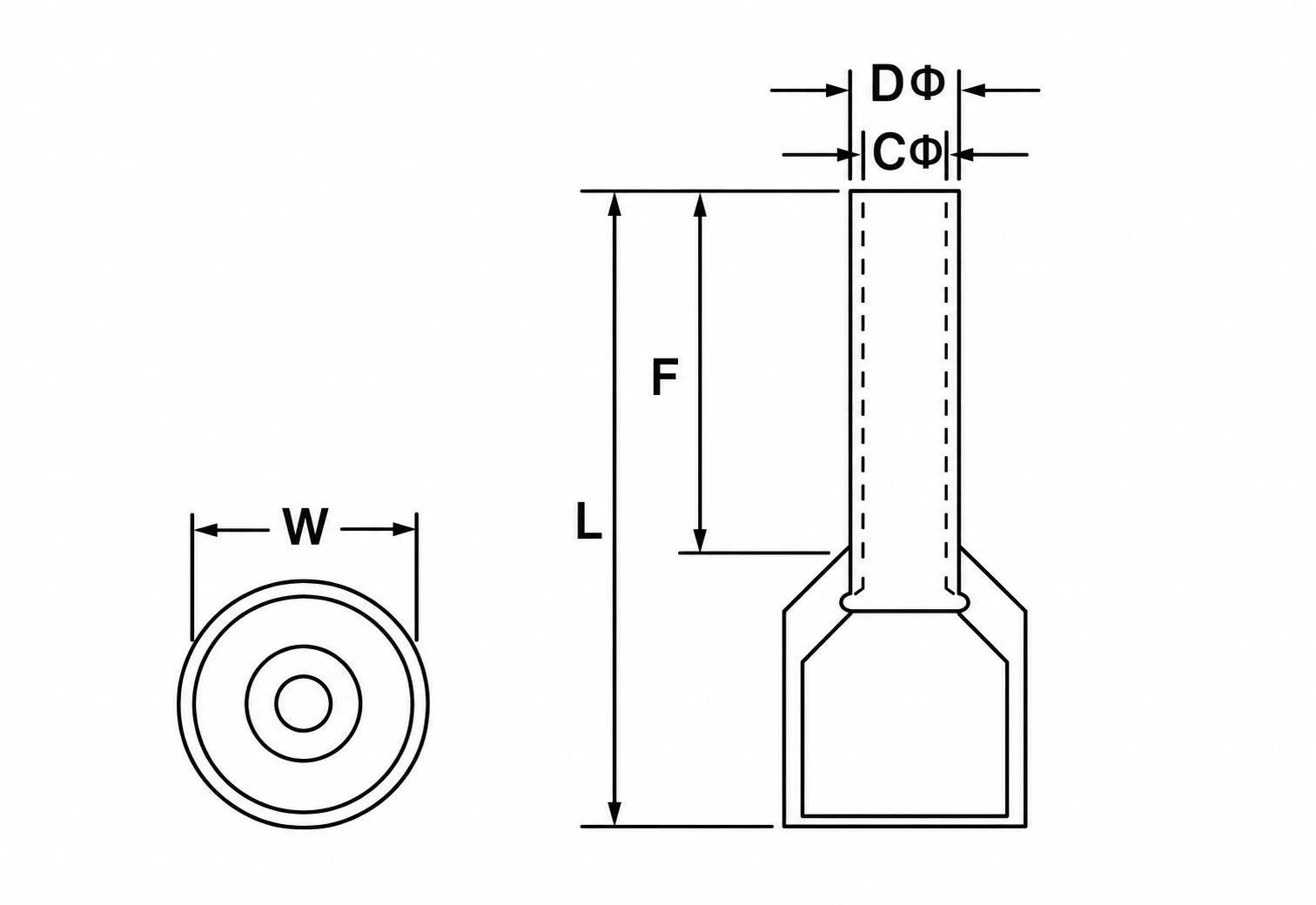

Dimensions are in millimeters; conductor sections are in mm². Original catalog entries are preserved. E0206/E0208 share a listed 0.3 mm² section with the E03 group, and some E15 model suffixes differ from the listed F length; confirm these references against the current model drawing.
| Model | F (mm) | L (mm) | W (mm) | DΦ (mm) | CΦ (mm) | AWG (catalog) | Lead section (mm²) | German color | French color | DIN color |
|---|---|---|---|---|---|---|---|---|---|---|
| E0206 | 6.0 | 10.5 | 2.5 | 1.0 | 0.7 | #26 | 0.3 | Light blue | Violet | — |
| E0208 | 8.0 | 12.5 | 2.5 | 1.0 | 0.7 | #26 | 0.3 | Light blue | Violet | — |
| E0306 | 6.0 | 10.5 | 2.5 | 1.1 | 0.8 | #24 | 0.3 | Turquoise | Pink | — |
| E0308 | 8.0 | 12.5 | 2.5 | 1.1 | 0.8 | #24 | 0.3 | Turquoise | Pink | — |
| E0506 | 6.0 | 12.0 | 2.6 | 1.3 | 1.0 | #22 | 0.5 | Orange | White | White |
| E0508 | 8.0 | 14.0 | 2.6 | 1.3 | 1.0 | #22 | 0.5 | Orange | White | White |
| E0510 | 10.0 | 16.0 | 2.6 | 1.3 | 1.0 | #22 | 0.5 | Orange | White | White |
| E0512 | 12.0 | 18.0 | 2.6 | 1.3 | 1.0 | #22 | 0.5 | Orange | White | White |
| E7506 | 6.0 | 12.4 | 2.8 | 1.6 | 1.3 | #20 | 0.8 | White | Blue | Grey |
| E7508 | 8.0 | 14.6 | 2.8 | 1.6 | 1.3 | #20 | 0.8 | White | Blue | Grey |
| E7510 | 10.0 | 16.4 | 2.8 | 1.6 | 1.3 | #20 | 0.8 | White | Blue | Grey |
| E7512 | 12.0 | 18.4 | 2.8 | 1.6 | 1.3 | #20 | 0.8 | White | Blue | Grey |
| E1006 | 6.0 | 12.4 | 3.0 | 1.8 | 1.5 | #18 | 1.0 | Yellow | Red | Red |
| E1008 | 8.0 | 14.6 | 3.0 | 1.8 | 1.5 | #18 | 1.0 | Yellow | Red | Red |
| E1010 | 10.0 | 16.4 | 3.0 | 1.8 | 1.5 | #18 | 1.0 | Yellow | Red | Red |
| E1012 | 12.0 | 18.4 | 3.0 | 1.8 | 1.5 | #18 | 1.0 | Yellow | Red | Red |
| E1508 | 6.0 | 14.6 | 3.5 | 2.1 | 1.8 | #16 | 1.5 | Red | Black | Black |
| E1510 | 8.0 | 16.4 | 3.5 | 2.1 | 1.8 | #16 | 1.5 | Red | Black | Black |
| E1512 | 10.0 | 18.4 | 3.5 | 2.1 | 1.8 | #16 | 1.5 | Red | Black | Black |
| E1518 | 12.0 | 24.4 | 3.5 | 2.1 | 1.8 | #16 | 1.5 | Red | Black | Black |
| E2508 | 8.0 | 15.2 | 4.0 | 2.6 | 2.3 | #14 | 2.5 | Blue | Grey | Blue |
| E2510 | 10.0 | 17.2 | 4.0 | 2.6 | 2.3 | #14 | 2.5 | Blue | Grey | Blue |
| E2512 | 12.0 | 19.2 | 4.0 | 2.6 | 2.3 | #14 | 2.5 | Blue | Grey | Blue |
| E2518 | 18.0 | 25.2 | 4.0 | 2.6 | 2.3 | #14 | 2.5 | Blue | Grey | Blue |
| E4009 | 9.0 | 16.5 | 4.4 | 3.2 | 2.8 | #12 | 4.0 | Grey | Orange | Grey |
| E4012 | 12.0 | 19.5 | 4.4 | 3.2 | 2.8 | #12 | 4.0 | Grey | Orange | Grey |
| E4018 | 18.0 | 25.5 | 4.4 | 3.2 | 2.8 | #12 | 4.0 | Grey | Orange | Grey |
| E6010 | 10.0 | 18.0 | 6.3 | 3.9 | 3.5 | #10 | 6.0 | Black | Green | Yellow |
| E6012 | 12.0 | 20.0 | 6.3 | 3.9 | 3.5 | #10 | 6.0 | Black | Green | Yellow |
| E6018 | 18.0 | 26.0 | 6.3 | 3.9 | 3.5 | #10 | 6.0 | Black | Green | Yellow |
| E10-12 | 12.0 | 21.5 | 7.6 | 4.5 | 4.5 | #7 | 10.0 | Ivory | Brown | Red |
| E10-18 | 18.0 | 27.5 | 7.6 | 4.5 | 4.5 | #7 | 10.0 | Ivory | Brown | Red |
| E16-12 | 12.0 | 22.2 | 8.8 | 5.8 | 5.8 | #5 | 16.0 | Green | Ivory | Blue |
| E16-18 | 18.0 | 28.2 | 8.8 | 5.8 | 5.8 | #5 | 16.0 | Green | Ivory | Blue |
| E25-16 | 16.0 | 29.0 | 11.2 | 7.9 | 7.5 | #4 | 25.0 | Brown | Black | Yellow |
| E25-22 | 22.0 | 35.0 | 11.2 | 7.9 | 7.5 | #4 | 25.0 | Brown | Black | Yellow |
| E35-16 | 16.0 | 30.0 | 12.7 | 8.7 | 8.3 | #2 | 35.0 | Beige | Red | Red |
| E35-25 | 25.0 | 39.0 | 12.7 | 8.7 | 8.3 | #2 | 35.0 | Beige | Red | Red |
| E50-20 | 20.0 | 36.0 | 15.3 | 10.9 | 10.3 | #1 | 50.0 | Olive | Blue | Blue |
| E50-25 | 25.0 | 41.0 | 15.3 | 10.9 | 10.3 | #1 | 50.0 | Olive | Blue | Blue |
| E70-20 | 20.0 | 37.0 | 16.0 | 14.3 | 13.5 | 2/0 | 70.0 | Yellow | Yellow | Yellow |
| E70-25 | 25.0 | 42.0 | 16.0 | 14.3 | 13.5 | 2/0 | 70.0 | Yellow | Yellow | Yellow |
| E70-27 | 27.0 | 44.0 | 16.0 | 14.3 | 13.5 | 2/0 | 70.0 | Yellow | Yellow | Yellow |
| E95-25 | 25.0 | 44.0 | 18.5 | 15.3 | 14.5 | 3/0 | 95.0 | Red | Red | Red |
| E120-27 | 27.0 | 47.6 | 20.3 | 17.5 | 16.5 | 4/4. | 120.0 | Blue | Blue | Blue |
| E120-32 | 32.0 | 52.6 | 20.3 | 17.5 | 16.5 | 4/4. | 120.0 | Blue | Blue | Blue |
| E150-25 | 25.0 | 50.6 | 23.4 | 20.6 | 19.6 | 250/300. | 150.0 | Yellow | Yellow | Yellow |
| E150-27 | 27.0 | 52.6 | 23.4 | 20.6 | 19.6 | 250/300. | 150.0 | Yellow | Yellow | Yellow |
| E150-32 | 32.0 | 57.6 | 23.4 | 20.6 | 19.6 | 250/300. | 150.0 | Yellow | Yellow | Yellow |
Selection Guide
Match the conductor section to the ferrule bore, then compare sleeve length with terminal insertion depth and clamping space. Use suitable ferrule crimp tooling, follow the specified strip length and inspect the completed crimp. Select color by the requested convention and model.
Applications
Enquiry examples include terminal-block wiring, control panels, equipment assemblies and electrical maintenance. Single-wire ferrules prepare stranded conductor ends for compatible terminal connections. Match the ferrule, conductor and terminal to the finished-assembly requirements.
Ordering Information
Send the full E model, conductor section, sleeve length, receiving-terminal details, color convention and order quantity. Specify terminal material, insulation, packaging and labeling requirements for OEM and wholesale supply.
