In any professional electrical system, from an automotive wiring harness to an industrial control cabinet, the quality of a connection is paramount. A loose or poorly terminated wire can lead to intermittent faults, power loss, and even dangerous failures. This is why insulated ring terminals are a cornerstone of reliable electrical work, providing a secure, vibration-proof method for connecting a wire to a screw or stud-type connection point.
This comprehensive guide will walk you through everything you need to know to select and install the perfect insulated ring terminal for your application. We will cover sizing, color codes, insulation materials, and step-by-step installation best practices to ensure a perfect connection every time.
What Are Insulated Ring Terminals?
An insulated ring terminal is an electrical connector used to terminate the end of a stranded wire. It consists of two main parts: a metal ring for attaching to a stud or screw and an insulated barrel that is crimped onto the wire. This design provides a highly secure mechanical and electrical connection that is far more robust than simply wrapping a bare wire around a screw. The insulation on the barrel provides abrasion resistance and prevents accidental short-circuits.
The Complete Guide to Sizing: AWG, Color Codes, and Stud Dimensions
Selecting the correct size is the most critical step. A terminal that is too large for the wire will not create a secure crimp, while one that is too small won’t fit. Sizing involves two key parameters: the wire gauge (AWG) the terminal can accept and the stud size the ring will fit onto.
Part 1: The Industry Standard Color Code
For quick identification, insulated ring terminals follow a universal color-coding system that corresponds to the American Wire Gauge (AWG) range of the wire they are designed for.
- Red Insulation: Fits wires from 22 to 18 AWG.
- Blue Insulation: Fits wires from 16 to 14 AWG.
- Yellow Insulation: Fits wires from 12 to 10 AWG.
This color code allows you to quickly grab the right terminal for the most common wire sizes, but for precise work, you must also match the ring to the stud size.

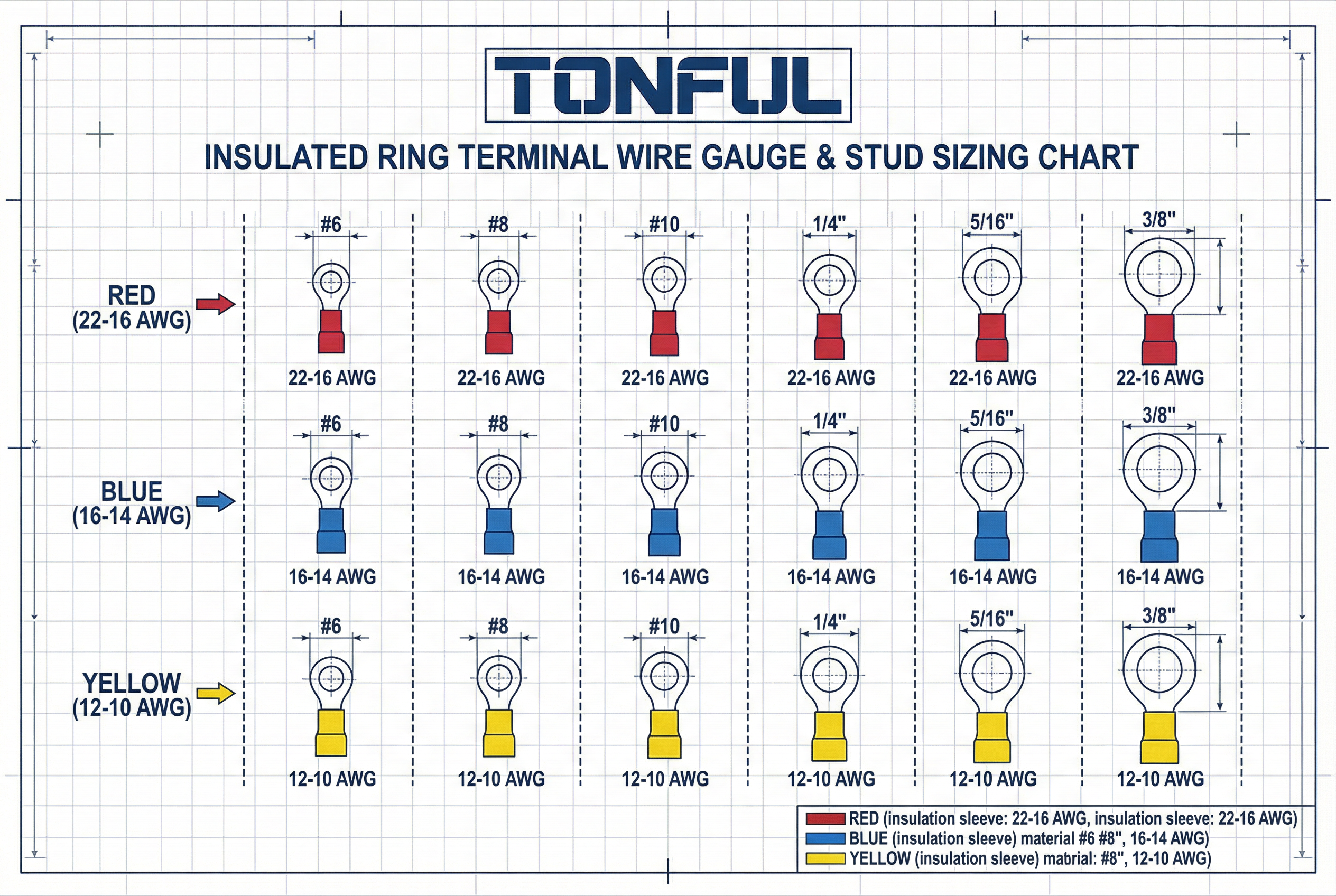

Part 2: Comprehensive AWG & Stud Size Chart
The stud size refers to the diameter of the screw or post the terminal will be attached to. This is typically measured as a number size (#4, #6, #8, #10) for smaller screws or in fractions of an inch (1/4″, 5/16″, 3/8″) for larger bolts.
The following chart provides a detailed breakdown of standard stud sizes and their dimensions to help you make the perfect selection.
| Stud Size | Major Diameter (inch) | Major Diameter (mm) | Compatible AWG Ranges |
|---|---|---|---|
| #4 | 0.112″ | 2.84 mm | 22-18 (Red), 16-14 (Blue) |
| #6 | 0.138″ | 3.51 mm | 22-18 (Red), 16-14 (Blue), 12-10 (Yellow) |
| #8 | 0.164″ | 4.17 mm | 22-18 (Red), 16-14 (Blue), 12-10 (Yellow) |
| #10 | 0.190″ | 4.83 mm | 22-18 (Red), 16-14 (Blue), 12-10 (Yellow) |
| 1/4″ | 0.250″ | 6.35 mm | 22-18 (Red), 16-14 (Blue), 12-10 (Yellow) |
| 5/16″ | 0.312″ | 7.92 mm | 16-14 (Blue), 12-10 (Yellow) |
| 3/8″ | 0.375″ | 9.53 mm | 16-14 (Blue), 12-10 (Yellow) |
| 1/2″ | 0.500″ | 12.7 mm | 12-10 (Yellow) |

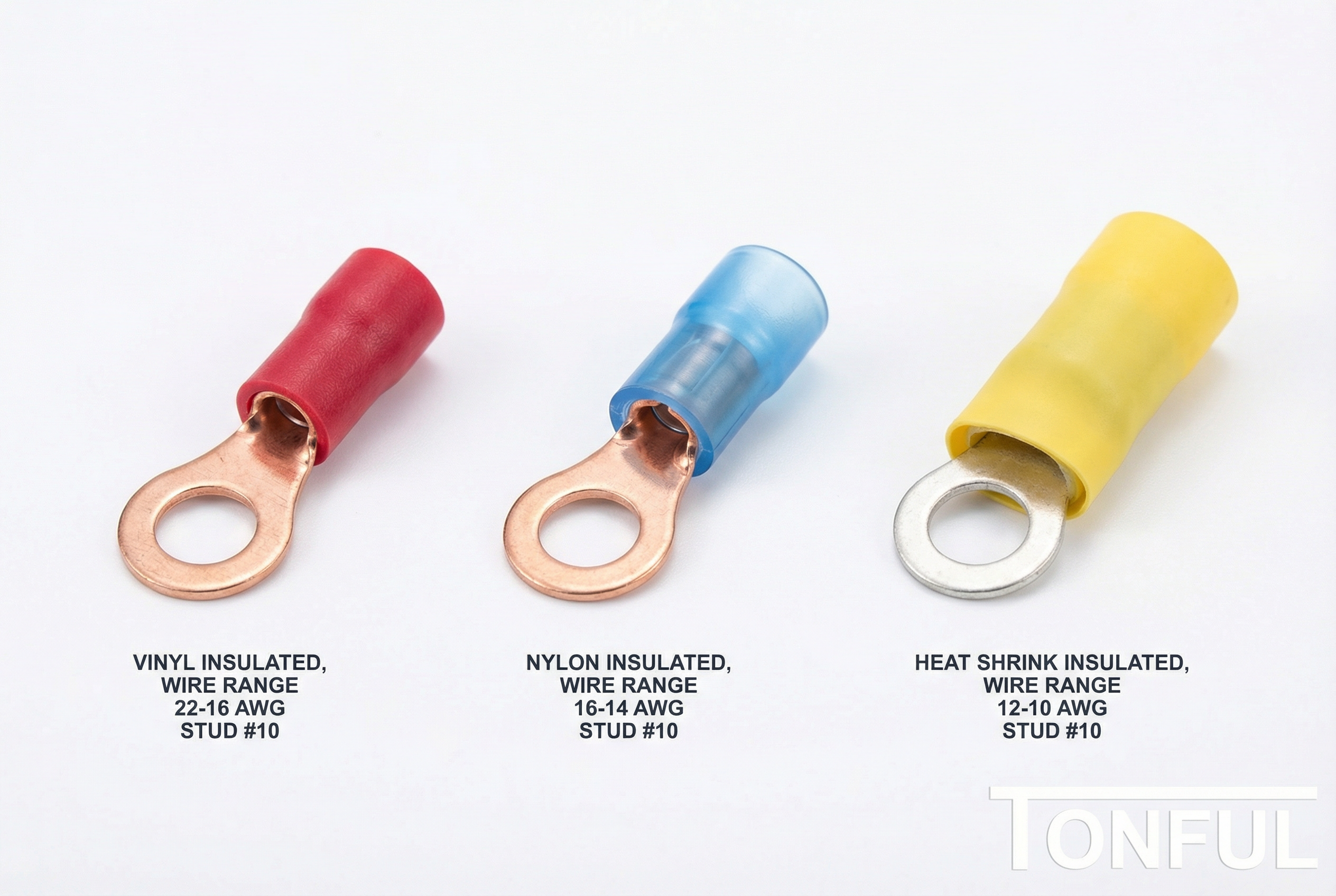

Choosing the Right Insulation for Your Application
Beyond sizing, the insulation material is a key factor that depends on the terminal’s operating environment.
Vinyl Insulated
Vinyl is the most common and economical insulation type. It provides good dielectric strength and is suitable for most general-purpose applications where the connections are not exposed to extreme temperatures, moisture, or harsh chemicals.
Nylon Insulated
Nylon offers superior performance compared to vinyl. It has a higher temperature rating, better clarity, and is more durable and resistant to abrasion and chemicals like fuel and oil. The added sleeve on nylon terminals also provides enhanced strain relief for the wire, making them ideal for automotive and industrial applications where vibration is a concern.
Heat Shrink Insulated
For the most demanding environments, heat shrink terminals are the gold standard. These terminals feature a dual-wall, adhesive-lined polyolefin sleeve. After crimping, the sleeve is heated with a heat gun, causing it to shrink and conform to the wire. The inner adhesive lining melts, creating an environmentally sealed, waterproof, and corrosion-proof connection. This makes them essential for marine, off-road vehicle, and any outdoor application.

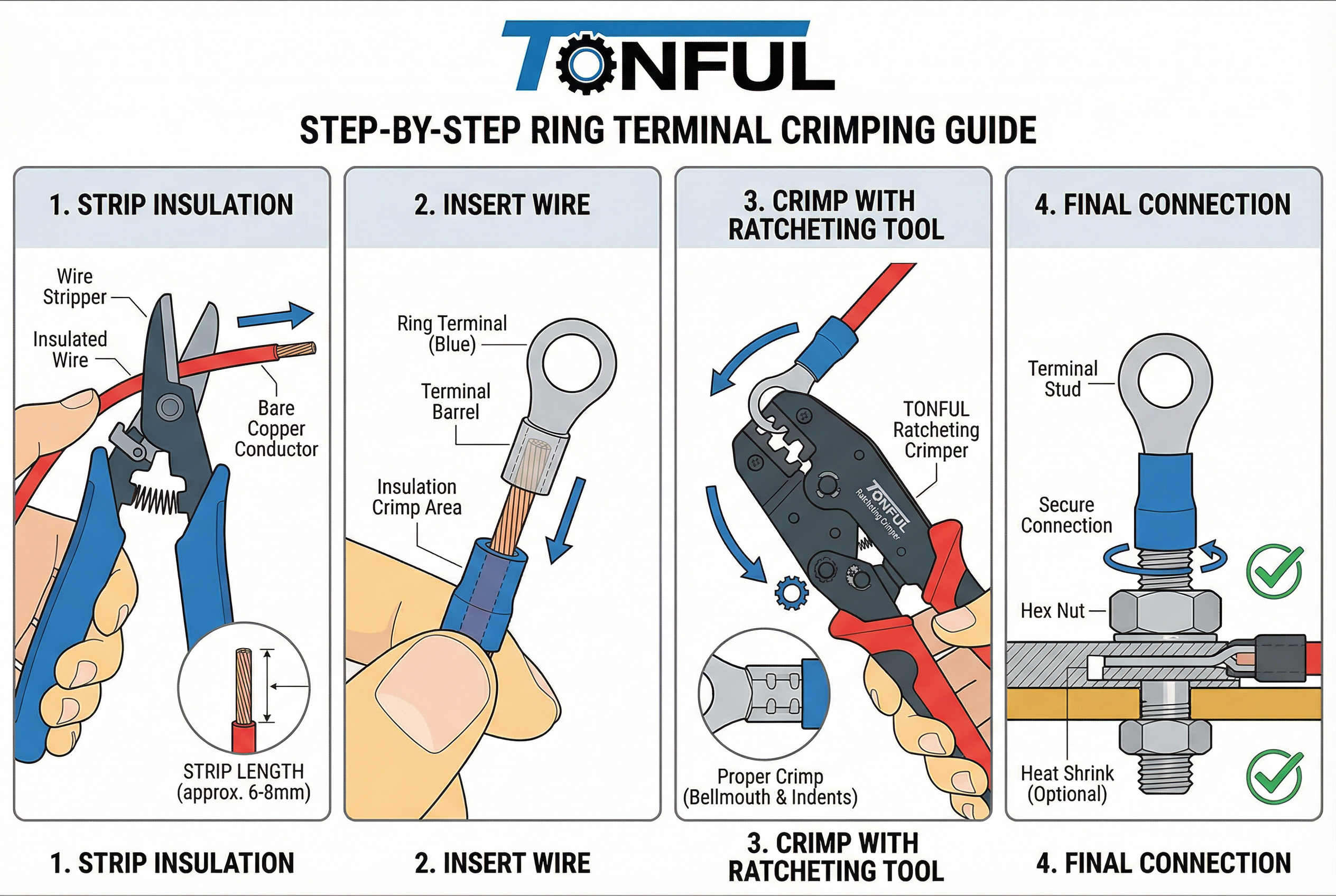

How to Crimp an Insulated Ring Terminal: Step-by-Step Best Practices
A proper crimp creates a “cold weld” between the wire and the terminal barrel, forming a gas-tight connection that is both mechanically strong and electrically reliable. Crucially, always use a dedicated ratcheting crimping tool. Using standard pliers will crush the terminal, resulting in a weak connection that is prone to failure.
- Select the Correct Terminal: Match the terminal’s color code to your wire’s AWG and ensure the ring’s stud size fits the connection post.
- Strip the Wire: Carefully strip about 1/4 inch (6mm) of insulation from the end of the wire. Do not nick or cut any of the wire strands. The strip length should match the length of the terminal barrel.
- Insert the Wire: Twist the wire strands together and insert them into the terminal barrel. The wire insulation should butt up against the end of the barrel, and you should see the copper strands at the other end.
- Crimp the Connection: Place the terminal in the correctly colored die of your ratcheting crimper. Squeeze the tool handles until the ratchet mechanism engages and fully completes its cycle. This ensures a consistent, perfect crimp every time.
- Perform a Pull Test: Gently tug on the wire and terminal to confirm that the connection is mechanically secure. The wire should not pull out.
- Activate Heat Shrink (If Applicable): If using a heat shrink terminal, use a heat gun to slowly and evenly heat the barrel until it has fully shrunk and you see adhesive sealant emerge from the ends.
Common Applications of Insulated Ring Terminals
Thanks to their durability and reliability, insulated ring terminals are used across numerous industries:
- Automotive & Transportation: Connecting battery cables, grounding straps, alternators, starter motors, and wiring harnesses.
- Marine: Securing connections in control panels, battery banks, bilge pumps, and navigation equipment where moisture resistance is critical.
- Industrial: Terminating wires in power distribution panels, control cabinets, robotics, and heavy machinery.
- Renewable Energy: Used in solar panel installations and battery storage systems.
Conclusion
Choosing the right insulated ring terminal and installing it correctly is fundamental to building safe, long-lasting electrical systems. By matching the wire gauge to the terminal’s color code, selecting the correct stud size, and choosing an insulation type suited to the environment, you ensure a professional-grade connection. Always remember that using a proper ratcheting crimper is not just a best practice—it’s essential for reliability and safety.
For a comprehensive selection of professional-grade insulated ring terminals and wiring solutions, visit tonful.com to explore our catalog or contact our specialists for a quote.
Frequently Asked Questions (FAQ)
Q1: What do the red, blue, and yellow colors on ring terminals mean?
The colors indicate the wire gauge (AWG) the terminal is designed for. Red is for 22-18 AWG wire, blue is for 16-14 AWG wire, and yellow is for 12-10 AWG wire.
Q2: Can I use pliers instead of a crimping tool?
No. Pliers will crush the barrel and create an unreliable connection that can easily fail. You must use a ratcheting crimping tool with the correct die to form a proper, gas-tight cold weld.
Q3: When should I choose a heat shrink terminal over a vinyl one?
Choose a heat shrink terminal for any application exposed to moisture, salt, dirt, or other corrosive elements. Their adhesive-lined tubing creates a waterproof, environmentally sealed connection, making them ideal for marine, automotive, and outdoor use. Vinyl terminals are sufficient for dry, protected environments.
Q4: How do I know which stud size to choose?
The stud size of the terminal must match the diameter of the screw or bolt you are attaching it to. You can measure the stud with a caliper or use a sizing chart. Using a ring that is too large can result in a loose connection.
Q5: What is the difference between wire gauge (AWG) and stud size?
Wire gauge (AWG) refers to the thickness of the wire itself, which determines the current-carrying capacity. Stud size refers to the diameter of the mounting screw or bolt that the terminal’s ring will be placed on. Both must be correctly matched for a safe and secure connection.
Q6: What happens if I use the wrong size terminal for my wire?
If the terminal is too large for the wire (e.g., a blue 16-14 AWG terminal on a 20 AWG wire), the crimp will be loose and the wire can pull out, causing a connection failure. If the terminal is too small, the wire will not fit into the barrel, or you may damage strands trying to force it, resulting in a poor electrical connection.
