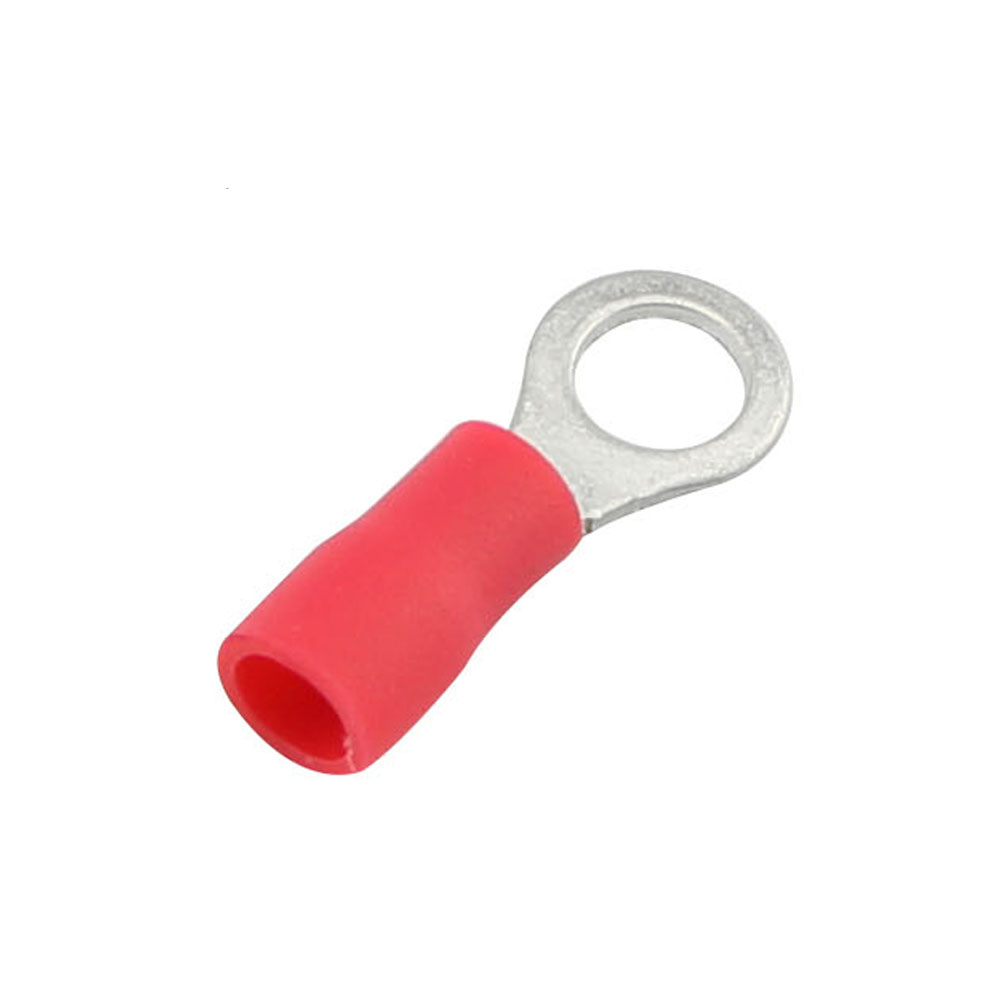

RV Ring Insulated Terminal
RV Ring Insulated Terminal
TONFUL Electric RV ring insulated terminals combine a tin-plated copper closed ring contact with vinyl insulation for crimped wire connections. Match the conductor size and bolt interface to your assembly requirements.
- 81 catalog models across the RV range.
- Compare conductor sections, bolt references and ring dimensions by model.

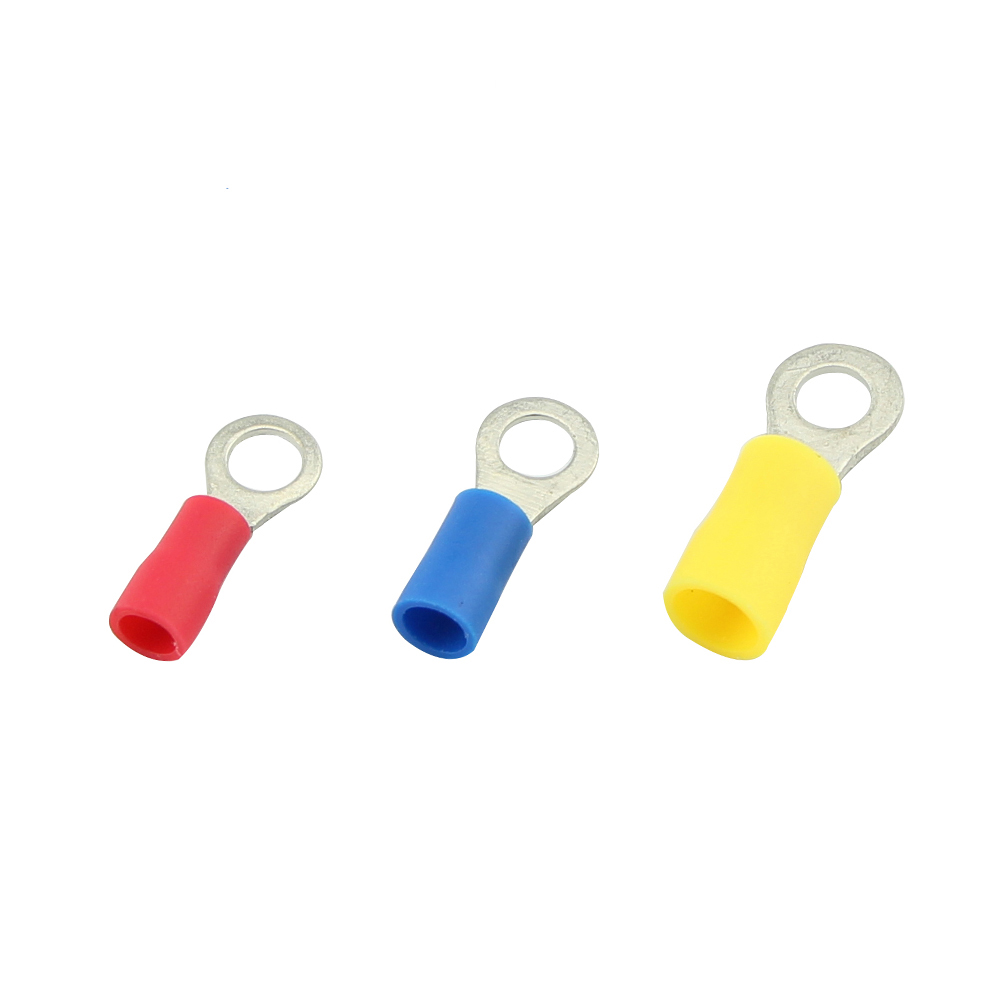

- Multiple ring sizes and terminal lengths for model-specific selection.
- Vinyl insulation with a tin-plated copper contact.
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Overview
TONFUL Electric RV ring insulated terminals combine a tin-plated copper closed ring contact with vinyl insulation for crimped wire connections. Match the conductor size and bolt interface to your assembly requirements. The original catalog includes 81 models; their dimensions and group-specific specifications are retained below.
The closed ring interface is selected to fit the intended bolt or stud connection. Confirm the exact model against your drawing or approved sample.
Features
- Tin-plated copper contact: materials retained from the original product information.
- Vinyl insulation: model-specific sleeve colors are listed in the tables.

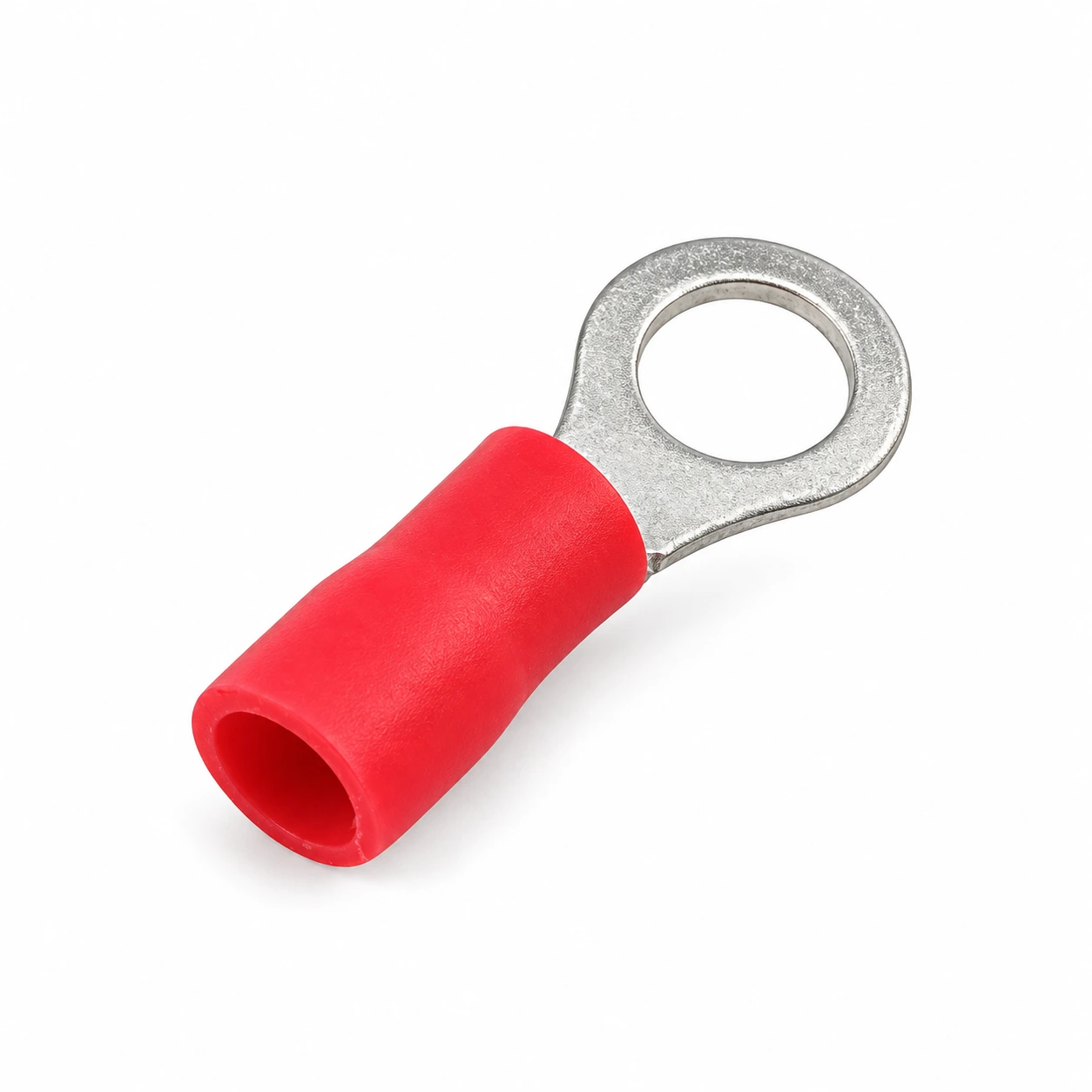

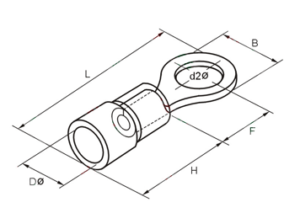

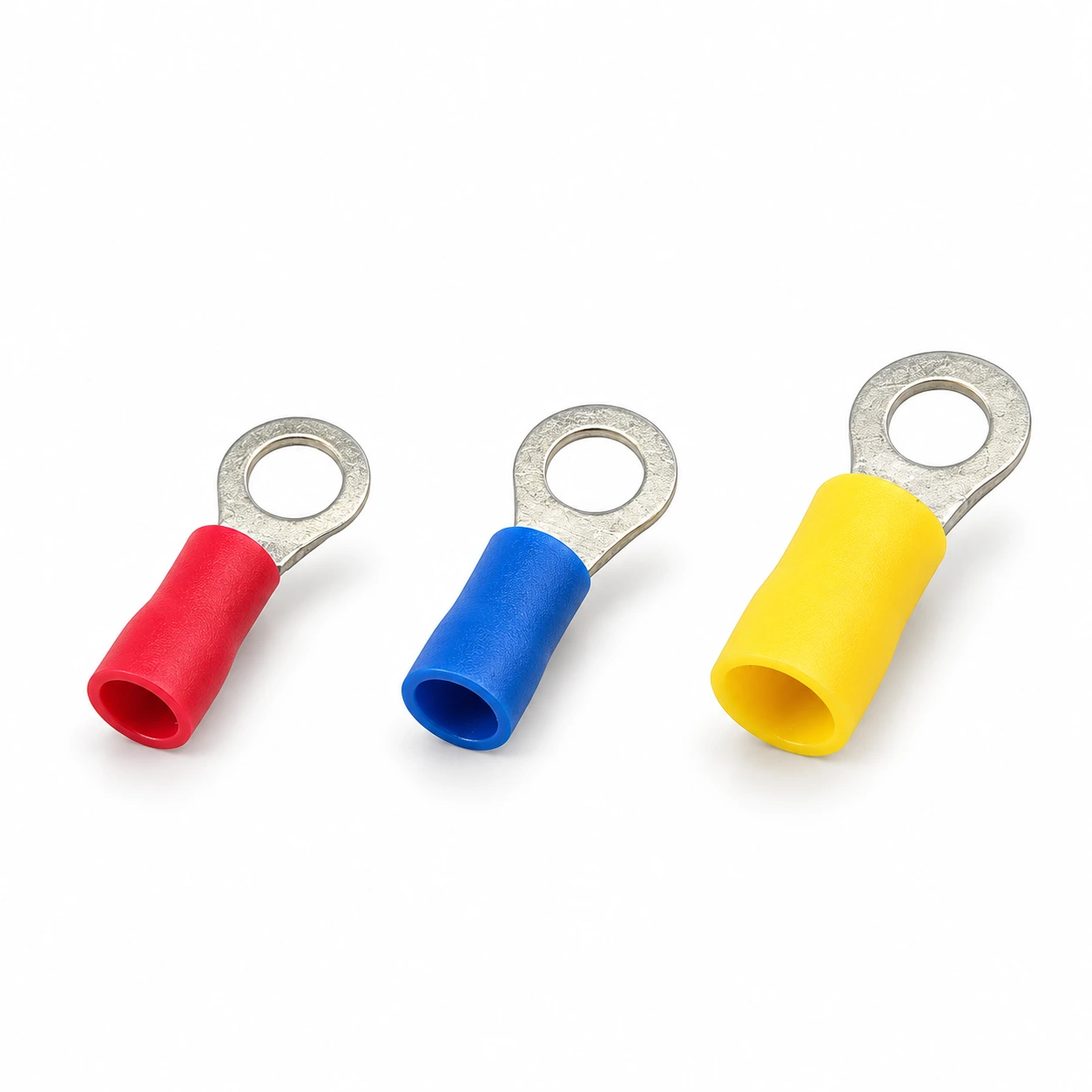

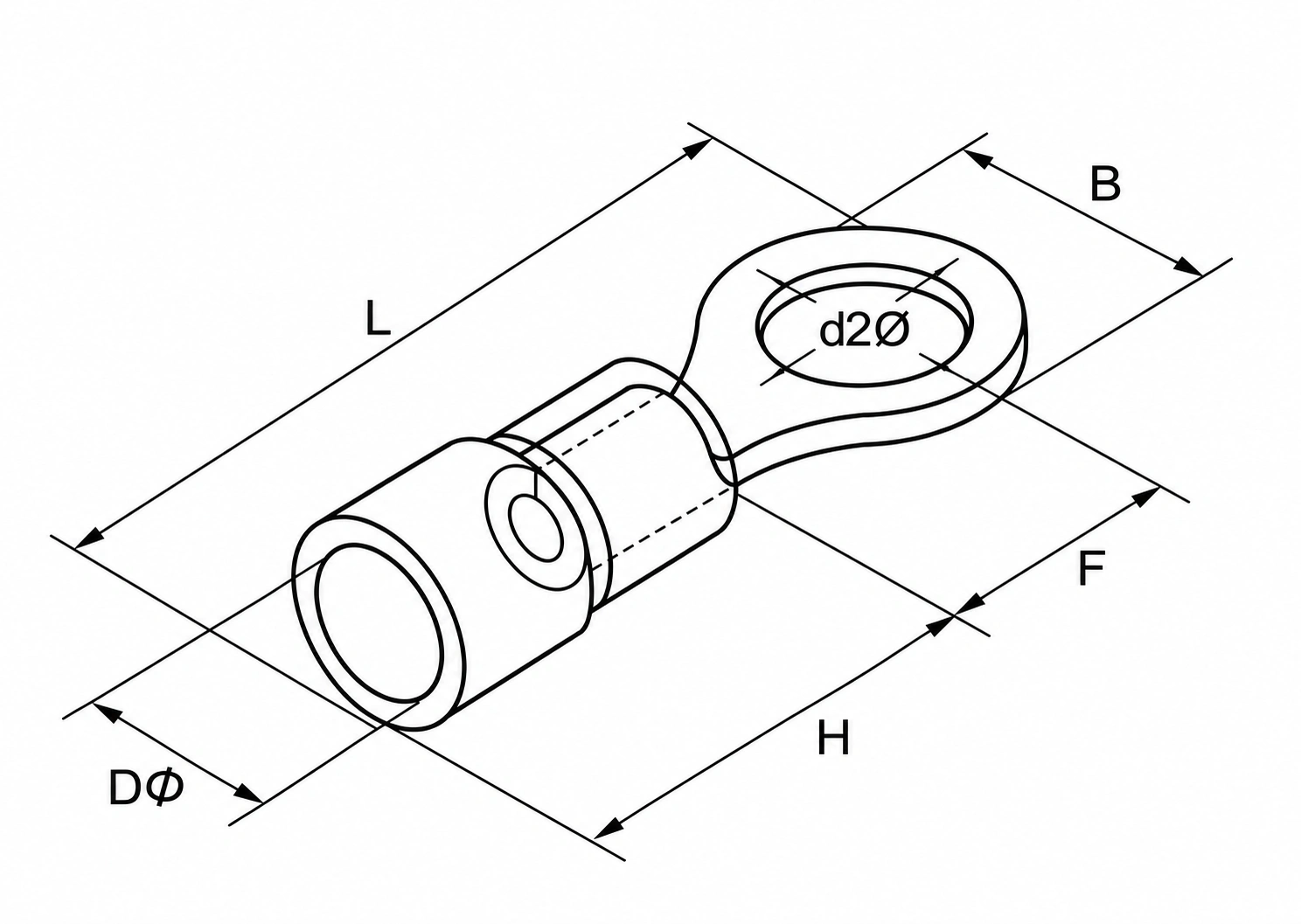

- Closed ring interface: compare bolt diameter d2, B, F and L before selecting.
- Model-specific options: conductor size, current and thickness vary by catalog group.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product family | Ring insulated crimp terminal |
| Series | RV |
| Terminal material | Copper |
| Plating | Tin |
| Insulation material | Vinyl |
| Listed models | 81 |
| Selection | Model-specific conductor section, current and dimensions |
Current values are catalog values, not a rating for every installation. Confirm the conductor, crimping method, operating conditions and required documentation.
Dimension
Dimensions are in millimeters. All 81 original models are retained. Swipe horizontally on small screens to read the complete tables.
RV1.25 Series
Conductor section: 0.5-1.5 mm² · AWG: 22-16 · Catalog max current: 19 A · Thickness: 0.7 mm.
| Model | USA bolt reference | d2 (mm) | B (mm) | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| RV1.25-3 | #4 | 3.2 | 5.7 | 4.95 | 17.8 | 10.0 | 4.3 | Red |
| RV1.25-3.5S | #6 | 3.7 | 5.7 | 4.95 | 17.8 | 10.0 | 4.3 | Red |
| RV1.25-3.5M | #6 | 3.7 | 6.6 | 6.3 | 19.6 | 10.0 | 4.3 | Red |
| RV1.25-3.5L | #6 | 3.7 | 8.0 | 7.0 | 21.0 | 10.0 | 4.3 | Red |
| RV1.25-4S | #8 | 4.3 | 6.6 | 6.3 | 19.6 | 10.0 | 4.3 | Red |
| RV1.25-4L | #8 | 4.3 | 8.0 | 7.0 | 21.0 | 10.0 | 4.3 | Red |
| RV1.25-5S | #10 | 5.3 | 8.0 | 7.0 | 21.0 | 10.0 | 4.3 | Red |
| RV1.25-5L | #10 | 5.3 | 9.5 | 8.5 | 22.2 | 10.0 | 4.3 | Red |
| RV1.25-5LL | #10 | 5.3 | 11.6 | 11.1 | 27.0 | 10.0 | 4.3 | Red |
| RV1.25-6S | 1/4 | 6.5 | 9.5 | 8.5 | 22.2 | 10.0 | 4.3 | Red |
| RV1.25-6L | 1/4 | 6.5 | 11.6 | 11.1 | 27.0 | 10.0 | 4.3 | Red |
| RV1.25-8 | 5/16 | 8.5 | 11.6 | 11.1 | 27.0 | 10.0 | 4.3 | Red |
| RV1.25-10 | 3/8 | 10.5 | 13.6 | 13.9 | 30.7 | 10.0 | 4.3 | Red |
| RV1.25-10L | 3/8 | 10.5 | 19.2 | 16.0 | 35.6 | 10.0 | 4.3 | Red |
| RV1.25-12 | 1/2 | 13.0 | 19.2 | 16.0 | 35.6 | 10.0 | 4.3 | Red |
| RV1.25-14 | 9/16 | 15.0 | 27.0 | 21.0 | 44.5 | 10.0 | 4.3 | Red |
| RV1.25-16 | 5/8 | 17.0 | 27.0 | 21.0 | 44.5 | 10.0 | 4.3 | Red |
| RV1.25-20 | 3/4 | 21.0 | 27.0 | 21.0 | 44.5 | 10.0 | 4.3 | Red |

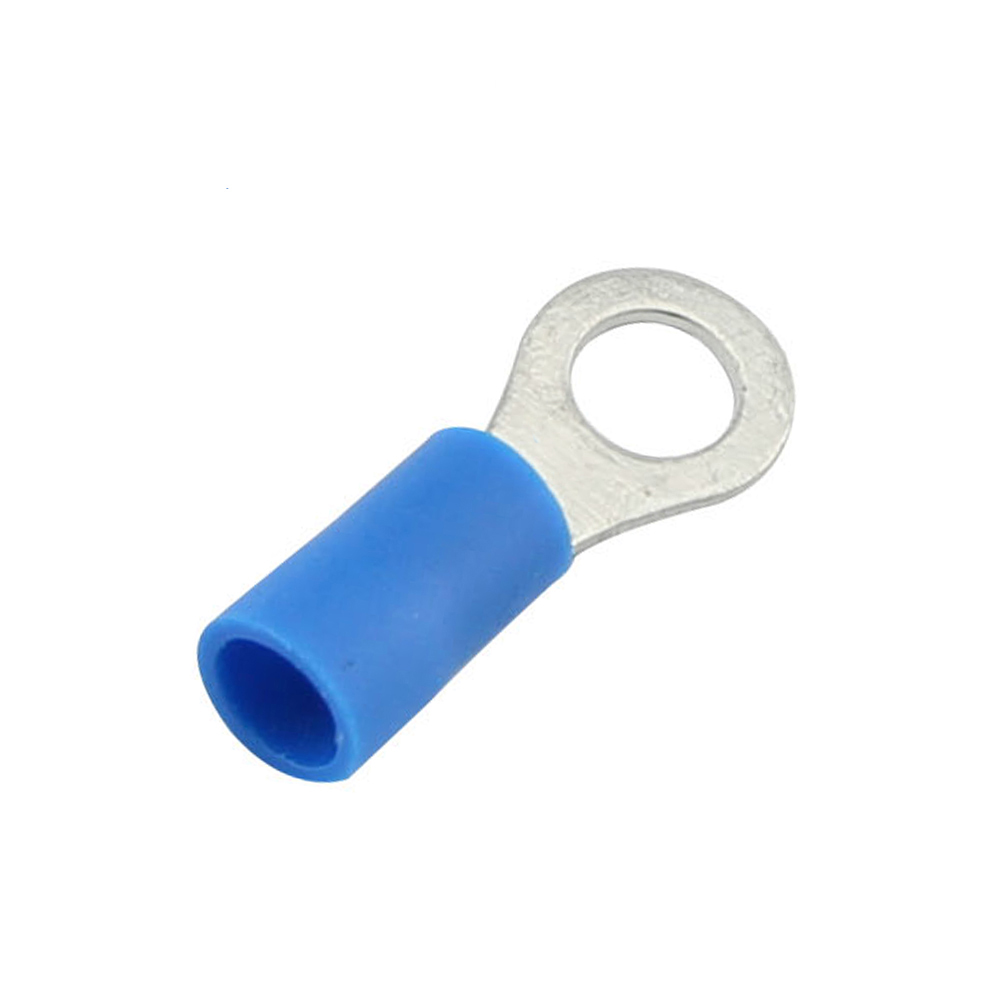

RV2 Series
Conductor section: 1.5-2.5 mm² · AWG: 16-14 · Catalog max current: 27 A · Thickness: 0.8 mm.
| Model | USA bolt reference | d2 (mm) | B (mm) | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| RV2-3 | #4 | 3.2 | 6.6 | 4.3 | 17.7 | 10.0 | 4.9 | Blue |
| RV2-3.5S | #6 | 3.7 | 6.6 | 4.3 | 17.7 | 10.0 | 4.9 | Blue |
| RV2-3.5M | #6 | 3.7 | 6.6 | 6.3 | 19.7 | 10.0 | 4.9 | Blue |
| RV2-3.5L | #6 | 3.7 | 8.5 | 7.4 | 21.7 | 10.0 | 4.9 | Blue |
| RV2-4S | #8 | 4.3 | 6.6 | 6.3 | 19.7 | 10.0 | 4.9 | Blue |
| RV2-4L | #8 | 4.3 | 8.5 | 7.4 | 21.7 | 10.0 | 4.9 | Blue |
| RV2-5S | #10 | 5.3 | 8.5 | 7.4 | 21.7 | 10.0 | 4.9 | Blue |
| RV2-5L | #10 | 5.3 | 9.5 | 7.4 | 22.2 | 10.0 | 4.9 | Blue |
| RV2-6S | 1/4 | 6.5 | 9.5 | 7.4 | 22.2 | 10.0 | 4.9 | Blue |
| RV2-6L | 1/4 | 6.5 | 12.0 | 11.0 | 27.0 | 10.0 | 4.9 | Blue |
| RV2-8 | 5/16 | 8.5 | 12.0 | 11.0 | 27.0 | 10.0 | 4.9 | Blue |
| RV2-10 | 3/8 | 10.5 | 13.6 | 13.9 | 30.7 | 10.0 | 4.9 | Blue |
| RV2-10L | 3/8 | 10.5 | 19.2 | 16.0 | 35.6 | 10.0 | 4.9 | Blue |
| RV2-12 | 1/2 | 13.0 | 19.2 | 16.0 | 35.6 | 10.0 | 4.9 | Blue |
| RV2-14 | 9/16 | 15.0 | 27.0 | 21.0 | 44.5 | 10.0 | 4.9 | Blue |
| RV2-16 | 5/8 | 17.0 | 27.0 | 21.0 | 44.5 | 10.0 | 4.9 | Blue |
| RV2-20 | 3/4 | 21.0 | 27.0 | 21.0 | 44.5 | 10.0 | 4.9 | Blue |
RV3.5 Series
Conductor section: 2.5-4.0 mm² · AWG: 14-12 · Catalog max current: 37 A · Thickness: 1.0 mm.
| Model | USA bolt reference | d2 (mm) | B (mm) | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| RV3.5-4 | #8 | 4.3 | 8.0 | 8.0 | 25.0 | 13.0 | 6.3 | Black |
| RV3.5-5S | #10 | 5.3 | 8.0 | 8.0 | 25.0 | 13.0 | 6.3 | Black |
| RV3.5-5L | #10 | 5.3 | 12.0 | 9.4 | 28.4 | 13.0 | 6.3 | Black |
| RV3.5-6 | 1/4 | 6.5 | 12.0 | 9.4 | 28.4 | 13.0 | 6.3 | Black |
| RV3.5-8 | 5/16 | 8.5 | 15.0 | 13.5 | 34.0 | 13.0 | 6.3 | Black |
| RV3.5-10 | 3/8 | 10.5 | 15.0 | 13.5 | 34.0 | 13.0 | 6.3 | Black |
| RV3.5-12 | 1/2 | 13.0 | 19.2 | 16.0 | 39.4 | 13.0 | 6.3 | Black |

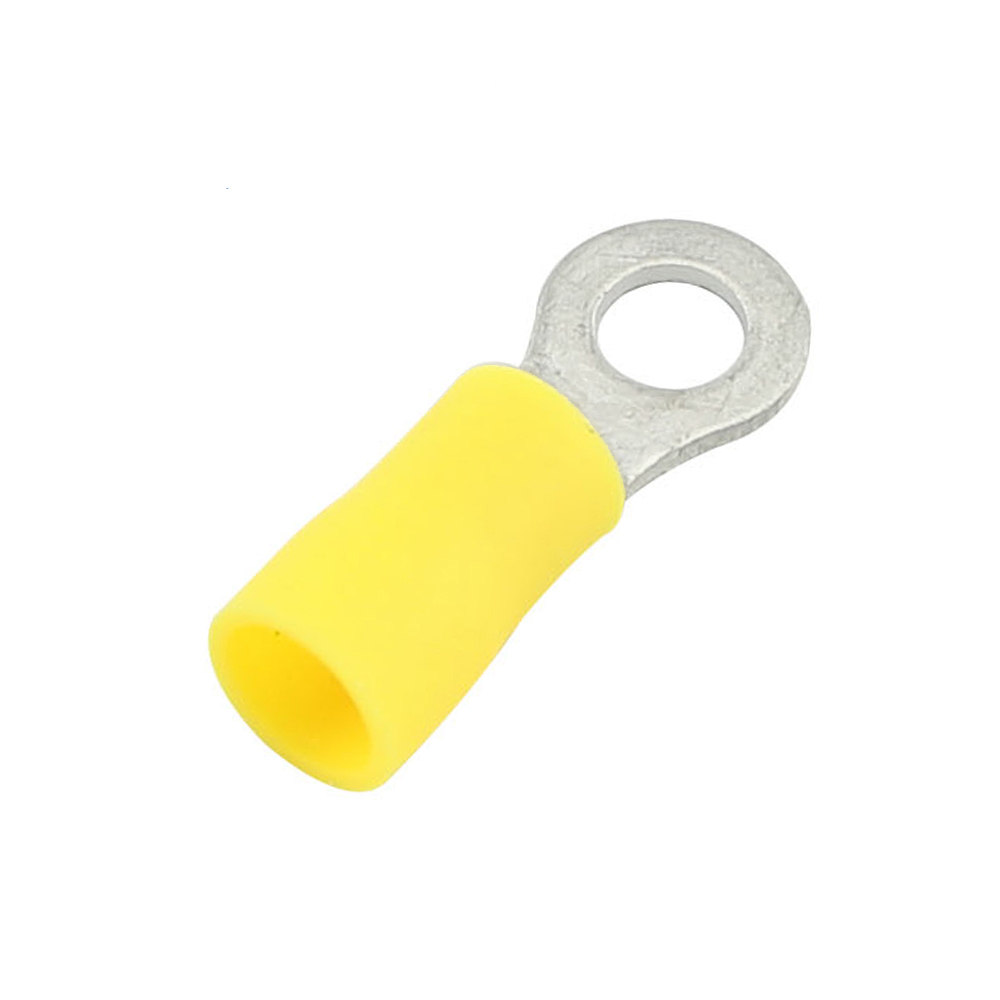

RV5.5 Series
Conductor section: 4.0-6.0 mm² · AWG: 12-10 · Catalog max current: 48 A · Thickness: 1.0 mm.
| Model | USA bolt reference | d2 (mm) | B (mm) | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| RV5.5-3.5 | #6 | 3.7 | 7.2 | 6.1 | 22.7 | 13.0 | 6.7 | Yellow |
| RV5.5-4S | #8 | 4.3 | 7.2 | 6.1 | 22.7 | 13.0 | 6.7 | Yellow |
| RV5.5-4L | #8 | 4.3 | 9.5 | 8.3 | 26.0 | 13.0 | 6.7 | Yellow |
| RV5.5-5 | #10 | 5.3 | 9.5 | 8.3 | 26.0 | 13.0 | 6.7 | Yellow |
| RV5.5-6 | 1/4 | 6.5 | 12.0 | 10.5 | 29.5 | 13.0 | 6.7 | Yellow |
| RV5.5-6M | 1/4 | 6.5 | 12.0 | 13.0 | 32.0 | 13.0 | 6.7 | Yellow |
| RV5.5-8 | 5/16 | 8.5 | 15.0 | 13.7 | 35.0 | 13.0 | 6.7 | Yellow |
| RV5.5-10 | 3/8 | 10.5 | 15.0 | 13.7 | 35.0 | 13.0 | 6.7 | Yellow |
| RV5.5-12 | 1/2 | 13.0 | 19.2 | 16.0 | 39.4 | 13.0 | 6.7 | Yellow |
| RV5.5-14 | 9/16 | 15.0 | 32.0 | 25.2 | 54.2 | 13.0 | 6.7 | Yellow |
| RV5.5-16 | 5/8 | 17.0 | 32.0 | 25.2 | 54.2 | 13.0 | 6.7 | Yellow |
| RV5.5-20 | 3/4 | 21.0 | 32.0 | 25.2 | 54.2 | 13.0 | 6.7 | Yellow |
RV8 Series
Conductor section: 6.0-10.0 mm² · AWG: 8 · Catalog max current: 62 A · Thickness: 1.2 mm.
| Model | USA bolt reference | d2 (mm) | B (mm) | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| RV8-4S | #8 | 4.3 | 8.8 | 10.5 | 30.8 | 15.5 | 8.5 | Red |
| RV8-5S | #10 | 5.3 | 8.8 | 10.5 | 30.8 | 15.5 | 8.5 | Red |
| RV8-5M | #10 | 5.3 | 12.0 | 9.3 | 30.8 | 15.5 | 8.5 | Red |
| RV8-6S | 1/4 | 6.5 | 12.0 | 9.3 | 30.8 | 15.5 | 8.5 | Red |
| RV8-8 | 5/16 | 8.5 | 15.0 | 13.8 | 36.8 | 15.5 | 8.5 | Red |
| RV8-10 | 3/8 | 10.5 | 15.0 | 13.8 | 36.8 | 15.5 | 8.5 | Red |
| RV8-12 | 1/2 | 13.0 | 20.0 | 15.0 | 40.5 | 15.5 | 8.5 | Red |
RV14 Series
Conductor section: 10.0-16.0 mm² · AWG: 6 · Catalog max current: 88 A · Thickness: 1.5 mm.
| Model | USA bolt reference | d2 (mm) | B (mm) | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| RV14-4 | #8 | 4.3 | 12.0 | 13.3 | 40.5 | 21.2 | 10.5 | Blue |
| RV14-5 | #10 | 5.3 | 12.0 | 13.3 | 40.5 | 21.2 | 10.5 | Blue |
| RV14-6S | 1/4 | 6.5 | 12.0 | 13.3 | 40.5 | 21.2 | 10.5 | Blue |
| RV14-6L | 1/4 | 6.5 | 16.0 | 14.2 | 42.8 | 21.2 | 10.5 | Blue |
| RV14-8 | 5/16 | 8.5 | 16.0 | 14.2 | 42.8 | 21.2 | 10.5 | Blue |
| RV14-10 | 3/8 | 10.5 | 16.0 | 14.2 | 42.8 | 21.2 | 10.5 | Blue |
| RV14-12 | 1/2 | 13.0 | 22.0 | 19.8 | 51.7 | 21.2 | 10.5 | Blue |
RV22 Series
Conductor section: 16.0-25.0 mm² · AWG: 4 · Catalog max current: 115 A · Thickness: 1.7 mm.
| Model | USA bolt reference | d2 (mm) | B (mm) | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| RV22-5S | #10 | 5.3 | 12.2 | 14.5 | 42.4 | 23.2 | 13.0 | Yellow |
| RV22-6S | 1/4 | 6.5 | 12.2 | 14.5 | 42.4 | 23.2 | 13.0 | Yellow |
| RV22-8 | 5/16 | 8.5 | 16.5 | 13.5 | 44.7 | 23.2 | 13.0 | Yellow |
| RV22-10 | 3/8 | 10.5 | 16.5 | 13.5 | 44.7 | 23.2 | 13.0 | Yellow |
| RV22-12 | 1/2 | 13.0 | 22.0 | 19.7 | 53.7 | 23.2 | 13.0 | Yellow |
RV38 Series
Source catalog repeats the preceding group’s conductor section (16.0–25.0 mm²), AWG 4, current (115 A) and thickness (1.7 mm) for RV38. These values require confirmation for RV38; model dimensions below are retained unchanged.
| Model | USA bolt reference | d2 (mm) | B (mm) | F (mm) | L (mm) | H (mm) | DΦ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| RV38-5 | #10 | 5.3 | 15.3 | 17.4 | 53.0 | 28.0 | 15.3 | Red |
| RV38-6S | 1/4 | 6.5 | 15.3 | 17.4 | 53.0 | 28.0 | 15.3 | Red |
| RV38-8S | 5/16 | 8.5 | 15.3 | 17.4 | 53.0 | 28.0 | 15.3 | Red |
| RV38-8L | 5/16 | 8.5 | 22.0 | 17.7 | 56.7 | 28.0 | 15.3 | Red |
| RV38-10S | 3/8 | 10.5 | 15.3 | 17.4 | 53.0 | 28.0 | 15.3 | Red |
| RV38-10L | 3/8 | 10.5 | 22.0 | 17.7 | 56.7 | 28.0 | 15.3 | Red |
| RV38-11 | 7/16 | 11.5 | 22.0 | 17.7 | 56.7 | 28.0 | 15.3 | Red |
| RV38-12 | 1/2 | 13.0 | 22.0 | 17.7 | 56.7 | 28.0 | 15.3 | Red |
Selection Guide
Start with the conductor section and AWG range, then compare current and thickness for the selected model. Match the bolt reference and d2 diameter, then check ring width and overall length against available space.
Use a compatible insulated-terminal crimping tool. Confirm strip length, crimp settings, retention and inspection requirements; do not select by insulation color alone.
Applications
Potential uses include equipment wiring, control-panel assemblies and cable harnesses requiring a compatible bolted ring connection. Suitability depends on the approved assembly.
Confirm voltage, temperature, environmental conditions and required approvals for the selected model. These ratings are not specified on the original product page.
Ordering Information
Provide the complete RV model number, conductor size, bolt or stud reference, application and order quantity. Include sample, packaging and inspection requirements.
Explore more vinyl-insulated terminals or TONFUL terminals and connectors.

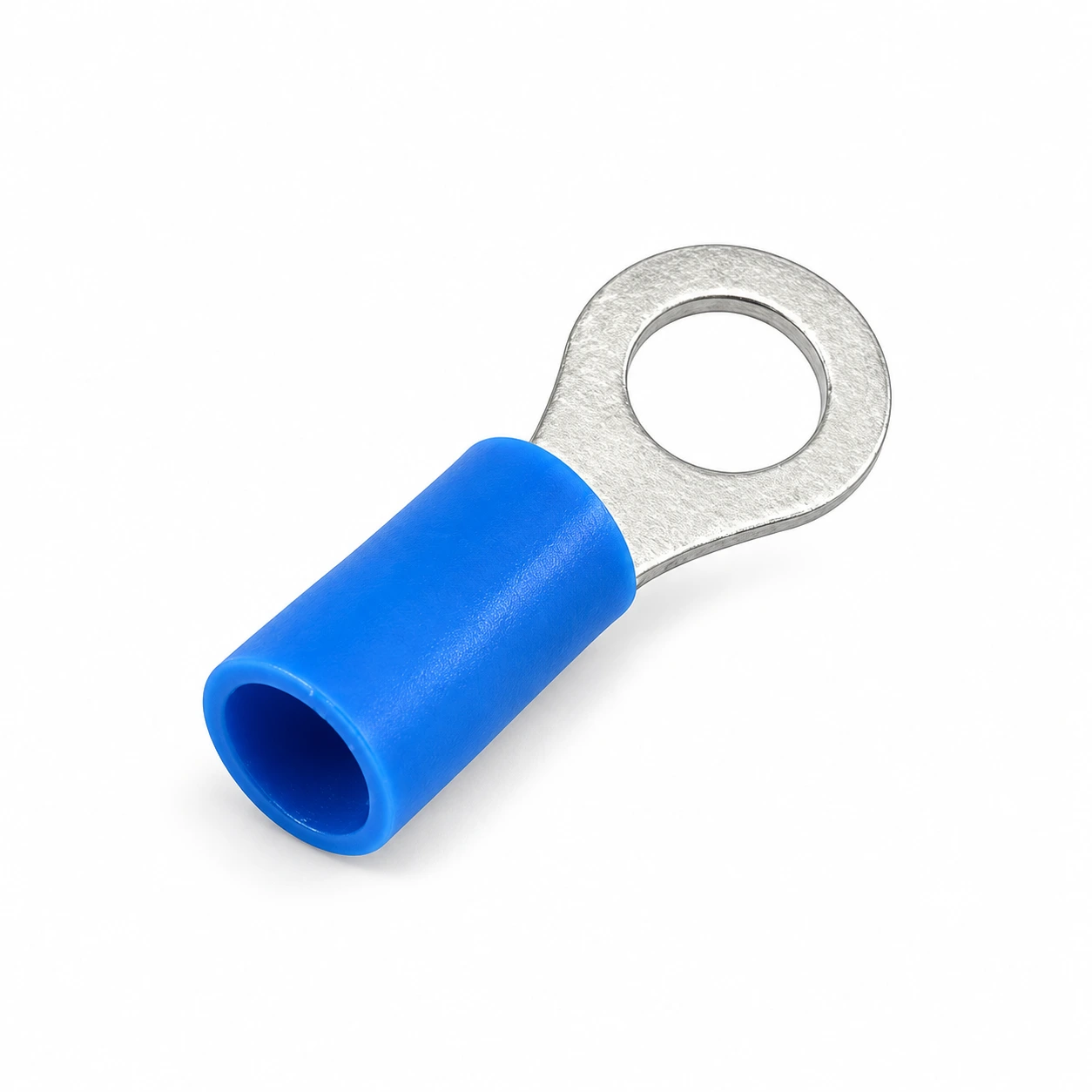

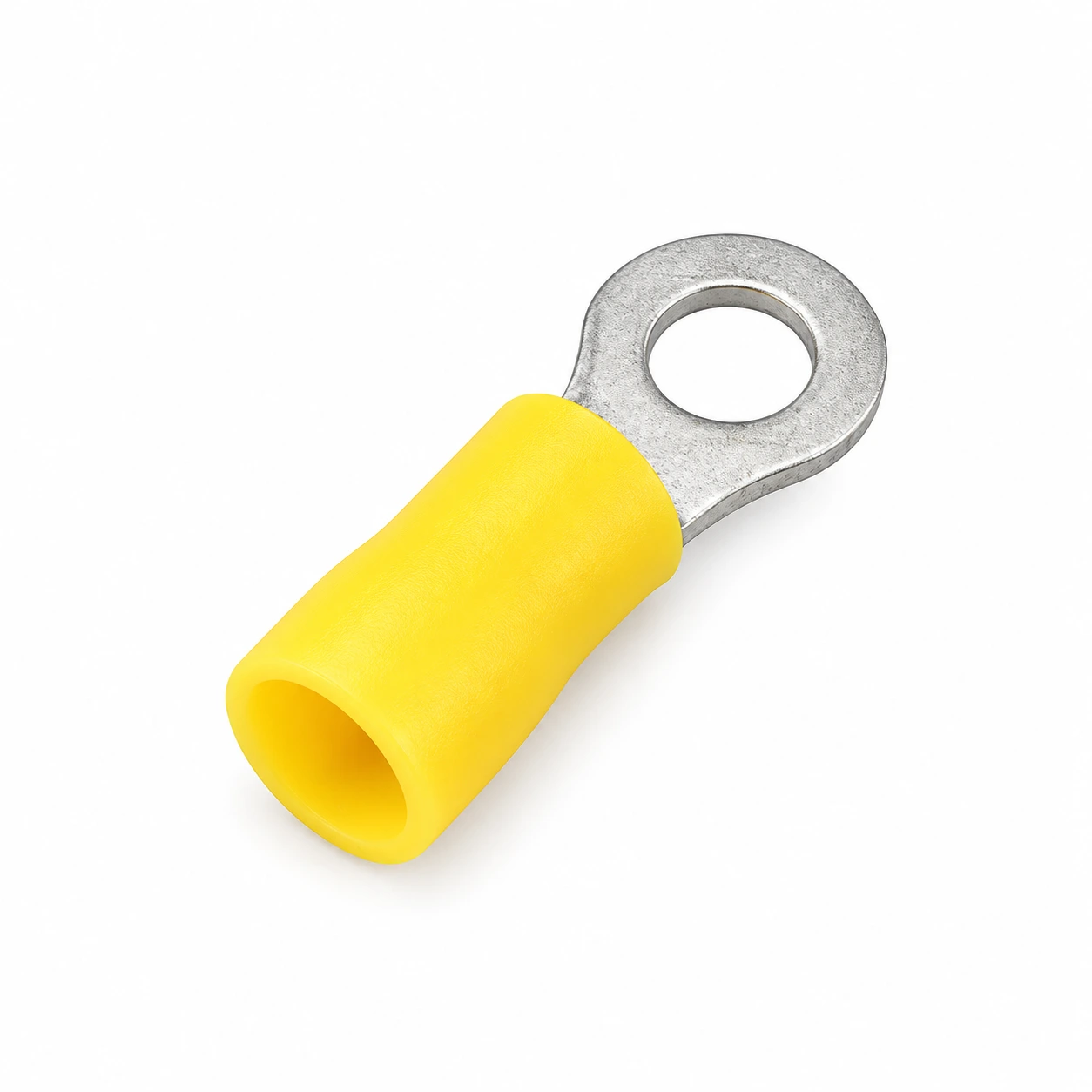

Product photographs are high-definition illustrative recreations of the original images. Confirm product configuration against an approved sample.
