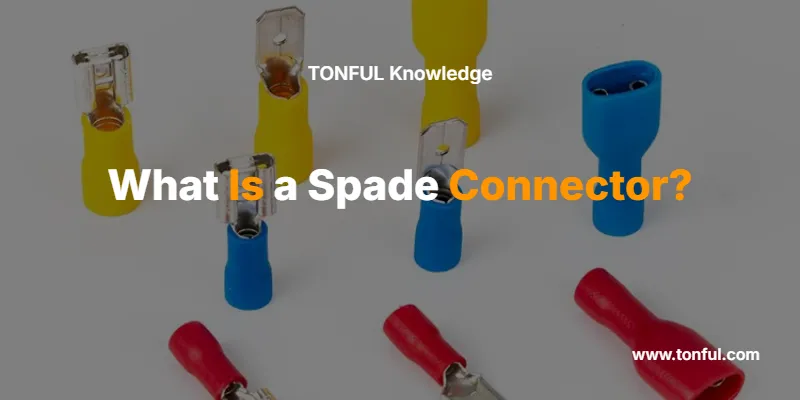

A spade connector is a U-shaped electrical terminal connector with two prongs that slide over a screw or terminal post to create secure electrical connections. These fork-shaped connectors eliminate the need for wire wrapping and provide reliable, removable connections in automotive, household, and industrial electrical applications.
Spade connectors offer superior connection reliability compared to twist-on wire nuts and provide easier maintenance access than permanent connections, making them essential components for professional electrical work and DIY projects.
What Are Spade Connectors? Key Definitions
Spade Connector (Fork Terminal): A U-shaped electrical terminal connector featuring two parallel prongs that create a secure grip around screw terminals or posts. The connector body crimps onto wire strands, creating a permanent mechanical and electrical connection.
Terminal Post Connection: The method by which spade connectors attach to electrical components by sliding over threaded posts, screws, or terminal blocks, allowing for easy removal and reconnection without cutting wires.
Crimp Connection: The mechanical joining process where the spade connector barrel compresses around wire strands using specialized crimping tools, creating a gas-tight connection that prevents corrosion and ensures electrical continuity.
Spade Connector vs. Other Electrical Connectors: Complete Comparison
| Connector Type | Connection Method | Removability | Best Applications | Wire Range | Cost |
|---|---|---|---|---|---|
| Spade Connector | Crimped to wire, slides over terminal | Easily removable | Automotive, appliances, control panels | 22-10 AWG | Low |
| Ring Terminal | Crimped to wire, secured with screw/bolt | Secure, semi-permanent | High-vibration environments | 22-10 AWG | Low |
| Quick Disconnect | Push-on connection | Instantly removable | Temporary connections, testing | 22-16 AWG | Medium |
| Wire Nuts | Twist-on over stripped wires | Removable but messy | Household electrical boxes | 22-10 AWG | Very Low |
| Terminal Blocks | Screw-down clamping | Easily removable | Industrial control panels | 24-10 AWG | Medium |
Key Differences Between Spade and Ring Terminals
Spade connectors feature an open U-shape that allows connection without removing the terminal screw, making them ideal for quick maintenance and testing scenarios.
Ring terminals provide a closed loop that cannot accidentally slip off the terminal post, offering superior connection security in high-vibration environments like automotive applications.
Spade Connector Applications and Use Cases
Automotive Applications
- Battery terminals and charging systems
- Speaker connections and audio systems
- Relay and fuse box connections
- Grounding points and chassis connections
Household Electrical Uses
- Appliance wiring (dishwashers, disposals, HVAC)
- Light switch and outlet connections
- Ceiling fan and fixture installations
- Doorbell and security system wiring
Industrial and Commercial Applications
- Control panel and switchgear connections
- Motor starter and contactor wiring
- Instrumentation and sensor connections
- Power distribution and sub-panel feeds
Purpose and Benefits of Spade Connectors
Primary Benefits:
- Quick Installation: No wire stripping or wrapping around terminal screws required
- Easy Maintenance: Connections can be disconnected without cutting wires
- Reliable Contact: Crimp connection prevents wire strand breakage and corrosion
- Code Compliance: Meets NEC requirements for mechanical and electrical connection integrity
- Vibration Resistance: Properly crimped connections maintain contact under movement
Professional Advantages:
- Reduces installation time by 60% compared to wire wrapping
- Eliminates loose strand hazards that can cause short circuits
- Provides consistent connection quality across multiple installations
- Enables easy circuit troubleshooting and component replacement
Expert Tip: Always use the correct wire gauge spade connector for your application. Undersized connectors create heat buildup and potential fire hazards, while oversized connectors result in loose, unreliable connections.
How to Select the Right Spade Connector
Wire Gauge Compatibility Chart
| Wire Gauge (AWG) | Connector Size | Stud/Screw Size | Color Code | Current Rating |
|---|---|---|---|---|
| 22-18 | #6-#8 | #6-32 to #8-32 | Red | 15 Amp |
| 16-14 | #8-#10 | #8-32 to #10-24 | Blue | 20 Amp |
| 12-10 | #10-#12 | #10-24 to 1/4″-20 | Yellow | 30 Amp |
Selection Criteria Checklist
1. Wire Gauge Match
- Measure wire diameter with gauge tool
- Select connector barrel size matching wire gauge
- Verify crimp tool compatibility
2. Terminal Post Size
- Measure screw or stud diameter
- Choose spade opening to match terminal size
- Allow for slight clearance without looseness
3. Environmental Considerations
- Standard vinyl insulation: Indoor, dry locations
- Heat-shrink tubing: High-temperature applications
- Marine-grade tinned copper: Corrosive environments
4. Electrical Requirements
- Verify current rating exceeds circuit load
- Consider voltage rating for high-voltage applications
- Check temperature rating for hot environments
Safety Warning: Never use aluminum wire with standard copper spade connectors. Use only connectors rated for aluminum conductors and apply anti-oxidant compound to prevent galvanic corrosion.
Step-by-Step Installation Guide
Required Tools and Materials
- Crimping tool (ratcheting type recommended)
- Wire strippers
- Spade connectors (proper size and type)
- Heat gun (for heat-shrink connectors)
- Electrical tester (to verify connections)
Installation Process
Step 1: Prepare the Wire
Strip insulation 1/4 inch from wire end using appropriate wire strippers. Avoid nicking copper strands, which weakens the connection.
Step 2: Insert Wire into Connector
Slide stripped wire fully into connector barrel until insulation touches the barrel opening. Copper strands should extend slightly beyond the barrel end.
Step 3: Crimp the Connection
Position crimping tool over connector barrel and compress fully using steady pressure. Ratcheting crimpers ensure complete crimp cycle.
Step 4: Verify Crimp Quality
Gently pull wire to test connection. Properly crimped connection should show no movement between wire and connector.
Step 5: Apply Heat Shrink (if applicable)
For heat-shrink connectors, apply heat gun evenly around shrink tubing until it conforms tightly to wire and connector.
Step 6: Install on Terminal
Slide spade connector over terminal post, ensuring full contact with terminal surface. Tighten terminal screw to manufacturer specifications.
Quality Control Testing
Visual Inspection:
- No copper strands visible outside connector
- Heat shrink (if used) fully sealed around connection
- Connector properly seated on terminal post
Mechanical Test:
- Gentle pull test shows no wire movement
- Connector cannot be removed without loosening terminal screw
- No gaps between connector and terminal surface
Expert Tip: Use a continuity tester to verify electrical connection before energizing the circuit. This simple test prevents troubleshooting headaches and ensures reliable operation.
Common Installation Problems and Solutions
Troubleshooting Guide
Problem: Loose Connection
- Cause: Wrong connector size or incomplete crimp
- Solution: Verify correct sizing and re-crimp with proper tool
Problem: Corrosion at Connection Point
- Cause: Moisture exposure or dissimilar metals
- Solution: Use marine-grade connectors with di-electric grease
Problem: Overheating Connection
- Cause: Undersized connector or poor crimp quality
- Solution: Upgrade to higher-capacity connector and re-terminate
Problem: Intermittent Connection
- Cause: Vibration loosening or inadequate terminal torque
- Solution: Apply thread locker to terminal screws and verify proper torque
Safety Requirements and Code Compliance
National Electrical Code (NEC) Requirements
Article 110.14(A): Electrical connections must be mechanically secure and provide adequate electrical continuity.
Article 300.13(A): Conductors shall be continuous between outlets, devices, and splices.
Key Compliance Points:
- Crimp connections must use UL-listed connectors
- Wire gauge must match connector specifications
- Connections must be accessible for inspection and maintenance
- Proper torque specifications must be followed for terminal screws
Professional Installation Standards
NECA Standards: Follow National Electrical Contractors Association guidelines for termination quality and testing procedures.
IBEW Standards: International Brotherhood of Electrical Workers specifies proper training and certification for electrical terminations.
Safety Warning: Always turn off electrical power at the breaker before making connections. Use a non-contact voltage tester to verify power is off before beginning work.
Expert Selection Tips and Professional Recommendations
When to Choose Spade Connectors
- Maintenance access required: Equipment that needs periodic service
- Testing circuits: Where connections may be frequently disconnected
- Panel wiring: Control panels with multiple connection points
- Automotive applications: Where vibration resistance and easy service matter
When to Use Alternative Connectors
- High-vibration environments: Ring terminals provide better security
- Permanent connections: Wire nuts or terminal blocks may be more appropriate
- High-current applications: Lug terminals handle heavier electrical loads better
Professional Quality Indicators
- UL listing for safety compliance
- Copper construction for best conductivity
- Proper insulation rating for application environment
- Ratcheting crimp tools for consistent connection quality
Quick Reference: Spade Connector Specifications
Standard Sizes and Applications
| Connector Size | Wire Range | Terminal Screw | Typical Use |
|---|---|---|---|
| #6 Spade | 22-18 AWG | #6-32 | Control circuits, indicators |
| #8 Spade | 18-16 AWG | #8-32 | Relays, small motors |
| #10 Spade | 16-14 AWG | #10-24 | Contactors, switches |
| 1/4″ Spade | 12-10 AWG | 1/4″-20 | Heavy-duty motors, heaters |
Color Coding System
- Red: 22-18 AWG wire
- Blue: 16-14 AWG wire
- Yellow: 12-10 AWG wire
- Clear/Natural: Universal, no gauge indication
Frequently Asked Questions
What makes spade connectors different from ring terminals?
Spade connectors have an open U-shape that allows connection without removing the terminal screw, while ring terminals have a closed loop that provides more secure connection but requires screw removal for installation.
Can I reuse spade connectors after removal?
Yes, spade connectors can be disconnected and reconnected multiple times without damage, making them ideal for maintenance and testing applications where frequent access is needed.
What size spade connector do I need for 14 AWG wire?
For 14 AWG wire, use a blue-coded spade connector designed for 16-14 AWG wire with a #10 or #8 terminal opening, depending on your screw size.
Are spade connectors safe for household electrical work?
Yes, when properly installed and code-compliant, spade connectors are safe for household use. Always use UL-listed connectors and follow local electrical codes.
How tight should I make the terminal screw with a spade connector?
Tighten terminal screws to manufacturer specifications, typically 35-50 inch-pounds for standard terminals. Over-tightening can damage the connector or terminal.
Can spade connectors be used in wet locations?
Standard spade connectors are not rated for wet locations. Use marine-grade connectors with proper enclosures and sealing for moisture-exposed applications.
What’s the difference between insulated and non-insulated spade connectors?
Insulated spade connectors have plastic sleeves that prevent accidental contact with live terminals, while non-insulated connectors require additional protection through terminal guards or enclosures.
How do I know if my crimp connection is good?
A properly crimped connection should show no wire movement when gently pulled, have no visible copper strands outside the connector, and pass a continuity test with an electrical meter.
Professional Recommendation: For critical electrical connections, always consult with a licensed electrician to ensure proper installation, code compliance, and safety. Spade connectors offer reliable connection solutions when properly selected, installed, and maintained according to electrical standards and manufacturer specifications.
