In today’s rapidly evolving electronics and automotive industries, the ability to produce diverse, customized wire harness assemblies in small quantities has become a critical competitive advantage. High-Mix Low-Volume (HMLV) wire harness manufacturing represents a paradigm shift from traditional mass production, offering unparalleled flexibility for prototyping, testing, and bringing innovative products to market faster.

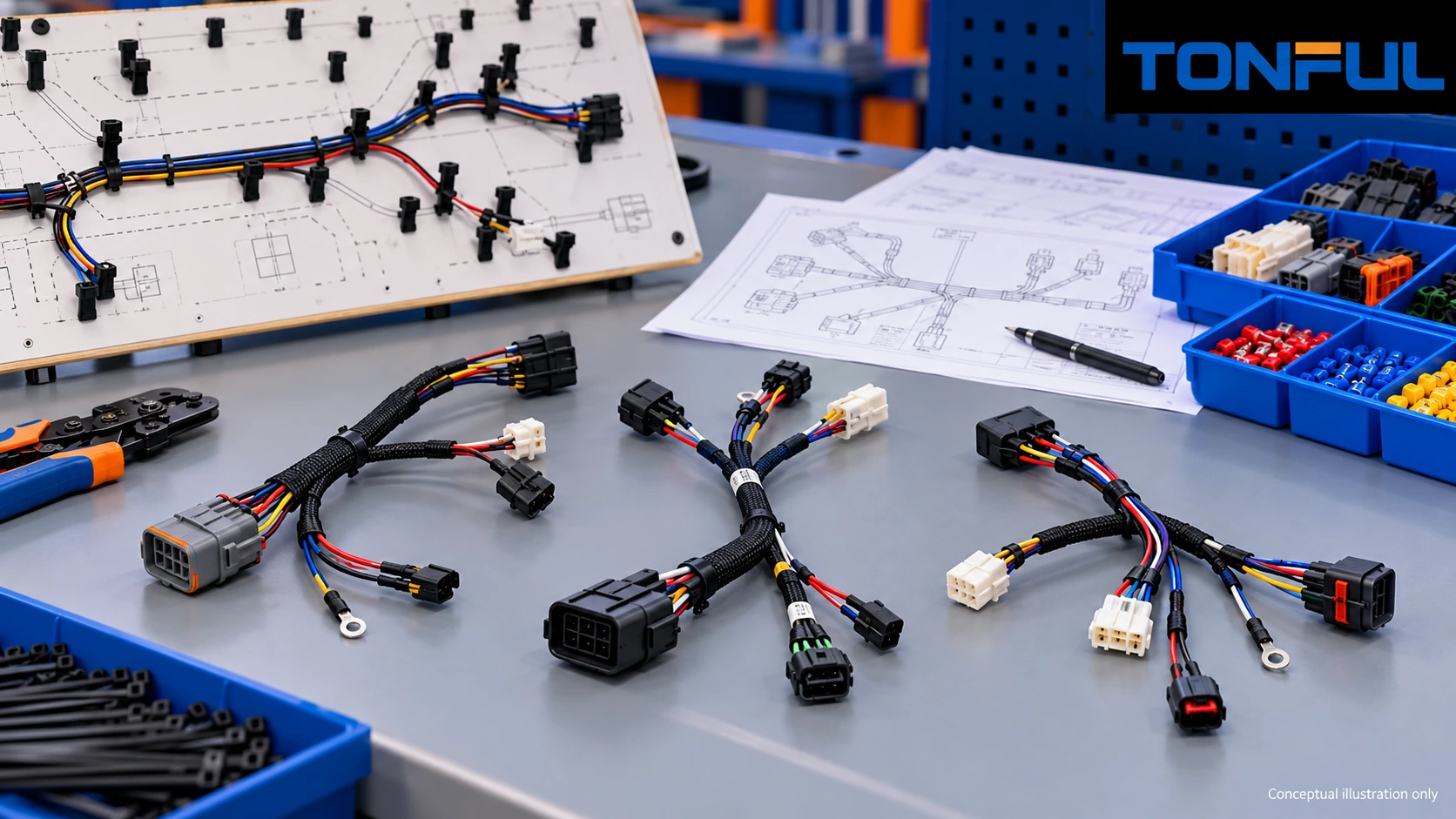

What Is HMLV Wire Harness Manufacturing?
High-Mix Low-Volume manufacturing is a production strategy focused on creating a wide variety of custom wire harness assemblies in relatively small batch sizes—typically ranging from a few units to several hundred. Unlike traditional high-volume production that prioritizes economies of scale through repetitive manufacturing of identical products, HMLV emphasizes adaptability, customization, and rapid changeover capabilities.
In the context of wire harness production, HMLV manufacturing enables manufacturers to efficiently handle multiple harness designs simultaneously, each with unique specifications regarding wire gauges, connector types, routing configurations, and terminal selections. This approach bridges the critical gap between one-off prototype development and full-scale OEM production runs, providing a practical solution for companies navigating the transition from concept to commercialization.
Why HMLV Manufacturing Is Essential for Wire Harness Prototyping
Accelerated Product Development Cycles
Prototyping demands speed and iteration. HMLV manufacturing eliminates the lengthy setup times and expensive tooling investments associated with traditional high-volume production. Engineering teams can validate wire harness designs, test electrical performance, and identify potential issues before committing to large-scale manufacturing. This rapid prototyping capability reduces time-to-market by weeks or even months, allowing companies to respond quickly to market opportunities and customer feedback.
When developing new automotive systems, medical devices, or industrial equipment, engineers often need to test multiple harness configurations to optimize performance, routing efficiency, and cost-effectiveness. HMLV production supports this iterative design process by enabling quick turnaround on design modifications without the financial burden of retooling or minimum order quantity constraints.
Cost-Effective for Small Batch Production
Traditional high-volume manufacturing requires significant upfront investment in specialized tooling, automated equipment, and large inventory commitments. For prototyping and low-volume production scenarios, these costs become prohibitive and economically unjustifiable. HMLV manufacturing dramatically reduces initial capital expenditure by leveraging flexible production systems, multi-purpose tooling, and skilled manual assembly where appropriate.
Companies can produce exactly the quantity needed for testing, pilot programs, or niche market applications without tying up capital in excess inventory. This lean approach to production aligns with modern just-in-time manufacturing principles and reduces the financial risk associated with new product introductions. For startups and small manufacturers, HMLV provides an accessible entry point to professional-grade wire harness production without overwhelming capital requirements.
Design Flexibility and Customization
Every application has unique requirements. Medical devices demand biocompatible materials and stringent quality standards. Automotive harnesses must withstand extreme temperatures, vibration, and environmental exposure. Industrial equipment requires robust connections capable of handling high current loads. HMLV manufacturing accommodates this diversity by supporting frequent product changeovers and configuration variations without disrupting production flow.
Engineers can specify exact wire gauges, insulation materials, connector families, and termination methods tailored to each application’s electrical and mechanical requirements. This level of customization extends to protective elements such as heat shrink tubing, cable sleeving, strain relief, and environmental sealing—all critical factors in harness performance and longevity.
Quality Assurance Through Rigorous Testing
In HMLV production, every harness assembly receives individual attention and comprehensive testing. Unlike high-volume automated lines where sampling inspection is common, low-volume production enables 100% electrical testing for continuity, insulation resistance, and proper pin-to-pin connections. This thorough quality control approach is particularly valuable during prototyping when design validation is paramount.
Testing protocols for prototype harnesses typically include continuity verification, high-potential (hipot) dielectric strength testing, and pull-force testing on crimped terminals to ensure mechanical integrity. Advanced manufacturers may also perform environmental stress testing, including temperature cycling, vibration testing, and humidity exposure to validate harness performance under real-world operating conditions.
HMLV vs. Traditional High-Volume Wire Harness Manufacturing
Understanding the fundamental differences between HMLV and traditional manufacturing approaches helps companies select the optimal production strategy for their specific needs.
| Aspect | HMLV Manufacturing | Traditional High-Volume |
|---|---|---|
| Batch Size | 1-500 units | 1,000+ units |
| Product Variety | High (multiple designs simultaneously) | Low (single design per production run) |
| Setup Time | Minutes to hours | Days to weeks |
| Tooling Investment | Minimal (flexible fixtures, form boards) | Significant (dedicated automation, custom tooling) |
| Unit Cost | Higher per unit | Lower per unit (economies of scale) |
| Lead Time | 1-3 weeks | 4-12 weeks |
| Design Changes | Easily accommodated | Expensive and time-consuming |
| Quality Control | 100% inspection possible | Statistical sampling common |
| Workforce Requirements | Highly skilled technicians | Specialized operators for automated systems |
| Ideal Applications | Prototypes, custom orders, niche markets | Mass production, standardized products |
This comparison illustrates why HMLV manufacturing has become the preferred approach for prototyping, new product introduction, and specialized applications where customization outweighs the per-unit cost advantages of mass production.
Key Components in HMLV Wire Harness Production
Wire Selection and Preparation
Wire selection forms the foundation of any harness assembly. HMLV manufacturing accommodates diverse wire specifications including various conductor materials (copper, tinned copper, aluminum), insulation types (PVC, XLPE, Teflon, silicone), and AWG sizes ranging from fine signal wires to heavy-gauge power conductors.
Automated wire cutting and stripping equipment ensures precision and consistency even in low-volume production. Computer-controlled systems cut wires to exact lengths specified in the harness design, strip insulation to precise dimensions, and can even pre-tin wire ends when required for specific applications.
Terminal Crimping and Connector Assembly
Proper terminal crimping is critical to harness reliability and electrical performance. HMLV production utilizes precision crimping tools calibrated to manufacturer specifications for each terminal type. Whether working with spade terminals, ring terminals, or specialized automotive connectors, proper crimp quality ensures low contact resistance and mechanical strength.
Quality crimping requires attention to wire preparation, terminal selection based on wire gauge, and proper crimp tool die selection. Heat shrink terminals provide additional environmental protection and strain relief, particularly valuable in harsh operating environments.
Form Board Assembly
Form boards (also called jig boards or pin boards) are essential tools in wire harness manufacturing. These custom fixtures replicate the physical routing path and mounting points of the harness, ensuring consistent wire placement, proper bundle formation, and accurate connector positioning across multiple assemblies.
In HMLV production, form boards can be quickly fabricated using CNC routing, 3D printing, or traditional woodworking techniques. Digital design files from CAD systems translate directly into form board layouts, maintaining design fidelity from engineering to production. Technicians lay wires along the form board, secure them with temporary fasteners, apply cable ties or tape as specified, and install protective elements before removing the completed harness.
Protection and Strain Relief
Environmental protection is critical for harness longevity. HMLV manufacturing incorporates various protective measures including heat shrink tubing, corrugated conduit, braided sleeving, and electrical tape. These elements shield wires from abrasion, chemical exposure, moisture, and temperature extremes.
Strain relief devices prevent mechanical stress at connector interfaces—a common failure point in wire harness assemblies. Properly designed strain relief distributes pulling forces across the wire bundle rather than concentrating stress on individual conductor-to-terminal connections.
Industries Benefiting from HMLV Wire Harness Manufacturing
Automotive and Transportation
The automotive industry increasingly demands customized electrical systems for specialized vehicles, aftermarket modifications, and prototype development. HMLV manufacturing supports production of custom harnesses for electric vehicle conversions, racing applications, classic car restorations, and commercial vehicle upfitting. Automotive fuses and blade fuse holders integrate seamlessly into these custom harness assemblies.
Medical and Healthcare Equipment
Medical device manufacturers require wire harnesses that meet stringent regulatory standards including biocompatibility, sterilization compatibility, and traceability. HMLV production provides the flexibility to produce small quantities of specialized harnesses for diagnostic equipment, patient monitoring systems, and surgical instruments while maintaining comprehensive documentation and quality records.
Industrial Automation and Robotics
Industrial equipment manufacturers need robust harnesses capable of withstanding harsh factory environments including temperature extremes, chemical exposure, and mechanical stress. HMLV manufacturing enables production of custom harnesses for CNC machinery, robotic systems, conveyor controls, and process automation equipment with specifications tailored to each application’s unique requirements.
Aerospace and Defense
Aerospace applications demand the highest reliability standards with extensive testing and documentation requirements. HMLV manufacturing supports production of specialized harnesses for aircraft systems, ground support equipment, and defense applications where small production quantities and rigorous quality control are standard practice.
Consumer Electronics and IoT Devices
The rapid pace of innovation in consumer electronics and IoT devices requires manufacturing flexibility to support frequent product updates and variations. HMLV production enables electronics manufacturers to produce custom interconnect solutions for smart home devices, wearable technology, and connected appliances without committing to large production runs before market validation.
HMLV Manufacturing Challenges and Solutions
Supply Chain Complexity
Managing diverse component inventories for multiple harness designs presents logistical challenges. Successful HMLV manufacturers implement advanced inventory management systems, establish relationships with reliable component suppliers, and maintain strategic stock of common terminals, connectors, and wire types to minimize lead times.
Skilled Workforce Requirements
HMLV production demands highly trained technicians capable of interpreting engineering drawings, selecting appropriate tools and materials, and executing precise assembly techniques across diverse harness designs. Ongoing training programs and comprehensive work instructions ensure consistent quality regardless of product complexity.
Production Planning and Scheduling
Balancing multiple concurrent projects with varying priorities requires sophisticated production planning. Advanced Planning and Scheduling (APS) systems optimize production sequences, minimize changeover time, and ensure on-time delivery across multiple customer orders.
Cost Management
While HMLV unit costs are higher than mass production, total program costs may be lower when considering reduced inventory carrying costs, eliminated tooling expenses, and faster time-to-market. Value engineering during the design phase—optimizing wire routing, standardizing connector families, and minimizing unique components—helps control costs without compromising functionality.
Best Practices for HMLV Wire Harness Prototyping
Comprehensive Design Documentation
Clear, detailed engineering drawings and specifications are essential for successful HMLV production. Documentation should include wire schedules listing every conductor with gauge, color, and length; connector pinout diagrams; routing instructions; and assembly notes specifying crimping tools, torque specifications, and quality checkpoints.
Design for Manufacturability (DFM)
Even in low-volume production, designing harnesses with manufacturability in mind improves quality and reduces costs. Consider wire routing that minimizes crossing and tangling, select connector families with consistent termination methods, specify standard wire colors for easier troubleshooting, and design adequate service loops for installation flexibility.
Prototype Testing and Validation
Thorough testing during the prototype phase prevents costly issues during production. Electrical testing verifies continuity and insulation resistance. Mechanical testing validates connector retention, wire strain relief, and overall harness durability. Environmental testing exposes potential weaknesses under temperature extremes, vibration, and humidity exposure.
Supplier Partnership
Establishing strong relationships with component suppliers ensures access to quality materials, technical support, and reasonable lead times even for small-quantity orders. Reputable suppliers like TONFUL Electric provide consistent quality terminals, connectors, and electrical components essential for reliable harness assemblies.
The Future of HMLV Wire Harness Manufacturing
Technological advances continue to enhance HMLV manufacturing capabilities. Digital twin technology enables virtual harness design and validation before physical prototyping. Collaborative robots (cobots) assist technicians with repetitive tasks while maintaining the flexibility required for diverse product mixes. Advanced testing equipment provides comprehensive electrical characterization and automated documentation.
Artificial intelligence and machine learning algorithms optimize production scheduling, predict component requirements, and identify potential quality issues before they impact production. These technologies enhance HMLV manufacturing efficiency without sacrificing the flexibility that makes this approach valuable for prototyping and specialized applications.
As industries continue demanding greater customization, faster development cycles, and smaller batch sizes, HMLV wire harness manufacturing will play an increasingly critical role in bringing innovative products to market. Companies that master HMLV production capabilities position themselves to serve the evolving needs of automotive, medical, industrial, and consumer electronics markets.
Frequently Asked Questions (FAQ)
Q: What is the minimum order quantity for HMLV wire harness manufacturing?
A: HMLV manufacturing typically accommodates orders as small as 1-10 units for prototyping, though 25-100 units represents a common sweet spot balancing setup efficiency with low-volume flexibility. Unlike traditional manufacturers requiring minimum orders of 1,000+ units, HMLV suppliers can economically produce small batches.
Q: How long does it take to produce a prototype wire harness using HMLV methods?
A: Lead times for HMLV prototype harnesses typically range from 1-3 weeks depending on design complexity, component availability, and testing requirements. Rush services may deliver simple harnesses in as little as 3-5 business days. This compares favorably to 4-12 weeks common in traditional high-volume manufacturing.
Q: Is HMLV manufacturing more expensive than high-volume production?
A: Per-unit costs are higher in HMLV production due to reduced economies of scale. However, total program costs may be lower when considering eliminated tooling expenses (often $5,000-$50,000 for high-volume setups), reduced inventory carrying costs, and faster time-to-market. For prototyping and small production runs, HMLV offers superior cost-effectiveness.
Q: Can HMLV manufacturers handle complex wire harness designs?
A: Yes, HMLV manufacturing excels at complex, custom harness designs. Skilled technicians can execute intricate routing patterns, work with specialized connectors and terminals, and incorporate advanced features like overmolding, shielding, and environmental sealing that may be challenging to automate in high-volume production.
Q: What quality standards apply to HMLV wire harness manufacturing?
A: Reputable HMLV manufacturers adhere to the same quality standards as high-volume producers, including IPC/WHMA-A-620 for cable and wire harness assemblies, ISO 9001 quality management systems, and industry-specific standards such as ISO 13485 for medical devices or IATF 16949 for automotive applications. Many HMLV manufacturers perform 100% electrical testing rather than statistical sampling, potentially offering superior quality assurance.
