Headlight switch endurance testing must reproduce the electrical role, mechanical operation, and environmental conditions defined for the project. A cycle count alone proves little if the contact load, switching timing, actuator fixture, temperature, monitoring method, sample quantity, and failure criteria are missing. Direct-load contacts, relay requests, resistor-coded BCM inputs, illumination circuits, and momentary fog or dimmer controls may require different channels and acceptance logic.
TONFUL’s current headlight-switch range presents vehicle applications and OE references. Confirm the exact vehicle, complete OE reference, connector, pinout, functions, approved sample and project-specific validation plan before ordering or testing.
Quick Evidence Matrix

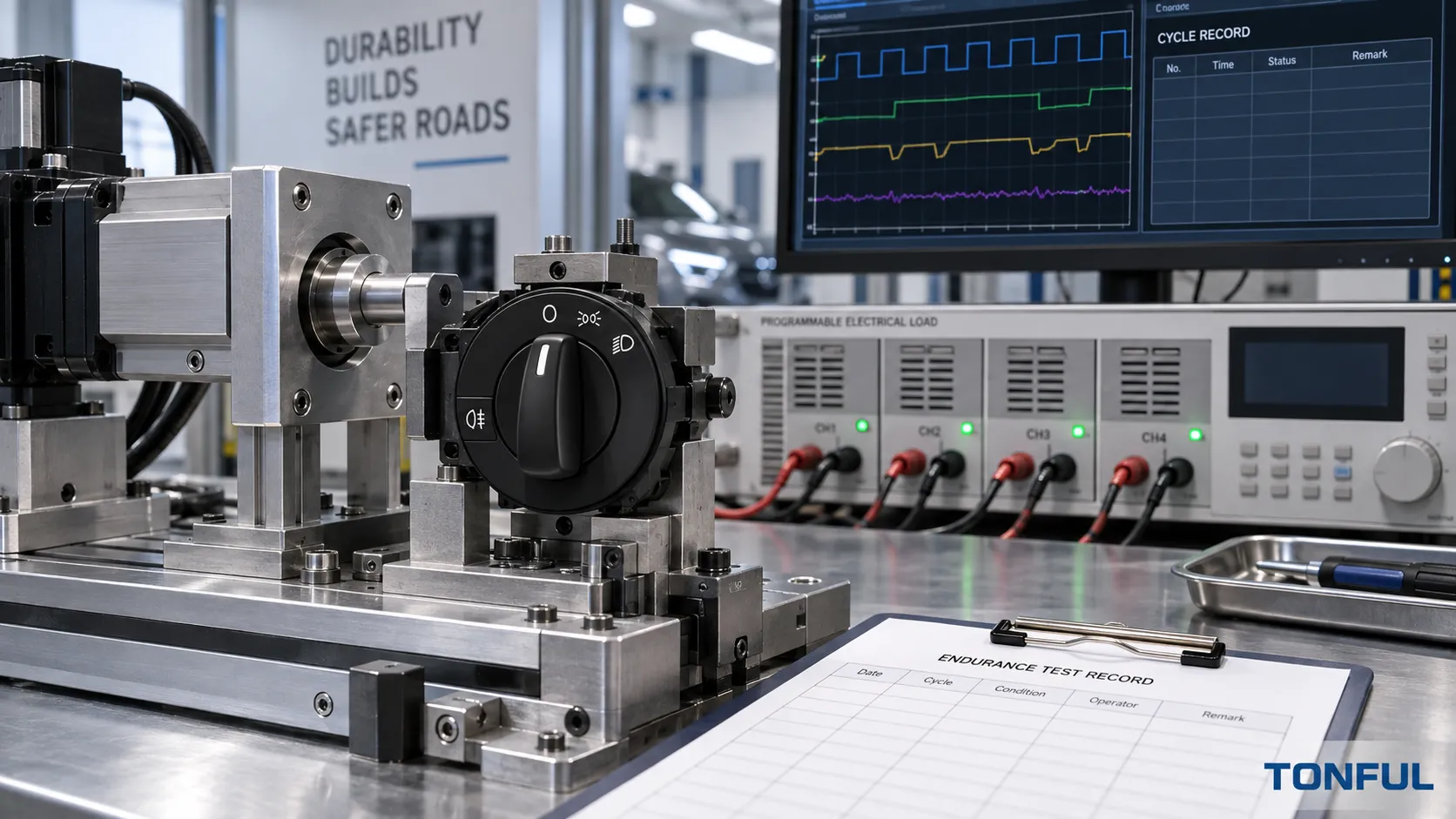

Conceptual illustration only – not a vehicle procedure, laboratory result, universal limit, or acceptance standard.
| Work area | Required focus | Acceptance source |
|---|---|---|
| Define the Test Object and Architecture | Freeze part number, revision, lot, vehicle application, connector, function matrix and whether each channel is direct-load, relay-controlled, ground-side, resistance-coded or module interpreted. | Project specification, approved plan, or root-cause evidence |
| Specify Electrical Loads for Every Channel | Document nominal and operating voltage, current or simulated input, load type, inrush behavior, polarity, suppression, switching phase, wiring resistance and protection. | Project specification, approved plan, or root-cause evidence |
| Define Mechanical Cycles and Actuation | State which rotary detents, pull actions, buttons, dimmer steps and integrated functions form one sequence. | Project specification, approved plan, or root-cause evidence |
| Control Environment and Conditioning | Record temperature, humidity, vibration, dust, chemical exposure, thermal transitions and preconditioning only when required by the qualification plan. | Project specification, approved plan, or root-cause evidence |
| Monitor Degradation During the Test | Define inspection intervals and continuously or periodically monitor function, contact path, voltage drop, resistance, output state, actuation, illumination, temperature and abnormal events as appropriate. | Project specification, approved plan, or root-cause evidence |
| Set Failure Criteria Before Testing | Acceptance criteria must come from the product specification, customer requirement, approved drawing or qualification plan. | Project specification, approved plan, or root-cause evidence |
The matrix defines evidence categories, not pass values. Unknown requirements must remain open until the document owner confirms them.
Define the Test Object and Architecture
Freeze part number, revision, lot, vehicle application, connector, function matrix and whether each channel is direct-load, relay-controlled, ground-side, resistance-coded or module interpreted. Include mating connectors, terminals and harness interfaces when the qualification plan treats them as part of the test system.
Record the applicable component, circuit or sample identity and retain objective evidence. Where a numeric requirement is needed, cite the product drawing, OEM/customer specification, qualification plan or approved test procedure rather than supplying a generic value.
Specify Electrical Loads for Every Channel
Document nominal and operating voltage, current or simulated input, load type, inrush behavior, polarity, suppression, switching phase, wiring resistance and protection. Use customer or OEM load profiles; do not substitute a generic lamp or relay because its steady current appears similar.
Record the applicable component, circuit or sample identity and retain objective evidence. Where a numeric requirement is needed, cite the product drawing, OEM/customer specification, qualification plan or approved test procedure rather than supplying a generic value.
Define Mechanical Cycles and Actuation
State which rotary detents, pull actions, buttons, dimmer steps and integrated functions form one sequence. Define cycle count, rate, dwell, actuator force or travel, alignment, rest periods and whether electrical switching occurs during movement. Avoid a fixture that side-loads the shaft or masks weak detents.
Record the applicable component, circuit or sample identity and retain objective evidence. Where a numeric requirement is needed, cite the product drawing, OEM/customer specification, qualification plan or approved test procedure rather than supplying a generic value.
Control Environment and Conditioning
Record temperature, humidity, vibration, dust, chemical exposure, thermal transitions and preconditioning only when required by the qualification plan. Identify whether endurance runs before, during or after each exposure. Do not assign universal severities from ISO 16750 without confirmed applicability.
Record the applicable component, circuit or sample identity and retain objective evidence. Where a numeric requirement is needed, cite the product drawing, OEM/customer specification, qualification plan or approved test procedure rather than supplying a generic value.
Monitor Degradation During the Test
Define inspection intervals and continuously or periodically monitor function, contact path, voltage drop, resistance, output state, actuation, illumination, temperature and abnormal events as appropriate. Preserve the first cycle and condition at which chatter, missed state, intermittent open, heat or mechanical damage appears.
Record the applicable component, circuit or sample identity and retain objective evidence. Where a numeric requirement is needed, cite the product drawing, OEM/customer specification, qualification plan or approved test procedure rather than supplying a generic value.
Set Failure Criteria Before Testing
Acceptance criteria must come from the product specification, customer requirement, approved drawing or qualification plan. Address functional errors, electrical limits, unstable states, temperature evidence, mechanical damage, symbol or illumination failure, connector damage and post-test performance. Never create limits after seeing results.
Record the applicable component, circuit or sample identity and retain objective evidence. Where a numeric requirement is needed, cite the product drawing, OEM/customer specification, qualification plan or approved test procedure rather than supplying a generic value.
Test or Investigation Record
This conceptual record layout supports traceability; it does not replace the controlled test or investigation form.
Use a record with these fields:
| Sample ID | Revision/Lot | Channel/Function | Load Profile | Voltage/Current | Cycle Sequence | Rate/Dwell | Environment | Monitoring Interval | Initial Result | Interim Result | Final Result | Failure Cycle/Mode | Acceptance Source | Pass/Fail | Reviewer/Date |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Complete for each sample or affected path | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result | Enter controlled result |
Define sample quantity, conditioning, equipment range and accuracy, fixtures, test sequence, monitoring interval, invalid-test rules, retest authority, acceptance source and data retention before execution. Preserve raw readings and photographs; a summary pass/fail field cannot replace the evidence.
