Headlight Switch vs Combination Switch vs Dimmer Switch

A headlight switch, combination switch, and dimmer switch can all influence vehicle lighting, but the names do not identify the same component. One may be a dashboard rotary control, another a steering-column assembly carrying turn-signal and wiper functions, and another a separate brightness or beam-selection control. Correct identification matters because mounting, connector geometry, circuit architecture, functions, and replacement labor can differ substantially.

TONFUL’s current headlight-switch range presents vehicle applications and OE reference numbers. Confirm the exact vehicle, OE chain, connector, pinout, functions, approved sample, and project-specific validation plan before ordering. Product appearance and a shortened cross-reference are not sufficient approval evidence.

At-a-Glance Decision Table

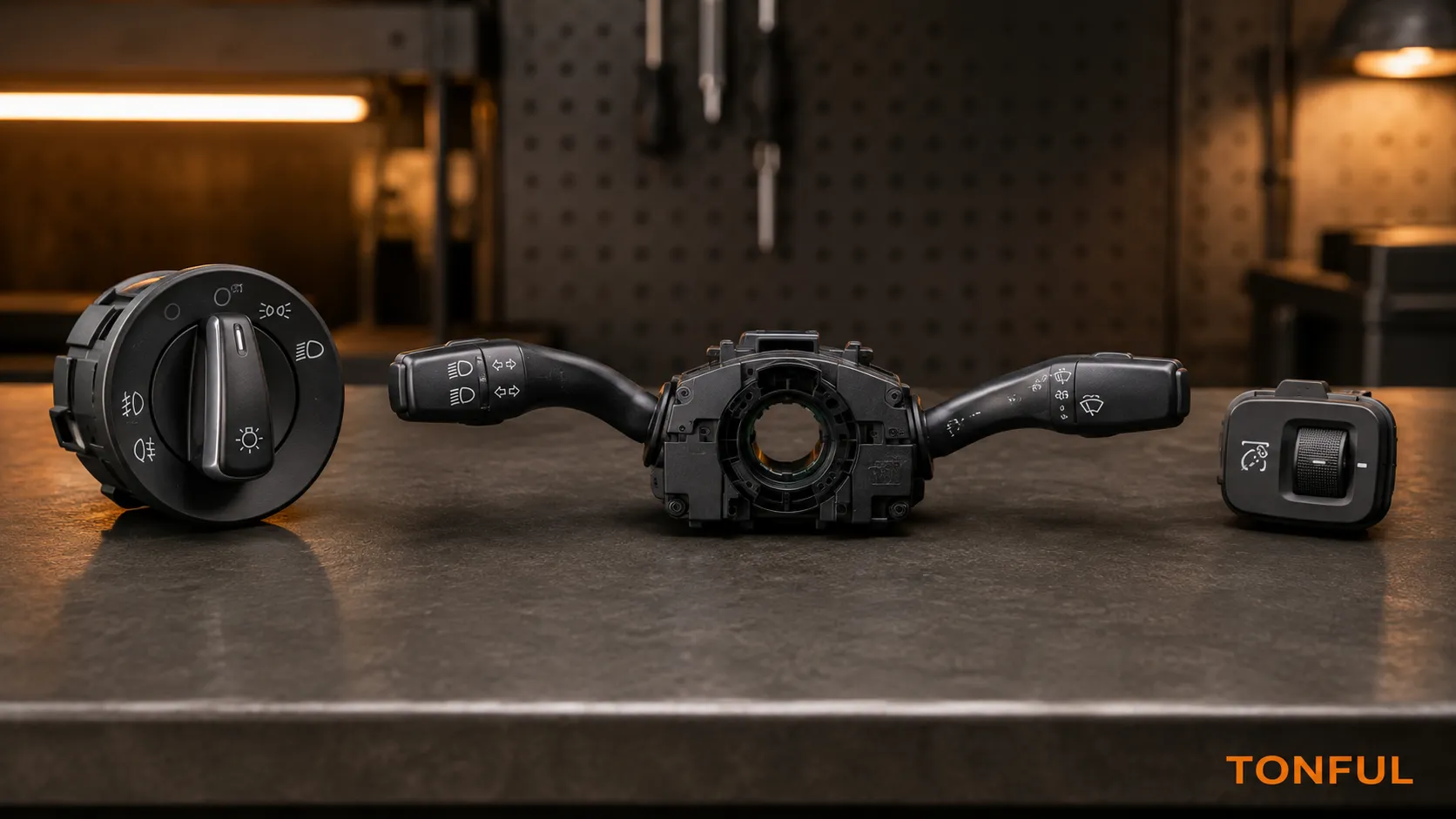

Labeled TONFUL diagram comparing headlight switch, combination switch, and dimmer switch locations and functions
Labeled TONFUL diagram comparing headlight switch, combination switch, and dimmer switch locations and functions

Conceptual illustration only – not a vehicle-specific wiring diagram, fitment record, laboratory result, or acceptance standard.

Decision area What it means What to verify
Quick Answer: The Main Difference A headlight switch normally requests exterior-lighting modes such as OFF, parking, headlamps, or AUTO. Identify installed location and operating motion first.
Headlight Switch: Dashboard Lighting Control Dashboard headlight switches can be rotary, push-pull, rocker, or electronic request controls. Compare front symbols, detents, pull functions, bezel, mounting depth, connector keying, terminal population, and OE reference.
Combination Switch: Multiple Controls in One Assembly A combination switch is usually mounted around the steering column and may integrate turn signals, high/low beam, flash-to-pass, wipers, washers, cruise functions, or other controls. Confirm left- or right-hand-drive configuration, stalk count, connector set, cancel mechanism, symbols, electrical outputs, and every integrated function.
Dimmer Switch: Two Different Meanings In older usage, a dimmer switch often selects high or low beam. State explicitly whether the requirement concerns beam selection or dashboard brightness.
Connector and Architecture Decide Interchangeability Two controls can fit the same opening yet produce different outputs. Obtain the wiring diagram and component-side connector view.
Which Switch Should You Order? Order by controlled evidence: vehicle and market, production range, complete OE number and suffix, installed location, photos, connector view, mounting, functions, architecture, and approved sample. Use the Headlight Switch Buying Guide for a full evidence checklist.

Use the table to identify missing evidence, not to create universal pinouts or ratings. The controlling source is the applicable vehicle information, product drawing, customer specification, or approved validation plan.

Quick Answer: The Main Difference

A headlight switch normally requests exterior-lighting modes such as OFF, parking, headlamps, or AUTO. A combination switch consolidates several driver controls, commonly on a steering-column stalk. A dimmer switch may mean high/low-beam selection or instrument-panel brightness, depending on market and catalog terminology.

Identify installed location and operating motion first. Record whether the driver rotates, pulls, pushes, rocks, or moves a stalk. Then list every symbol and function. Never approve a part solely because a seller uses the same generic name.

Compare the Three Switch Types

The product name should describe both location and scope. Use the following distinctions to establish the initial category, then verify the connector, function matrix, and circuit architecture for the exact vehicle.

Headlight Switch: Dashboard Lighting Control

Dashboard headlight switches can be rotary, push-pull, rocker, or electronic request controls. Some carry lamp current; others energize relays or send low-current states to a BCM. Integrated AUTO, fog, dimmer, leveling, and illumination functions vary by application.

Compare front symbols, detents, pull functions, bezel, mounting depth, connector keying, terminal population, and OE reference. Use the TONFUL Headlight Switch Manufacturer page for current applications, then tie compatibility to an approved sample and vehicle-specific function matrix.

Combination Switch: Multiple Controls in One Assembly

A combination switch is usually mounted around the steering column and may integrate turn signals, high/low beam, flash-to-pass, wipers, washers, cruise functions, or other controls. Replacing it can involve column trim, clockspring proximity, and additional safety procedures.

Confirm left- or right-hand-drive configuration, stalk count, connector set, cancel mechanism, symbols, electrical outputs, and every integrated function. A matching headlamp stalk does not prove the wiper timing, turn-signal cancellation, or connector arrangement is correct.

Dimmer Switch: Two Different Meanings

In older usage, a dimmer switch often selects high or low beam. In modern interiors, instrument dimmer commonly means a wheel, buttons, or resistor input that adjusts panel illumination. Some vehicles integrate either function into the headlight or combination switch.

State explicitly whether the requirement concerns beam selection or dashboard brightness. Verify whether the control is discrete, resistance-coded, or module interpreted. Avoid a catalog title that says only dimmer switch without location, symbols, and function.

Connector and Architecture Decide Interchangeability

Two controls can fit the same opening yet produce different outputs. Direct-load contacts, relay commands, switched grounds, resistor ladders, and networked inputs require different terminal maps and validation. Similar housings may also use mirrored connector views.

Obtain the wiring diagram and component-side connector view. Compare cavity numbering, keyways, latches, terminal type, wire colors, references, and output state for every position. Do not repin a vehicle harness to make an unverified switch appear compatible.

Which Switch Should You Order?

Order by controlled evidence: vehicle and market, production range, complete OE number and suffix, installed location, photos, connector view, mounting, functions, architecture, and approved sample. Replacement scope must include any integrated function affected by the assembly.

Use the Headlight Switch Buying Guide for a full evidence checklist. For a steering-column assembly, use the Auto Combination Switch Manufacturer page. Keep headlight-switch, combination-switch, and dimmer-switch catalog records separate unless a verified application intentionally combines them.

Testing and Release Evidence

TONFUL switch identification checklist showing OE reference, connector, mounting, symbols, functions, and vehicle application
TONFUL switch identification checklist showing OE reference, connector, mounting, symbols, functions, and vehicle application

This conceptual evidence workflow supports documentation; it does not replace an approved vehicle procedure or product specification.

Before electrical testing, identify whether each circuit is powered, isolated, direct-load, relay-controlled, ground-side, resistance-coded, or module interpreted. Use protected probes or an approved breakout harness. Never measure resistance on an energized circuit, force an unknown module pin, or use a continuity beep as a universal low-resistance acceptance test.

A usable record includes sample ID, vehicle and market, OE reference, connector and cavity, function, switch state, supply or reference, load, meter mode and range, lead compensation where applicable, probe points, ambient condition, expected result and source, actual result, pass/fail, inspector, and date. If documents conflict, quarantine the decision until the source owner resolves the discrepancy.

The official Ford lighting-control page illustrates how one vehicle can separate lighting control, fog-lamp operation, and instrument dimming. It is a vehicle-specific example, not a universal naming rule.

The official eCFR 49 CFR Section 571.108 establishes vehicle lighting-system requirements. It does not prove a standalone switch’s fitment, pinout, architecture, rating, or compliance for a particular vehicle.

Supplier and Receiving Controls

Use these related TONFUL resources during selection and validation:

For an RFQ, provide the vehicle, market, production range, full OE number and suffix, installed location, front and connector-end photographs, dimensions, connector orientation, terminal population, symbols, functions, electrical architecture, annual demand, packaging, and required validation. Confirm whether supplied scope is the headlight switch alone; do not assume relays, BCMs, sensors, lamp assemblies, or unrelated controls are included.

Request controlled drawings, function matrices, sample records, inspection and test reports, packaging approval, lot traceability, nonconformance handling, and change notification. Define which changes to contacts, terminals, resistor networks, electronics, LEDs, housing materials, tooling, process, software where applicable, sub-supplier, or manufacturing site require notice and reapproval.

Final Approval Checklist

  • Vehicle, market, production range, OE chain, and installed location are recorded.
  • Switch type, symbols, mounting, connector keying, terminal population, and orientation match.
  • Every function and dependency appears in a controlled function matrix.
  • Electrical architecture and test reference are identified before probing.
  • Measurements include conditions, actual values, units, test points, and acceptance source.
  • The mating connector, wiring, grounds, related modules, relays, and loads are considered where relevant.
  • No universal pinout, rating, compatibility, certification, or durability claim is made without evidence.
  • Approved sample, packaging, traceability, and change-notification responsibilities are documented.

Test Record Requirements

A reusable test record should identify the vehicle or bench sample, OE reference, connector orientation, cavity pair, function, switch position, circuit state, instrument and range, probe points, operating condition, expected result and source, actual result, pass/fail decision, inspector, and date. For resistance work, record lead compensation when relevant; for voltage-drop work, record the applied load and battery condition.

Do not replace actual values with only “works” or “continuity.” If a result is unstable, preserve the range and the condition that produced it. Retesting is valid only after documenting why the first result was invalid or what corrective action changed the sample.

Receiving Inspection and Catalog Control

Receiving inspection should compare label and lot identity, housing, keying, connector face, terminal population, mounting features, symbols, detents, illumination, and packaging with the approved sample. Sampling level and reaction plan must come from the purchase agreement or quality plan rather than an invented universal rule.

Keep catalog application data revision-controlled. When an OE number is superseded, record direction and conditions instead of treating both numbers as automatically interchangeable. Suspect stock should remain segregated until fitment and function evidence closes the discrepancy.

Questions for the Supplier

Ask which drawing revision defines the supplied part, which vehicle applications and OE references are currently supported, what functions are included, which connector view controls cavity numbering, and which validation records can be provided. Confirm whether electronics, illumination, resistors, contacts, terminals, and housing materials are controlled by specification.

Also define packaging, labels, traceability, nonconformance communication, and change notification before purchase. A technically correct sample can still create receiving or service problems when its label, packaging, or application record is ambiguous.

Application Release Boundaries

Publish only the application scope supported by the evidence. Record market, production dates, trim or option conditions, left- or right-hand-drive configuration where relevant, and any excluded functions. A shared model name does not prove that connector, architecture, symbols, illumination, or software interpretation stayed constant across revisions.

When evidence supports a sample but not the full production range, label the application as pending rather than broadening it by inference. Recheck the approved scope after an OE supersession, supplier change, connector revision, or new vehicle option. This keeps the catalog, quotation, incoming inspection, and customer approval aligned to the same controlled definition.

Work With TONFUL

Send TONFUL the complete application package rather than only a switch photograph. TONFUL can compare the request with current headlight-switch applications and OE references, then align sample review and project-specific validation requirements. Final release should remain tied to the approved sample, controlled documentation, and agreed commercial scope.
