Automotive Terminal Manufacturer for OEM & Wholesale
Source automotive crimp terminals from TONFUL Electric for vehicle wiring harnesses, sensor connections and replacement parts supply. Compare 16 catalog references, then share your original part number, wire dimensions, connector housing and order quantity.

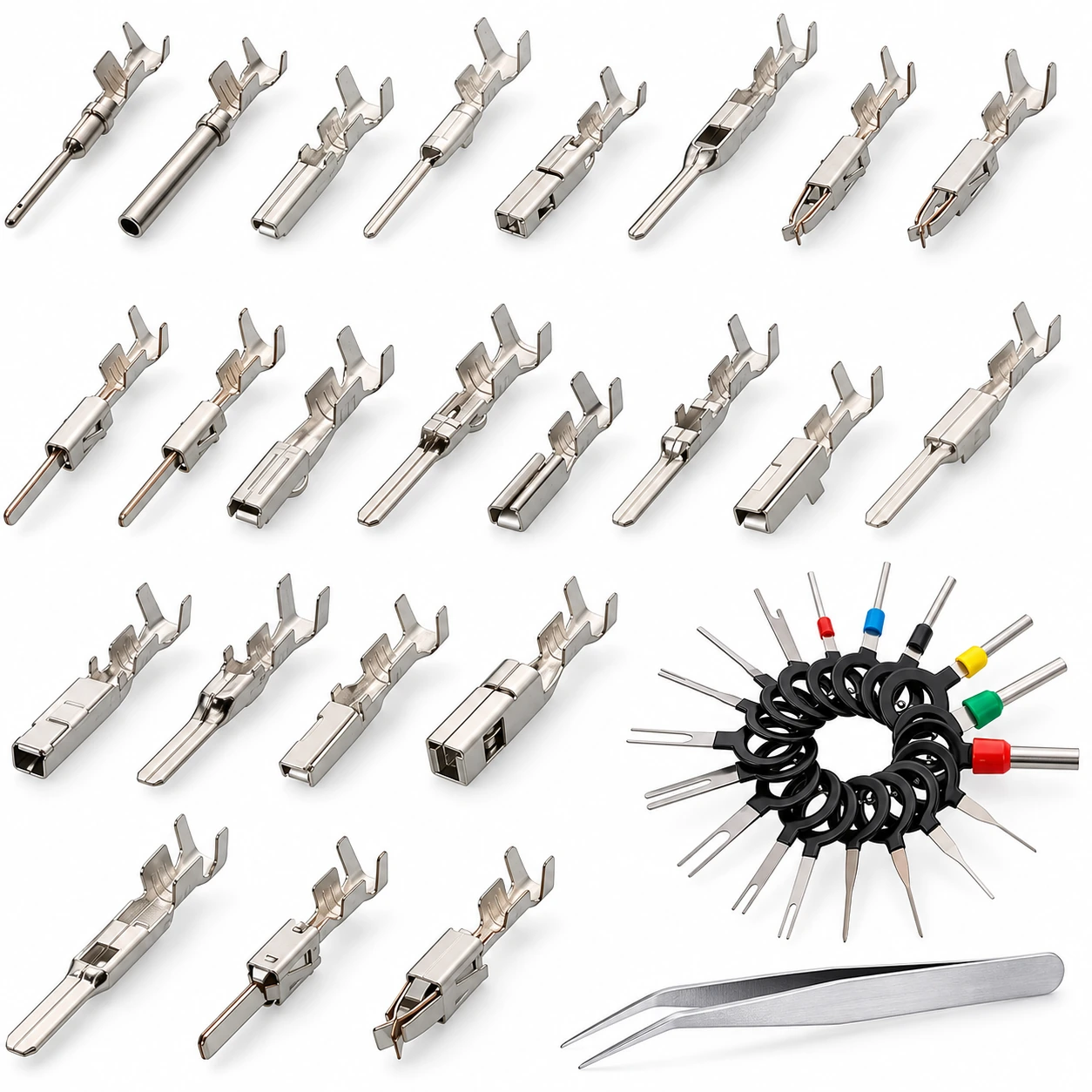

Automotive Terminal Product Range
Compare 16 catalog references for pin, socket and formed crimp contacts. Send the reference, a dimensioned drawing or an original sample so TONFUL can review the required terminal and mating assembly.

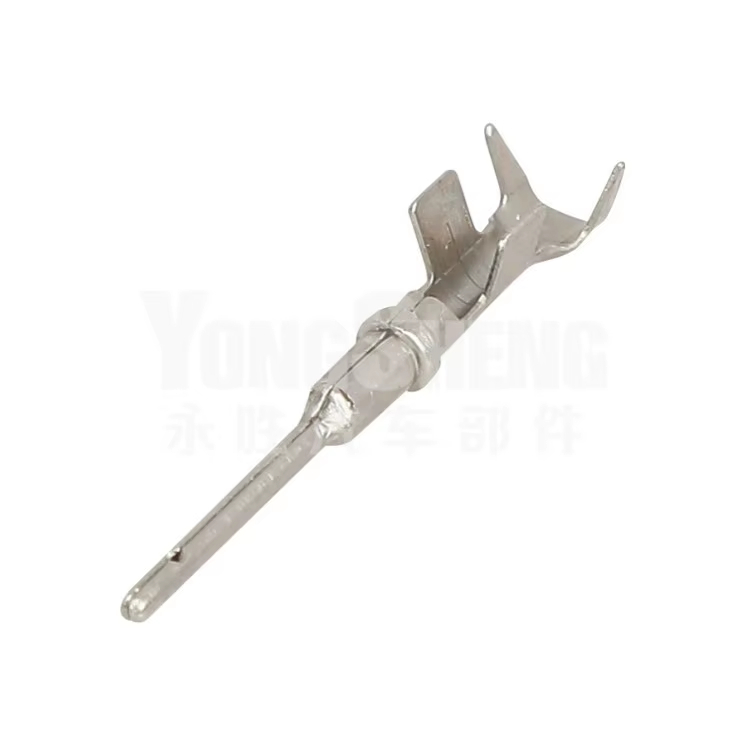

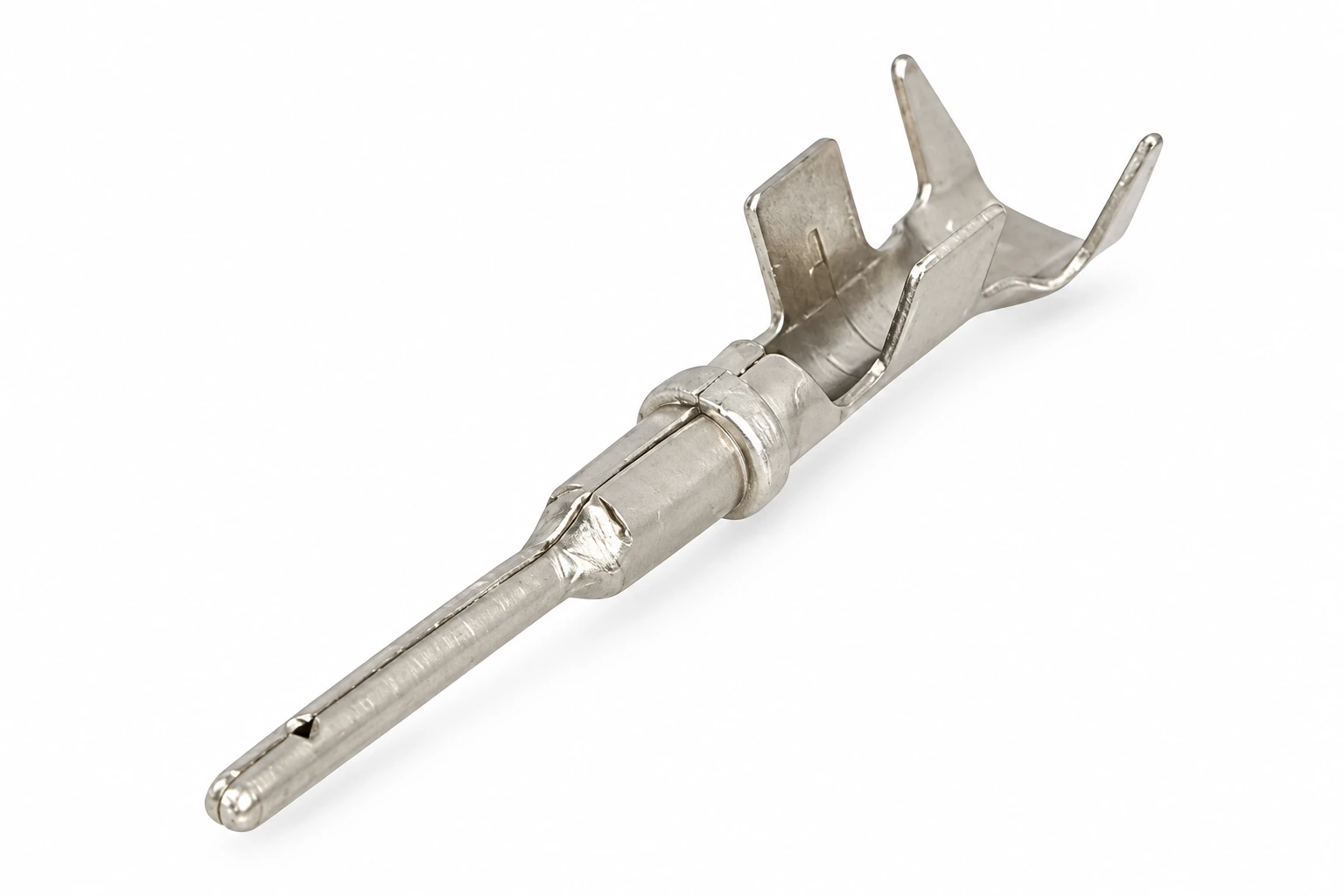

1060-20-0122
Round-pin terminal reference for connector assembly enquiries. Share the contact dimensions, wire size, housing and mating socket required.

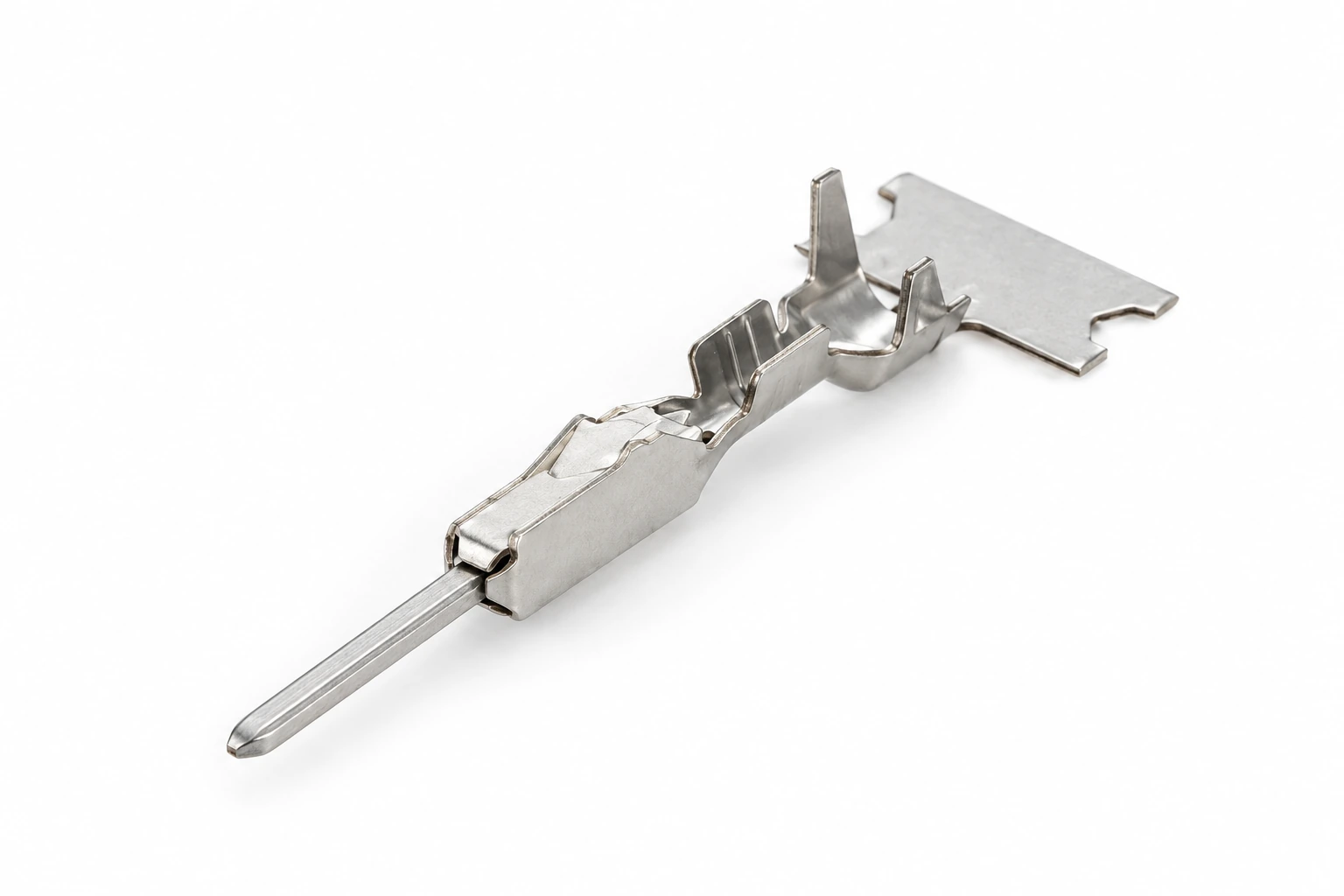

5-962886-1
Pin-contact reference for harness sourcing. Confirm the mating geometry, retention features, conductor size and approved crimp specification.

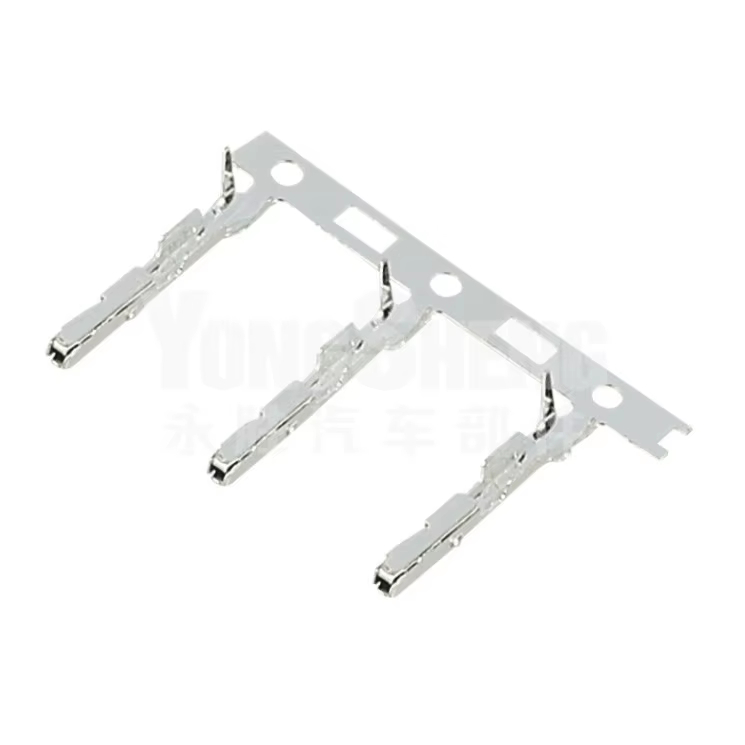

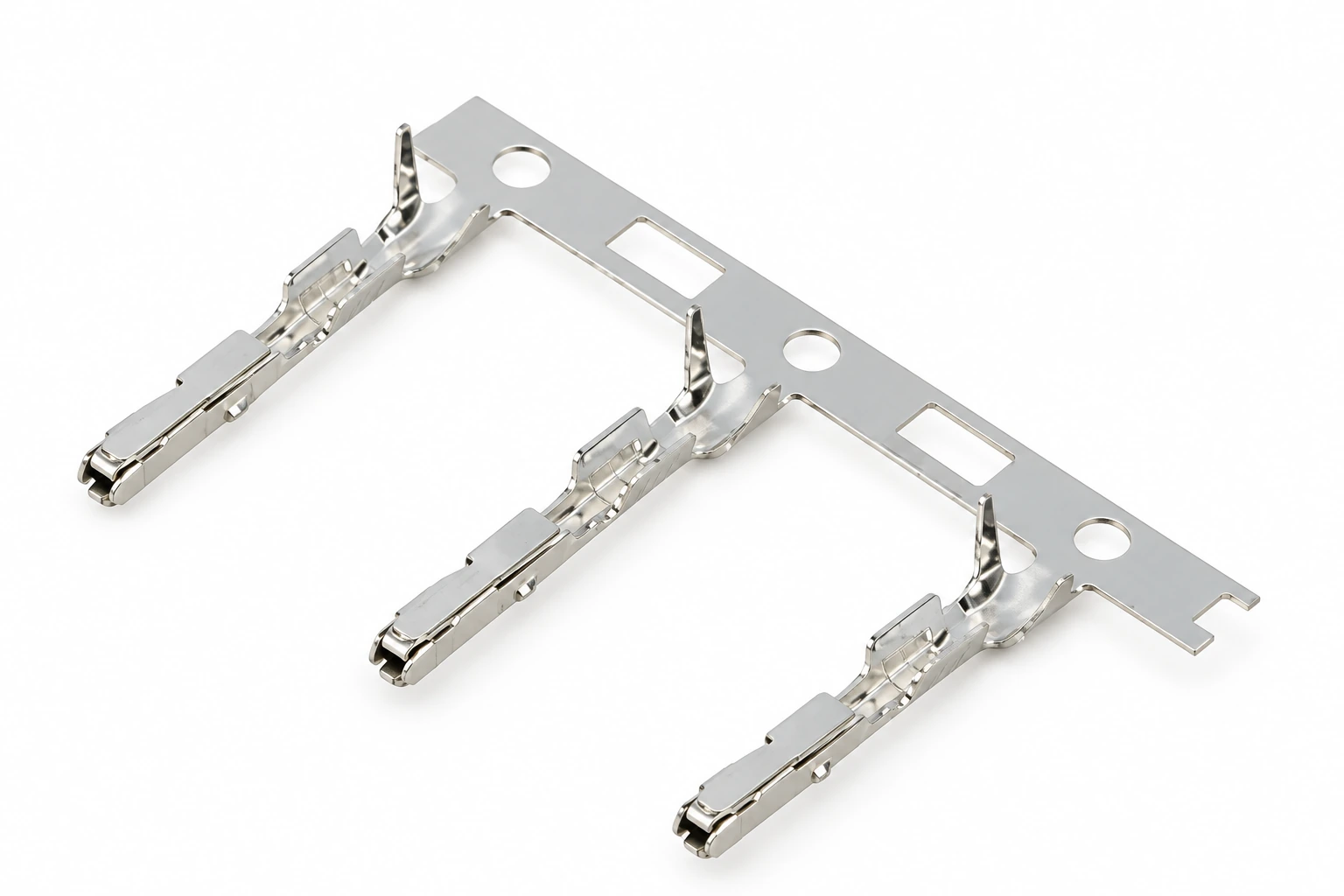

7116-4416-02
Strip-carried terminal reference for harness production. Review the contact geometry, strip feed arrangement and wire and insulation requirements.

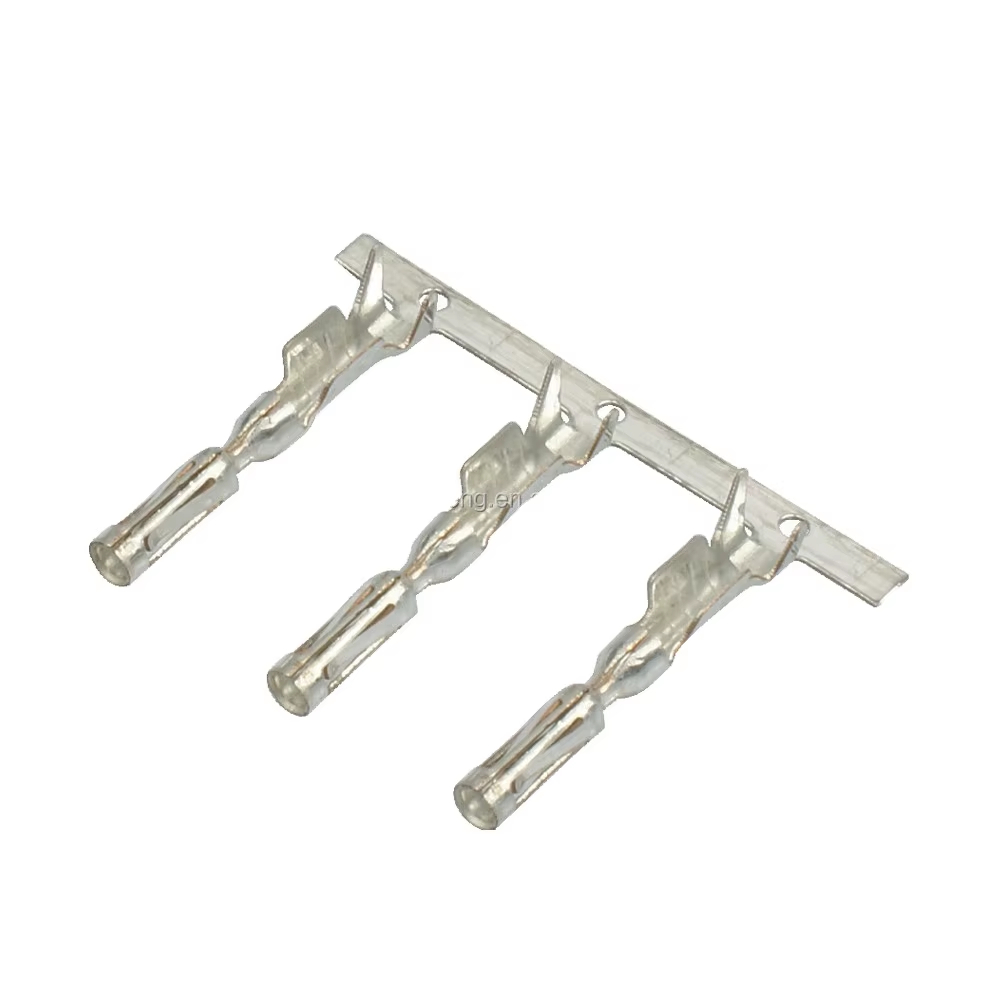

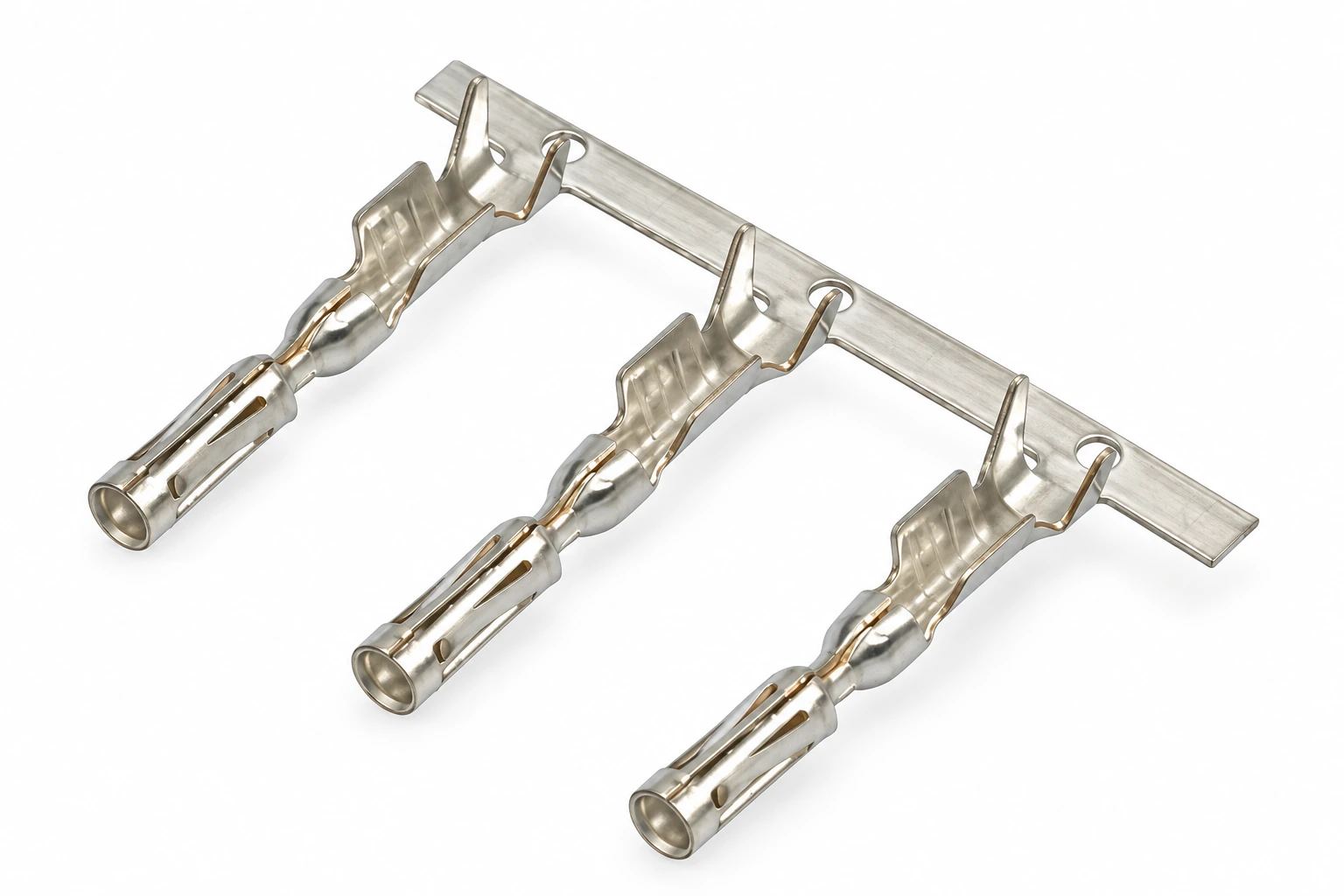

8100-1466
Formed terminal reference supplied for connector and harness enquiries. Confirm the housing cavity, mating interface and crimp barrel details.

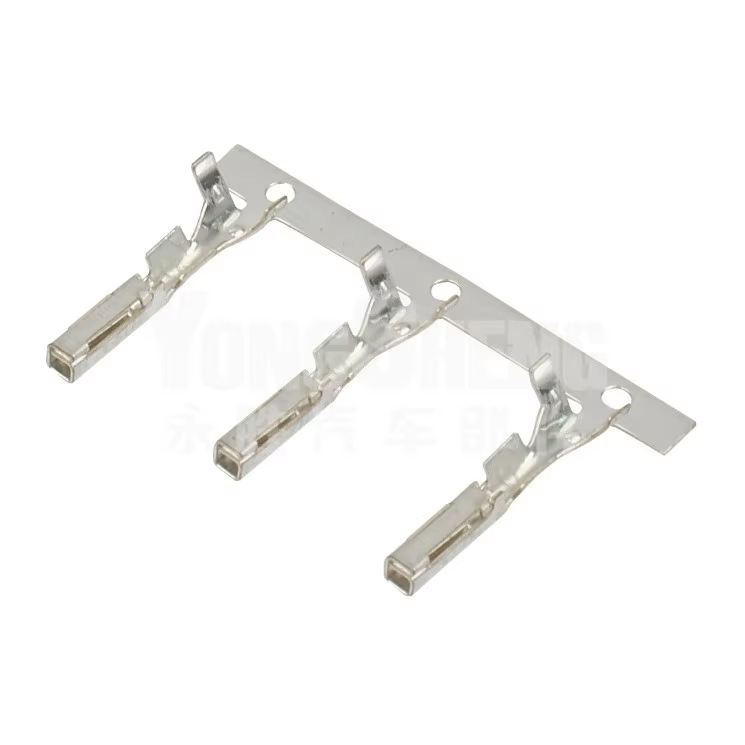

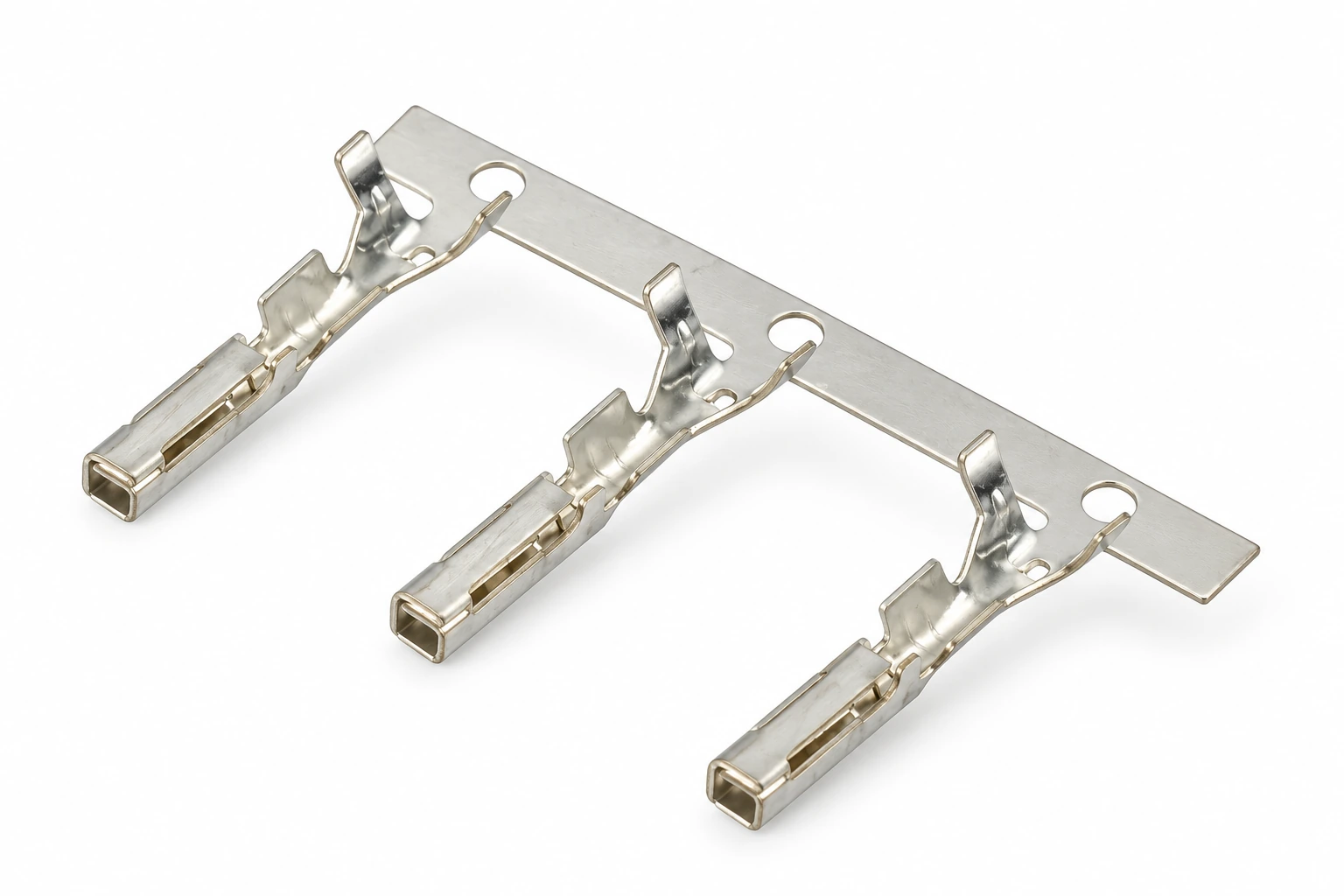

175062-1
Box-contact terminal reference with open crimp wings. Review tab geometry, housing retention and the conductor and insulation dimensions.

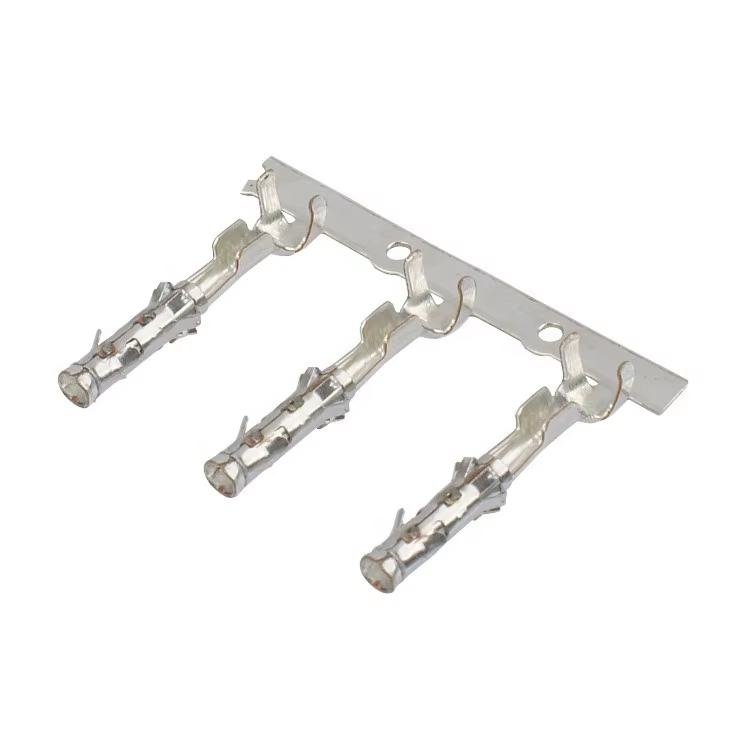

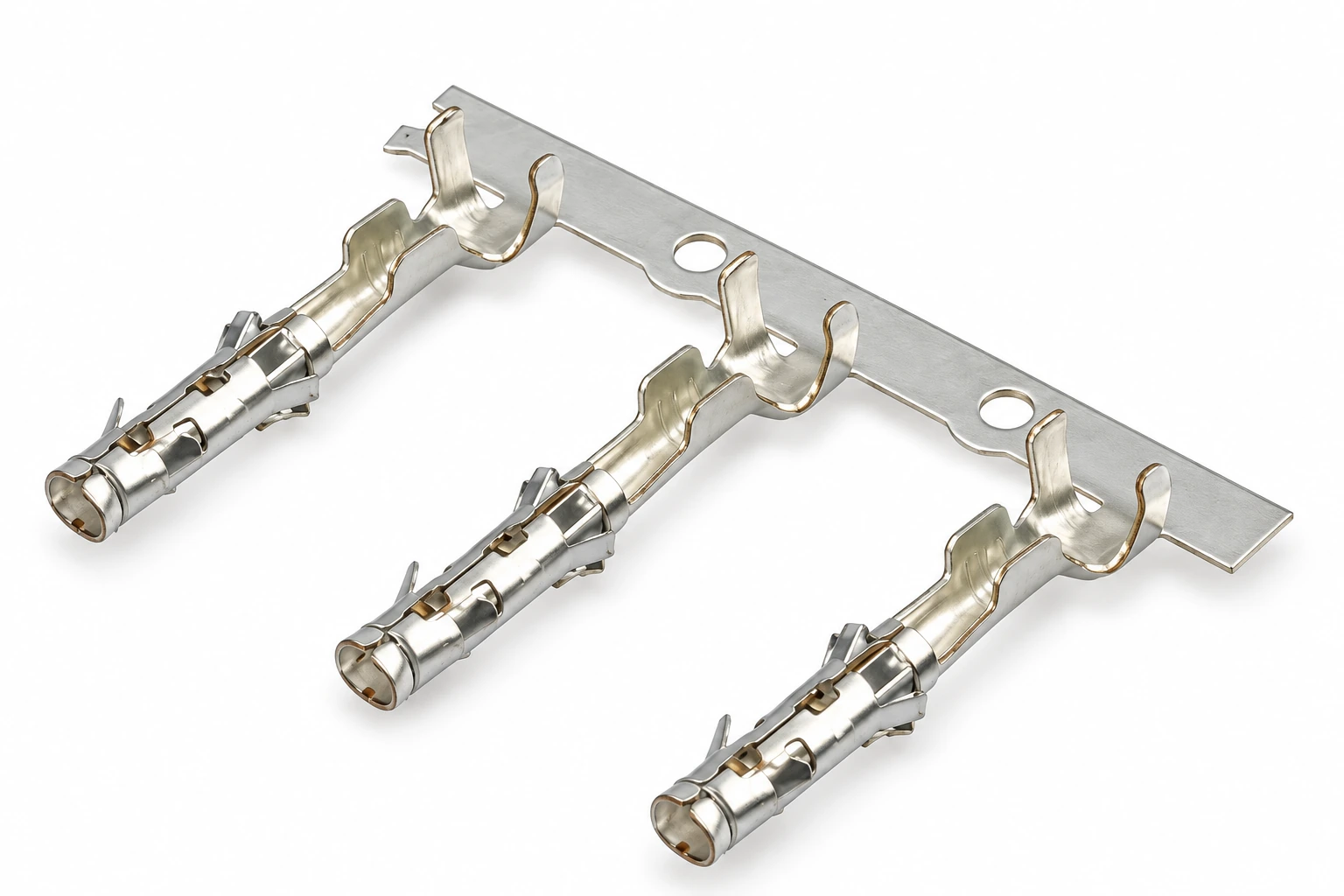

929990-1
Tubular-contact terminal reference with strip-carried crimp features. Confirm the mating pin, contact dimensions, seals and housing arrangement.

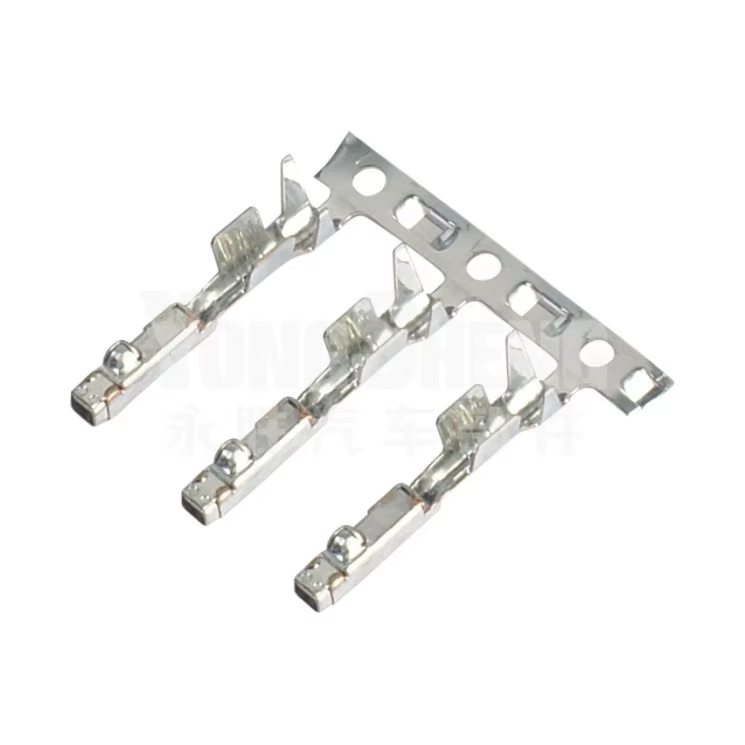

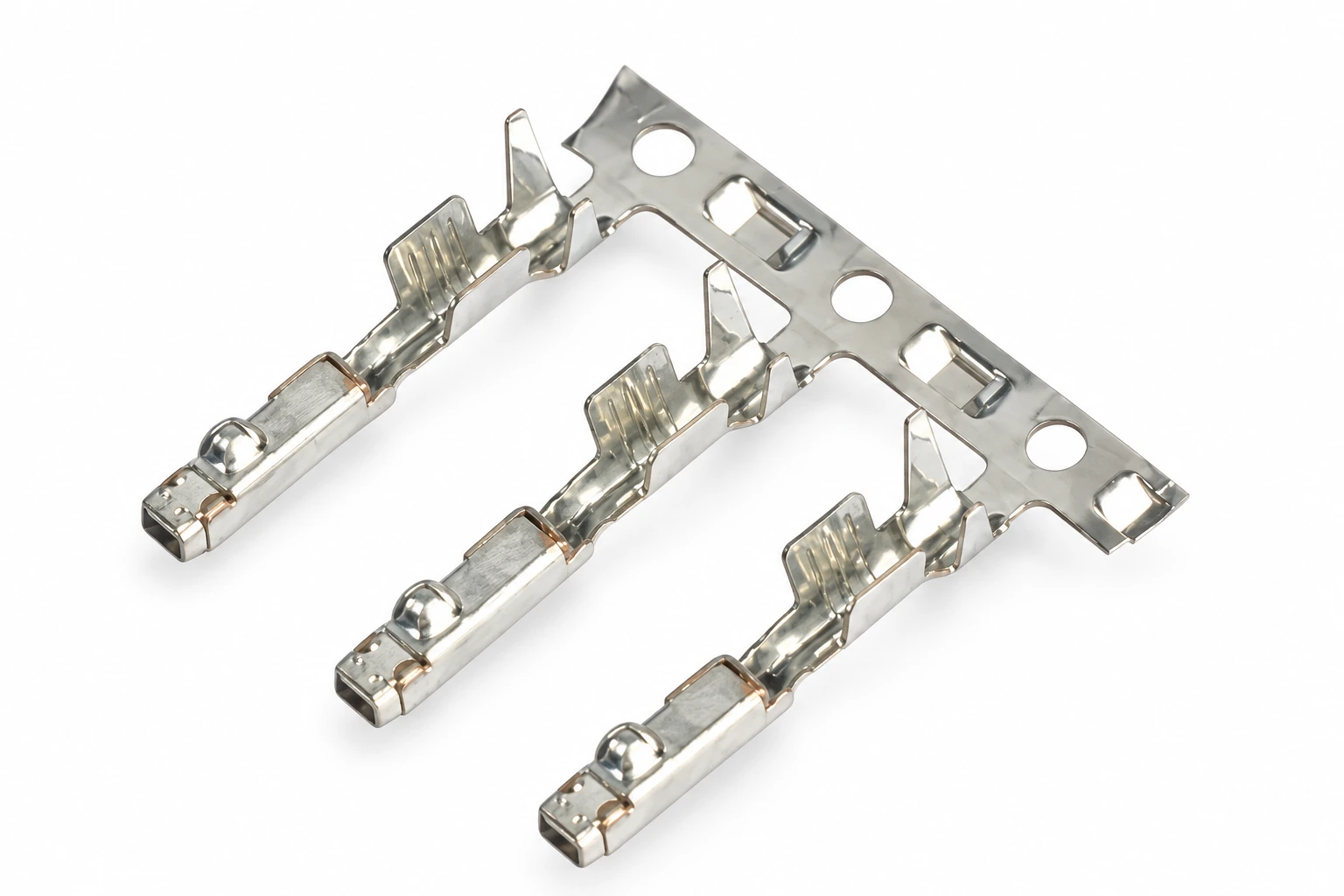

1452503-1
Formed contact reference for automotive harness assembly. Match the selected contact, locking geometry and wire preparation requirements.

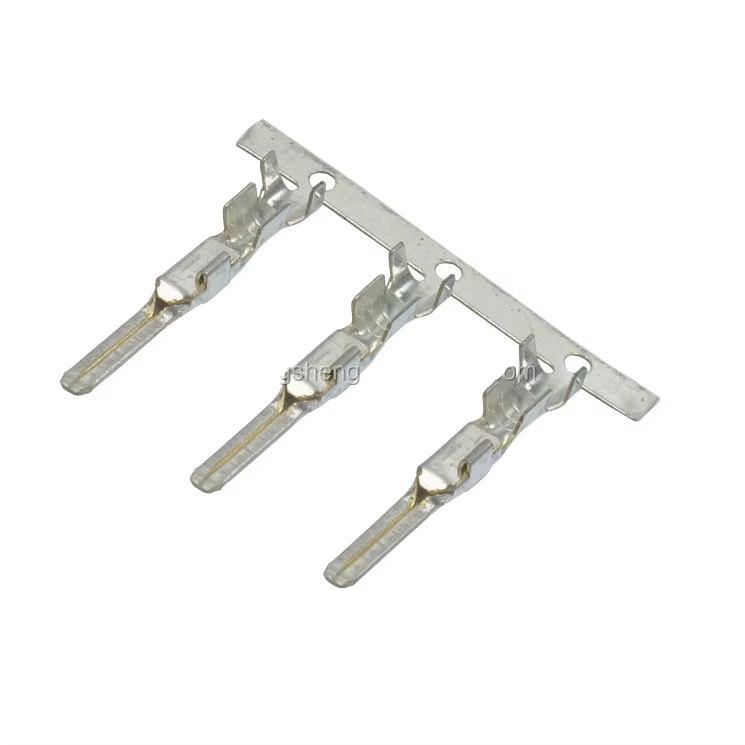

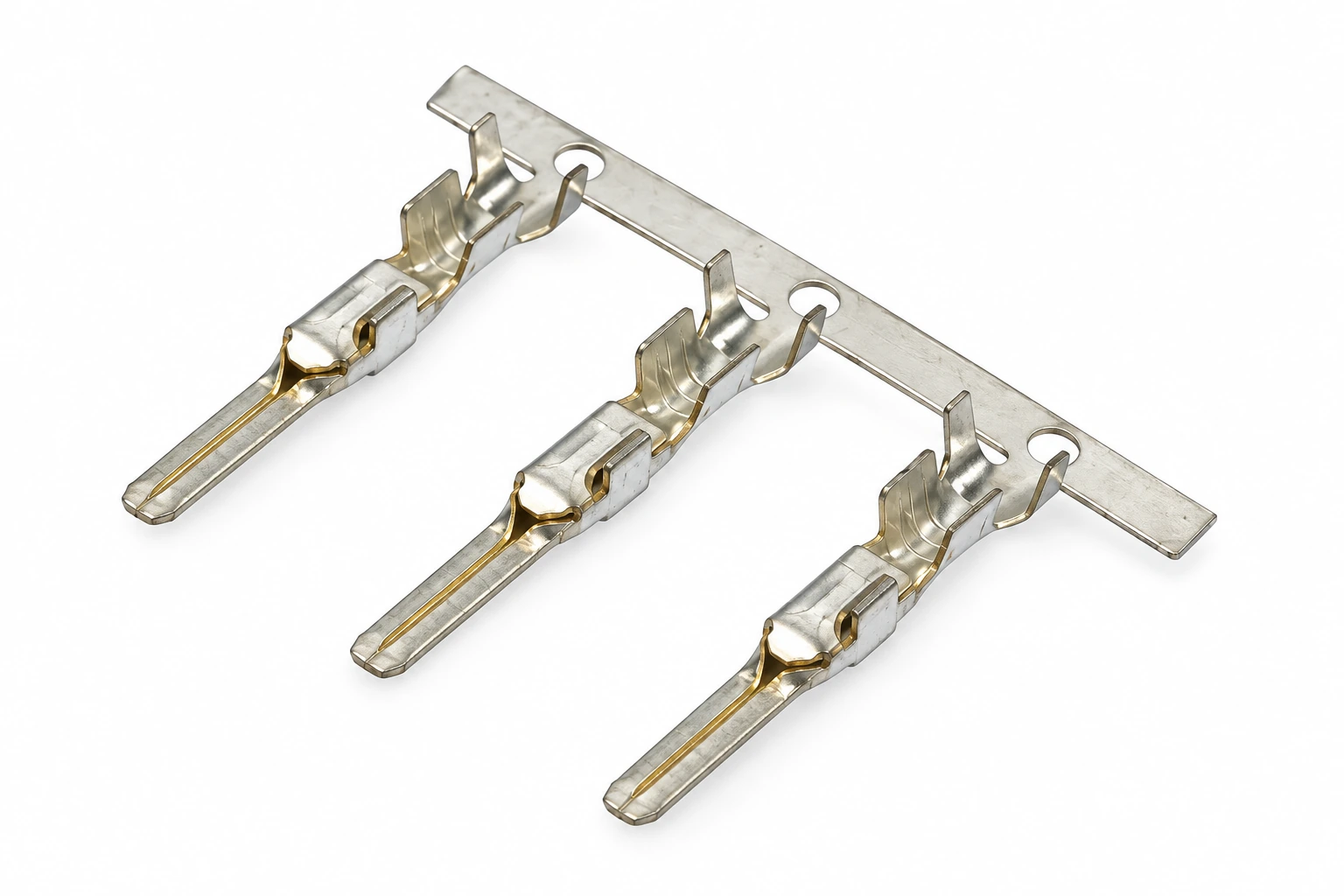

1718806-1
Flat-blade terminal reference with open crimp wings. Confirm tab width and thickness, housing fit and compatible wire dimensions.

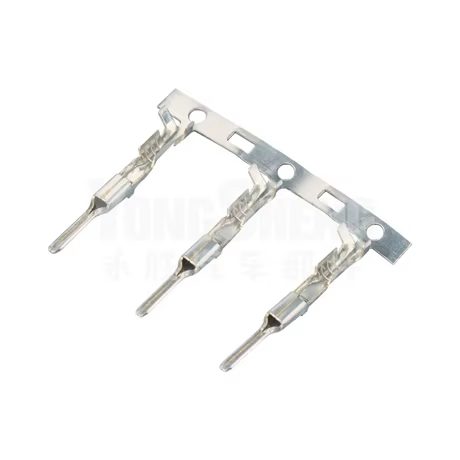

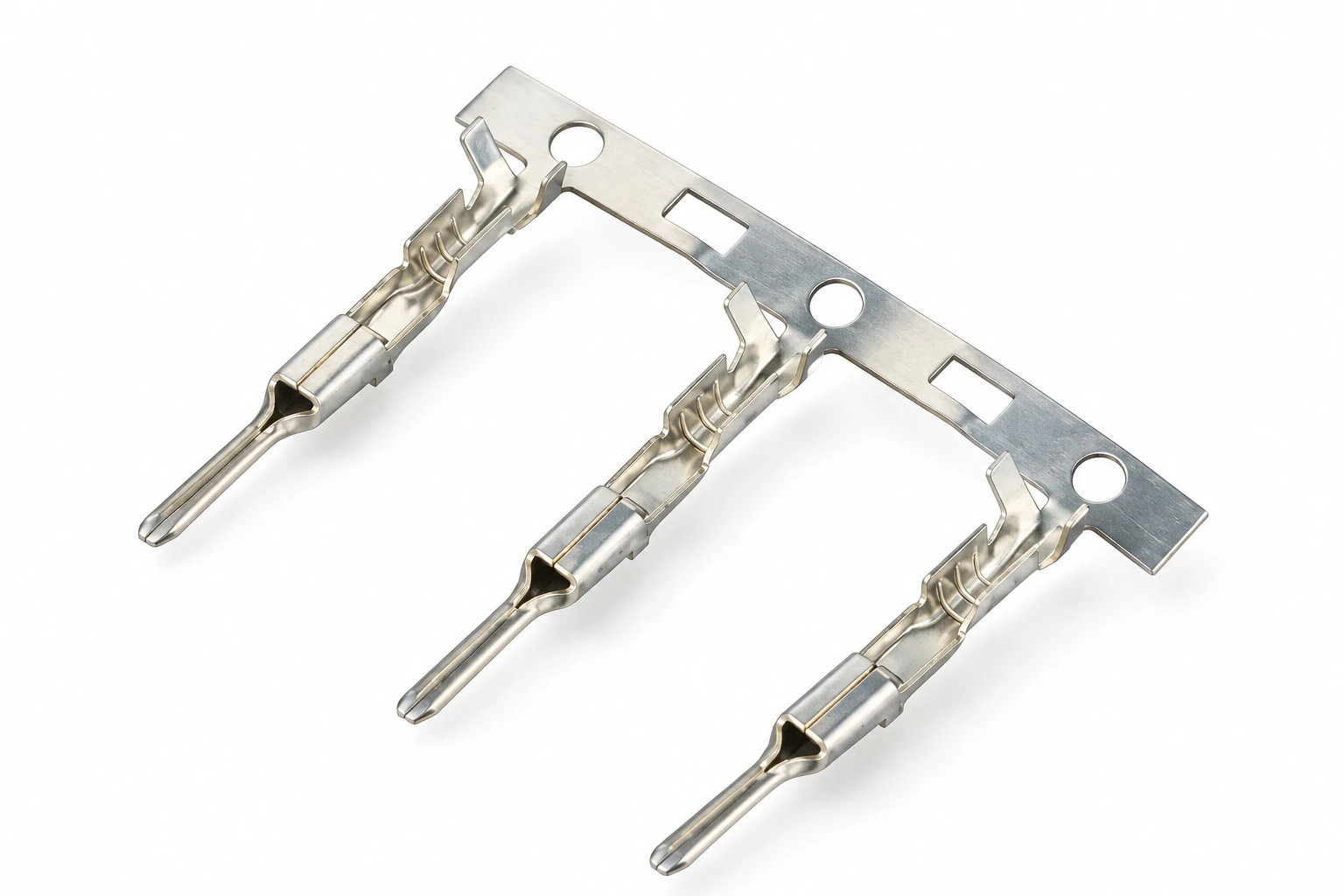

6618303BSS
Blade-contact terminal reference for sourcing comparison. Share the exact drawing, mating receptacle and required material and plating.

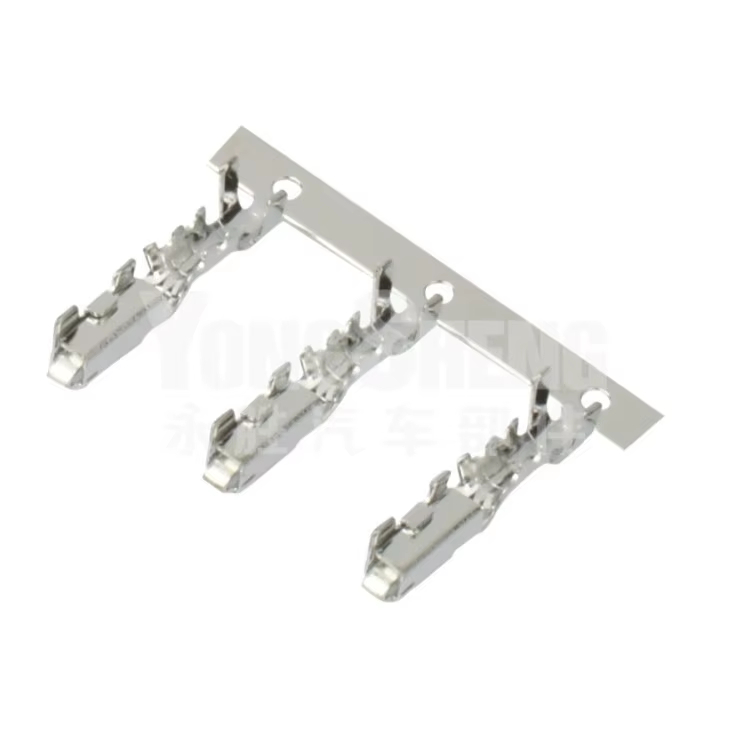

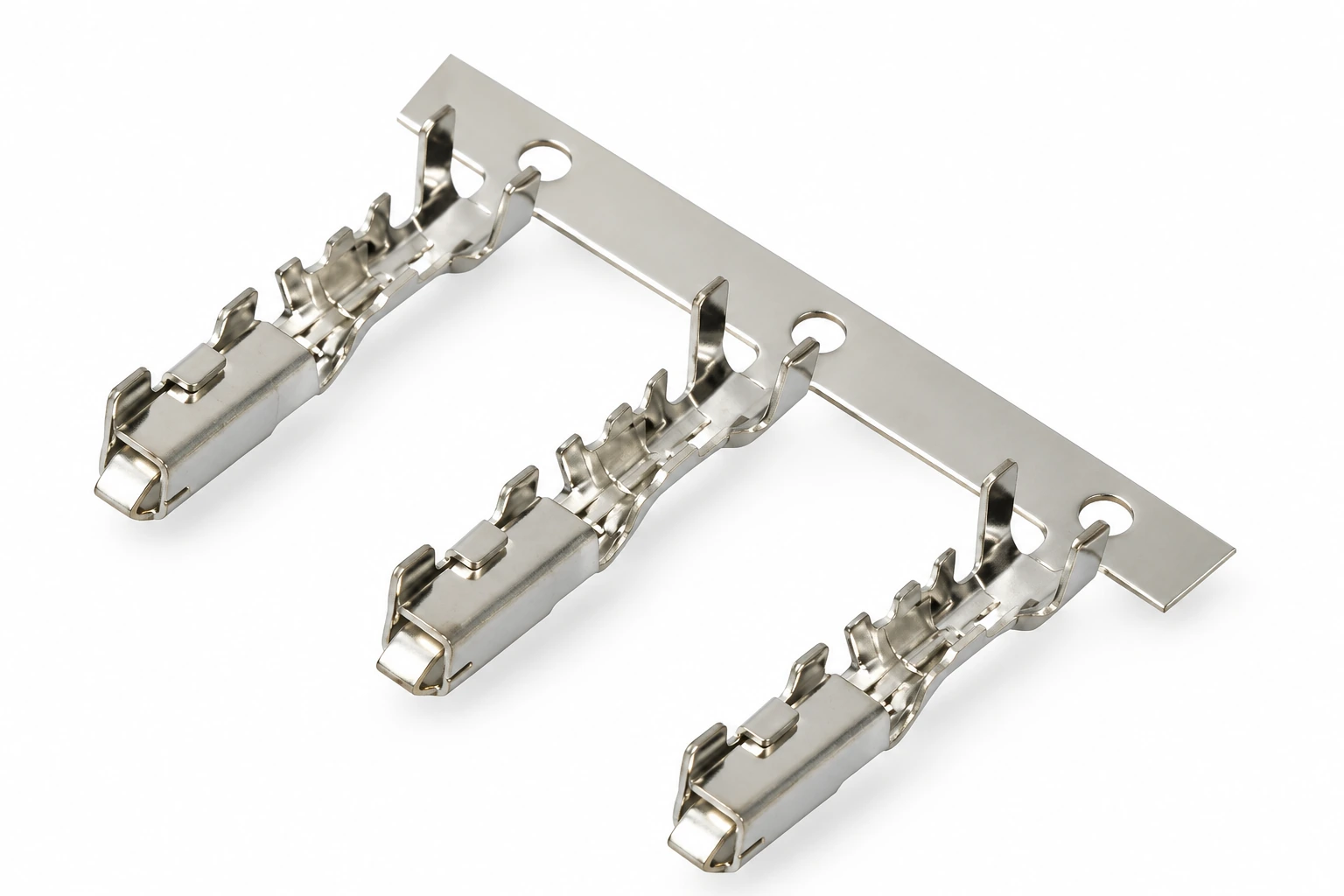

12084200
Open-barrel contact reference for connector assembly. Review the mating geometry, retention features and specified crimp tooling.

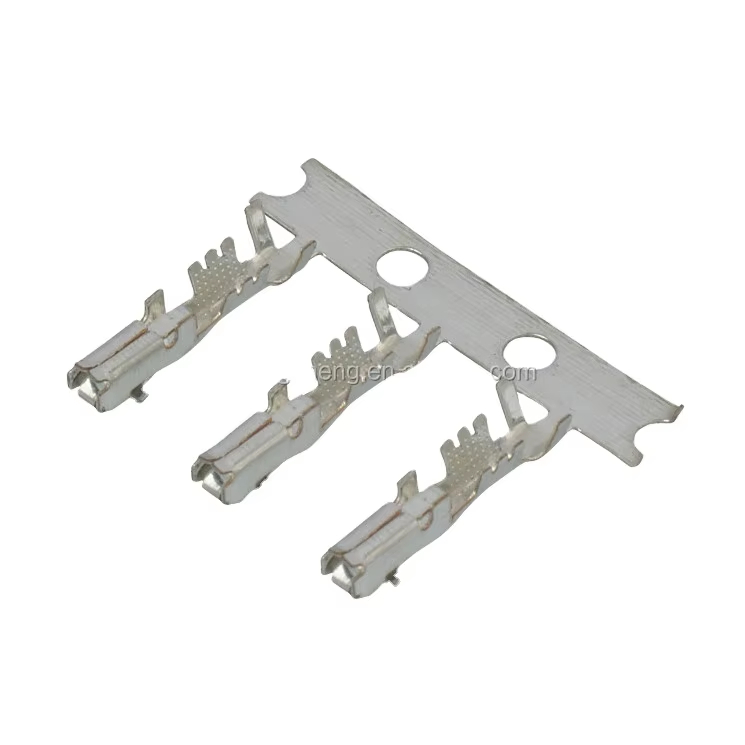

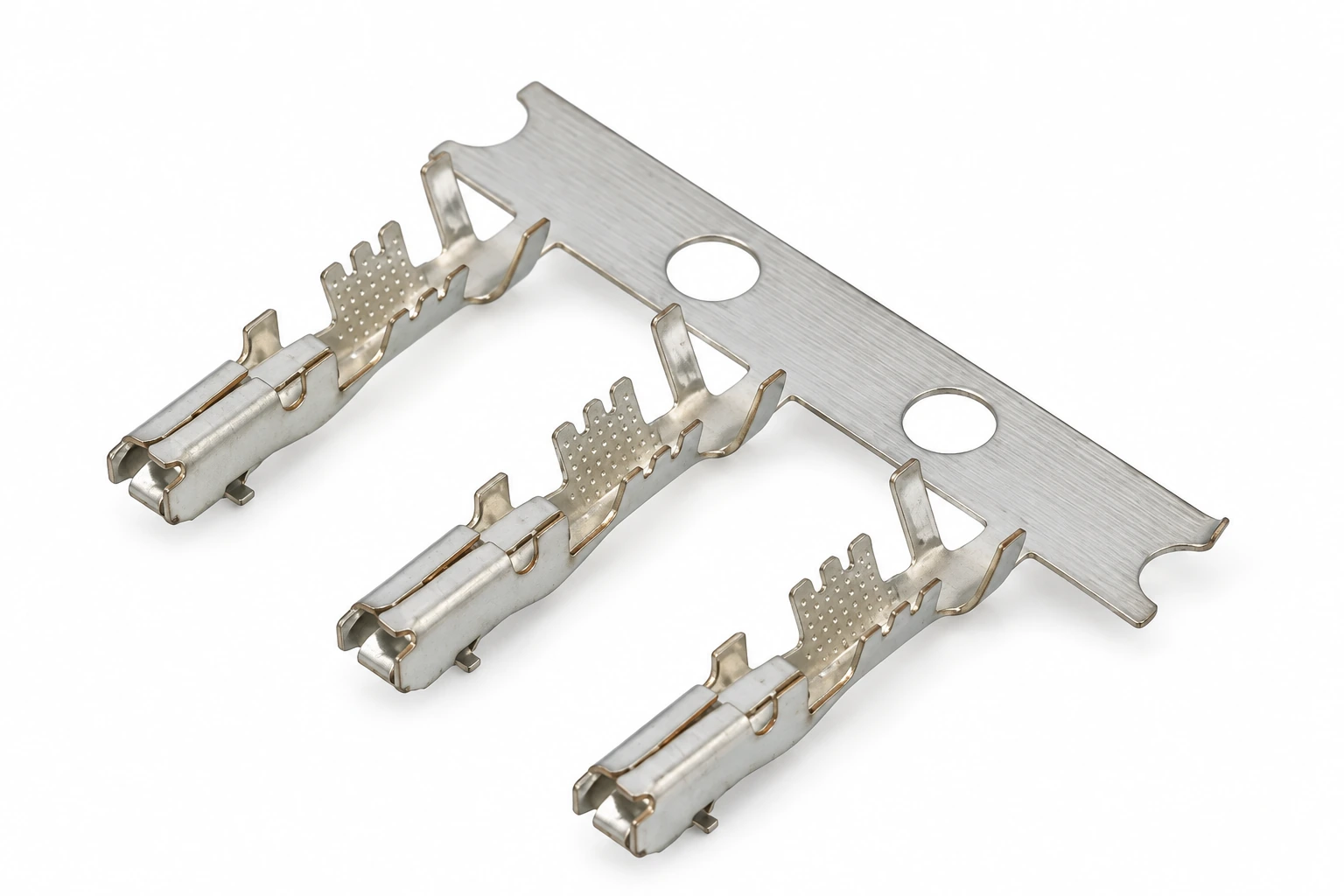

12089290
Strip-carried contact reference for wire harness production. Confirm the approved housing, wire size, insulation diameter and strip-feed requirements.

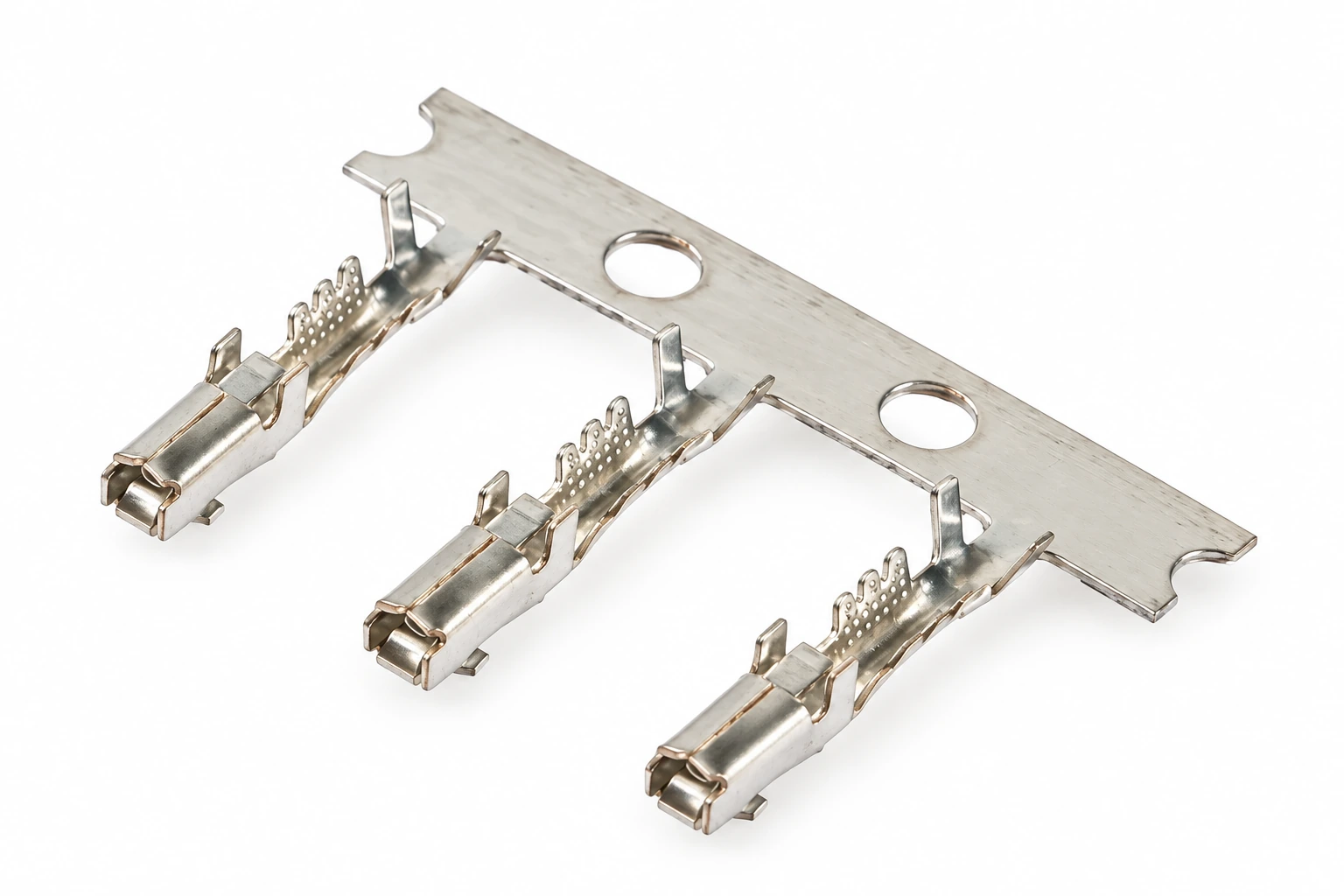

12103881
Formed terminal reference for connector and harness enquiries. Share the original reference, sample and mating requirements for selection review.

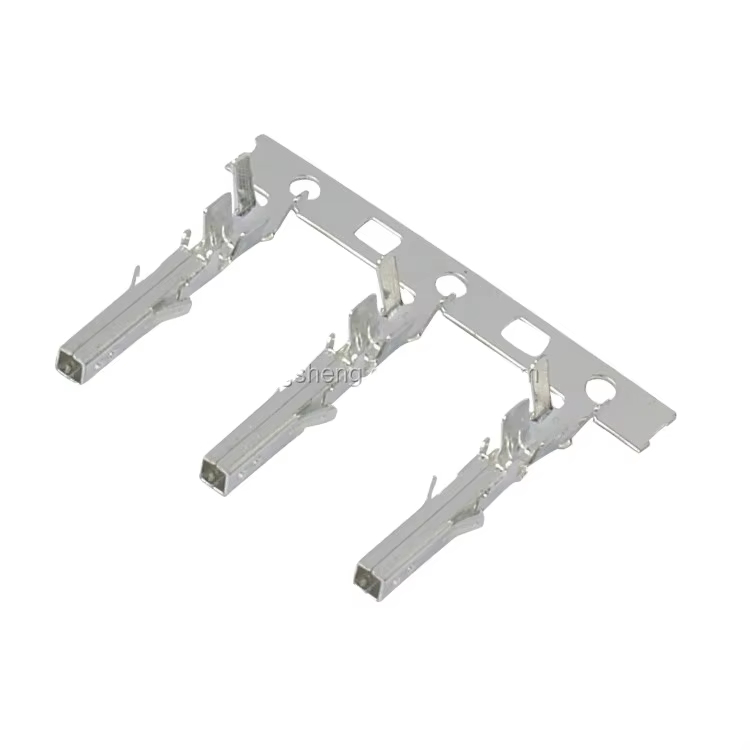

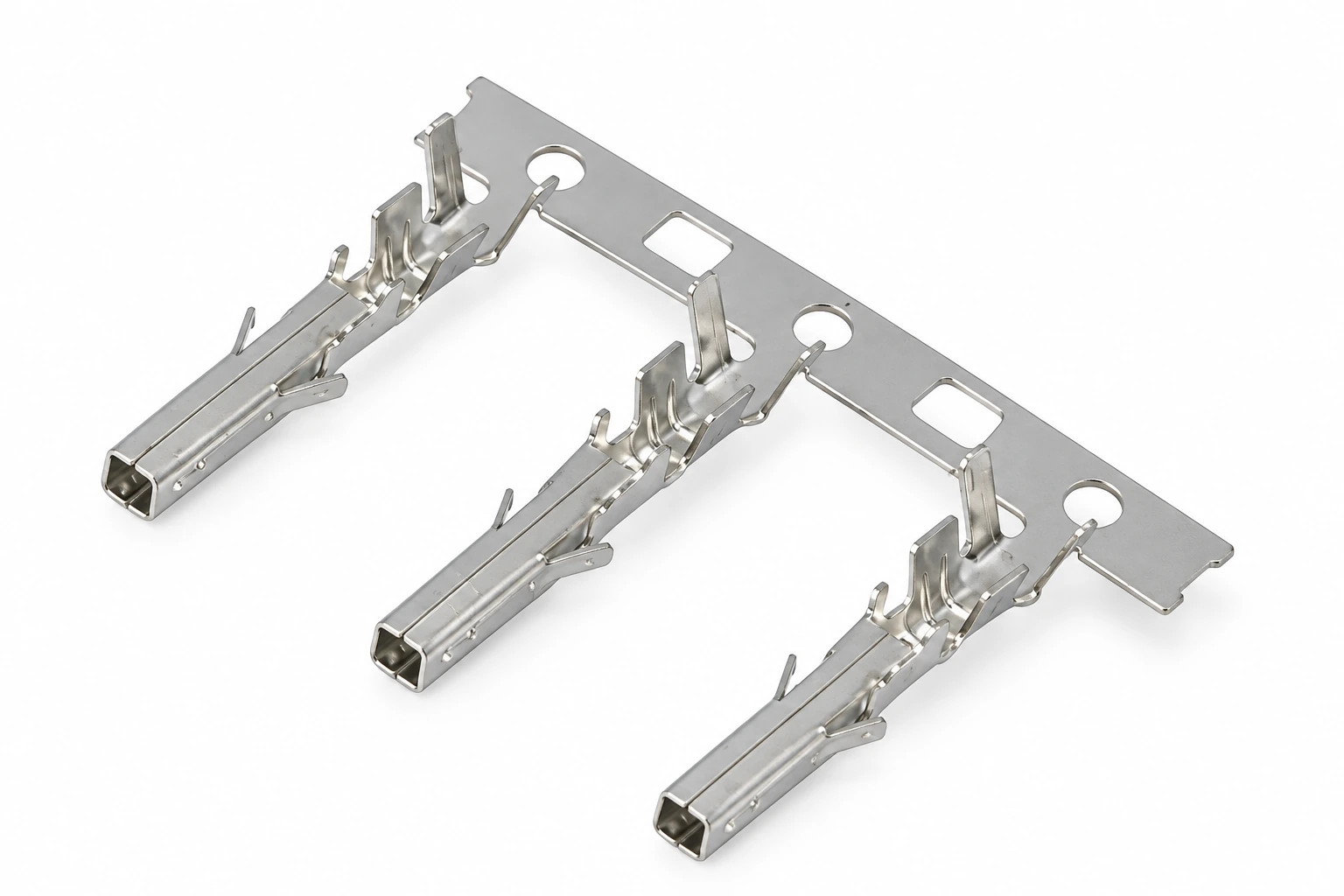

39000038
Box-contact terminal reference with open conductor and insulation wings. Confirm the contact cavity, wire dimensions and retention arrangement.

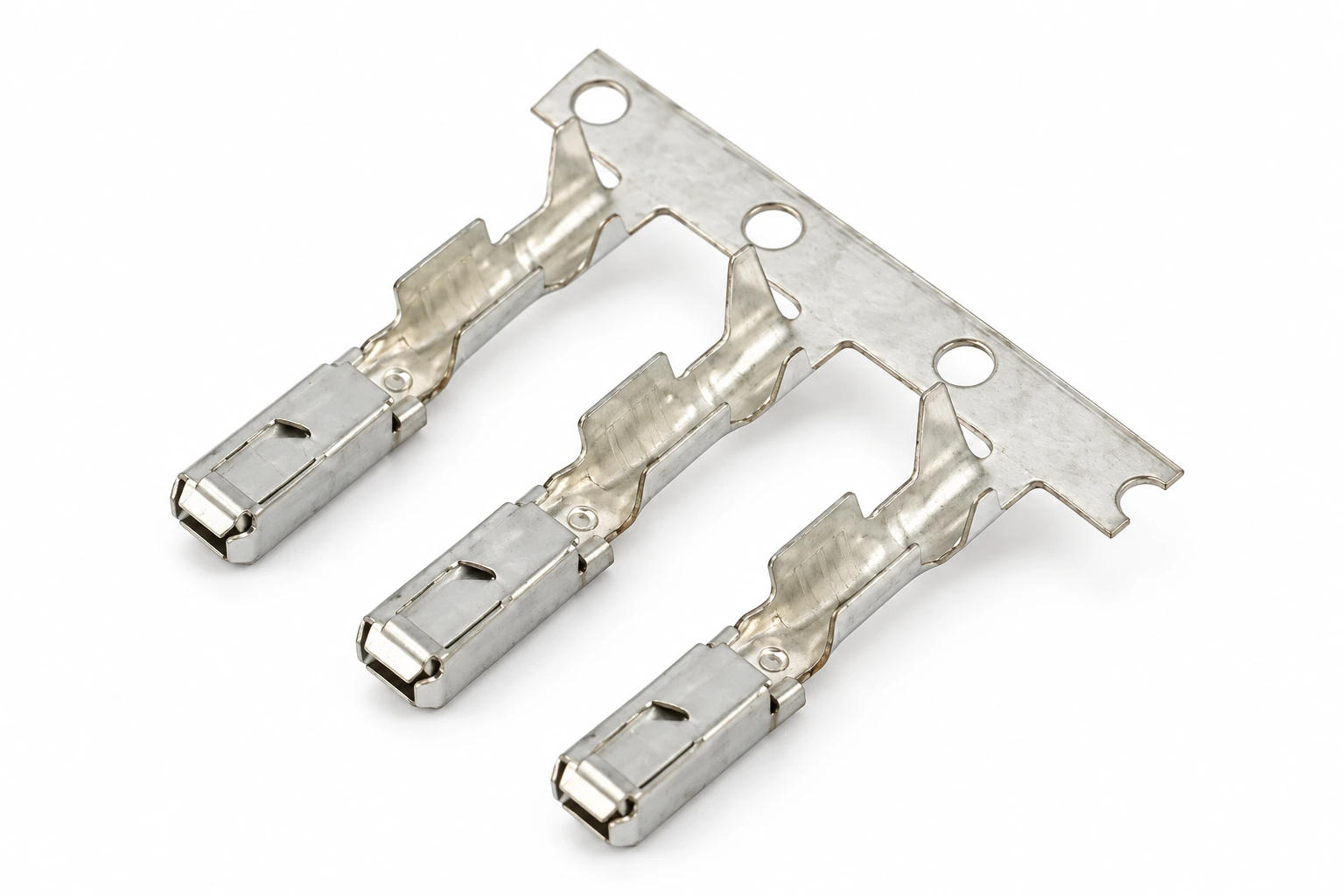

1241608-1
Receptacle-style terminal reference for automotive harness sourcing. Review the mating contact, housing lock and approved wire and seal combination.

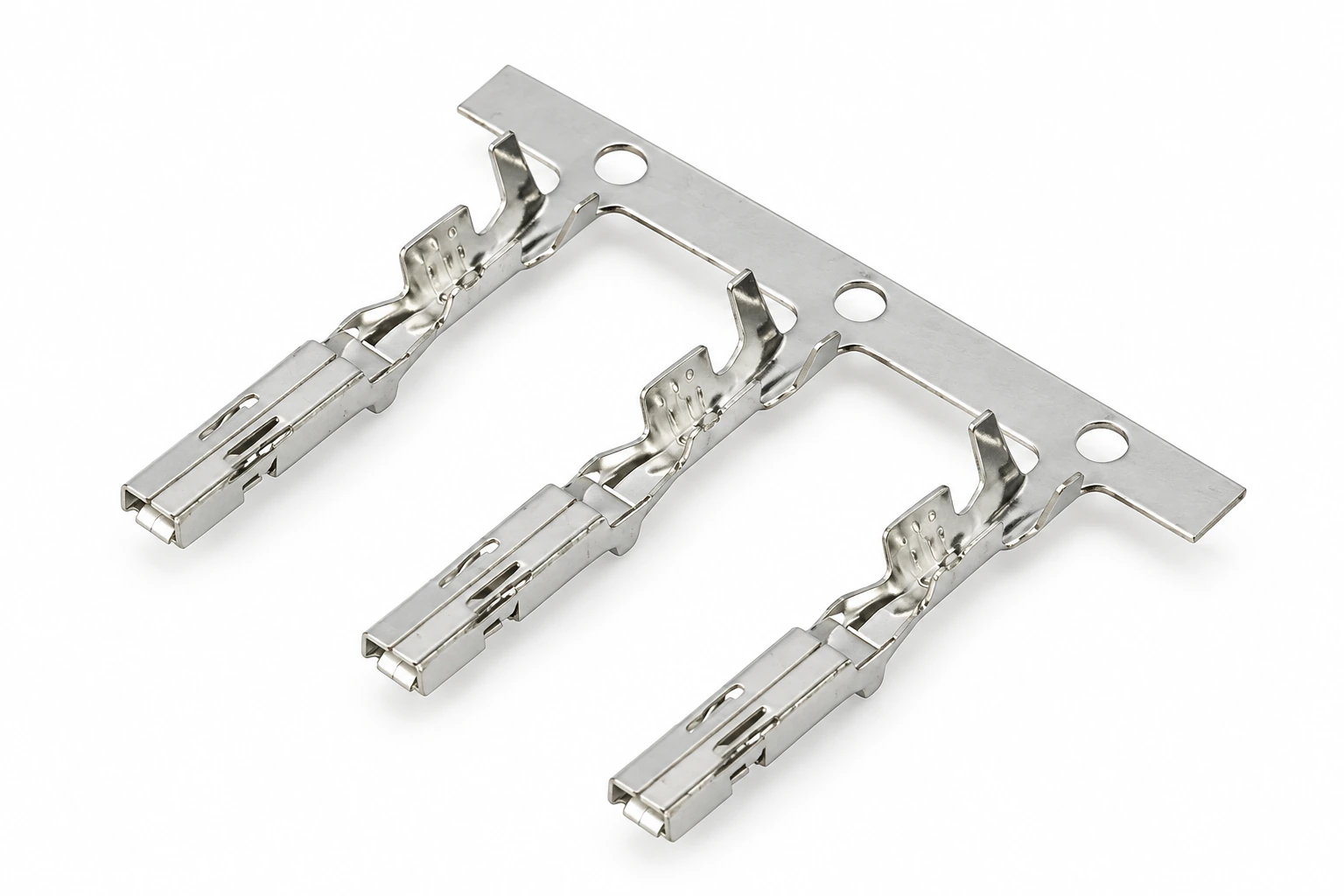

MT095-33880
Formed contact reference for connector assembly enquiries. Confirm dimensions, conductor requirements and the mating and retention features.

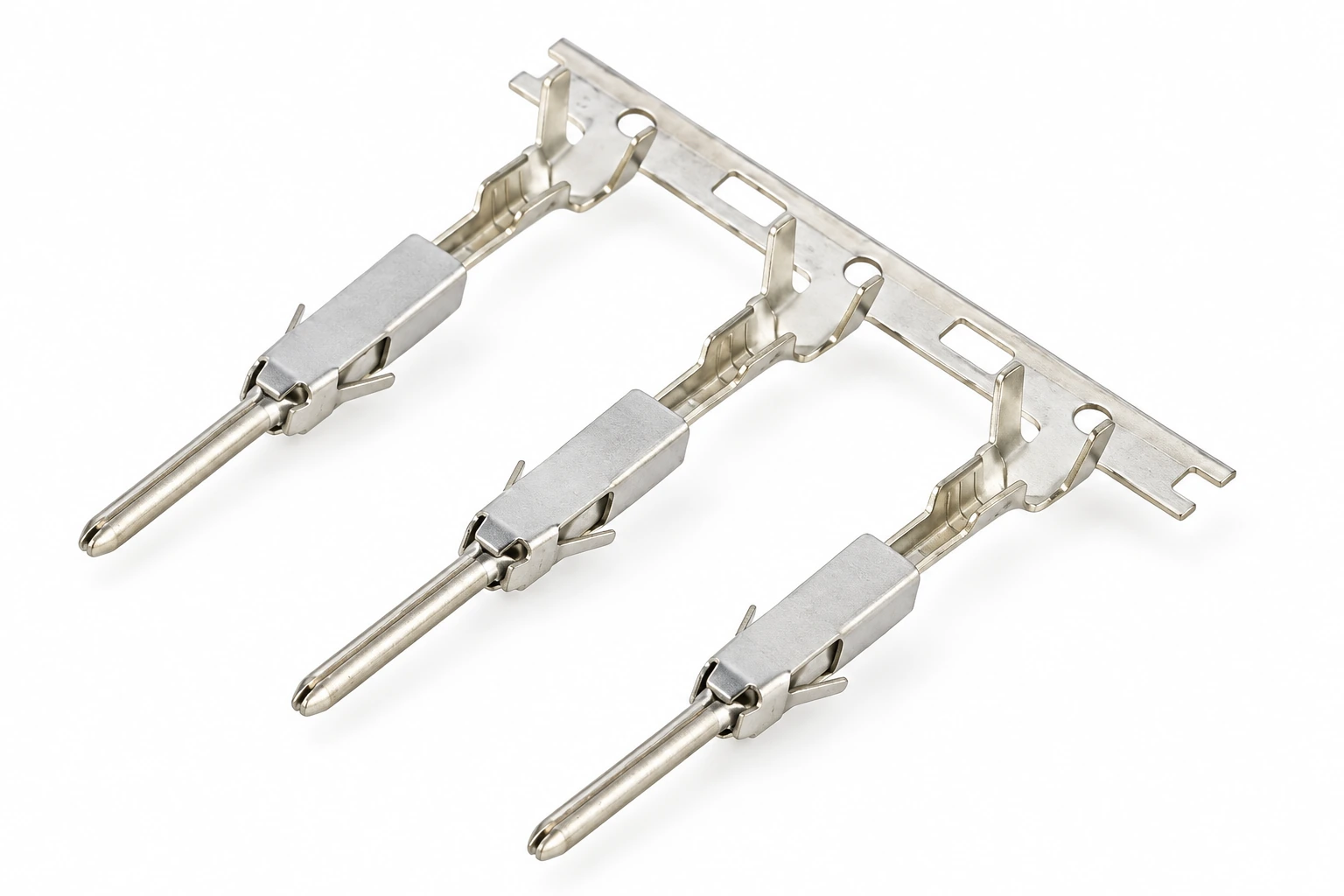

DJ211-1.5A
Flat-pin terminal reference with open crimp wings. Review mating geometry, strip format and the conductor and insulation specification.
Catalog numbers identify enquiry references. Product images are illustrative; confirm the supplied terminal drawing, housing fit and performance before approving an alternative. Original-brand status or interchangeability is not implied by a reference number.
Automotive Terminal Applications
Explore three application scenes for vehicle harness production, electronic connections and replacement harnesses. Select each terminal together with its wire, housing, mating contact and assembly requirements.

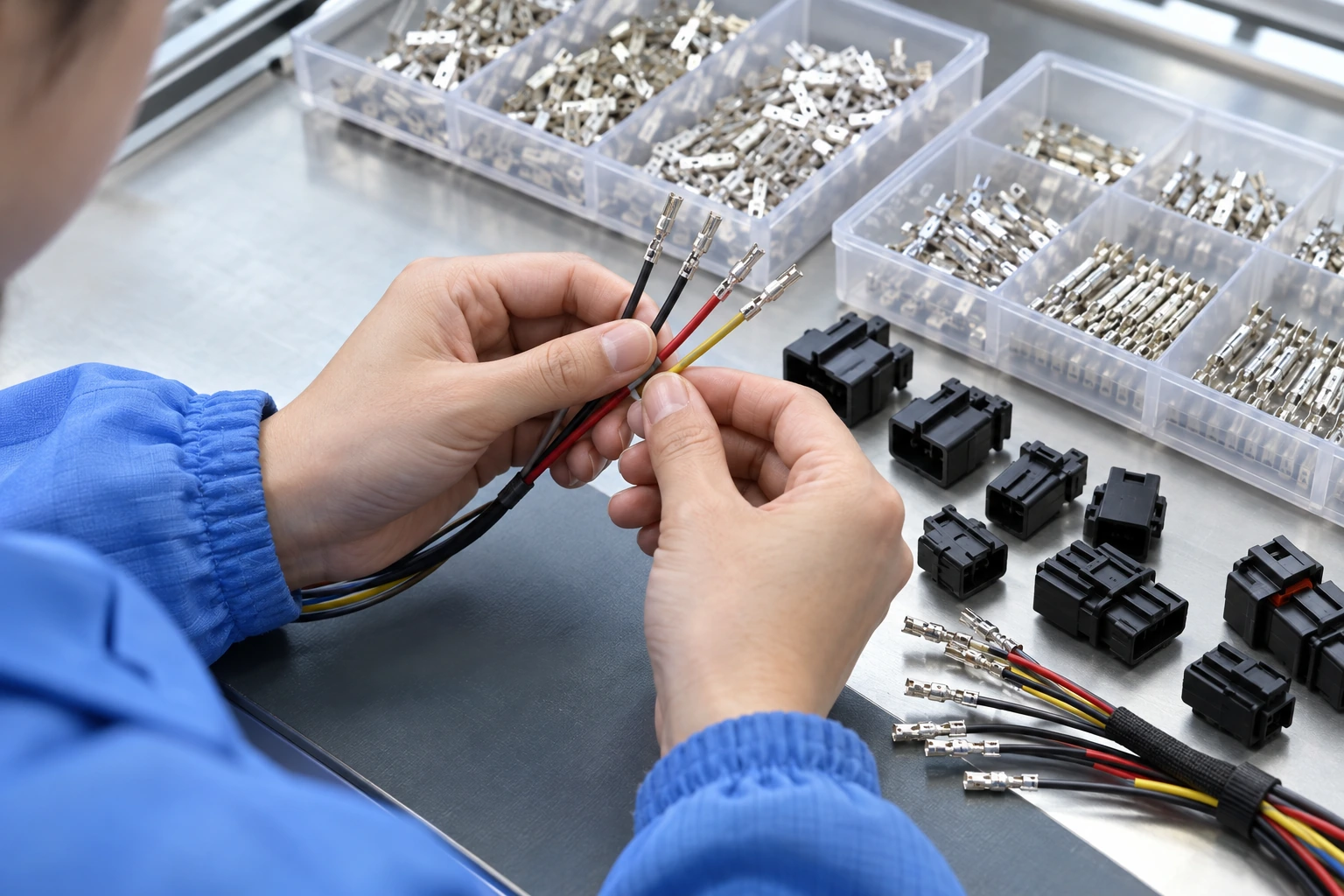

Vehicle Wiring Harness Assembly
Plan pin and socket contacts for automotive harness production. Define conductor size, insulation diameter, housing cavities and seals. Review the terminal strip format and crimp tooling against your planned assembly process.
Sensors & Electronic Modules
Review contacts for sensor pigtails and electronic module connections. Share circuit requirements, mating interface and operating conditions. Contact material, plating and retention features should be specified for the exact assembly.

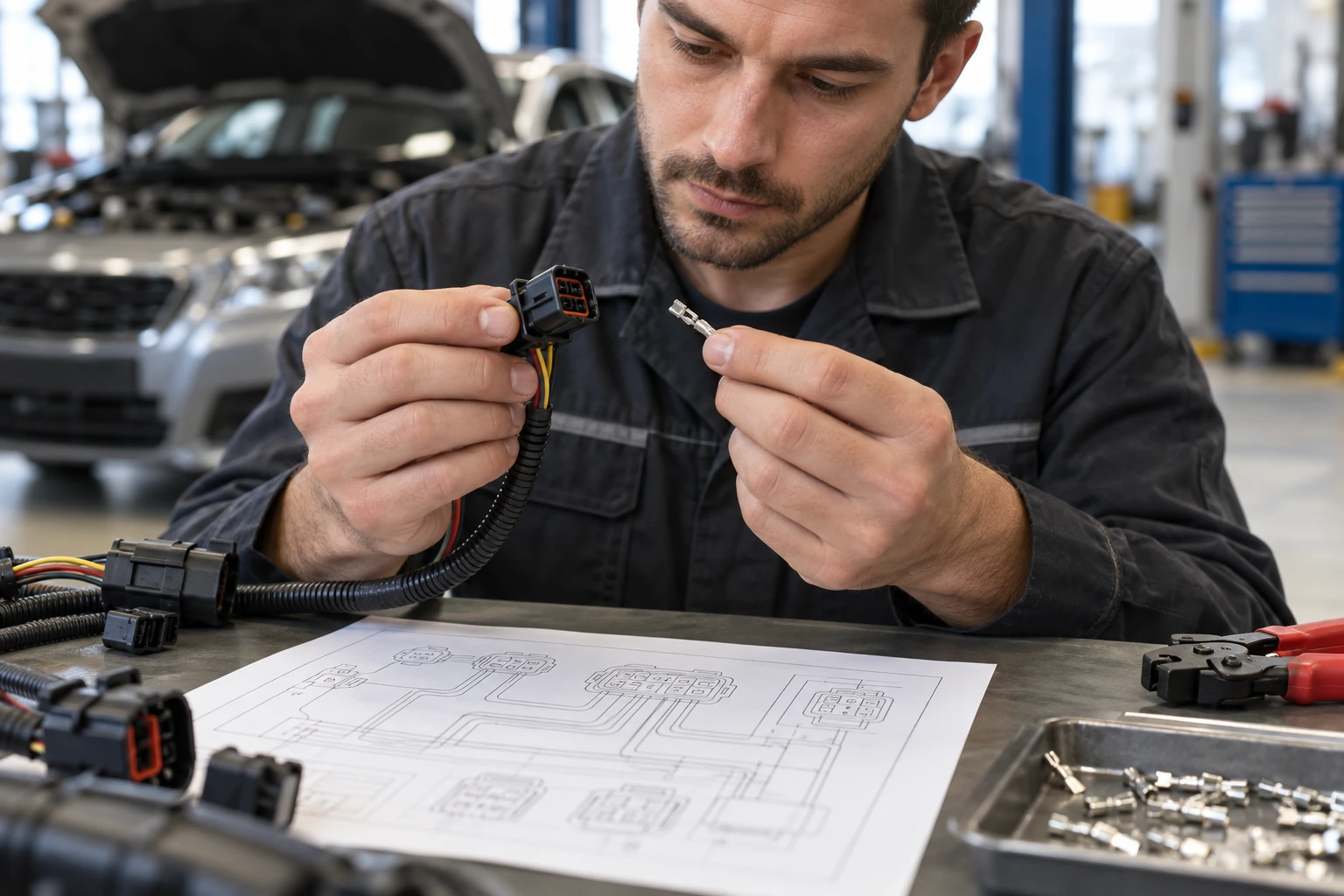

Repair & Replacement Harnesses
Compare a service reference or original sample with the required replacement contact. Confirm the housing, wire and mating connector together, then review installation information for the specific equipment before assembly.
Automotive Terminal Specifications: What to Confirm
Use this checklist to define the terminal, wire and mating assembly. Review the approved part drawing and assembly requirements.
| Specification | Information to Confirm |
|---|---|
| Reference & terminal form | Catalog or original part number; pin, socket, blade or formed contact; approved dimensioned drawing |
| Mating dimensions | Tab width and thickness, pin diameter, contact length and mating geometry as applicable |
| Wire & insulation | Conductor material and cross-section, strand construction and insulation outside diameter |
| Housing & retention | Exact housing cavity, primary lock, secondary lock and compatible seals where required |
| Material & plating | Contact alloy, material thickness, plating specification and surface requirements |
| Operating requirements | Current, voltage, temperature, vibration and environmental conditions for the complete assembly |
| Crimp process & inspection | Tooling, strip feed, wire preparation and approved crimp and inspection specifications |
| Packing & traceability | Loose or strip-carried format, reel direction, packing quantity, lot labels and destination |
Confirm the approved drawing, crimp requirements, housing fit and sample before ordering. Request relevant technical documents for the selected terminal.
Make Quality Part of the Purchase Specification
Drawing & Contact Geometry
Compare the terminal drawing with the original sample and mating contact. Record dimensions and tolerances for the contact body, crimp wings and locking features.
Wire & Insulation Fit
Review conductor size and construction together with insulation diameter. Define wire preparation and the terminal barrel configuration required for the assembly.
Housing & Seal Compatibility
Check cavity fit, insertion, retention and secondary locking with the selected housing. Where seals are used, review the complete wire, terminal, seal and housing combination.
Material & Plating Review
Specify contact alloy, stock thickness and plating requirements. Request the relevant model-specific documentation and inspection criteria for the order.
Crimp & Sample Validation
Evaluate samples using the approved tooling and wire. Agree dimensional checks, pull testing or cross-section review as required by your assembly specification.
Contact Protection & Lot Control
Protect mating surfaces and locking lances during handling and transport. Define reel or tray packing, part identification, lot information and inspection records.
Select Automotive Terminals in Six Practical Steps
1. Identify the Reference
Send the original or catalog number, clear photographs and a drawing or sample. Include the housing and mating terminal when reviewing an alternative.
2. Check Contact Dimensions
Confirm the pin, tab or receptacle geometry, contact length and locking features. Match the complete interface rather than appearance alone.
3. Match Wire & Seals
Specify conductor cross-section, strand construction and insulation diameter. Include seals and the required conductor material where applicable.
4. Define Operating Requirements
Share circuit current, voltage and temperature conditions, plus vibration and environmental requirements. Review documentation for the exact terminal assembly.
5. Review Tooling & Samples
Confirm the terminal format and crimp tooling. Check sample fit, retention and crimp acceptance against your approved assembly requirements.
6. Confirm Packing & Supply
Agree quantity, strip or loose format, reel direction, packing and destination. Confirm MOQ, sample arrangements, price and lead time in the quotation.
Get Your Free Sample!
We provide samples for free, you just need to tell us what you need
Automotive Terminal Workshop & Packaging

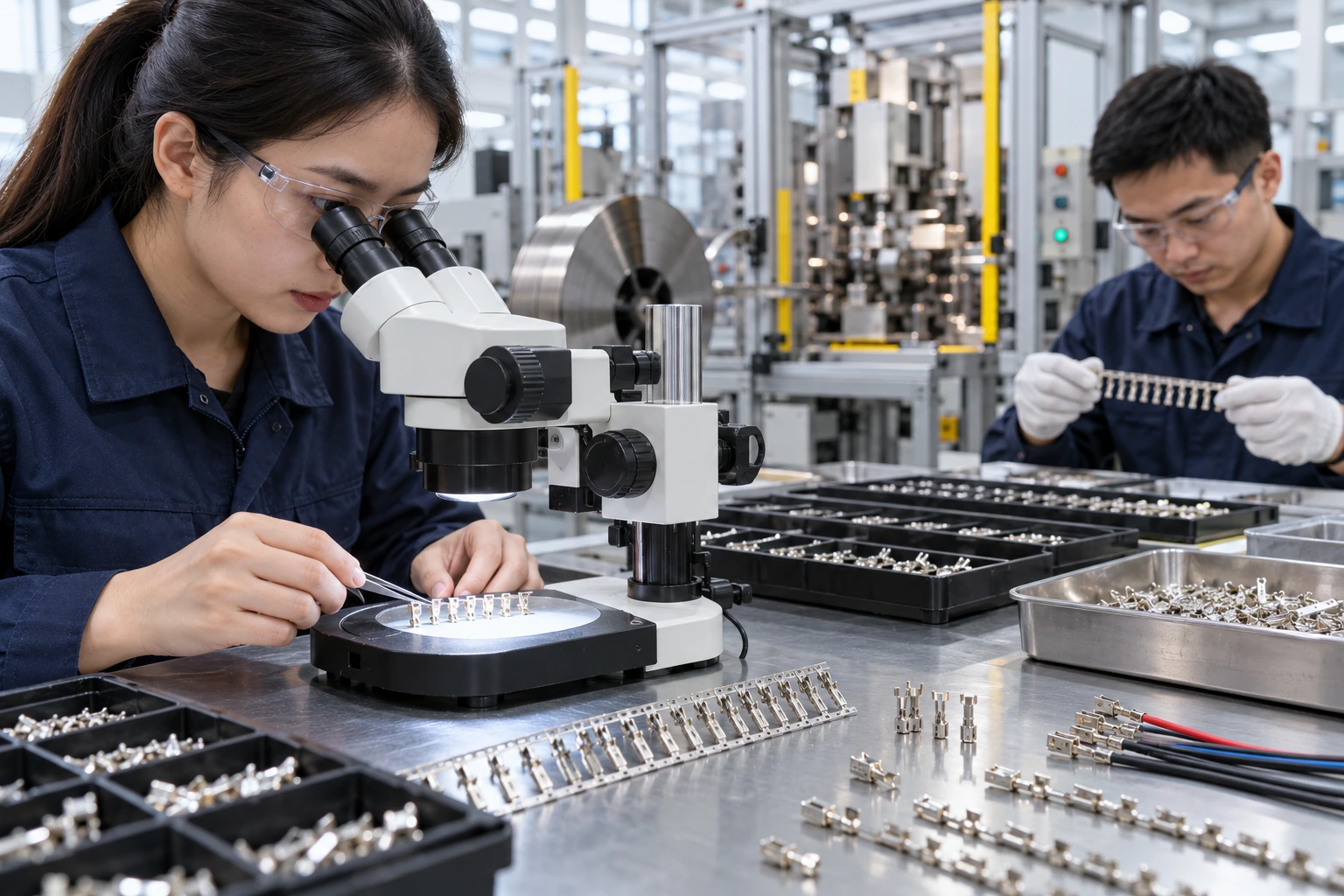

Terminal Production & Inspection
Discuss the approved terminal drawing, contact geometry and material requirements with TONFUL. Dimensional inspection, contact alignment and surface checks can be defined around the selected part. Agree sample review and the production inspection records needed for your order.

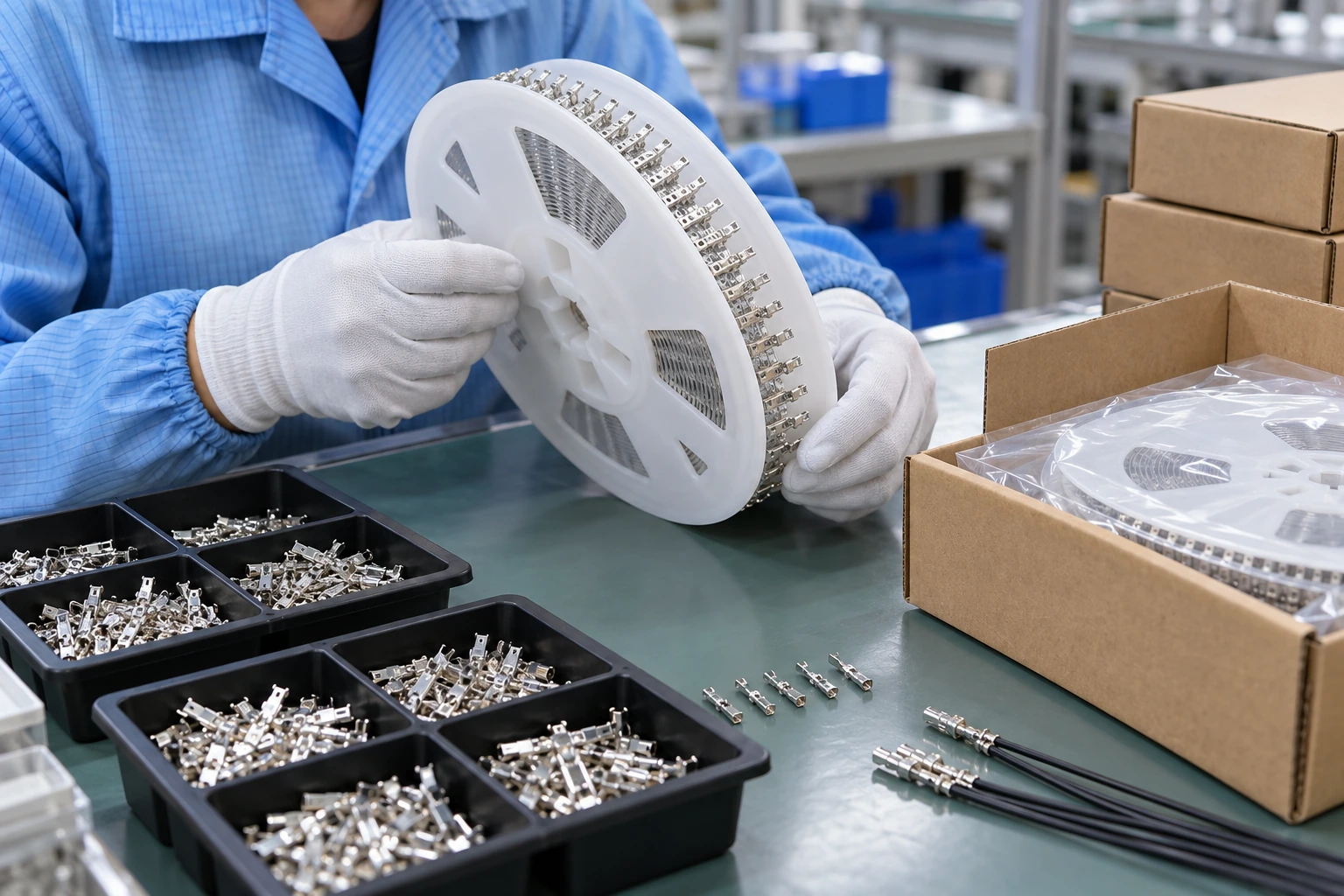

Terminal Protection & Export Packing
Choose loose-contact or strip-carried packing to suit your handling and assembly process. Protect contact tips, locking lances and plating from deformation or abrasion. Confirm reels, trays, bags, packing quantities and outer-carton labels before shipment.
Illustrative workshop and packaging scenes.
More Than Just an Automotive Terminal Manufacturer
Service Consultation
Share your terminal reference, wire details and purchasing requirements. TONFUL can review the drawings, housing information and sample comparison needed to prepare a quotation.

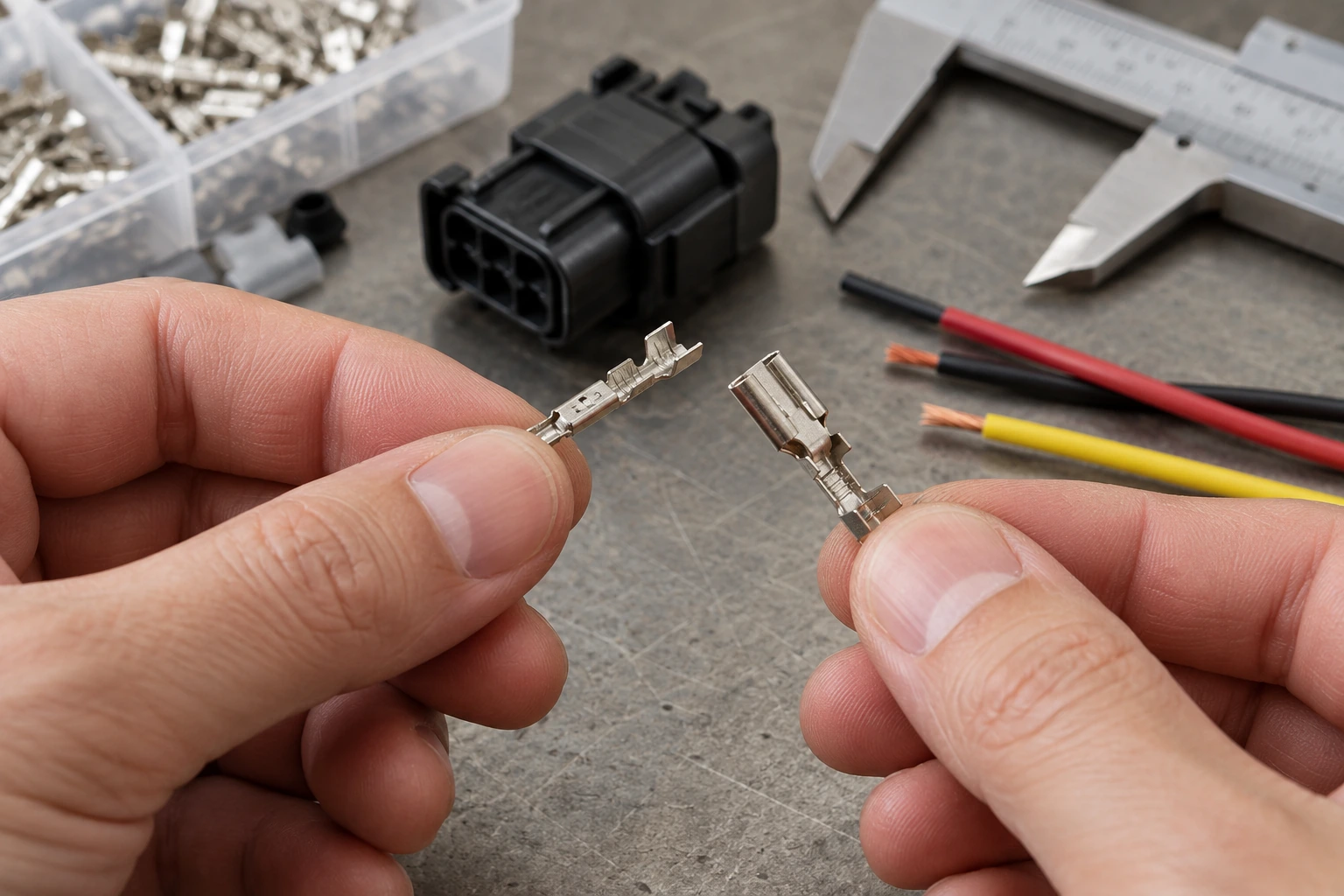

Product Recommendations
Compare contact form, dimensions, material and plating around the intended assembly. Original samples and mating parts help identify the relevant options and avoid confusion between similar contacts.

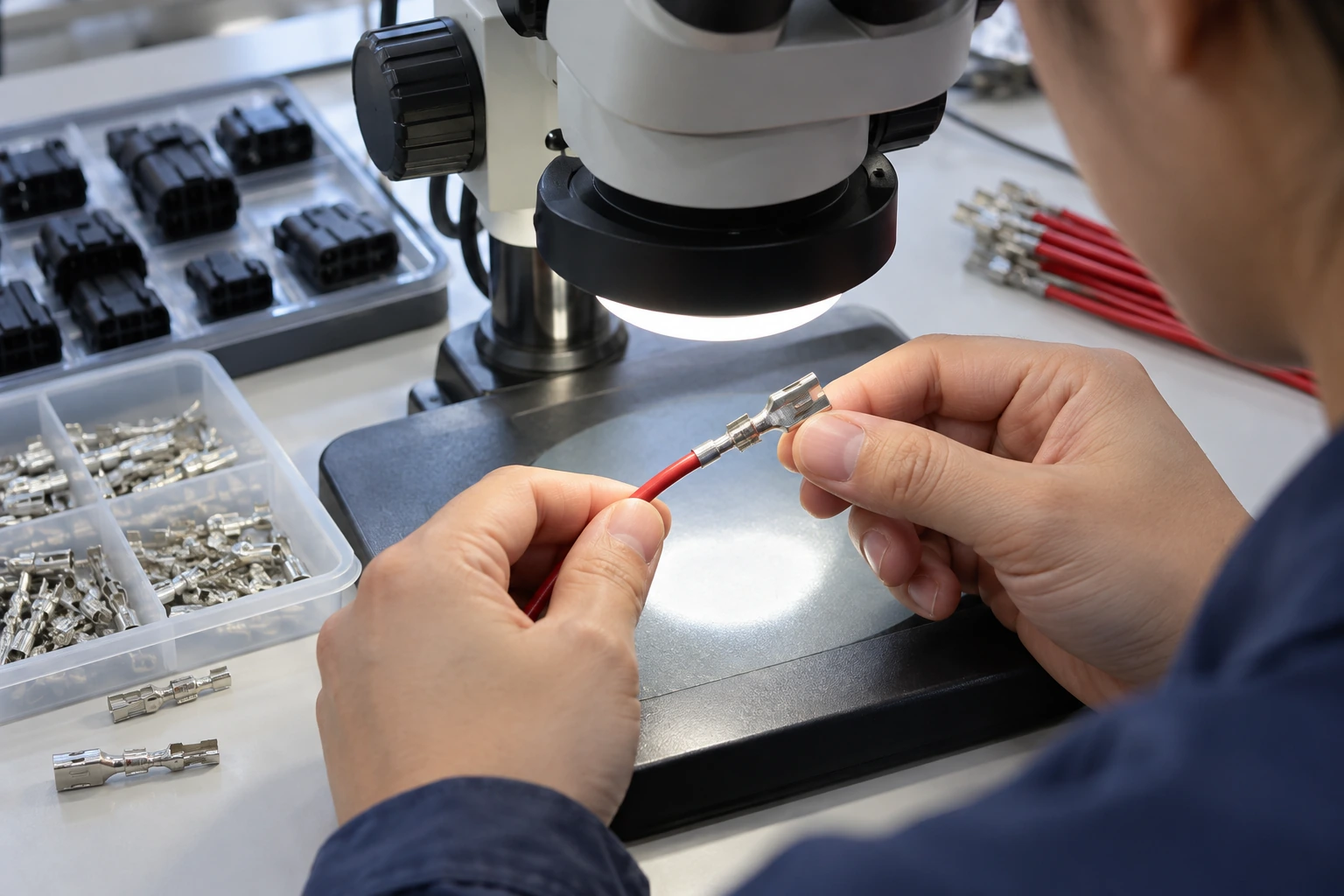

Crimp & Assembly Support
Discuss the tooling, wire preparation and assembly information required for the selected terminal. Provide your production process and acceptance criteria so the available technical documents can be reviewed.
Logistics Support
Share the desired terminal format, packing quantities and destination. TONFUL can review protective packing and shipment options; freight, delivery schedule and shipping terms are confirmed in the quotation.
Automotive Terminals: Frequently Asked Questions
What information is needed to identify an automotive terminal?
Send the original reference, clear photographs, dimensions and a sample where available. Include the housing, mating contact, wire cross-section and insulation diameter to clarify the assembly.
Can an alternative terminal fit an existing connector housing?
Fit must be reviewed against the exact terminal and housing. Compare cavity geometry, locking features, seals, mating interface and assembly performance before approving an alternative.
Does a catalog reference mean an original branded part is supplied?
The references on this page are used for enquiry and comparison. Confirm the supplier identity, exact supplied drawing and agreed replacement specification in the quotation and sample approval.
Why do conductor size and insulation diameter both matter?
The conductor and insulation have different crimp requirements. Share both dimensions and the wire construction so the terminal and approved crimp process can be reviewed together.
Can terminals be supplied on strips or as loose pieces?
Send the format needed for your assembly process. Confirm strip pitch, feed direction, reel arrangement, quantities and protective packing for the selected terminal.
Can I request samples and crimp information?
Provide the terminal reference, wire and tooling details and the checks needed for evaluation. Confirm sample availability and the applicable assembly information with TONFUL before ordering.
Are all terminals approved for high-voltage or EV applications?
Application suitability is confirmed for the exact terminal and complete assembly. Request the relevant electrical, environmental and compliance documents for the intended circuit and market.
What determines MOQ, price and delivery time?
They depend on the terminal configuration, material, plating, tooling requirements, quantity and packing. Confirm commercial terms and the production schedule in the quotation.
Request Automotive Terminal Information
Plan your automotive terminal order with TONFUL Electric. Share the original reference, contact drawing, wire dimensions, connector housing, packing format and purchase quantity.
