Position & contact count
Provide the exact modular plug format, such as 8P8C, 6P6C, 6P4C or the applicable 4-position format.
Telecom Tools
Manufacturer

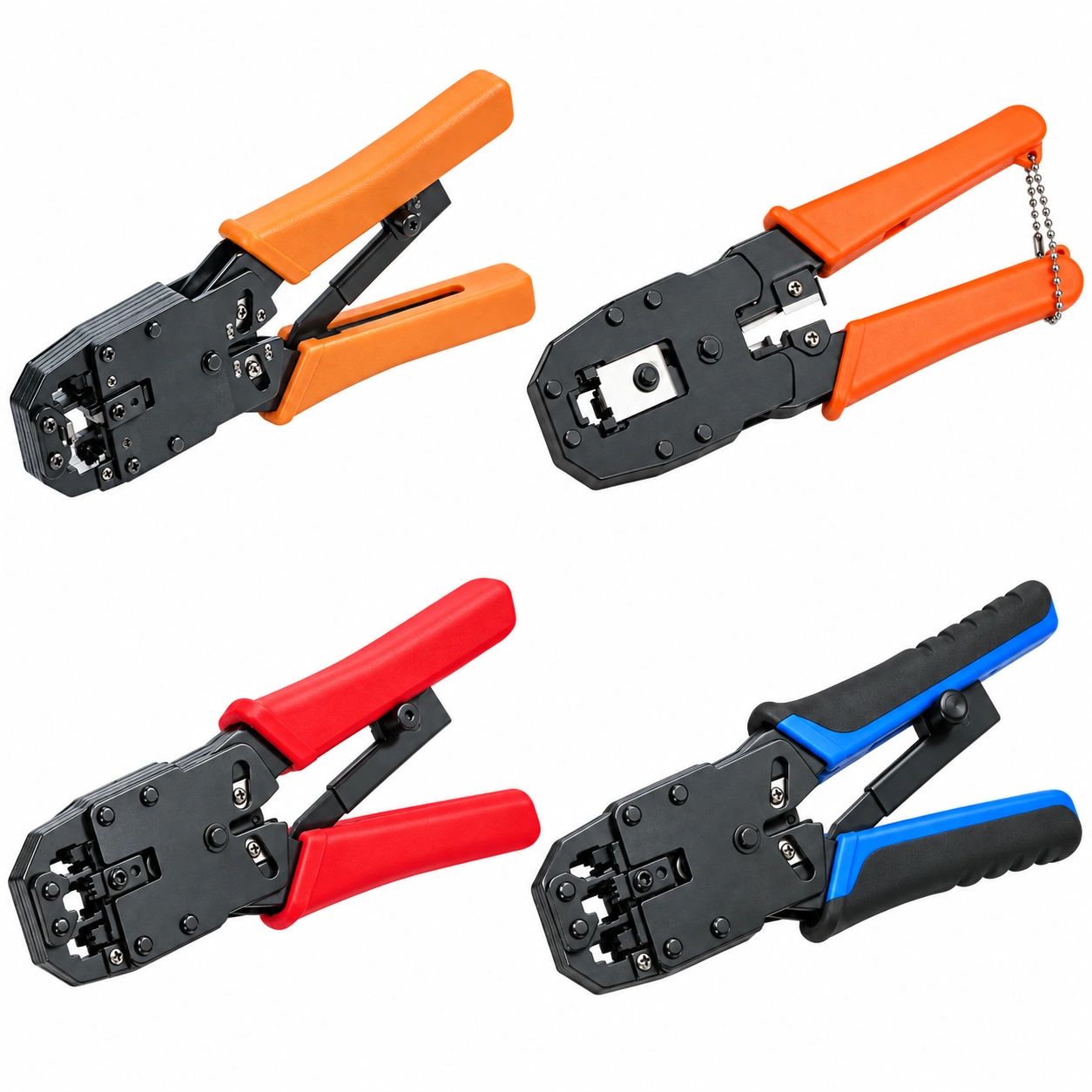

Match your modular plug to the right crimping tool. Explore four telecom tool models from TONFUL Electric, compare their listed plug formats, length and weight, and confirm the connector and cable combination for your assembly.
Choose the modular plug format
| Model | Listed plug formats | Length | Catalogue weight |
|---|---|---|---|
| HT-200R | 4-position: 7.65 mm; 6-position: 9.65 mm; 8-position: 11.68 mm | 205 mm | 0.51 kg |
| HT-315 | 4-position: 7.65 mm; 6-position: 9.65 mm; 8-position: 11.68 mm | 200 mm | 0.35 / 0.4 kg (net / gross) |
| HT-2008R | 4-position: 7.65 mm; 6-position: 9.65 mm; 8-position: 11.68 mm | 205 mm | 0.51 kg |
| TL-2008R | 8P8C; 6P6C; 6P4C; 4P4C; 4P2C | 185 mm | 0.48 kg |
Plug dimensions and position/contact counts are transcribed from the supplied catalogue. These listings are not a universal compatibility guarantee; confirm your plug part number, body geometry and cable construction.
Telecom tool model specifications
Open a model to review its plug listing, dimensions and catalogue notes.

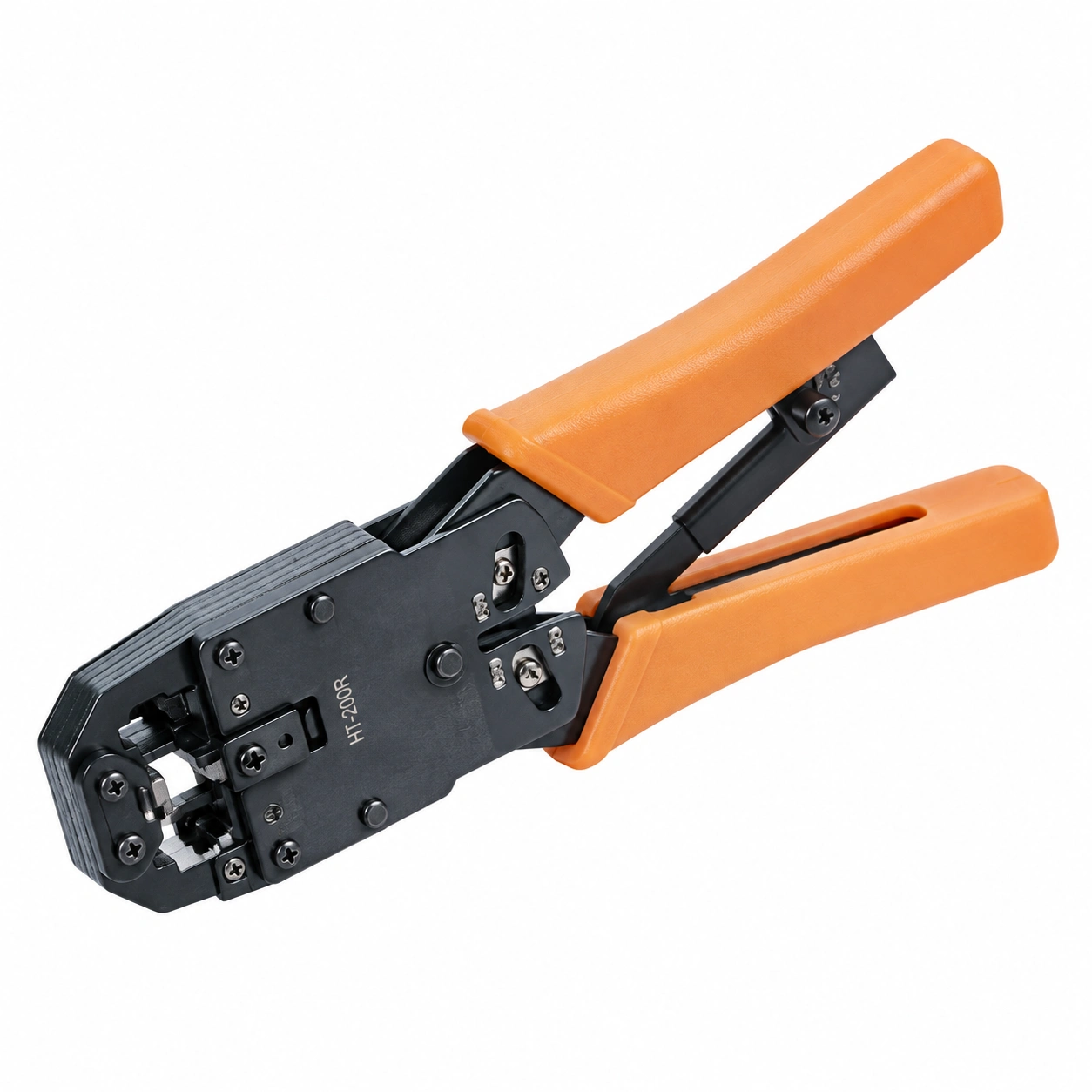

HT-200RModular plug crimping tool · 205 mm
HT-200R
- Plug formats
- 4-position: 7.65 mm; 6-position: 9.65 mm; 8-position: 11.68 mm
- Length
- 205 mm
- Catalogue weight
- 0.51 kg
The catalogue prints FJ45 for the 8-position entry. Confirm the exact modular plug specification; no pass-through plug compatibility is inferred.
Original catalogue plug listing: RJ10 (4 cores) 7.65 mm; RJ11/12 (6 cores) 9.65 mm; FJ45 (8 cores) 11.68 mm.
Enquire about HT-200RSource: supplied image 114, printed page 107.

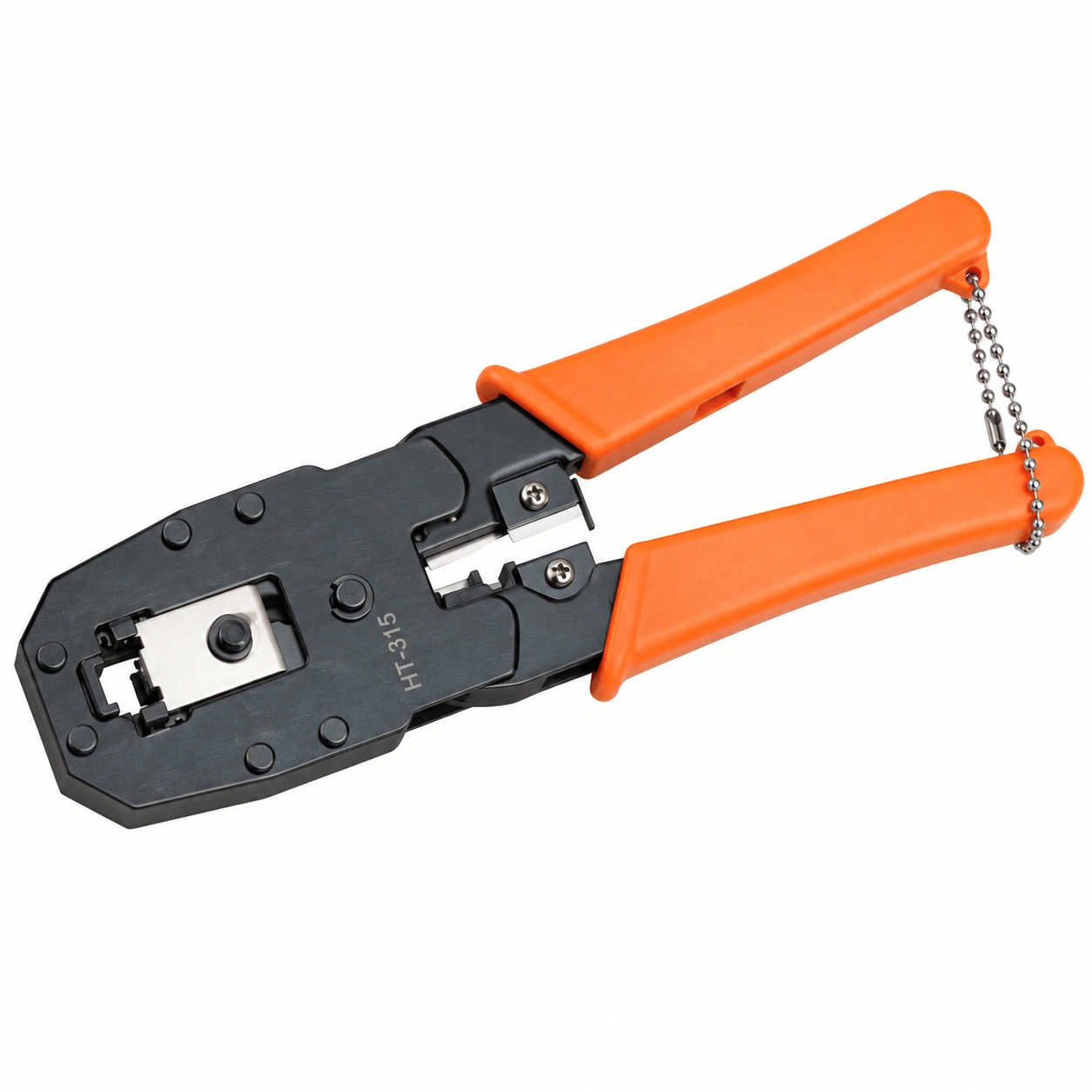

HT-315Modular plug crimping tool · 200 mm
HT-315
- Plug formats
- 4-position: 7.65 mm; 6-position: 9.65 mm; 8-position: 11.68 mm
- Length
- 200 mm
- Net / gross weight
- 0.35 / 0.4 kg
The introductory page identifies a high-carbon steel body, PP handles and cutting/stripping features for HT-315. The table prints FJ45 for the 8-position entry.
Original catalogue plug listing: RJ10 (4 cores) 7.65 mm; RJ11/12 (6 cores) 9.65 mm; FJ45 (8 cores) 11.68 mm.
Enquire about HT-315Source: supplied image 114, printed page 107. Construction features also reference image 113, printed page 106.

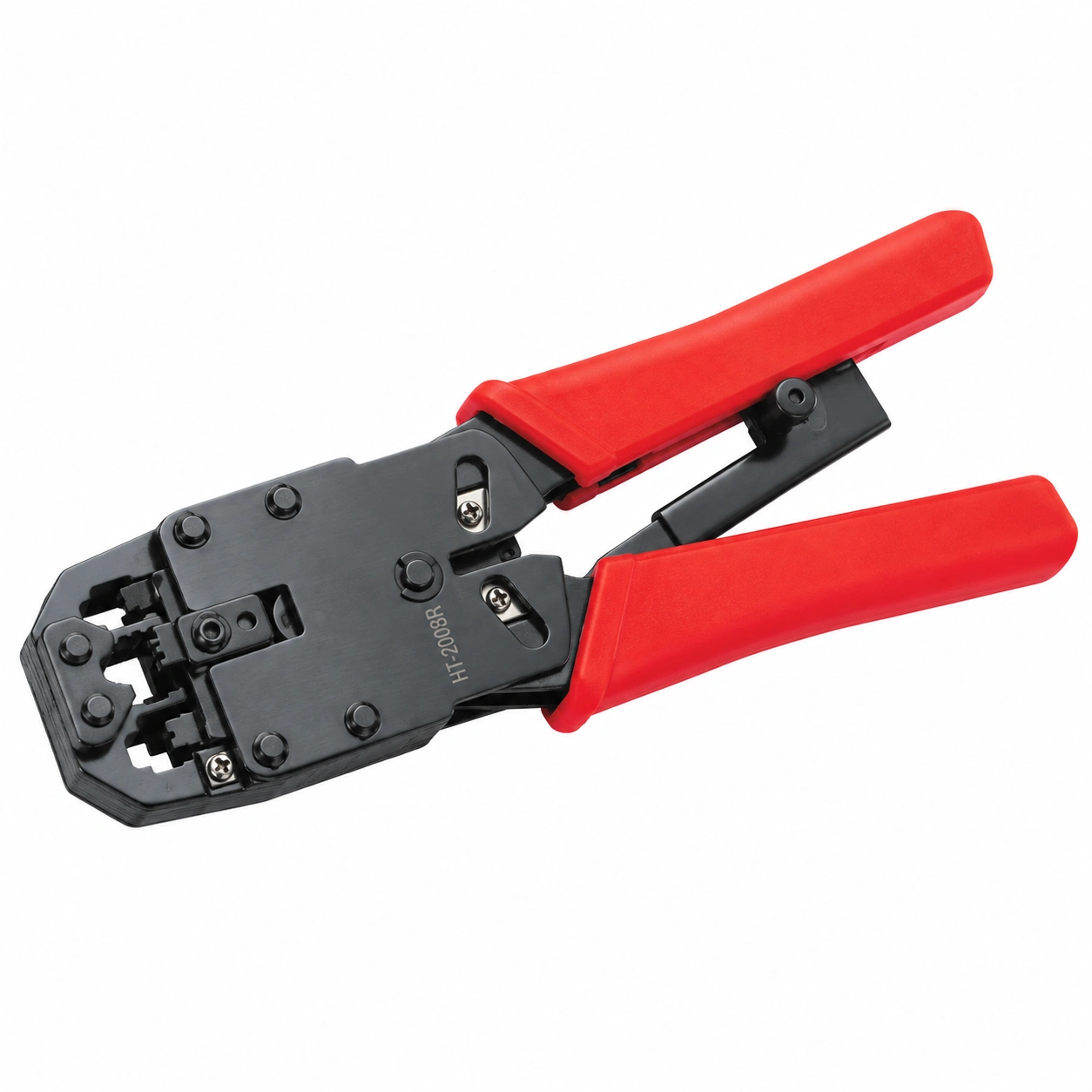

HT-2008RModular plug crimping tool · 205 mm
HT-2008R
- Plug formats
- 4-position: 7.65 mm; 6-position: 9.65 mm; 8-position: 11.68 mm
- Length
- 205 mm
- Catalogue weight
- 0.51 kg
The catalogue prints FJ45 for the 8-position entry. Match the exact plug body and contact construction to the selected tool.
Original catalogue plug listing: RJ10 (4 cores) 7.65 mm; RJ11/12 (6 cores) 9.65 mm; FJ45 (8 cores) 11.68 mm.
Enquire about HT-2008RSource: supplied image 114, printed page 107.

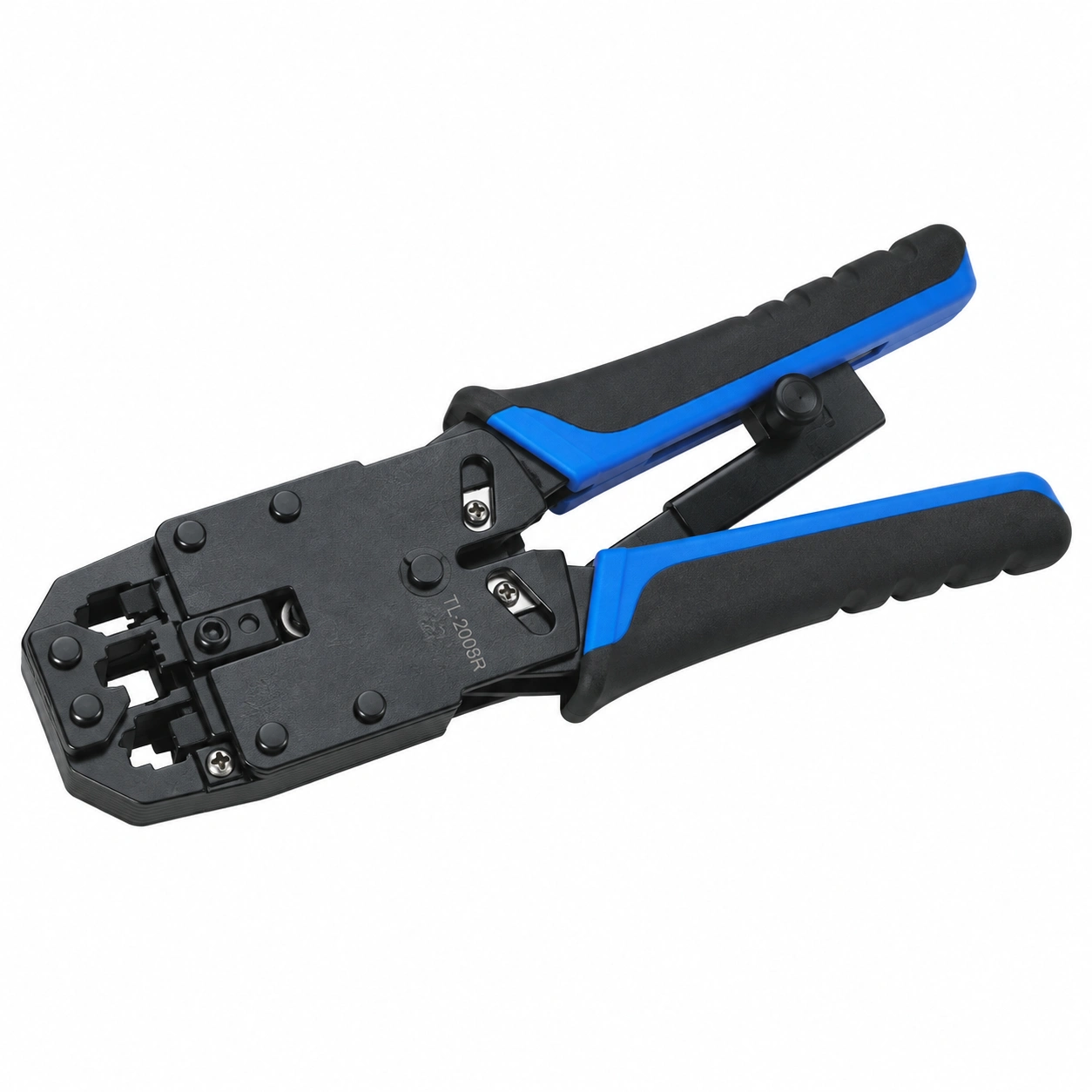

TL-2008RModular plug crimping tool · 185 mm
TL-2008R
- Plug formats
- 8P8C; 6P6C; 6P4C; 4P4C; 4P2C
- Length
- 185 mm
- Catalogue weight
- 0.48 kg
Catalogue aliases RJ-4 and PJ-12 are retained verbatim for review. Select by position/contact count and confirm the exact plug, rather than assuming those aliases are correct.
Original catalogue plug listing: 8P8C/RJ-4; 6P6C/PJ-12; 6P4C/RJ-11; 4P4C & 4P2C.
Enquire about TL-2008RSource: supplied image 114, printed page 107.
Image 113 introduces HT-315 and is not a separate model. Single catalogue weights are retained as single values, not invented net/gross pairs. Pass-through plugs, shielded plugs and cable category performance require separate model-specific confirmation.
Match the plug. Then the tool.
Build your tool selection around the complete plug and cable assembly.
Plug body geometry
Check the plug part number, body width and contact arrangement against the selected crimp aperture.
Cable & conductor
Specify cable construction, conductor size and insulation details. Do not infer compatibility from an RJ-style name alone.
Assembly verification
Request instructions and a sample assembly for review against your project’s termination and test requirements.
Send your telecom tool
requirements.
Share your model list, modular plug references, cable details and quantities.
Prepare an enquiryPrepare your assembly tool order.
Confirm the plug, cable and tool combination before placing your order.
Explore crimping toolsModel schedule
Specify HT-200R, HT-315, HT-2008R or TL-2008R and quantity per model.
Connector details
Send plug drawings or part numbers, position/contact counts and cable specifications. Include any pass-through or shielded construction for separate review.
Supply requirements
Include samples, destination, required documentation, label artwork and packaging preferences for quotation.
OEM & PACKING
Your telecom tools.
Your packing plan.
Discuss model identification and available packaging options with TONFUL for your chosen tool range.
Model identification
Keep each tool linked to its model and confirmed modular plug application.
Labels & instructions
Provide artwork, language preferences and documentation requirements for review.
Packing quantities
Confirm individual packs, inner boxes, outer cartons and any kit arrangements in the quotation.
Telecom Tools
buying questions.
Which models are included?
The supplied catalogue lists HT-200R, HT-315, HT-2008R and TL-2008R. The introductory HT-315 illustration is counted only once.
What plug formats are listed for TL-2008R?
The table lists 8P8C, 6P6C, 6P4C, 4P4C and 4P2C. Its RJ-4 and PJ-12 aliases are retained for review; confirm the exact connector rather than relying on these spellings.
Does the page confirm pass-through or shielded plug compatibility?
No. The supplied catalogue does not establish those capabilities. Send the exact plug drawing or part number for model-specific confirmation.
What features are shown for HT-315?
The introductory page identifies a high-carbon steel body, PP handles and cutting/stripping features. These descriptions do not establish electrical insulation or a certified performance rating.
Why is FJ45 shown in the catalogue note?
That is the spelling printed in the supplied table for its 8-position entry. The original wording is preserved and flagged instead of silently changing it into a compatibility claim.
What should I include in an enquiry?
Send the model, quantity, modular plug part number or drawing, contact/position count, cable construction, sample requirements and packing preferences.
Product images are high-definition illustrative recreations of the supplied catalogue. Confirm exact tool construction and plug compatibility against model documentation or an approved sample.
