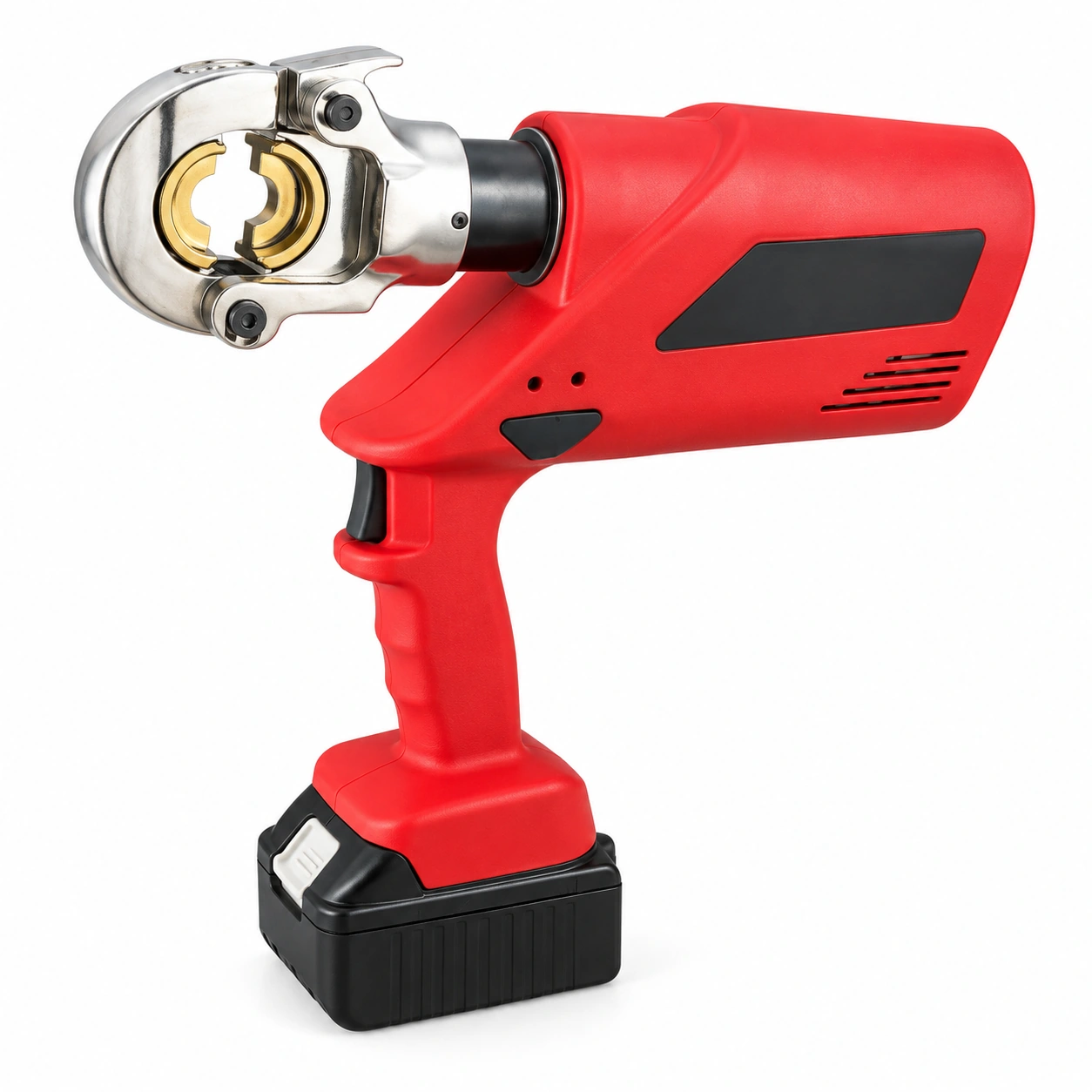

EC-300
Battery Crimpers
16–300 mm²
Output: 60 kN
Weight: 5 kg
Enquire about EC-300

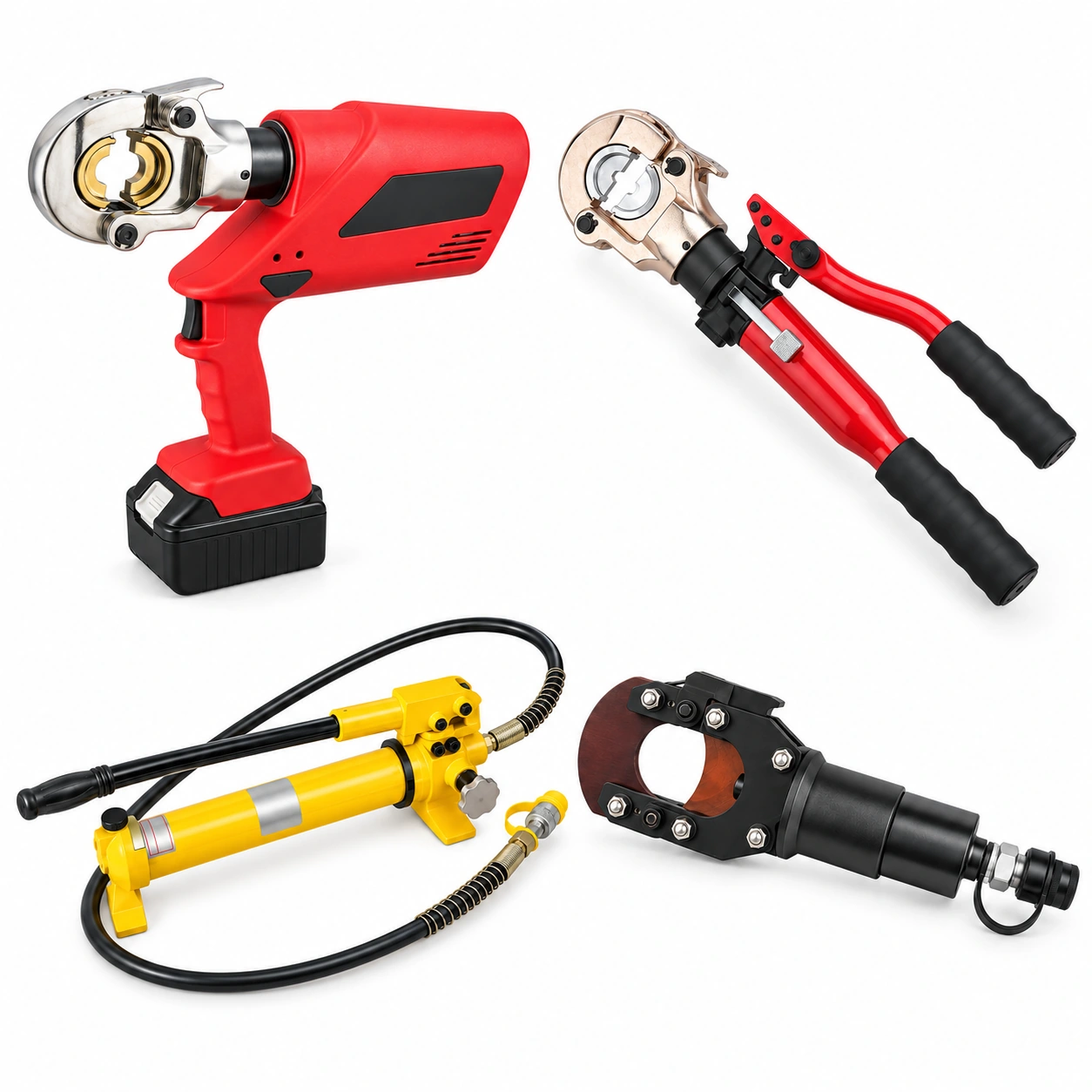

Hydraulic Tools
for Your Next Job
Match the hydraulic tool to the job. Explore battery and manual crimpers, cable cutters, split heads, pumps, punching tools and busbar equipment from TONFUL Electric. Compare model-specific capacities, dies and supply requirements before preparing your enquiry.
Hydraulic Tools series
Compare model specificationsBattery Crimpers
Enquire about EC-300

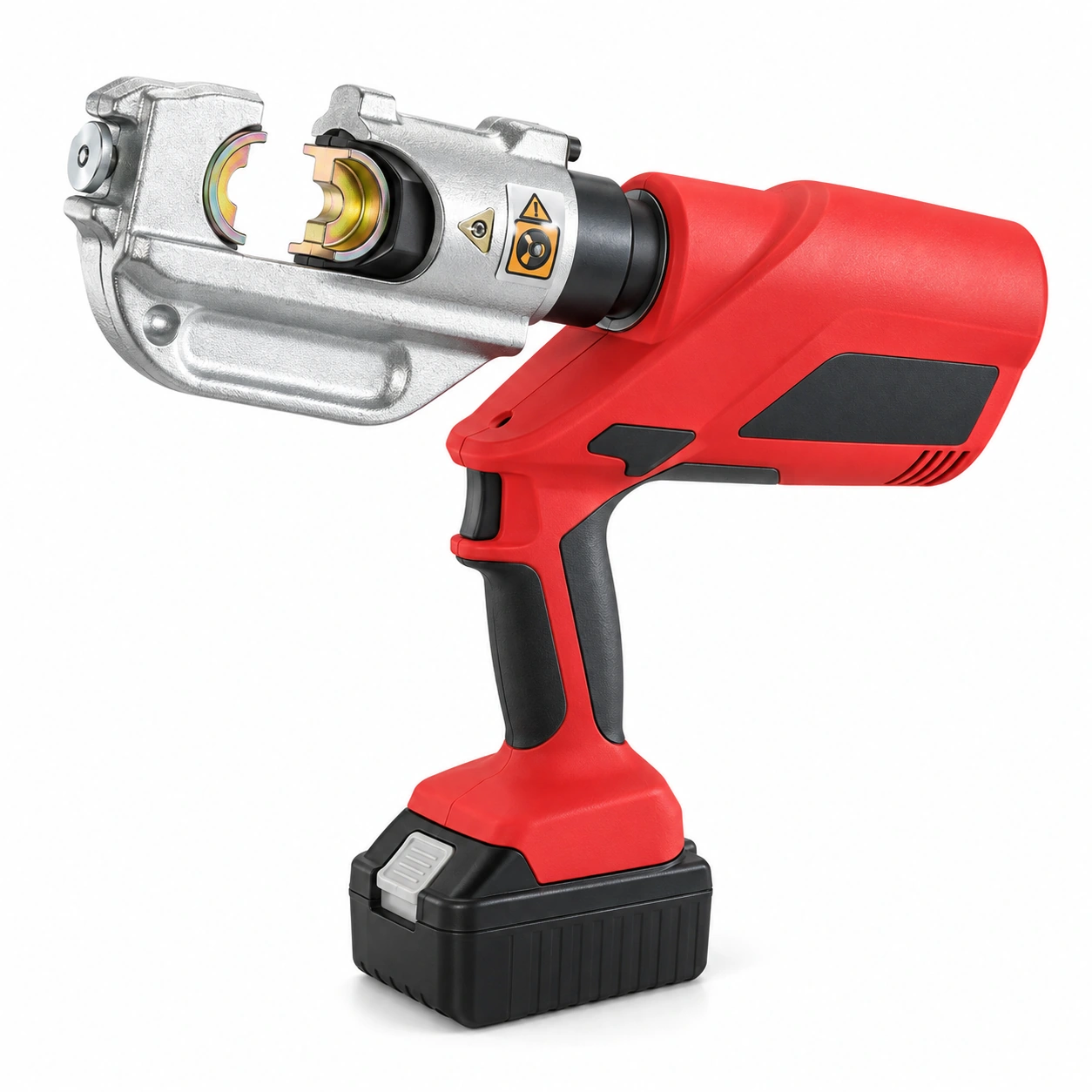

EC-400
Battery Crimpers
16–400 mm²
Output: 120 kN
Weight: 8 kg
Enquire about EC-400
Manual Crimpers

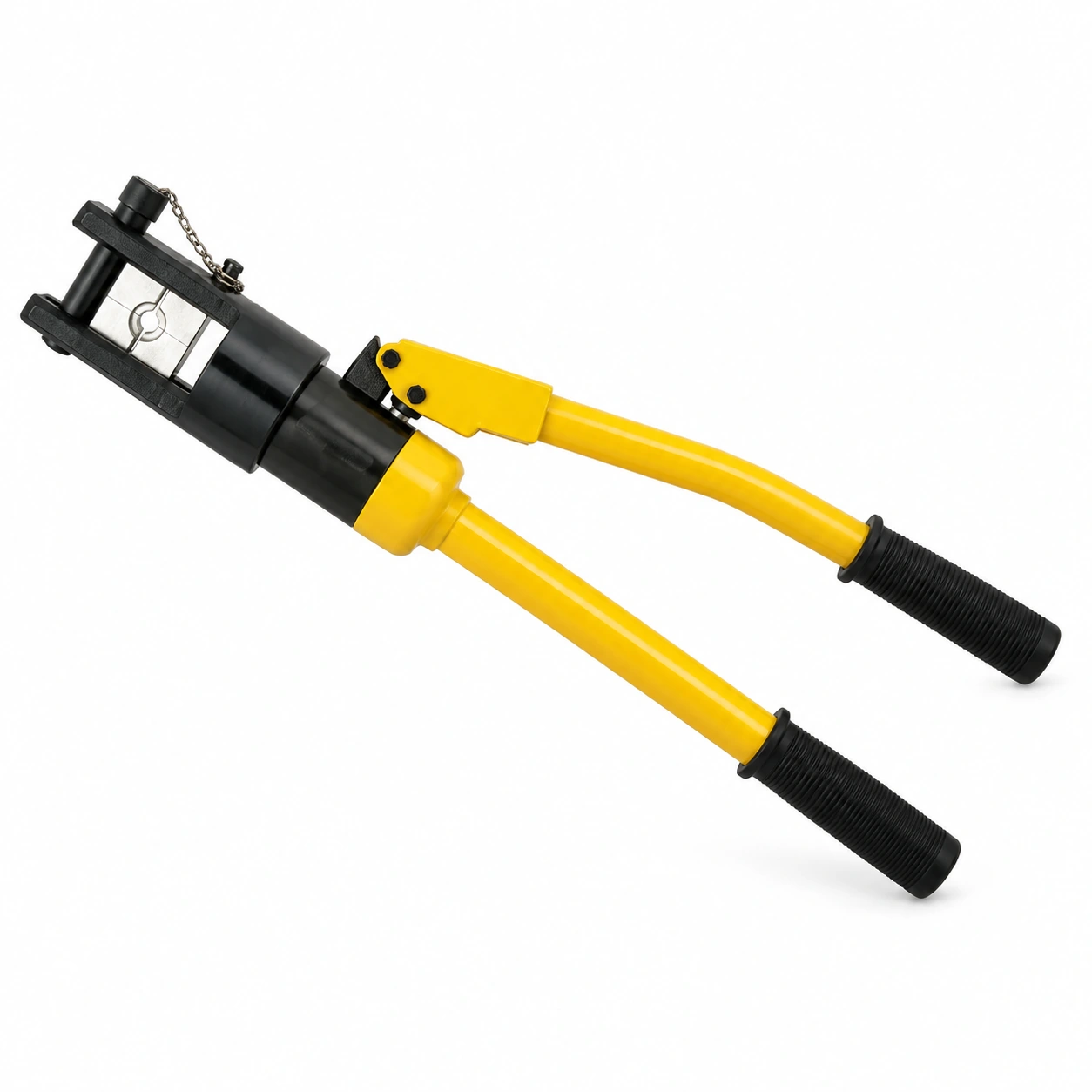

YQK-120A
Manual Crimpers
Al: 10–120; Cu: 16–120 mm²
Output: 8 ton
Weight: 4.8 kg
Enquire about YQK-120A

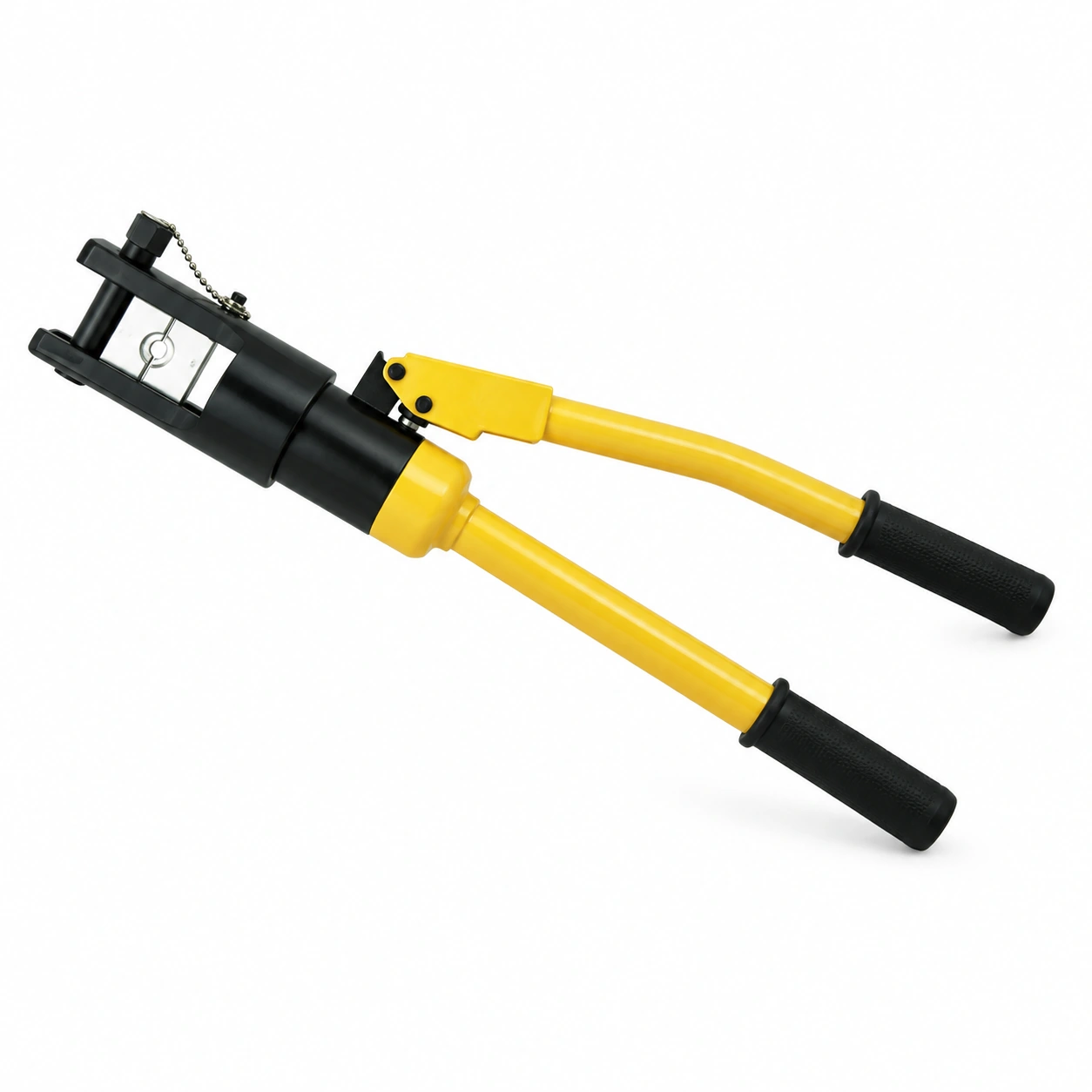

YQK-240A
Manual Crimpers
Al: 10–185; Cu: 16–240 mm²
Output: 8 ton
Weight: 4.8 kg
Enquire about YQK-240A
YQK-300A
Manual Crimpers
Al: 10–185; Cu: 16–300 mm²
Output: 8 ton
Weight: 6.4 kg
Enquire about YQK-300A
YQK-70
Manual Crimpers
6–70 mm²
Output: 6 ton
Weight: 2.5 kg
Enquire about YQK-70

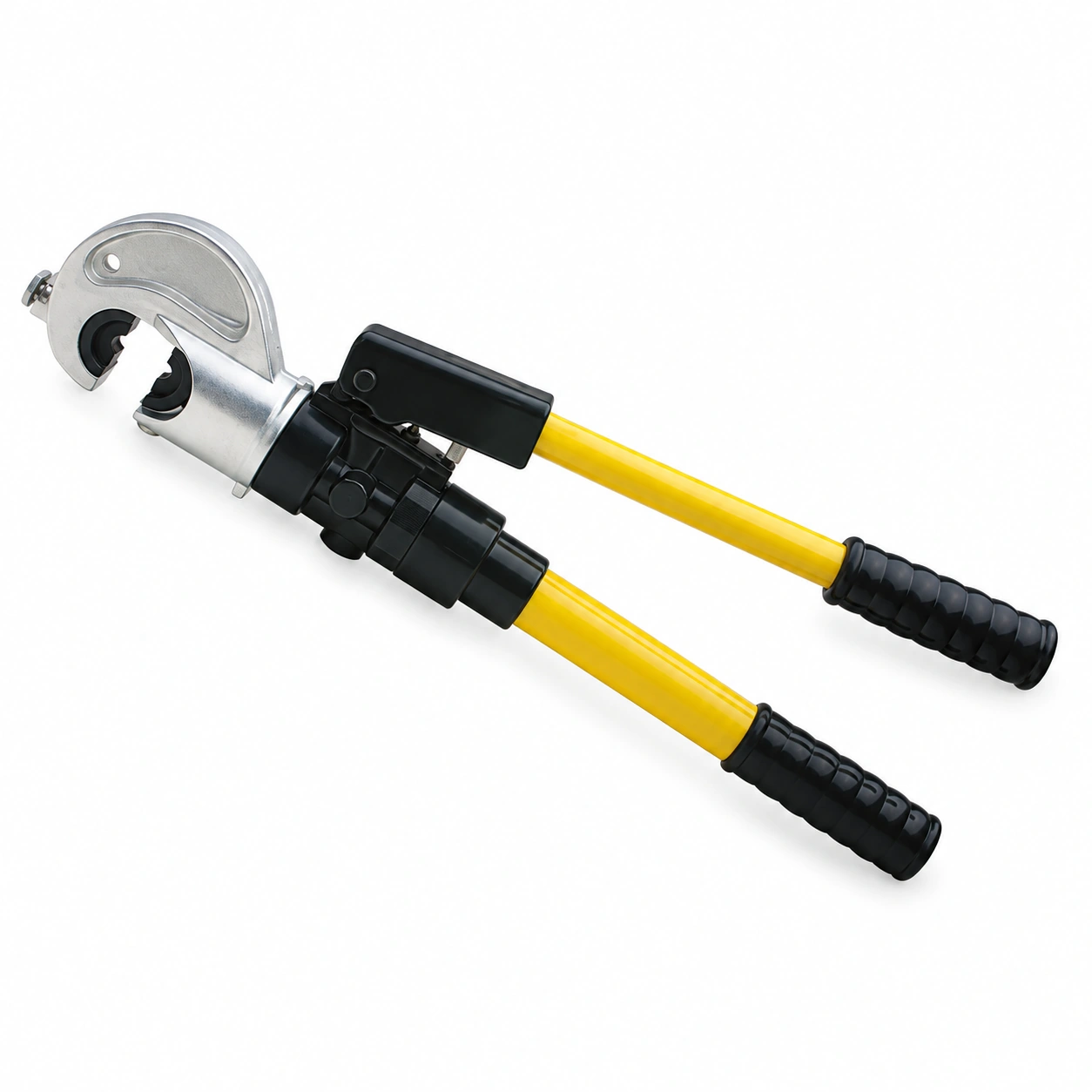

EP-410
Manual Crimpers
Al: 35–240; Cu: 50–300 mm²
Output: 12 ton
Weight: 6.6 kg
Enquire about EP-410

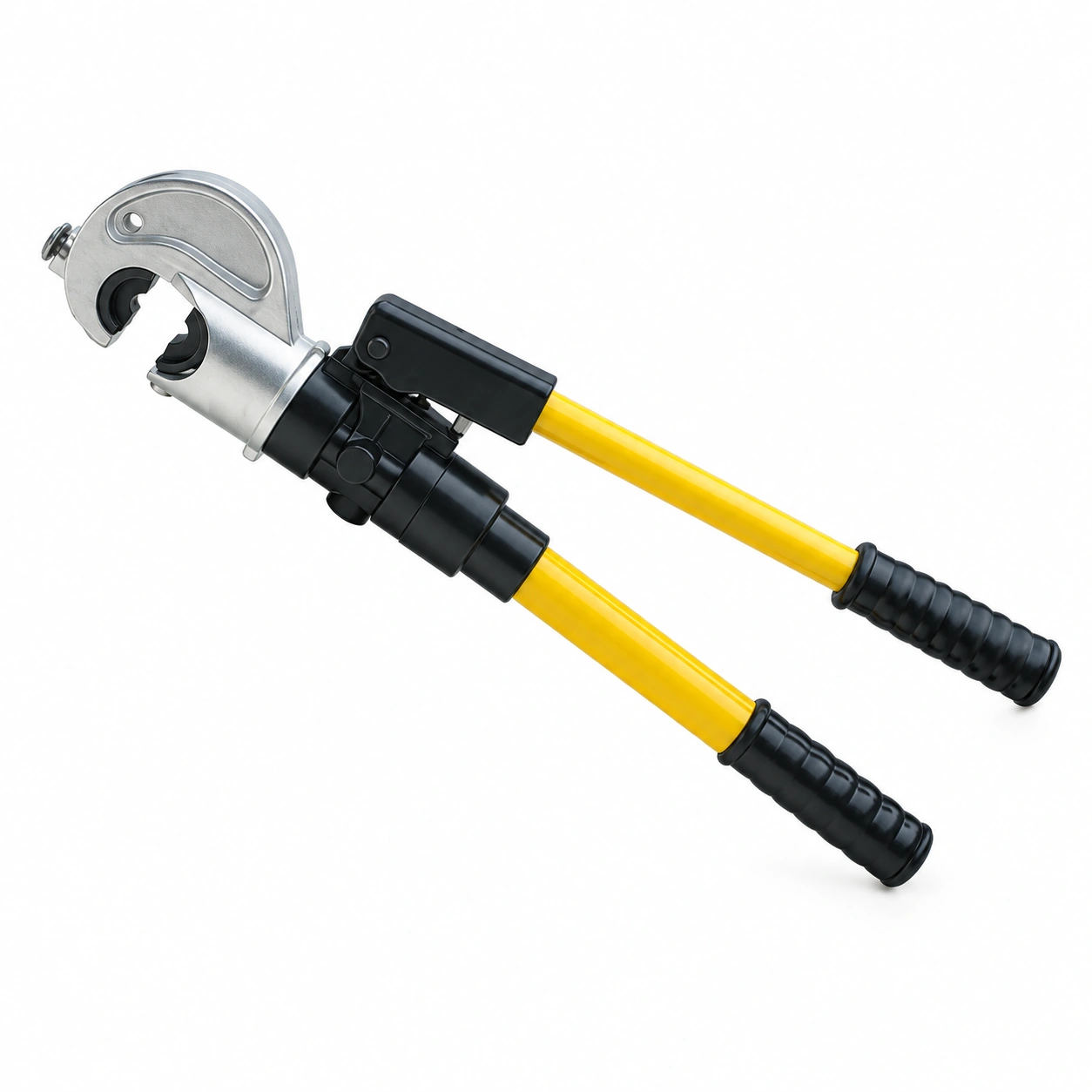

EP-430
Manual Crimpers
Al: 35–300; Cu: 50–400 mm²
Output: 12 ton
Weight: 6.4 kg
Enquire about EP-430

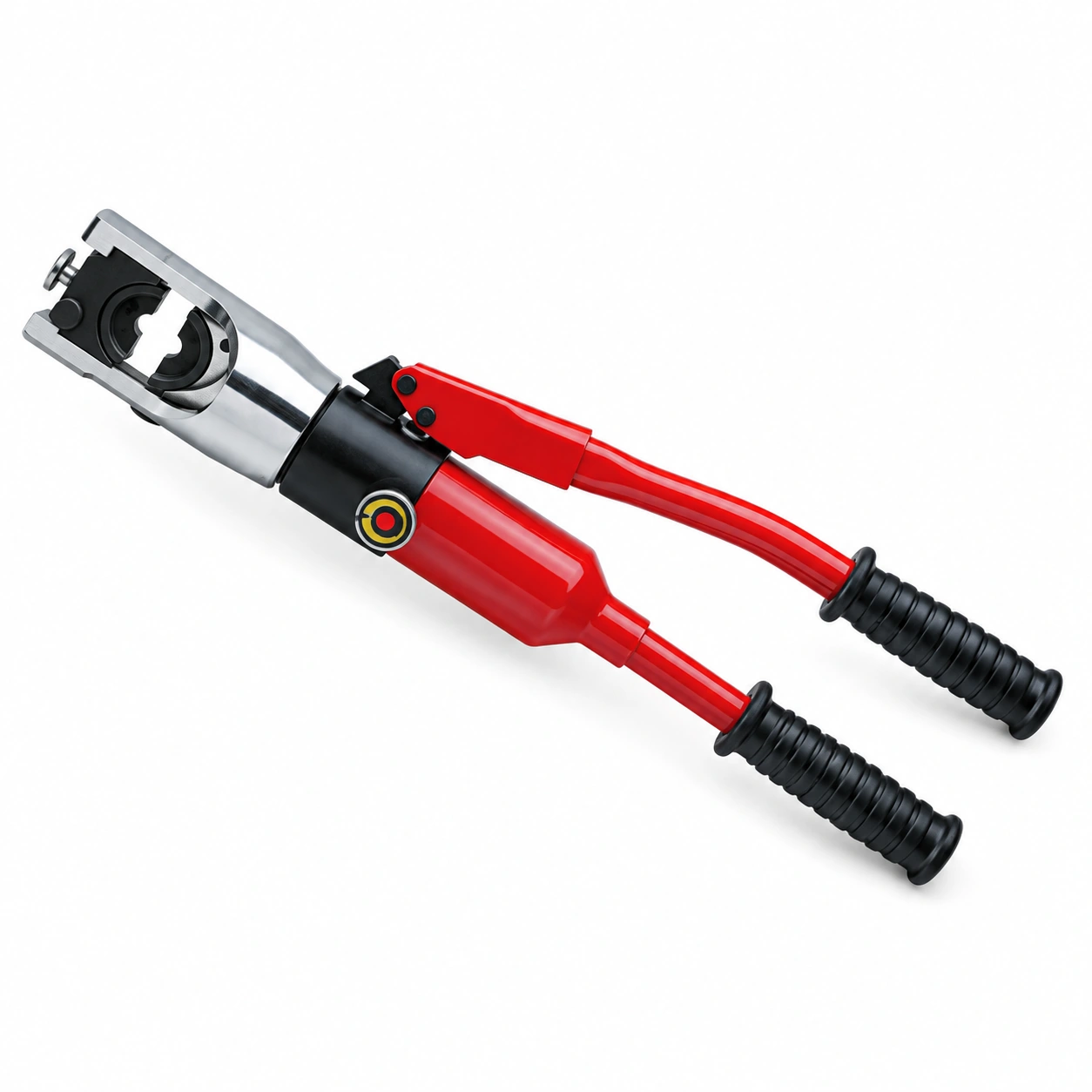

ZYO-400
Manual Crimpers
Al: 50–300; Cu: 70–400 mm²
Output: 12 ton
Weight: 5.5 kg
Enquire about ZYO-400

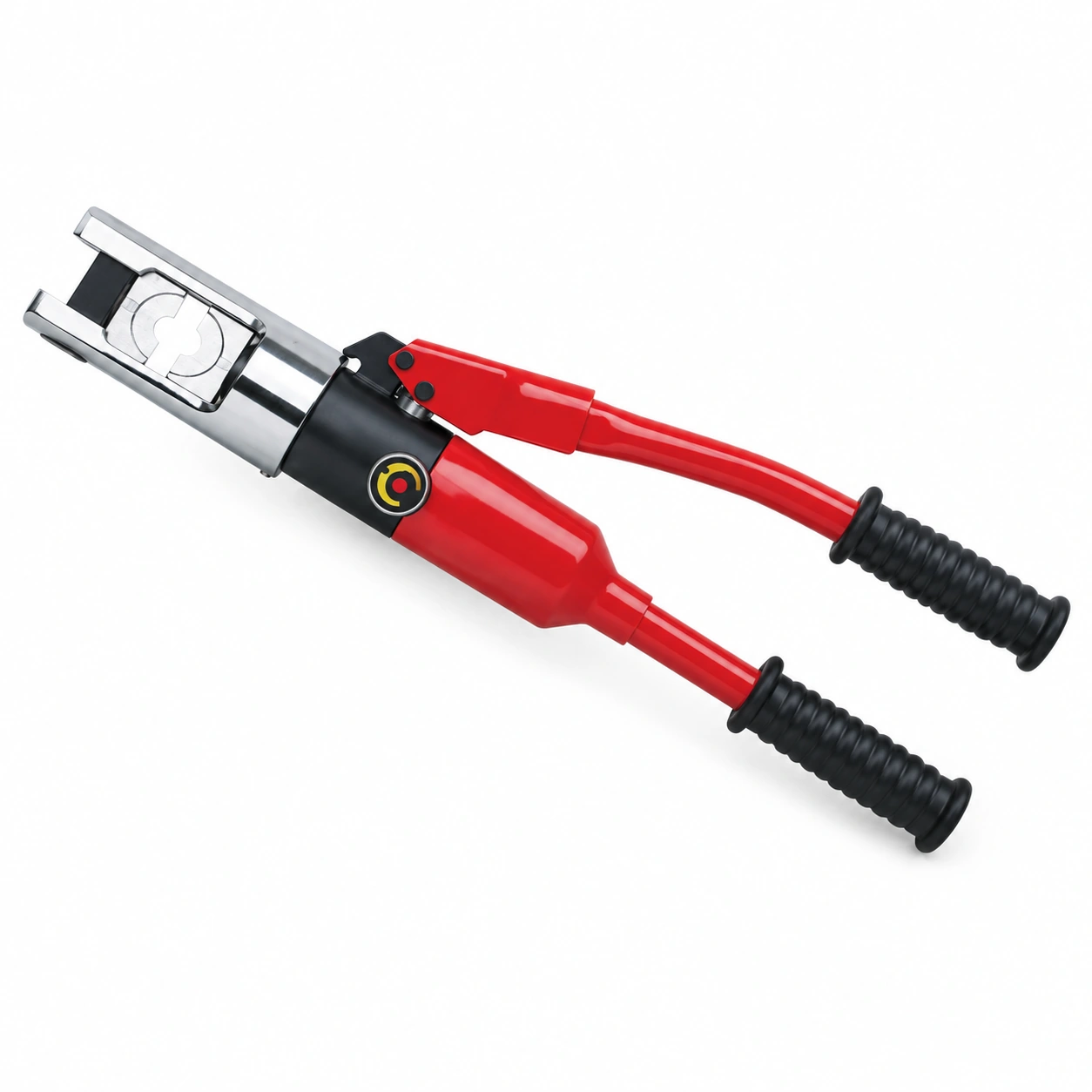

ZHO-300
Manual Crimpers
Al: 35–240; Cu: 16–300 mm²
Output: 10 ton
Weight: 4.5 kg
Enquire about ZHO-300

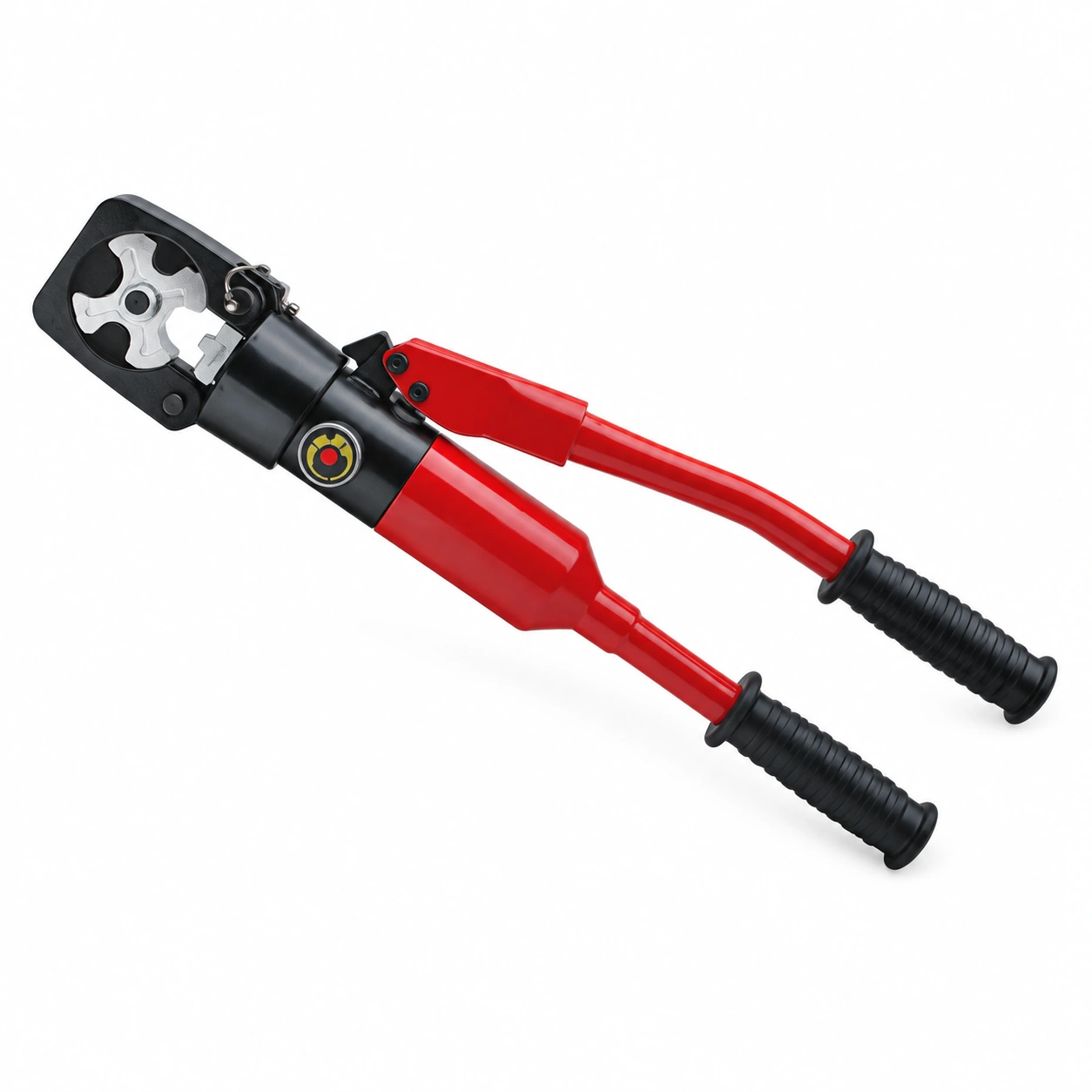

CPO-150S
Manual Crimpers
Al: 8–100; Cu: 16–150 mm²
Output: 10 ton
Weight: 4.8 kg
Enquire about CPO-150S

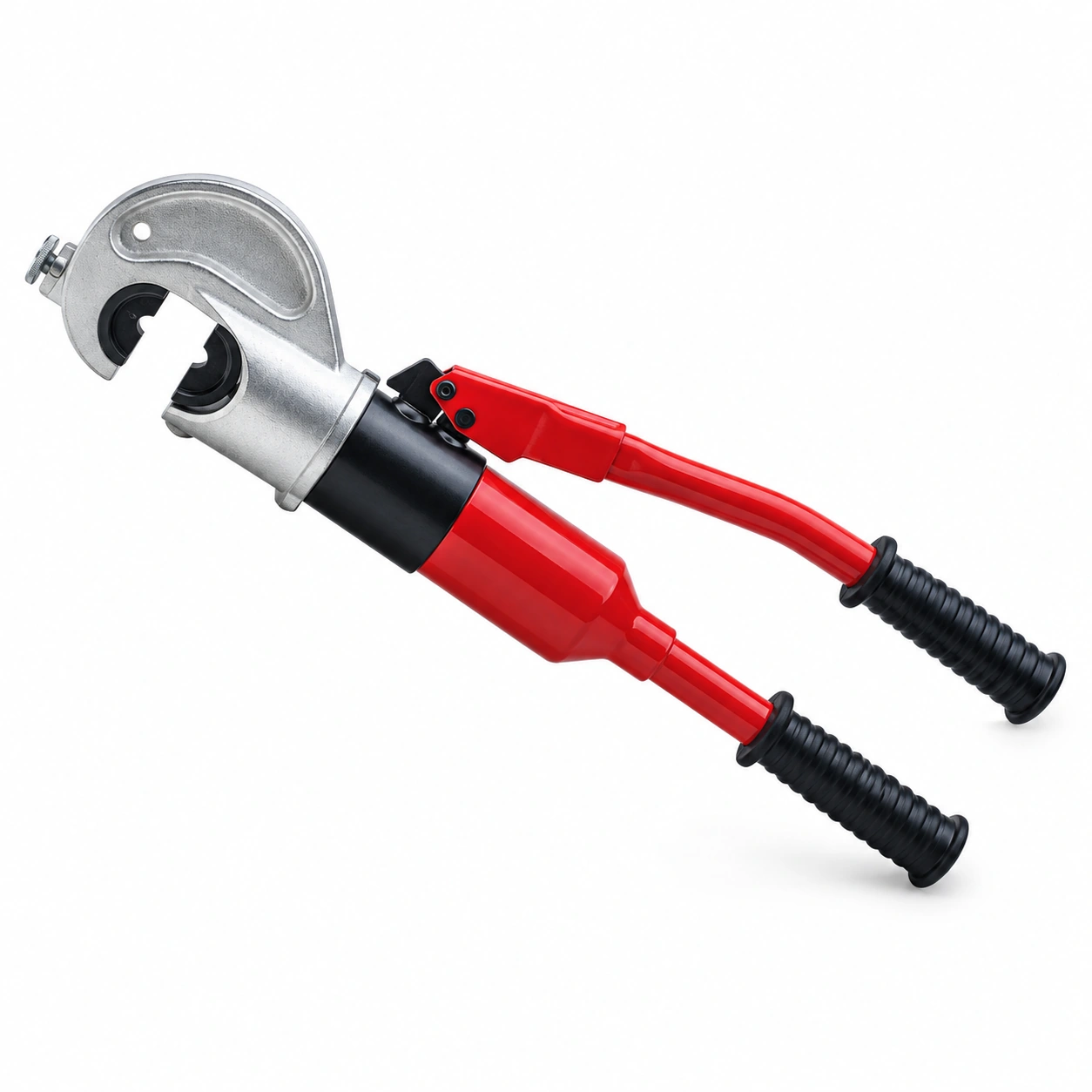

CYO-300C
Manual Crimpers
Al: 35–240; Cu: 50–300 mm²
Output: 12 ton
Weight: 6.2 kg
Enquire about CYO-300C

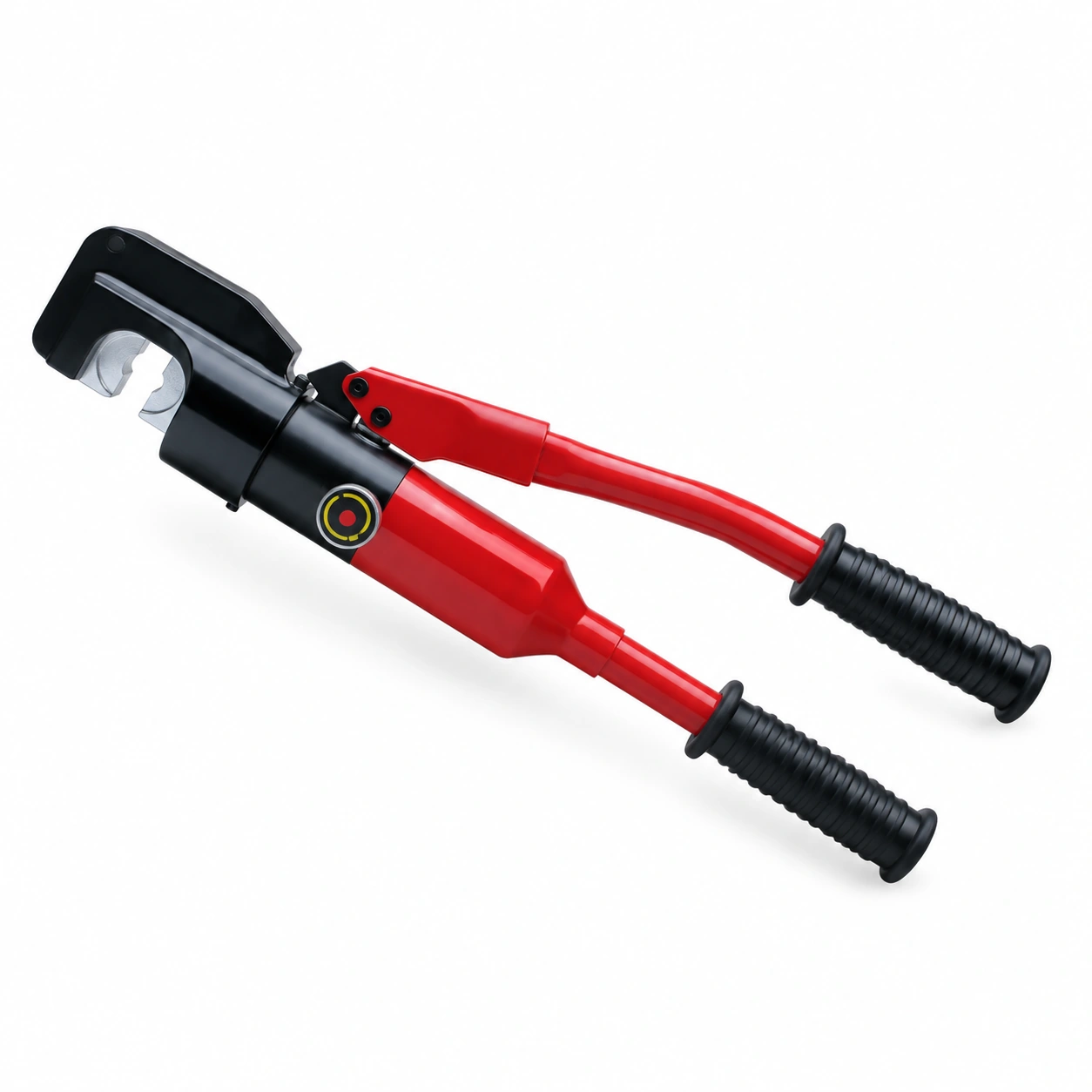

ZCO-300
Manual Crimpers
Al: 10–240; Cu: 16–300 mm²
Output: 10 ton
Weight: 5 kg
Enquire about ZCO-300

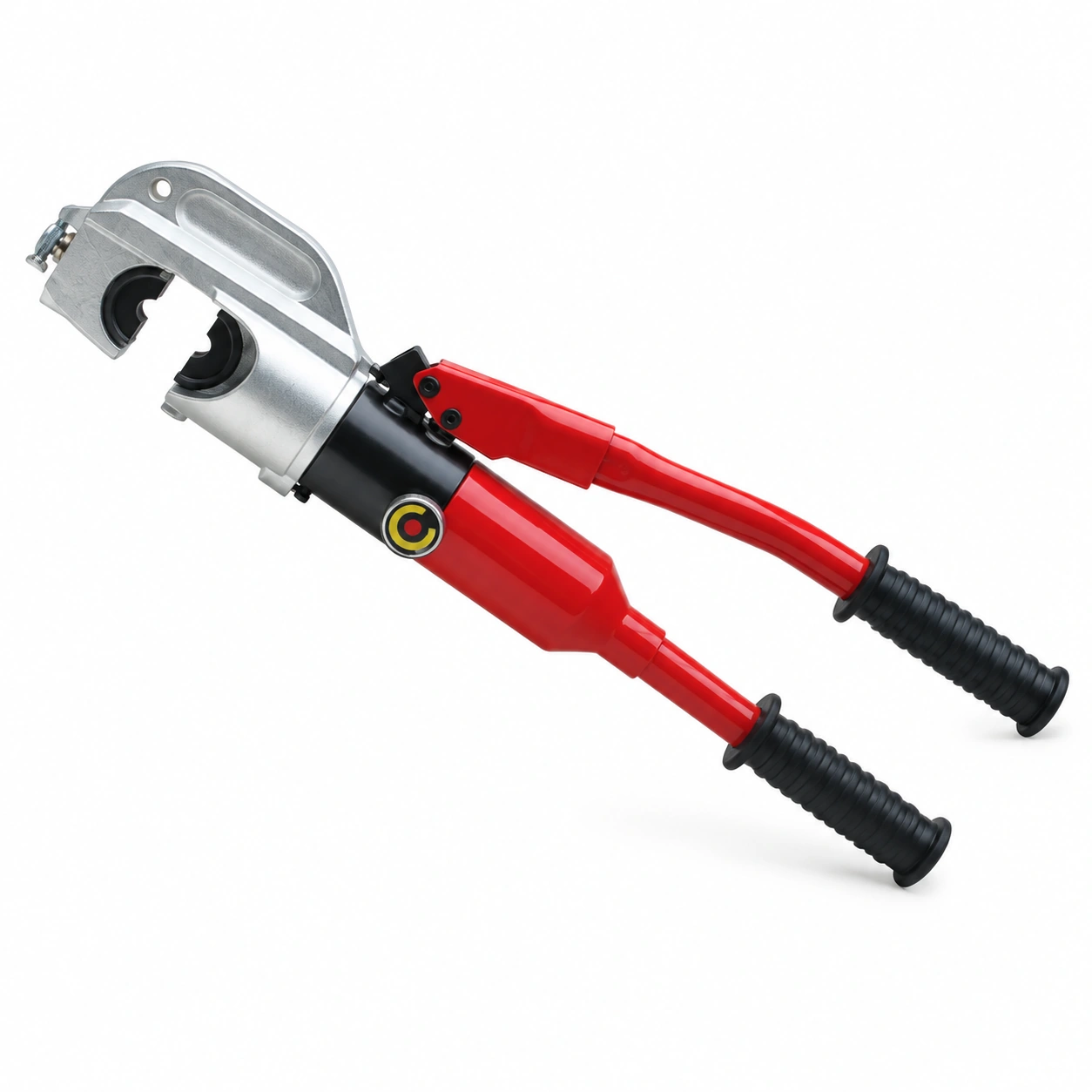

ZCO-400
Manual Crimpers
Al: 50–300; Cu: 70–400 mm²
Output: 12 ton
Weight: 6.5 kg
Enquire about ZCO-400

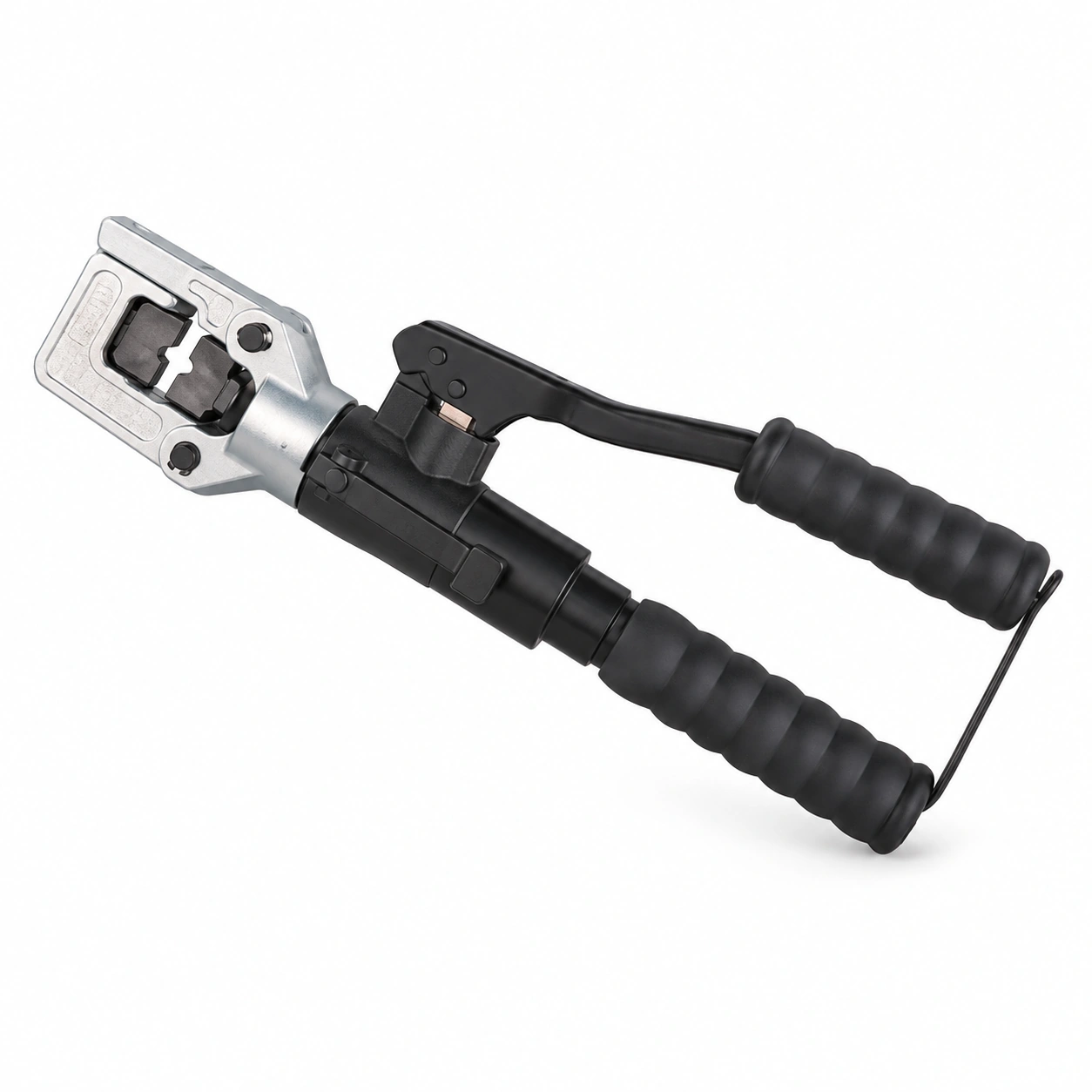

HT-51
Manual Crimpers
10–240 mm²
Output: 8 ton
Weight: 2.75 kg
Enquire about HT-51

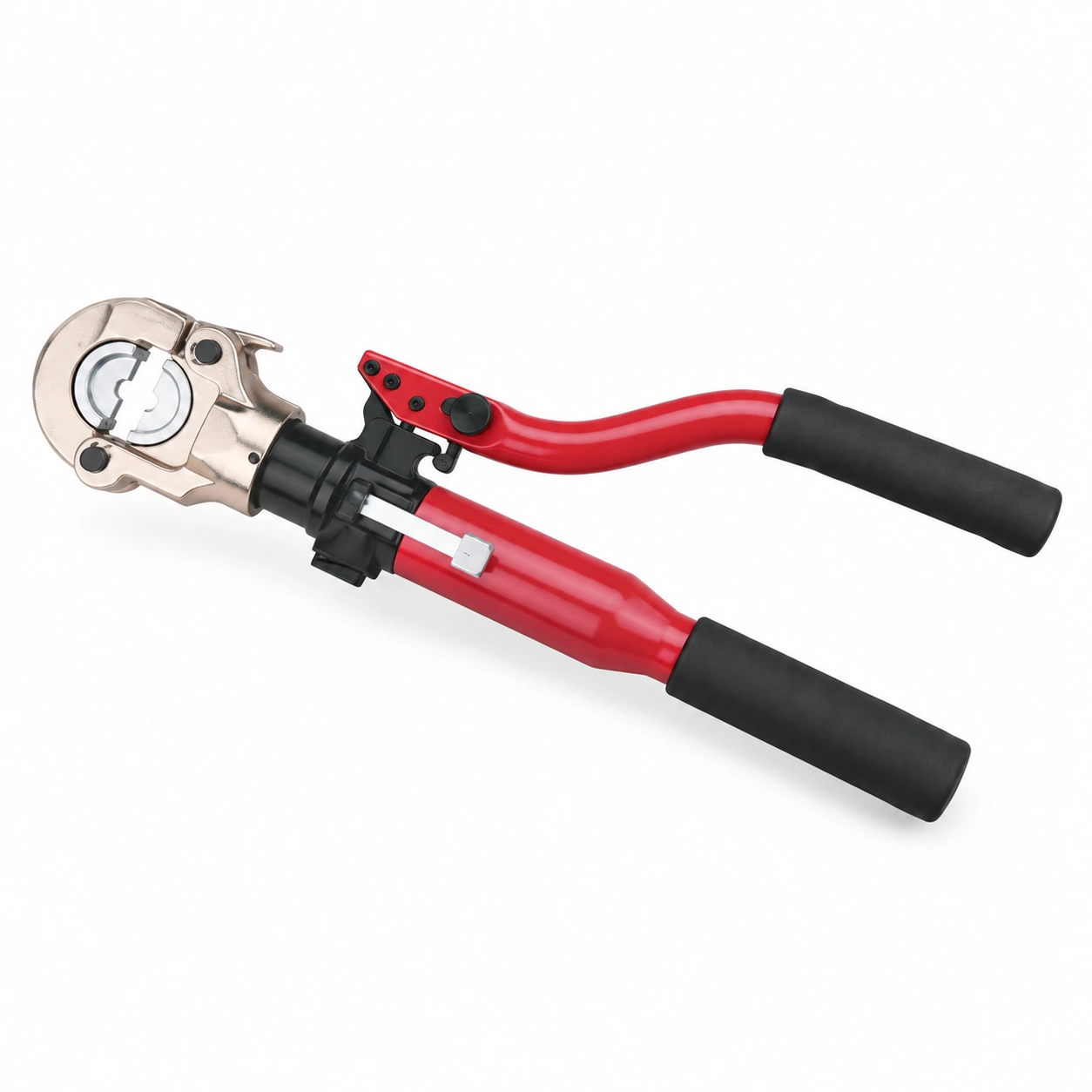

QZD-300A
Manual Crimpers
16–300 mm²
Output: 11 ton
Weight: 5.0 kg
Enquire about QZD-300A

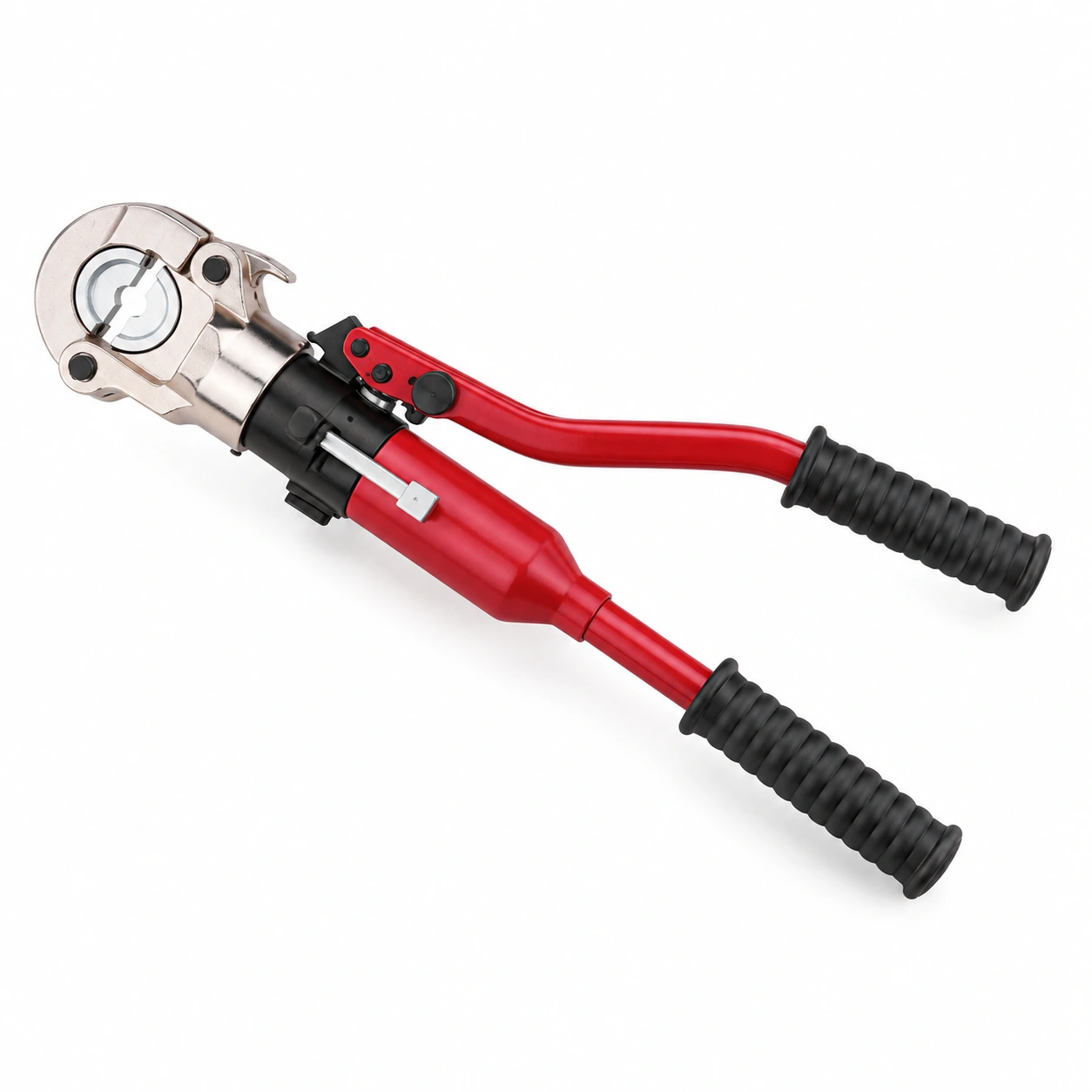

QZD-400A
Manual Crimpers
16–400 mm²
Output: 11 ton
Weight: 6.2 kg
Enquire about QZD-400A

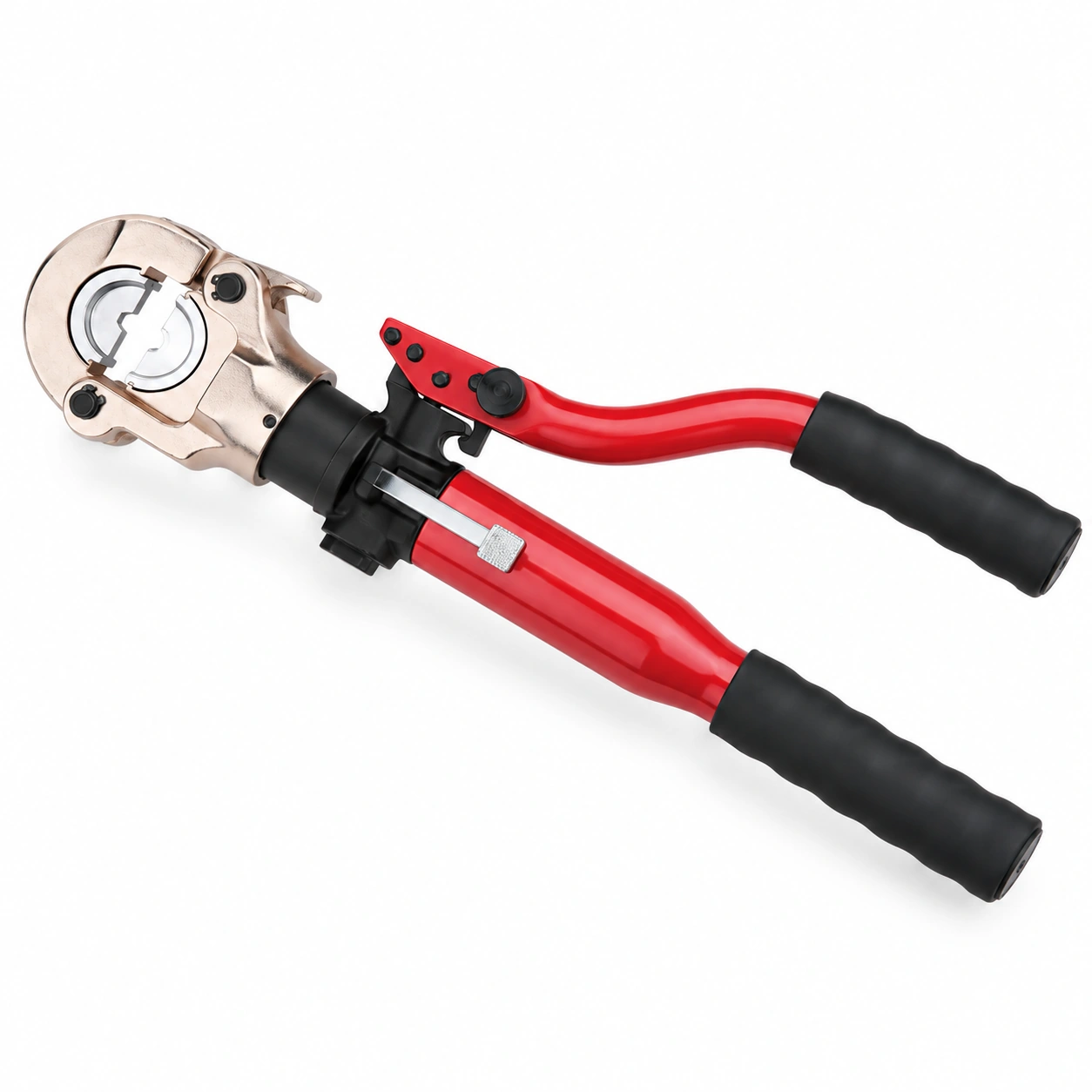

HT-300
Manual Crimpers
Not stated on the supplied overview page
Output: Not stated on the supplied overview page
Enquire about HT-300
Cable Cutters

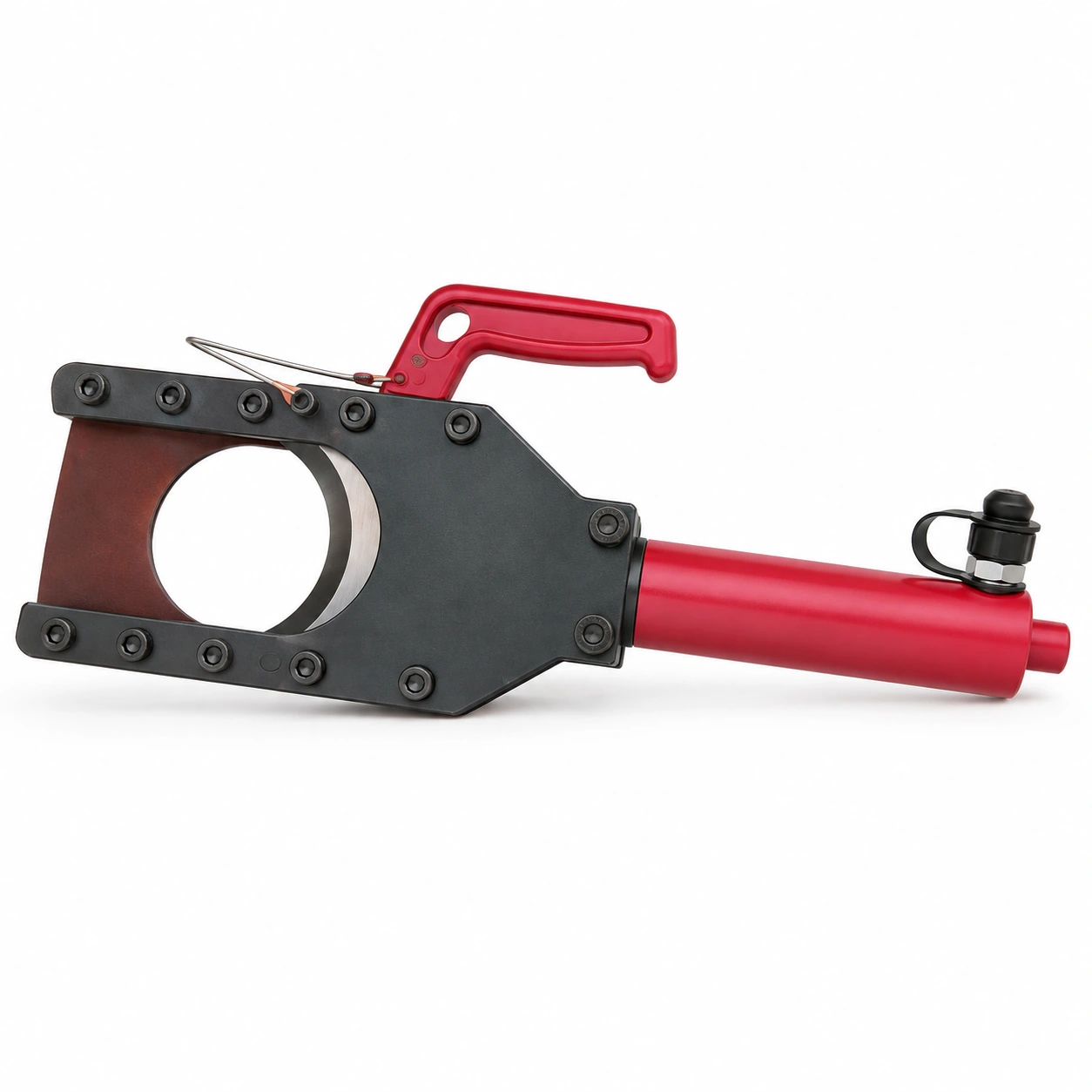

CPC-100A
Cable Cutters
Armoured Al/Cu cable Ø75 mm; Al/Cu cable Ø100 mm
Output: 9 ton
Weight: 13 kg
Enquire about CPC-100A

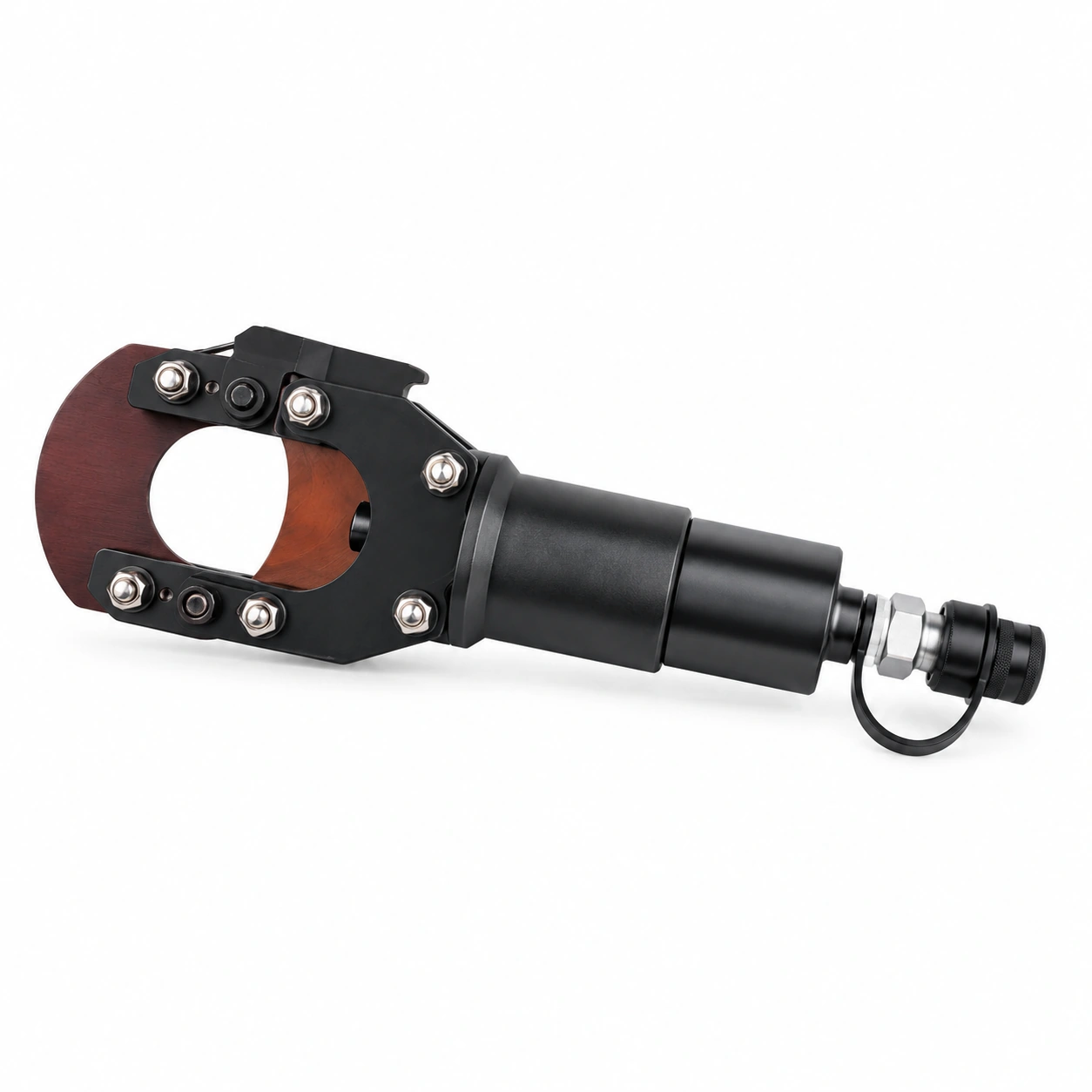

CPC-50B
Cable Cutters
Steel wire Ø30 mm; Al/Cu cable Ø50 mm; ACSR Ø50 mm
Output: 9 ton
Weight: 3 kg
Enquire about CPC-50B

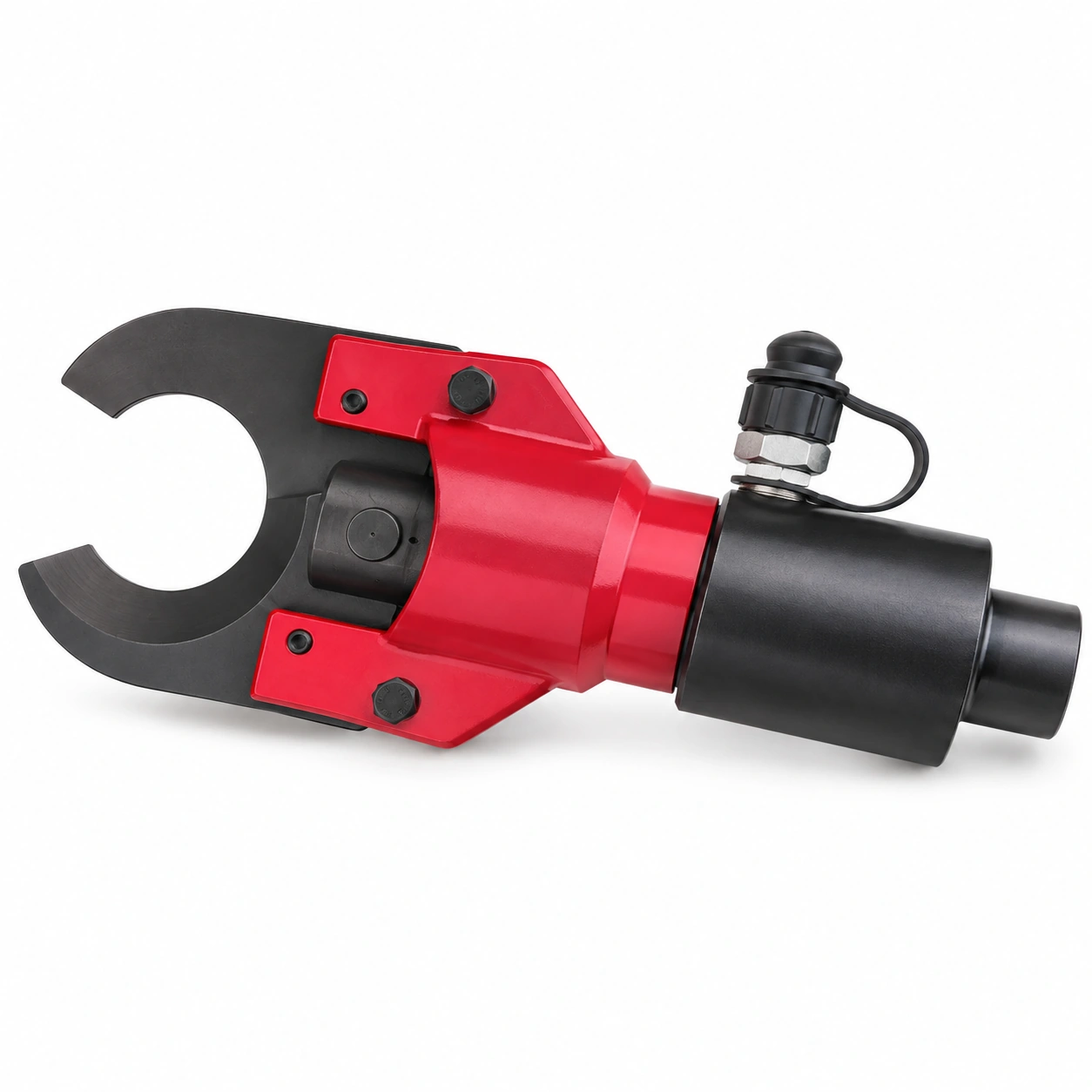

CC-50B
Cable Cutters
Electrical wire Ø50 mm; telephone or Al/Cu cable Ø50 mm
Output: 12 ton
Weight: 6 kg
Enquire about CC-50B

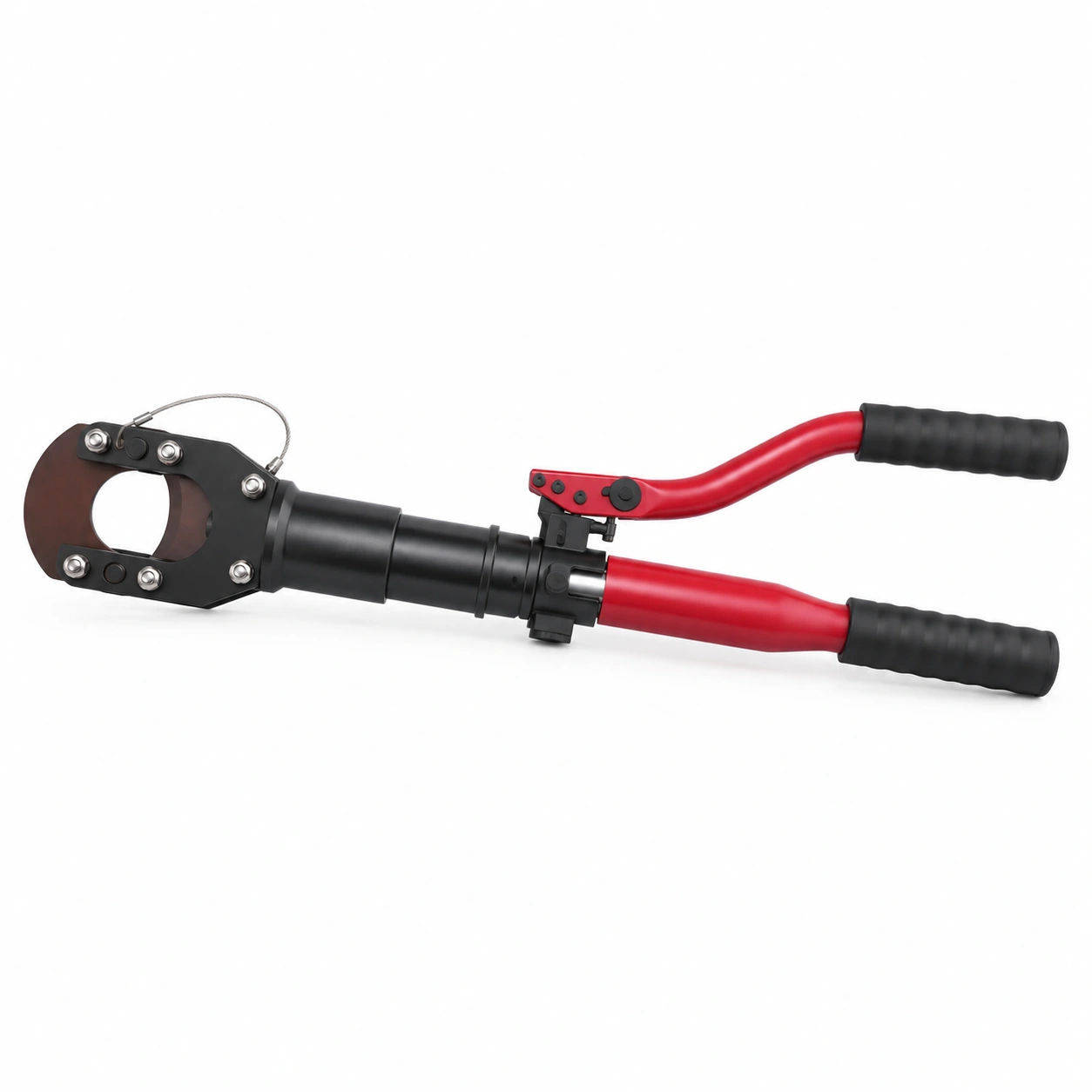

HT-50A
Cable Cutters
Steel wire Ø30 mm; Al/Cu cable Ø50 mm; ACSR Ø50 mm
Output: 7 ton
Weight: 6.2 kg
Enquire about HT-50A

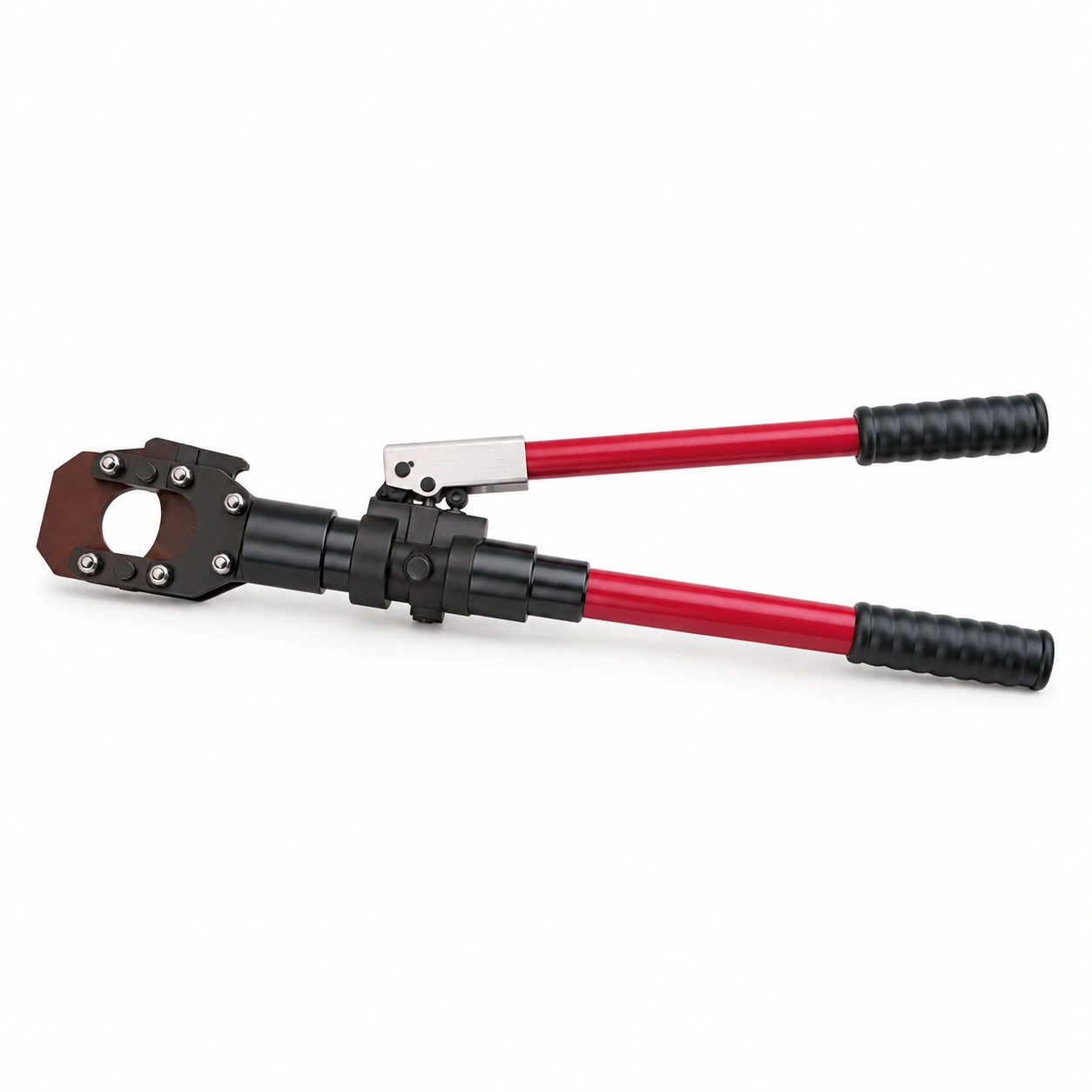

CPC-40A
Cable Cutters
Steel wire Ø25 mm; Al/Cu cable Ø40 mm; ACSR Ø40 mm
Output: 7 ton
Weight: 6 kg
Enquire about CPC-40A

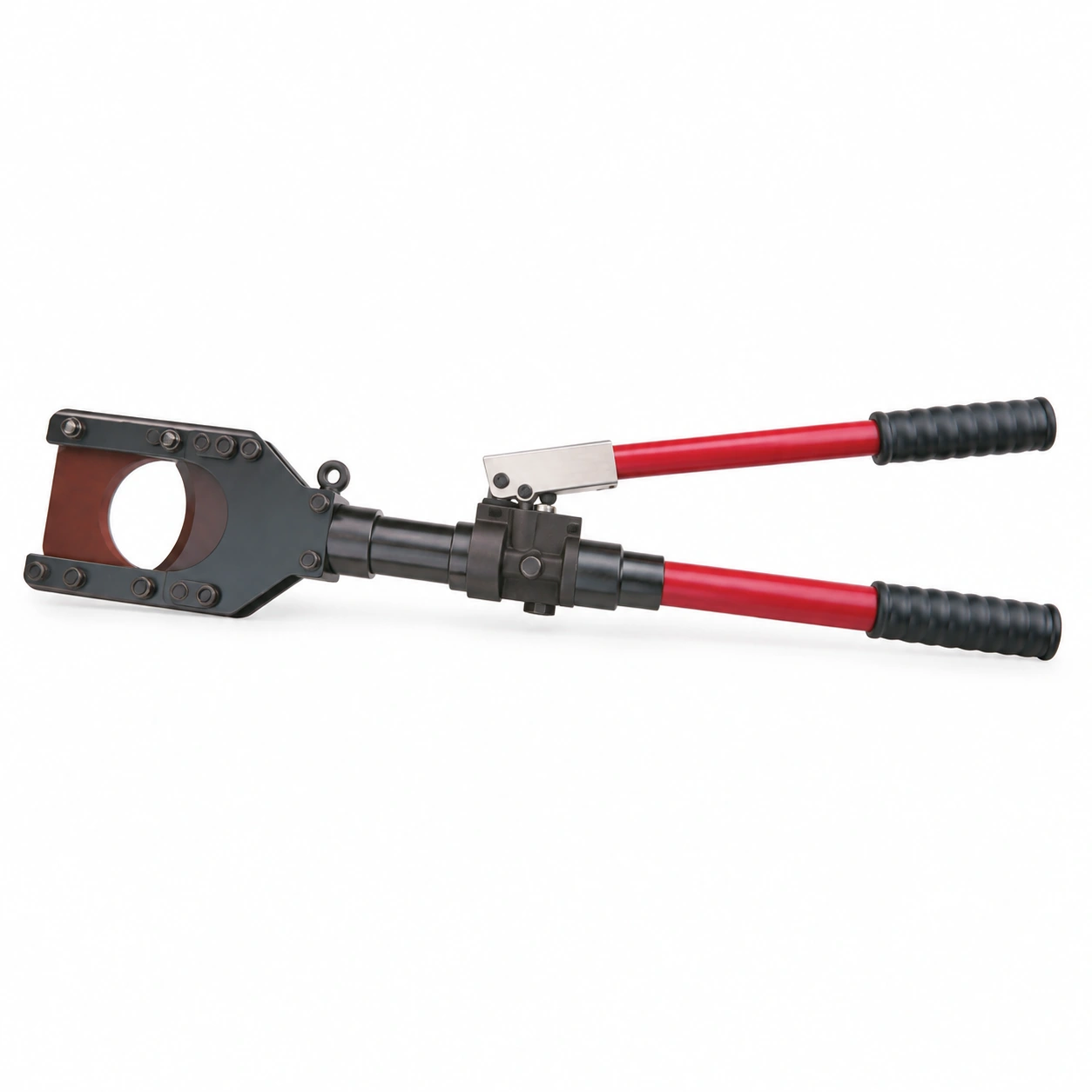

CPC-85
Cable Cutters
Armoured Al/Cu cable Ø50 mm; Al/Cu cable Ø85 mm
Output: 7 ton
Weight: 7.5 kg
Enquire about CPC-85
Split Crimping Heads

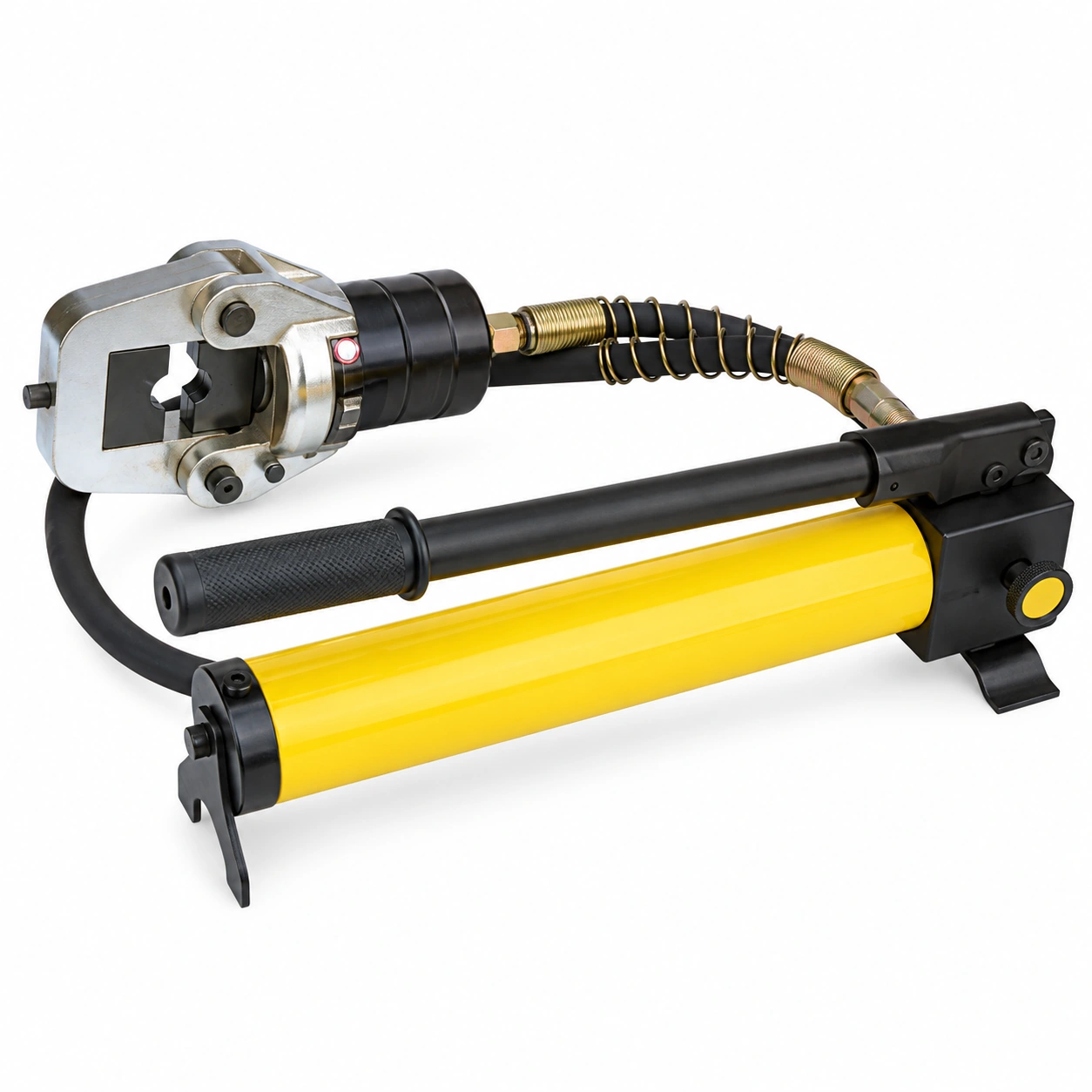

FYQ-400
Split Crimping Heads
50–400 mm²
Output: 16 ton
Weight: 9 kg
Enquire about FYQ-400

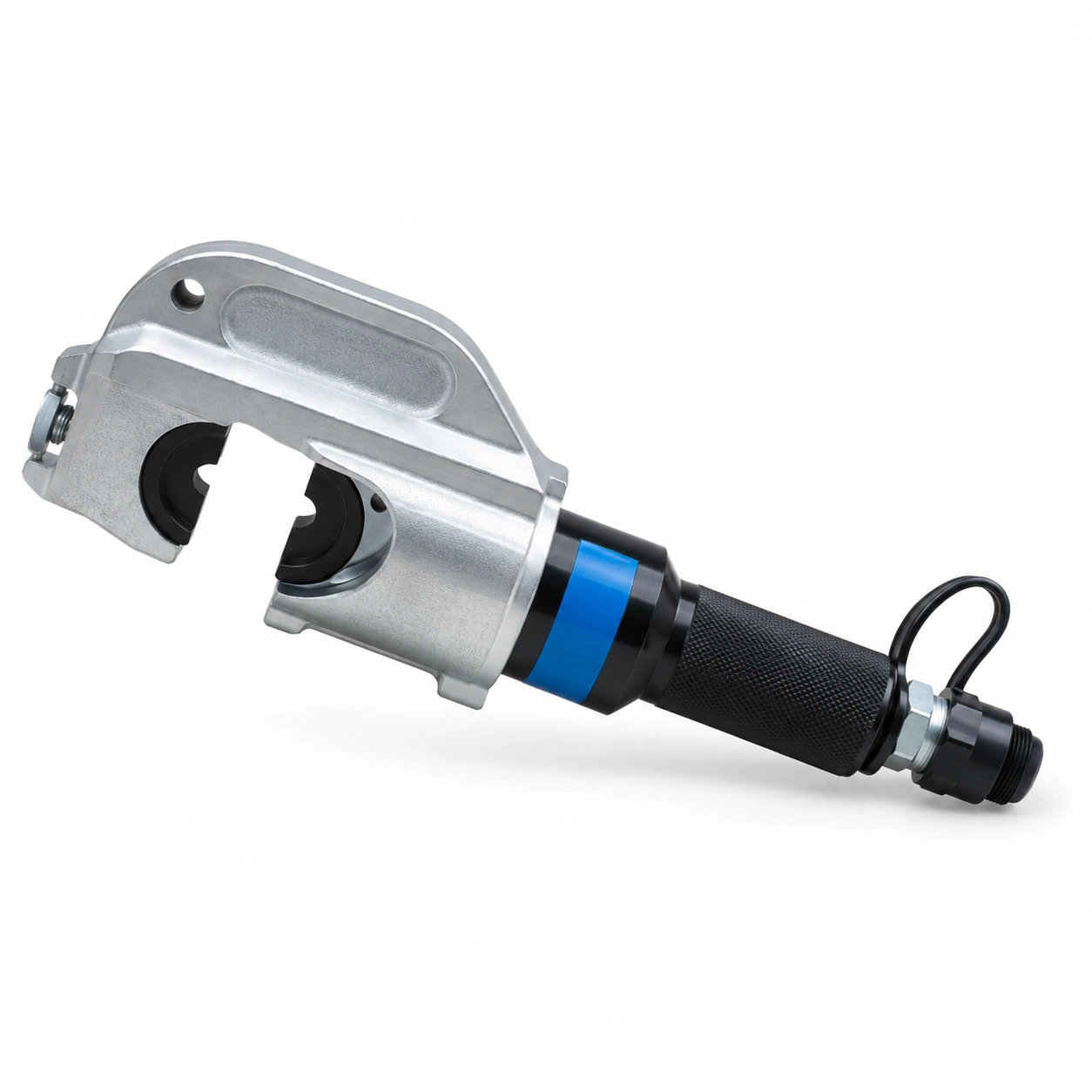

CYO-400B
Split Crimping Heads
50–400 mm²
Output: 12 ton
Weight: 5 kg
Enquire about CYO-400B

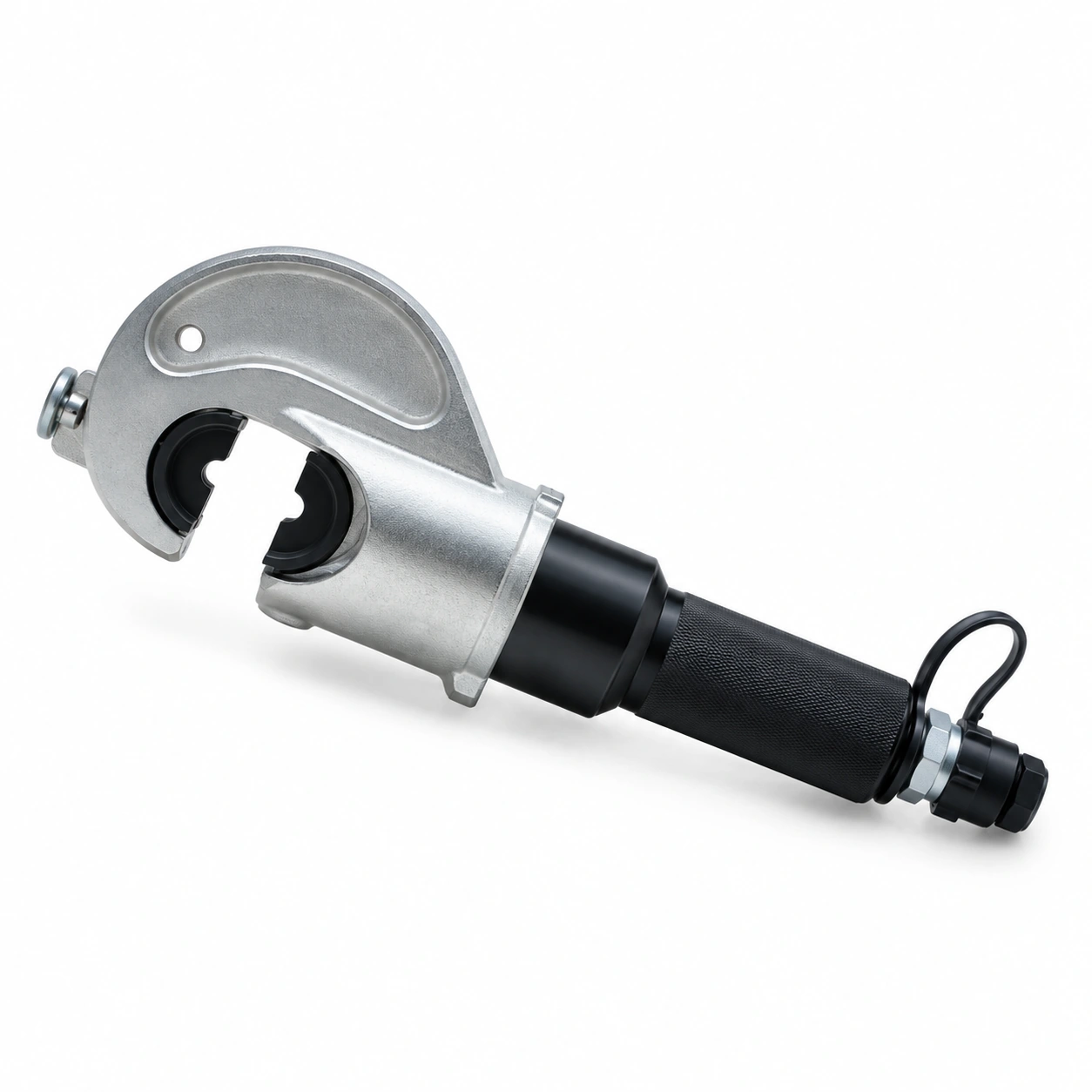

EP-410H
Split Crimping Heads
50–300 mm²
Output: 12 ton
Weight: 4.8 kg
Enquire about EP-410H

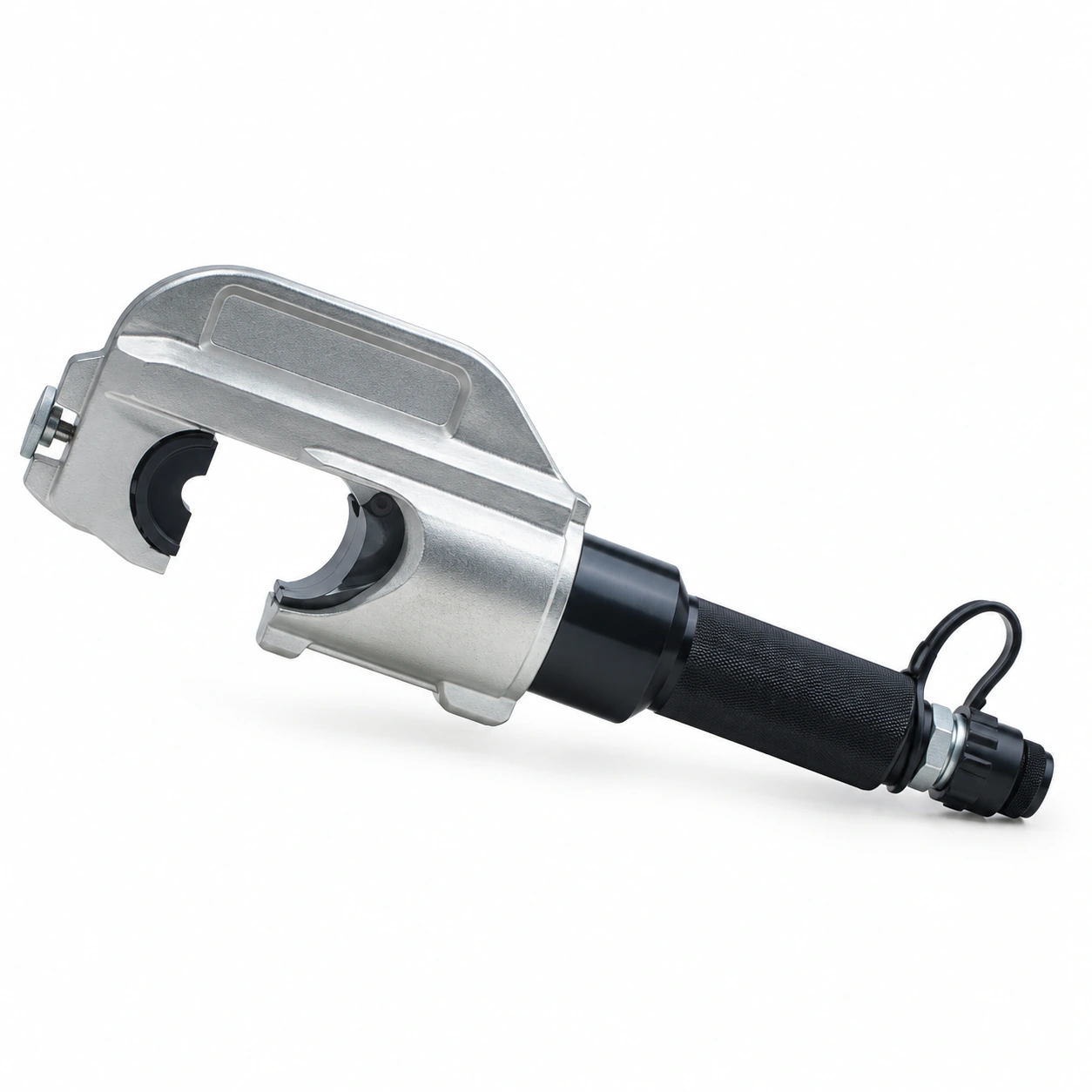

EP-510H
Split Crimping Heads
50–400 mm²
Output: 13 ton
Weight: 5.6 kg
Enquire about EP-510H

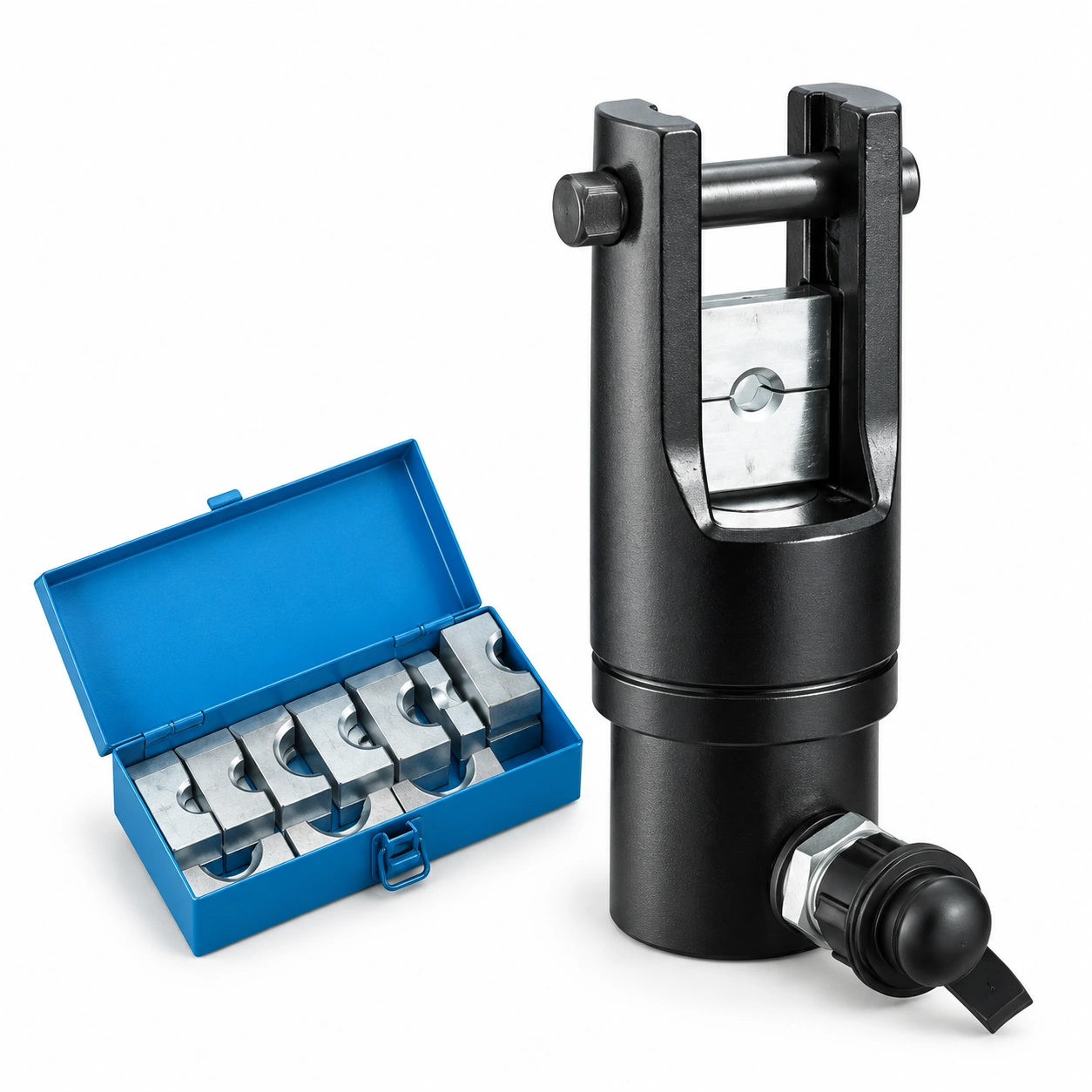

FYQ-300
Split Crimping Heads
16–300 mm²
Output: 17 ton
Weight: 12 kg
Enquire about FYQ-300

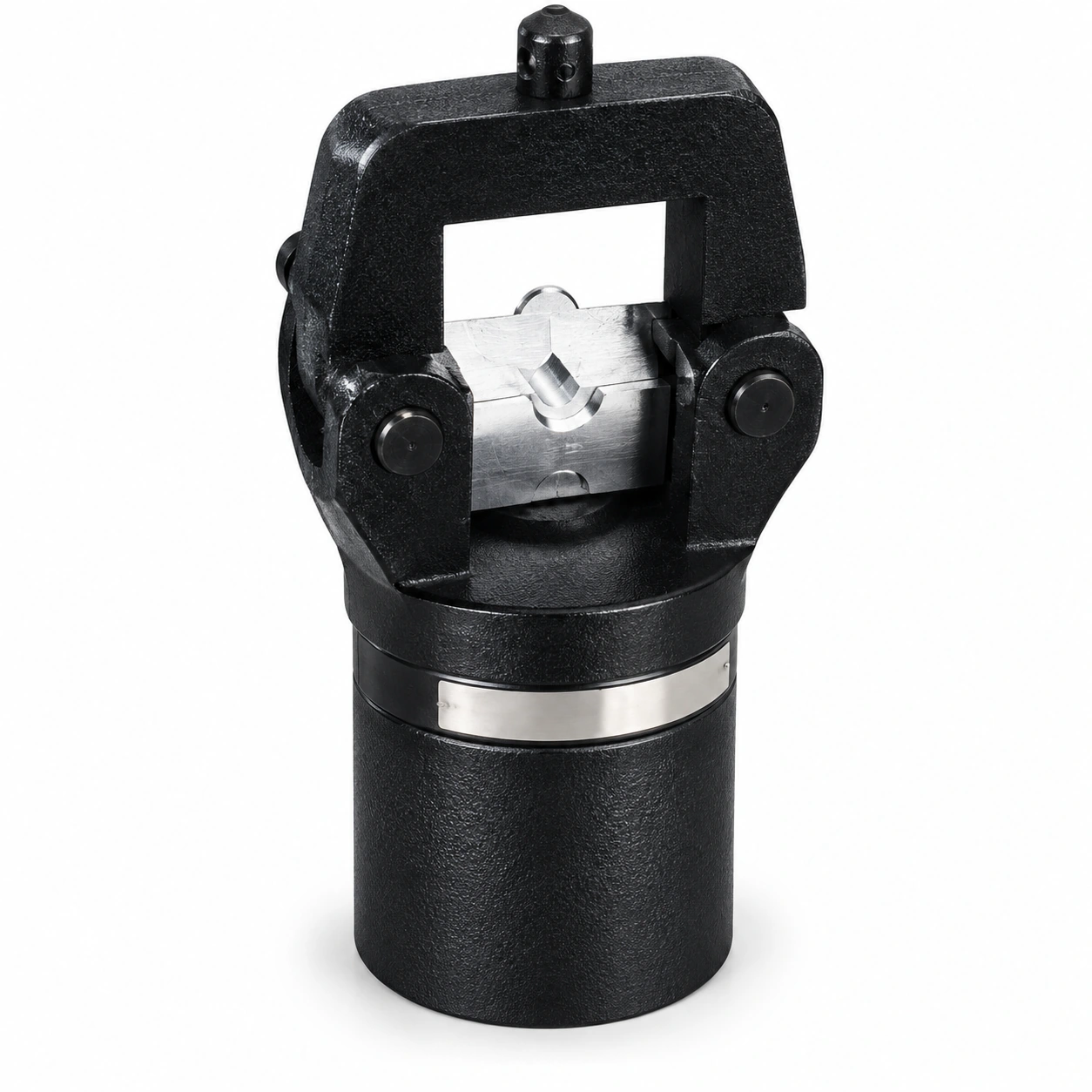

FYQ-500B
Split Crimping Heads
50–500 mm²
Output: 22 ton
Weight: 20 kg
Enquire about FYQ-500B

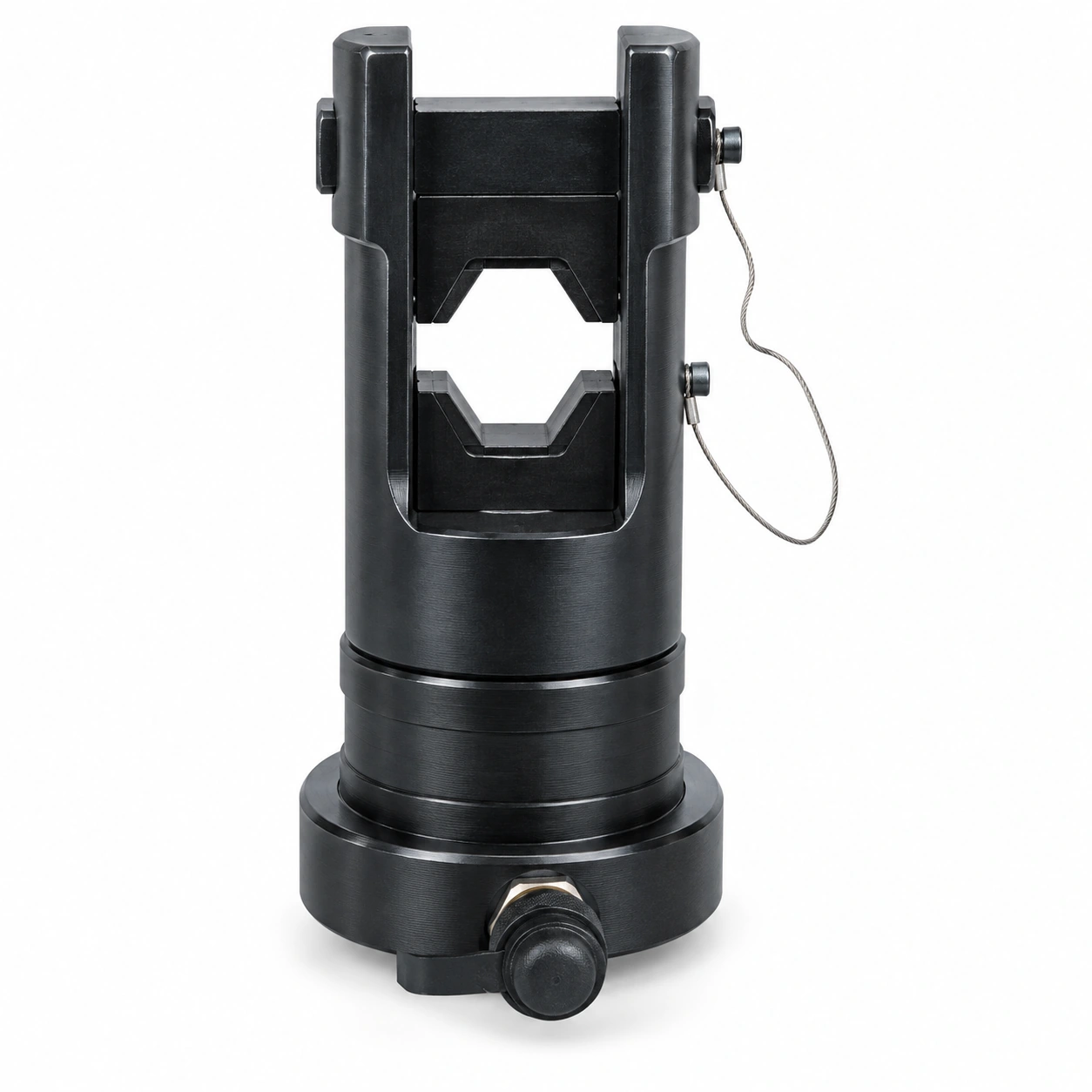

FYQ-630A
Split Crimping Heads
150–630 mm²
Output: 25 ton
Weight: 28 kg
Enquire about FYQ-630A

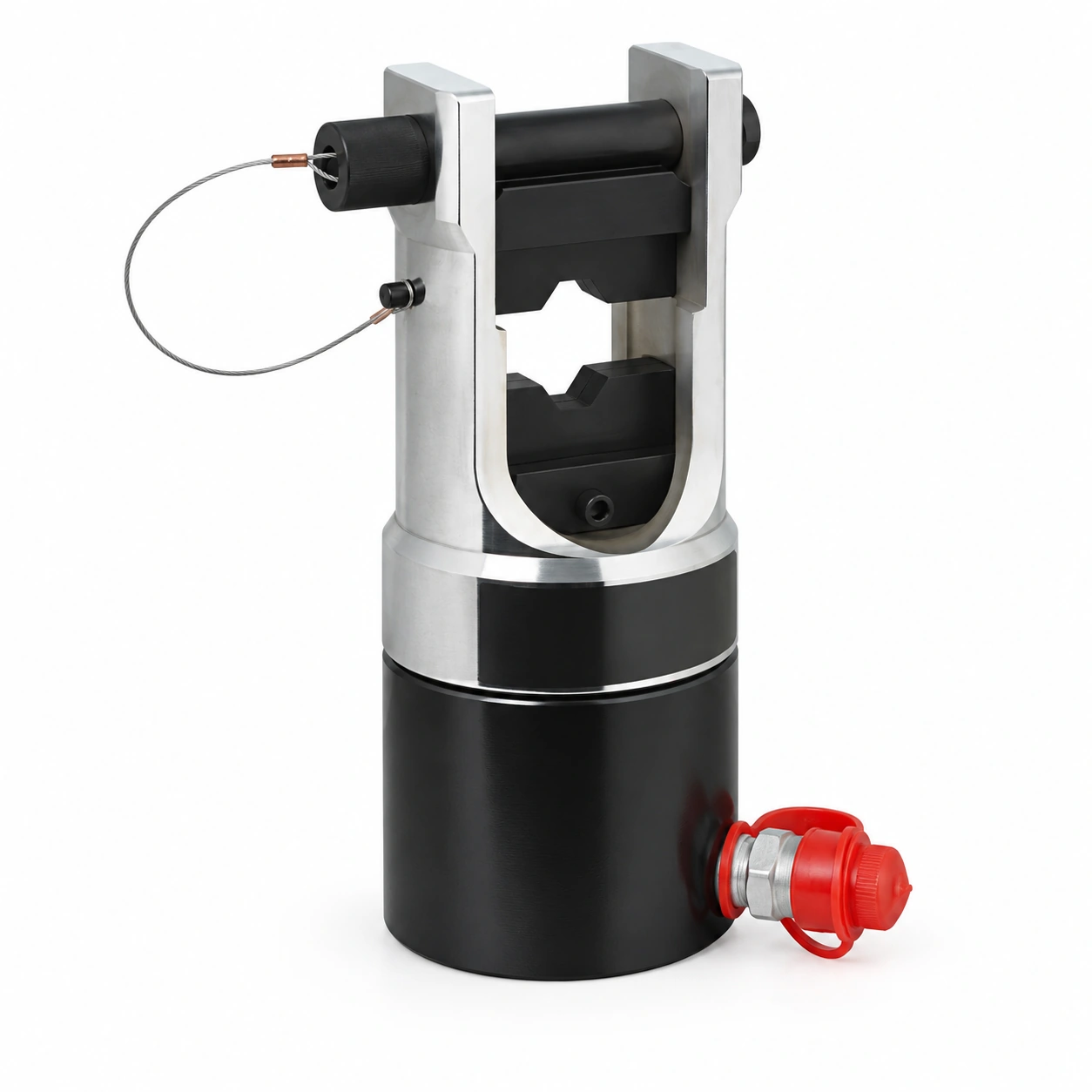

CO-630B
Split Crimping Heads
150–630 mm²
Output: 35 ton
Weight: 17.5 kg
Enquire about CO-630B
Hydraulic Pumps

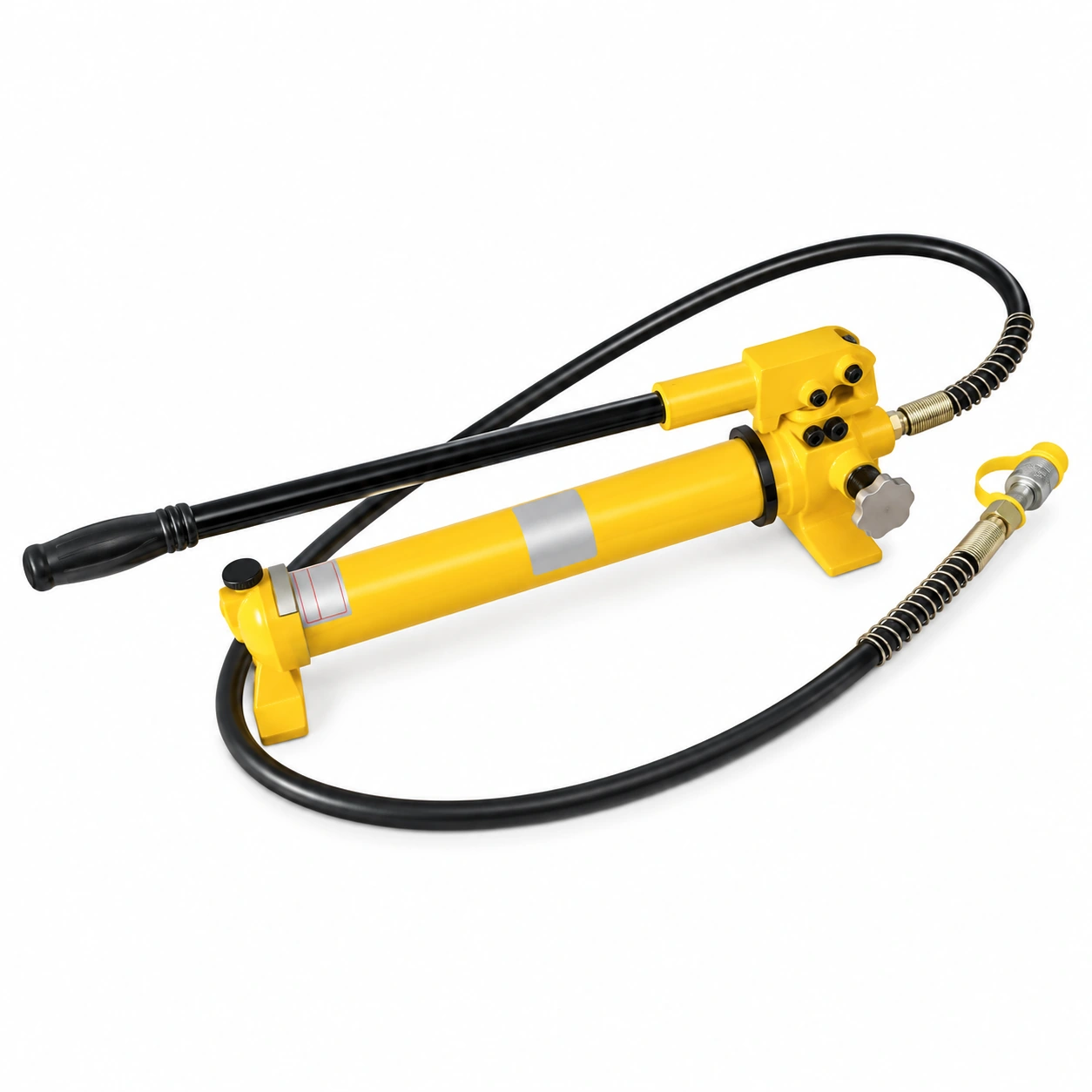

CP-700
Hydraulic Pumps
Low: 20 kg/cm²; high: 700 kg/cm² (catalog)
Weight: 9.5 kg
Enquire about CP-700

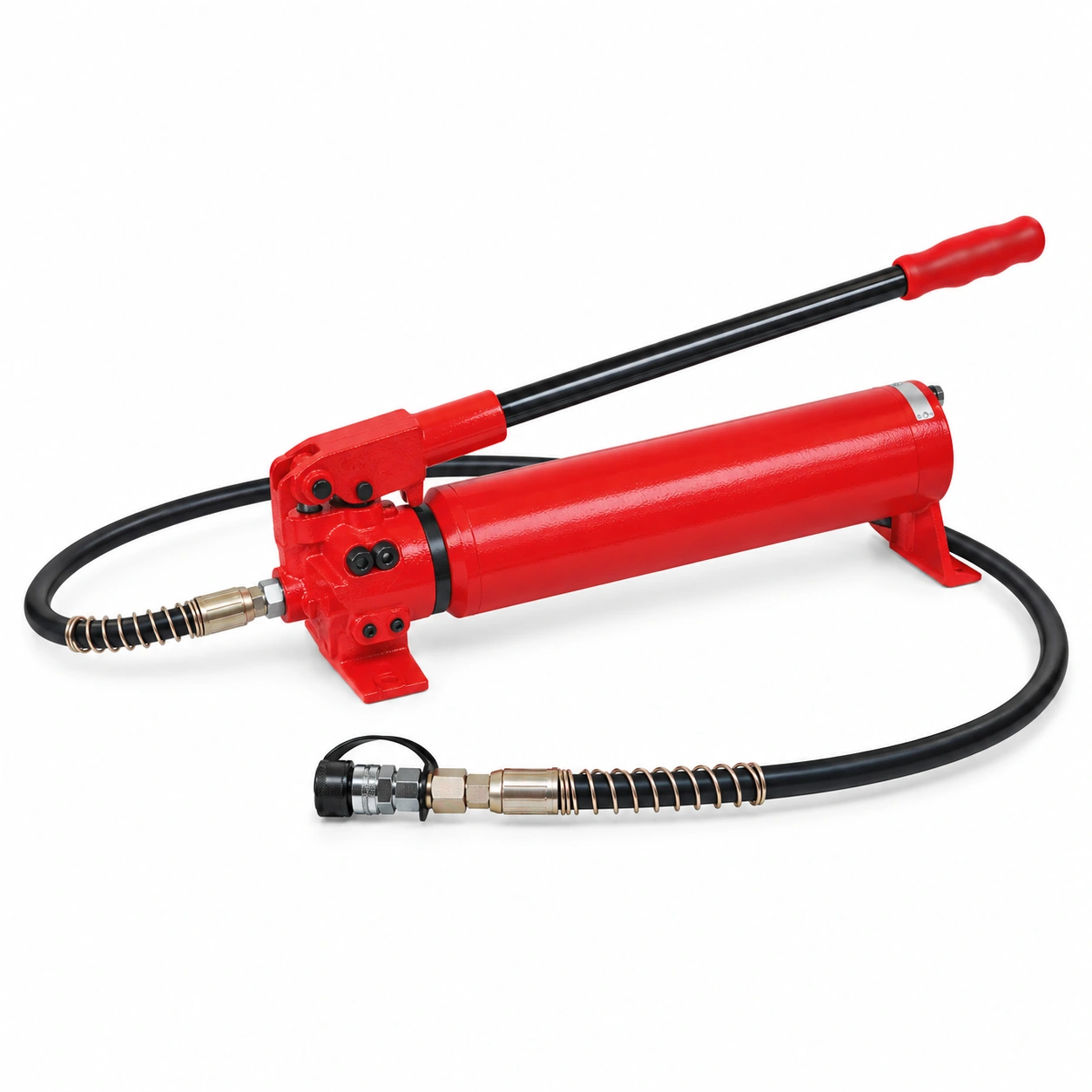

CP-700-2A
Hydraulic Pumps
Low: 20 kg/cm²; high: 700 kg/cm² (catalog)
Weight: 11.4 kg
Enquire about CP-700-2A

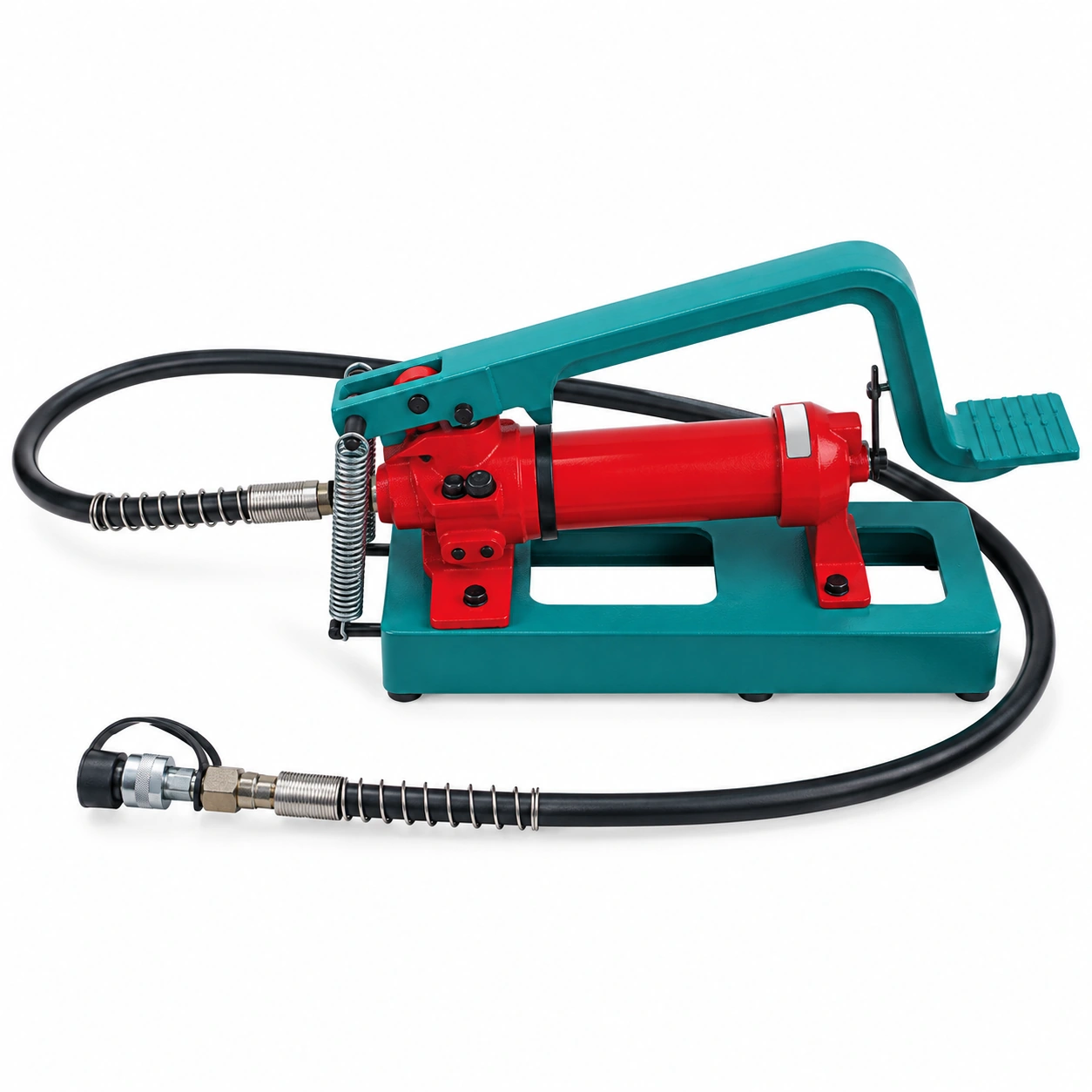

CFP-800-1
Hydraulic Pumps
Low: 20 kg/cm²; high: 700 kg/cm² (catalog)
Weight: 10 kg
Enquire about CFP-800-1

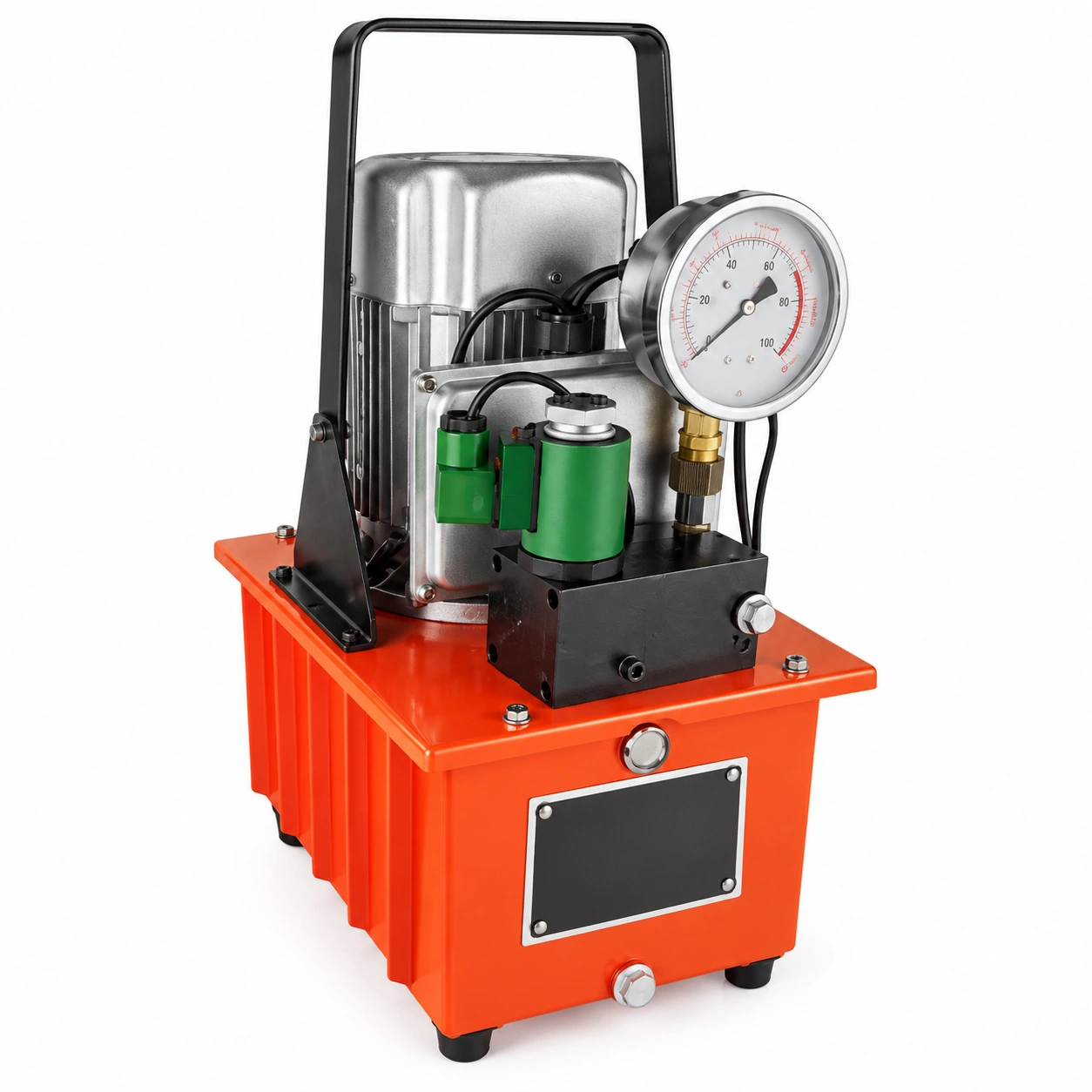

ZH700A
Hydraulic Pumps
Low: 2.5 MPa; high / maximum: 70 MPa
Weight: 22 kg
Enquire about ZH700A

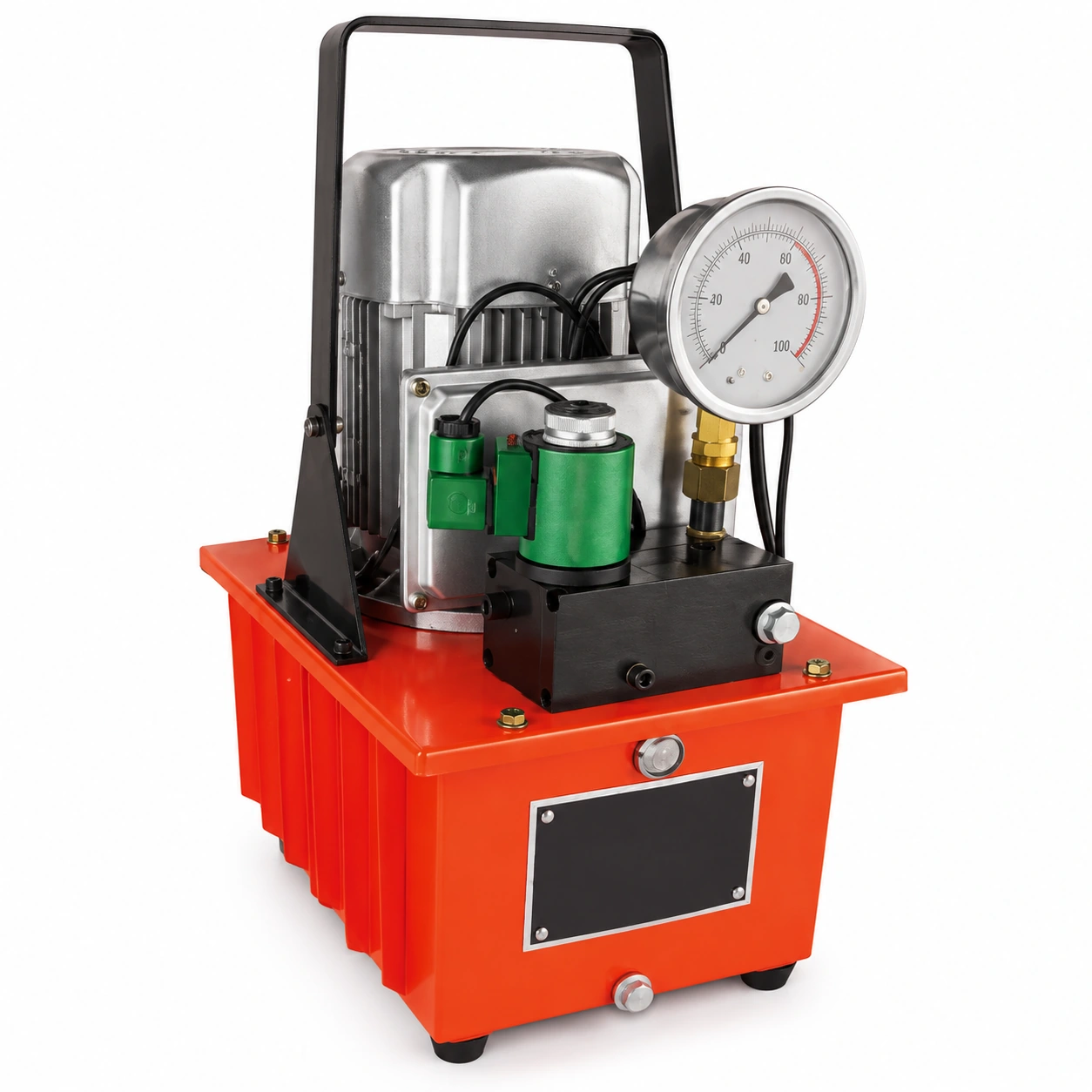

ZH700B
Hydraulic Pumps
Low: 2.5 MPa; high / maximum: 70 MPa
Weight: 22 kg
Enquire about ZH700B
Busbar Tools

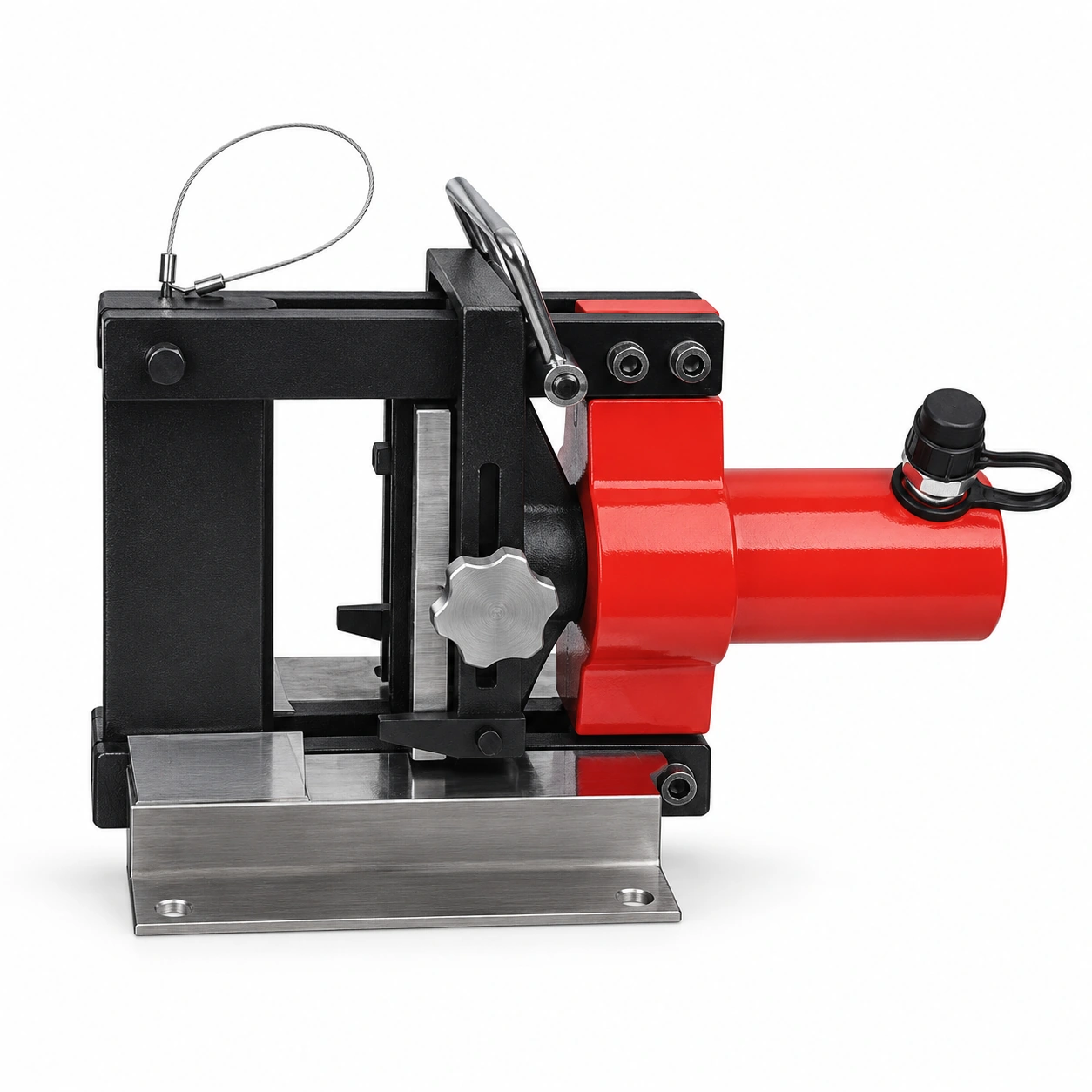

CB-150D
Busbar Tools
500 kg/cm²
Output: 16 T
Weight: 18 kg
Enquire about CB-150D

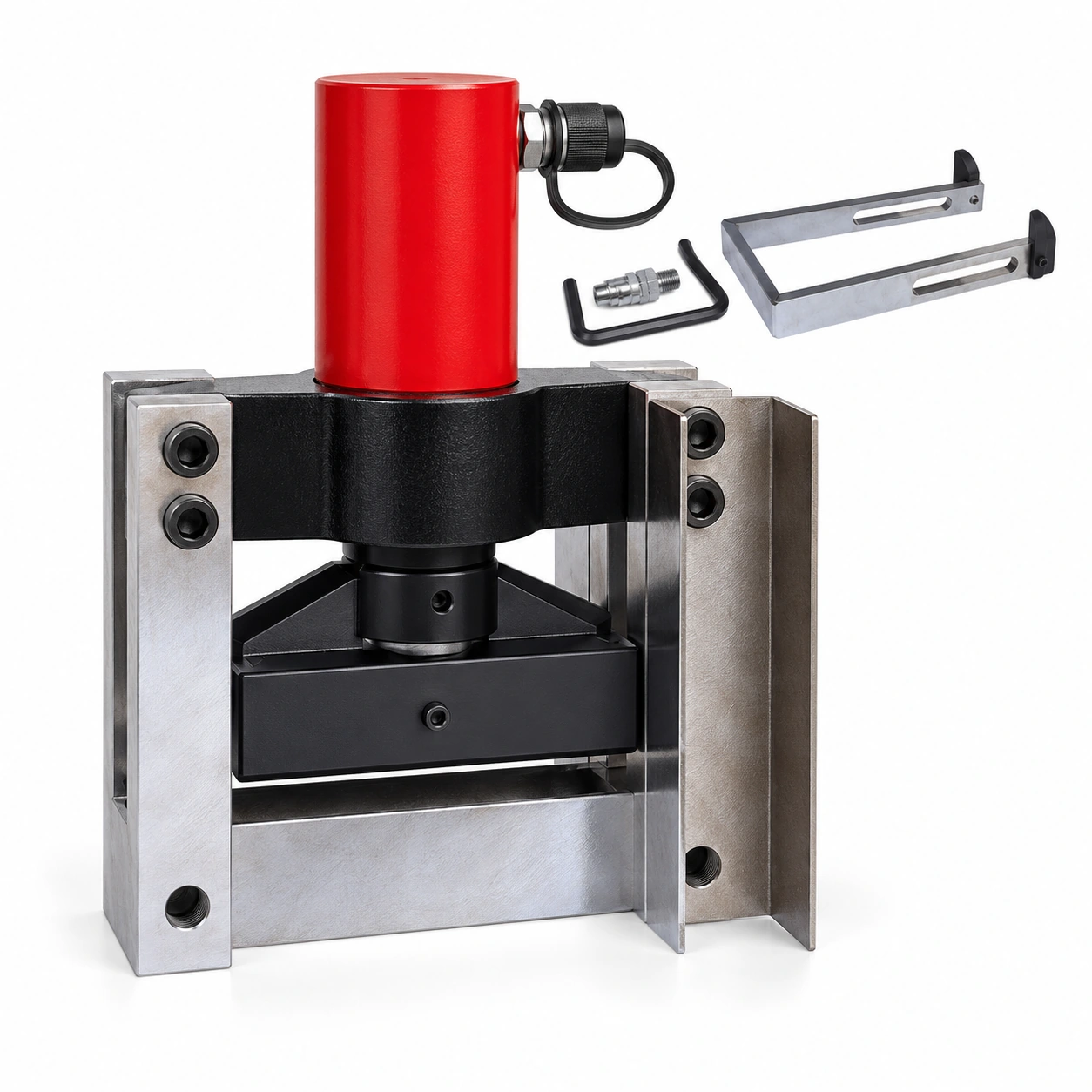

CB-200A
Busbar Tools
700 kg/cm²
Output: 20 T
Weight: 24 kg
Enquire about CB-200A

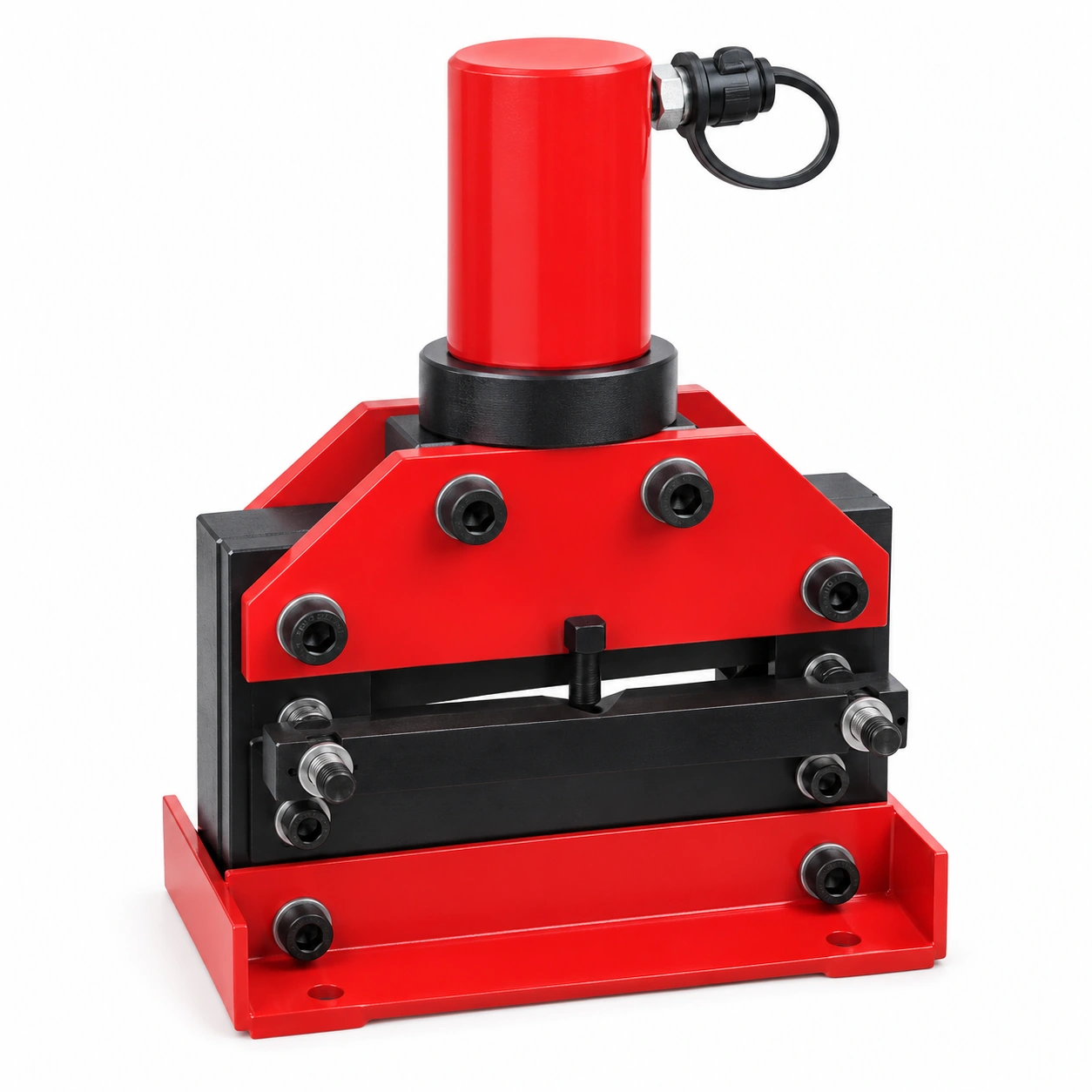

CWC-150
Busbar Tools
undefined
Output: 20 T
Weight: 30 kg
Enquire about CWC-150

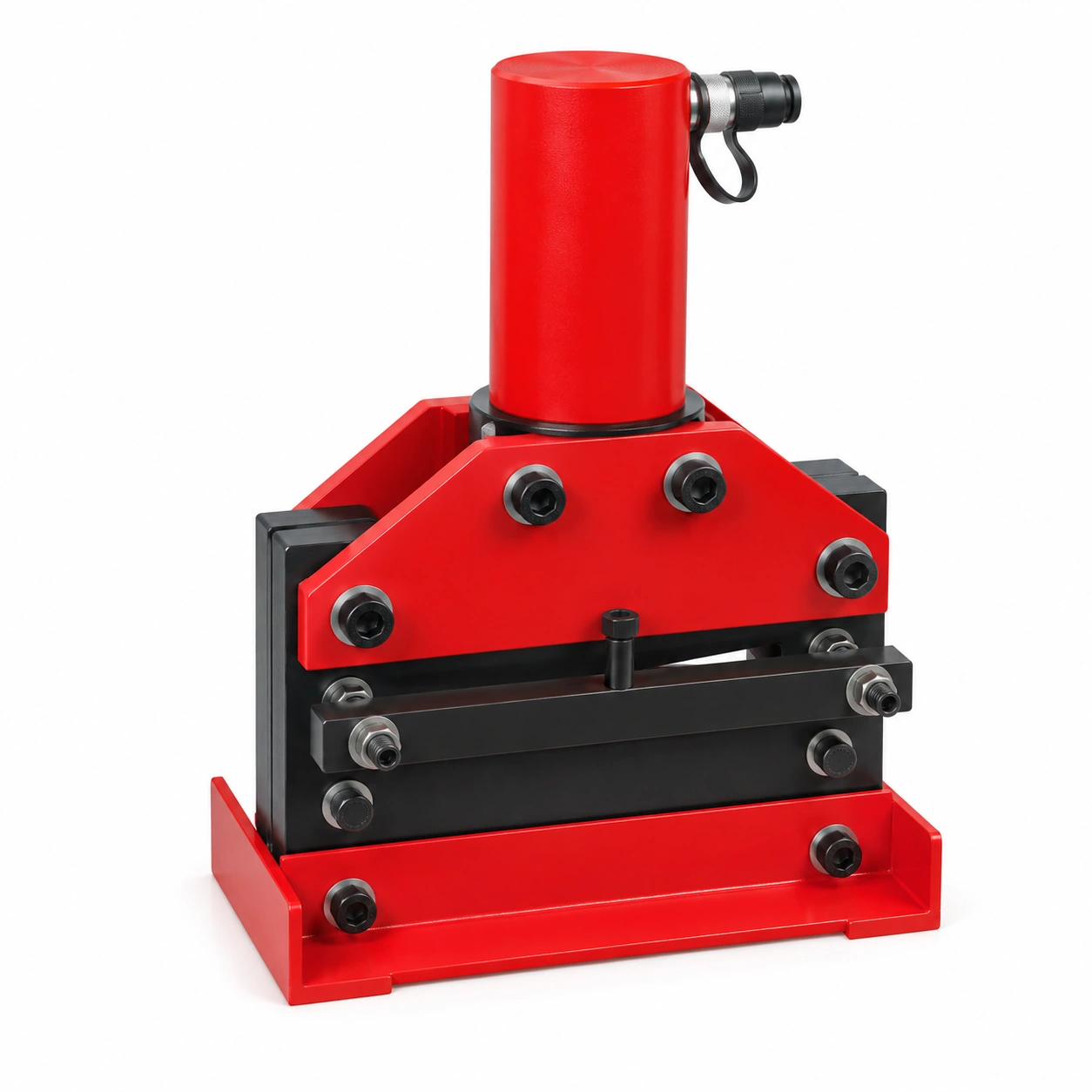

CWC-200
Busbar Tools
undefined
Output: 20 T
Weight: 35 kg
Enquire about CWC-200
Punch Tools

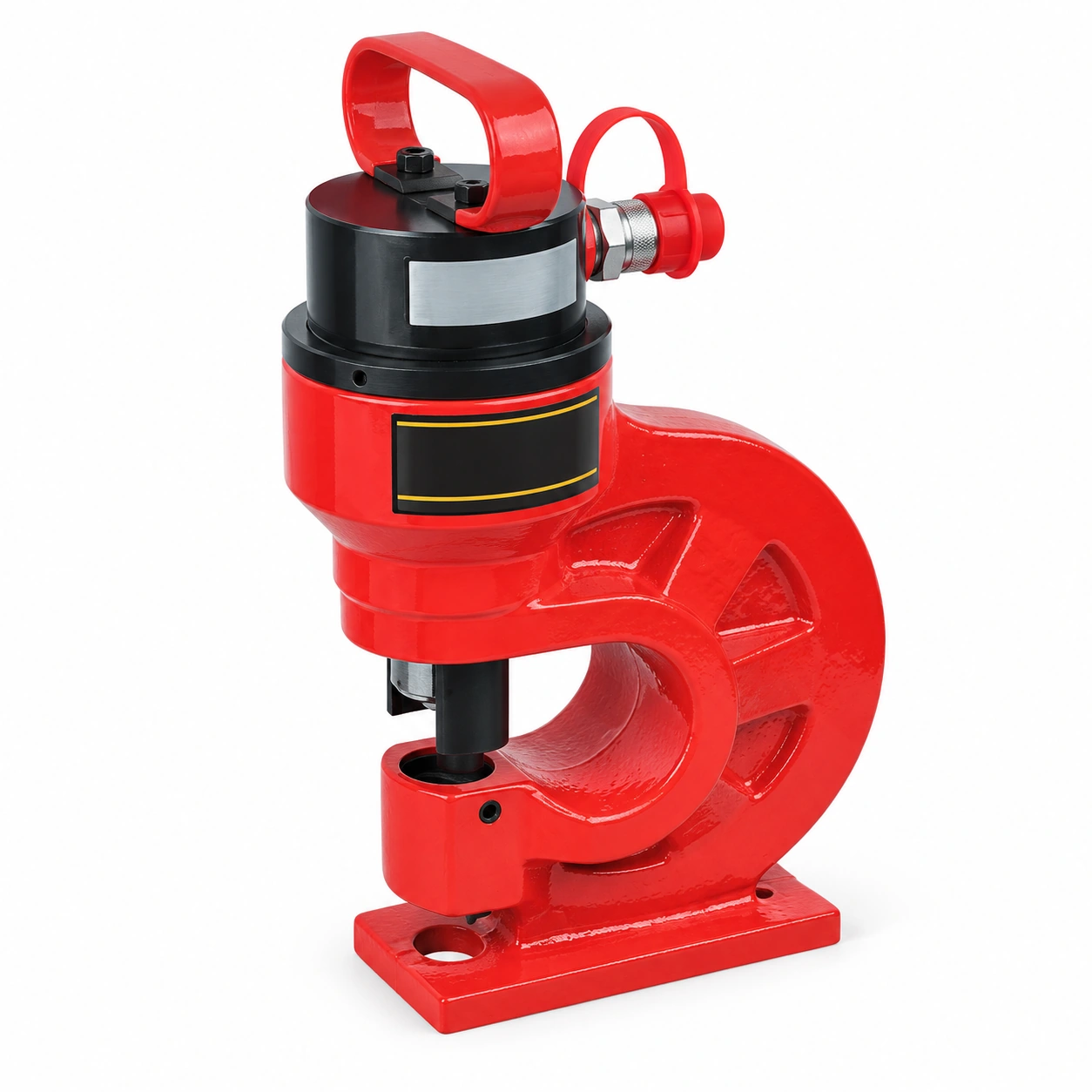

CH-60
Punch Tools
Copper sheet 10 mm; metal sheet 6 mm
Output: 31 T
Weight: 17.5 kg
Enquire about CH-60

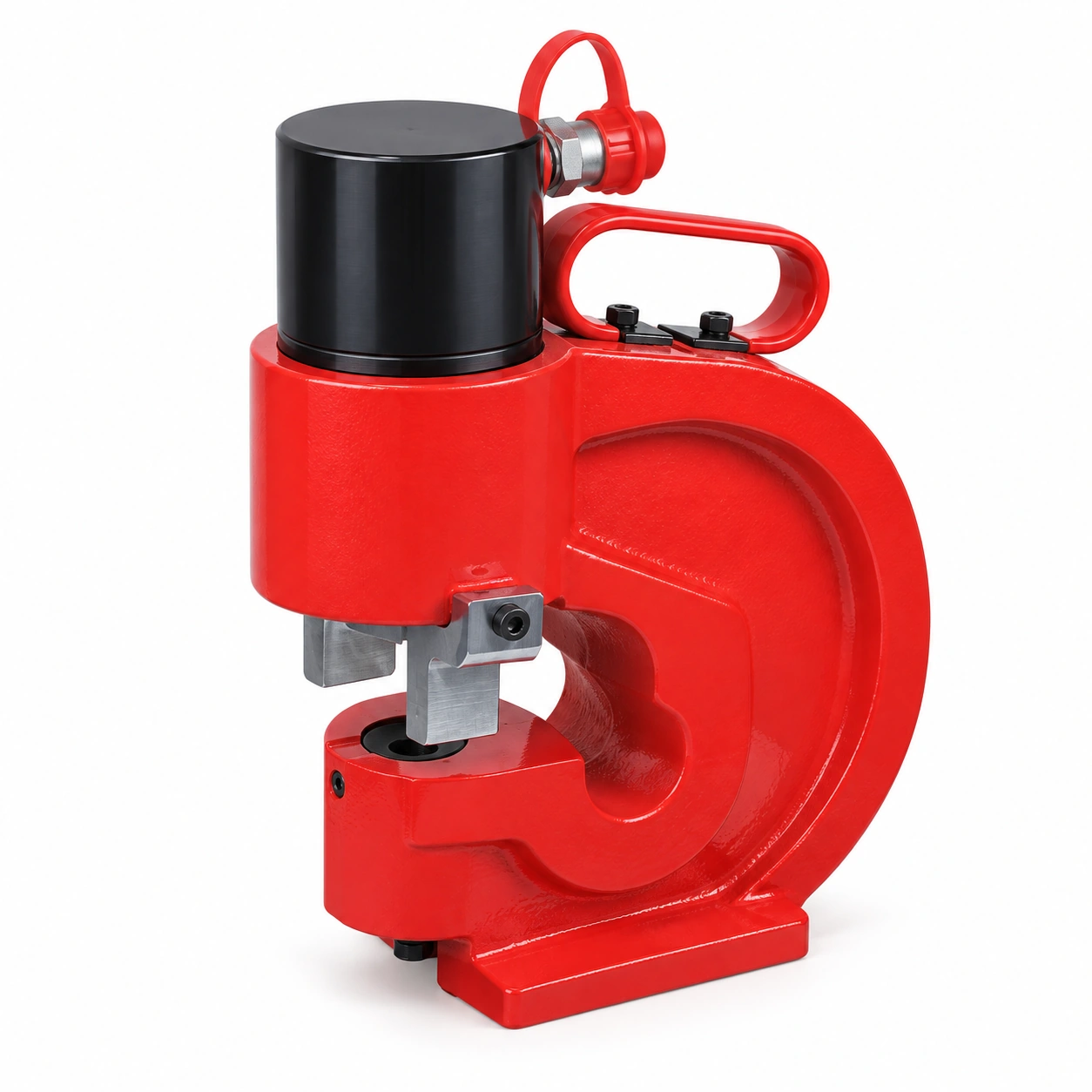

CH-70
Punch Tools
Copper sheet 12 mm; metal sheet 10 mm
Output: 35 T
Weight: 34.5 kg
Enquire about CH-70

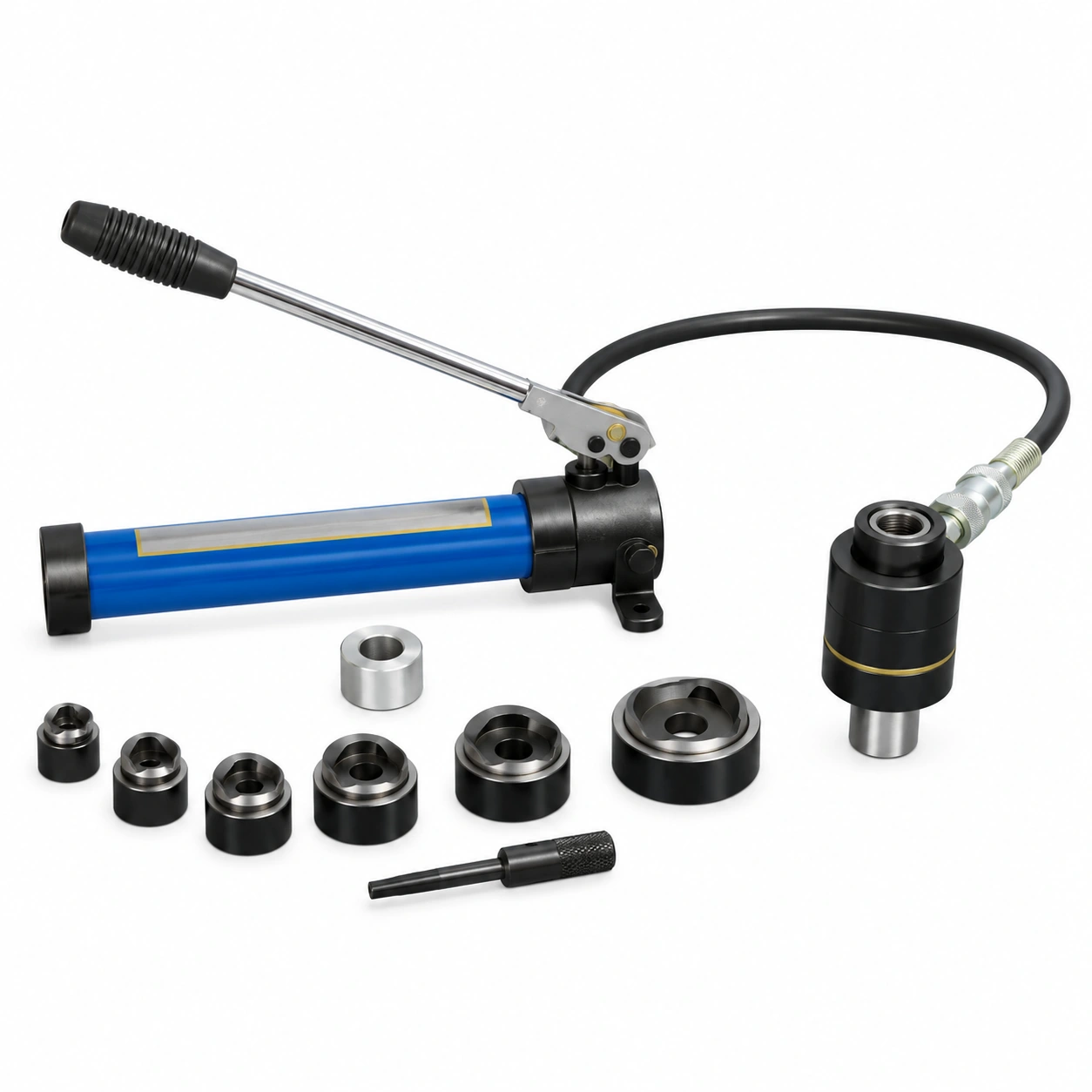

SYK-8B
Punch Tools
Iron sheet ≤3 mm; holes Ø22–60 mm
Output: 10 T
Weight: 5.4 kg
Enquire about SYK-8B

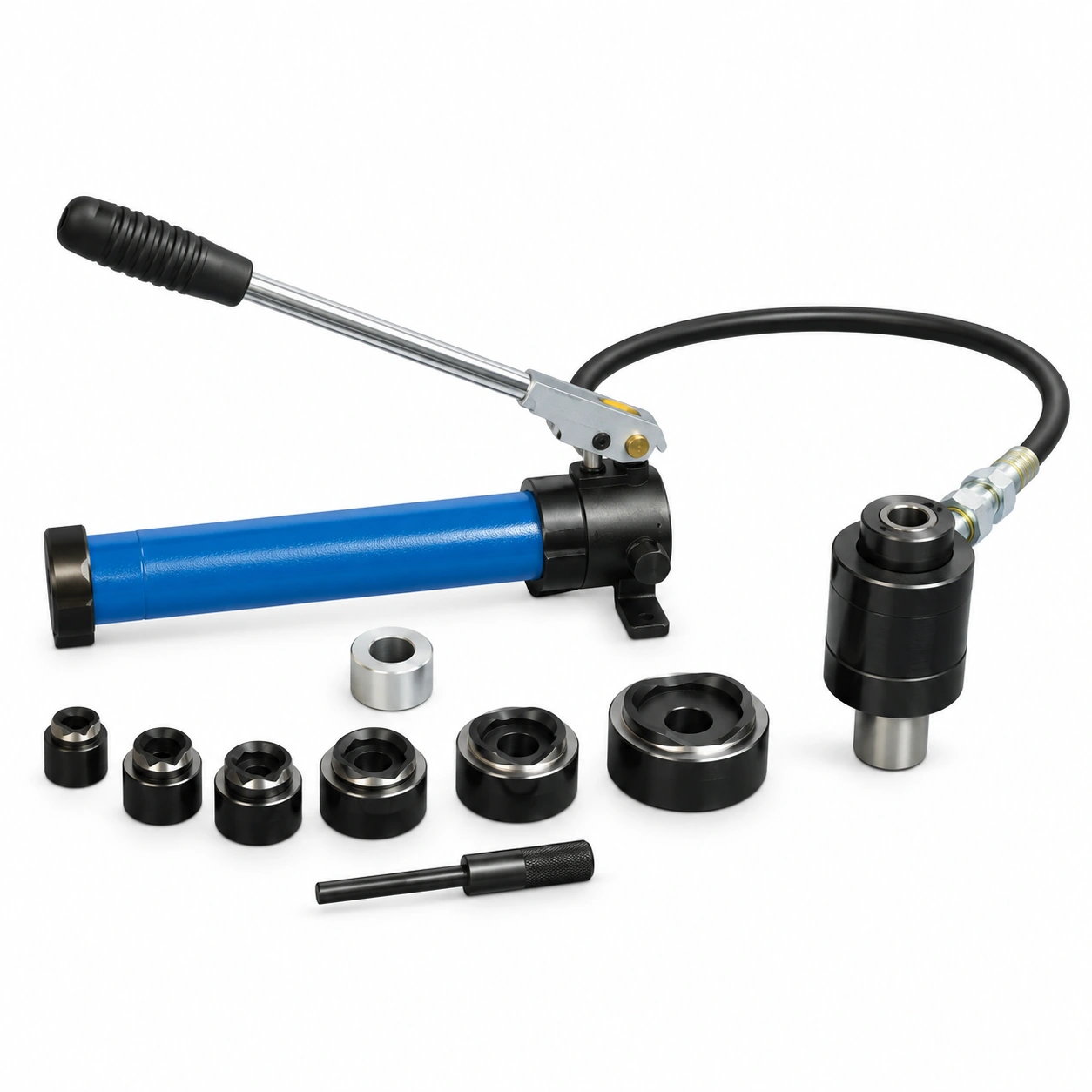

SYK-15
Punch Tools
Iron sheet ≤3 mm; holes Ø63–114 mm
Output: 15 T
Weight: 6.2 kg
Enquire about SYK-15
Busbar Processors

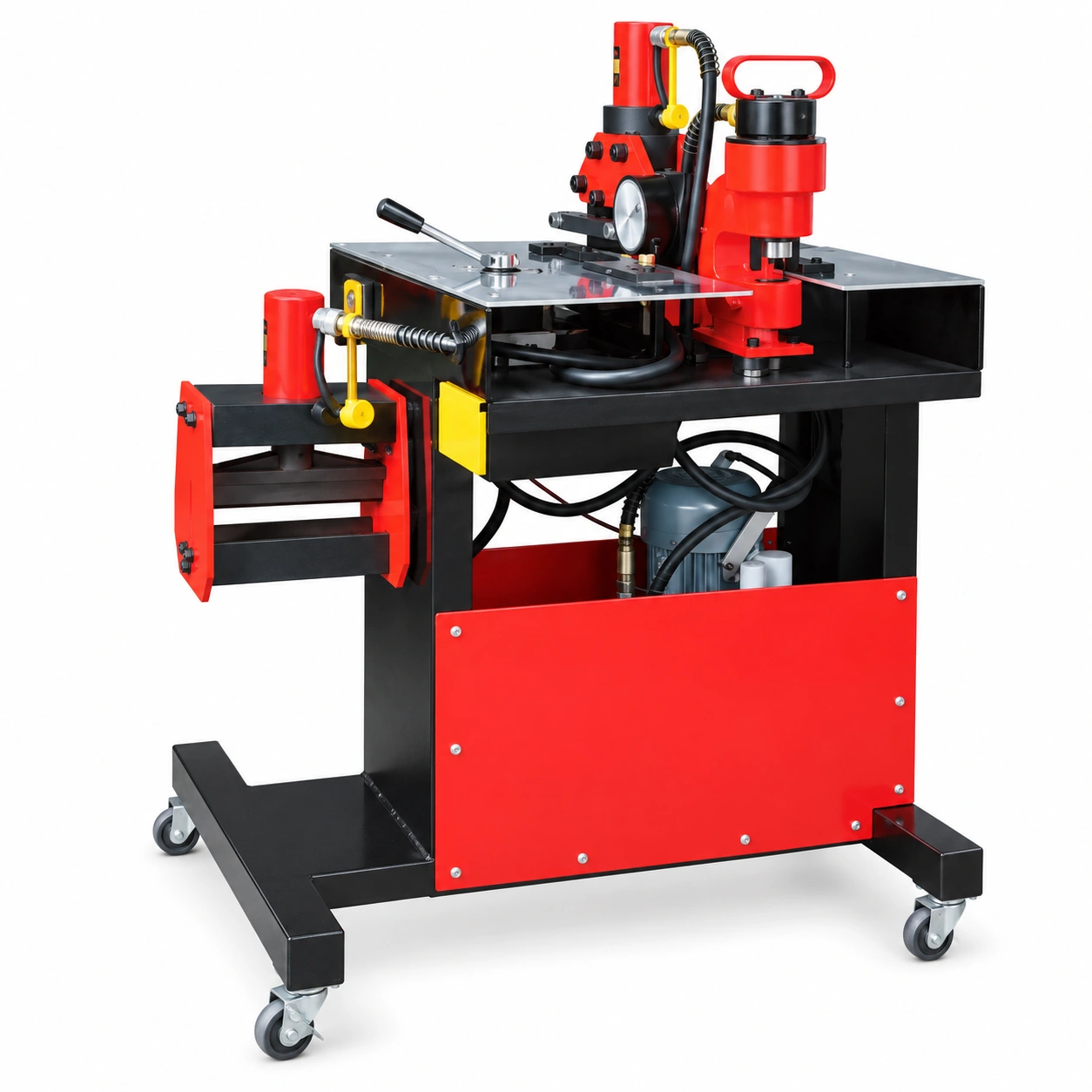

DHY-150
Busbar Processors
150 mm width × 10 mm thickness
Output: 20 T
Enquire about DHY-150

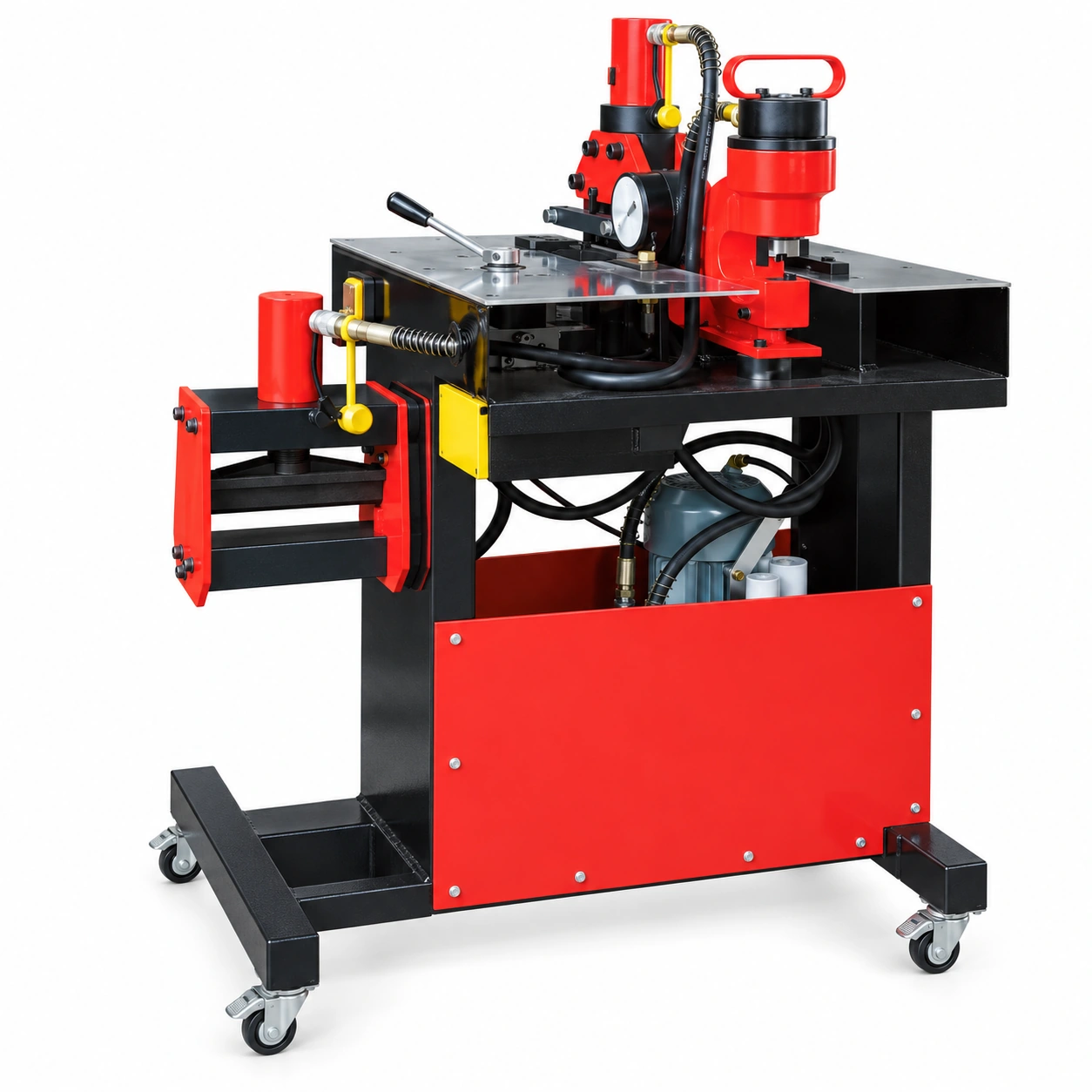

DHY-200
Busbar Processors
200 mm width × 10 mm thickness
Output: 30 T
Enquire about DHY-200
Punch Dies

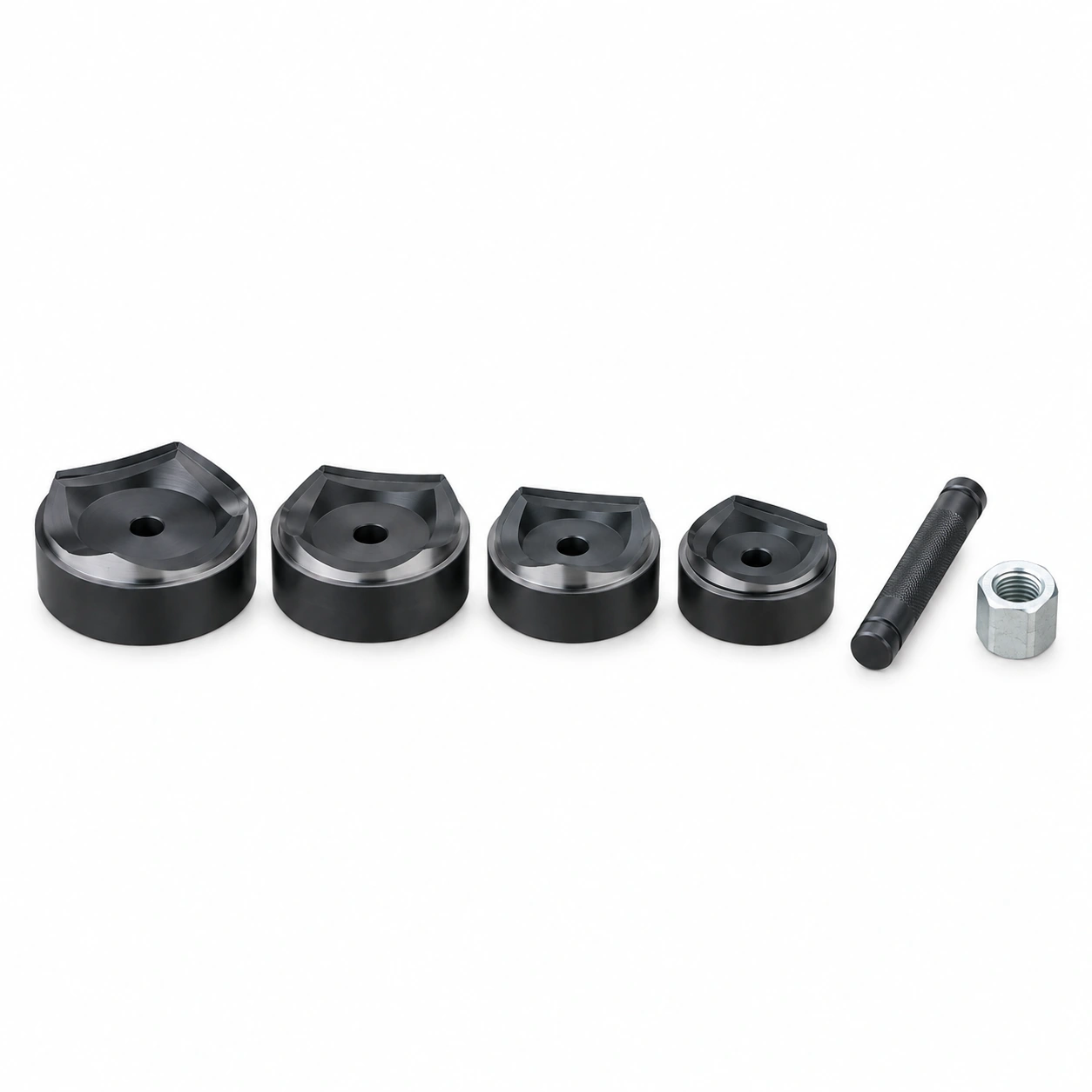

MAP10-4
Punch Dies
2 1/2″ (76.1), 3″ (88.9), 3 1/2″ (102.9), 4″ (115.5) mm
View specificationsEnquire about MAP10-4

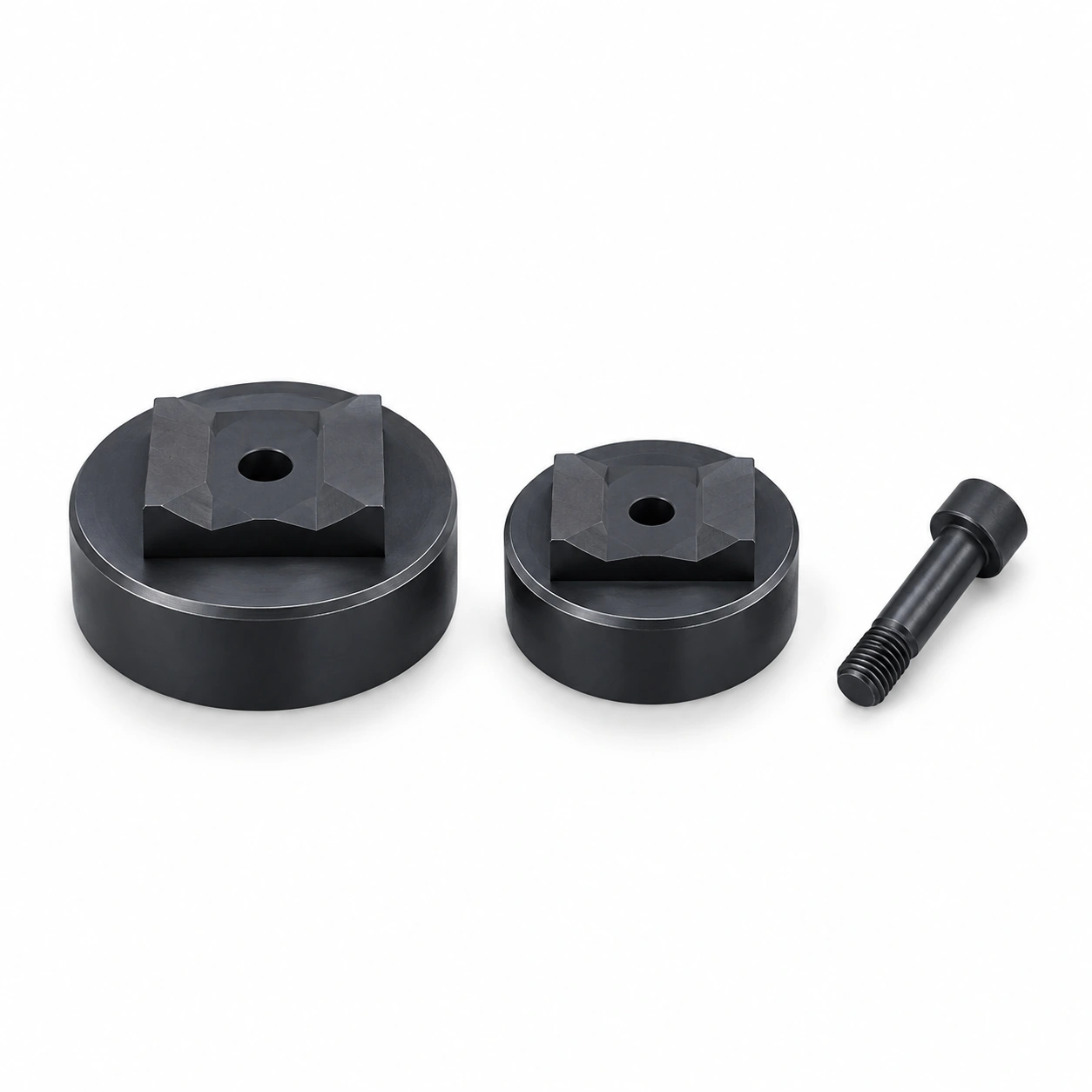

MS Square Dies
Punch Dies
MS46×46: 46×46 mm; MS50.8×50.8: 50.8×50.8 mm; MS68×68: 68×68 mm; MS92×92: 92×92 mm; MS104.8×104.8: 104.8×104.8 mm
View specificationsEnquire about MS Square Dies

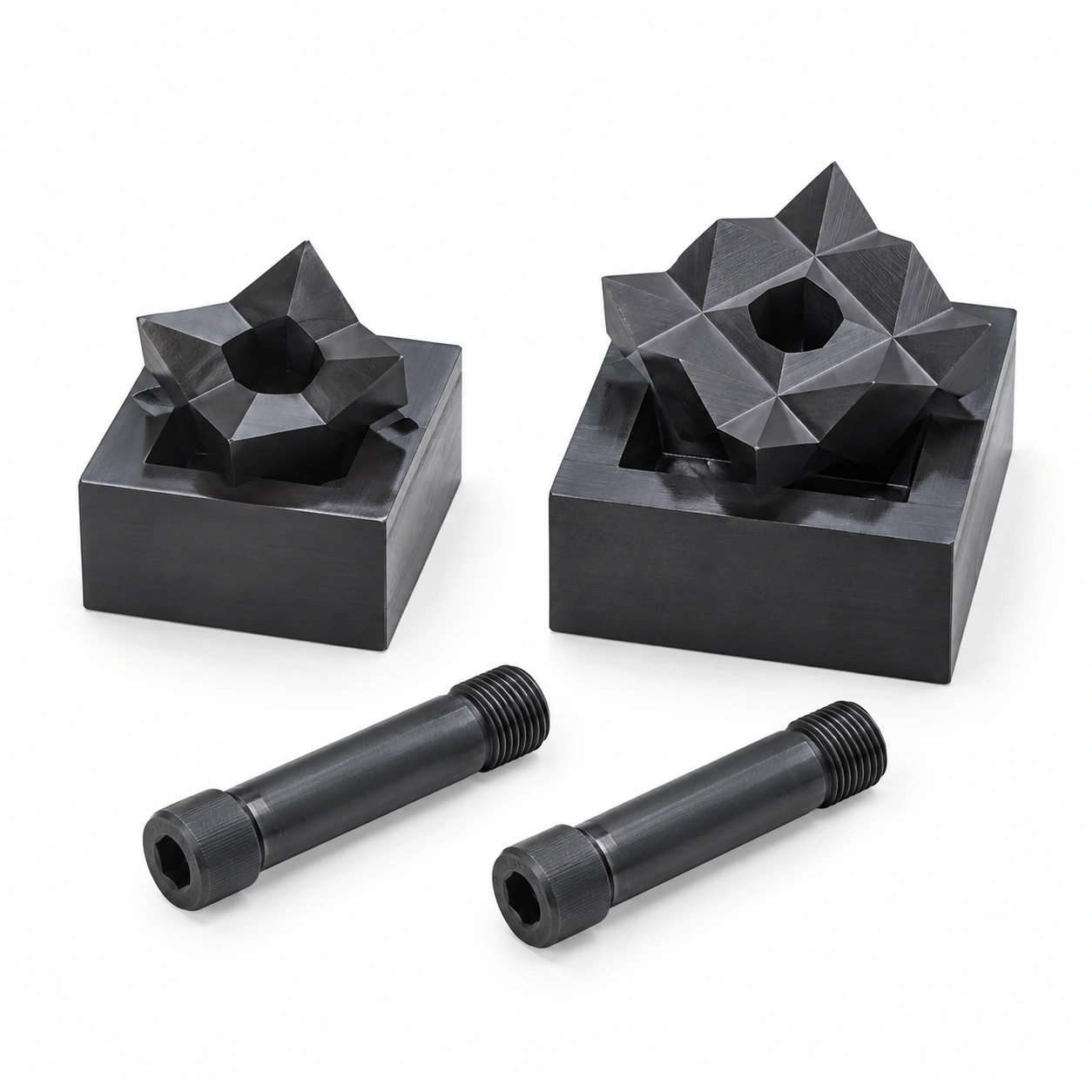

F Square Dies
Punch Dies
F1: 32×32; F2: 46.5×46.5; F3: 76.5×76.5; F4: 80.5×80.5; F5: 90.5×90.5; F6: 113×113; F7: 151×151 mm
View specificationsEnquire about F Square Dies
Choose the tool and working range.
Open each product family to compare the supplied catalog specifications and model-specific limits.
Battery Crimpers — 2 models / ranges
EC-300
| Parameter | Catalog specification |
|---|---|
| Application / working range | 16–300 mm² |
| AWG / MCM reference | 6 AWG–500 MCM (catalog) |
| Force / output | 60 kN |
| Stroke | 17 mm |
| Crimps per charge | 320 at Cu 150 mm² |
| Crimping cycle | 3–6 s, cable-size dependent |
| Voltage | 18 V |
| Battery capacity | 3.0 Ah |
| Charging time | 2 h |
| Die selection | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm² |
| Case / packaging | Aluminium alloy combination-lock case |
| Weight | 5 kg |
| Catalog features | 360° head rotation; two-stage hydraulics; automatic retraction; manual retraction available |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
EC-400
| Parameter | Catalog specification |
|---|---|
| Application / working range | 16–400 mm² |
| AWG / MCM reference | 6 AWG–600 MCM (catalog) |
| Force / output | 120 kN |
| Stroke | 38 mm |
| Crimps per charge | 120 at Cu 150 mm² |
| Crimping cycle | 9–18 s, cable-size dependent |
| Voltage | 18 V |
| Battery capacity | 5.0 Ah |
| Charging time | 90 min |
| Die selection | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² |
| Case / packaging | Plastic case |
| Weight | 8 kg |
| Catalog features | 360° head rotation; two-stage hydraulics; automatic retraction; manual retraction available |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
Manual Crimpers — 16 models / ranges
YQK-120A
| Parameter | Catalog specification |
|---|---|
| Application / working range | Al: 10–120; Cu: 16–120 mm² |
| Force / output | 8 ton |
| Stroke | 13 mm |
| Die selection | 16, 25, 35, 50, 70, 95, 120 mm² |
| Weight | 4.8 kg |
| Packing dimensions | 545 × 130 × 235 mm |
| Case / packaging | Plastic case |
| Catalog features | Hexagonal or model-specific interchangeable dies |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
YQK-240A
| Parameter | Catalog specification |
|---|---|
| Application / working range | Al: 10–185; Cu: 16–240 mm² |
| Force / output | 8 ton |
| Stroke | 16 mm |
| Die selection | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm² |
| Weight | 4.8 kg |
| Packing dimensions | 545 × 130 × 235 mm |
| Case / packaging | Plastic case |
| Catalog features | Hexagonal or model-specific interchangeable dies |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.

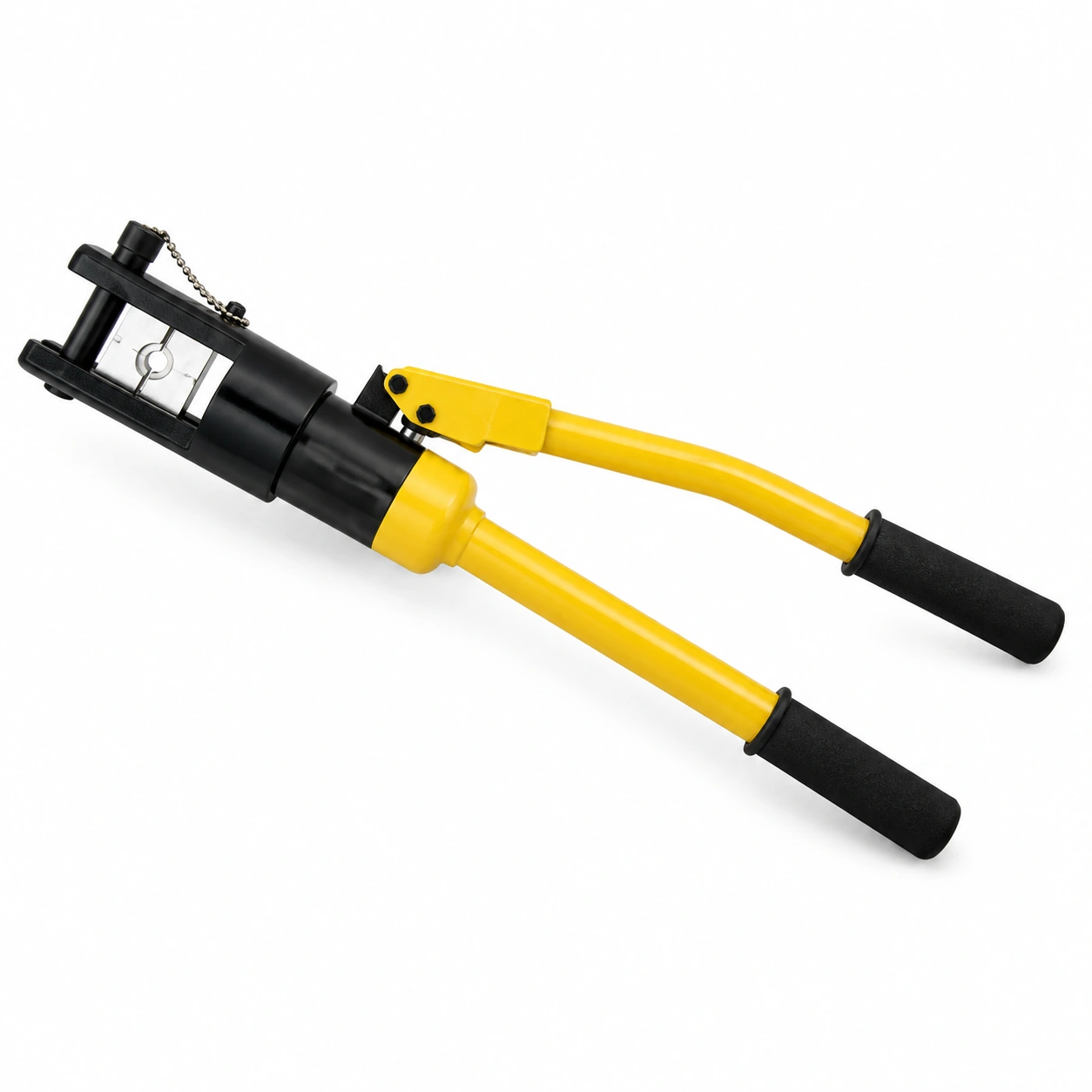

YQK-300A
| Parameter | Catalog specification |
|---|---|
| Application / working range | Al: 10–185; Cu: 16–300 mm² |
| Force / output | 8 ton |
| Stroke | 16 mm |
| Die selection | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm² |
| Weight | 6.4 kg |
| Packing dimensions | 755 × 130 × 230 mm |
| Case / packaging | Plastic case |
| Catalog features | Hexagonal or model-specific interchangeable dies |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.

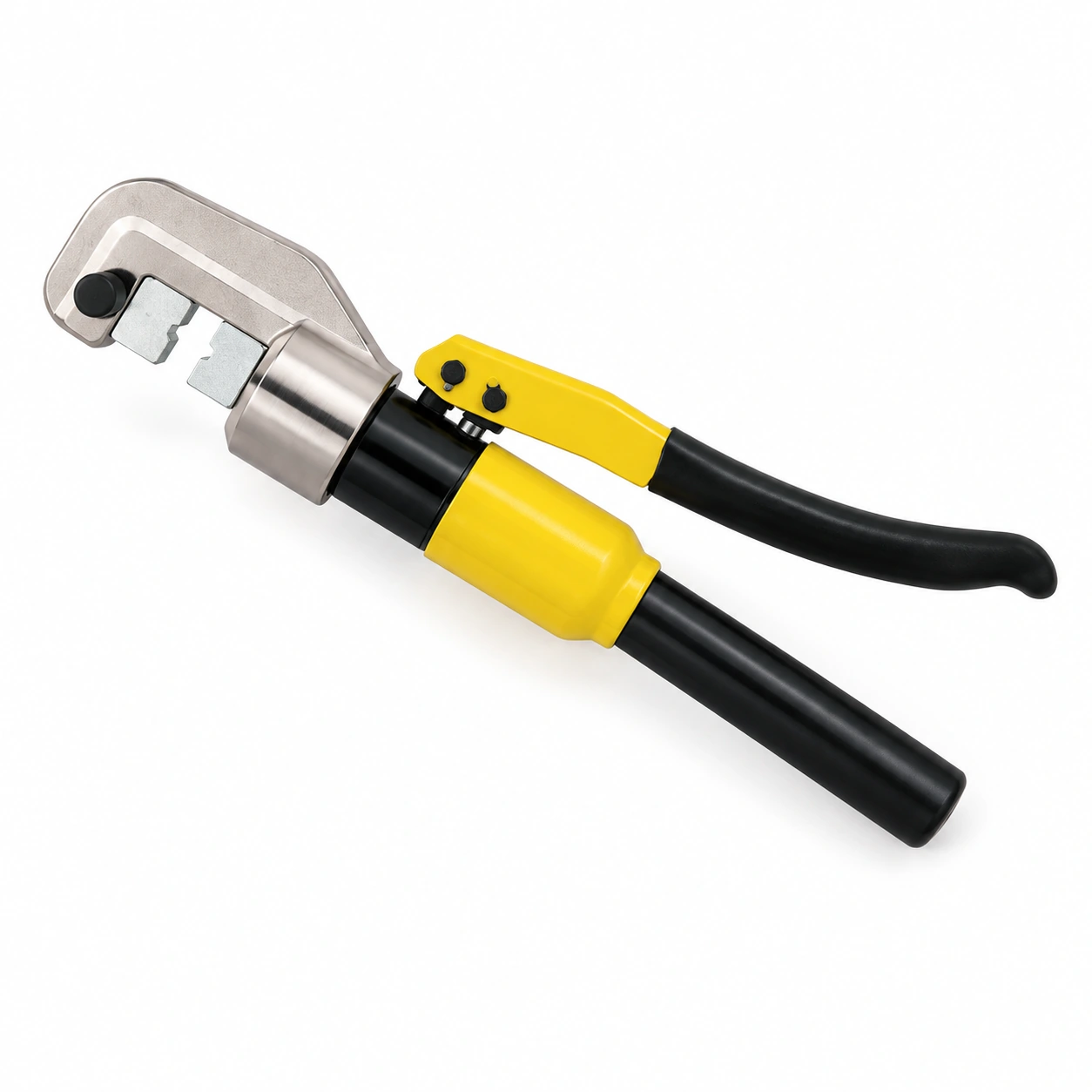

YQK-70
| Parameter | Catalog specification |
|---|---|
| Application / working range | 6–70 mm² |
| Force / output | 6 ton |
| Stroke | 10 mm |
| Die selection | Catalog die groups: 8–38, 60–70; 14–22, 38–60, 70 mm² |
| Weight | 2.5 kg |
| Packing dimensions | 545 × 130 × 235 mm |
| Case / packaging | Plastic case |
| Catalog features | Hexagonal or model-specific interchangeable dies |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
EP-410
| Parameter | Catalog specification |
|---|---|
| Application / working range | Al: 35–240; Cu: 50–300 mm² |
| Force / output | 12 ton |
| Stroke | 30 mm |
| Die selection | 50, 70, 95, 120, 150, 185, 240, 300 mm² |
| Weight | 6.6 kg |
| Packing dimensions | 755 × 130 × 230 mm |
| Case / packaging | Plastic case |
| Catalog features | 180° head rotation stated in catalog; check exact model instructions |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
EP-430
| Parameter | Catalog specification |
|---|---|
| Application / working range | Al: 35–300; Cu: 50–400 mm² |
| Force / output | 12 ton |
| Stroke | 32 mm |
| Die selection | 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² |
| Weight | 6.4 kg |
| Packing dimensions | 755 × 130 × 230 mm |
| Case / packaging | Plastic case |
| Catalog features | Hexagonal or model-specific interchangeable dies |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
ZYO-400
| Parameter | Catalog specification |
|---|---|
| Application / working range | Al: 50–300; Cu: 70–400 mm² |
| Force / output | 12 ton |
| Stroke | 16 mm |
| Die selection | 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² |
| Weight | 5.5 kg |
| Packing dimensions | 545 × 130 × 235 mm |
| Case / packaging | Plastic case |
| Catalog features | Hexagonal or model-specific interchangeable dies |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
ZHO-300
| Parameter | Catalog specification |
|---|---|
| Application / working range | Al: 35–240; Cu: 16–300 mm² |
| Force / output | 10 ton |
| Stroke | 16 mm |
| Die selection | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm² |
| Weight | 4.5 kg |
| Packing dimensions | 545 × 130 × 235 mm |
| Case / packaging | Plastic case |
| Catalog features | Hexagonal or model-specific interchangeable dies |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CPO-150S
| Parameter | Catalog specification |
|---|---|
| Application / working range | Al: 8–100; Cu: 16–150 mm² |
| Force / output | 10 ton |
| Stroke | 14 mm |
| Die selection | 16, 25, 35, 50, 70, 95, 120, 150 mm² |
| Weight | 4.8 kg |
| Packing dimensions | 545 × 130 × 235 mm |
| Case / packaging | Plastic case |
| Catalog features | 180° head rotation stated in catalog; check exact model instructions |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CYO-300C
| Parameter | Catalog specification |
|---|---|
| Application / working range | Al: 35–240; Cu: 50–300 mm² |
| Force / output | 12 ton |
| Stroke | 30 mm |
| Die selection | 50, 70, 95, 120, 150, 185, 240, 300 mm² |
| Weight | 6.2 kg |
| Packing dimensions | 545 × 130 × 235 mm |
| Case / packaging | Plastic case |
| Catalog features | Hexagonal or model-specific interchangeable dies |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
ZCO-300
| Parameter | Catalog specification |
|---|---|
| Application / working range | Al: 10–240; Cu: 16–300 mm² |
| Force / output | 10 ton |
| Stroke | 30 mm |
| Die selection | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm² |
| Weight | 5 kg |
| Packing dimensions | 545 × 130 × 235 mm |
| Case / packaging | Plastic case |
| Catalog features | Hexagonal or model-specific interchangeable dies |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
ZCO-400
| Parameter | Catalog specification |
|---|---|
| Application / working range | Al: 50–300; Cu: 70–400 mm² |
| Force / output | 12 ton |
| Stroke | 32 mm |
| Die selection | 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² |
| Weight | 6.5 kg |
| Packing dimensions | 545 × 130 × 235 mm |
| Case / packaging | Plastic case |
| Catalog features | Hexagonal or model-specific interchangeable dies |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
HT-51
| Parameter | Catalog specification |
|---|---|
| Application / working range | 10–240 mm² |
| Force / output | 8 ton |
| Stroke | 16 mm |
| Die selection | 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm² |
| Weight | 2.75 kg |
| Packing dimensions | 380 × 130 × 70 mm |
| Case / packaging | Plastic case |
| Catalog features | 180° head rotation stated in catalog; check exact model instructions |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
QZD-300A
| Parameter | Catalog specification |
|---|---|
| Application / working range | 16–300 mm² |
| Force / output | 11 ton |
| Stroke | 17 mm |
| Die selection | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm² |
| Weight | 5.0 kg |
| Packing dimensions | 690 × 250 × 120 mm |
| Case / packaging | Aluminium alloy combination-lock case |
| Catalog features | 180° head rotation stated in catalog; check exact model instructions |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
QZD-400A
| Parameter | Catalog specification |
|---|---|
| Application / working range | 16–400 mm² |
| Force / output | 11 ton |
| Stroke | 16 mm |
| Die selection | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² |
| Weight | 6.2 kg |
| Packing dimensions | 690 × 250 × 120 mm |
| Case / packaging | Steel case |
| Catalog features | 180° head rotation stated in catalog; check exact model instructions |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
HT-300
| Parameter | Catalog specification |
|---|---|
| Application / working range | Not stated on the supplied overview page |
| Force / output | Not stated on the supplied overview page |
| Catalog features | Catalog overview: two-speed operation; 180° head rotation; aluminium alloy handles; automatic pressure release / return description; anti-slip grips |
| Selection note | Request the complete HT-300 datasheet before selecting capacity or dies |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
Cable Cutters — 6 models / ranges
CPC-100A
| Parameter | Catalog specification |
|---|---|
| Application / working range | Armoured Al/Cu cable Ø75 mm; Al/Cu cable Ø100 mm |
| Force / output | 9 ton |
| Length | 590 mm |
| Weight | 13 kg |
| Packing dimensions | 600 × 90 × 240 mm |
| Case / packaging | Wooden case |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CPC-50B
| Parameter | Catalog specification |
|---|---|
| Application / working range | Steel wire Ø30 mm; Al/Cu cable Ø50 mm; ACSR Ø50 mm |
| Force / output | 9 ton |
| Length | 310 mm |
| Weight | 3 kg |
| Packing dimensions | 355 × 90 × 195 mm |
| Case / packaging | Steel case |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CC-50B
| Parameter | Catalog specification |
|---|---|
| Application / working range | Electrical wire Ø50 mm; telephone or Al/Cu cable Ø50 mm |
| Force / output | 12 ton |
| Length | 445 mm |
| Weight | 6 kg |
| Packing dimensions | 355 × 90 × 195 mm |
| Case / packaging | Steel case |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
HT-50A
| Parameter | Catalog specification |
|---|---|
| Application / working range | Steel wire Ø30 mm; Al/Cu cable Ø50 mm; ACSR Ø50 mm |
| Force / output | 7 ton |
| Length | 620 mm |
| Weight | 6.2 kg |
| Packing dimensions | 755 × 130 × 205 mm |
| Case / packaging | Plastic case |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CPC-40A
| Parameter | Catalog specification |
|---|---|
| Application / working range | Steel wire Ø25 mm; Al/Cu cable Ø40 mm; ACSR Ø40 mm |
| Force / output | 7 ton |
| Length | 650 mm |
| Weight | 6 kg |
| Packing dimensions | 755 × 130 × 230 mm |
| Case / packaging | Plastic case |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CPC-85
| Parameter | Catalog specification |
|---|---|
| Application / working range | Armoured Al/Cu cable Ø50 mm; Al/Cu cable Ø85 mm |
| Force / output | 7 ton |
| Length | 710 mm |
| Weight | 7.5 kg |
| Packing dimensions | 755 × 130 × 230 mm |
| Case / packaging | Wooden case |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
Split Crimping Heads — 8 models / ranges
FYQ-400
| Parameter | Catalog specification |
|---|---|
| Application / working range | 50–400 mm² |
| Force / output | 16 ton |
| Stroke | 20 mm |
| Die selection | 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² |
| Weight | 9 kg |
| Packing dimensions | 355 × 90 × 155 mm |
| Hydraulic coupling | PT 3/8″ (catalog) |
| Pump compatibility | Compatible hand, foot or electric hydraulic pump; confirm pressure and return circuit |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CYO-400B
| Parameter | Catalog specification |
|---|---|
| Application / working range | 50–400 mm² |
| Force / output | 12 ton |
| Stroke | 32 mm |
| Die selection | 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² |
| Weight | 5 kg |
| Packing dimensions | 355 × 90 × 155 mm |
| Hydraulic coupling | PT 3/8″ (catalog) |
| Pump compatibility | Compatible hand, foot or electric hydraulic pump; confirm pressure and return circuit |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
EP-410H
| Parameter | Catalog specification |
|---|---|
| Application / working range | 50–300 mm² |
| Force / output | 12 ton |
| Stroke | 30 mm |
| Die selection | 35, 50, 70, 95, 120, 150, 185, 240, 300 mm² |
| Weight | 4.8 kg |
| Packing dimensions | 355 × 90 × 155 mm |
| Hydraulic coupling | PT 3/8″ (catalog) |
| Pump compatibility | Compatible hand, foot or electric hydraulic pump; confirm pressure and return circuit |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
EP-510H
| Parameter | Catalog specification |
|---|---|
| Application / working range | 50–400 mm² |
| Force / output | 13 ton |
| Stroke | 38 mm |
| Die selection | 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² |
| Weight | 5.6 kg |
| Packing dimensions | 355 × 90 × 155 mm |
| Hydraulic coupling | PT 3/8″ (catalog) |
| Pump compatibility | Compatible hand, foot or electric hydraulic pump; confirm pressure and return circuit |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
FYQ-300
| Parameter | Catalog specification |
|---|---|
| Application / working range | 16–300 mm² |
| Force / output | 17 ton |
| Stroke | 22 mm |
| Die selection | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm² |
| Weight | 12 kg |
| Packing dimensions | 355 × 90 × 155 mm |
| Hydraulic coupling | Confirm selected coupling |
| Pump compatibility | Compatible hand, foot or electric hydraulic pump; confirm pressure and return circuit |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
FYQ-500B
| Parameter | Catalog specification |
|---|---|
| Application / working range | 50–500 mm² |
| Force / output | 22 ton |
| Stroke | 22 mm |
| Die selection | 50, 75, 95, 120, 150, 185, 240, 300, 400, 500 mm² |
| Weight | 20 kg |
| Packing dimensions | Not stated |
| Hydraulic coupling | Confirm selected coupling |
| Pump compatibility | Compatible hand, foot or electric hydraulic pump; confirm pressure and return circuit |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
FYQ-630A
| Parameter | Catalog specification |
|---|---|
| Application / working range | 150–630 mm² |
| Force / output | 25 ton |
| Stroke | 25 mm |
| Die selection | 150, 185, 240, 300, 400, 500, 630 mm² |
| Weight | 28 kg |
| Packing dimensions | Not stated |
| Hydraulic coupling | Confirm selected coupling |
| Pump compatibility | Compatible hand, foot or electric hydraulic pump; confirm pressure and return circuit |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CO-630B
| Parameter | Catalog specification |
|---|---|
| Application / working range | 150–630 mm² |
| Force / output | 35 ton |
| Stroke | 26 mm |
| Die selection | 150, 185, 240, 300, 400, 500, 630 mm² |
| Weight | 17.5 kg |
| Packing dimensions | 380 × 295 × 145 mm |
| Hydraulic coupling | Confirm selected coupling |
| Pump compatibility | Compatible hand, foot or electric hydraulic pump; confirm pressure and return circuit |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
Hydraulic Pumps — 5 models / ranges
CP-700
| Parameter | Catalog specification |
|---|---|
| Pressure | Low: 20 kg/cm²; high: 700 kg/cm² (catalog) |
| Oil output / flow | Low: 13 cc; high: 2.3 cc |
| Reservoir capacity | 900 cc |
| Weight | 9.5 kg |
| Dimensions | 630 × 200 × 200 mm |
| Case / packaging | Carton |
| Maintenance / operation | Catalog specifies pressure-hold capability, internal pressure protection and oil replacement every six months; confirm servicing instructions |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CP-700-2A
| Parameter | Catalog specification |
|---|---|
| Pressure | Low: 20 kg/cm²; high: 700 kg/cm² (catalog) |
| Oil output / flow | Low: 13 cc; high: 2.3 cc |
| Reservoir capacity | 2100 cc |
| Weight | 11.4 kg |
| Dimensions | 740 × 185 × 265 mm |
| Case / packaging | Carton |
| Maintenance / operation | Catalog specifies pressure-hold capability, internal pressure protection and oil replacement every six months; confirm servicing instructions |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CFP-800-1
| Parameter | Catalog specification |
|---|---|
| Pressure | Low: 20 kg/cm²; high: 700 kg/cm² (catalog) |
| Oil output / flow | Low: 13 cc; high: 2.3 cc |
| Reservoir capacity | 700 cc |
| Weight | 10 kg |
| Dimensions | 660 × 200 × 300 mm |
| Case / packaging | Carton |
| Maintenance / operation | Catalog specifies pressure-hold capability, internal pressure protection and oil replacement every six months; confirm servicing instructions |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
ZH700A
| Parameter | Catalog specification |
|---|---|
| Voltage | AC 220 V, 50 Hz |
| Motor power | 0.75 kW |
| Pressure | Low: 2.5 MPa; high / maximum: 70 MPa |
| Oil output / flow | Low: 1.5 L/min; high: 6 L/min (catalog labels) |
| Reservoir capacity | 8 L |
| Dimensions | 300 × 240 × 380 mm |
| Weight | 22 kg |
| Hydraulic coupling | PT 3/8″ |
| Selection note | Low/high flow labels are retained as printed; request the current pressure-flow curve and A/B configuration details |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
ZH700B
| Parameter | Catalog specification |
|---|---|
| Voltage | AC 220 V, 50 Hz |
| Motor power | 0.75 kW |
| Pressure | Low: 2.5 MPa; high / maximum: 70 MPa |
| Oil output / flow | Low: 1.5 L/min; high: 6 L/min (catalog labels) |
| Reservoir capacity | 8 L |
| Dimensions | 300 × 240 × 380 mm |
| Weight | 22 kg |
| Hydraulic coupling | PT 3/8″ |
| Selection note | Low/high flow labels are retained as printed; request the current pressure-flow curve and A/B configuration details |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
Busbar Tools — 4 models / ranges
CB-150D
| Parameter | Catalog specification |
|---|---|
| Material | Copper / aluminium busbar |
| Maximum material thickness | 10 mm |
| Force / output | 16 T |
| Pressure | 500 kg/cm² |
| Material width | 150 mm |
| Bending angle | 90° |
| Weight | 18 kg |
| Case / packaging | Carton |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CB-200A
| Parameter | Catalog specification |
|---|---|
| Material | Copper / aluminium busbar |
| Maximum material thickness | 12 mm |
| Force / output | 20 T |
| Pressure | 700 kg/cm² |
| Material width | 200 mm |
| Bending angle | 90° |
| Weight | 24 kg |
| Case / packaging | Carton |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CWC-150
| Parameter | Catalog specification |
|---|---|
| Material | Copper / aluminium busbar |
| Force / output | 20 T |
| Material width | 150 mm |
| Maximum material thickness | 10 mm |
| Weight | 30 kg |
| Packing dimensions | 340 × 250 × 450 mm |
| Case / packaging | Carton |
| Selection note | Confirm V-blade geometry and pump requirements for the supplied cutter |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CWC-200
| Parameter | Catalog specification |
|---|---|
| Material | Copper / aluminium busbar |
| Force / output | 20 T |
| Material width | 200 mm |
| Maximum material thickness | 10 mm |
| Weight | 35 kg |
| Packing dimensions | 390 × 270 × 470 mm |
| Case / packaging | Carton |
| Selection note | Confirm V-blade geometry and pump requirements for the supplied cutter |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
Punch Tools — 4 models / ranges
CH-60
| Parameter | Catalog specification |
|---|---|
| Application / working range | Copper sheet 10 mm; metal sheet 6 mm |
| Force / output | 31 T |
| Stroke | 95 mm |
| Die selection | 3/8″ (Ø10.5), 1/2″ (Ø13.8), 5/8″ (Ø17.3), 3/4″ (Ø20.5) mm as catalog |
| Weight | 17.5 kg |
| Packing dimensions | 390 × 250 × 140 mm |
| Case / packaging | Carton |
| Pump compatibility | Compatible separate hand, foot or electric pump |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
CH-70
| Parameter | Catalog specification |
|---|---|
| Application / working range | Copper sheet 12 mm; metal sheet 10 mm |
| Force / output | 35 T |
| Stroke | 110 mm |
| Die selection | 3/8″ (Ø10.5), 1/2″ (Ø13.8), 5/8″ (Ø17.3), 3/4″ (Ø20.5) mm as catalog |
| Weight | 34.5 kg |
| Packing dimensions | 470 × 340 × 240 mm |
| Case / packaging | Carton |
| Pump compatibility | Compatible separate hand, foot or electric pump |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
SYK-8B
| Parameter | Catalog specification |
|---|---|
| Application / working range | Iron sheet ≤3 mm; holes Ø22–60 mm |
| Force / output | 10 T |
| Stroke | 25 mm |
| Die selection | Ø20, Ø27.5, Ø34, Ø43, Ø49, Ø60 mm |
| Reservoir capacity | 40 cc |
| Weight | 5.4 kg |
| Case / packaging | Steel case |
| Accessories | CP-180 hand pump; 3/8″ and 3/4″ draw bolts (catalog) |
| Selection note | Body text mentions below 4 mm sheet; parameter table specifies iron sheet below 3 mm. Use the table and confirm material-specific limits |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
SYK-15
| Parameter | Catalog specification |
|---|---|
| Application / working range | Iron sheet ≤3 mm; holes Ø63–114 mm |
| Force / output | 15 T |
| Stroke | 25 mm |
| Die selection | Ø63, Ø76, Ø80, Ø89, Ø100, Ø114 mm |
| Reservoir capacity | 55 cc |
| Weight | 6.2 kg |
| Case / packaging | Steel case |
| Accessories | CP-180 hand pump; 3/8″ and 3/4″ draw bolts (catalog) |
| Selection note | Body text mentions below 4 mm sheet; parameter table specifies iron sheet below 3 mm. Use the table and confirm material-specific limits |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
Busbar Processors — 2 models / ranges
DHY-150
| Parameter | Catalog specification |
|---|---|
| Functions | Cutting, punching and bending of copper / aluminium busbars |
| Voltage | Single phase 220 V, 50 Hz |
| Pressure | 700 kg/cm² |
| Force / output | 20 T |
| Application / working range | 150 mm width × 10 mm thickness |
| Punching force | 30 T |
| Throat depth | 95 mm |
| Selection note | Confirm working width and the supplied cutting, punching and bending station configuration |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
DHY-200
| Parameter | Catalog specification |
|---|---|
| Functions | Cutting, punching and bending of copper / aluminium busbars |
| Voltage | Single phase 220 V, 50 Hz |
| Pressure | 700 kg/cm² |
| Force / output | 30 T |
| Application / working range | 200 mm width × 10 mm thickness |
| Punching force | 35 T |
| Throat depth | 95 mm |
| Selection note | Confirm working width and the supplied cutting, punching and bending station configuration |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
Punch Dies — 3 models / ranges
MAP10-4
| Parameter | Catalog specification |
|---|---|
| Hole diameters | 2 1/2″ (76.1), 3″ (88.9), 3 1/2″ (102.9), 4″ (115.5) mm |
| Selection note | Confirm draw bolt, nut and punch compatibility |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
MS Square Dies
| Parameter | Catalog specification |
|---|---|
| Available die sizes | MS46×46: 46×46 mm; MS50.8×50.8: 50.8×50.8 mm; MS68×68: 68×68 mm; MS92×92: 92×92 mm; MS104.8×104.8: 104.8×104.8 mm |
| Selection note | Image represents the illustrated square die family; confirm each selected size |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
F Square Dies
| Parameter | Catalog specification |
|---|---|
| Available die sizes | F1: 32×32; F2: 46.5×46.5; F3: 76.5×76.5; F4: 80.5×80.5; F5: 90.5×90.5; F6: 113×113; F7: 151×151 mm |
| Selection note | Special sizes may be discussed against order quantity |
Confirm the current specification, selected accessories and material-specific limits for the quoted configuration.
Cu = copper; Al = aluminium; ACSR = aluminium conductor steel reinforced. Units and values retain the catalog references. Pressure shown in kg/cm² is retained as printed. Battery cycle and charge figures are model-specific catalog figures. Select pumps, hoses, couplings, dies and return circuits as a compatible system.
Match the material and the system.
Start with the actual workpiece, then confirm capacity, tooling and supply requirements.
Workpiece & material
Specify copper or aluminium terminals, cable construction, busbar dimensions or sheet material. Do not apply a copper limit to aluminium, armoured cable or steel wire.
Tool capacity
Compare force, stroke, conductor section, cable diameter, sheet thickness and working width for the exact selected model.
Dies & accessories
Specify crimp profile, die sizes, draw bolts and hole shapes. Check the selected terminal or workpiece drawing against the tooling.
Pump & power supply
Confirm hydraulic pressure, coupling, hose, return circuit and oil requirements. For battery and electric equipment, include charging or mains supply requirements.
Send your hydraulic tool requirements.
Share model references, workpiece dimensions, quantities and accessories.
Prepare an enquiryPrepare a model-by-model order.
Agree the tool, accessories and installation requirements before procurement.
Explore manufacturingModel schedule
List each model, working material, capacity and quantity. Include die sets, pumps, hoses, couplings, batteries and chargers as applicable.
Application requirements
Provide terminal drawings, cable construction, busbar or sheet dimensions, worksite access and available power supply.
Documentation & samples
Request current model data, operating and maintenance instructions. Agree sample or workpiece evaluation and the evidence required for the selected operation.
OEM & PACKING
Your specification.
Your packing plan.
Build the supply plan around your selected hydraulic tools and kits.
Tool configuration
Confirm model, dies, hydraulic circuit and utility requirements. Identify included and optional accessories.
Labels & identification
Discuss available tool labels, part references and packaging artwork for your chosen configuration.
Cases & delivery
Select the listed case or packing option where applicable. Confirm kit contents, carton dimensions, quantities and destination in the quotation.
Hydraulic Tools
buying questions.
Can I use one crimping range for copper and aluminium?
Compare the separate Cu and Al capacities in the selected model’s specifications. Several models list different ranges for the two terminal materials.
Can every cutter cut steel wire or armoured cable?
No. Check the stated cable construction and diameter. Steel-wire, ACSR, armoured cable and plain Al/Cu cable limits vary by model.
How do I match a split head and pump?
Confirm working pressure, coupling thread, hose rating, return circuit and oil requirements for the complete system before ordering.
Are battery cycle figures guaranteed for every cable?
The catalog gives model-specific figures and test conditions. Crimping time and crimps per charge depend on workpiece size and conditions.
What should I send for a quotation?
Send the model list, material and dimensions, quantities, selected dies or accessories, utility supply and packaging requirements.
