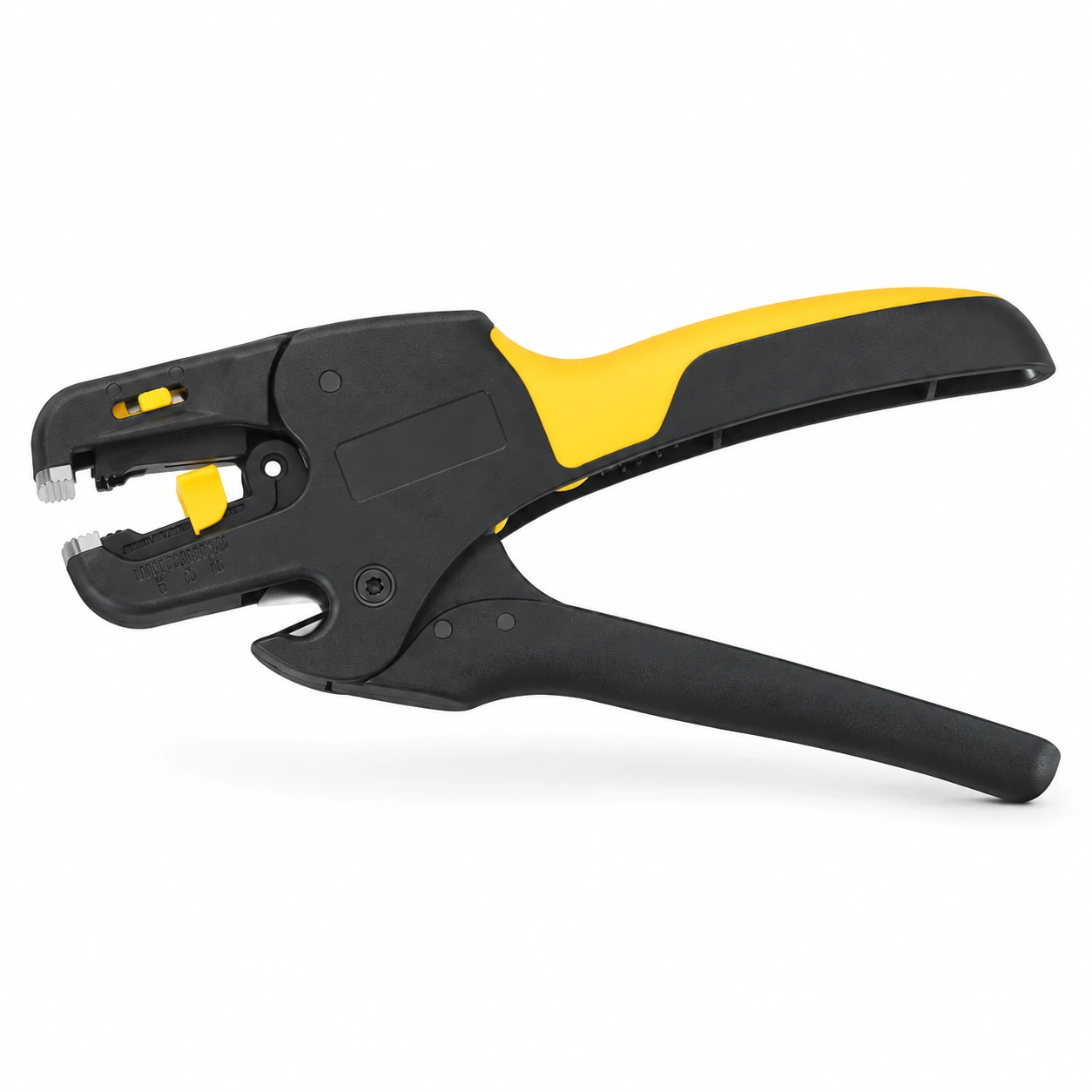

FS-D4 Wire Stripper
SV.020001
Stripping: 0.08–10 mm²
Length: 190 mm · Weight: 0.15 kg

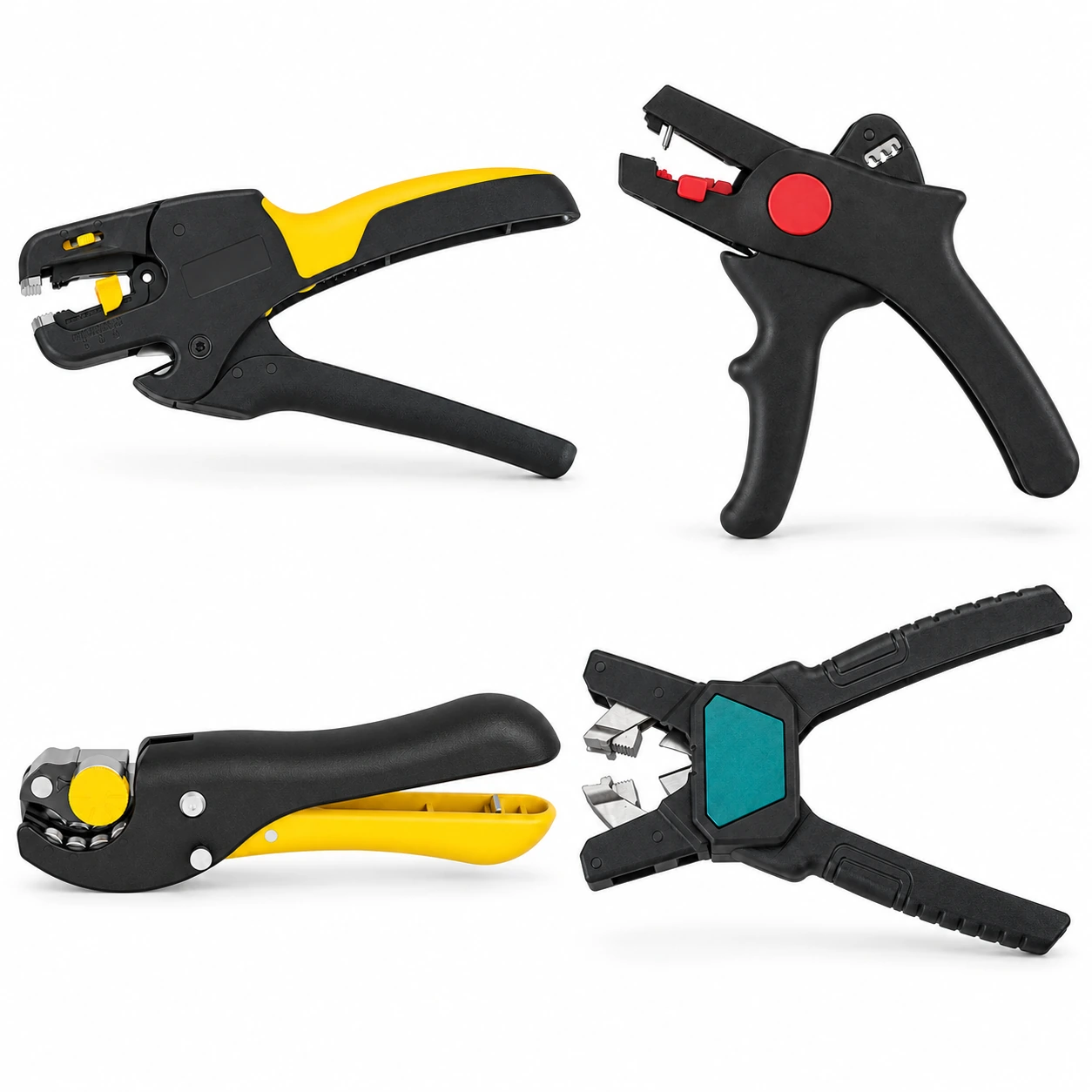

Stripping Tools
for Wire & Cable
Match the stripping tool to your conductor and insulation. Compare eleven wire strippers and cable jacket tools from TONFUL Electric, then confirm the stripping range, cutting capacity and assembly requirements for your selected model.
Stripping Tools series
Compare all eleven models

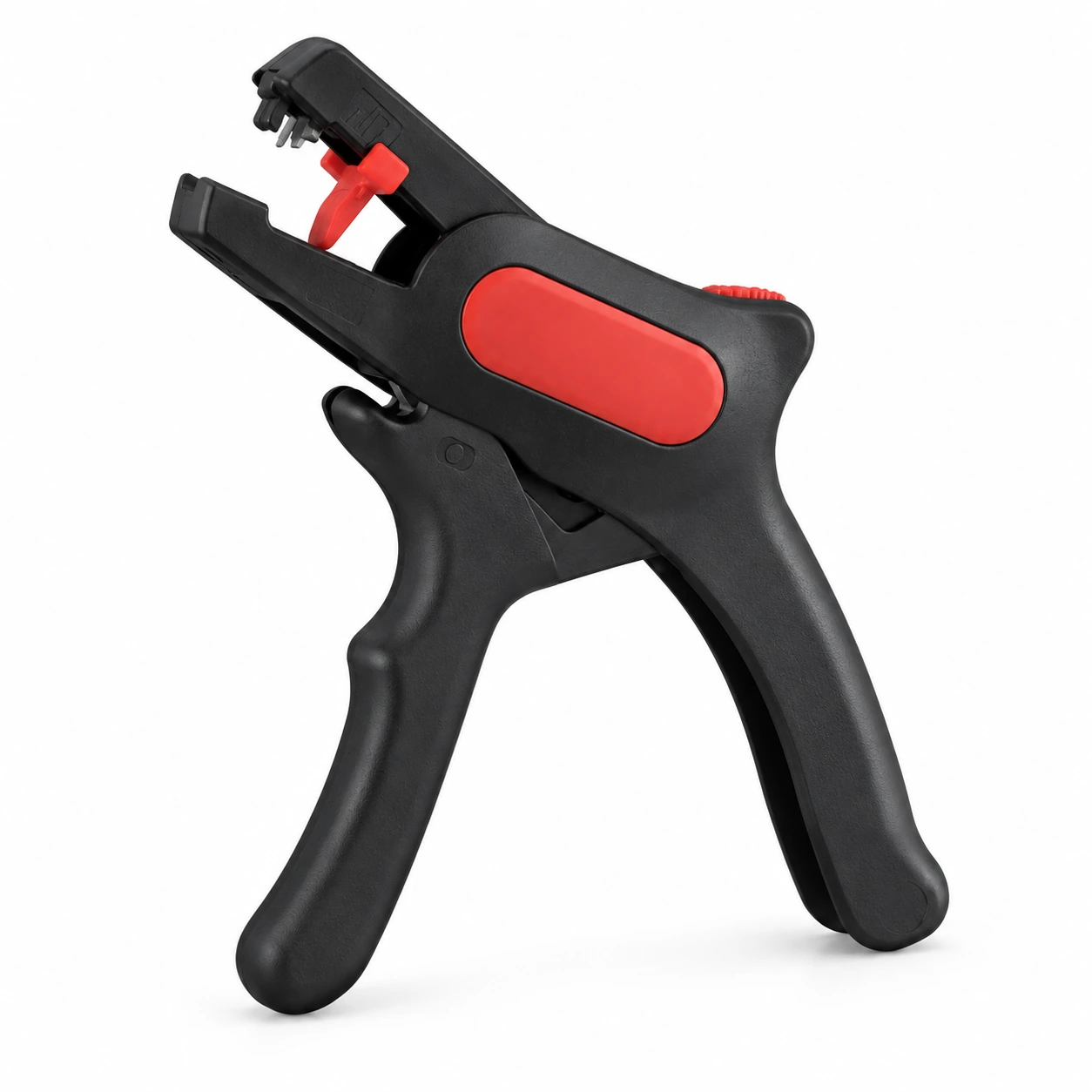

FS-D6 Wire Stripper
SV.020012
Stripping: 0.5–6 mm²
Length: 200 mm · Weight: 0.15 kg

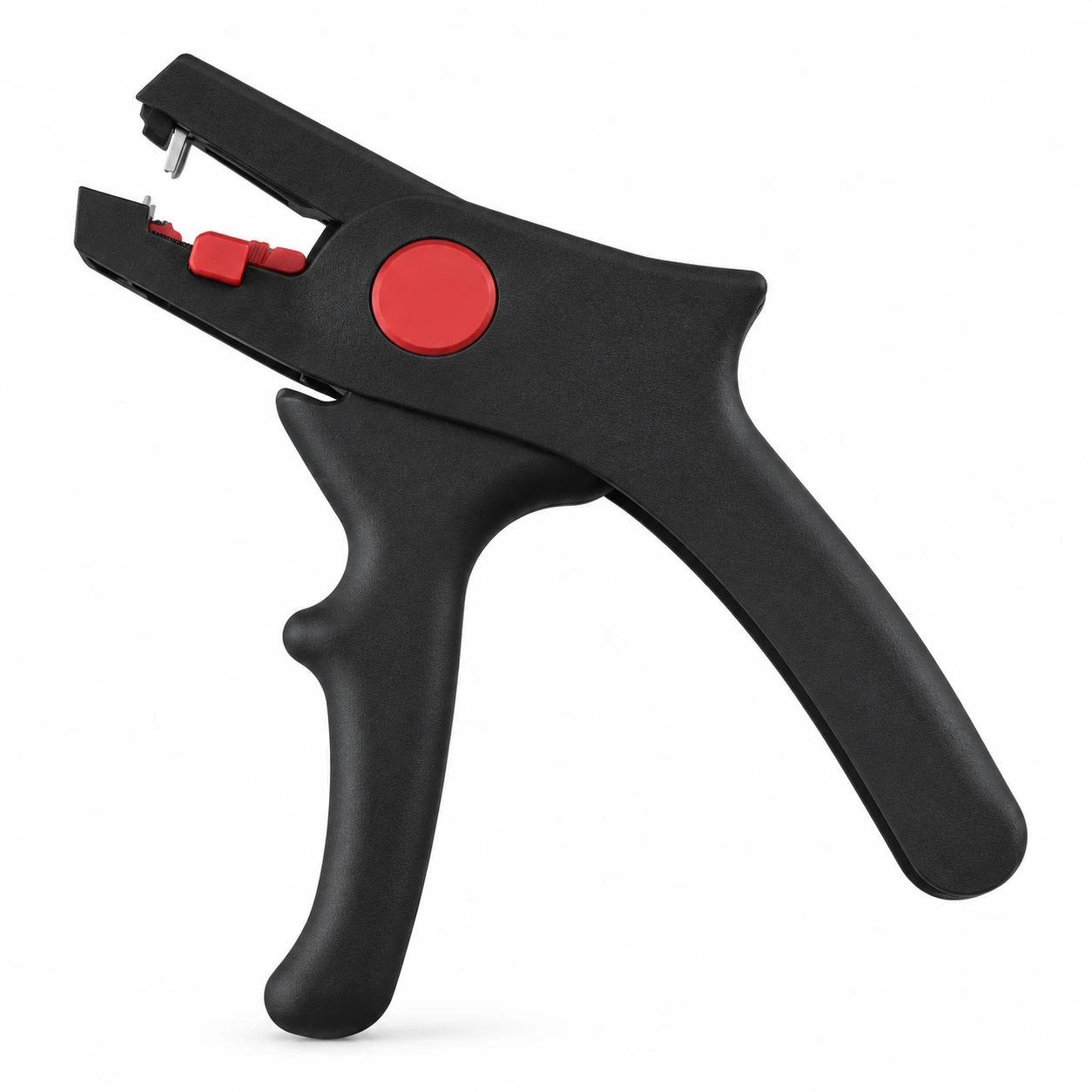

FS-D5 Wire Stripper
SV.020003
Stripping: 0.5–6 mm²
Length: 190 mm · Weight: 0.12 kg

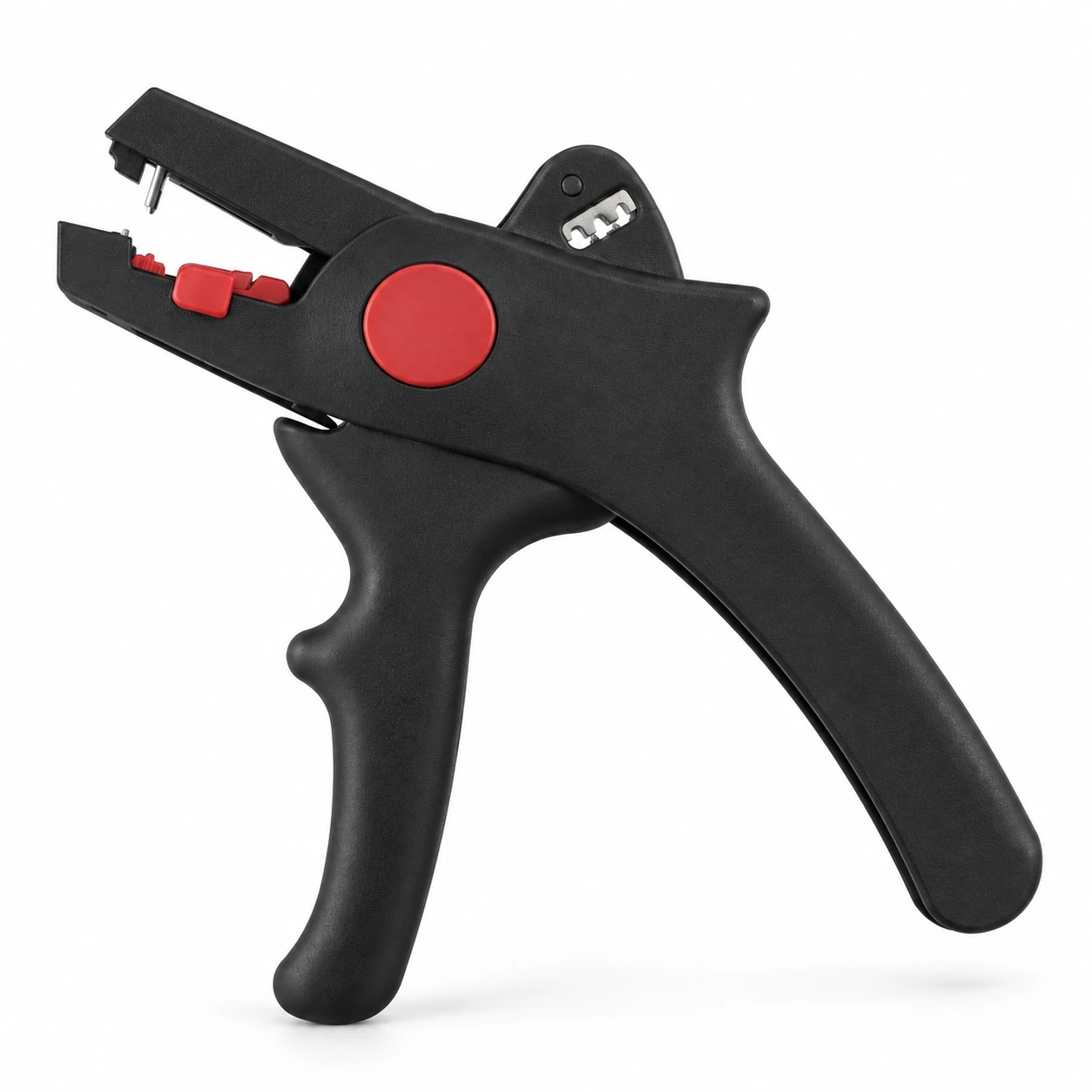

FS-D5Y Wire Stripper
SV.020004
Stripping: 0.5–6 mm²
Length: 190 mm · Weight: 0.12 kg
Crimping: 0.25–2.5 mm²

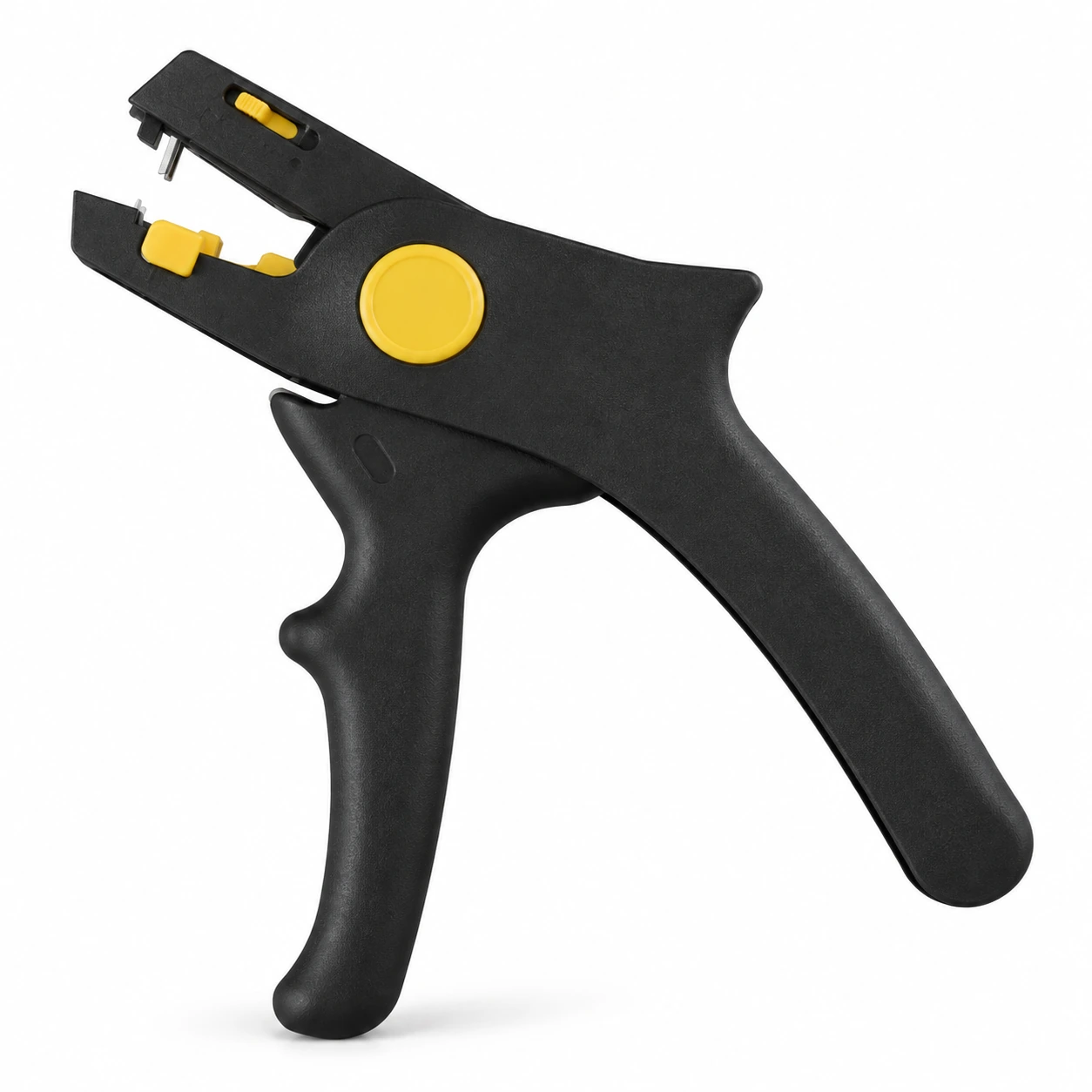

FS-D5T Wire Stripper
SV.020005
Stripping: 0.5–10 mm²
Length: 190 mm · Weight: 0.12 kg

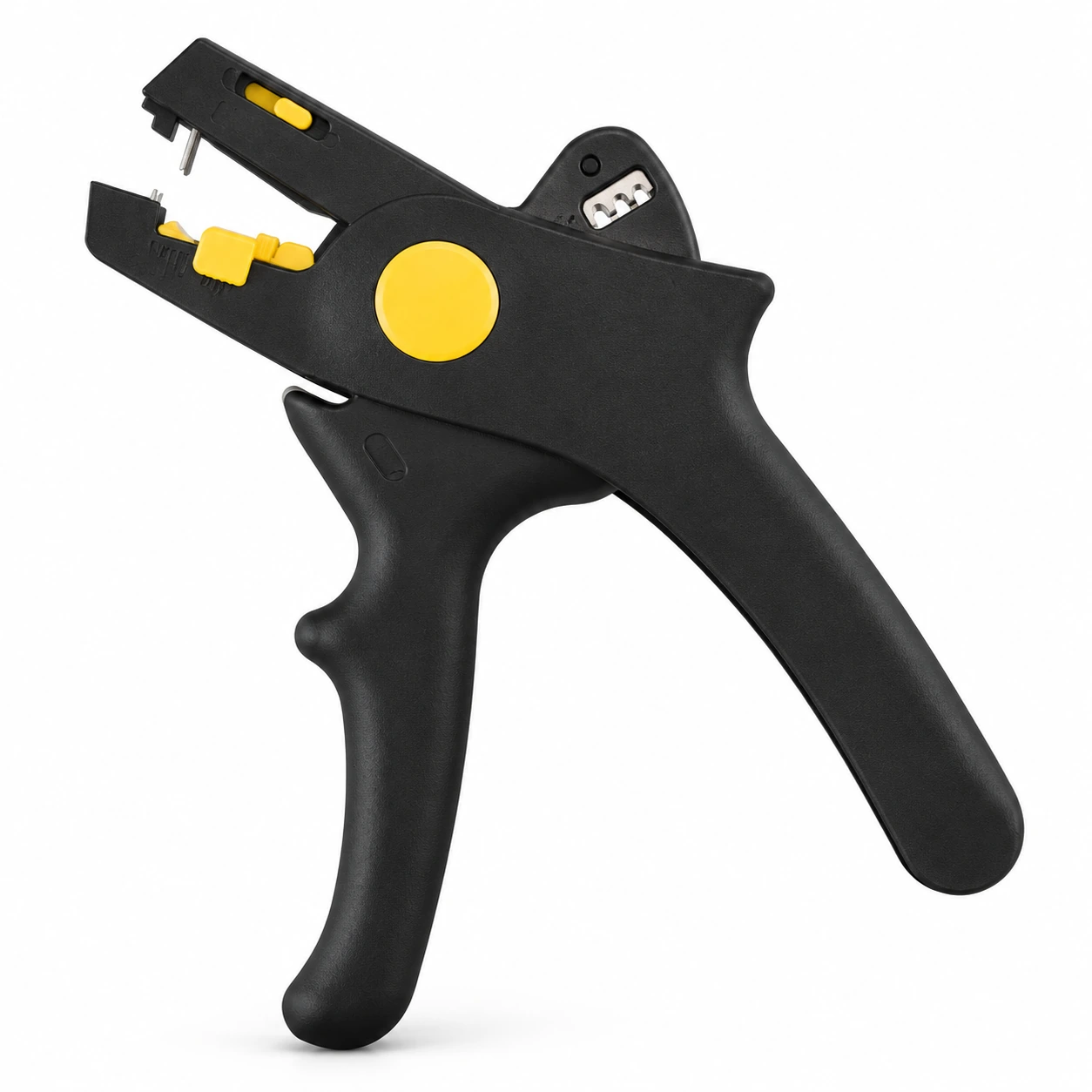

FS-D5TY Wire Stripper
SV.020006
Stripping: 0.5–10 mm²
Length: 190 mm · Weight: 0.13 kg
Crimping: 0.25–2.5 mm²

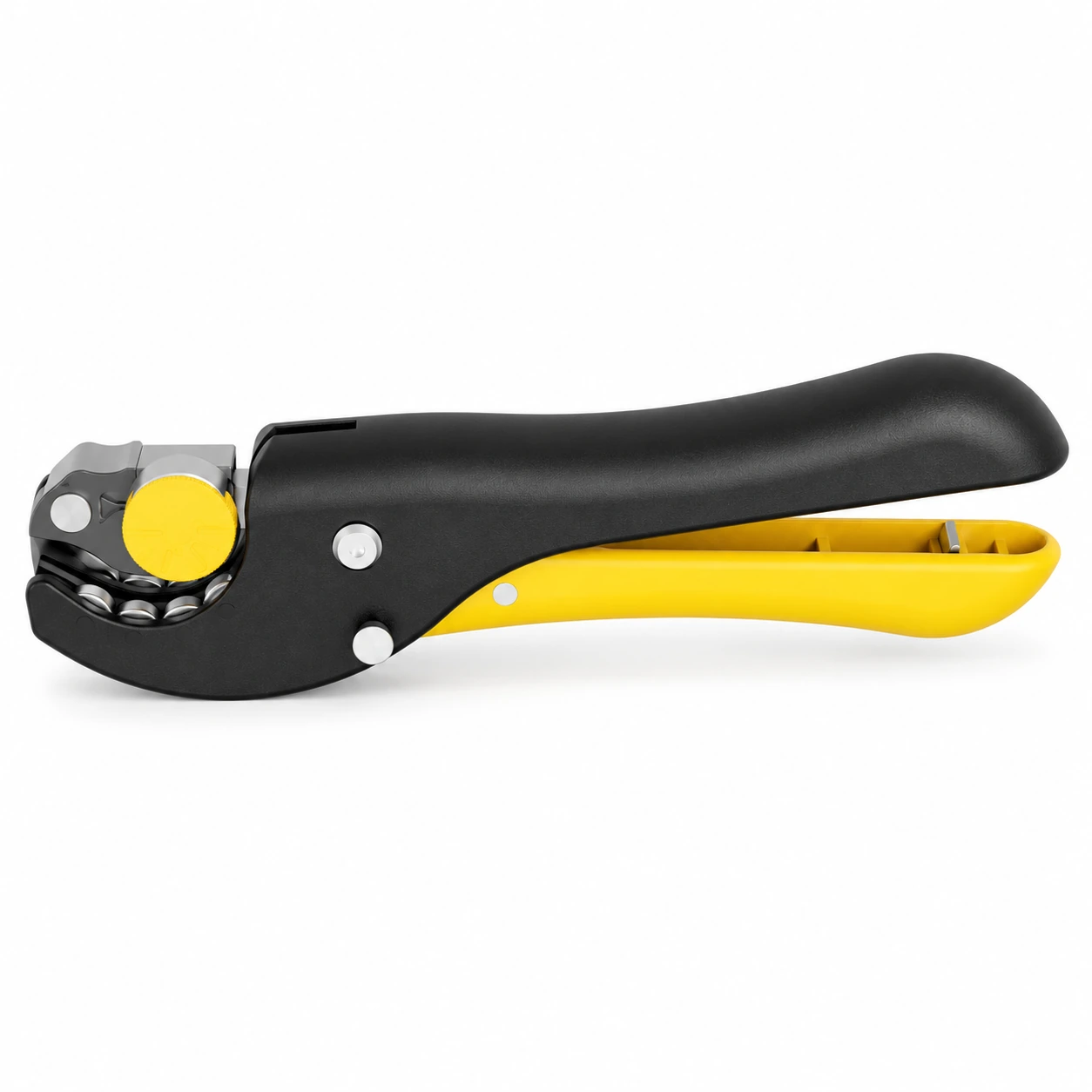

FS-D6B Cable Jacket Stripper
SV.020007
Stripping: Ø8–30 mm / 10–300 mm²
Length: 176 mm · Weight: 0.13 kg

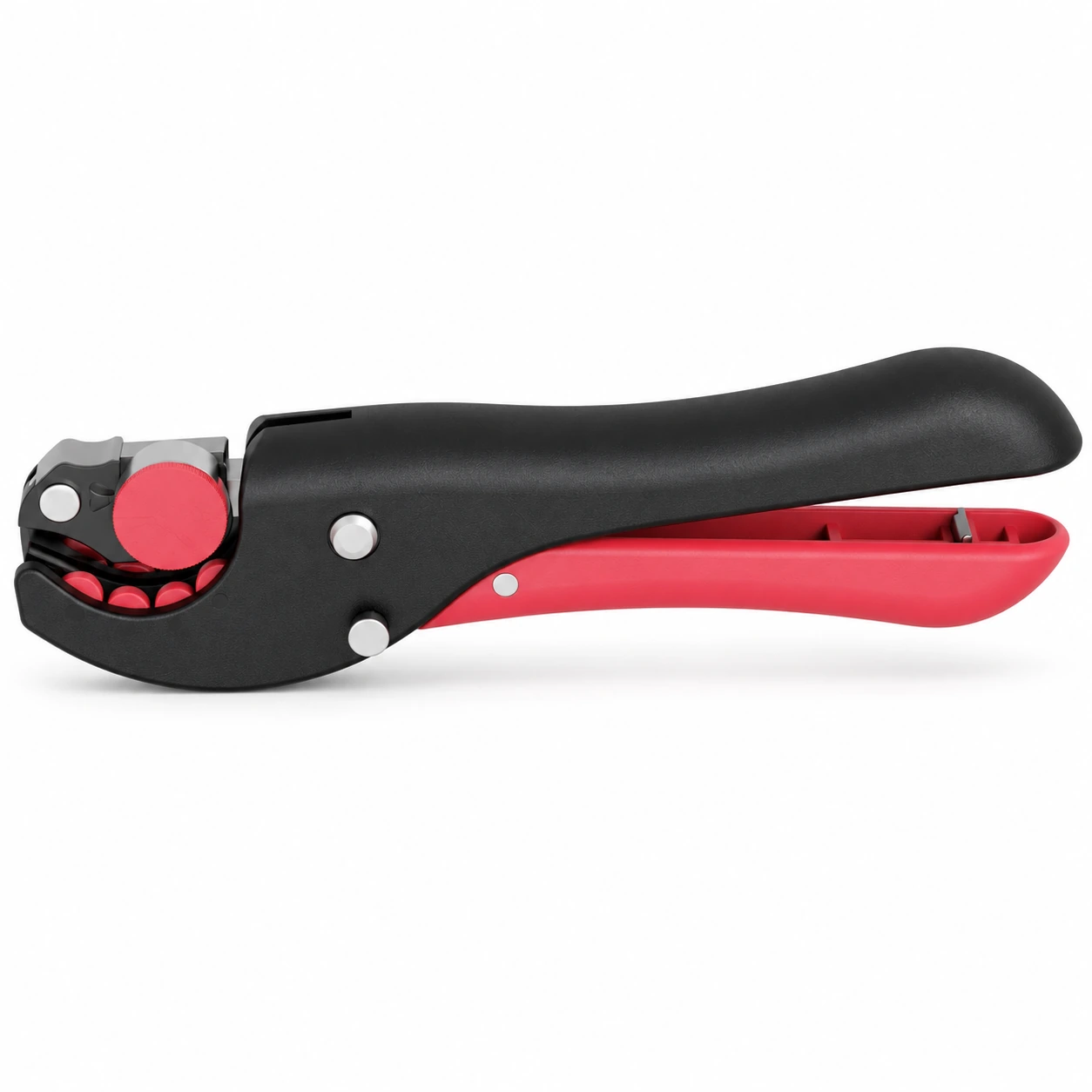

FS-D6S Cable Jacket Stripper
SV.020008
Stripping: Ø8–30 mm / 10–300 mm²
Length: 176 mm · Weight: 0.11 kg

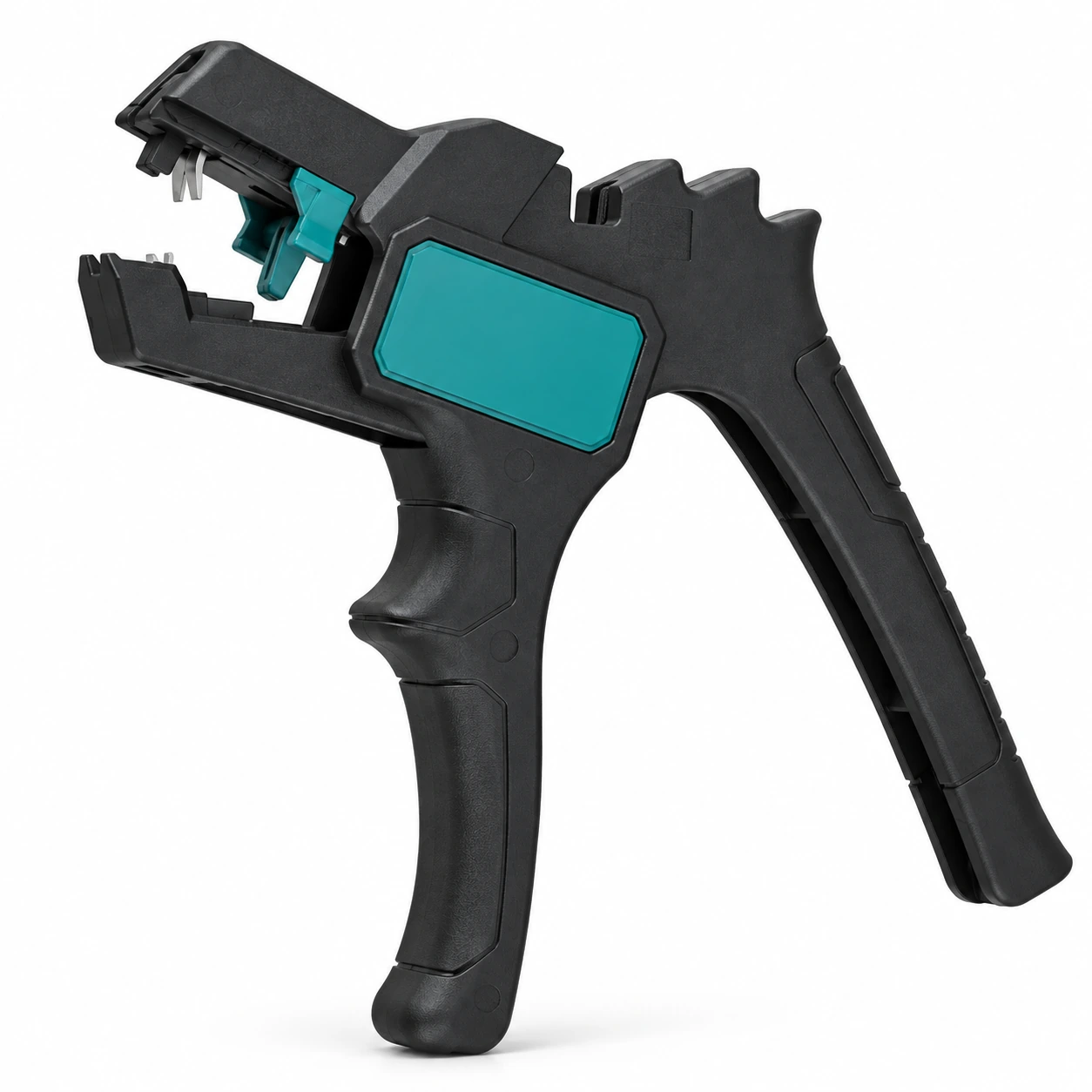

FS-D9 Wire Stripper
SV.020009
Stripping: 0.5–6 mm²
Length: 155 mm · Weight: 0.10 kg

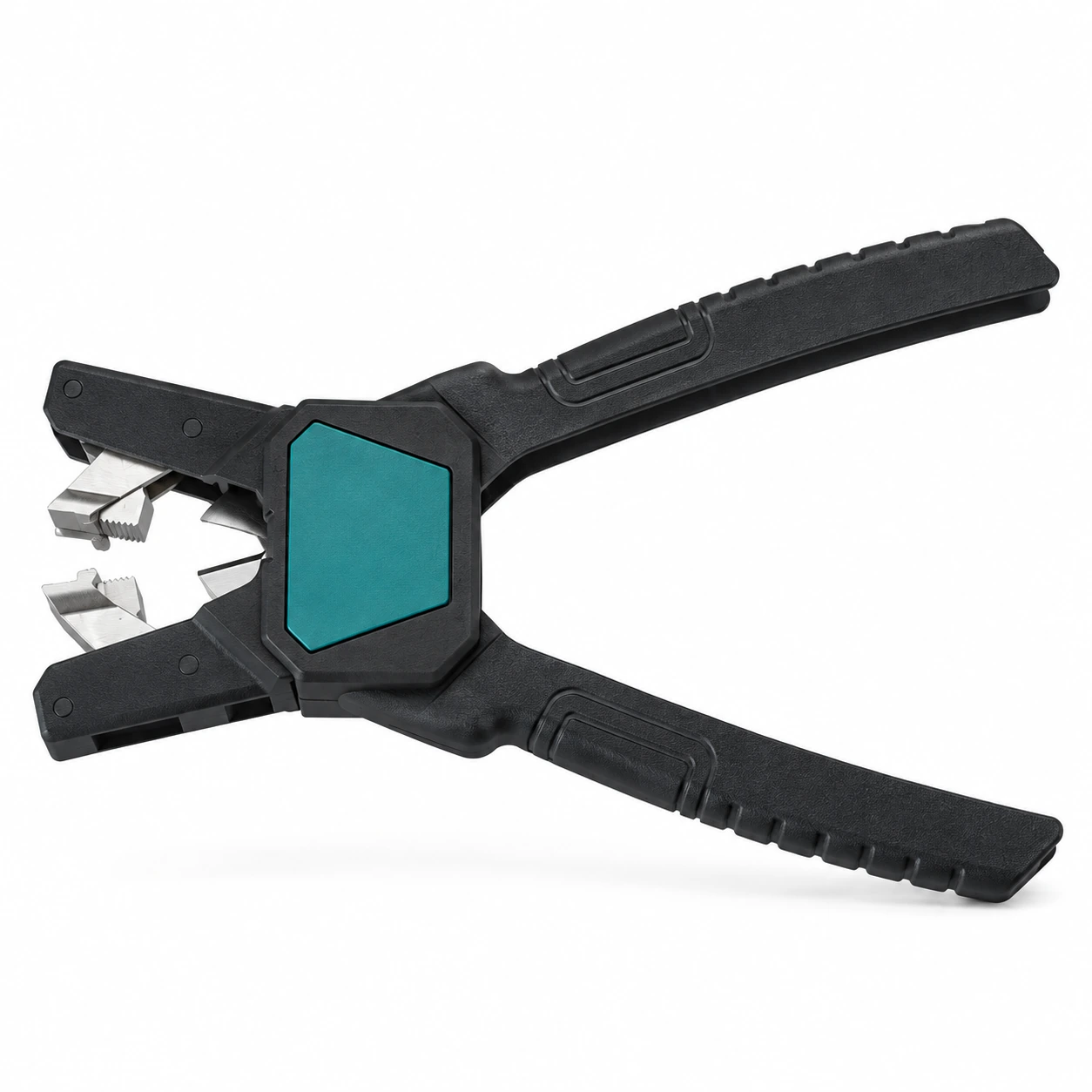

FS-D7026 Wire Stripper
SV.020010
Stripping: 0.2–6 mm²
Length: 175 mm · Weight: 0.15 kg

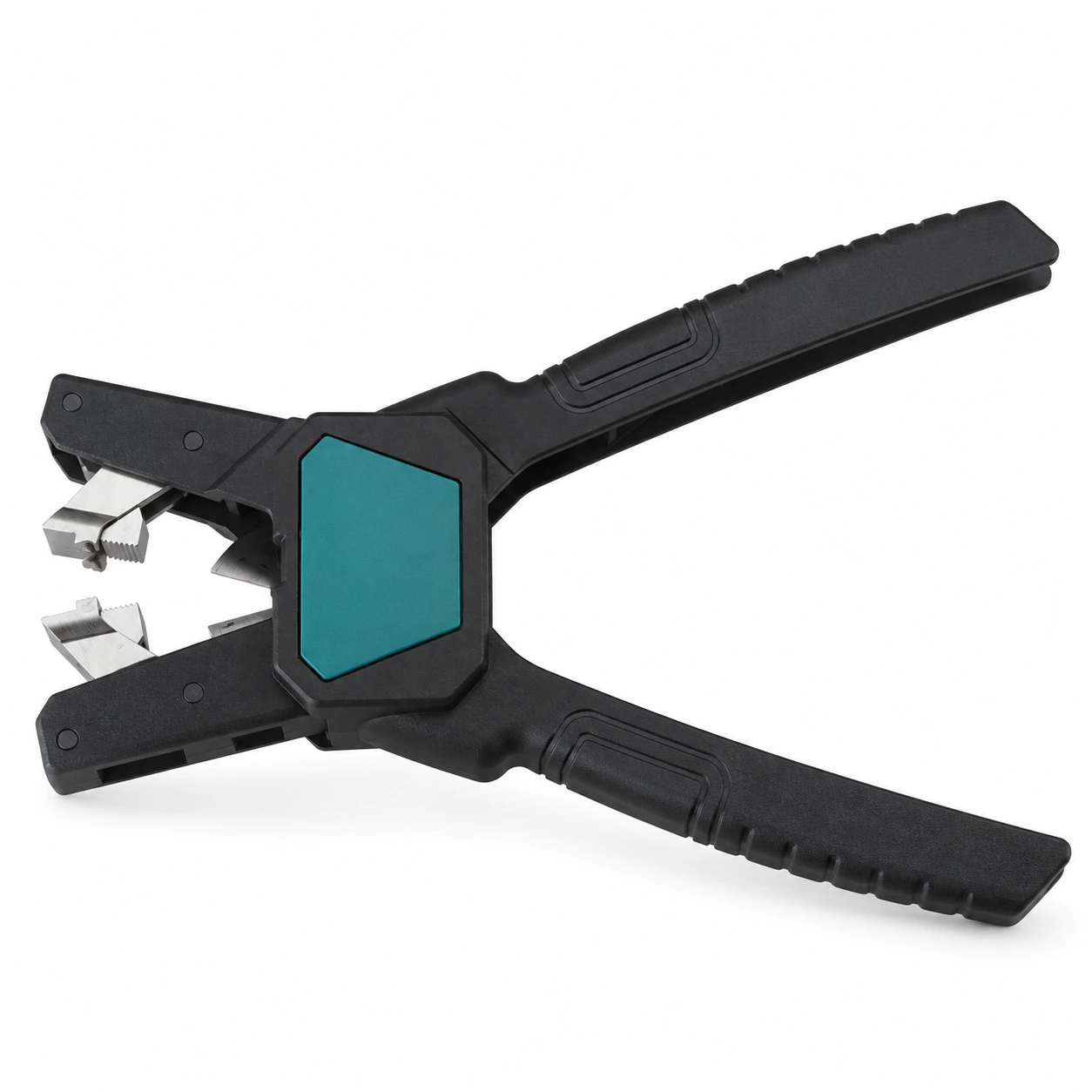

FS-D7416 Wire Stripper
SV.020011
Stripping: 4–16 mm²
Length: 175 mm · Weight: 0.15 kg
Choose the stripping range.
Compare model-specific capacity, length and weight before preparing your enquiry.
| Model | Catalog code | Stripping range | Cutting capacity (mm²) | Crimping capacity (mm²) | Length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| FS-D4 | SV.020001 | 0.08–10 mm² | ≤10 | — | 190 | 0.15 |
| FS-D6 | SV.020012 | 0.5–6 mm² | ≤4 | — | 200 | 0.15 |
| FS-D5 | SV.020003 | 0.5–6 mm² | ≤4 | — | 190 | 0.12 |
| FS-D5Y | SV.020004 | 0.5–6 mm² | ≤4 | 0.25–2.5 | 190 | 0.12 |
| FS-D5T | SV.020005 | 0.5–10 mm² | ≤4 | — | 190 | 0.12 |
| FS-D5TY | SV.020006 | 0.5–10 mm² | ≤4 | 0.25–2.5 | 190 | 0.13 |
| FS-D6B | SV.020007 | Ø8–30 mm / 10–300 mm² | — | — | 176 | 0.13 |
| FS-D6S | SV.020008 | Ø8–30 mm / 10–300 mm² | — | — | 176 | 0.11 |
| FS-D9 | SV.020009 | 0.5–6 mm² | ≤2.5 | — | 155 | 0.10 |
| FS-D7026 | SV.020010 | 0.2–6 mm² | ≤16 | — | 175 | 0.15 |
| FS-D7416 | SV.020011 | 4–16 mm² | ≤16 | — | 175 | 0.15 |
D6B and D6S: cable diameter Ø8–30 mm and listed conductor section 10–300 mm². Other stripping ranges are in mm². Cutting capacities refer to the catalog description for copper and aluminium wires; stranded-wire maximums vary by model. A dash means no capacity is stated. D6B has stainless-steel components indicated in the catalog; D6S uses plastic guide components.
Match the wire and the tool.
Choose against the conductor, insulation and preparation method used in your assembly.
Conductor cross-section
Specify the wire section and whether the conductor is solid or stranded. Check the selected model’s range.
Insulation & diameter
Describe plastic or rubber insulation. For cable jackets, include the outer cable diameter and jacket construction.
Cutting or crimping
Confirm cutting capacity separately. D5Y and D5TY include a listed 0.25–2.5 mm² terminal-crimping function.
Strip length & adjustment
Set strip length and blade depth as applicable, then evaluate a sample to check the prepared conductor.
Send your stripping tool requirements.
Share your model list, cable sizes, insulation type and quantities.
Prepare an enquiryPrepare a model-by-model order.
Agree the tool specification and sample requirements before placing your order.
Explore manufacturingModel schedule
List the FS model, SV catalog code and quantity for each tool.
Assembly requirements
Provide conductor construction, insulation material, strip length and any cutting or crimping requirements.
Sample evaluation
Use representative cables to evaluate stripping performance, conductor condition and adjustment settings before bulk purchase.
OEM & PACKING
Your specification.
Your packing plan.
Build your stripping tool order around the selected models, identification and supply requirements.
Model schedule
Confirm model references, catalog capacities, accent colors and quantities.
Labels & identification
Discuss available branding and label artwork for the selected tools and packaging.
Pack quantities
Specify individual packs, retail packaging, outer cartons and delivery destination.
Stripping Tools
buying questions.
Can one stripper cover every wire size?
No. The catalog ranges vary by model. D4 covers 0.08–10 mm², while D7416 covers 4–16 mm²; choose against your actual conductor and insulation.
Which models include terminal crimping?
FS-D5Y and FS-D5TY list terminal-crimping capacity of 0.25–2.5 mm². Confirm terminal type and tooling compatibility for the intended assembly.
How do D6B and D6S differ?
Both list Ø8–30 mm cable diameter and 10–300 mm² conductor section. Catalog callouts indicate stainless-steel components for D6B and plastic guide components for D6S; their weights are 0.13 kg and 0.11 kg.
What should I include in a quote request?
Send model references, wire section, cable outer diameter where relevant, insulation material, quantity and packaging requirements.
Can you review labels and packaging?
Send your branding and packaging requirements. TONFUL can review the available options for your chosen models.
