Custom Data Cable Assembly Manufacturer for OEM & Wholesale

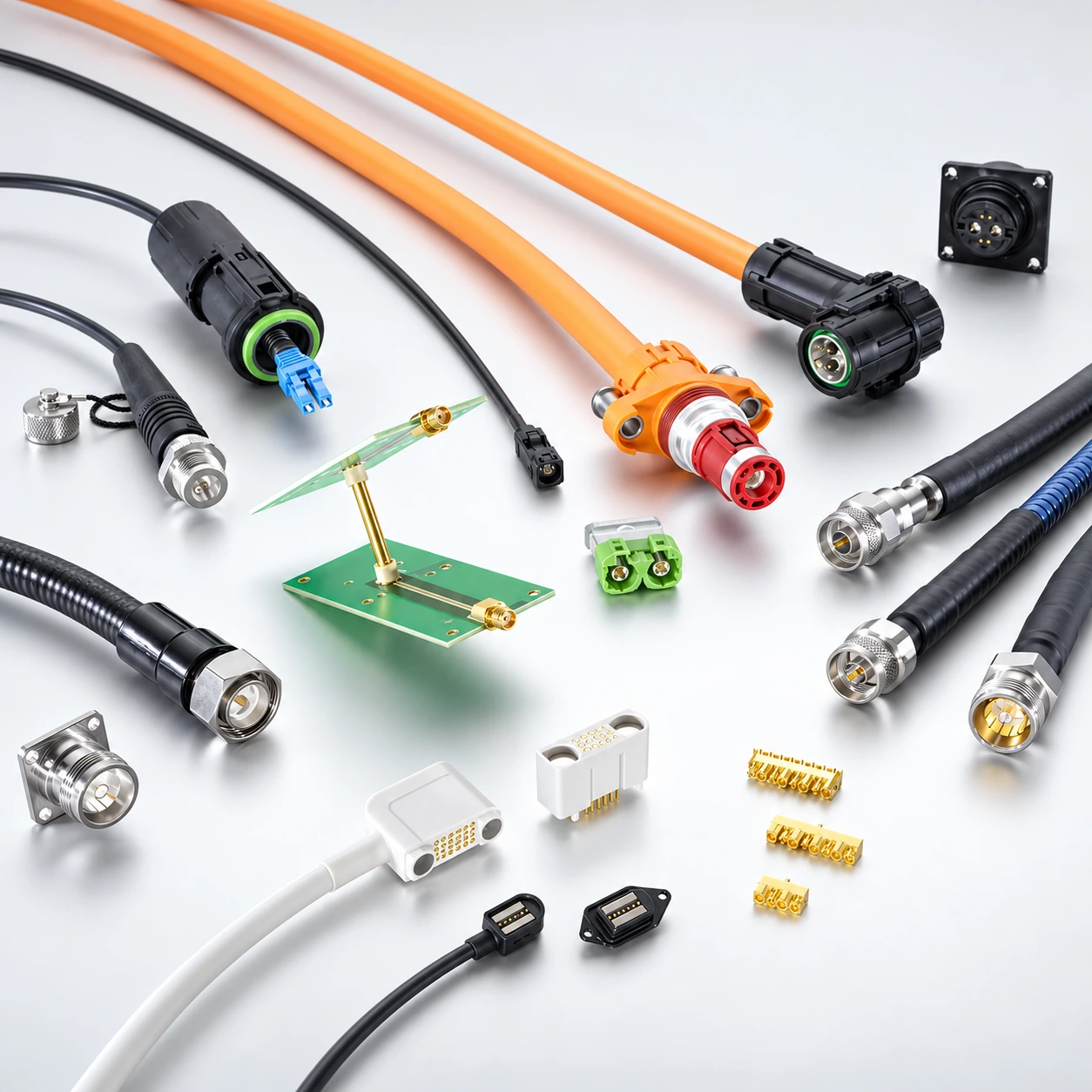

Source custom data and interface cable assemblies from TONFUL Electric for equipment connections, device integration and wholesale supply. Compare eight catalog configurations and a custom cable option, then share your connector interfaces, pinout, cable length, performance requirements and order quantity.
Custom Data Cable Assembly Product Range
Explore eight catalog configurations and a made-to-requirement option for data, interface and companion power connections. Match each assembly to your equipment interface and approved wiring requirements.

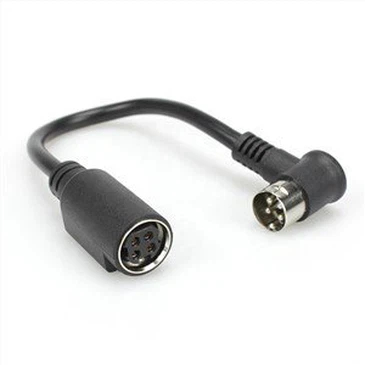

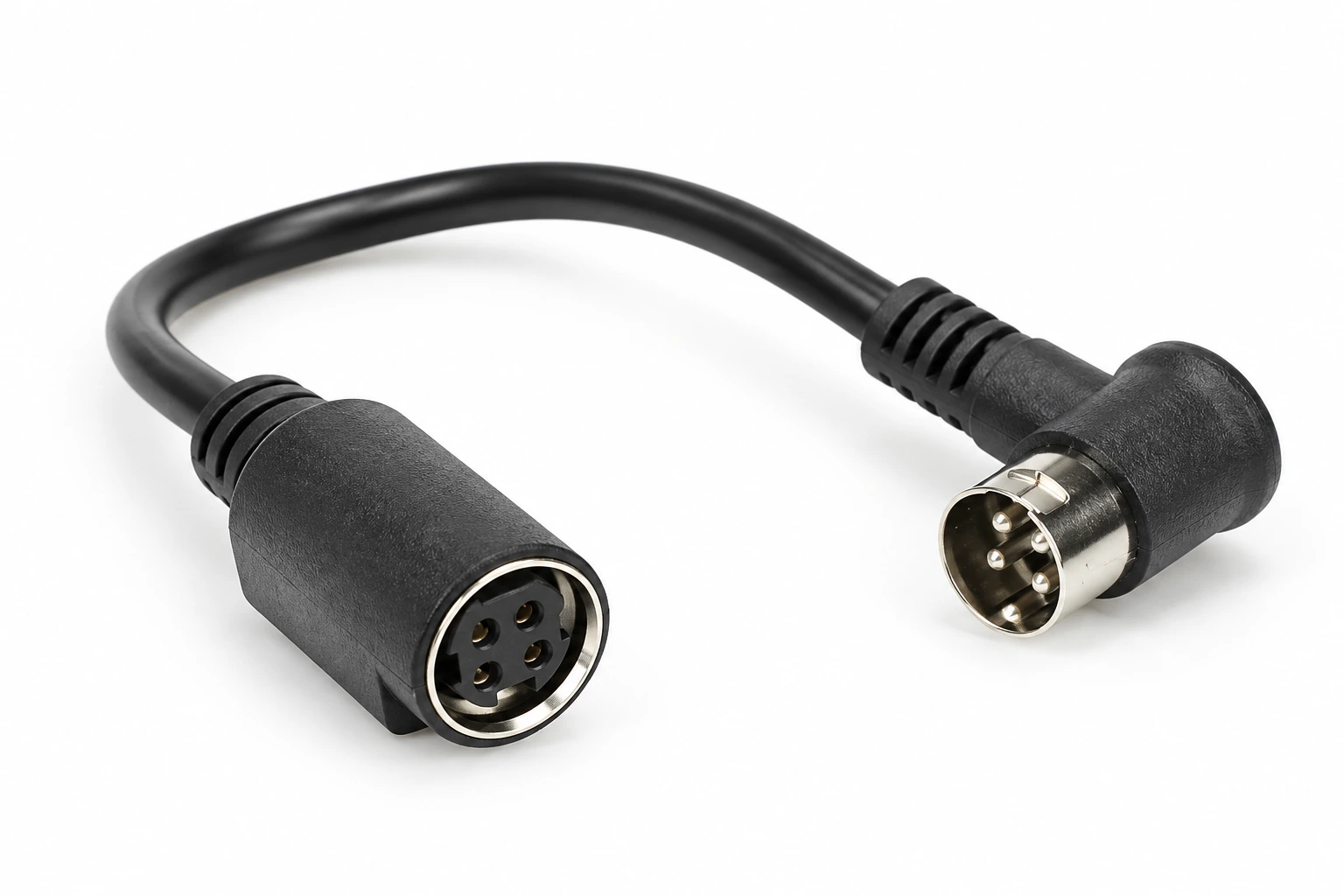

Right-Angle 4-Pin Mini-DIN Male-to-Female Cable
A compact right-angle Mini-DIN assembly for the specified equipment interface. Confirm pinout, cable length and power requirements.

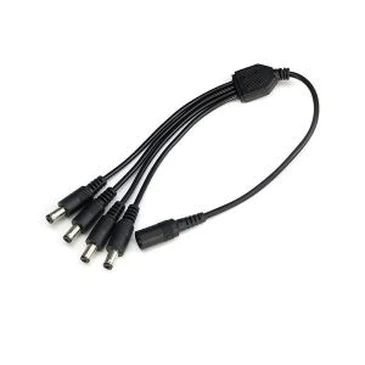

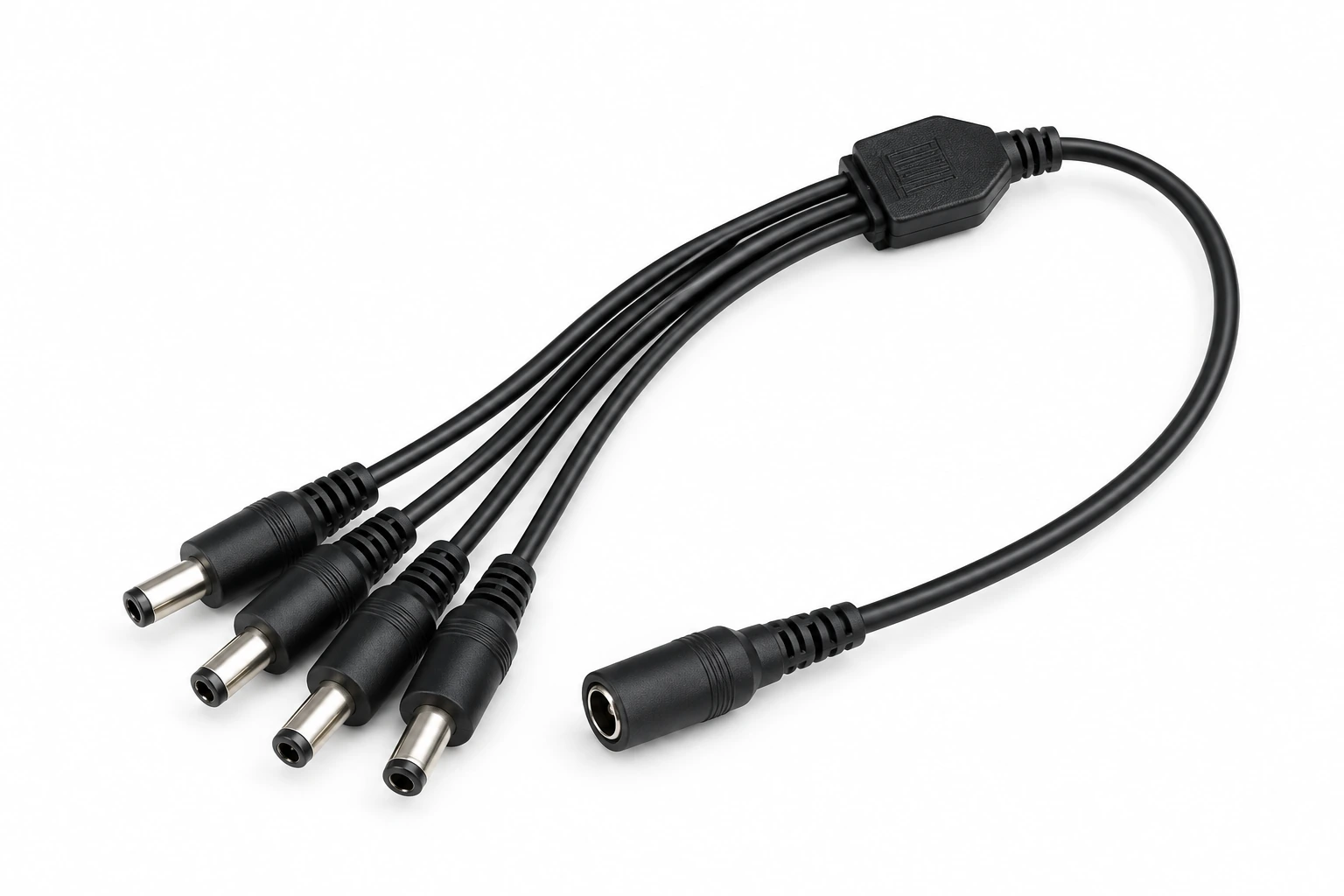

5.5 × 2.1 mm DC Female-to-Four-Male Splitter Cable
Four-branch DC splitter configuration. Confirm plug dimensions, polarity, branch lengths and the complete assembly current requirements.

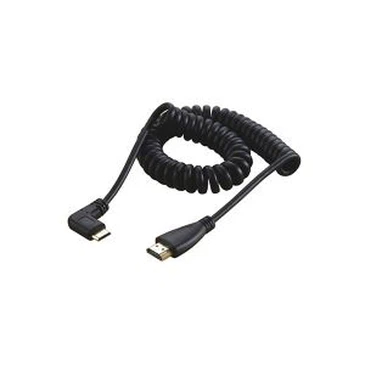

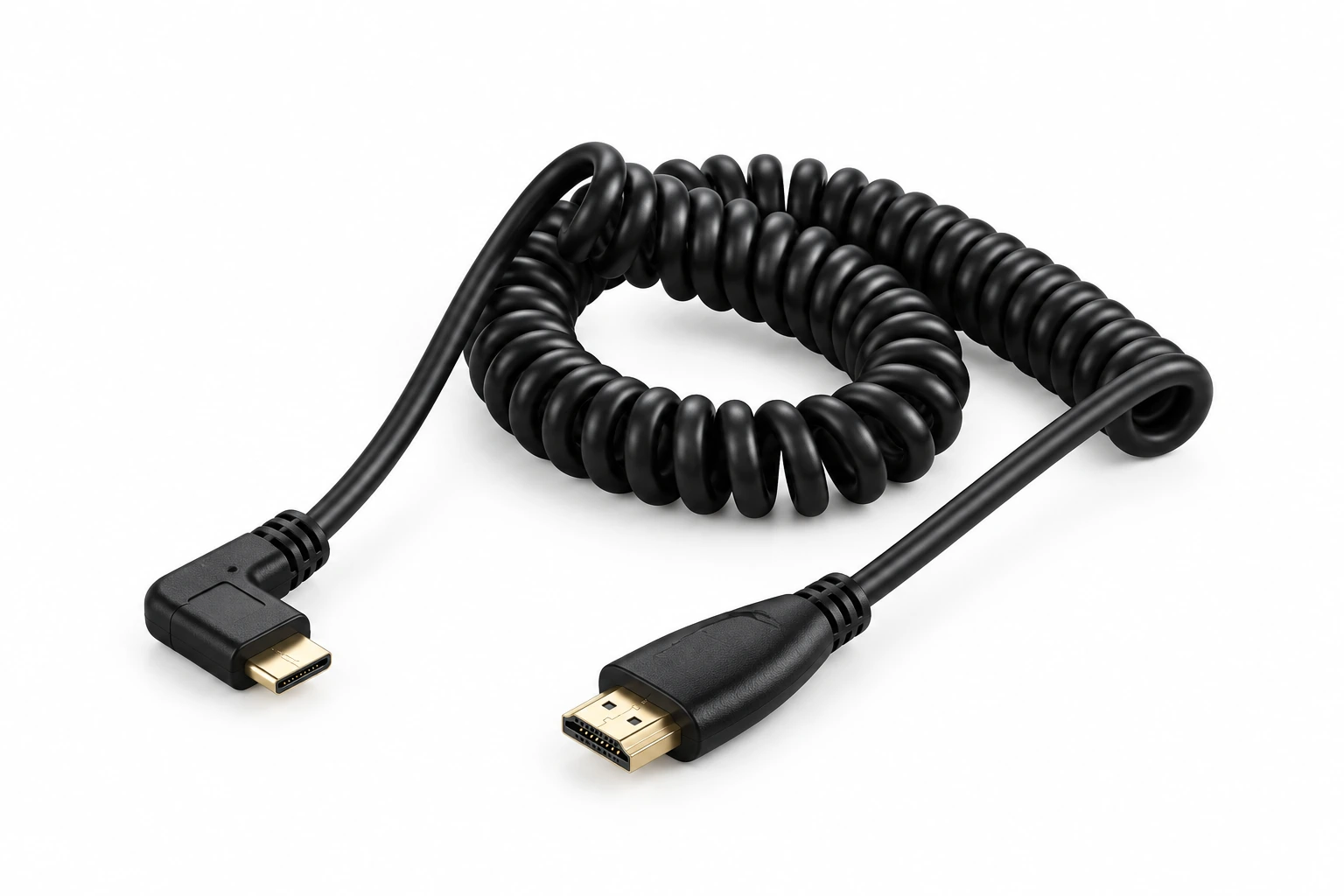

Left-Angle Coiled Mini-HDMI-to-HDMI Cable
Coiled display-interface cable with angled connector. Specify working and extended length, exit direction and required system performance.

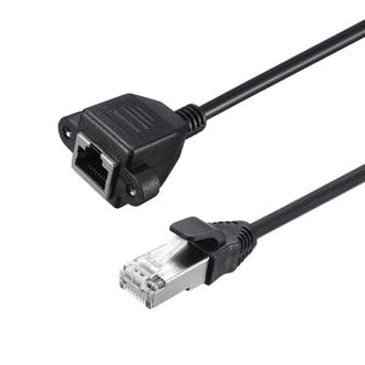

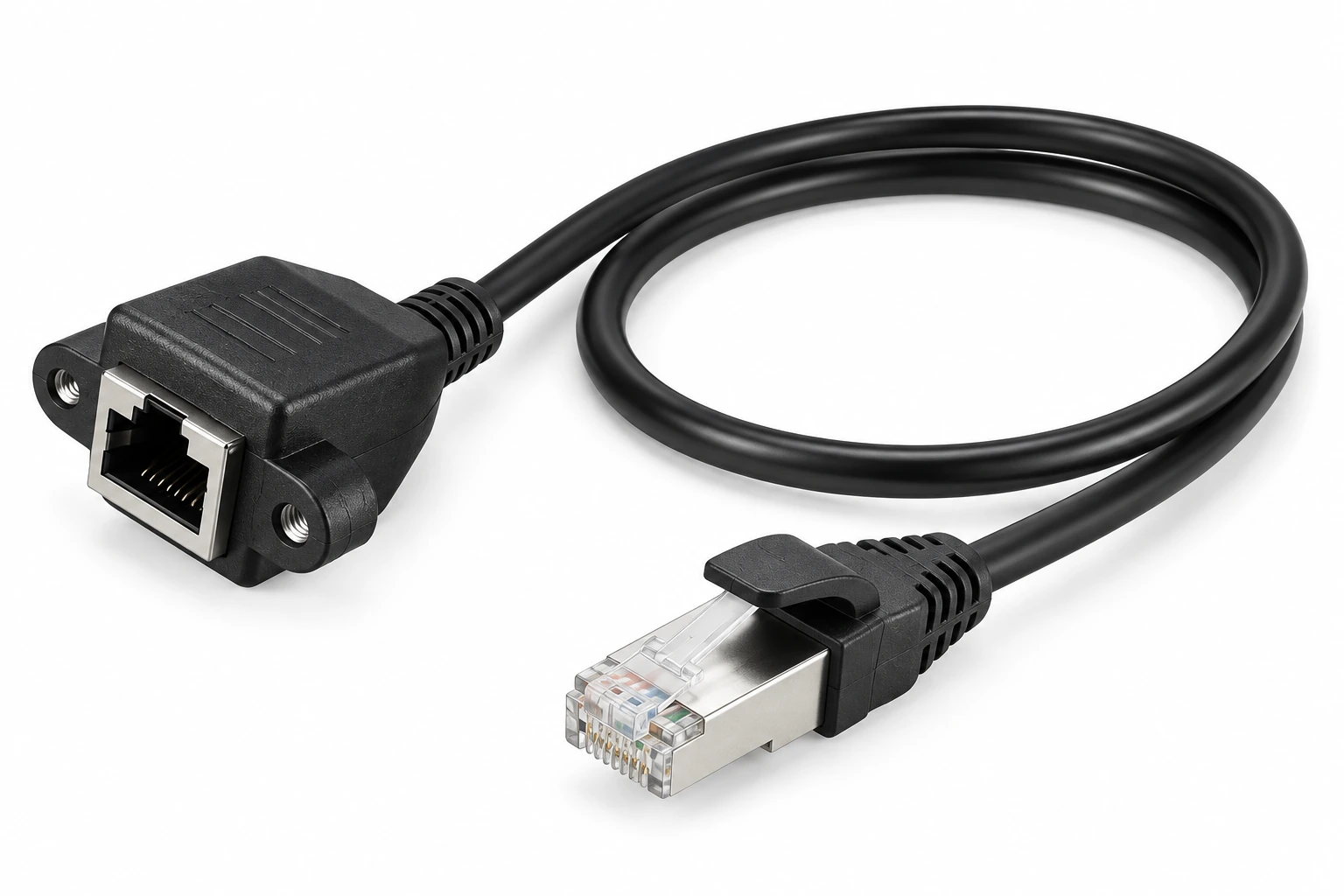

RJ45 Male-to-Female Panel-Mount Extension Cable
Network extension configuration with panel fixing features. Confirm mounting dimensions, connector clearance, cable length and network requirements.

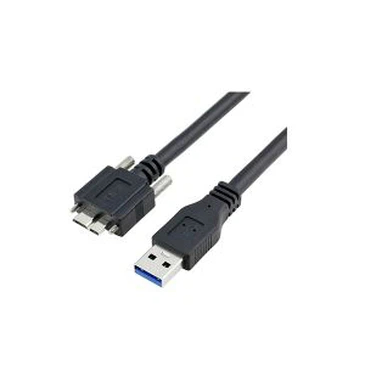

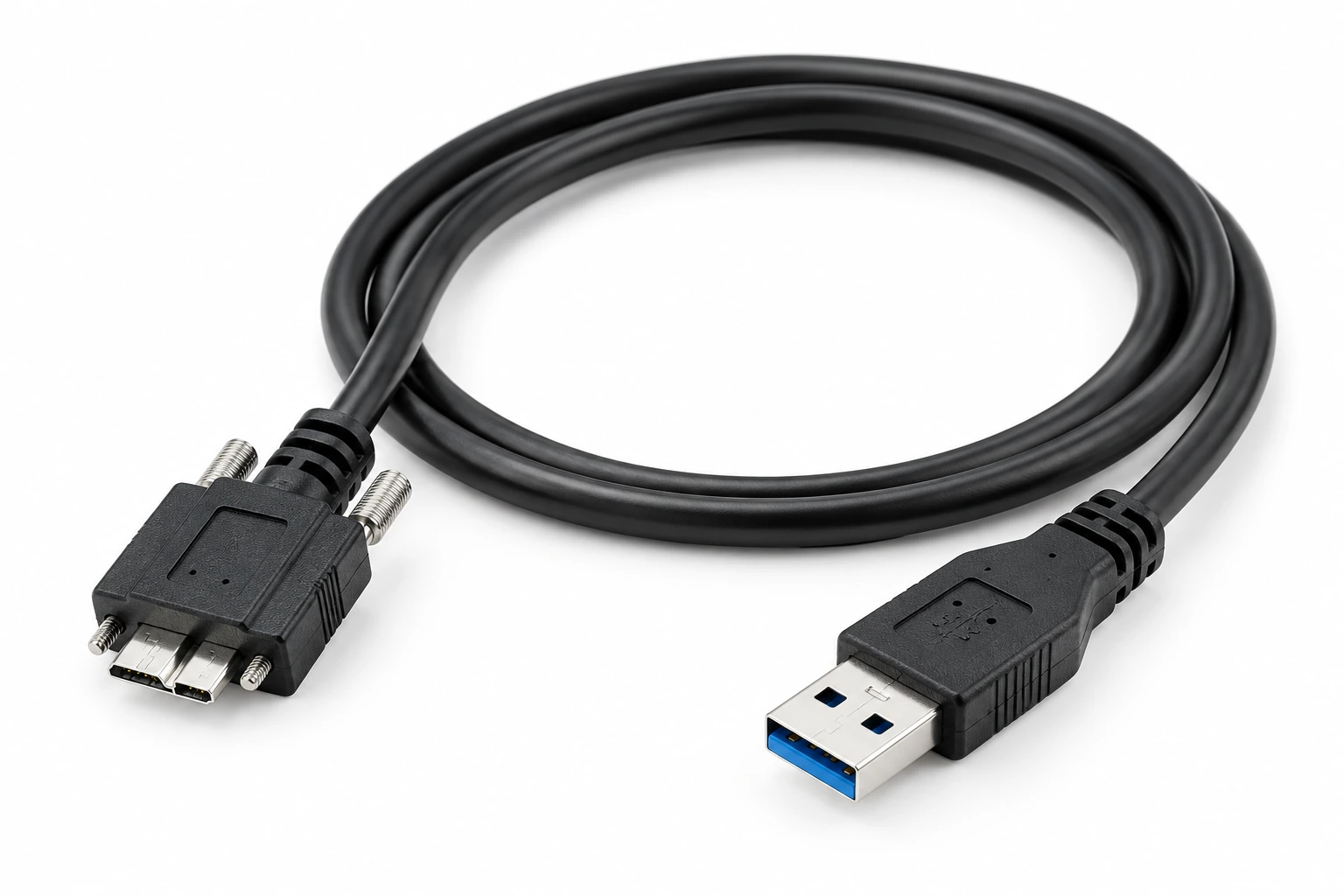

USB 3.0 Type-A-to-Micro-B Screw-Lock Cable
Type-A and Micro-B connector configuration with retention hardware. Confirm mating interface, screw spacing, cable length and specified USB performance.

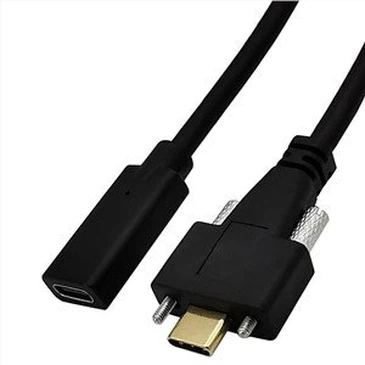

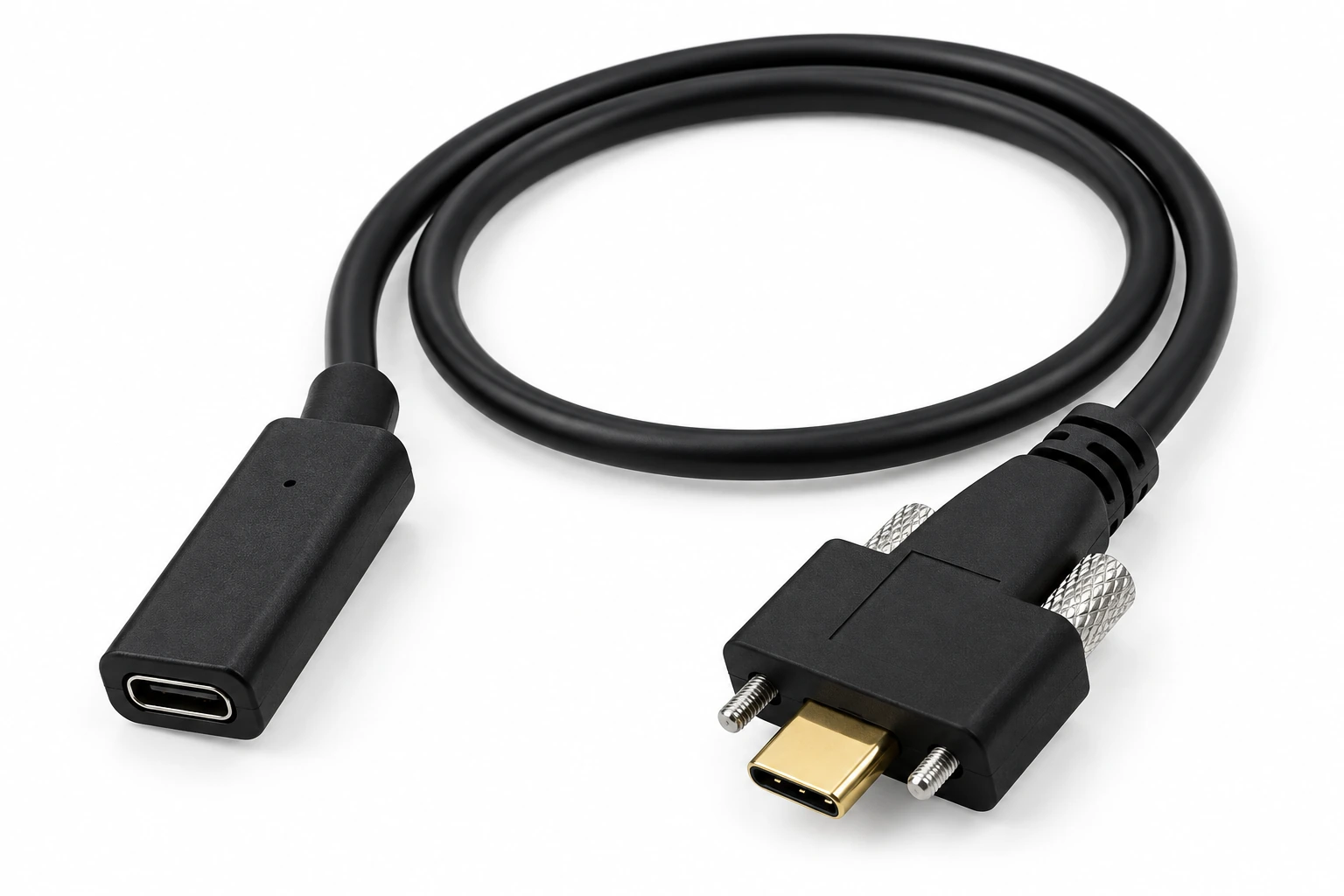

Screw-Locking USB Male-to-Female Extension Cable
Male-to-female USB extension with screw-locking hardware. Confirm the exact connector form from the approved drawing; the existing catalog lists this item under USB-C.

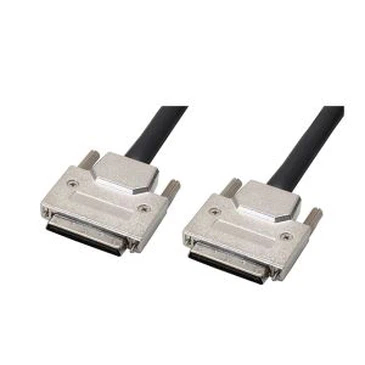

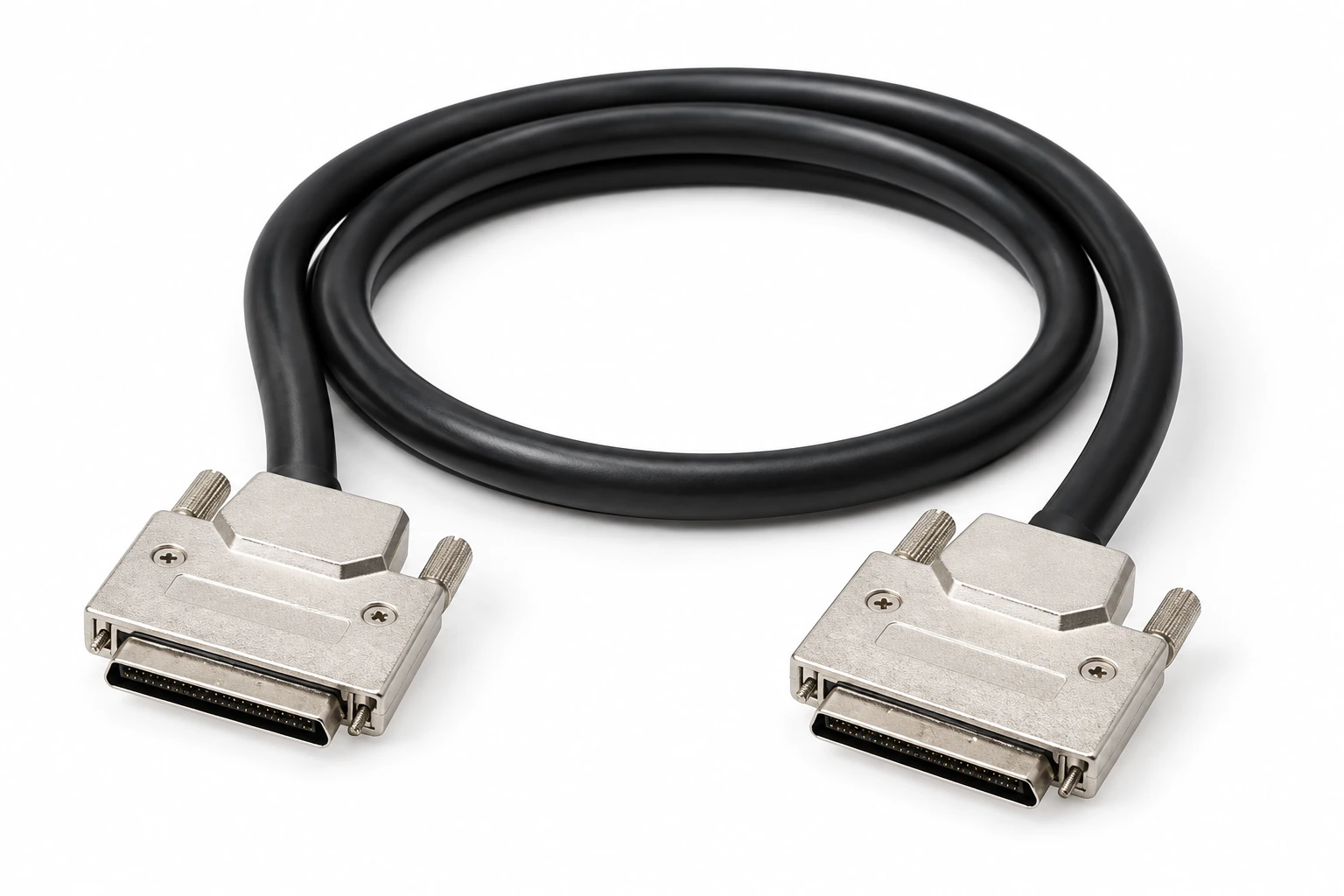

68-Pin VHDCI Male SCSI Cable
Equipment-interface cable with VHDCI connectors. Confirm connector details, pin assignment, fastening hardware and equipment compatibility.

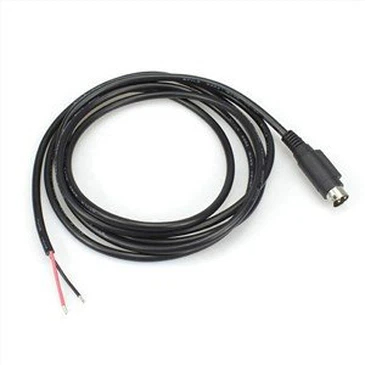

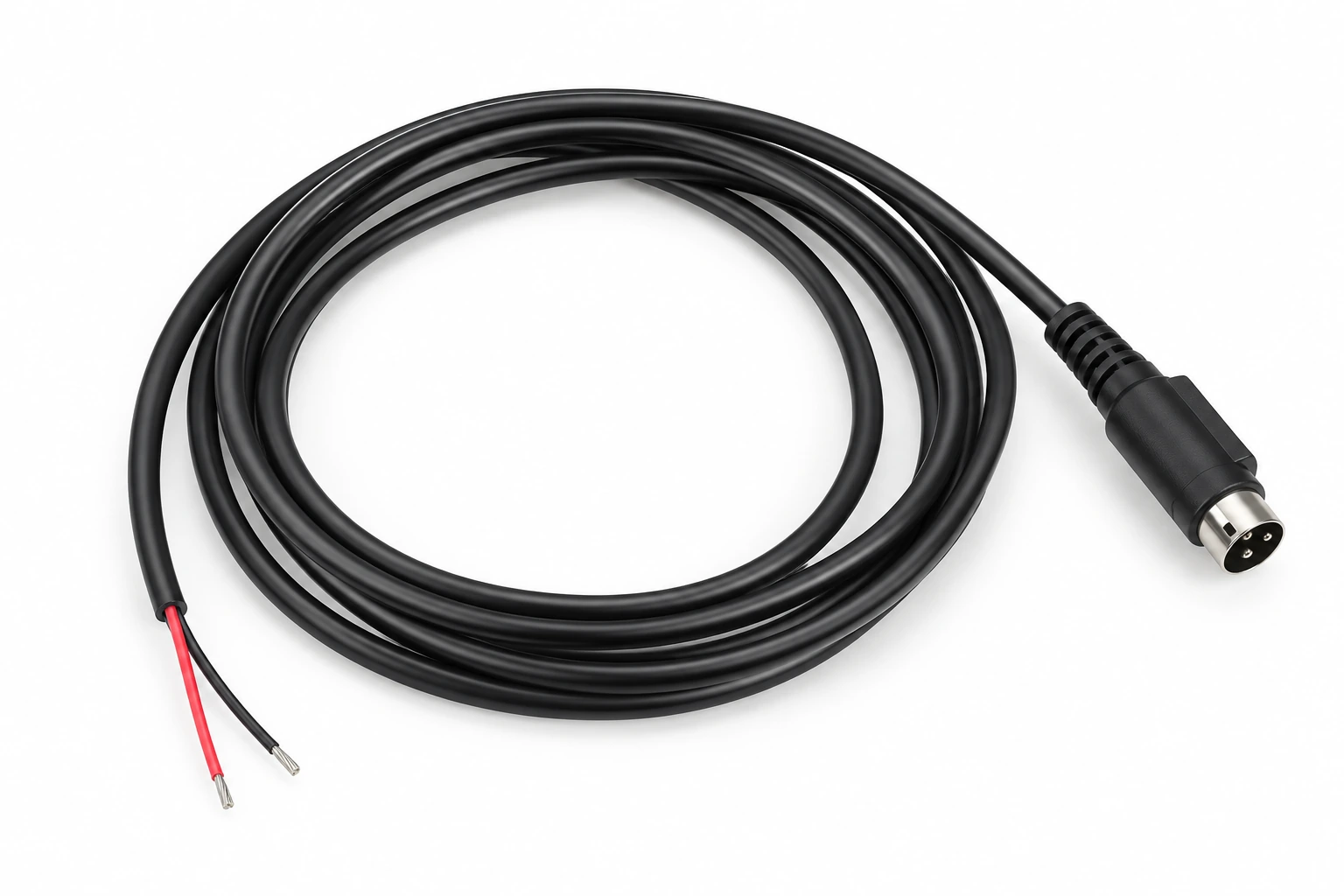

3-Pin DIN-to-Open-End Power Cable
DIN connector to open-wire configuration for an approved equipment wiring map. Confirm pinout, polarity, conductor size and power requirements.
Custom Cable Assemblies to Your Requirements
Need a cable beyond the catalog? Send your drawing, sample or connection requirements. TONFUL can review custom data, signal, power and multi-branch cable assemblies with your choice of connectors, pinout, cable length, conductor size, shielding, jacket, strain relief and packaging. Share the intended application and quantity so feasibility, technical details and quotation can be confirmed.
Images illustrate catalog configurations. Connector shape alone does not establish data rate, power capability or compatibility; confirm the assembly drawing, pinout and selected model specifications.
Data Cable Assembly Applications
Explore three application scenes for equipment interfaces, industrial connections and audiovisual integration. Define the cable assembly around the interface, routing and performance requirements of the finished system.
Equipment & Device Interfaces
Connect peripherals and electronic equipment using the specified data or interface cable arrangement. Review connector orientation, retention, cable length and equipment mating requirements. Confirm the data and power capabilities of the exact assembly.

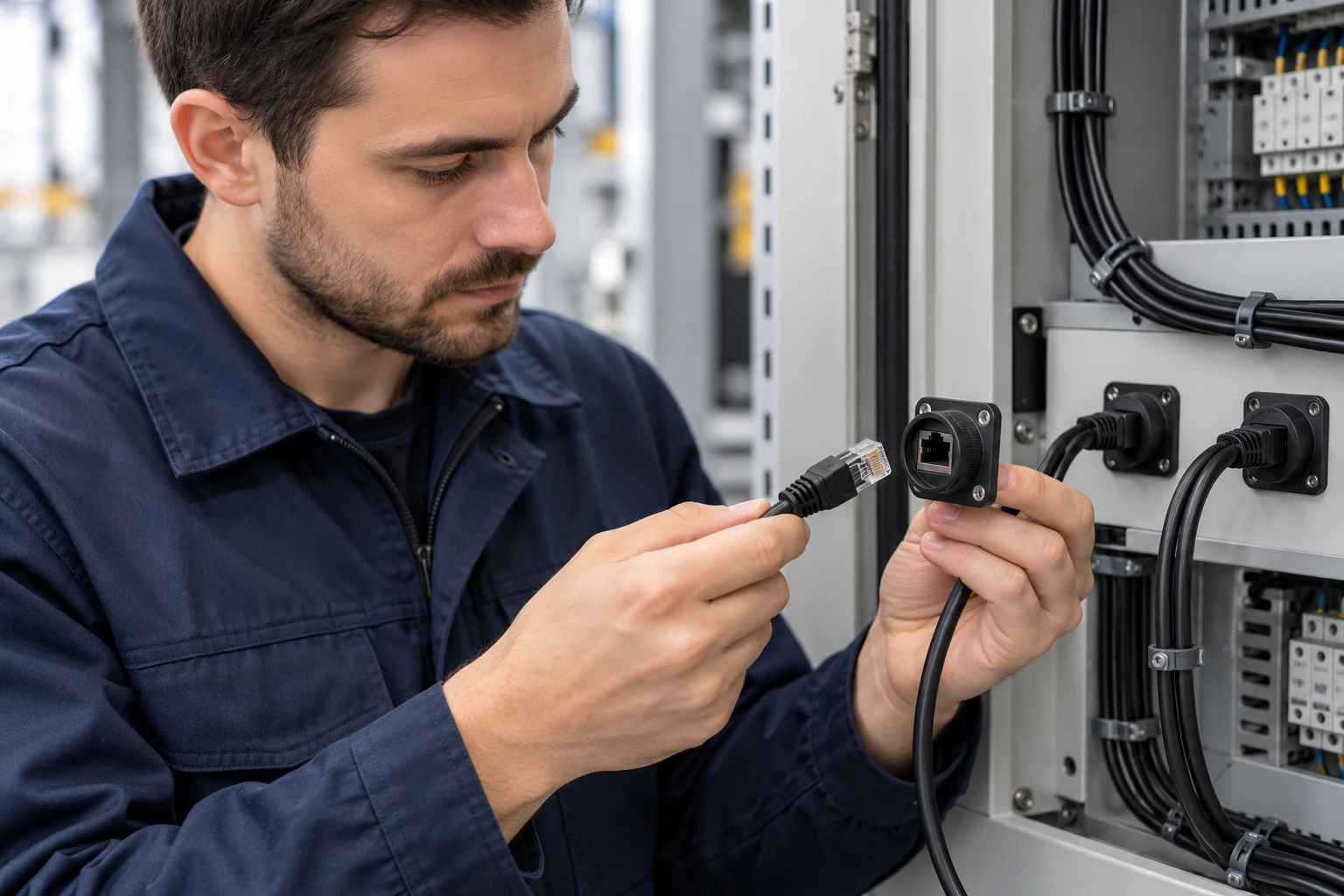

Industrial Control & Panel Connections
Plan network and equipment connections around panel access, cable routing and service requirements. Review RJ45 interface details, mounting features, shielding and the operating environment with the selected cable construction.

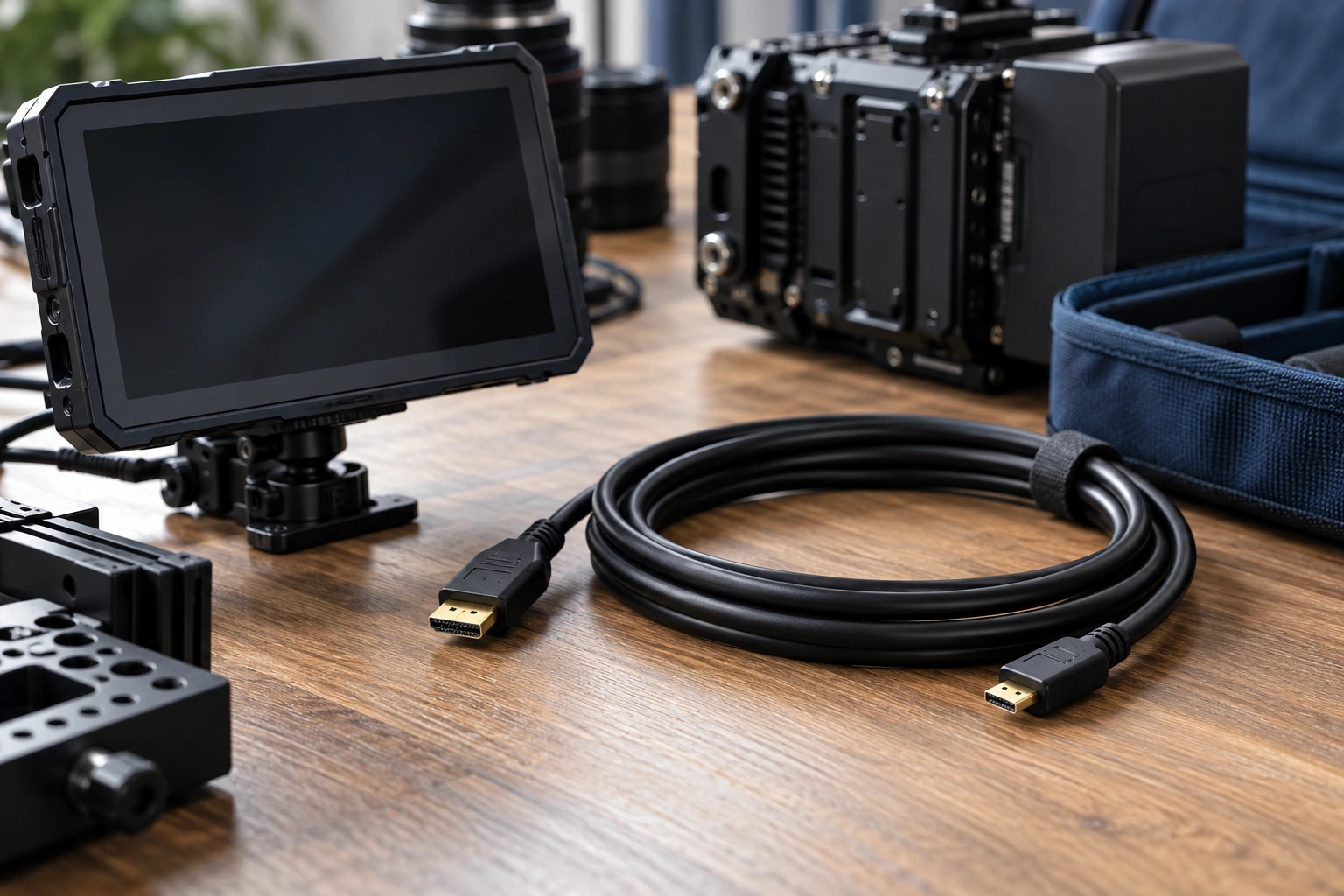

Audiovisual & Display Integration
Route display and audiovisual connections where angled plugs or coiled cable arrangements help manage space. Specify source and display interfaces, required video features, working length and bend clearance; verify performance in the complete system.
Data Cable Assembly Specifications: What to Confirm
Use this checklist to define connector interfaces, pinout, cable construction and installed requirements. Agree performance and acceptance criteria for the selected assembly.
| Specification | Information to Confirm |
|---|---|
| Connector interfaces | End A and End B types, gender, keying, orientation and equipment mating interface |
| Pinout & wiring | Pin-to-pin mapping, conductor assignment, polarity and shield termination |
| Length & dimensions | Finished length and tolerance, cable diameter, branch lengths and mounting clearance |
| Data & power needs | Required protocol, performance, current and voltage for the selected assembly |
| Cable construction | Conductor size, twisted pairs, shielding, jacket and permitted bend conditions |
| Mechanical details | Straight or angled exits, strain relief, panel fixings and retention features |
| Inspection & validation | Continuity, wiring, visual and application-specific tests; acceptance criteria and records |
| Packing & supply | Coiling method, connector protection, labels, bag quantities, cartons and destination |
Review the approved assembly drawing, wiring map and sample before ordering. Confirm the technical documents and inspection records required for your cable assembly.
Make Quality Part of the Purchase Specification
Interface & Pinout Review
Confirm both connector interfaces and the complete wiring map. Review keying, contact assignment and polarity against the equipment documentation.
Performance Requirements
Define the data protocol and any power requirements. Agree the required test method and acceptance criteria for the selected cable assembly.
Cable & Shielding Selection
Discuss conductor size, cable construction and shield termination around the application. Review the routing and interference conditions of the system.
Strain Relief & Mounting
Check connector exits, bend clearance and retention. Define panel hardware and strain relief around the installed cable arrangement.
Sample & Inspection Approval
Evaluate the proposed assembly in the intended equipment. Agree dimensional, wiring and functional checks before approving production.
Connector Protection & Labels
Specify coiling and packing that protect plugs, contacts and mounting hardware. Define part references, lot labels and packing quantities.
Select Data Cable Assemblies in Six Practical Steps
1. Define the Interfaces
Identify End A and End B connector types, gender and mating equipment. Share references or photos to clarify the interface.
2. Provide the Wiring Map
Send a pinout or wiring diagram, including shield termination and polarity. Confirm branch arrangements for splitter or open-ended cables.
3. Set Length & Routing
Specify finished length, cable diameter, exit direction and bend clearance. Define the installed and extended lengths for coiled assemblies.
4. Describe Performance Needs
Share protocol, data performance and power requirements. Define the working environment and any special mechanical or jacket requirements.
5. Review & Approve a Sample
Check fit, wiring and operation in the actual equipment. Agree the tests and inspection documents required for the selected assembly.
6. Confirm Packing & Supply
Agree quantity, labels, connector protection and destination. Confirm MOQ, tooling, samples, price, lead time and delivery terms in the quotation.
Get Your Free Sample!
We provide samples for free, you just need to tell us what you need
Data Cable Assembly Workshop & Packaging

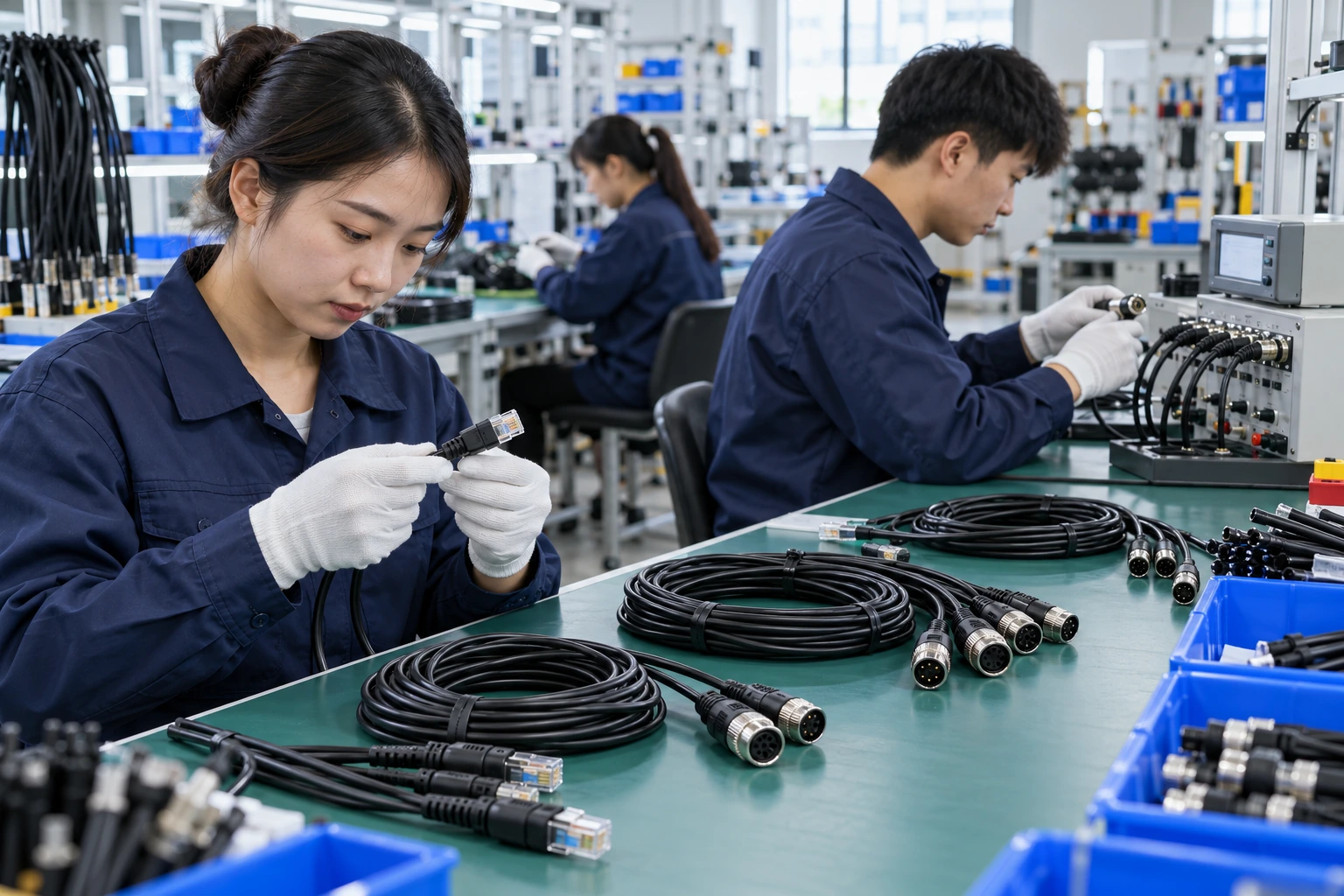

Cable Assembly & Inspection
Discuss wire preparation, connector assembly and the inspection plan with TONFUL. Define pinout verification, continuity checks, dimensional review and any application-specific testing required for the approved assembly. Confirm the records and acceptance criteria included with your order.
Cable Protection & Shipment Packing
Protect plugs, contacts and mounting hardware during handling and transport. Discuss controlled coiling, individual bags, protective caps where appropriate and carton packing. Confirm part labels, quantity per pack and shipment requirements before dispatch.
Illustrative workshop and packaging scenes.
More Than Just a Data Cable Assembly Manufacturer
Service Consultation
Share connector references, cable length, pinout and equipment requirements. TONFUL can review the proposed assembly and the drawings and samples needed for quotation.
Product Recommendations

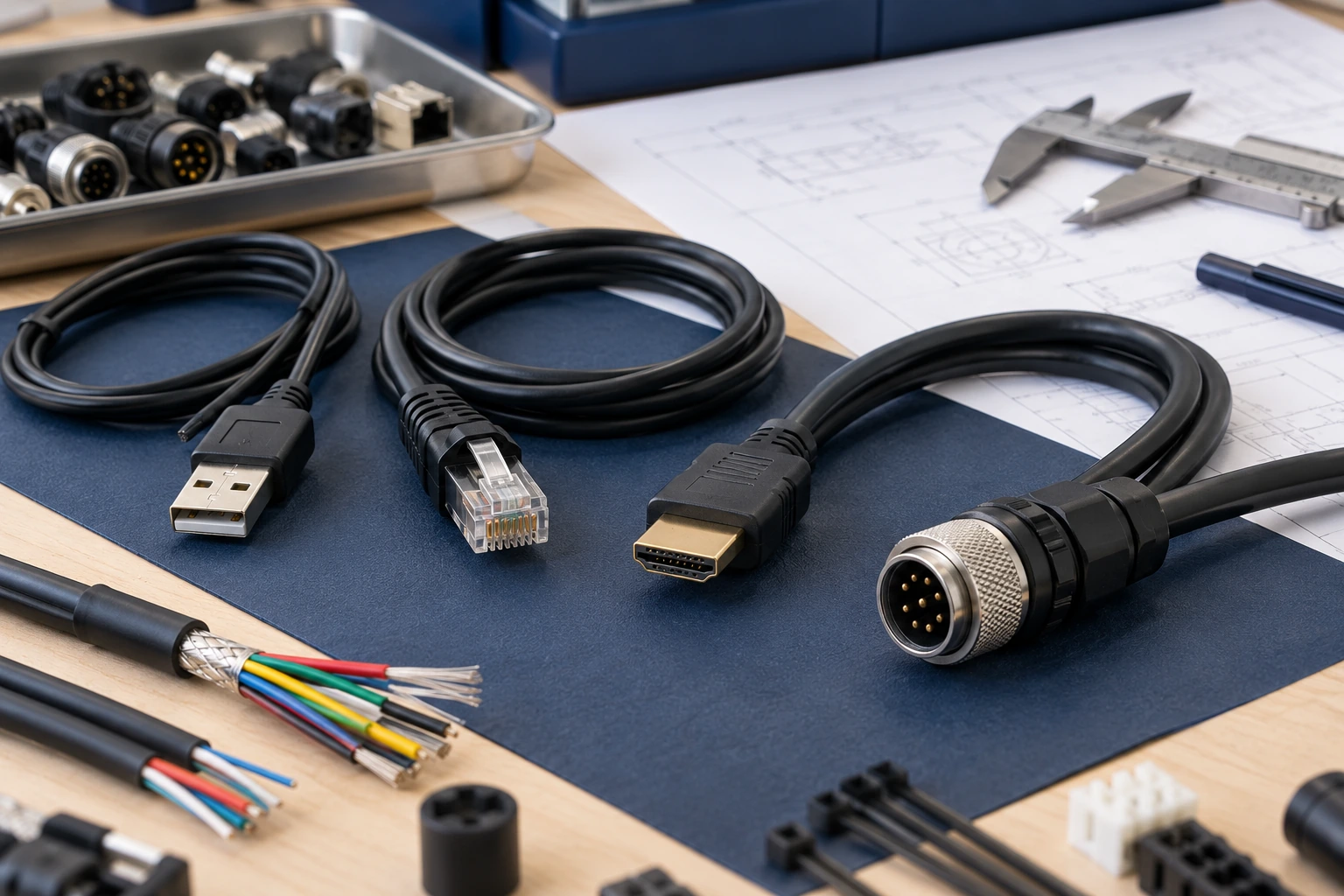

Compare connector orientation, retention and cable arrangements against your equipment. Confirm performance and compatibility for the exact assembly before selecting a configuration.
Assembly Support

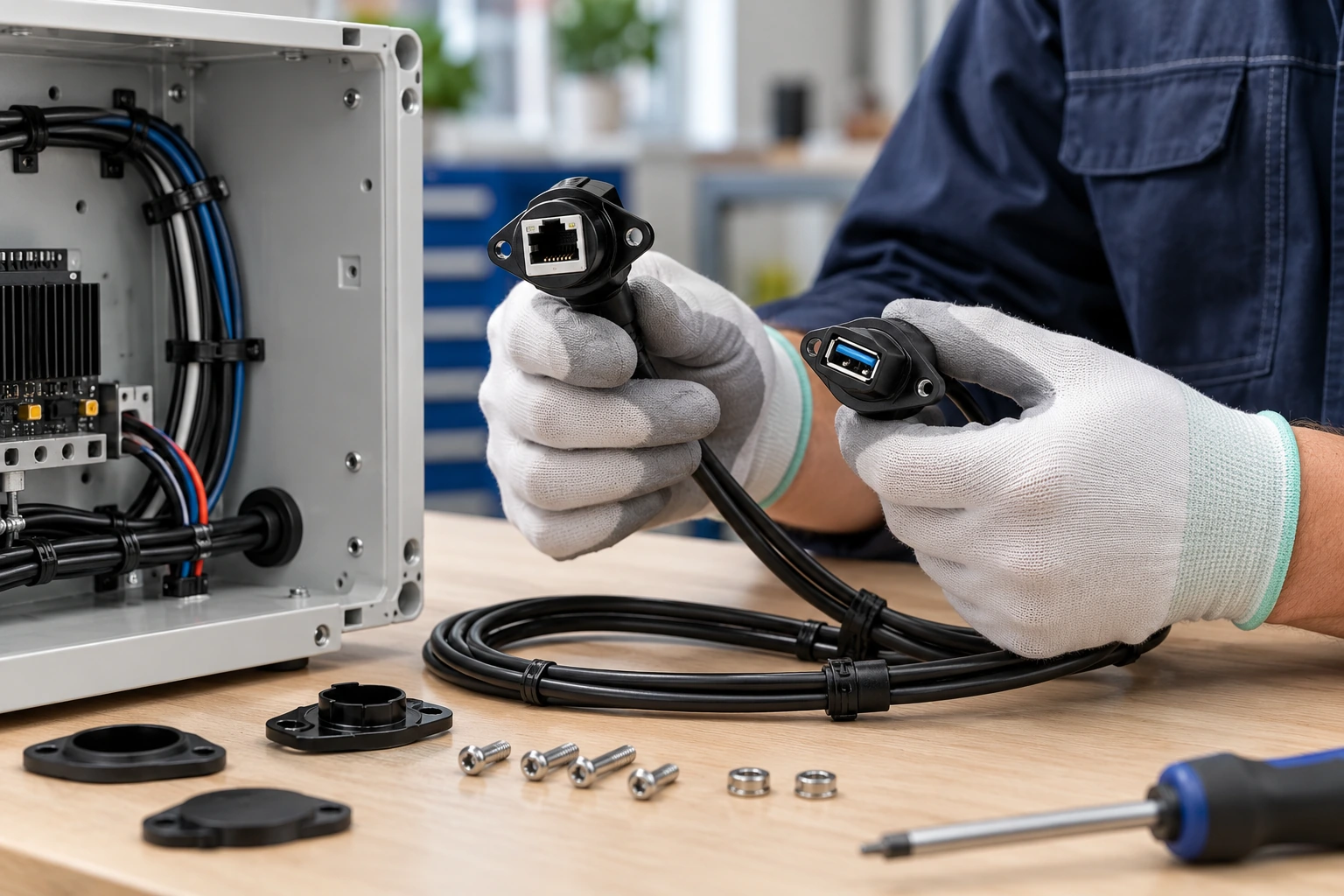

Discuss installation clearance, cable routing and the approved wiring information. Share test requirements so applicable inspection and handling details can be reviewed.
Logistics Support
Provide packing preferences, order quantities and destination. TONFUL can review protective packing and shipping options; freight, schedule and delivery terms are confirmed in the quotation.
Data Cable Assemblies: Frequently Asked Questions
What information is needed for a custom cable quote?
Provide End A and End B connector details, pinout, finished length, cable construction, performance requirements, quantity and destination. Drawings or samples help clarify the assembly.
Are all eight catalog configurations data cables?
The range includes data and interface assemblies alongside companion power cables. Select the assembly by its connector interfaces, wiring and intended equipment function.
Does a USB-C connector guarantee a particular data rate?
Confirm the exact cable specification and required data and power capabilities. The connector form alone does not establish the performance of the complete assembly.
Can I request angled or screw-locking connectors?
Share the exit direction, mounting dimensions and mating equipment. Available configurations, panel hardware and retention details must be confirmed for the selected assembly.
How do I specify a coiled cable?
Provide the working length, extended length, coil dimensions, exit arrangement and required movement. Evaluate routing and bend clearance with a sample.
What tests should be included?
Define wiring, continuity, dimensional and functional checks around the application. Agree any protocol or signal-performance testing and required reports before ordering.
Can TONFUL customize labels or packaging?
Send label artwork, part references, packing quantities and protection requirements. Confirm available customization, tooling and costs in the quotation.
Are samples available before bulk production?
Discuss the proposed assembly and sample requirements with TONFUL. Confirm sample cost, tooling, availability and lead time, then evaluate fit and operation in your equipment.
Request Data Cable Assembly Information
Plan your next custom cable assembly order with TONFUL Electric. Share connector interfaces, pinout, cable length, performance requirements, packing preferences and purchase quantity.
Explore related PCB connectors and wafer connectors for equipment connection requirements.
Email ivan@tonful.com or open the enquiry window below.
