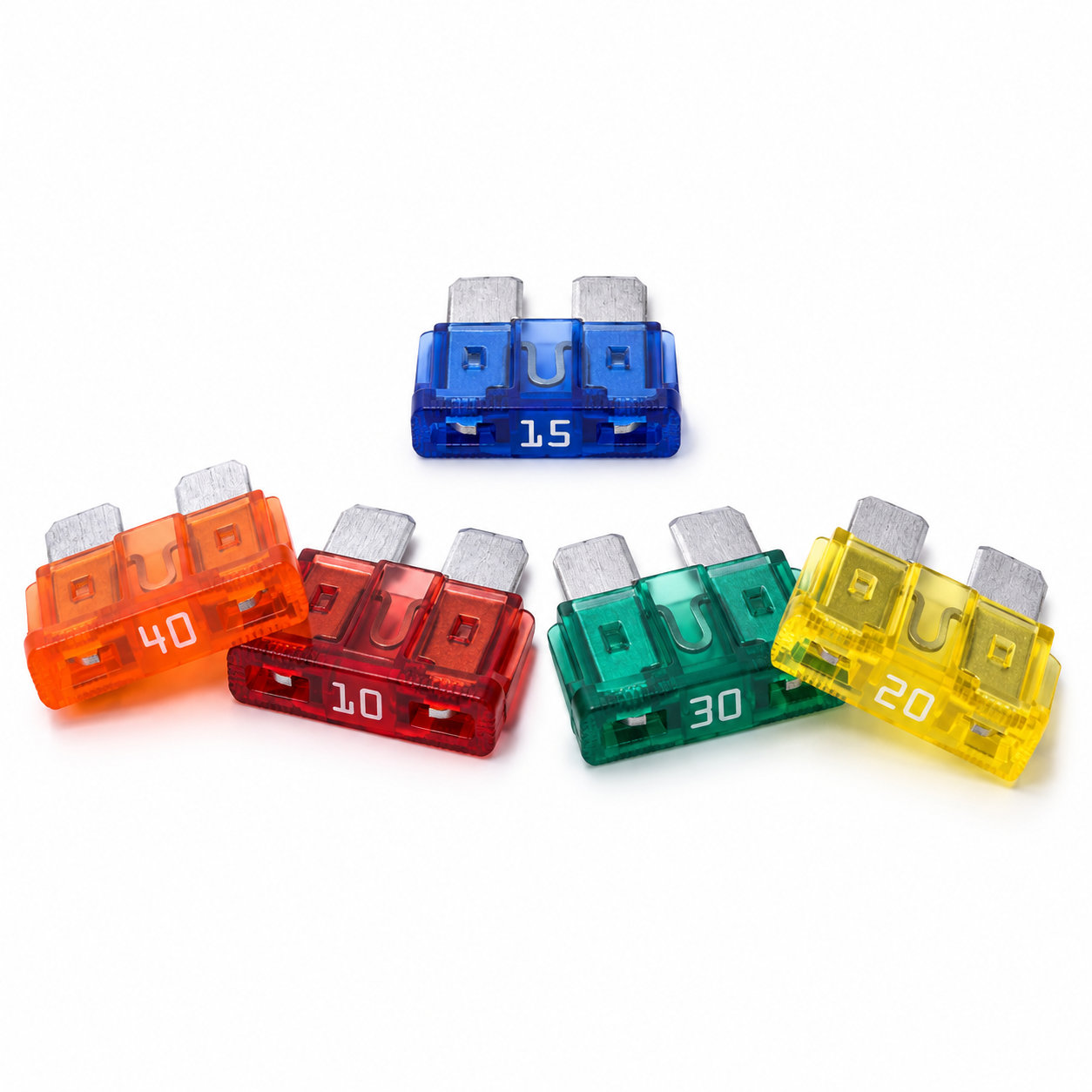

Standard Blade Fuses, 1–40A, 32V DC
TONFUL standard blade fuses provide color-coded overcurrent protection for automotive and low-voltage DC circuits. The series covers 1A to 40A ratings in a standard plug-in format with a transparent PC housing and silver-plated zinc-alloy terminals.
For automotive OEMs, distributors, repair networks, kit assemblers and wholesale buyers.
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Why Choose TONFUL Standard Blade Fuses?
This 32V standard blade fuse series is designed for replaceable circuit protection in vehicle fuse panels and other compatible low-voltage DC systems. Twelve catalog ratings from 1A to 40A give buyers a practical range for OEM production, aftermarket replacement and customized fuse assortments.
1A to 40A Range
Twelve catalog ratings support low-current electronics through higher-load vehicle circuits.
Color-Coded Identification
Each amperage uses a defined housing color for faster selection and inventory checks.
32V DC Rating
Designed for compatible 12V, 24V and other automotive systems that do not exceed 32V DC.
1,000A Breaking Capacity
The catalog lists a breaking capacity of 1,000A at 32V DC.
Wide Temperature Range
Published operating-temperature range from -40°C to +125°C.
OEM and Bulk Supply
Ask TONFUL about loose packing, retail kits, private labels and mixed-amperage assortments.
Technical Specifications
Use these catalog values to screen the fuse series for your application. Final approval should consider the fuse holder, conductor size, ambient temperature, circuit inrush and the required system standard.
| Product type | Standard automotive blade fuse |
|---|---|
| Catalog series | ADATC-PC |
| Current ratings | 1A, 2A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 35A and 40A |
| Voltage rating | 32V DC |
| Breaking capacity | 1,000A at 32V DC |
| Operating temperature | -40°C to +125°C |
| Terminal material | Silver-plated zinc alloy |
| Housing material | Polycarbonate (PC) |
| Catalog standards reference | SAE J2077, ISO 8820 and UL 248 special-purpose fuses |
Available Amperage Ratings and Color Codes
Cold-resistance values are catalog reference values with a stated tolerance of ±20%. Use the catalog number and printed amperage—not housing color alone—when ordering or replacing a fuse.
| Catalog number | Current rating | Voltage | Cold resistance ±20% | Color |
|---|---|---|---|---|
| ADATC-PC-01 | 1A | 32V | 83.5mΩ | Black |
| ADATC-PC-02 | 2A | 32V | 37.6mΩ | Gray |
| ADATC-PC-03 | 3A | 32V | 32.4mΩ | Purple |
| ADATC-PC-05 | 5A | 32V | 17.6mΩ | Tan |
| ADATC-PC-7.5 | 7.5A | 32V | 10.58mΩ | Brown |
| ADATC-PC-10 | 10A | 32V | 7.82mΩ | Red |
| ADATC-PC-15 | 15A | 32V | 5.35mΩ | Blue |
| ADATC-PC-20 | 20A | 32V | 3.81mΩ | Yellow |
| ADATC-PC-25 | 25A | 32V | 2.75mΩ | Clear |
| ADATC-PC-30 | 30A | 32V | 2.27mΩ | Green |
| ADATC-PC-35 | 35A | 32V | 1.84mΩ | Light green |
| ADATC-PC-40 | 40A | 32V | 1.73mΩ | Orange |
For more selection help, see TONFUL’s blade fuse amperage and color-code guide.
Standard Blade Fuse Dimensions
| Housing width | 19.00 mm |
|---|---|
| Housing height | 11.80 mm |
| Blade length below housing | 6.75 mm |
| Overall outside blade span | 14.48 mm |
| Inside blade spacing | 4.064 mm |
| Body thickness | 5.0 mm |
| Blade thickness | 0.66 mm |
| Dimensional tolerance | ±0.2 mm |
Catalog Drawing and Curves

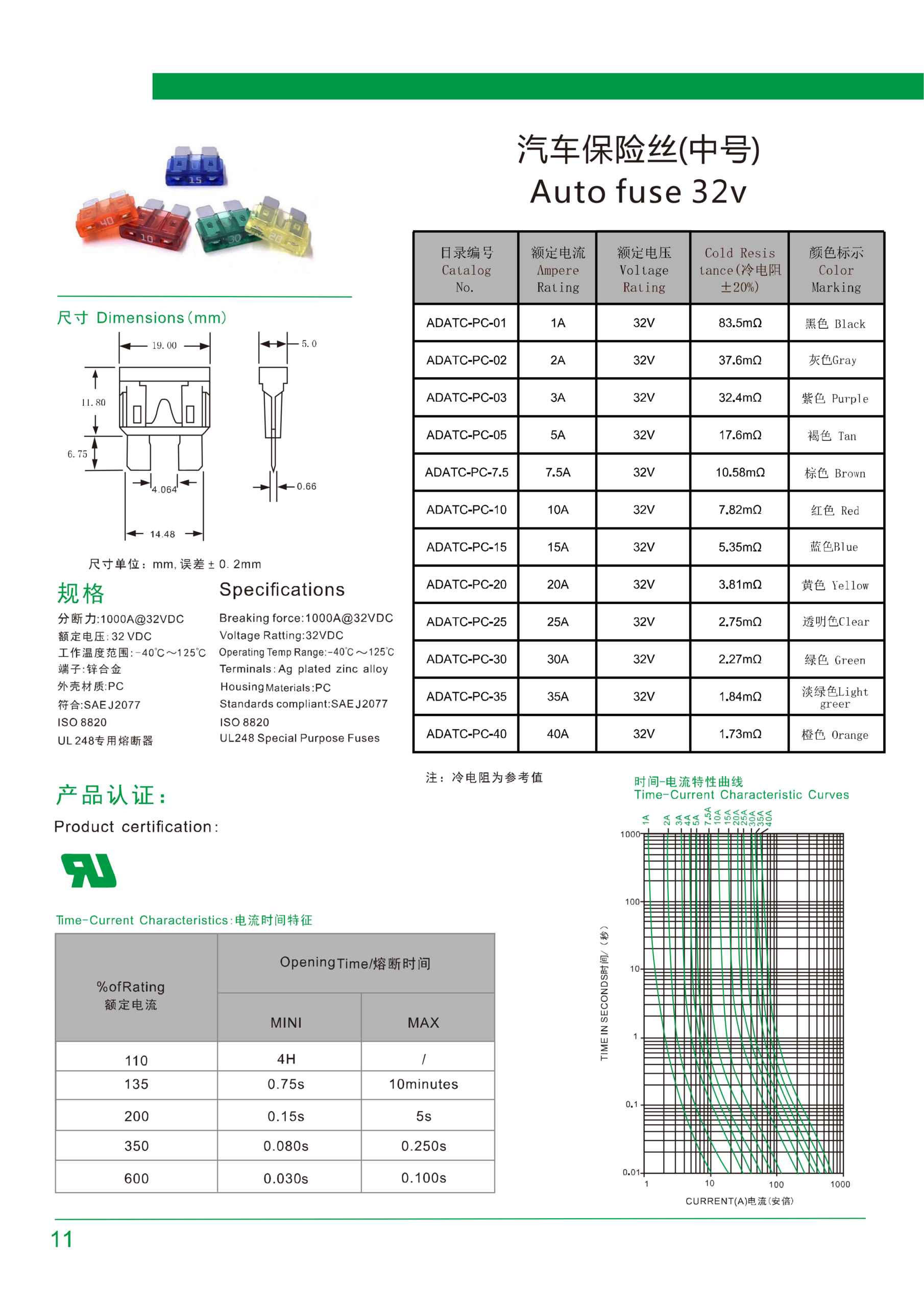

The supplied catalog sheet includes the dimensional drawing, color table, certification mark and complete time-current characteristic curves.
Select the image to open the full-resolution catalog page.
Time-Current Opening Characteristics
The following opening-time limits reproduce the table on the supplied catalog page. Actual circuit behavior also depends on ambient temperature, holder contact resistance, wiring and load profile.
| Applied current (% of rating) | Minimum opening time | Maximum opening time |
|---|---|---|
| 110% | 4 hours | Not specified |
| 135% | 0.75 seconds | 10 minutes |
| 200% | 0.15 seconds | 5 seconds |
| 350% | 0.080 seconds | 0.250 seconds |
| 600% | 0.030 seconds | 0.100 seconds |
Common Applications
Vehicle Fuse Panels
Replaceable protection for compatible passenger-car and commercial-vehicle fuse blocks.
Lighting Circuits
Headlamps, auxiliary lighting, interior lights and other correctly rated circuits.
HVAC and Motors
Blower motors, cooling fans and other loads after checking steady-state and inrush current.
Power Accessories
Power windows, seats, locks and compatible 32V DC accessory circuits.
Aftermarket Service
Replacement inventories, workshop storage and roadside emergency fuse kits.
OEM Fuse Assortments
Mixed-rating packs, private-label boxes and distributor-ready bulk programs.
How to Replace a Standard Blade Fuse
- Switch off the circuit. Turn off the ignition and isolate power according to the vehicle service procedure.
- Identify the failed fuse. Inspect the element and confirm the protected circuit.
- Match the specification. Use the same fuse type, current rating and adequate voltage rating. Never increase amperage to stop repeated opening.
- Inspect the holder. Check for heat damage, corrosion or loose terminals before installing a replacement.
- Insert and test. Push the fuse fully into the compatible holder, restore power and confirm normal operation.
Information for an RFQ
Include these details when requesting pricing:
- Required amperage ratings and quantity per rating
- Loose, bagged, blister-card or assortment-box packaging
- Private-label, barcode and printed-insert requirements
- Required standards, test reports and recognition documents
- Annual forecast, sample quantity and delivery destination
Standard Blade Fuse Frequently Asked Questions
What amperage ratings are available?
The supplied ADATC-PC catalog lists 1A, 2A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 35A and 40A versions.
Can these fuses be used in 12V and 24V vehicles?
They are rated up to 32V DC, so they may be evaluated for compatible 12V and 24V circuits. The fuse type, current rating, holder and complete circuit requirements must still match.
Does fuse color determine the correct replacement?
Color helps identify the current rating, but buyers should also verify the printed amperage, physical fuse type and voltage rating. Do not rely on color alone.
Are standard and mini blade fuses interchangeable?
No. Standard and mini blade fuses have different body dimensions and holder interfaces. Use the physical format specified by the fuse block.
What is the breaking capacity?
The supplied catalog lists a breaking capacity of 1,000A at 32V DC.
Can TONFUL supply custom assortments and packaging?
Yes. TONFUL supports wholesale quantities, mixed-amperage kits, labels and private packaging subject to order requirements.
