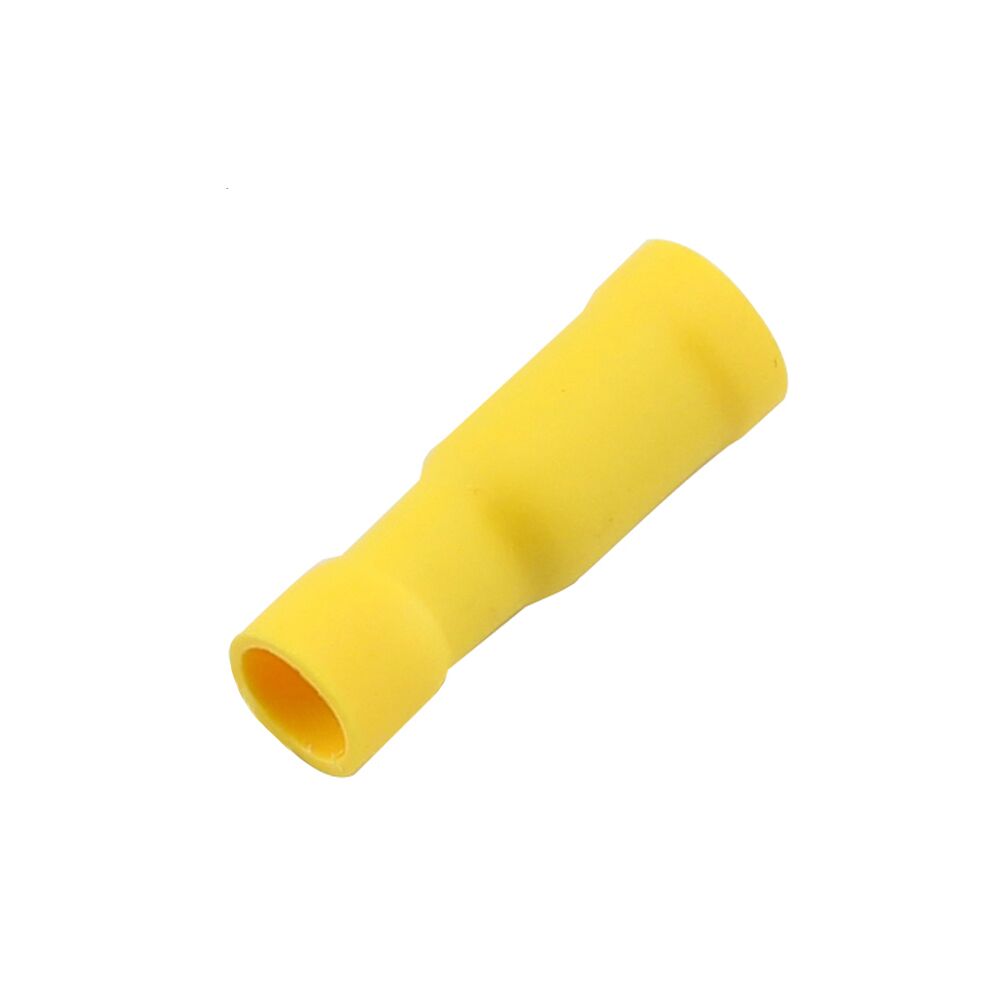

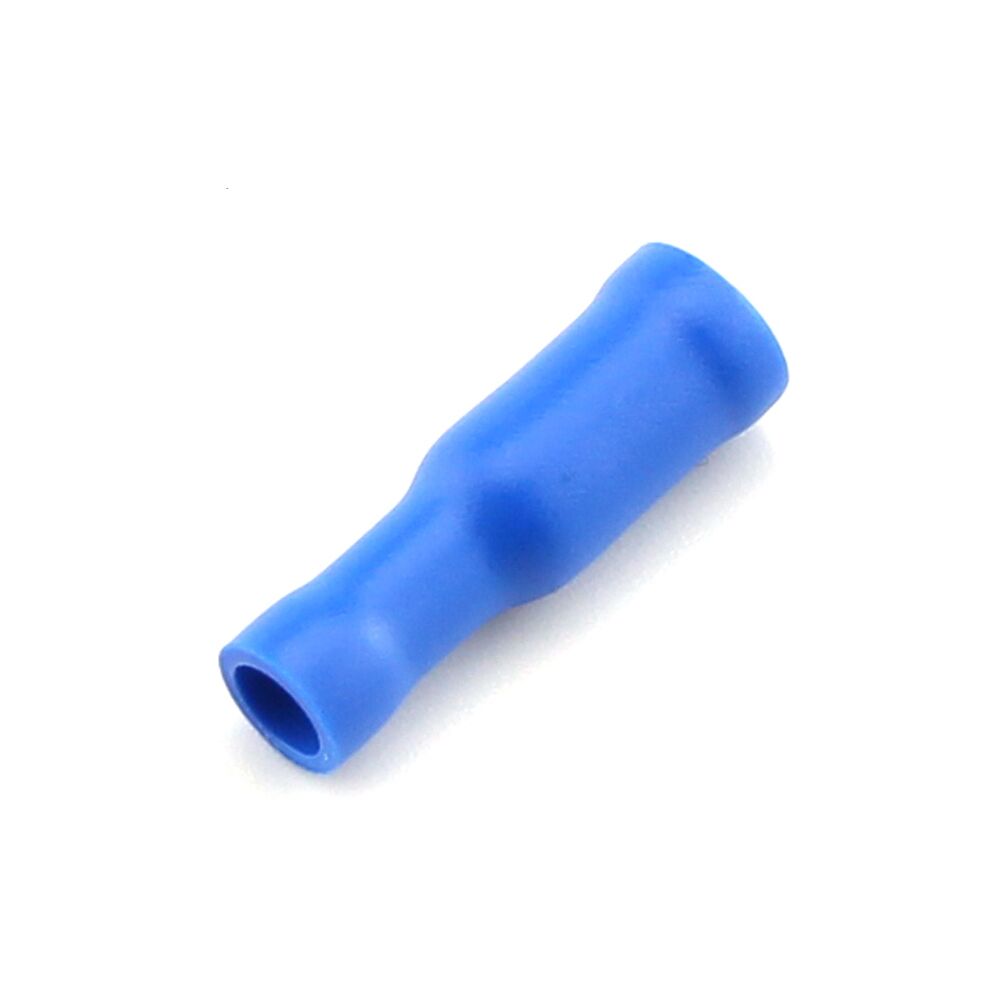

FRD Bullet Female Insulated Terminal
FRD Bullet Female Insulated Terminal
TONFUL Electric FRD bullet female insulated terminals combine a tin-plated brass contact with vinyl insulation for crimped wire connections. Choose the model to match your conductor size and mating bullet terminal.
- Five FRD models with red, blue and yellow insulation.
- Listed conductor sizes: 0.5–1.5, 1.5–2.5 and 4.0–6.0 mm².
- Model-specific maximum current: 10, 15 or 24 A.
- Compare wire range, B, F, DΦ, E and L before ordering.
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Overview
TONFUL Electric FRD Bullet Female Insulated Terminal is a vinyl-insulated female bullet connector with a tin-plated brass contact. The existing product range lists five models, with conductor sizes, current values and dimensions specified for each model below.
The female receptacle is selected together with its compatible male bullet terminal. Check the mating interface, conductor size and installation requirements before approving your selection.
Features

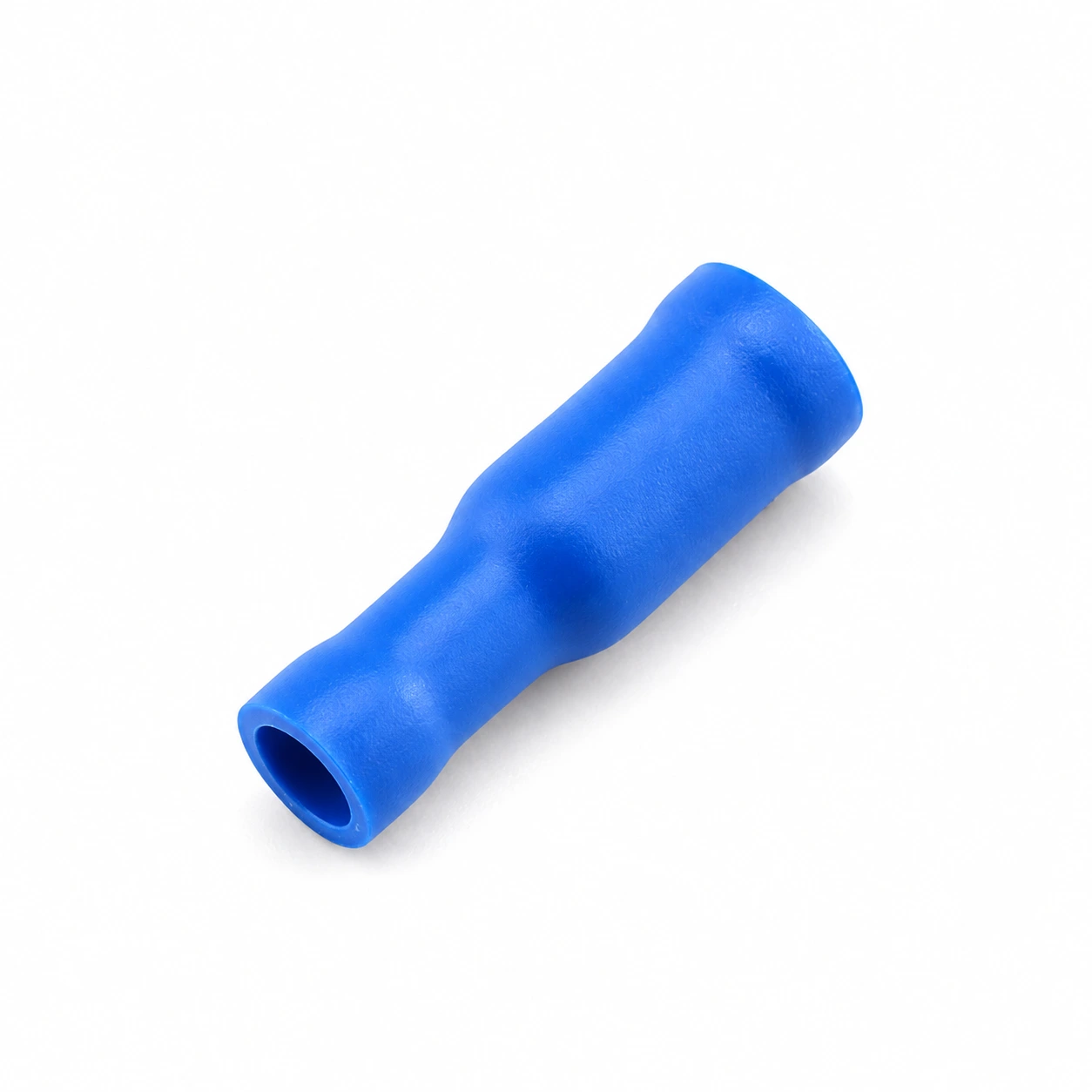

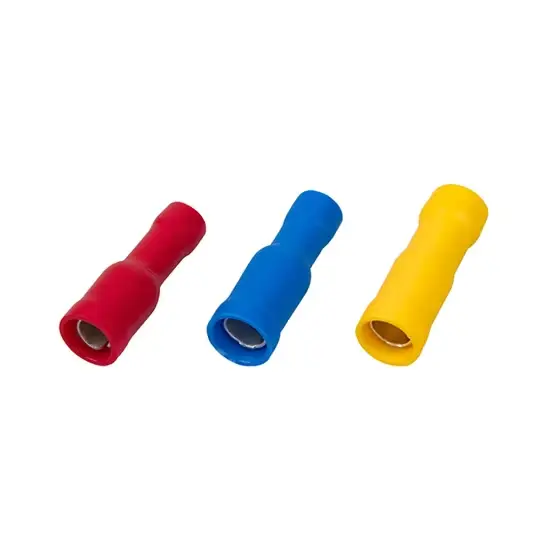

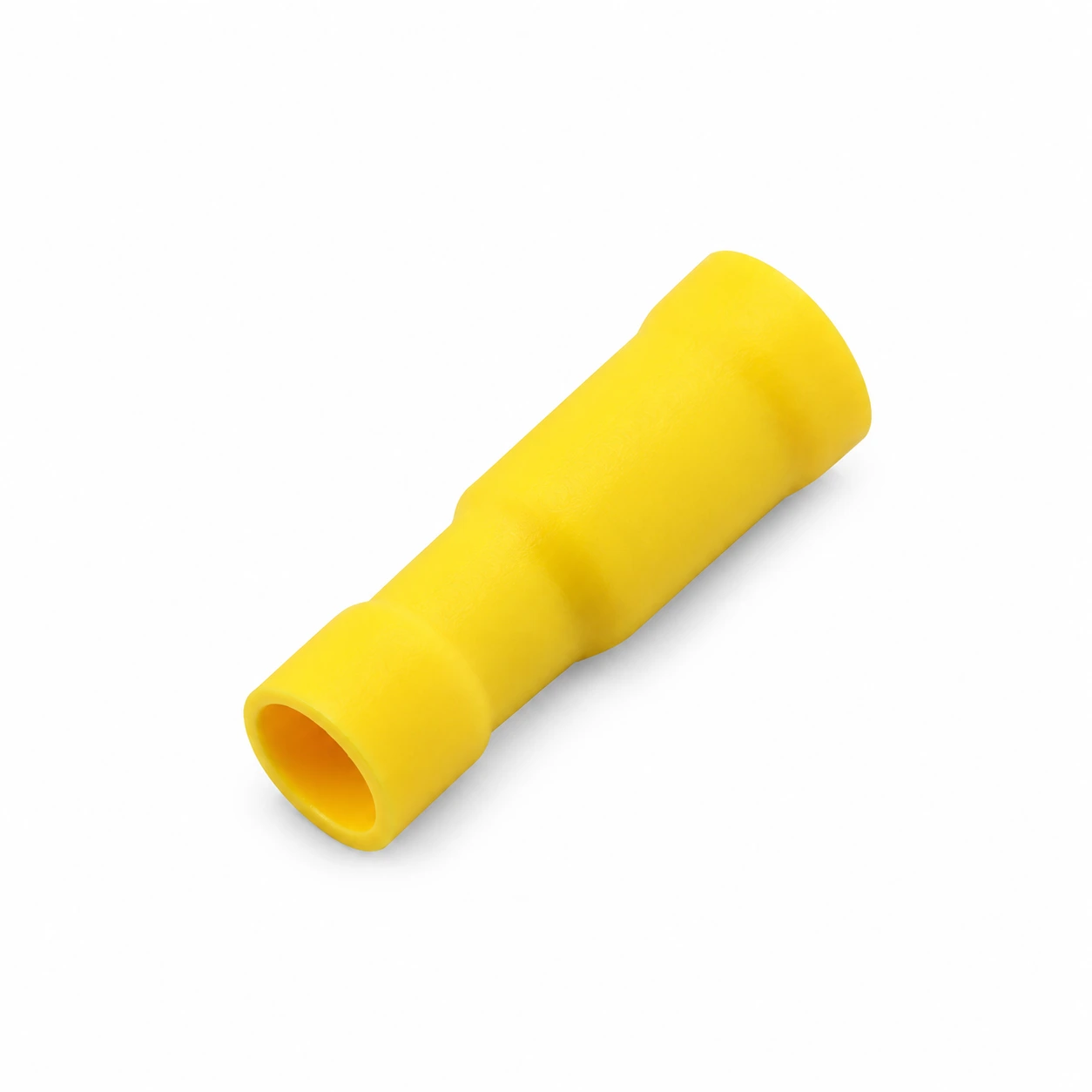

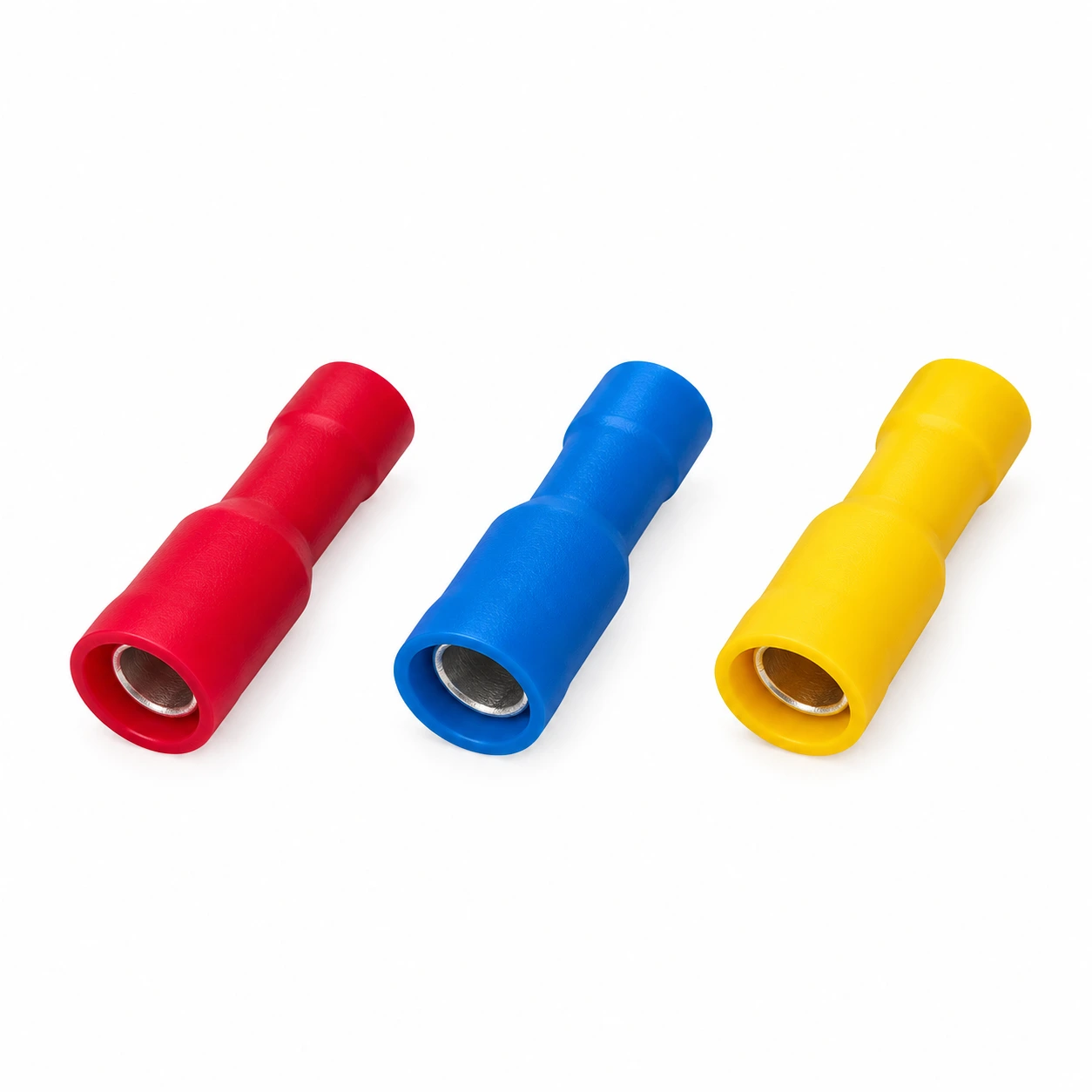

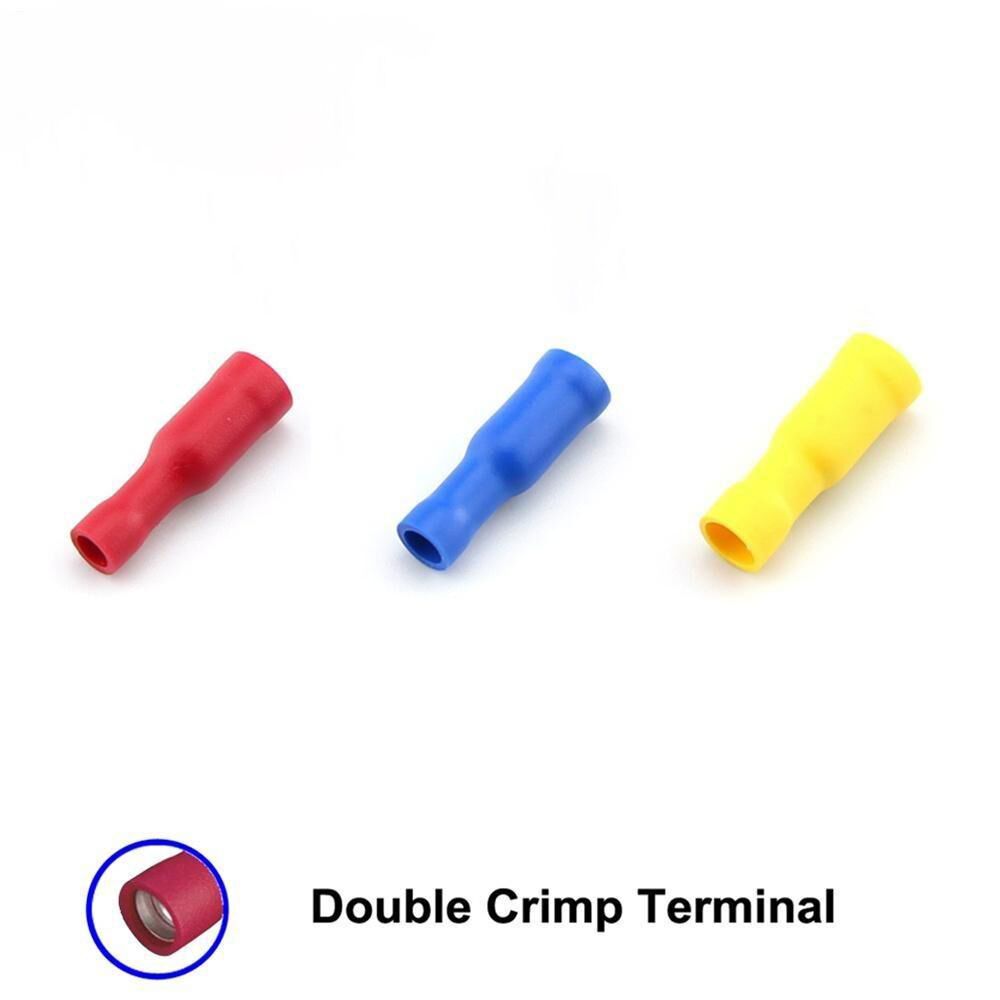

- Vinyl insulation: red, blue and yellow sleeves identify the three listed conductor-size groups.
- Tin-plated brass contact: terminal material and plating retained from TONFUL’s product specifications.
- Female bullet connection: a receptacle-style interface for a compatible male bullet terminal.
- Model-specific selection: compare the listed wire size, maximum current and dimensions rather than applying one rating to the entire range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product family | Bullet female insulated terminal |
| Series | FRD |
| Terminal material | Brass |
| Plating | Tin |
| Insulation material | Vinyl |
| Listed models | 5 |
| Conductor-size groups | 0.5–1.5 / 1.5–2.5 / 4.0–6.0 mm² |
| Maximum current | 10 / 15 / 24 A, depending on model |
The maximum current values are specific to each listed model. Confirm the complete conductor, mating terminal and operating conditions for your assembly.
Dimension

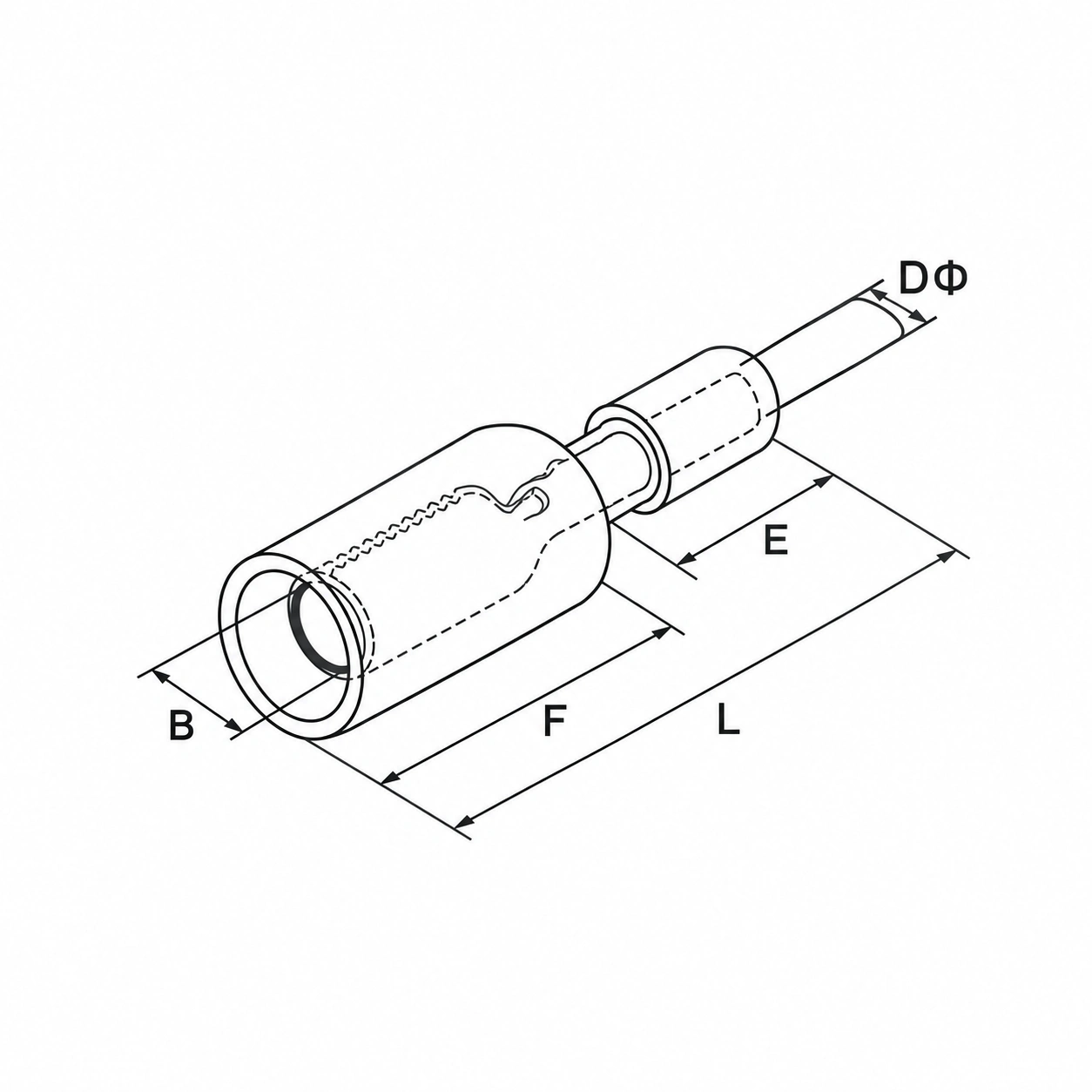

All terminal dimensions are in millimeters. B, F, DΦ, E and L correspond to the symbols in the dimension reference. Conductor section is shown in mm²; current is shown in A.
| Model | Wire section (mm²) |
AWG | Max current (A) |
Thickness (mm) |
B (mm) |
F (mm) |
DΦ (mm) |
E (mm) |
L (mm) |
Color |
|---|---|---|---|---|---|---|---|---|---|---|
| FRD1.25-156 | 0.5–1.5 | 22–16 | 10 | 0.4 | 4.0 | 7.0 | 1.7 | 10.5 | 23.3 | Red |
| FRD2-156 | 1.5–2.5 | 16–14 | 15 | 0.4 | 4.0 | 7.0 | 2.3 | 10.5 | 23.3 | Blue |
| FRD2-195 | 1.5–2.5 | 16–14 | 15 | 0.4 | 5.0 | 7.0 | 2.3 | 10.5 | 23.3 | Blue |
| FRD5.5-156 | 4.0–6.0 | 12–10 | 24 | 0.4 | 4.0 | 7.0 | 3.4 | 12.5 | 25.1 | Yellow |
| FRD5.5-195 | 4.0–6.0 | 12–10 | 24 | 0.4 | 5.0 | 7.0 | 3.4 | 12.5 | 25.1 | Yellow |
Selection Guide
Start with the conductor section and AWG range. Compare the model-specific maximum current and listed dimensions, then confirm the female receptacle fits the intended male bullet terminal. Use a compatible insulated-terminal crimping tool and verify the finished connection against your assembly requirements.
FRD2 and FRD5.5 are listed in both -156 and -195 versions. Their B dimensions differ; do not select a version using sleeve color alone.
Applications
For crimped wire connections that require a female bullet interface with a compatible male terminal. Potential uses include equipment wiring, cable assemblies and serviceable harness connections where the selected model meets the assembly requirements.
Confirm voltage, temperature, environmental protection and any required approvals for the selected product. These ratings are not stated on the original page.
Ordering Information
Provide the full FRD model number, conductor size, mating terminal reference and order quantity when requesting a quotation. Include sample requirements, packaging preferences and any inspection or documentation requirements.
Explore more vinyl-insulated terminals or TONFUL terminals and connectors.
Product images are high-definition illustrative recreations of the original photographs. Confirm the product configuration against an approved sample.
