Bullet Male Insulated Terminal
TONFUL Electric MPD male bullet terminals combine a tin-plated brass contact with vinyl insulation for crimped wire connections. Select a red, blue or yellow model by conductor size and mating bullet dimensions.
- Five MPD models are listed in the range.
- Listed wire sections cover 0.5–1.5, 1.5–2.5 and 4.0–6.0 mm².
- Model-group current values are 10, 15 and 24 A.
- Compare wire size, B, F, DΦ, E, L and color below.
Overview

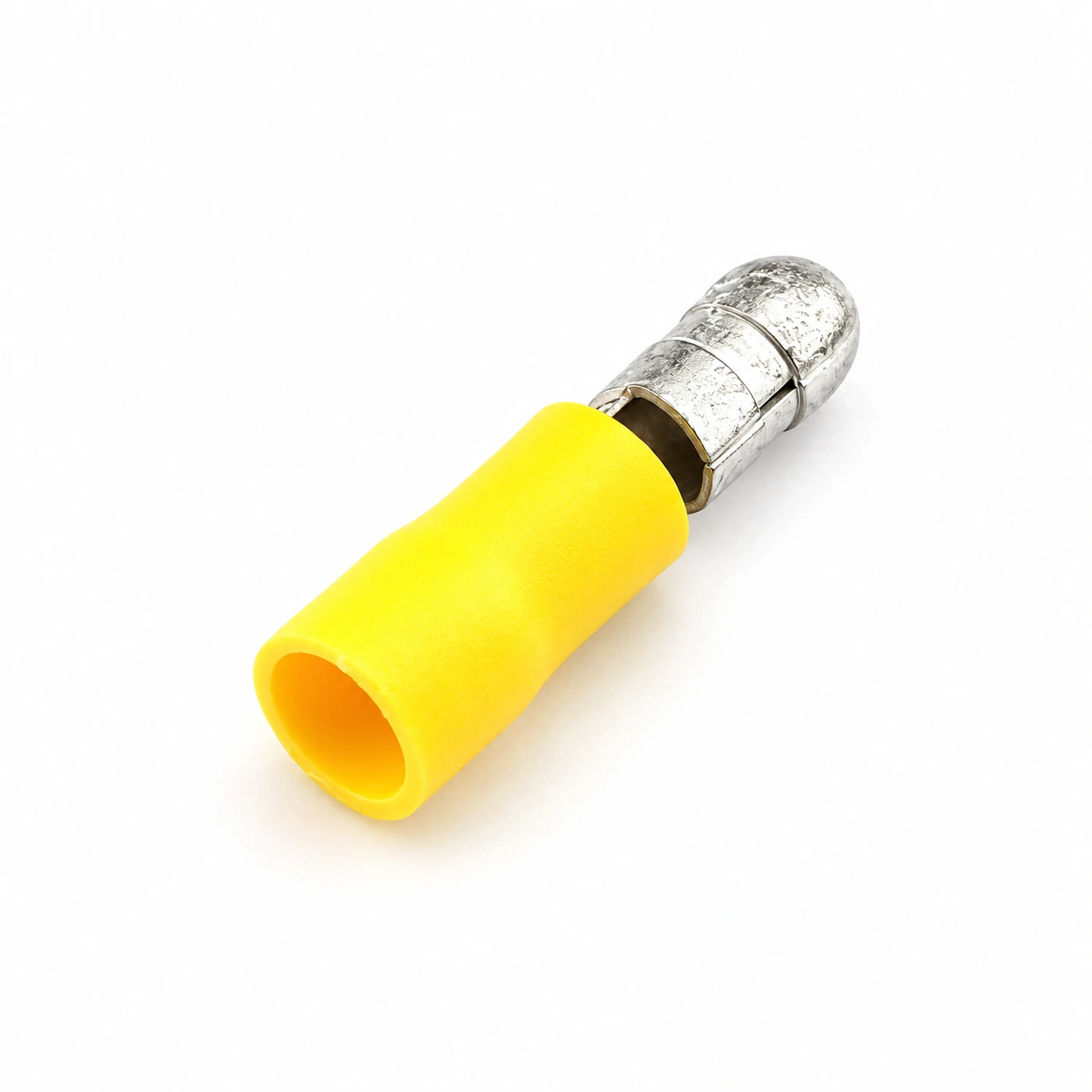

The MPD range is a male bullet crimp terminal with vinyl insulation, a brass contact and tin plating. The five listed models cover three conductor-size groups. Select the terminal together with its mating female connector and the requirements of the wire assembly.
Features
- Vinyl-insulated wire entry: the colored sleeve surrounds the crimp-barrel area.
- Tin-plated brass contact: the stated contact material and finish for the MPD range.
- Male bullet interface: the rounded contact mates with a compatible female bullet terminal.

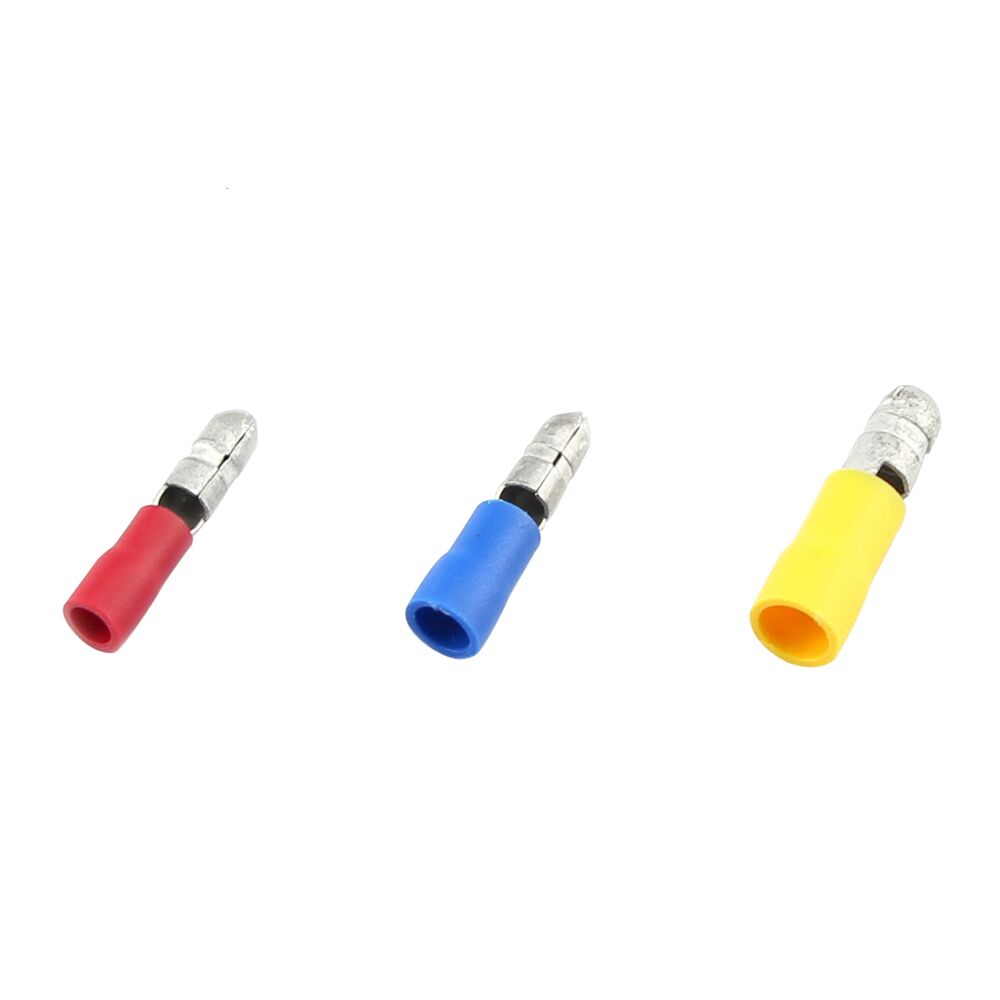

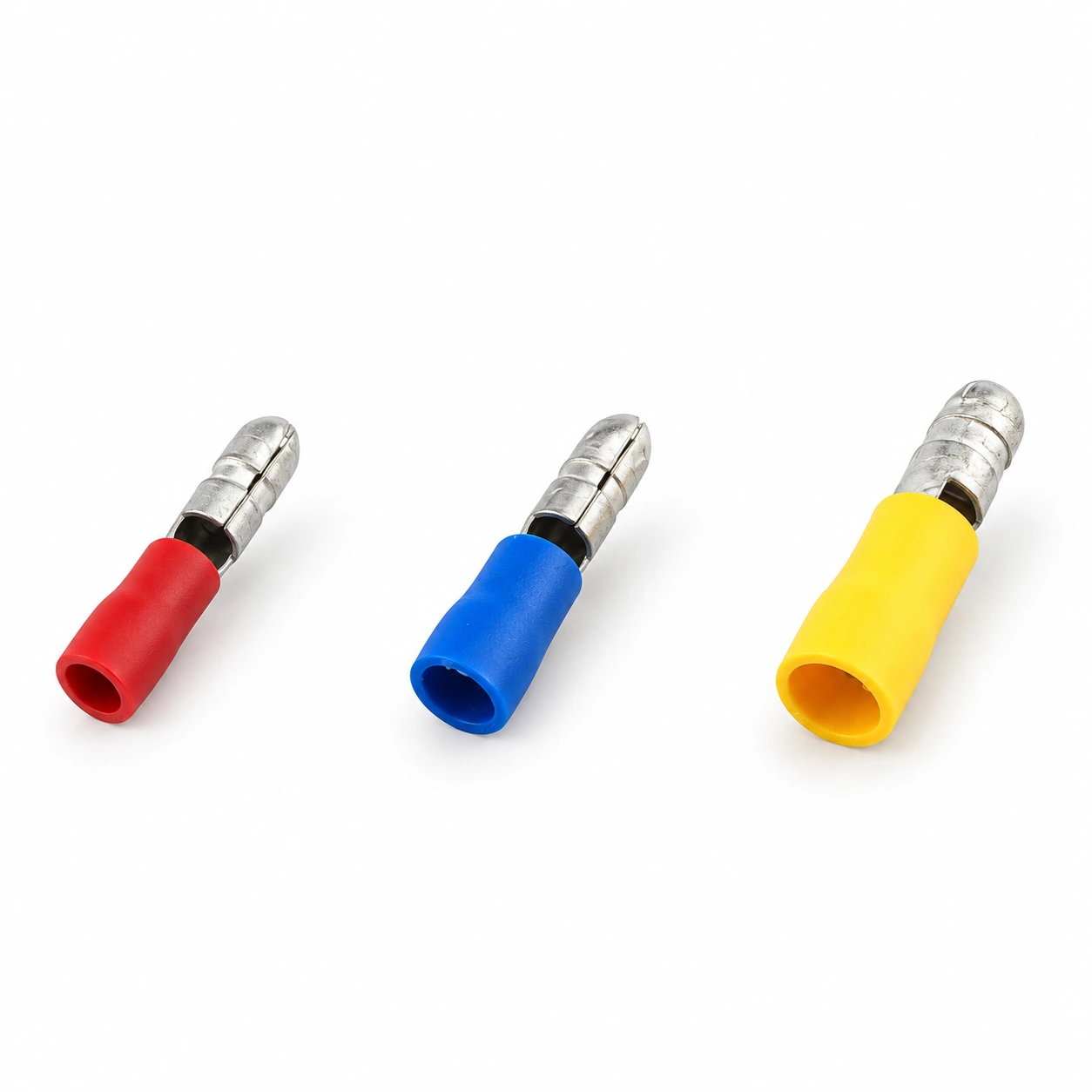

- Three color groups: red, blue and yellow correspond to the wire sections listed below.
- Model-specific fit: compare contact diameter and wire-entry dimensions before ordering.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product family | Male bullet insulated crimp terminal |
| Series | MPD |
| Insulation material | Vinyl |
| Terminal material | Brass |
| Plating | Tin |
| Listed models | 5 |
| Listed wire sections | 0.5–1.5, 1.5–2.5 and 4.0–6.0 mm² |
| Color groups | Red, blue and yellow |
The catalog current values below apply to the listed model groups. Confirm the current requirement against the selected conductor, crimp connection and operating conditions.
Dimension

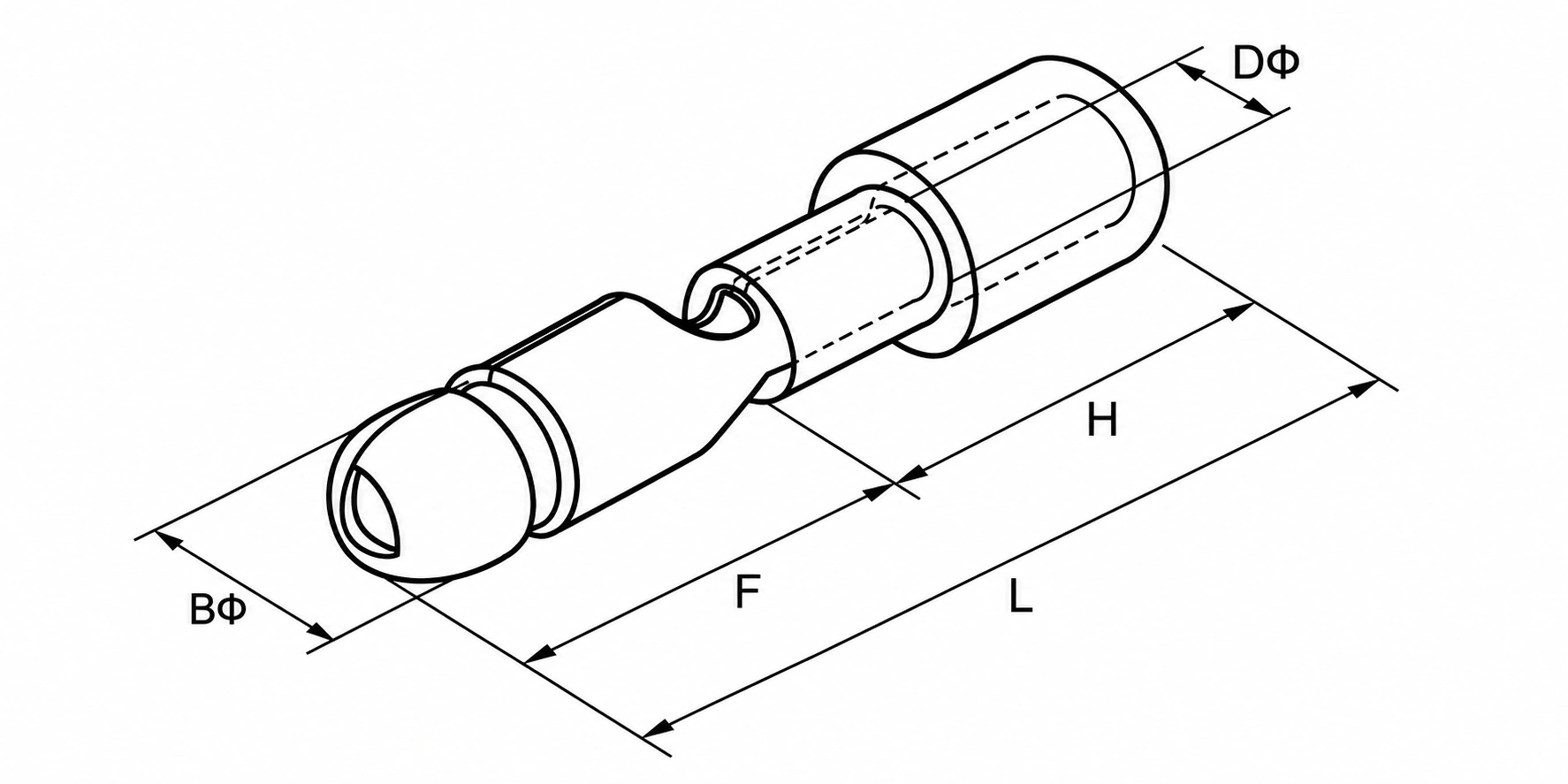

Dimensions are in millimeters; wire sections are in mm² and current is in amperes. Column letters retain the original TONFUL catalog notation.
| Model | AWG | Wire section (mm²) | Catalog max current (A) | Thickness (mm) | B (mm) | F (mm) | DΦ (mm) | E (mm) | L (mm) | Color |
|---|---|---|---|---|---|---|---|---|---|---|

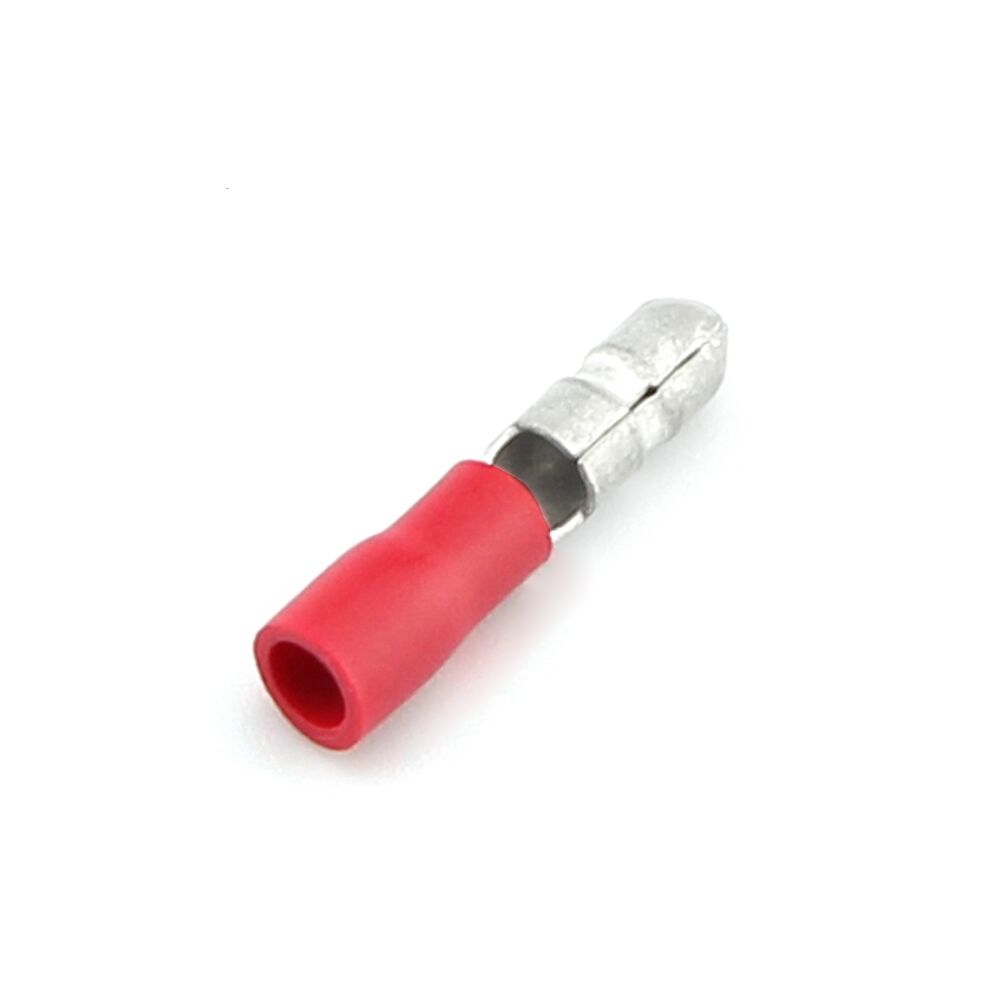

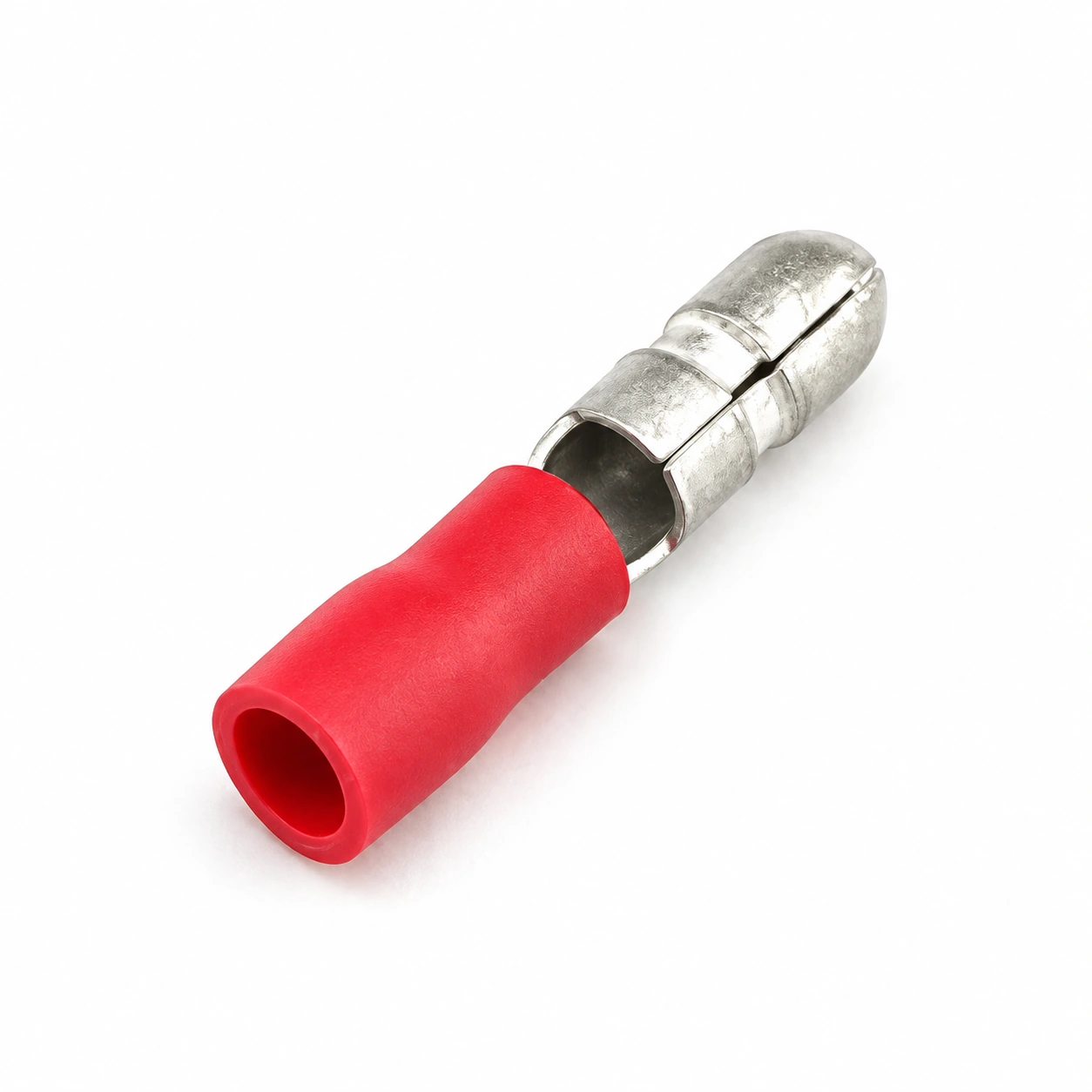

| MPD1.25-156 | 22–16 | 0.5–1.5 | 10 | 0.4 | 4.0 | 8.5 | 1.7 | 10.5 | 22.0 | Red |

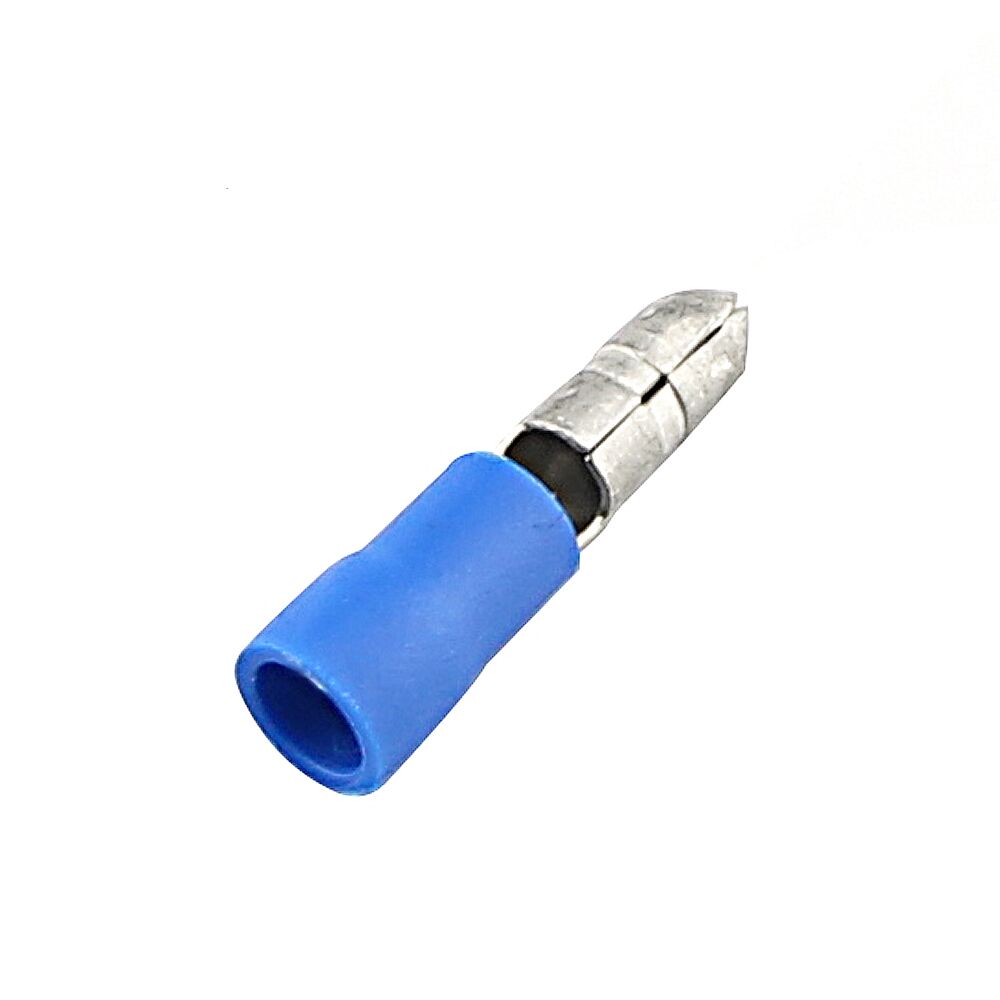

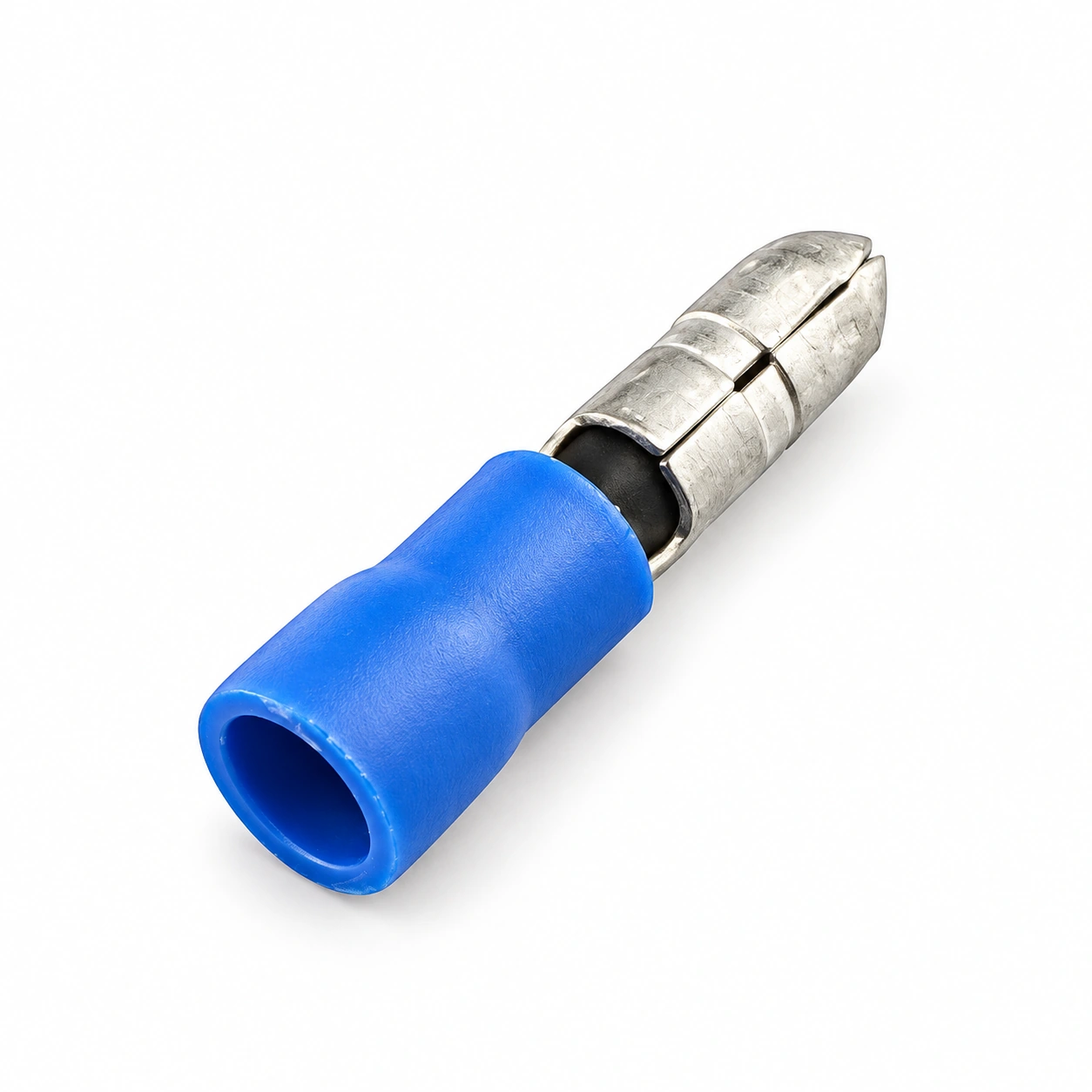

| MPD2-156 | 16–14 | 1.5–2.5 | 15 | 0.4 | 4.0 | 8.5 | 2.3 | 10.5 | 22.2 | Blue |
| MPD2-195 | 16–14 | 1.5–2.5 | 15 | 0.4 | 5.0 | 8.5 | 2.3 | 10.5 | 22.2 | Blue |

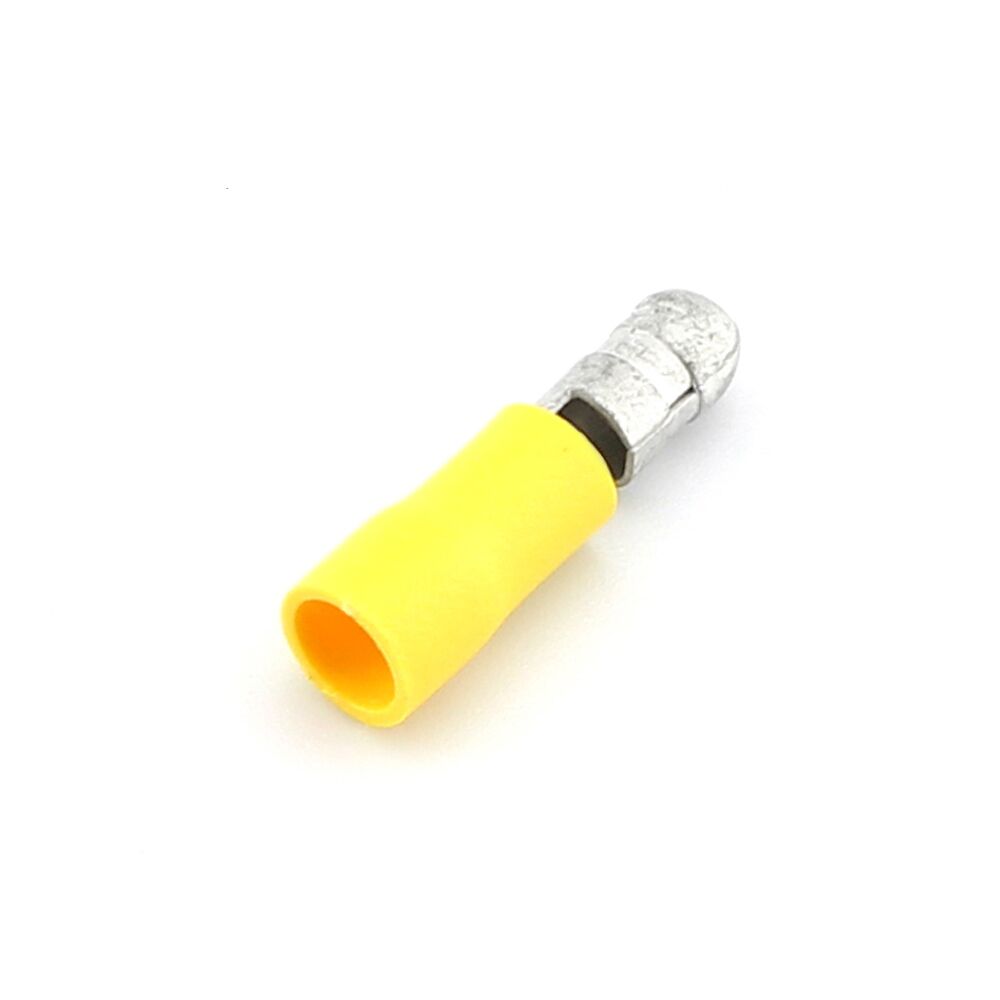

| MPD5.5-156 | 12–10 | 4.0–6.0 | 24 | 0.4 | 4.0 | 8.5 | 3.4 | 13.0 | 24.5 | Yellow |
| MPD5.5-195 | 12–10 | 4.0–6.0 | 24 | 0.4 | 5.0 | 8.5 | 3.4 | 13.0 | 24.5 | Yellow |
Selection Guide
Match the conductor section to the listed red, blue or yellow model group. Check the male bullet size against the mating female connector, then compare the wire-entry diameter and overall length with your assembly. Share your mating-part reference or drawing if you need help confirming the fit.
Applications
For detachable wire connections in equipment assemblies, wiring harnesses and maintenance work where the conductor, mating terminal and installation conditions match the selected model.
Ordering Information
Send the full MPD model number, conductor size, mating connector details and order quantity. Include packaging or labeling requirements for OEM and wholesale enquiries.
Request an MPD terminal quote or email ivan@tonful.com.
