DBV Chip Insulated Terminal
DBV Chip Insulated Terminal
TONFUL Electric DBV chip insulated terminals combine a tin-plated copper flat blade with vinyl insulation for crimped wire connections. Choose the model to match your conductor size and connection interface.
- 13 DBV models with red, blue and yellow insulation.
- Listed conductor sizes: 0.5–1.5, 1.5–2.5 and 4.0–6.0 mm².
- Model-specific maximum current: 19, 27 or 48 A.
- Compare wire range, blade width and terminal dimensions before ordering.
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Overview
TONFUL Electric DBV Chip Insulated Terminal is a vinyl-insulated crimp terminal with a tin-plated copper flat blade. The range includes 13 models across three conductor-size groups, with wire sizes, current values and dimensions listed below.
Select the blade width and length to suit the intended connection interface. Confirm the complete terminal configuration against your drawing or approved sample before ordering.
Features

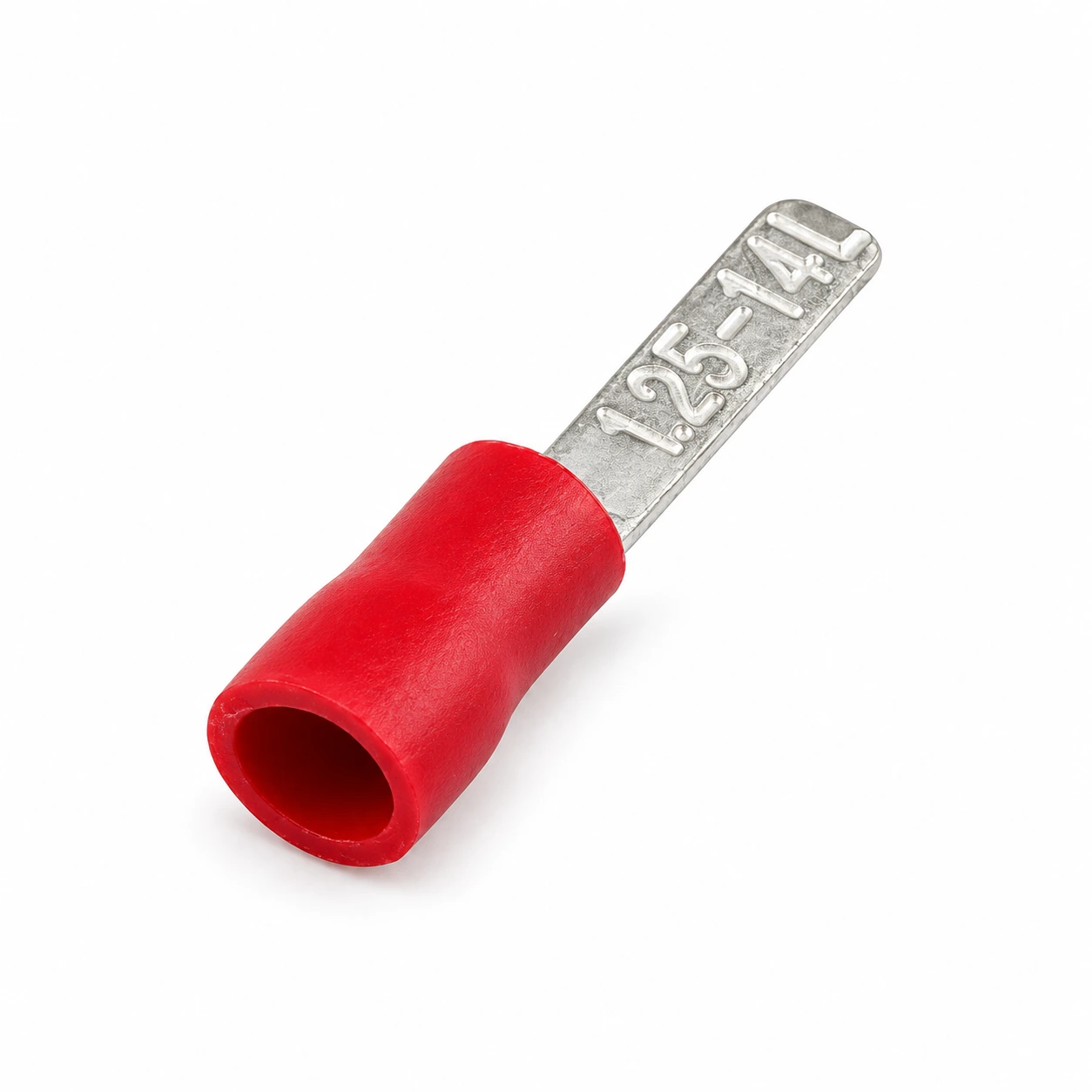

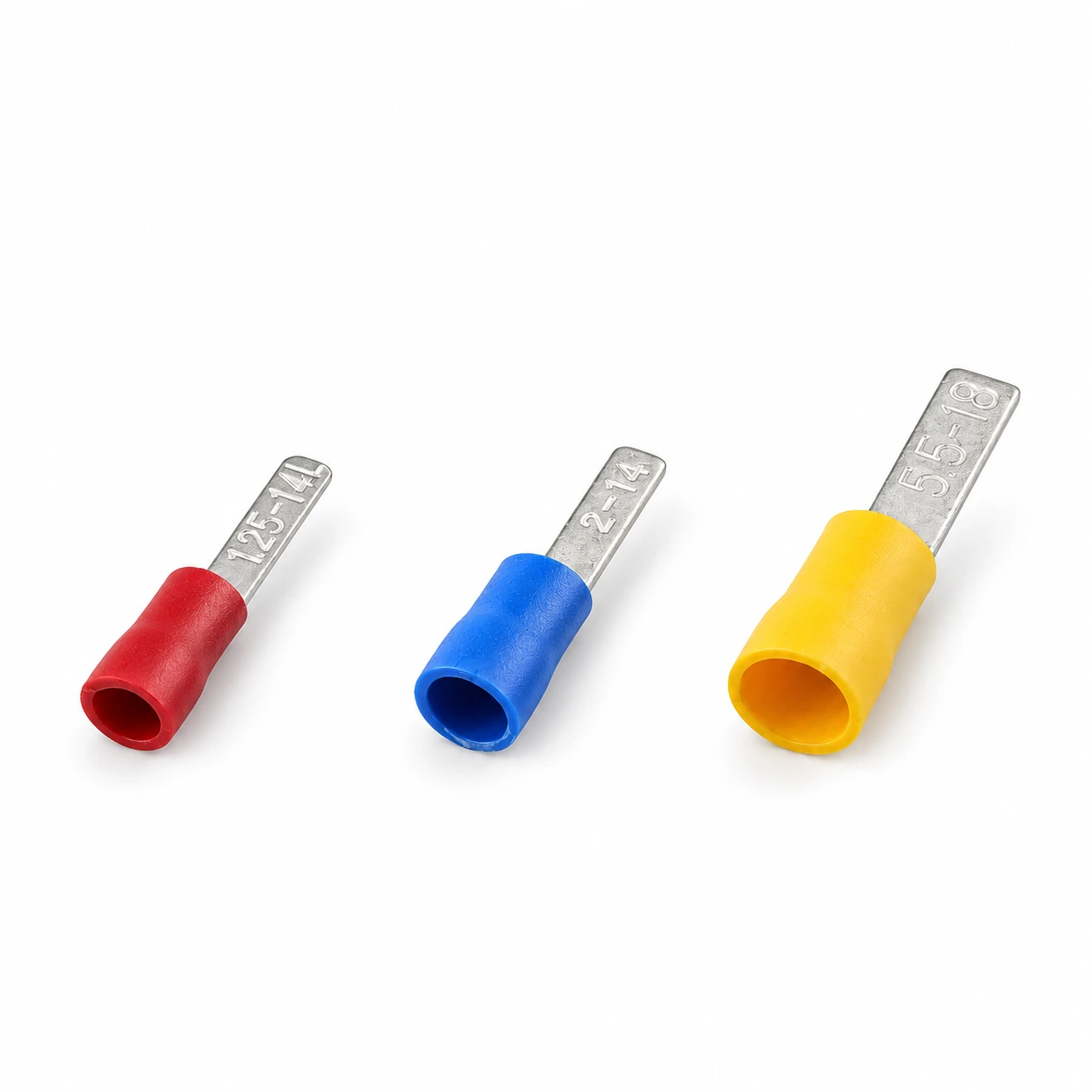

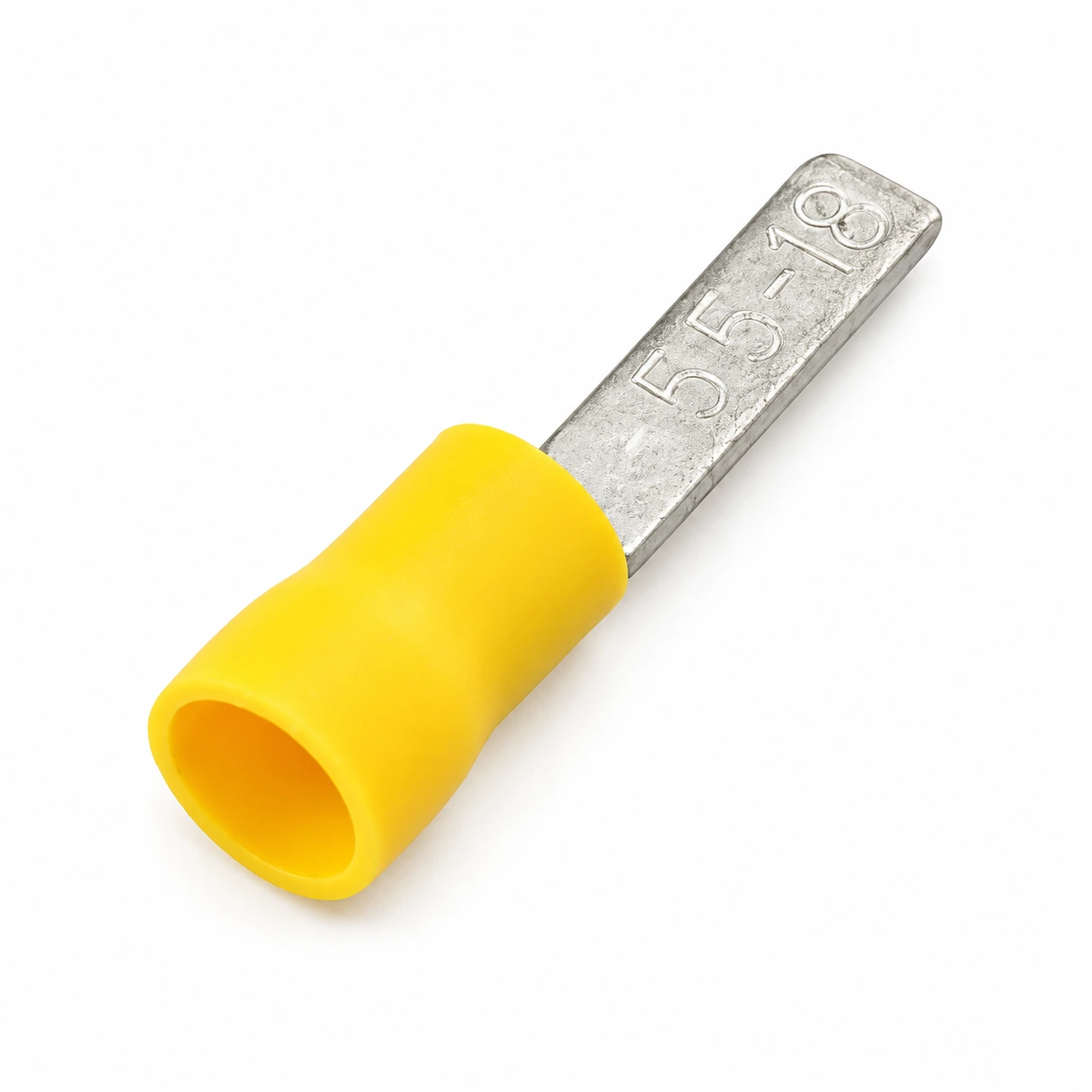

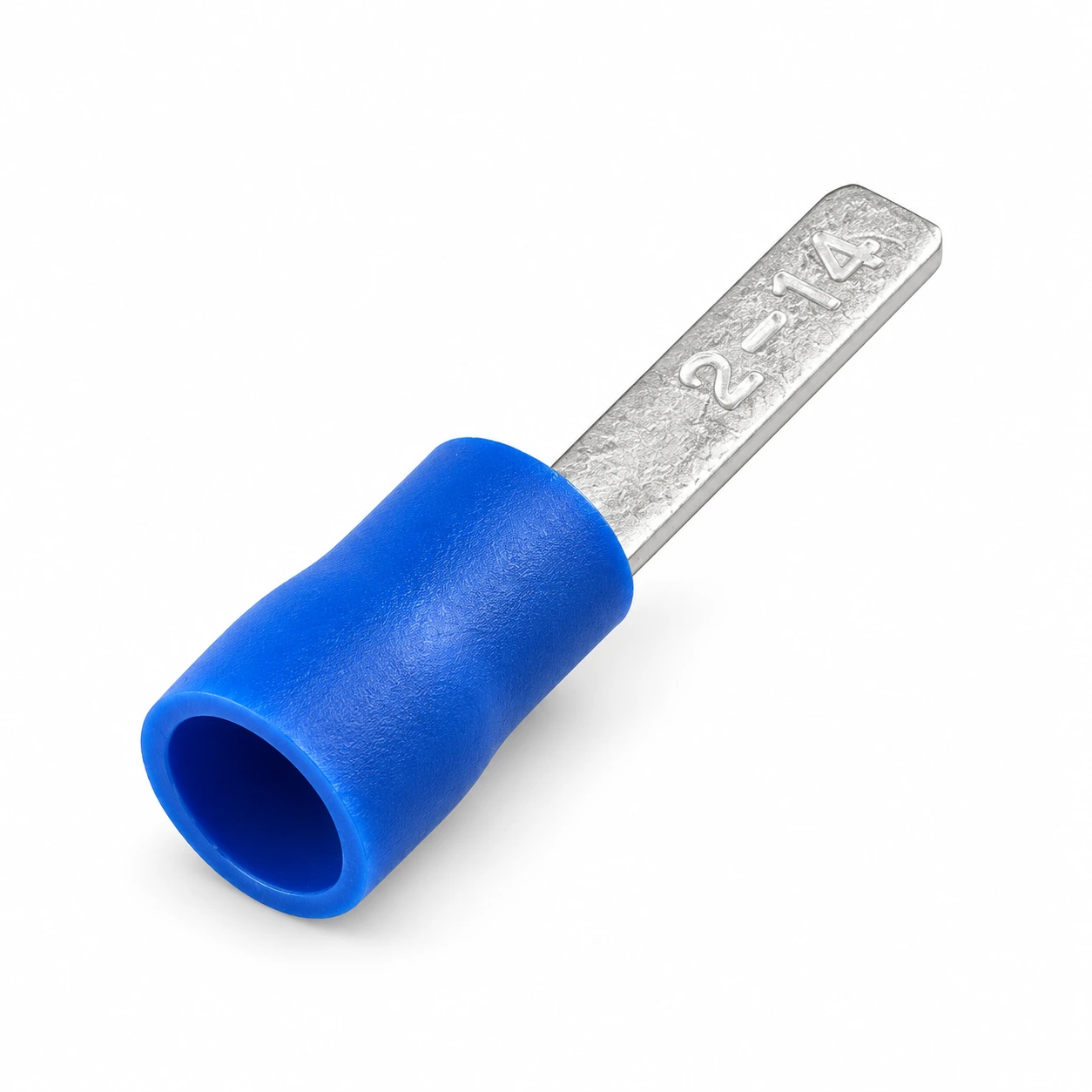

- Vinyl insulation: red, blue and yellow sleeves identify the three listed conductor-size groups.
- Tin-plated copper contact: material and plating retained from TONFUL’s original specifications.
- Flat-blade connection: compare blade width B and blade length F for the intended interface.
- Model-specific selection: conductor range, maximum current and thickness depend on the selected DBV model.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product family | Chip insulated flat-blade terminal |
| Series | DBV |
| Terminal material | Copper |
| Plating | Tin |
| Insulation material | Vinyl |
| Listed models | 13 |
| Conductor-size groups | 0.5–1.5 / 1.5–2.5 / 4.0–6.0 mm² |
| Maximum current | 19 / 27 / 48 A, depending on model |
Maximum current values are specific to each listed model. Confirm the conductor, connection interface and operating conditions for your assembly.
Dimension

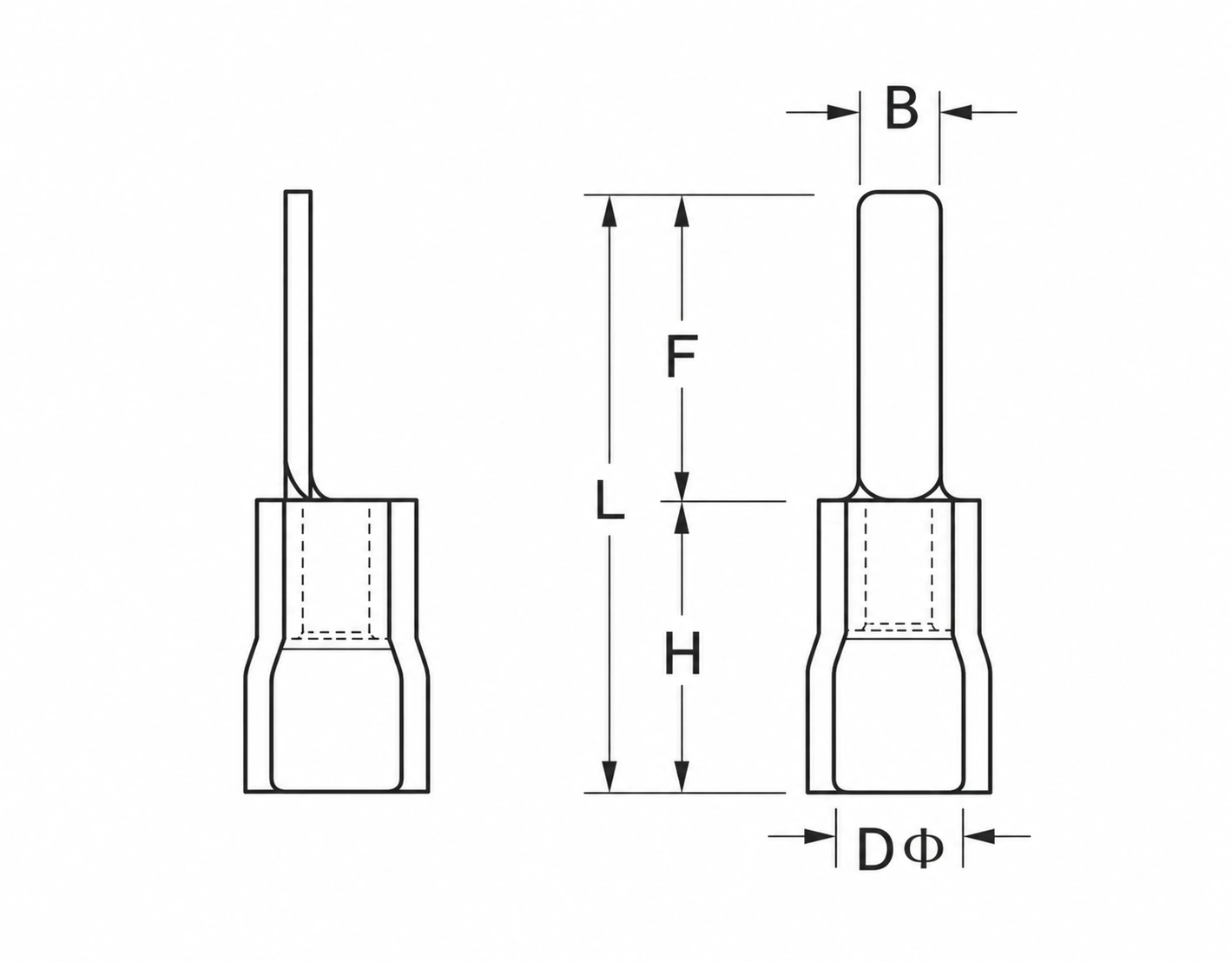

All terminal dimensions are in millimeters. B, F, H, DΦ and L correspond to the dimension reference. Conductor section is shown in mm²; current is shown in A.
| Model | Wire section (mm²) |
AWG | Max current (A) |
Thickness (mm) |
B (mm) |
F (mm) |
H (mm) |
DΦ (mm) |
L (mm) |
Color |
|---|---|---|---|---|---|---|---|---|---|---|
| DBV1.25-10 | 0.5–1.5 | 22–16 | 19 | 0.7 | 2.3 | 10.0 | 10.0 | 4.3 | 20.0 | Red |
| DBV1.25-11 | 0.5–1.5 | 22–16 | 19 | 0.7 | 3.0 | 11.0 | 10.0 | 4.3 | 21.0 | Red |
| DBV1.25-14S | 0.5–1.5 | 22–16 | 19 | 0.7 | 2.4 | 14.0 | 10.0 | 4.3 | 24.0 | Red |
| DBV1.25-14L | 0.5–1.5 | 22–16 | 19 | 0.7 | 3.0 | 14.0 | 10.0 | 4.3 | 24.0 | Red |
| DBV1.25-18 | 0.5–1.5 | 22–16 | 19 | 0.7 | 2.3 | 18.0 | 10.0 | 4.3 | 28.0 | Red |
| DBV2-9 | 1.5–2.5 | 16–14 | 27 | 0.8 | 2.8 | 9.0 | 10.0 | 4.9 | 19.0 | Blue |
| DBV2-10 | 1.5–2.5 | 16–14 | 27 | 0.8 | 2.8 | 10.0 | 10.0 | 4.9 | 20.0 | Blue |
| DBV2-14S | 1.5–2.5 | 16–14 | 27 | 0.8 | 2.4 | 14.0 | 10.0 | 4.9 | 24.0 | Blue |
| DBV2-14L | 1.5–2.5 | 16–14 | 27 | 0.8 | 3.0 | 14.0 | 10.0 | 4.9 | 24.0 | Blue |
| DBV2-18 | 1.5–2.5 | 16–14 | 27 | 0.8 | 2.3 | 18.0 | 10.0 | 4.9 | 28.0 | Blue |
| DBV5.5-10 | 4.0–6.0 | 12–10 | 48 | 1.0 | 2.8 | 10.0 | 13.0 | 6.7 | 23.0 | Yellow |
| DBV5.5-14 | 4.0–6.0 | 12–10 | 48 | 1.0 | 4.5 | 14.0 | 13.0 | 6.7 | 27.0 | Yellow |
| DBV5.5-18 | 4.0–6.0 | 12–10 | 48 | 1.0 | 4.5 | 18.0 | 13.0 | 6.7 | 31.0 | Yellow |
Selection Guide
Start with the conductor section and AWG range. Compare the model-specific maximum current, blade width B, blade length F and overall length L. Confirm the connection interface accepts the selected flat blade, and use a compatible insulated-terminal crimping tool.
The -14S and -14L versions in the DBV1.25 and DBV2 groups have different blade widths. Do not select a terminal using sleeve color alone.
Applications
For crimped wire connections requiring an insulated flat-blade terminal. Potential uses include equipment wiring, electrical panel assemblies and cable harnesses where the selected DBV model meets the connection and installation requirements.
Confirm voltage, temperature, environmental protection and required approvals for the selected product. These ratings are not stated on the original product page.
Ordering Information
Provide the full DBV model number, conductor size, connection interface details and order quantity when requesting a quotation. Include sample requirements, packaging preferences and any inspection or documentation requirements.
