Chip Non-Insulated Terminal
Chip Non-Insulated Terminal

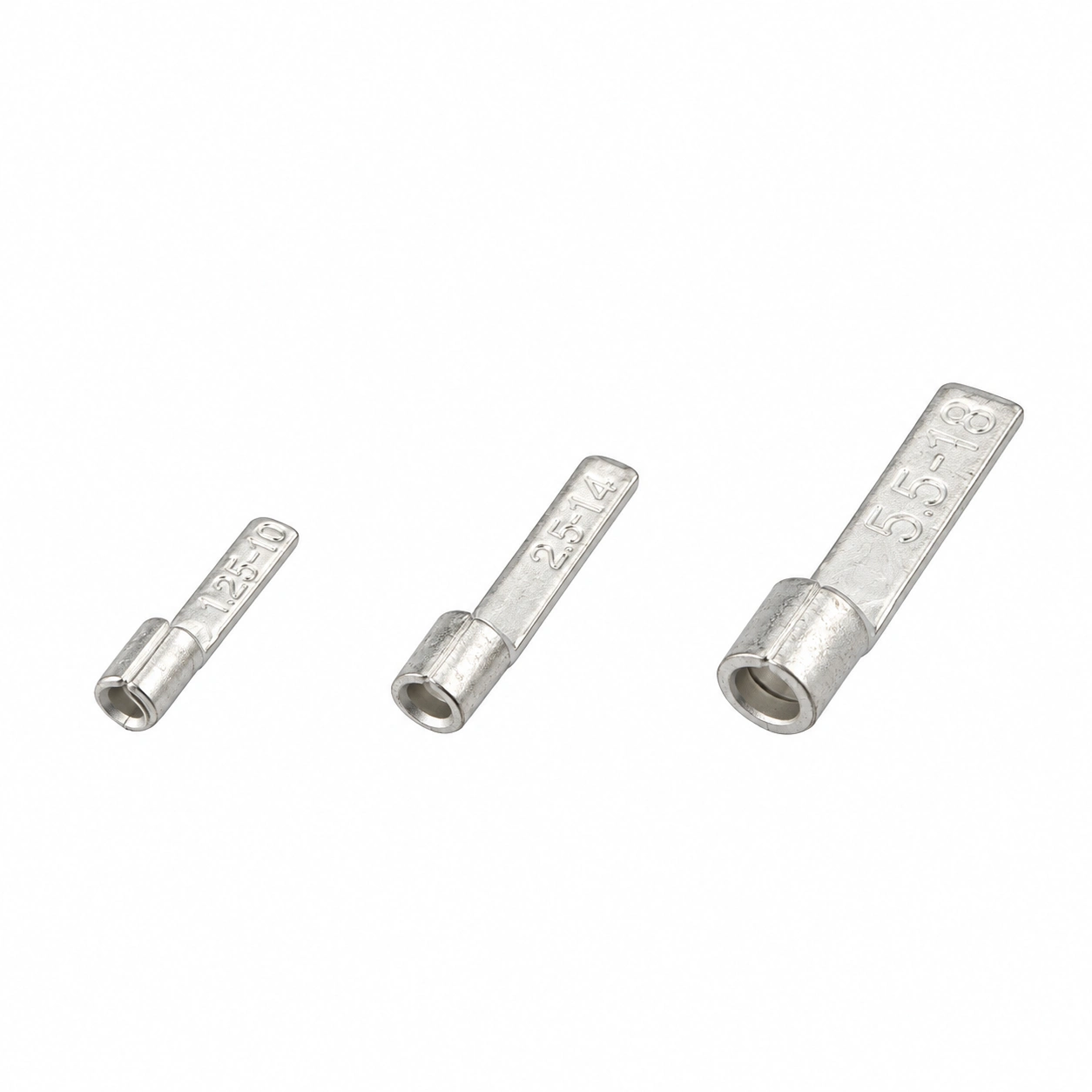

TONFUL DBN chip non-insulated terminals combine a flat blade contact with a tubular crimp barrel. Compare the blade dimensions and conductor range against the receiving equipment terminal.
- DBN series · 13 original catalog models
- Tin-plated copper · non-insulated construction
- Model-specific wire range and dimensions
- Product selection, samples and packaging reviewed with your enquiry
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Overview
TONFUL DBN chip non-insulated terminals combine a flat blade contact with a tubular crimp barrel. Compare the blade dimensions and conductor range against the receiving equipment terminal. The original catalog includes 13 models; all model references and table values are retained below.
The terminal is non-insulated. Confirm insulation or enclosure requirements for the completed assembly against the application and approved design.
Features
- Tin-plated copper: material and finish retained from TONFUL’s original product information.
- Flat blade interface: match the contact geometry to your installation.
- Crimp connection: select tooling appropriate for the conductor and barrel.
- Model-specific dimensions: 13 original catalog models available for comparison.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | DBN |
| Contact material | Copper |
| Plating | Tin |
| Insulation | Non-insulated |
| Interface | flat blade |
| Catalog models | 13 |
| Wire range and dimensions | See model-specific catalog tables below |
Where listed, current values apply to the catalog group, not every installation. Confirm voltage, temperature, environmental conditions and required documentation for your selected model.
Dimension

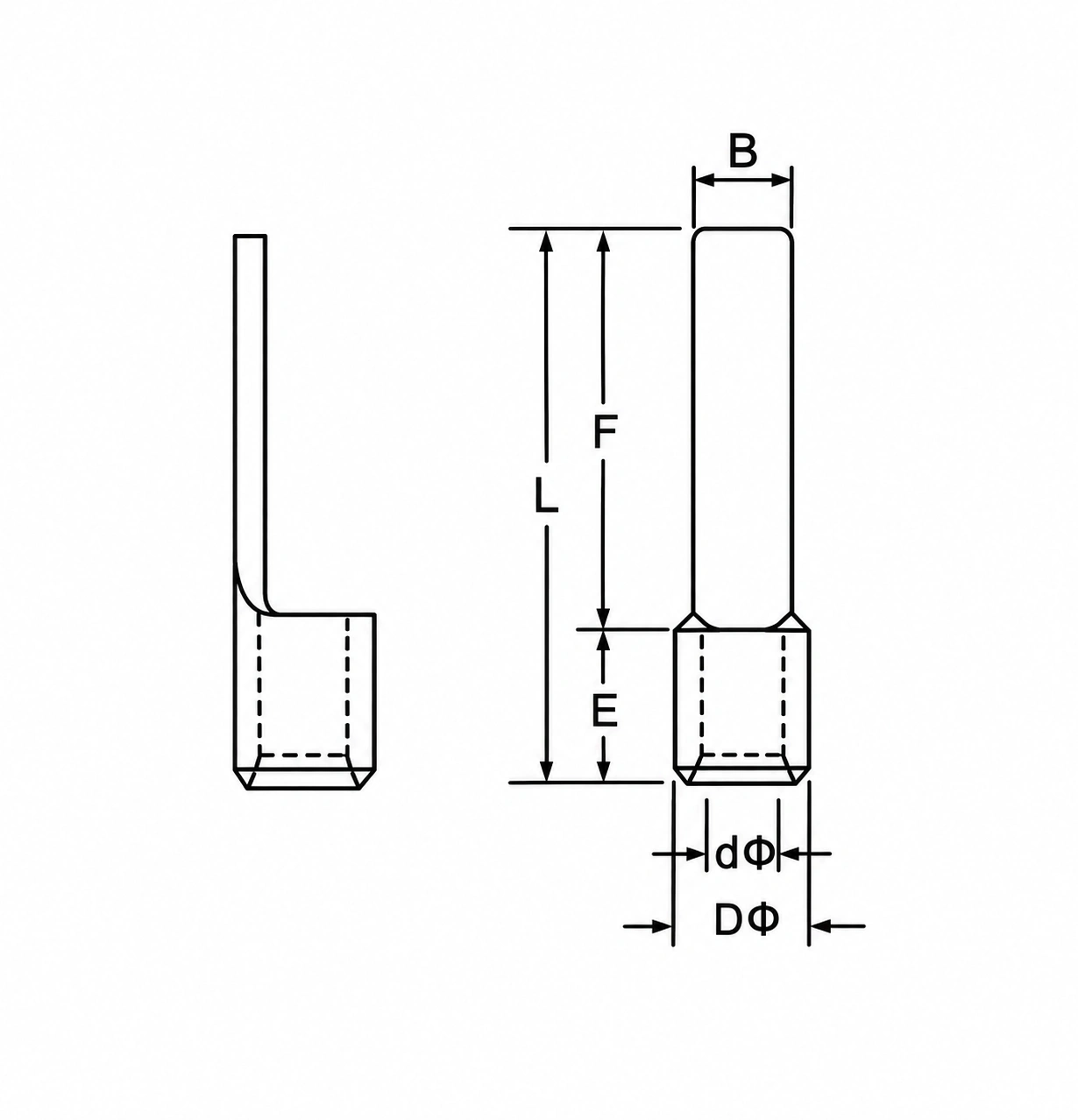

Dimensions are in millimeters unless otherwise indicated. Original model numbers, units and values are preserved. On small screens, scroll each table horizontally.

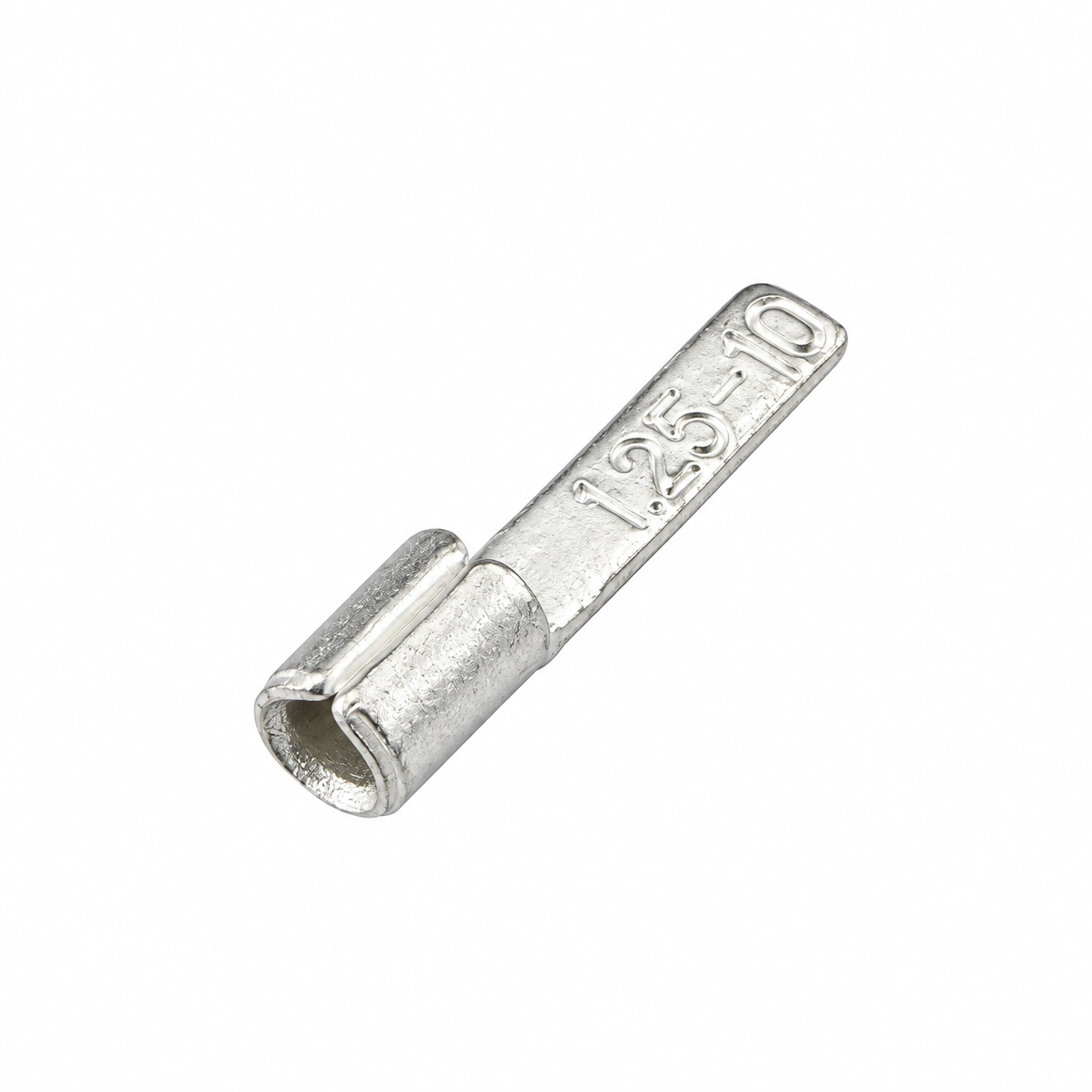

DBN Catalog Group 1
Terminal Material: Copper Plating: Tin Cable size: 0.5-1.5mm²(A.W.G.22-16) Max Current: Imax=19A Thickness: 0.7mm
| Item NO. | Dimension(mm) | |||||
|---|---|---|---|---|---|---|
| B | F | L | E | DΦ | dΦ | |
| DBN1.25-10 | 2.3 | 10.0 | 14.8 | 4.8 | 3.4 | 1.7 |
| DBN1.25-11 | 3.0 | 11.0 | 15.8 | |||
| DBN1.25-14S | 2.4 | 14.0 | 18.8 | |||
| DBN1.25-14L | 3.0 | 14.0 | 18.8 | |||
| DBN1.28-18 | 2.3 | 18.0 | 22.8 | |||

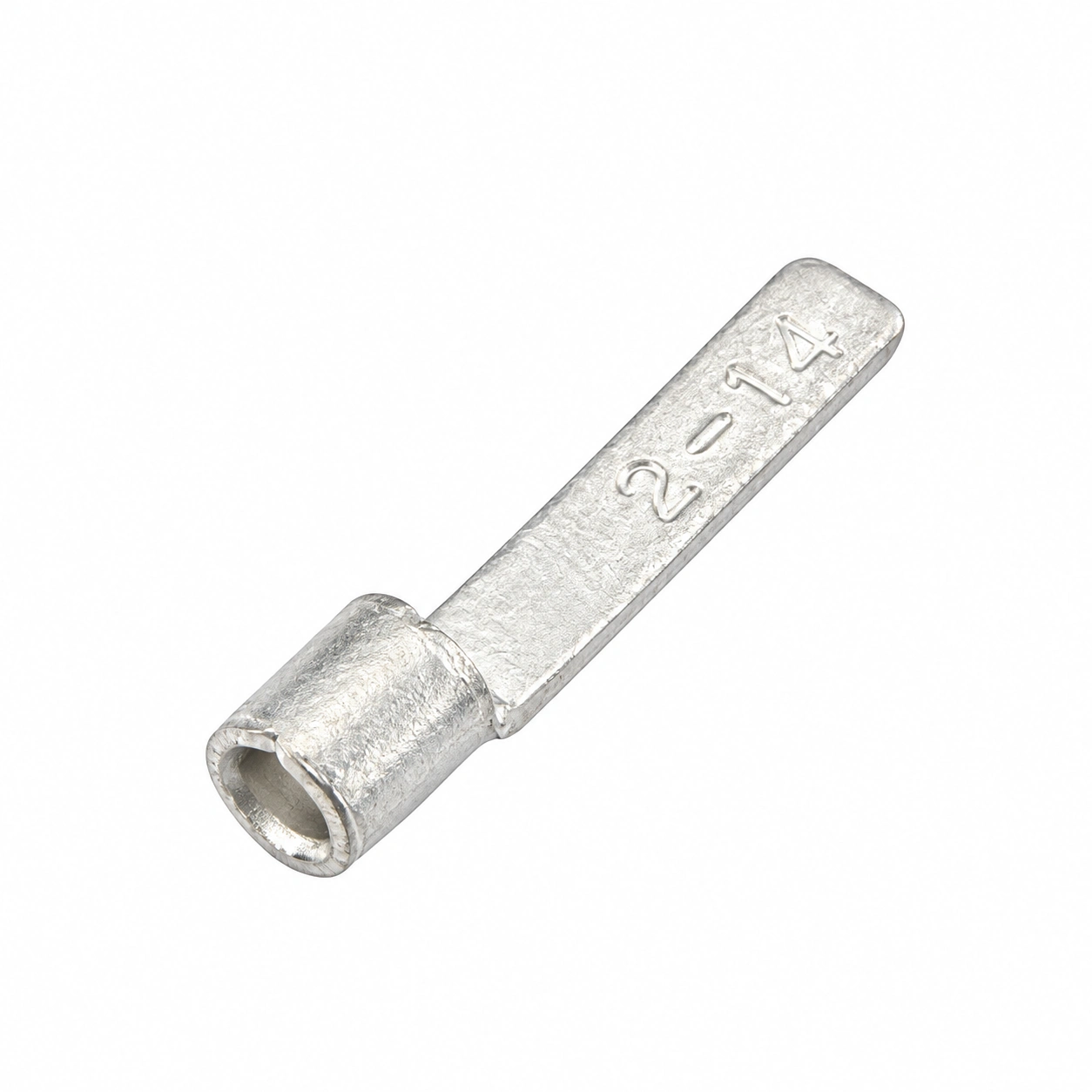

DBN Catalog Group 2
Terminal Material: Copper Plating: Tin Cable size: 1.5-2.5mm²(A.W.G.16-14) Max Current: Imax=27A Thickness: 0.8mm
| Item NO. | Dimension(mm) | |||||
|---|---|---|---|---|---|---|
| B | F | L | E | DΦ | dΦ | |
| DBN2-9 | 2.8 | 9.0 | 13.8 | 4.8 | 4.1 | 2.3 |
| DBN2-10 | 2.8 | 10.0 | 14.8 | |||
| DBN2-14S | 2.4 | 14.0 | 18.8 | |||
| DBN2-14L | 3.0 | 14.0 | 18.8 | |||
| DBN2-18 | 2.3 | 18.0 | 22.8 | |||

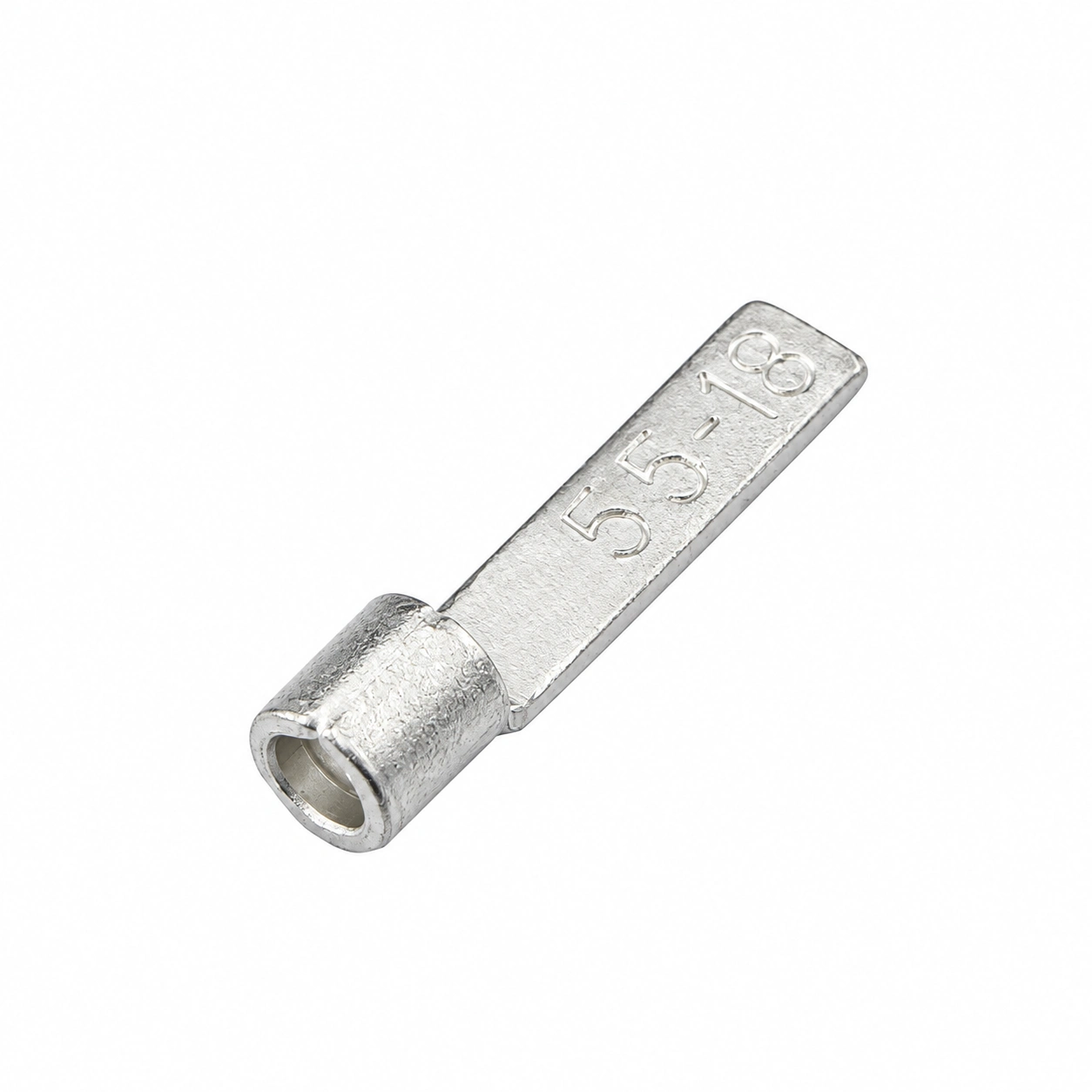

DBN Catalog Group 3
Terminal Material: Copper Plating: Tin Cable size:4.0-6.0mm²(A.W.G.12-10) Max Current:Imax=48A Thickness:1.0mm
| Item NO. | Dimension(mm) | |||||
|---|---|---|---|---|---|---|
| B | F | L | E | DΦ | dΦ | |
| DBN5.5-10 | 2.8 | 10.0 | 16.0 | 6.0 | 5.6 | 3.4 |
| DBN5.5-14 | 4.5 | 14.0 | 20.0 | |||
| DBN5.5-18 | 4.5 | 18.0 | 24.0 | |||
The original catalog lists DBN1.28-18. This reference is retained as supplied; confirm the complete model number when ordering.
Selection Guide
Match the conductor range, blade width B, blade length F and total length L to the receiving terminal. Confirm insertion depth, clamping method and barrel dimensions.
Use an appropriate non-insulated-terminal crimp tool. Confirm crimp settings, pull-out retention, inspection criteria and any required insulation before approving production.
Applications
Potential uses include control-panel wiring and equipment harnesses with a compatible flat blade receiving terminal. Product compatibility and qualification depend on the selected model and the approved assembly.
Ordering Information
Send the complete DBN model number, conductor size, mating-interface details, application and order quantity. Include your sample, inspection and packaging requirements.
Explore TONFUL terminals and connectors or contact TONFUL Electric to discuss the selected model.
Product photographs are high-definition illustrative recreations of the original images. Confirm product configuration against an approved sample.
