Fork Non-Insulated Terminal
Fork Non-Insulated Terminal

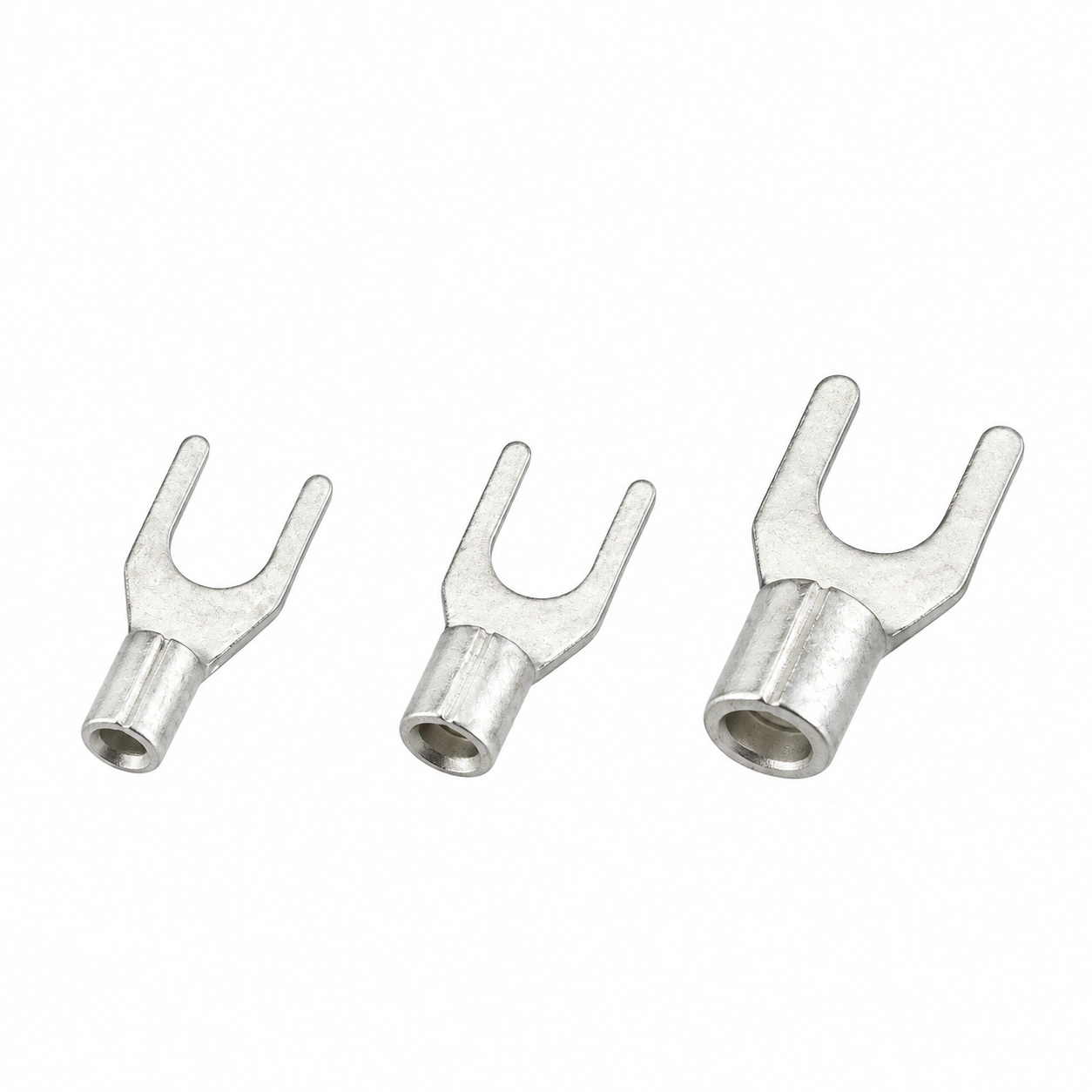

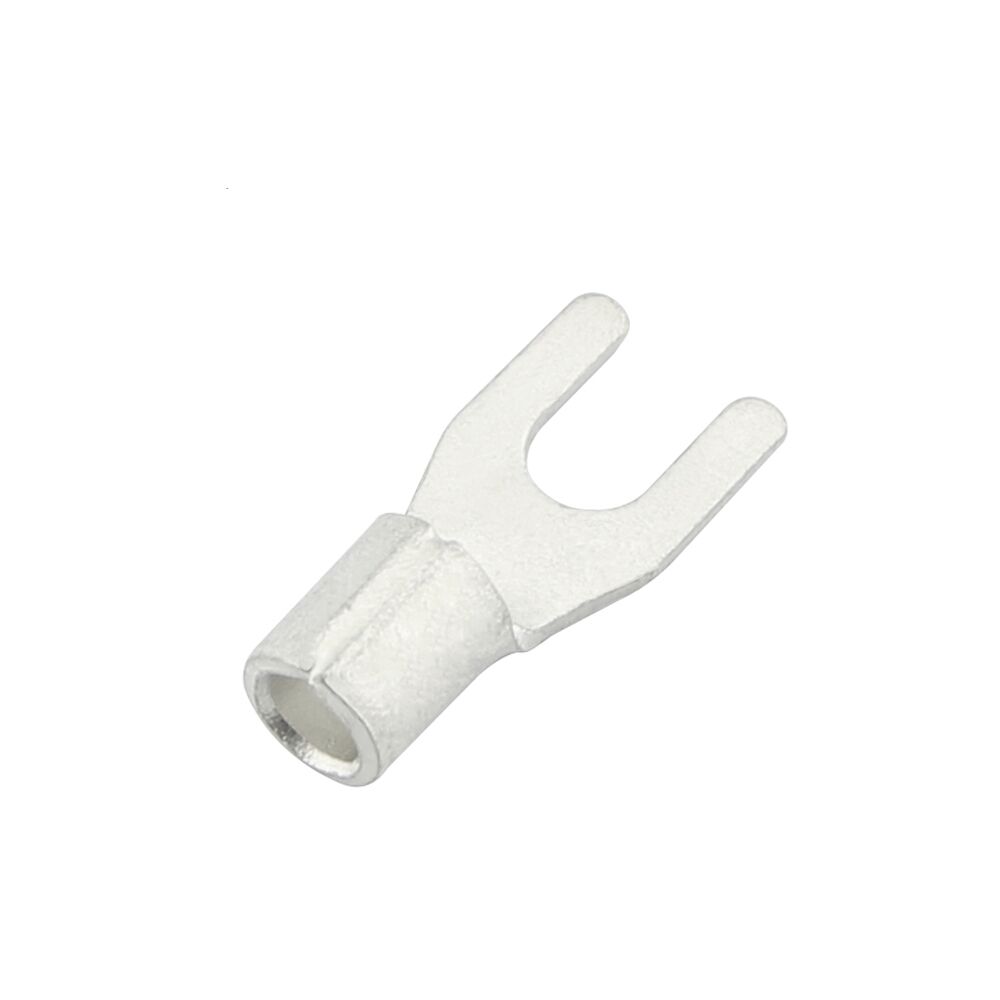

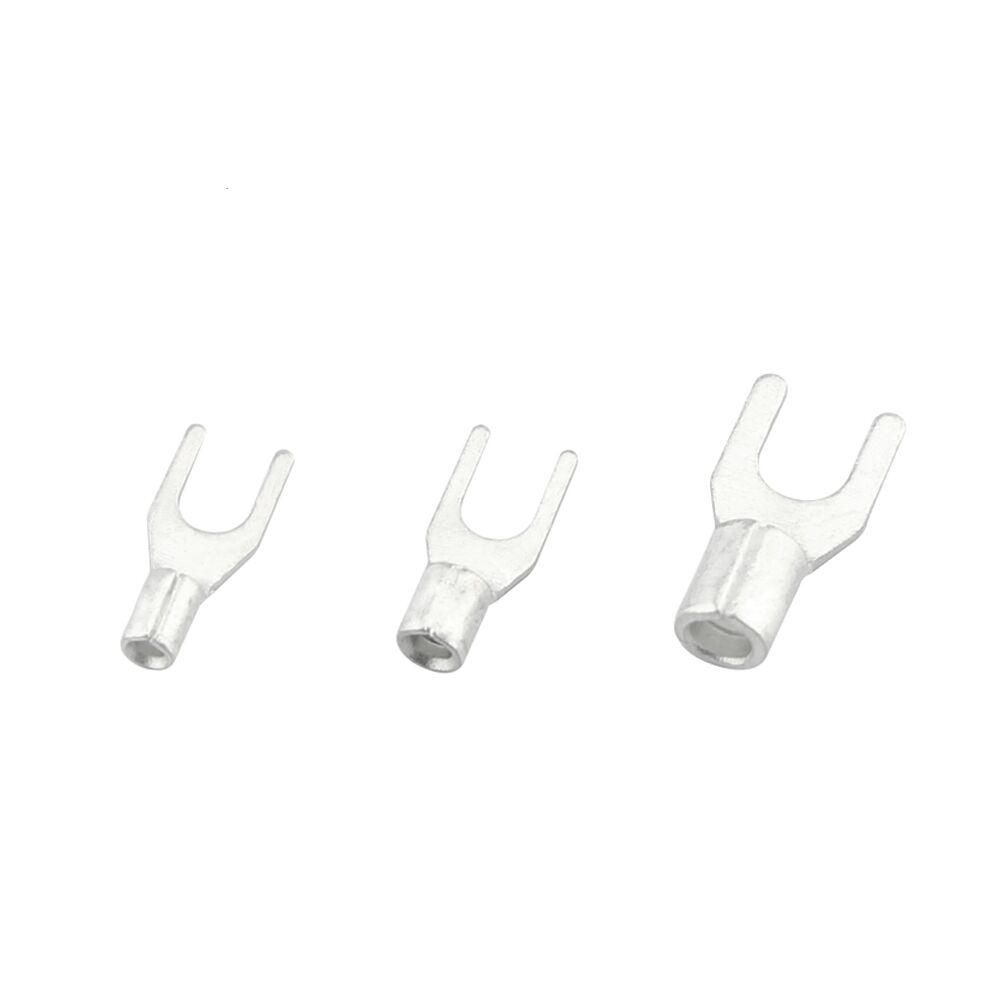

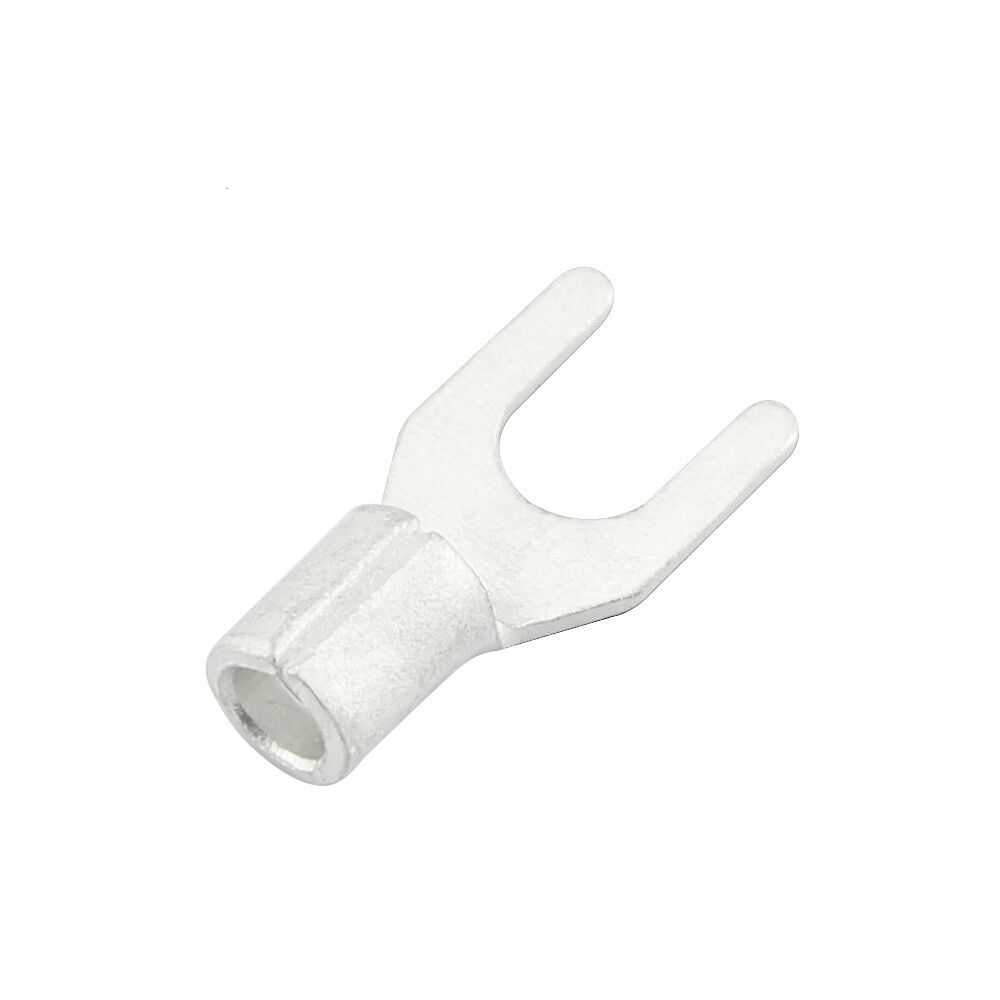

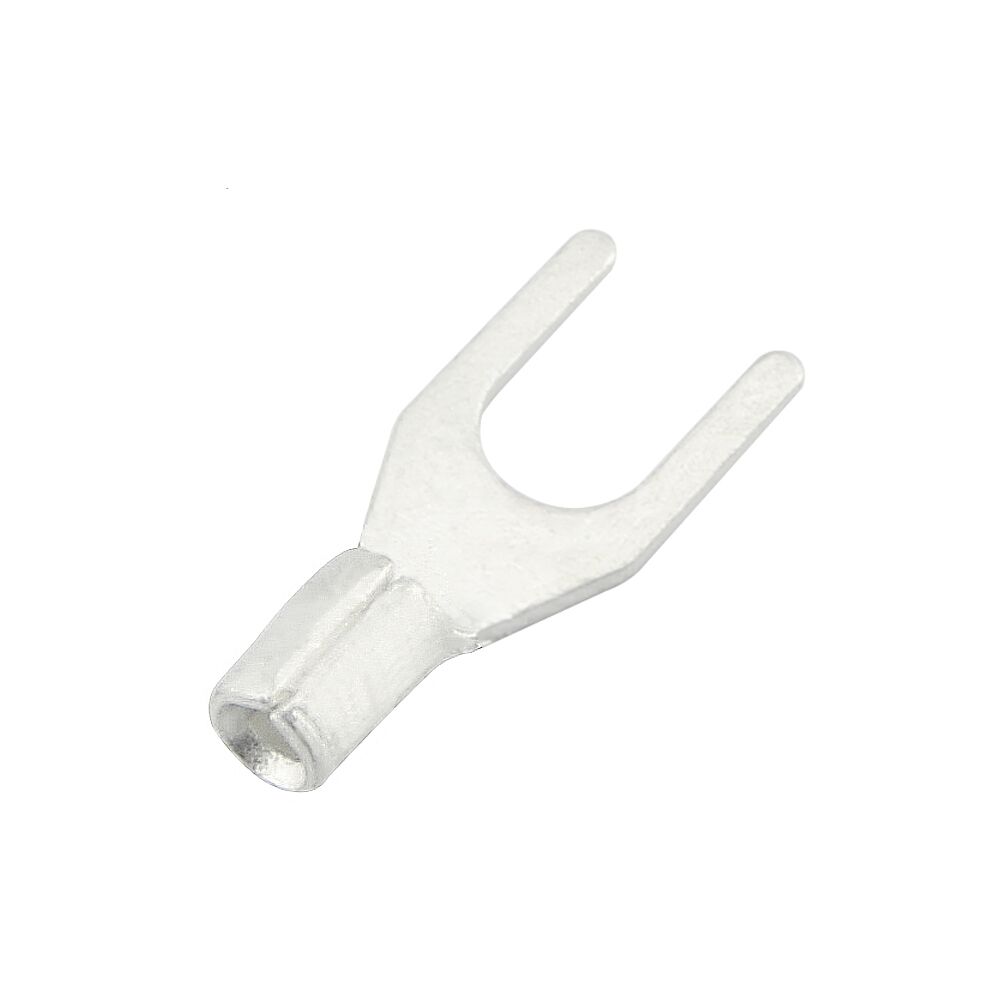

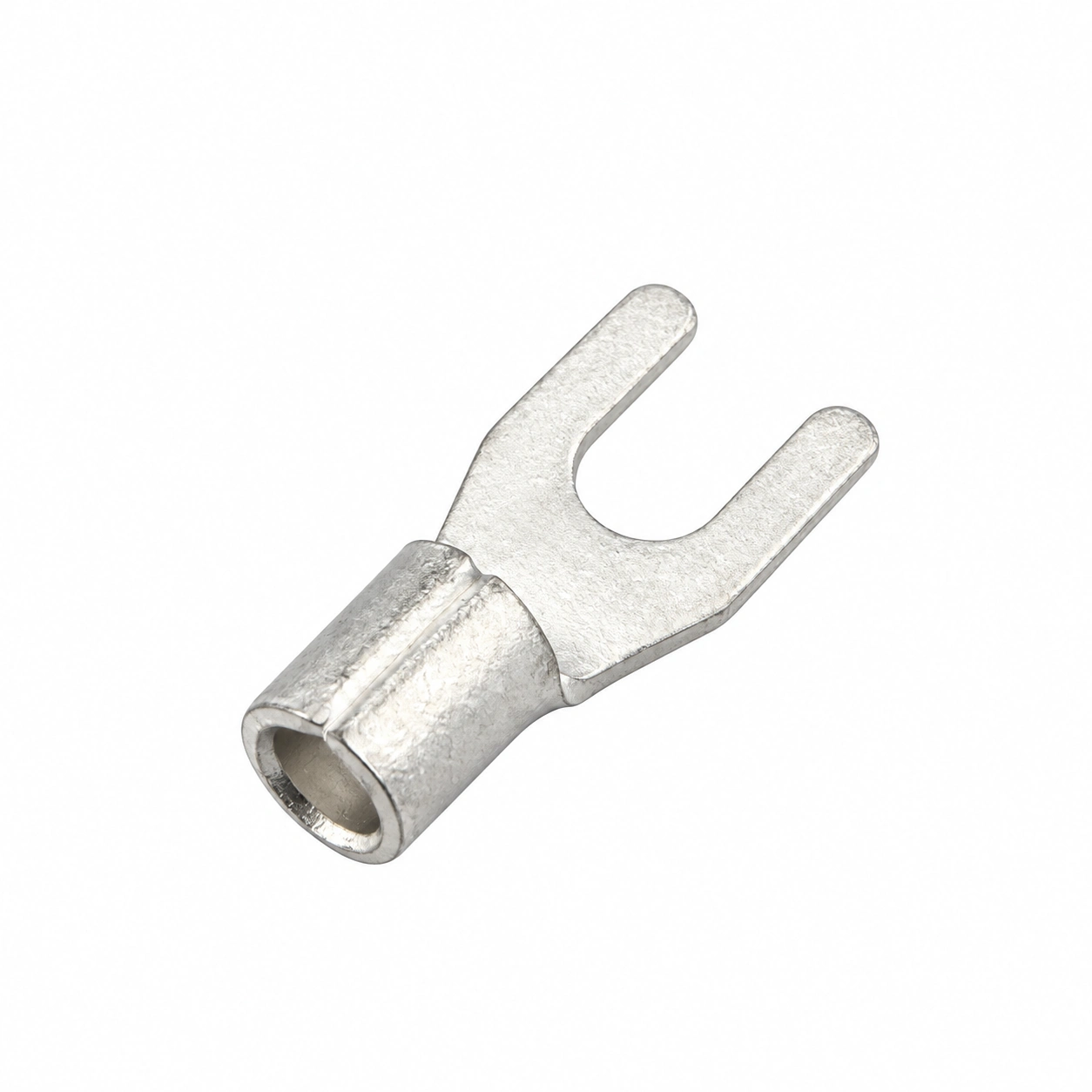

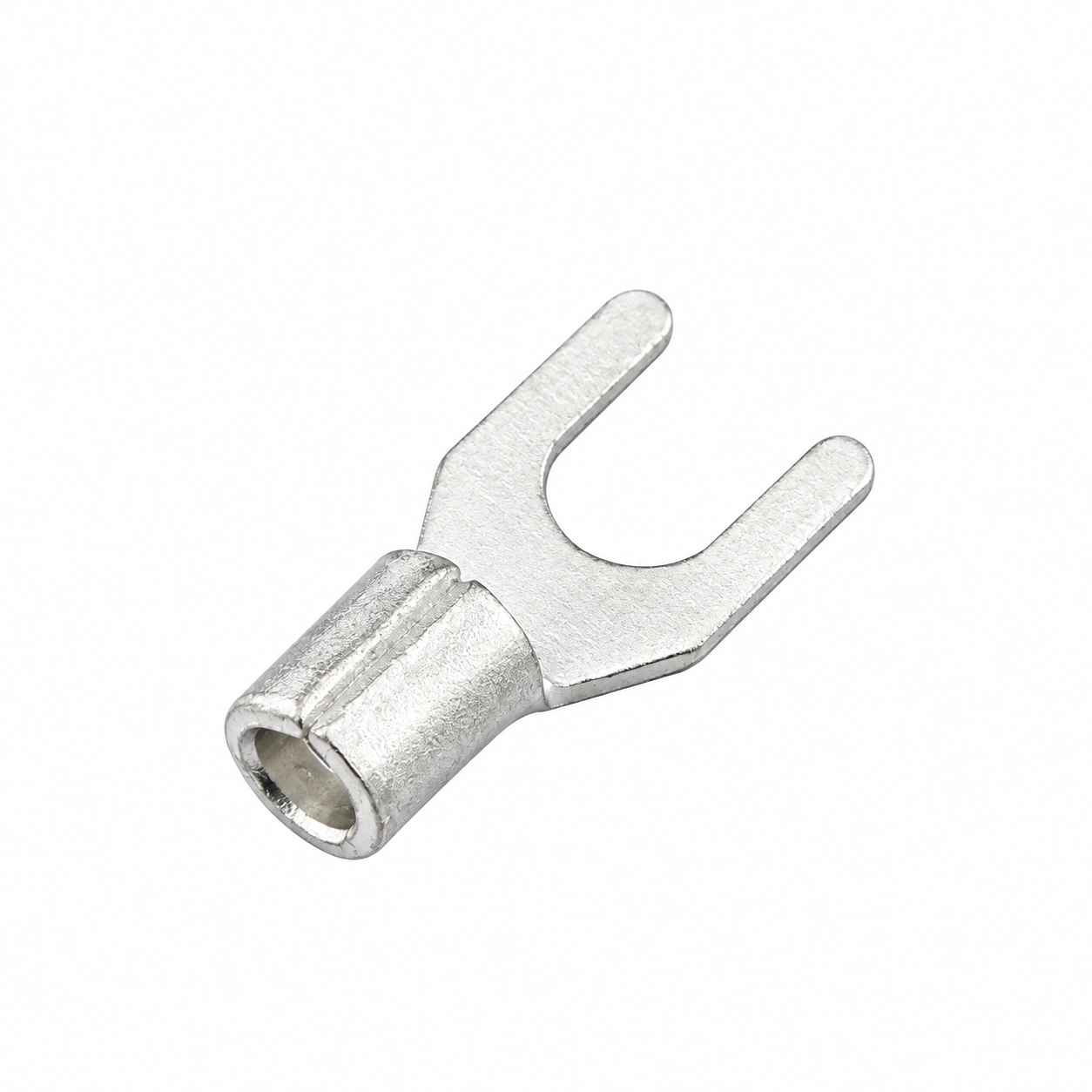

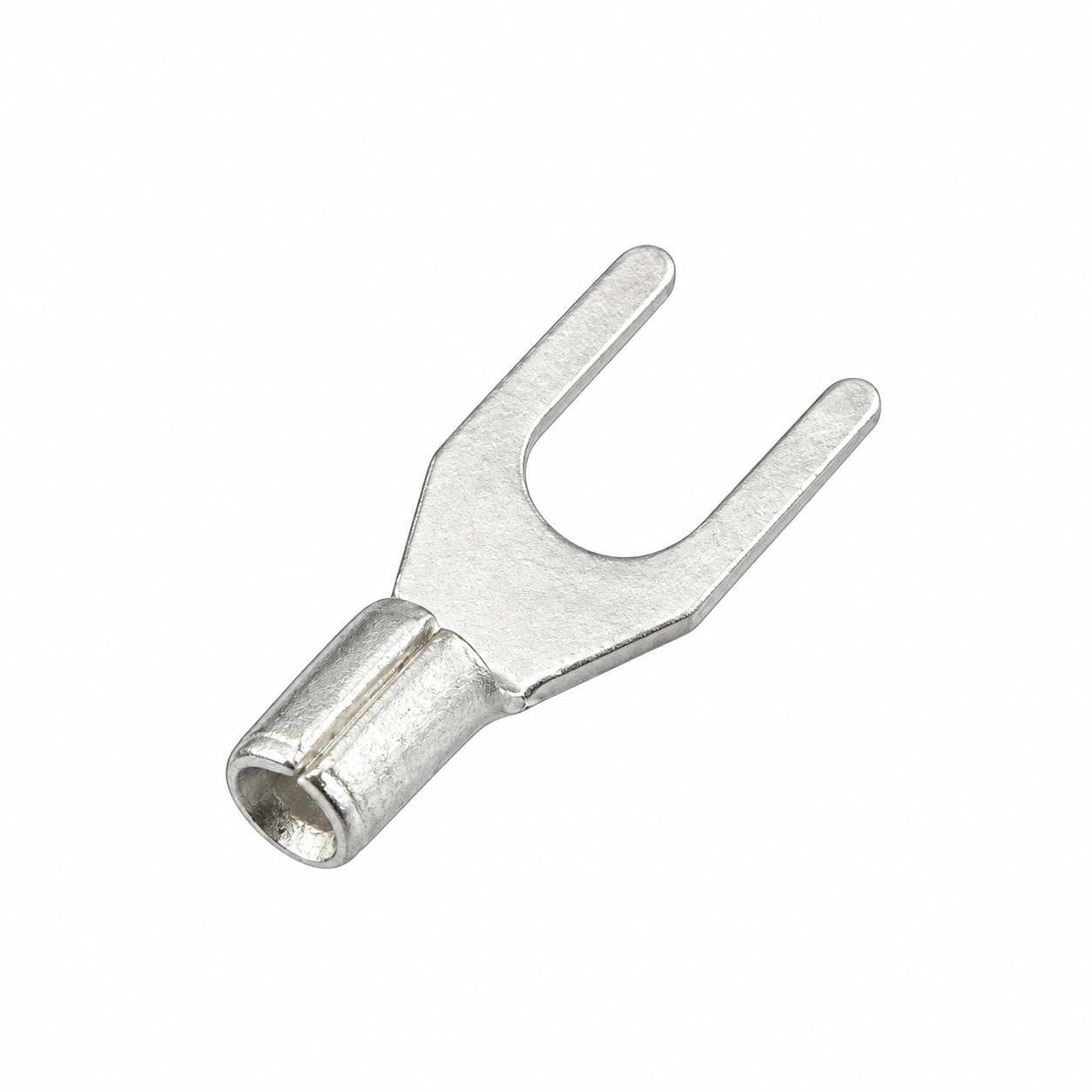

TONFUL SNB fork non-insulated terminals provide an open fork interface and a crimp barrel. Match the bolt diameter, fork dimensions and wire range to your connection.
- SNB series · 43 original catalog models
- Tin-plated copper · non-insulated construction
- Model-specific wire range and dimensions
- Product selection, samples and packaging reviewed with your enquiry
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Overview
TONFUL SNB fork non-insulated terminals provide an open fork interface and a crimp barrel. Match the bolt diameter, fork dimensions and wire range to your connection. The original catalog includes 43 models; all model references and table values are retained below.
The terminal is non-insulated. Confirm insulation or enclosure requirements for the completed assembly against the application and approved design.
Features
- Tin-plated copper: material and finish retained from TONFUL’s original product information.
- Open fork interface: match the contact geometry to your installation.
- Crimp connection: select tooling appropriate for the conductor and barrel.
- Model-specific dimensions: 43 original catalog models available for comparison.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | SNB |
| Contact material | Copper |
| Plating | Tin |
| Insulation | Non-insulated |
| Interface | open fork |
| Catalog models | 43 |
| Wire range and dimensions | See model-specific catalog tables below |
Where listed, current values apply to the catalog group, not every installation. Confirm voltage, temperature, environmental conditions and required documentation for your selected model.

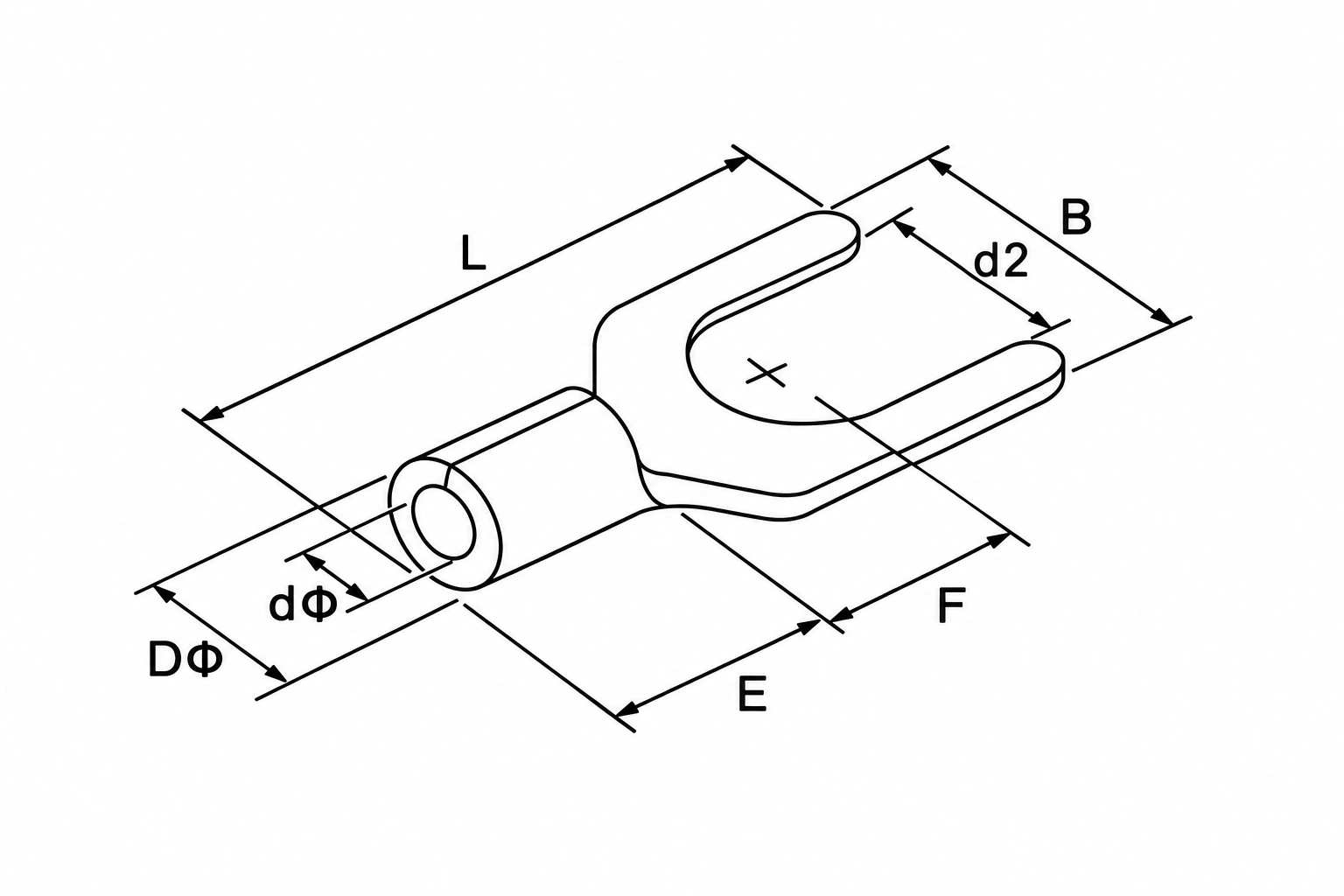

Dimension
Dimensions are in millimeters unless otherwise indicated. Original model numbers, units and values are preserved. On small screens, scroll each table horizontally.
SNB Catalog Group 1
Terminal Material:Copper Plating:Tin Cable size:0.5-1.5mm²(A.W.G.22-16) Max Current:Imax=19A Thickness:0.7mm
| Item NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
|---|---|---|---|---|---|---|---|---|
| B | F | L | E | DΦ | dΦ | |||
| SNB1.25-3 | #4 | 3.2 | 5.7 | 6.5 | 16.0 | 4.8 | 3.4 | 1.7 |
| SNB1.25-3.5S | #6 | 3.7 | 5.7 | 6.5 | 16.0 | |||
| SNB1.25-3.5L | #6 | 3.7 | 6.4 | 6.5 | 16.0 | |||
| SNB1.25-4S | #8 | 4.3 | 6.4 | 6.5 | 16.0 | |||
| SNB1.25-4M | #8 | 4.3 | 7.2 | 6.5 | 16.0 | |||
| SNB1.25-4L | #8 | 4.3 | 8.1 | 6.5 | 16.0 | |||
| SNB1.25-5S | #10 | 5.3 | 8.1 | 6.5 | 16.0 | |||
| SNB1.25-5L | #10 | 5.3 | 9.5 | 6.5 | 16.0 | |||
| SNB1.25-6S | 1/4 | 6.5 | 9.5 | 6.5 | 16.0 | |||
| SNB1.25-6L | 1/4 | 6.5 | 12.0 | 11.0 | 22.0 | |||
| SNB1.25-8 | 5/16 | 8.5 | 14.0 | 12.5 | 23.5 | |||
SNB Catalog Group 2
Terminal Material:Copper Plating:Tin Cable size:1.5-2.5mm²(A.W.G.16-14) Max Current:Imax=27A Thickness:0.8mm
| Item NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
|---|---|---|---|---|---|---|---|---|
| B | F | L | E | DΦ | dΦ | |||
| SNB2-3 | #4 | 3.2 | 5.7 | 6.5 | 16.0 | 4.8 | 4.1 | 2.3 |
| SNB2-3.5S | #6 | 3.7 | 5.7 | 6.5 | 16.0 | |||
| SNB2-3.5L | #6 | 3.7 | 6.4 | 6.5 | 16.0 | |||
| SNB2-4S | #8 | 4.3 | 6.4 | 6.5 | 16.0 | |||
| SNB2-4M | #8 | 4.3 | 7.2 | 6.5 | 16.0 | |||
| SNB2-4L | #8 | 4.3 | 8.1 | 6.5 | 16.0 | |||
| SNB2-5S | #10 | 5.3 | 8.1 | 6.5 | 16.0 | |||
| SNB2-5L | #10 | 5.3 | 9.5 | 6.5 | 16.0 | |||
| SNB2-6S | 1/4 | 6.5 | 9.5 | 6.5 | 16.0 | |||
| SNB2-6L | 1/4 | 6.5 | 12.0 | 11.0 | 22.0 | |||
| SNB2-8 | 5/16 | 8.5 | 14.0 | 12.5 | 23.5 | |||
SNB Catalog Group 3
Terminal Material:Copper Plating:Tin Cable size:2.5-4.0mm²(A.W.G.14-12) Max Current:Imax=37A Thickness:1.0mm
| Item NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
|---|---|---|---|---|---|---|---|---|
| B | F | L | E | DΦ | dΦ | |||
| SNB3.5-3.5 | #6 | 3.7 | 8.0 | 7.0 | 18.3 | 6.0 | 5.0 | 3.0 |
| SNB3.5-4 | #8 | 4.3 | 8.0 | 7.0 | 18.3 | |||
| SNB3.5-5S | #10 | 5.3 | 8.0 | 7.0 | 18.3 | |||
| SNB3.5-6S | 1/4 | 6.5 | 9.0 | 7.5 | 19.5 | |||
| SNB3.5-6 | 1/4 | 6.5 | 12.0 | 12.1 | 21.5 | |||
SNB Catalog Group 4
Terminal Material:Copper Plating:Tin Cable size:4.0-6.0mm²(A.W.G.12-10) Max Current:Imax=48A Thickness:1.0mm
| Item NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
|---|---|---|---|---|---|---|---|---|
| B | F | L | E | DΦ | dΦ | |||
| SNB5.5-3.5 | #6 | 3.7 | 8.3 | 7.5 | 19.5 | 6.0 | 5.6 | 3.4 |
| SNB5.5-4S | #8 | 4.3 | 8.3 | 7.5 | 19.5 | |||
| SNB5.5-4L | #8 | 4.3 | 9.0 | 7.5 | 19.5 | |||
| SNB5.5-5 | #10 | 5.3 | 9.0 | 7.5 | 19.5 | |||
| SNB5.5-6S | 1/4 | 6.5 | 9.0 | 7.5 | 19.5 | |||
| SNB5.5-6L | 1/4 | 6.5 | 12.0 | 12.0 | 25.5 | |||
| SNB5.5-8 | 5/16 | 8.5 | 14.0 | 11.5 | 24.5 | |||
SNB Catalog Group 5
Terminal Material:Copper Plating:Tin Cable size:6.0-10.0mm²(A.W.G.8) Max Current:Imax=62A Thickness:1.2mm
| Item NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
|---|---|---|---|---|---|---|---|---|
| B | F | L | E | DΦ | dΦ | |||
| SNB8-4 | #8 | 4.3 | 8.0 | 7.2 | 23.0 | 8.5 | 7.2 | 4.5 |
| SNB8-5S | #10 | 5.3 | 9.0 | 8.5 | 21.5 | |||
| SNB8-5 | #10 | 5.3 | 10.8 | 7.2 | 23.0 | |||
| SNB8-6 | 1/4 | 6.5 | 10.8 | 7.2 | 23.0 | |||
| SNB8-8 | 5/16 | 8.5 | 14.5 | 10.7 | 28.0 | |||
SNB Catalog Group 6
Terminal Material:Copper Plating:Tin Cable size:10.0-16.0mm²(A.W.G.6) Max Current:Imax=88A Thickness:1.5mm
| Item NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
|---|---|---|---|---|---|---|---|---|
| B | F | L | E | DΦ | dΦ | |||
| SNB14-6 | 1/4 | 6.5 | 11.0 | 10.7 | 28.0 | 10.5 | 9.0 | 5.8 |
| SNB14-8 | 5/16 | 8.5 | 14.0 | 10.7 | 28.0 | |||
SNB Catalog Group 7
Terminal Material:Copper Plating:Tin Cable size:16.0-25.0mm²(A.W.G.4) Max Current:Imax=115A Thickness:1.7mm
| Item NO. | USA Bolt No. | Bolt dia d2(mm) | Dimension(mm) | |||||
|---|---|---|---|---|---|---|---|---|
| B | F | L | E | DΦ | dΦ | |||
| SNB22-6 | 1/4 | 6.5 | 14.0 | 9.5 | 34.5 | 12.0 | 11.5 | 7.7 |
| SNB22-8 | 5-16 | 8.8 | 14.0 | 13.5 | 34.5 | |||
Selection Guide
Select the wire section first, then check bolt diameter d2, fork width B and overall length L. Confirm the screw-terminal arrangement and installation torque for the approved assembly.
Use an appropriate non-insulated-terminal crimp tool. Confirm crimp settings, pull-out retention, inspection criteria and any required insulation before approving production.
Applications
Potential uses include compatible screw-terminal connections in control panels, electrical equipment and wire harness assemblies. Product compatibility and qualification depend on the selected model and the approved assembly.
Ordering Information
Send the complete SNB model number, conductor size, mating-interface details, application and order quantity. Include your sample, inspection and packaging requirements.
